tire pressure Lexus GS F 2019 Owner's Manuals

5
1
8 7
6
5
4
3
2
GS F_OM_OM30G90U_(U)
9
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................. 371
Hood ............................................... 373
Positioning a floor jack ............ 374
Engine compartment ............... 376
Tires ................................................. 393
Tire inflation pressure .............. 403
Wheels ........................................... 406
Air conditioning filter ...............408
Electronic key battery............... 410
Checking and replacing fuses................................................412
Headlight aim (vehicles with single-beam head lights) ........416
Light bulbs ..................................... 418
7-1. Essential information Emergency flashers .................. 424
If your vehicle has to be stopped in an
emergency ................................ 425 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ............................... 426
If you think something is wrong................ 432
Fuel pump shut off system...... 433
If a warning light turns on or a warning buzzer
sounds ......................................... 434
If a warning message is displayed ......................................441
If you have a flat tire (vehicles with spare tire) ..........................472
If you have a flat tire (vehicles without spare tire) .................. 483
If the engine will not start ........ 497
If the parking brake cannot be released................................ 499
If the electronic key does not operate properly...................... 501
If the vehicle battery is discharged................................. 504
If your vehicle overheats......... 509
If the vehicle becomes stuck .............................................. 515
7When trouble arises

15Pictorial index
GS F_OM_OM30G90U_(U)

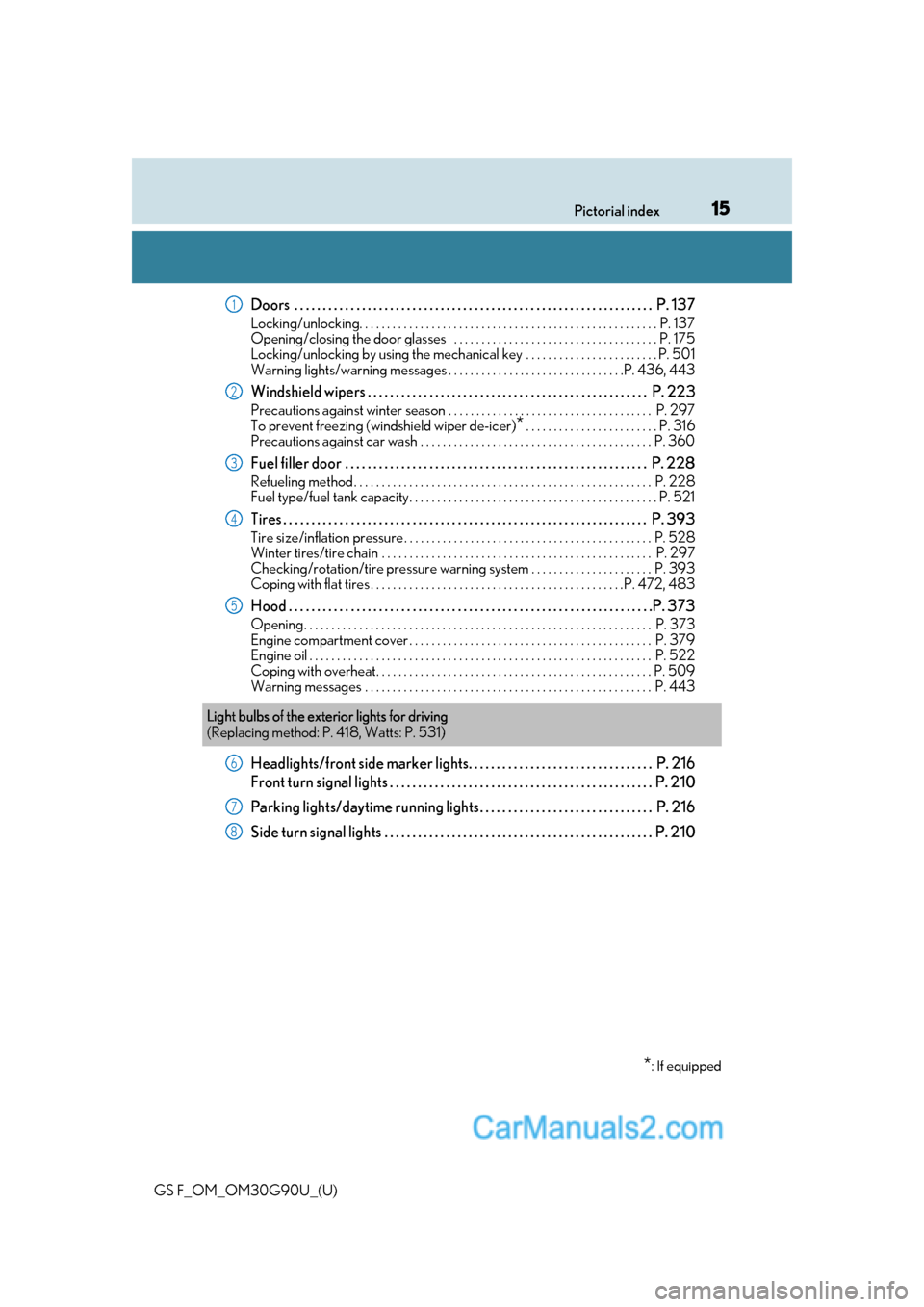

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Locking/unlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 436, 443
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 297
To prevent freezing (windshield wiper de-icer)*. . . . . . . . . . . . . . . . . . . . . . . . P. 316
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 528
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 29 7
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . P. 393
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 472, 483
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 373
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 373
Engine compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 443
Headlights/front side marker lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Parking lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
1
2
3
4
5
Light bulbs of the exte rior lights for driving
(Replacing method: P. 418, Watts: P. 531)
*: If equipped
6
7
8

GS F_OM_OM30G90U_(U)

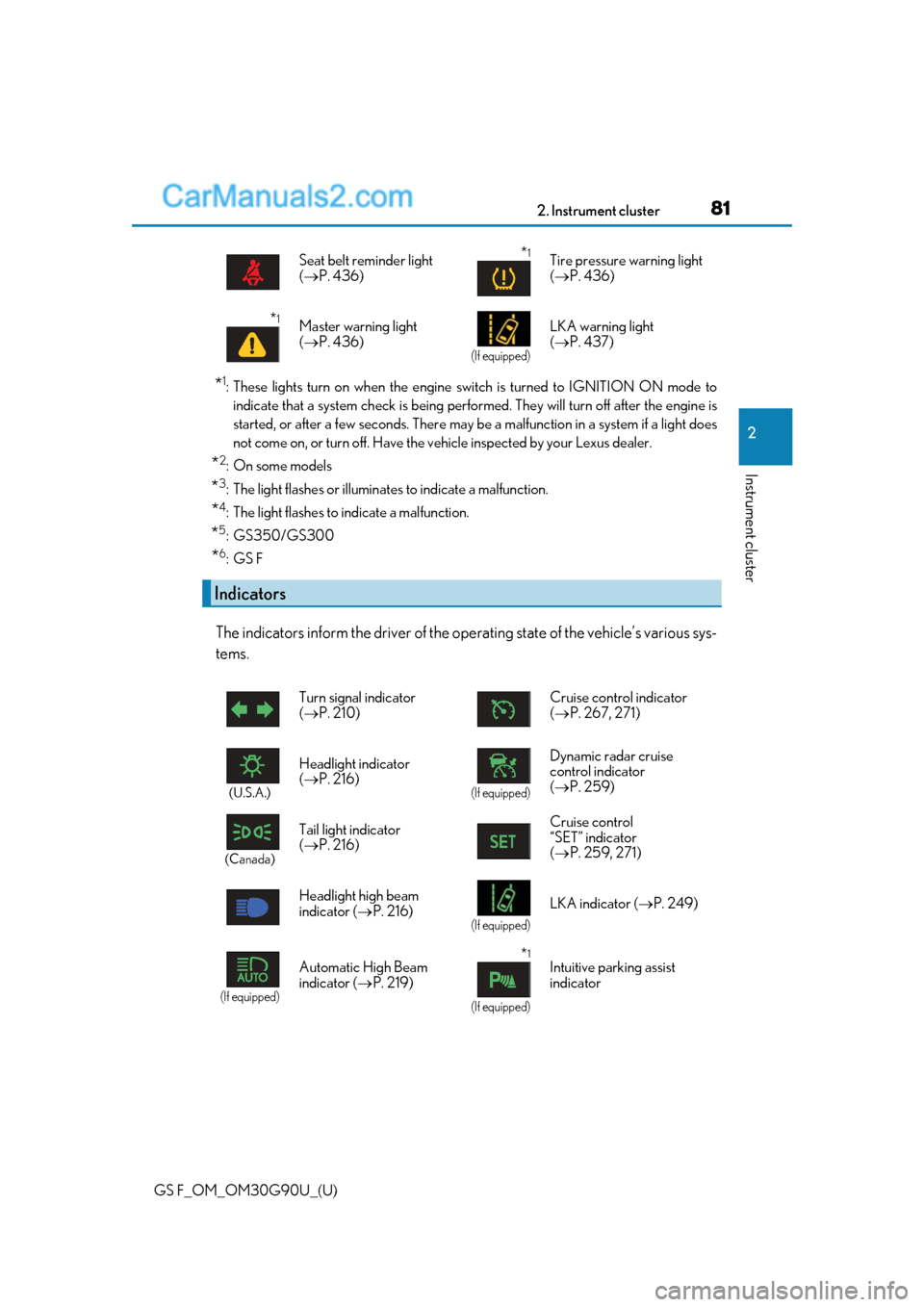

812. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the ve hicle inspected by your Lexus dealer.
*2:On some models
*3: The light flashes or illuminates to indicate a malfunction.
*4: The light flashes to indicate a malfunction.
*5: GS350/GS300
*6:GS F
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
Seat belt reminder light
(  P. 436)*1Tire pressure warning light
( P. 436)
*1Master warning light
( P. 436)
(If equipped)
LKA warning light
( P. 437)
Indicators
Turn signal indicator
( P. 210) Cruise control indicator
(
 P. 267, 271)
(U.S.A.)
Headlight indicator
( P. 216)
(If equipped)
Dynamic radar cruise
control indicator
( P. 259)
(Canada)
Tail light indicator
( P. 216) Cruise control
“SET” indicator
(
 P. 259, 271)
Headlight high beam
indicator ( P. 216)
(If equipped)
LKA indicator ( P. 249)
(If equipped)
Automatic High Beam
indicator (P. 219)*1
(If equipped)
Intuitive parking assist
indicator

104
GS F_OM_OM30G90U_(U)2. Instrument cluster

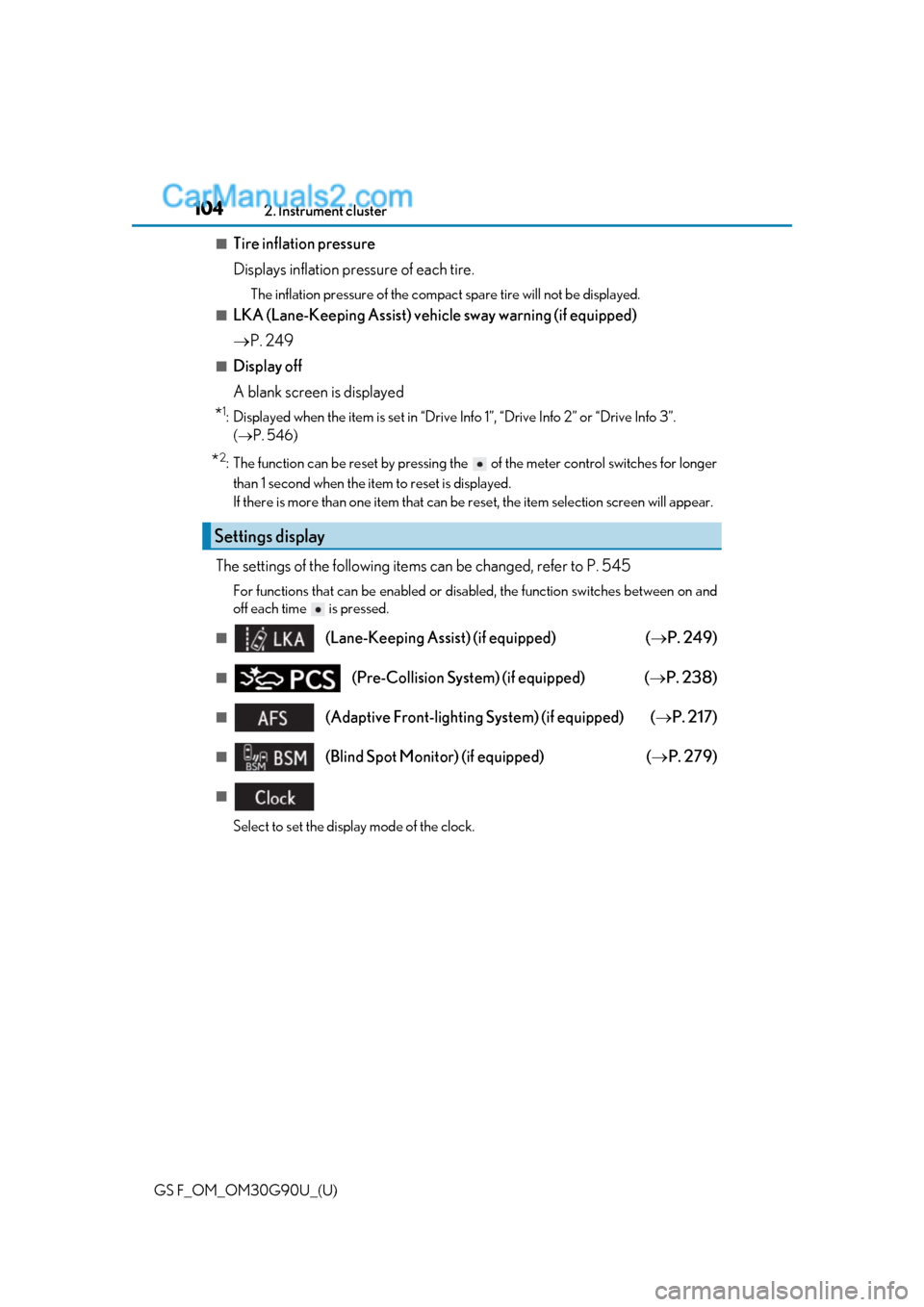

■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the compac
t spare tire will not be displayed.
■LKA (Lane-Keeping Assist) vehicle sway warning (if equipped)
 P. 249
■Display off
A blank screen is displayed
*1: Displayed when the item is se t in “Drive Info 1”, “Drive Info 2” or “Drive Info 3”.
(  P. 546)
*2: The function can be reset by pressing th e of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
The settings of the following items can be changed, refer to P. 545
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane-Keeping Assist) (if equipped) ( P. 249)
■(Pre-Collision System) (if equipped) ( P. 238)
■(Adaptive Front-lighting System) (if equipped) ( P. 217)
■(Blind Spot Monitor) (if equipped) ( P. 279)
■
Select to set the display mode of the clock.
Settings display

GS F_OM_OM30G90U_(U)

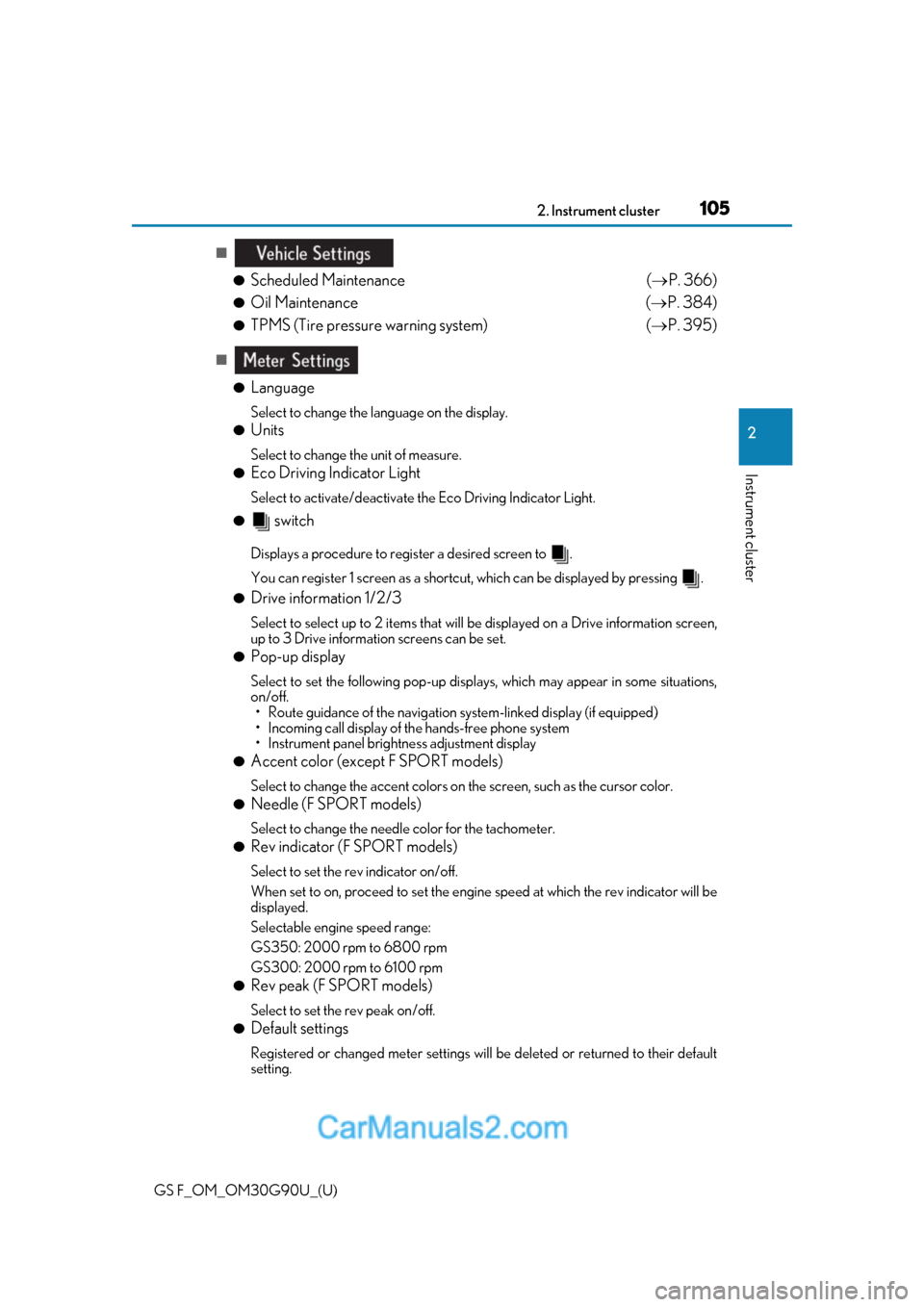

1052. Instrument cluster
2
Instrument cluster
■●
Scheduled Maintenance ( P. 366)
●Oil Maintenance ( P. 384)
●TPMS (Tire pressure warning system) ( P. 395)
■
●
Language
Select to change the la nguage on the display.
●Units
Select to change the unit of measure.
●Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
● switch
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut , which can be displayed by pressing .
●Drive information 1/2/3
Select to select up to 2 items that will be displayed on a Drive information screen,
up to 3 Drive informat ion screens can be set.
●Pop-up display
Select to set the following pop-up displays, which may appear in some situations,
on/off.
• Route guidance of the navigation system-linked display (if equipped)
• Incoming call display of the hands-free phone system
• Instrument panel brightness adjustment display
●Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor color.
●Needle (F SPORT models)
Select to change the needle color for the tachometer.
●Rev indicator (F SPORT models)
Select to set the rev indicator on/off.
When set to on, proceed to set the engine speed at which the rev indicator will be
displayed.
Selectable engine speed range:
GS350: 2000 rpm to 6800 rpm
GS300: 2000 rpm to 6100 rpm
●Rev peak (F SPORT models)
Select to set the rev peak on/off.
●Default settings
Registered or changed meter settings will be deleted or returned to their default
setting.

106
GS F_OM_OM30G90U_(U)2. Instrument cluster

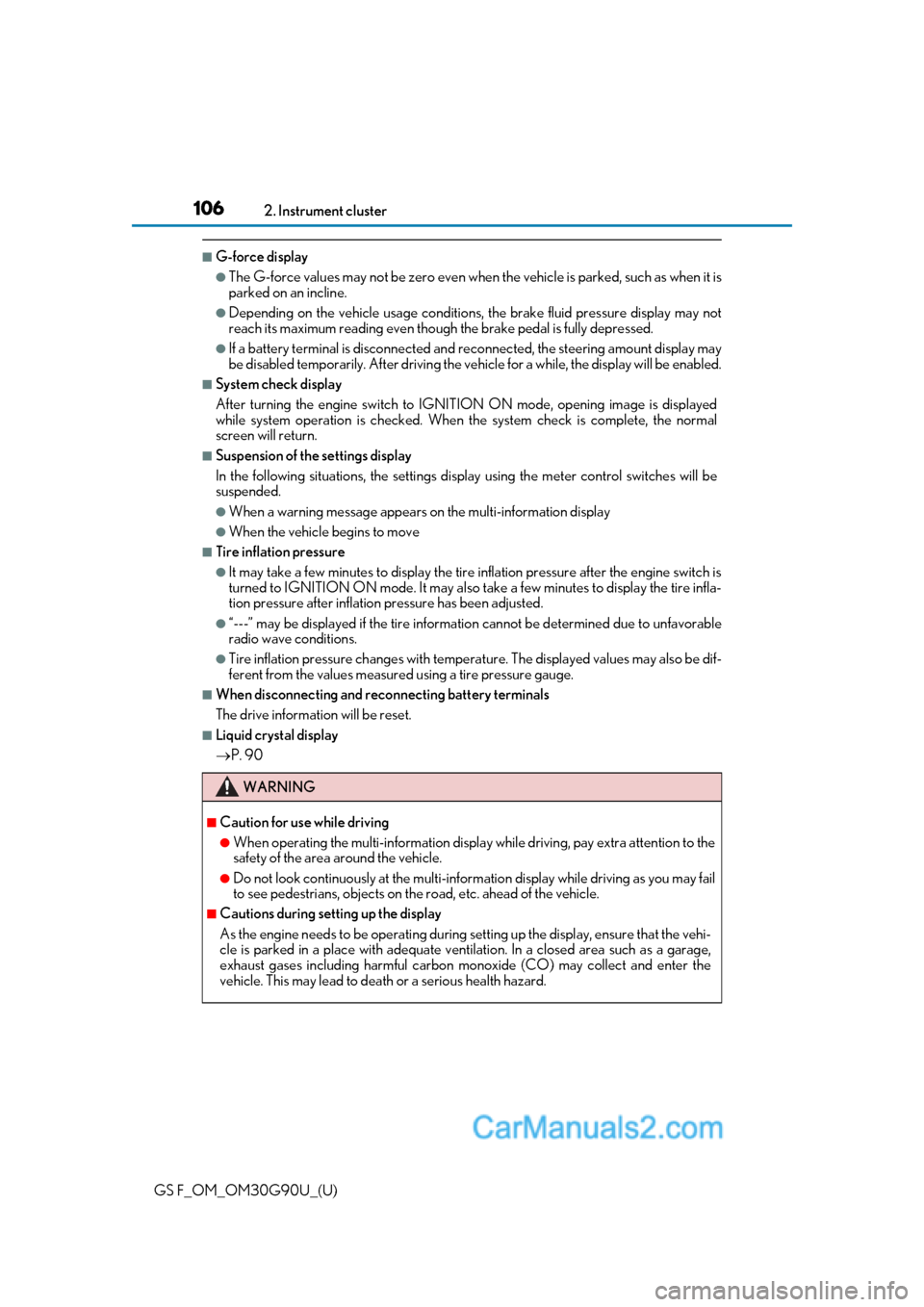

■G-force display
●The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a battery terminal is disconnected and
reconnected, the steering amount display may
be disabled temporarily. Afte r driving the vehicle for a while , the display will be enabled.
■System check display
After turning the engine switch to IGNITI ON ON mode, opening image is displayed
while system operation is checked. When the system check is complete, the normal
screen will return.
■Suspension of the settings display
In the following situations, the settings disp lay using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting battery terminals
The drive information will be reset.
■Liquid crystal display
 P. 90
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-info rmation display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.
■Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure that the vehi-
cle is parked in a place with adequate ventil ation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.

110
GS F_OM_OM30G90U_(U)2. Instrument cluster

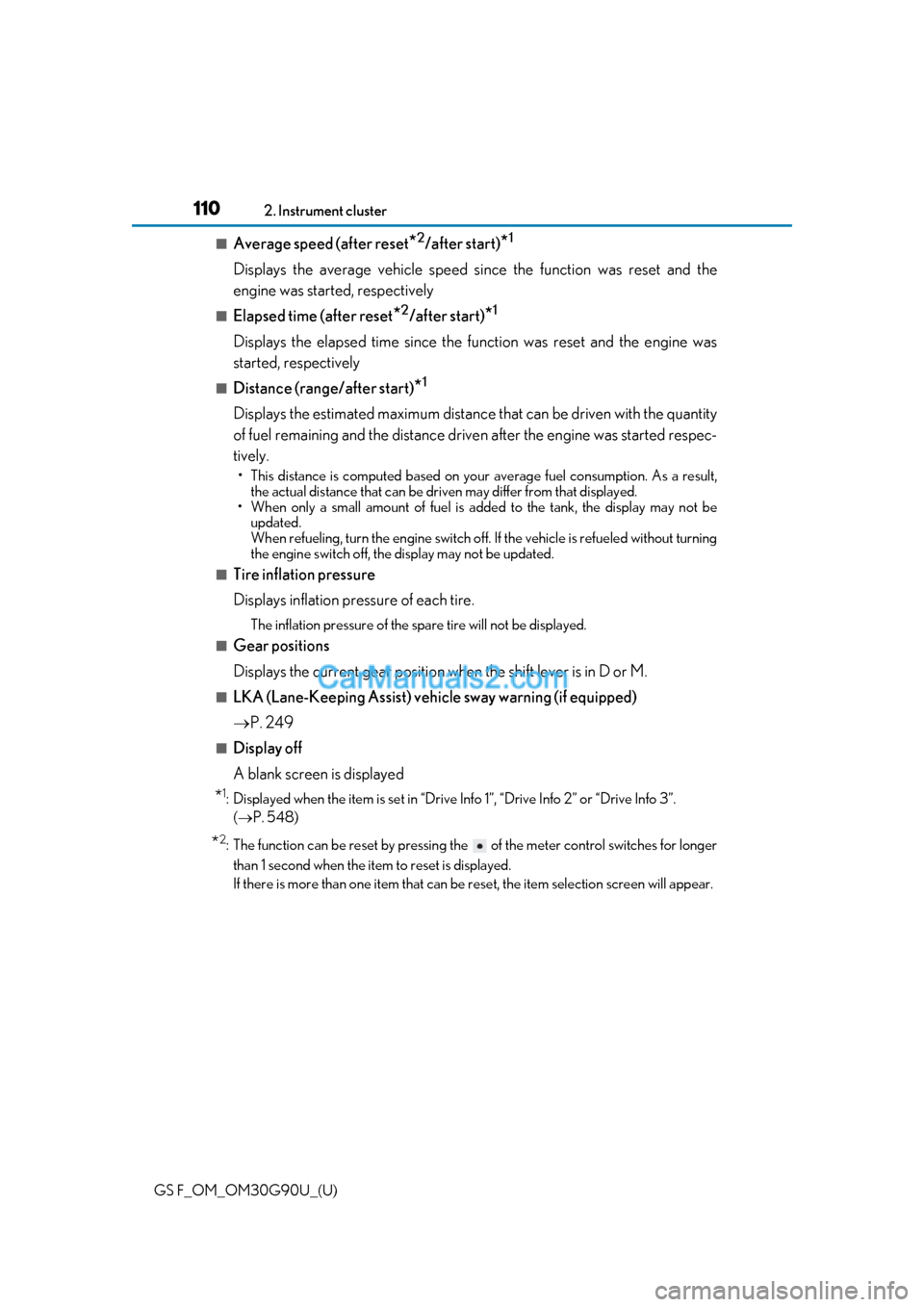

■Average speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
■Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the engine was
started, respectively
■Distance (range/after start)*1
Displays the estimated maximum distance
that can be driven with the quantity
of fuel remaining and the distance driv en after the engine was started respec-
tively.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driv en may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning
the engine switch off, the display may not be updated.
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will not be displayed.
■Gear positions
Displays the current gear position when the shift lever is in D or M.
■LKA (Lane-Keeping Assist) vehicl e sway warning (if equipped)
 P. 249
■Display off
A blank screen is displayed
*1: Displayed when the item is se t in “Drive Info 1”, “Drive Info 2” or “Drive Info 3”.
(  P. 548)
*2: The function can be reset by pressing th e of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.

GS F_OM_OM30G90U_(U)
1112. Instrument cluster
2
Instrument cluster

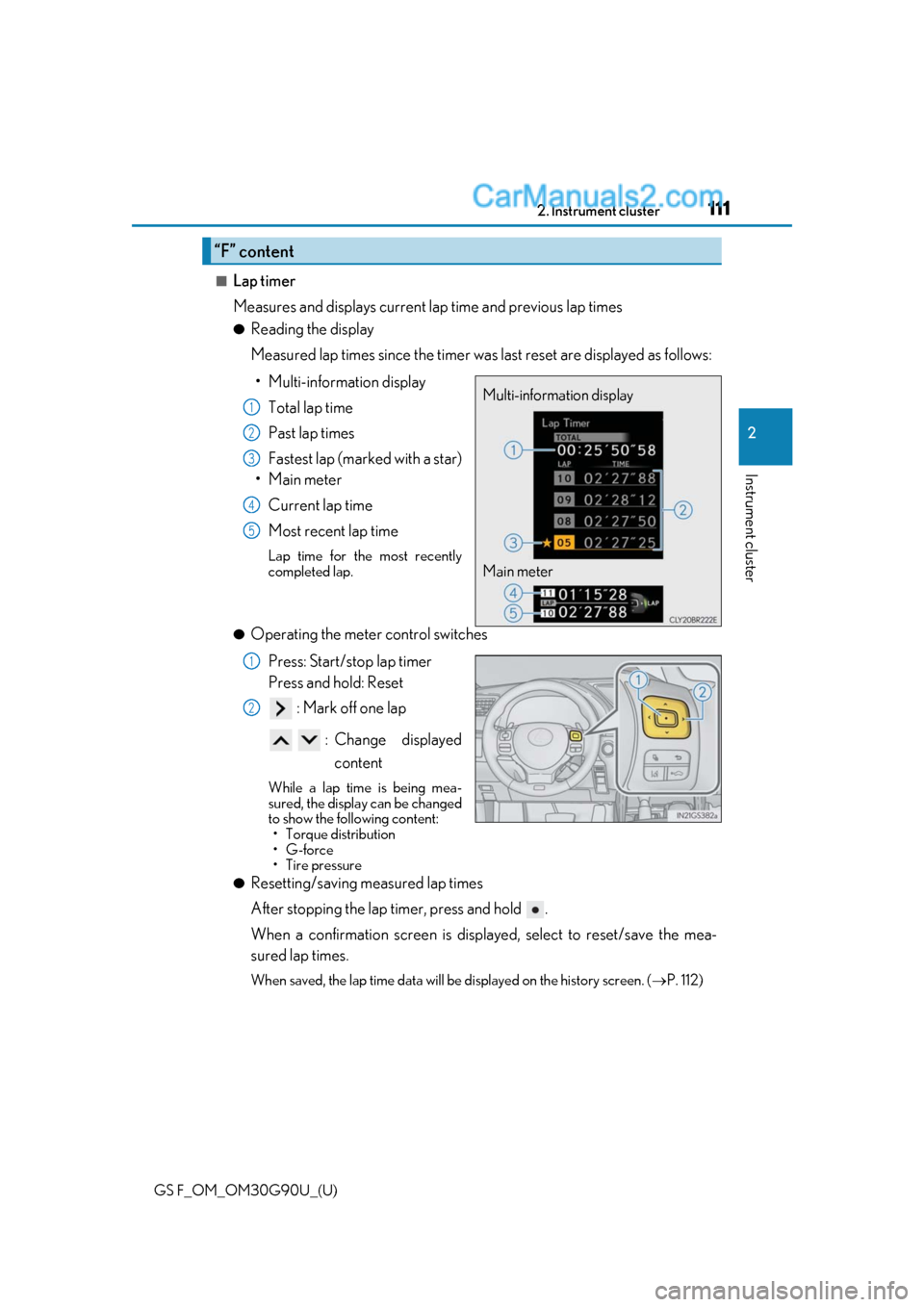

■Lap timer
Measures and displays current lap time and previous lap times
●Reading the display
Measured lap times since the timer was last reset are displayed as follows:
• Multi-information display Total lap time
Past lap times
Fastest lap (marked with a star)
•Main meter
Current lap time
Most recent lap time
Lap time for the most recently
completed lap.
●Operating the meter control switches
Press: Start/stop lap timer
Press and hold: Reset : Mark off one lap
: Change displayed content
While a lap time is being mea-
sured, the display can be changed
to show the following content:• Torque distribution
•G-force
• Tire pressure
●Resetting/saving measured lap times
After stopping the lap timer, press and hold .
When a confirmation screen is displa yed, select to reset/save the mea-
sured lap times.
When saved, the lap time data will be displayed on the history screen. ( P. 112)
“F” content
Multi-information display
Main meter1
2
3
4
5
1
2

GS F_OM_OM30G90U_(U)
1152. Instrument cluster
2
Instrument cluster
●Switching the display
To switch to advanced display, press .
To return to normal display, press .
●Resetting the record of maximum G-forces
With the record of maximum G-forces displayed, press and hold to
reset the display.
●Peak hold function (advanced display only)
If lateral G-forces of 0.5 G or
greater are generated, the G-
force value displayed on the main
meter will turn yellow and be held
for 3 seconds.
■Tire inflation pressure
Displays the tire inflation pressure ( P. 394)
Unlike the tire pressure display on the drive information menu, the tire inflation
pressure display of the “F” content menu can be displayed while lap time is being
measured.

116
GS F_OM_OM30G90U_(U)2. Instrument cluster
The settings of the following items can be changed, refer to P. 545
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane-Keeping Assist) (if equipped)
( P. 249)
■(Pre-Collision System) (if equipped) ( P. 238)
■(Blind Spot Monitor) (if equipped) ( P. 279)
■( P. 95)
• Display of the indicator can be turned on or off.
• The speed at which the indicator is displayed can be set.
Selectable speed range:
30 mph to 100 mph (50 km/h to 160 km/h)
*
*
: Always observe the legal speed limi t when driving on public roads.
■
●
Scheduled Maintenance ( P. 366)
●TPMS (Tire pressure warning system) (if equipped) ( P. 395)
■
●
Language
Select to change the la nguage on the display.
●Units
Select to change the unit of measure.
●Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light
● switch
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut , which can be displayed by pressing .
●Drive information 1/2/3
Select to select up to 2 items that will be displayed on a Drive information screen,
up to 3 Drive informat ion screens can be set.
Settings display
