96
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display or the odometer/trip meter/maintenance required information screen.
Some pop-up displays can be set on/off. ( P. 543)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Clock settings
■Customization
The meter display can be customized on the multi-information display.
(Customizable features: P. 542)
If the screen shown to the right is displayed
when trying to change the time display method
through ( P. 106) on the multi-infor-
mation display, the system may be malfunction-
ing.
Have the vehicle inspected by your Lexus
dealer.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

110
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
The settings of the following items can be changed, refer to P. 542
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane-Keeping Assist) (if equipped)
( P. 256)
■(Pre-Collision System) (if equipped) ( P. 245)
■(Adaptive Front-lighting System) (if equipped) ( P. 223)
■(Blind Spot Monitor) (if equipped) ( P. 286)
■
Select to set the display mode of the clock.
■
●
Scheduled Maintenance ( P. 371)
●Oil Maintenance ( P. 387)
●TPMS (Tire pressure warning system) ( P. 396)
Settings display

502
GS350_GS F_OM_OM30J07U_(U)7-2. Steps to take in an emergency
If the electronic key does not operate properly
■Doors
Use the mechanical key (
P. 139)
in order to perform the following
operations:
Locks all the doors
Closes the windows and moon
roof
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof* (turn and hold)
*: This setting must be custom ized at your Lexus dealer.
■Trunk
Turn the mechanical key clockwise
to open.
If communication between the electronic key and vehicle is interrupted
( P. 158) or the electronic key ca nnot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In su ch cases, the doors and trunk can be
opened and the engine can be started by following the procedure below.
Locking and unlocking the doors, unlocking the trunk and key linked
functions
1
2
3
4

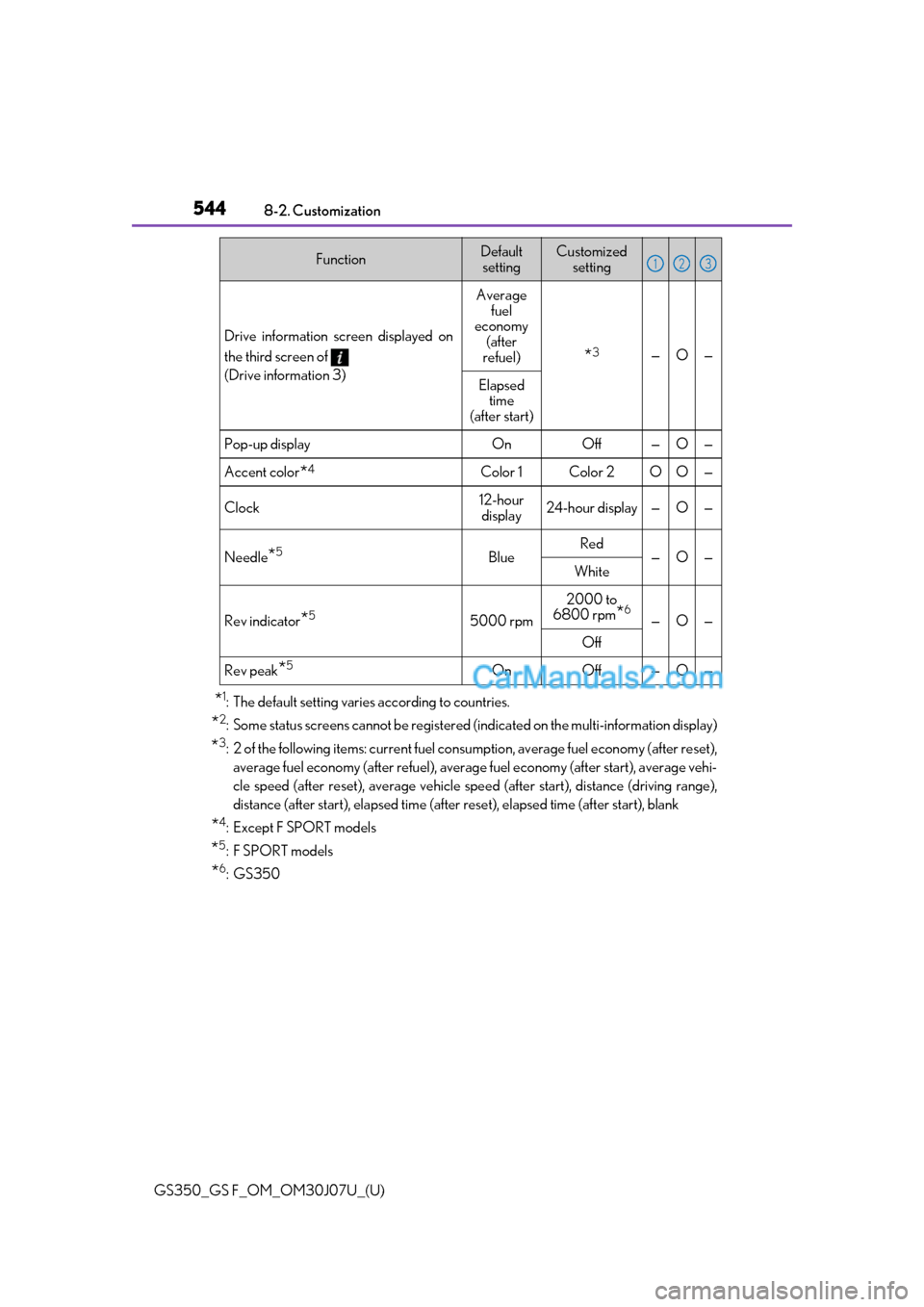

544
GS350_GS F_OM_OM30J07U_(U)8-2. Customization
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (i
ndicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle spee d (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4:Except F SPORT models
*5:F SPORT models
*6:GS350
Drive information screen displayed on
the third screen of
(Drive information 3)
Average
fuel
economy (after
refuel)
*3—O—
Elapsed time
(after start)
Pop-up displayOnOff —O—
Accent color*4Color 1Color 2OO—
Clock12-hour
display24-hour display —O—
Needle*5BlueRed—O—White
Rev indicator*55000 rpm
2000 to
6800 rpm
*6—O—
Off
Rev peak*5OnOff —O—
FunctionDefault settingCustomized setting123
