21Pictorial index
GS350_GS F_OM_OM30J07U_(U)
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 299
Heated steering wheel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
Automatic High Beam switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 225
Instrument panel light control sw itches . . . . . . . . . . . . . . . . . . . . . . . . . P. 95, 103
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . P. 95, 102
HUD (Head-up display) switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
ASC switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
*: If equipped
1
2
3
4
5
6
7
8

GS350_GS F_OM_OM30J07U_(U)
932. Instrument cluster
2
Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40F (-40 C) to 122 F
(50 C). Low outside temperature indicator comes on when the ambient temperature
is 37 F (3 C) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 347)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( P. 106)
Displays warning me ssages in case of a malfunction ( P. 442)
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information: • Displays the maintenance requ ired information when the engine switch is in IGNI-
TION ON mode.
• It can be reset from of th e multi-information display. (P. 106)
Shift position and shift range
Displays the selected shift posi tion or selected shift range (P. 208)
1
2
3
4
5
6
7
8
9

GS350_GS F_OM_OM30J07U_(U)
952. Instrument cluster
2
Instrument cluster
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (daytime, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the light
sensor detecting how bright the surroundings are. However, if the instrument panel
brightness has been manually set to either the brightest or darkest setting, the automatic
adjustment will not be performed.
Changing the display
Instrument panel light control
1
2

96
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display or the odometer/trip meter/maintenance required information screen.
Some pop-up displays can be set on/off. ( P. 543)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Clock settings
■Customization
The meter display can be customized on the multi-information display.
(Customizable features: P. 542)
If the screen shown to the right is displayed
when trying to change the time display method
through ( P. 106) on the multi-infor-
mation display, the system may be malfunction-
ing.
Have the vehicle inspected by your Lexus
dealer.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

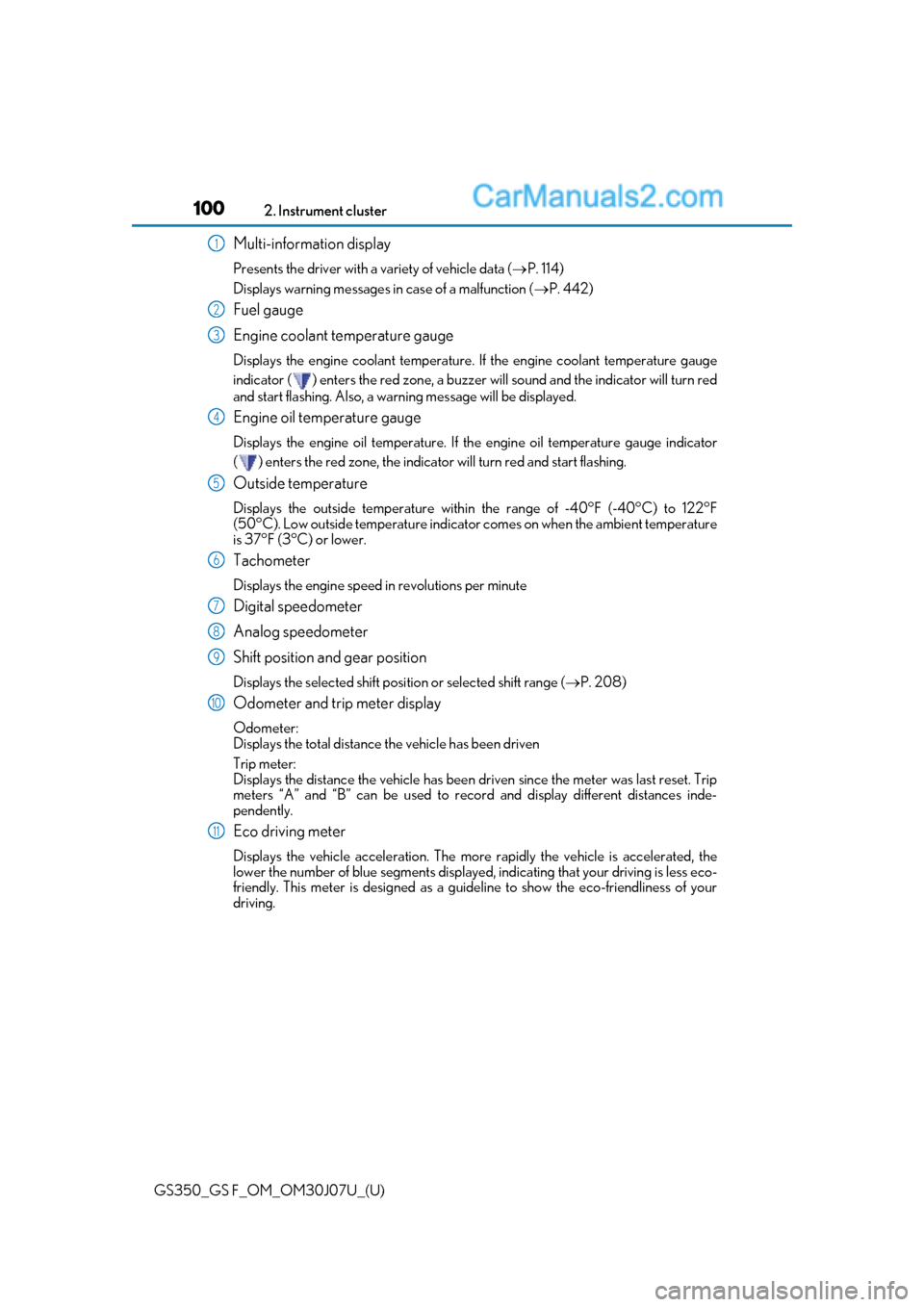

100
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
Multi-information display
Presents the driver with a variety of vehicle data (
P. 114)
Displays warning me ssages in case of a malfunction ( P. 442)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge
indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red
and start flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator
( ) enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient temperature
is 37°F (3°C) or lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position and gear position
Displays the selected shift posi tion or selected shift range (P. 208)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Eco driving meter
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the
lower the number of blue segments displayed, indicating that your driving is less eco-
friendly. This meter is designed as a guideline to show the eco-friendliness of your
driving.
1
2
3
4
5
6
7
8
9
10
11

102
GS350_GS F_OM_OM30J07U_(U)2. Instrument cluster
■Rev peak (Normal mode scr
een/SPORT S mode screen)
The engine speed reaches or
exceeds 3600 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Meter display and layout
If the drive mode is changed, some
of the meter displays and the gauge
layout will be changed.
Changing the display

587Alphabetical index
GS350_GS F_OM_OM30J07U_(U)
Main display..............................................316
MaintenanceDo-it-yourself maintenance..........376
General maintenance ..................... 372
Maintenance data ............................... 516
Maintenance requirements...........370
Malfunction indicator lamp .............. 435
Master warning light ........................... 437
Meter ....................................................92, 98 Head-up display.................................. 126
Indicators................................................... 87
Instrument panel light control .......................................... 95, 103
Meters................................................92, 98
Multi-information display ....... 106, 114
Warning lights ........................................86
Micro dust and pollen filter .............. 324
Mirrors Inside rear view mirror ..................... 175
Outside rear view mirror defoggers ........................................... 324
Outside rear view mirrors ............... 177
Vanity mirrors ......................................346
Moon roof................................................. 184 Door lock linked moon roof operation ..................... 185
Jam protection function ................... 185
Operation ............................................... 184
Warning message ............................. 442
MP3 disc
*
Multi-information display........... 106, 114 Drive information....................... 108, 115
Dynamic radar cruise control with full-speed range ................... 266
“F” content ................................................. 117
G-force ......................................... 109, 120
Lap timer.................................................... 117
LKA (Lane-Keeping Assist)......... 256
Torque distribution .............................. 119
Navigation system
*
Noise from under vehicle ........................8
Odometer ........................................ 93, 100
Oil Engine oil .................................................519
Front differential oil ........................... 523
Rear differential oil ............................ 524
Opener Fuel filler door...................................... 234
Hood........................................................ 378
Trunk ..........................................................149
M
N
O
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
