Lexus GS200t 2015 Owner's Manual

5217-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
(If equipped)
Indicates that Lexus parking assist-sensor is dirty or cov-
ered with iceA buzzer also sounds.
→ Clean the sensor.
Indicates an attempt was made to release the parking
brake with a door open or the front passenger’s seat belt
unfastened
A buzzer also sounds.
→ Close all doors and fasten the front passenger’s seat
belt before releasing the parking brake.
Indicates that the driver’s door was opened with the shift
position in any position other than P
A buzzer also sounds.
→ Shift the shift position to P.
Wa r n i n g m e s s a g eDetails/Actions
(GS350/GS200t) (GS F)
(Flashes)
(Flashes)

5227-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)

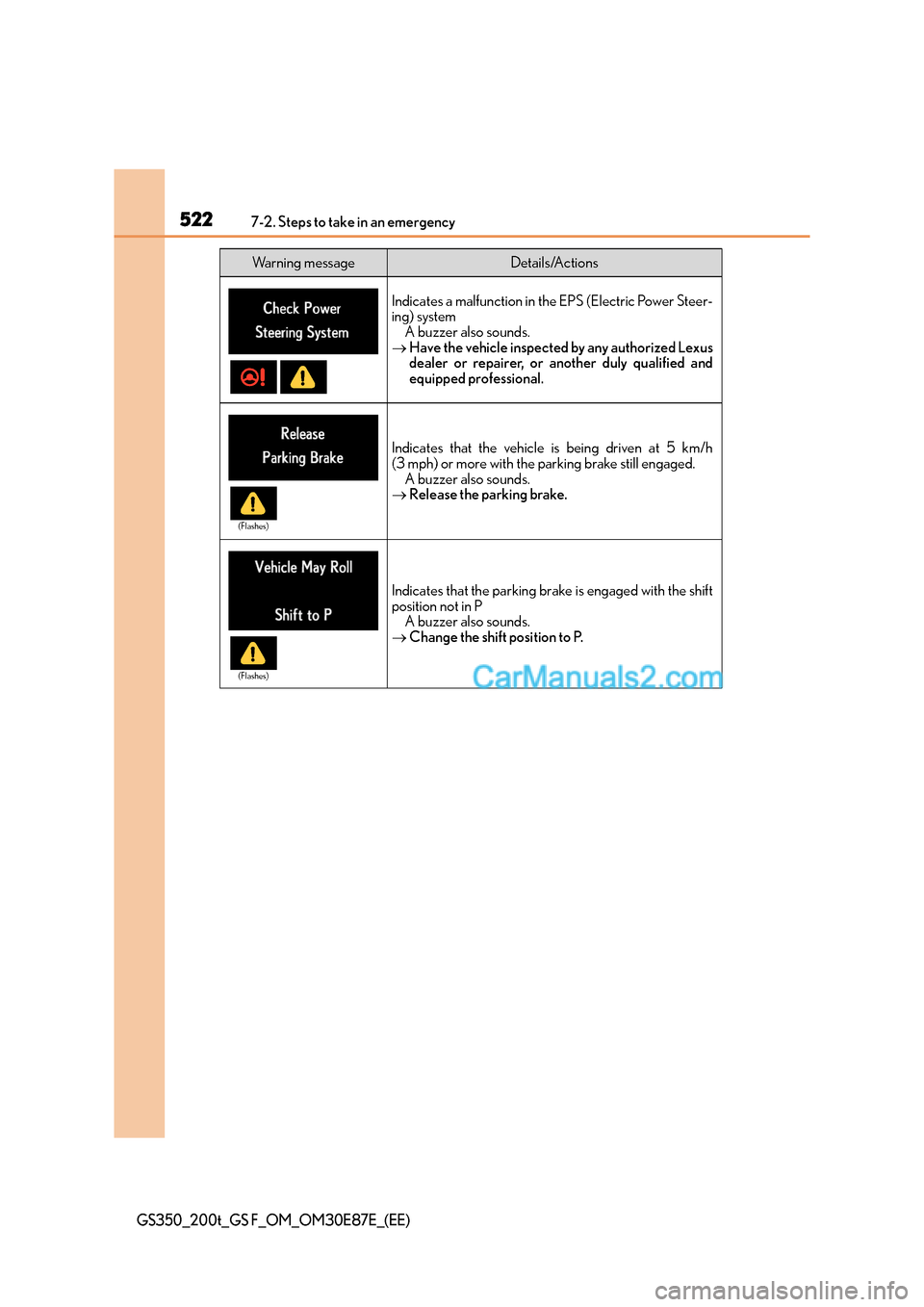

Indicates a malfunction in the EPS (Electric Power Steer-
ing) systemA buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the vehicle is being driven at 5 km/h
(3 mph) or more with the parking brake still engaged.
A buzzer also sounds.
→ Release the parking brake.
Indicates that the parking brake is engaged with the shift
position not in P
A buzzer also sounds.
→ Change the shift position to P.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

5237-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
(GS350/GS200t only)
Indicates a malfunction in the brake hold system
A buzzer also sounds.
→ Depress the brake pedal to turn off the brake hold
system.
Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(GS350/GS200t only)
Indicates that the brake hold system is turned on while on
a steep slope
A buzzer also sounds.
→ Do not use only the brake hold system on steep
slopes. Be sure to also depress the brake pedal.
Indicates a malfunction in the parking brake system
A buzzer also sounds.
→ Press the parking brake switch. If the warning mes-
sage is still displayed, have the vehicle inspected by
any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Indicates an attempt was made to release the parking
brake without depressing the brake pedal
A buzzer also sounds.
→ Release the parking brake while depressing the
brake pedal.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes) (Flashes)

5247-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
Indicates that the shift position was changed and drive
start control was operated while depressing the acceler-
ator pedalA buzzer also sounds.
→ Momentarily release the accelerator pedal.
Indicates an attempt was made to shift to 1st gear with
the shift position in M while on a slippery surface
The vehicle will not shift down from 2nd gear.
A buzzer also sounds.
→ Drive the vehicle in 2nd gear or higher.
(If equipped)
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system has dete rmined that the driver does
not have their hands on the steering wheel while the
steering control function is on
→ Firmly hold the steering wheel.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5257-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
(If equipped)

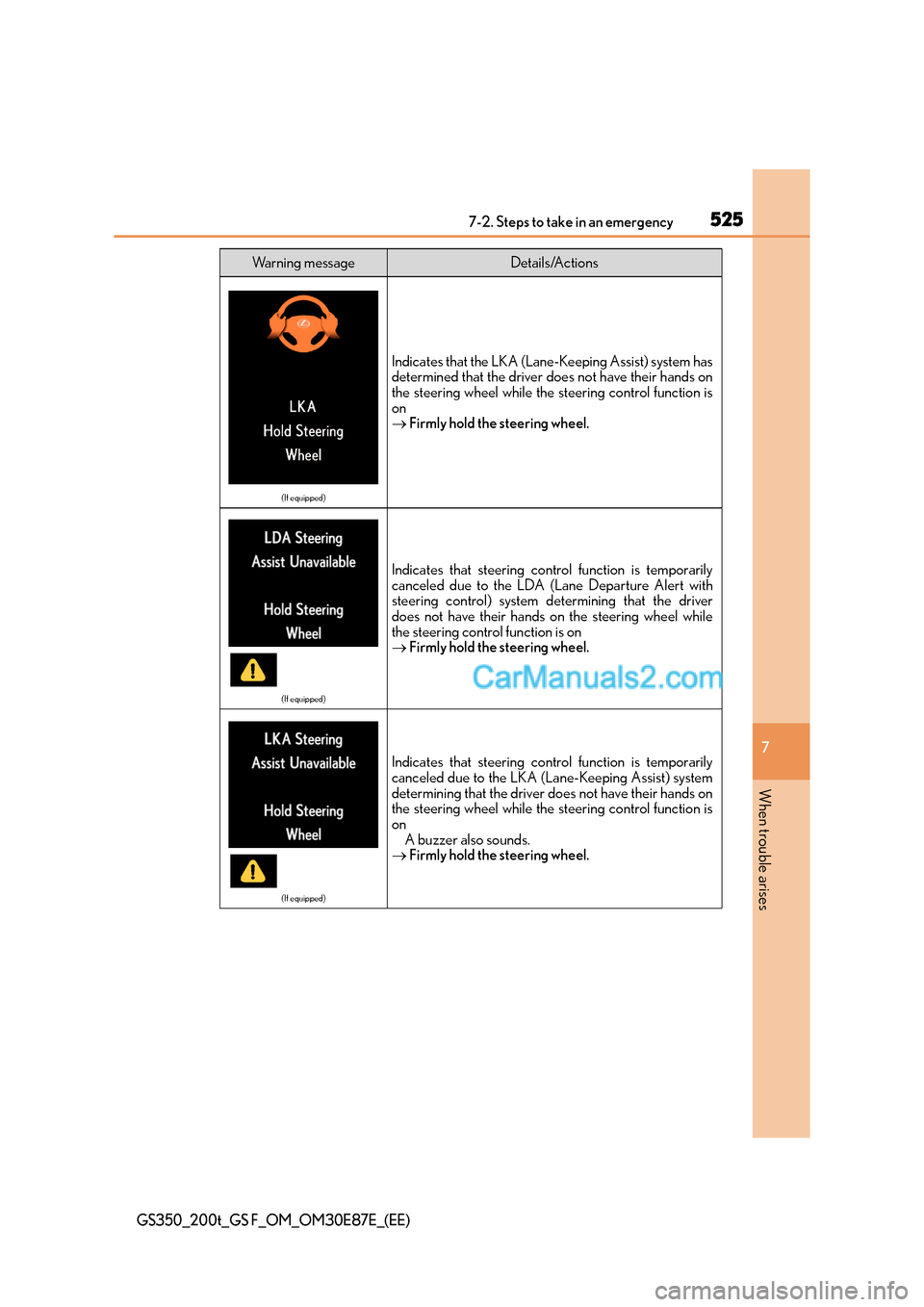

Indicates that the LKA (Lane-Keeping Assist) system has
determined that the driver does not have their hands on
the steering wheel while the steering control function is
on
→Firmly hold the steering wheel.
(If equipped)
Indicates that steering control function is temporarily
canceled due to the LDA (Lane Departure Alert with
steering control) system de termining that the driver
does not have their hands on the steering wheel while
the steering control function is on
→ Firmly hold the steering wheel.
(If equipped)
Indicates that steering control function is temporarily
canceled due to the LKA (Lane-Keeping Assist) system
determining that the driver does not have their hands on
the steering wheel while the steering control function is
on
A buzzer also sounds.
→ Firmly hold the steering wheel.
Wa r n i n g m e s s a g eDetails/Actions

5267-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
Indicates that the parking brake system is overheatingA buzzer also sounds.
→ Do not use the parking brake until the message dis-
appears.
Indicates an engine malfunction
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates an engine malfunction
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates an engine malfunction
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions

5277-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
Indicates a malfunction in:• The SRS airbag system; or
• The seat belt pretensioner system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in:
•The ABS; or
• The brake assist system
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
→ P. 5 9 6
(GS350/GS200t only)
Indicates a malfunction in the vehicle’s charging system.
→Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Wa r n i n g m e s s a g eDetails/Actions

5287-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
(If equipped)

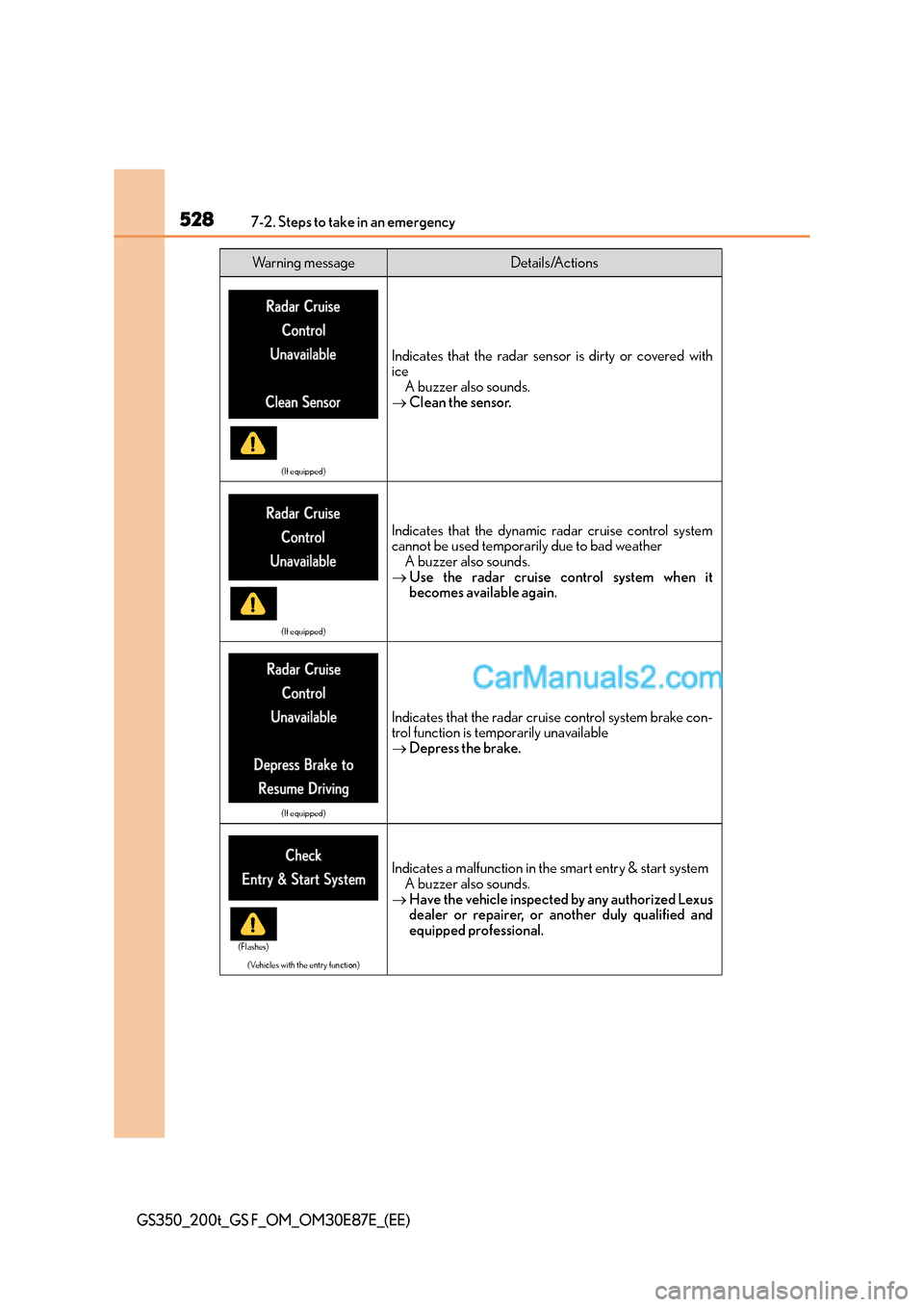

Indicates that the radar sensor is dirty or covered with
iceA buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weather
A buzzer also sounds.
→ Use the radar cruise control system when it
becomes available again.
(If equipped)
Indicates that the radar cruise control system brake con-
trol function is temporarily unavailable
→Depress the brake.
(Vehicles with the entry function)
Indicates a malfunction in the smart entry & start system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5297-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
(If equipped)

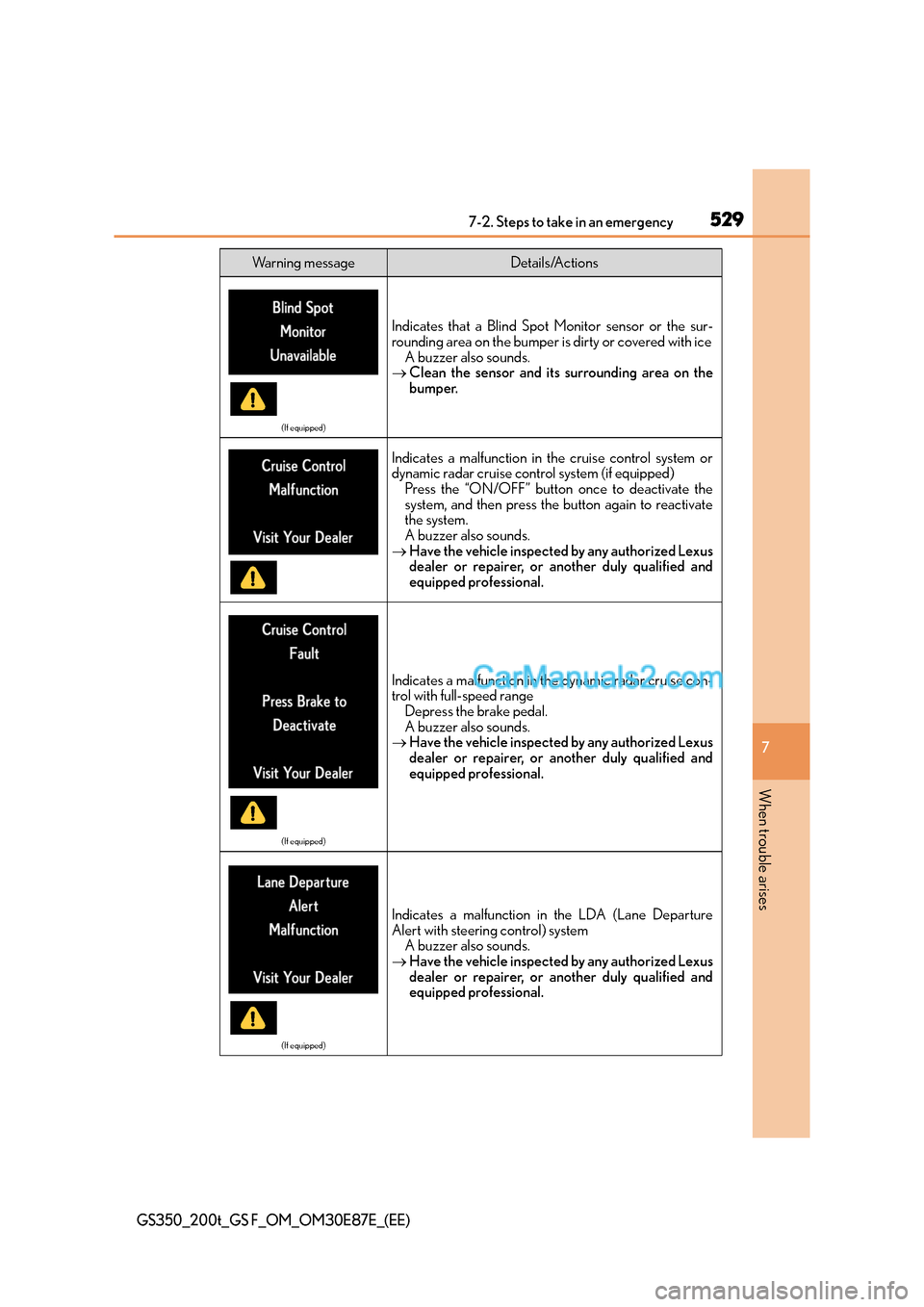

Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with iceA buzzer also sounds.
→ Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in the cruise control system or
dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates a malfunction in the dynamic radar cruise con-
trol with full-speed range
Depress the brake pedal.
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert with steering control) system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions

5307-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
The operation conditions of the camera sensor (temper-
ature, etc.) are not met.
→When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Crash Safety system)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• RSA (Road Sign Assist)
• AHS (Adaptive High-beam System)
•Automatic High Beam
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
→ Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Departure Alert with steering
control) system back on.
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
→ Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
