6017-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

6027-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
1
2
3
4
5
Press to turn off TRC. ( →P. 3 76 )XGS350/GS200t

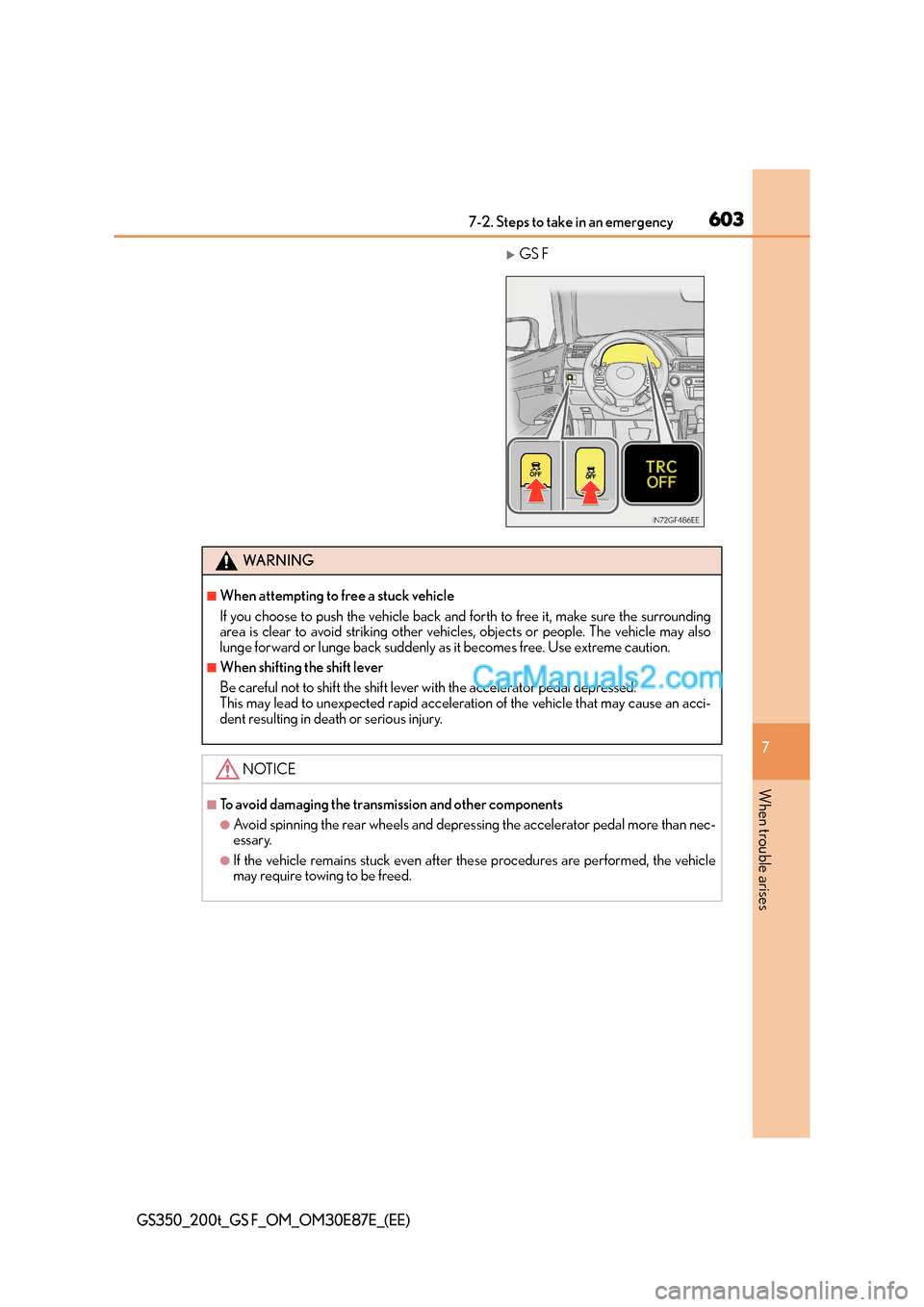

6037-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS F
WA R N I N G
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

6047-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)

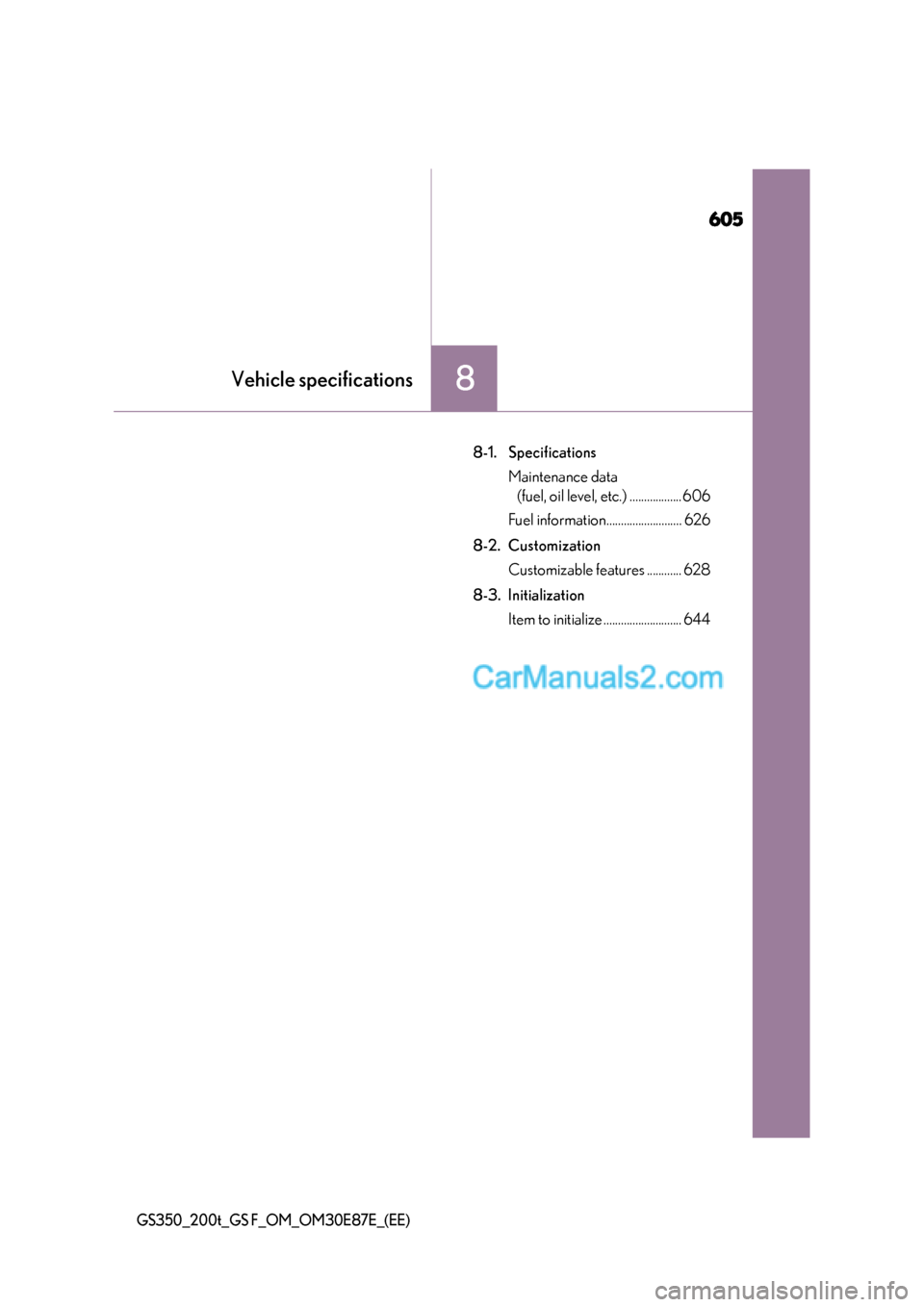

605
8Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) ..................606
Fuel information.......................... 626
8-2. Customization Customizable features ............ 628
8-3. Initialization Item to initialize ........................... 644

6068-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
Maintenance data (fuel, oil level, etc.)
XGS350/GS200t
*1:Unladen vehicle
*2: Vehicles with 265/35R19 tires
*3: Vehicles with towing package
*4:2WD models
*5:AWD models
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tr e a d*1Front 1575 mm (62.0 in.)
Rear1590 mm (62.6 in.)
1560 mm (61.4 in.)*2
Gross vehicle mass2WD
2170 kg (4784 lb.)
AW D2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*380 kg (176 lb.)
Towing capacity*3With brake1600 kg (3527 lb.)*4
1000 kg (2205 lb.)*5
Witho ut brake
750 kg (1653 lb.)

607
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS F
*:Unladen vehicle
Overall length 4915 mm (193.5 in.)
Overall width 1845 mm (72.6 in.)
Overall height*1440 mm (56.7 in.)
Wheelbase 2850 mm (112.2 in.)
Tr e a d*Front 1555 mm (61.2 in.)
Rear 1560 mm (61.4 in.)
Gross vehicle mass 2320 kg (5115 lb.)
Maximum permissi-
ble axle capacityFront 1260 kg (2778 lb.)
Rear 1260 kg (2778 lb.)

6088-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
Vehicle identification
XGS350XGS200t
XGS F

609
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on the engine block as shown.
XGS350XGS200t
XGS F

6108-1. Specifications
GS350_200t_GS F_OM_OM30E87E_(EE)
XGS350
XGS200t
Engine
Model2GR-FKS
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0 × 83.0 mm (3.70 × 3.27 in.)
Displacement3456 cm3 (210.9 cu.in.)
Va l v e c l e a r a n c eAutomatic adjustmentDrive belt tension
Model8AR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline
(with turbocharger)
Bore and stroke86.0 × 86.0 mm (3.39 × 3.39 in.)
Displacement1998 cm3 (121.9 cu.in.)
Va l v e c l e a r a n c eAutomatic adjustmentDrive belt tension
