319
4-5. Using the driving support systems
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■Before using LDA system
Do not rely solely upon the LDA system. The LDA system does not automatically drive
the vehicle or reduce the amount of attention that must be paid to the area in front of
the vehicle. The driver must always assume full responsibility for driving safely by pay-
ing careful attention to the surrounding conditions and operating the steering wheel to
correct the path of the vehicle. Also, the driver must take adequate breaks when
fatigued, such as from driving for a long period of time.
Failure to perform appropriate driving operat ions and pay careful attention may lead to
an accident, resulting in death or serious injury.
■To avoid operating LDA system by mistake
When not using the LDA system, use the LDA switch to turn the system off.
■Situations unsuitable for LDA system
Do not use the LDA system in the following situations.
The system may not operate properly and le ad to an accident, resulting in death or
serious injury.
●A spare tire, tire chains, etc. are equipped.
●When the tires have been excessively worn, or when the tire inflation pressure is low.
●Tires which differ by structure, manufacturer, brand or tread pattern are used.
●Objects or patterns that could be mistaken for white (yellow) lines are present on the
side of the road (guardrails, cu rbs, reflective poles, etc.).
●Vehicle is driven on a snow-covered road.
●White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
●Asphalt repair marks, white (yellow) line ma rks, etc. are present due to road repair.
●Vehicle is driven in a temporary lane or restricted lane due to construction work.
●Vehicle is driven on a road surface which is slippery due to rainy weather, fallen snow,
freezing, etc.
●Vehicle is driven in traffic lanes other than on highways and freeways.
●Vehicle is driven in a construction zone.
■Preventing LDA system malfunctions and operations performed by mistake
●Do not modify the headlights or place stickers, etc. on the surface of the lights.
●Do not modify the suspension etc. If the suspension etc. needs to be replaced, con-
tact any authorized Lexus retailer or Le xus authorized repairer, or any reliable
repairer.
●Do not install or place anything on the hood or grille. Also, do not install a grille guard
(bull bars, kangaroo bar, etc.).
●If your windshield needs repairs, contac t any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

329
4-5. Using the driving support systems
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
* 1
: If the turn signal indicator is not operated when changing lanes, the mark does not dis-
play.
* 2
:On some models
In the following situations, the RSA system alerts the driver using a warning dis-
play. ● When the vehicle speed exceeds the speed warning threshold applied to the
speed limit of the sign displayed on the multi-information display, the sign
color becomes inverted.
● If it is detected that your vehicle is overtaking when a no overtaking sign is dis-
played on the multi-information display, the sign flashes.
● On some models: When the RSA system recognizes a no-entry sign and
detects that the vehicle has entered a no-entry area based on the map infor-
mation of the navigation system, the no-entry sign flashes.
Depending on the situation, traffic environment (traffic direction, speed , unit)
may be detected incorrectly and a warning display may not operate properly.
■Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
●A new sign is not recognized for a certain distance.
●The road changes due to a left or right turn, etc.
■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not op erate normally and may not recognize signs,
display the incorrect sign, etc. However, this does not indicate a malfunction.
●The camera sensor is misaligned due to a st rong impact being applied to the sensor,
etc.
●Dirt, snow, stickers, etc. are on the windshield near the camera sensor.
●In inclement weather such as heavy rain, fog, snow or sand storms
●Light from an oncoming vehicle, the sun, etc. enters the camera sensor.
●The sign is dirty, faded, tilted or bent, and if an electronic sign, the contrast is poor.
●All or part of the sign is hidden by the leaves of a tree, a pole, etc.
●The sign is only visible to the camera sensor for a short amount of time.
●The driving scene (turning, lane change, etc.) is judged incorrectly.
●Even if it is a sign not appropriate for the currently traveled lane, such a sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
●Stickers are attached to the rear of the preceding vehicle.
●A sign resembling a system compatible sign is recognized.
●The vehicle is driven in a country with a different direction of traffic.
Warning display

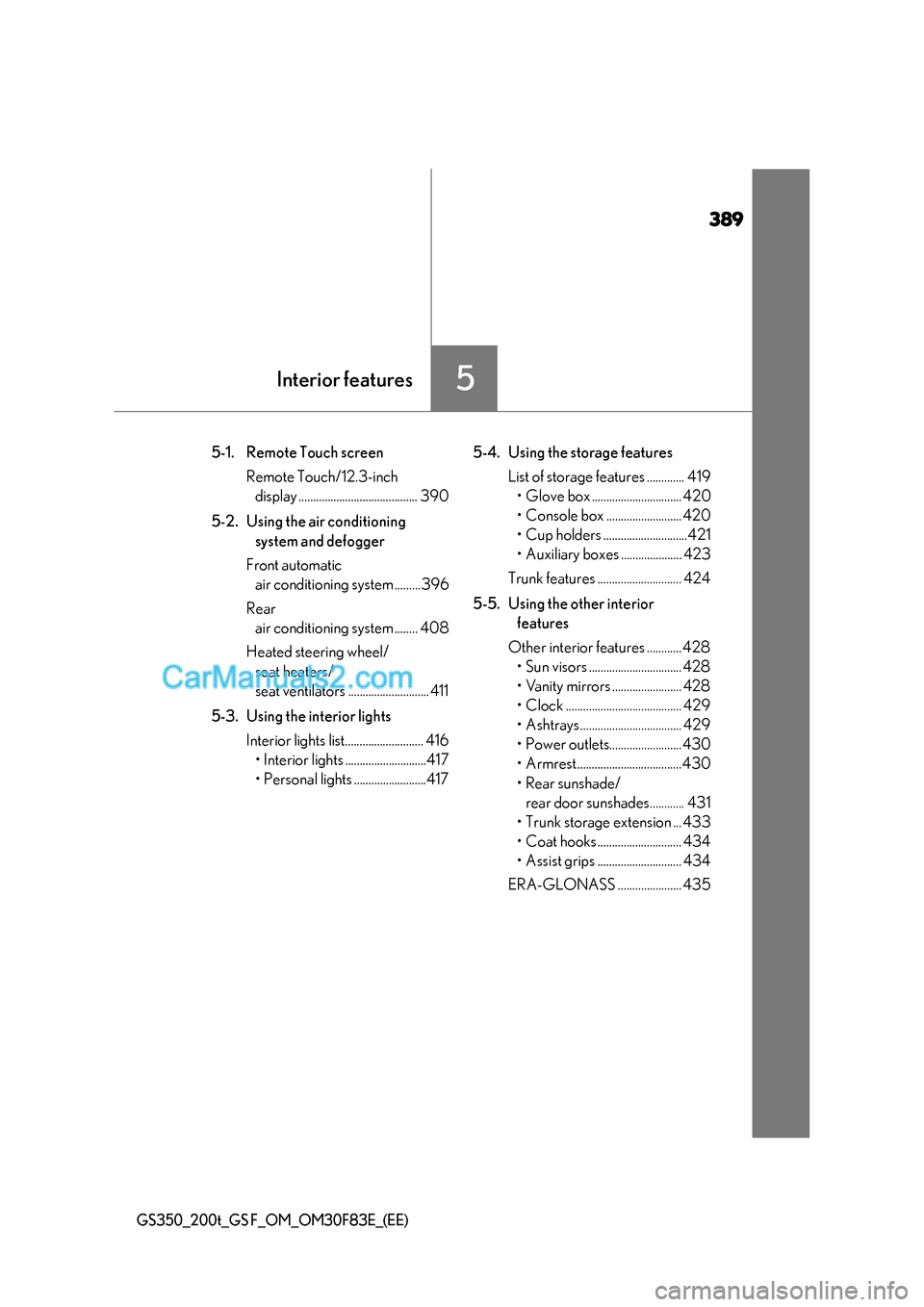

389
5Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
5-1. Remote Touch screenRemote Touch/12.3-inch display ......................................... 390
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system .........396
Rear air conditioning system ........ 408
Heated steering wheel/ seat heaters/
seat ventilators ............................ 411
5-3. Using the interior lights Interior lights list........................... 416

4045-2. Using the air conditio ning system and defogger
GS350_200t_GS F_OM_OM30F83E_(EE)
■Adjusting the position of and opening and closing the air outlets
Direct air flow to the left or right, up or down.
Turn the knob to open or close the vent.
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic ke y and turning the engine switch to IGNI-
TION ON mode will recall that key’s registered air conditioning settings.
●When the engine switch is turned off, the current air conditioning settings will automat-
ically be registered to the electronic key that was used to unlock the vehicle.
●The system may not operate correctly if more than one electronic key is in the vicinity or
if the smart entry & start system is used to unlock a passenger door.
●Settings for the electronic key and the corresponding door can be changed. Contact
any authorized Lexus retailer or Lexus author ized repairer, or any reliable repairer.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the ambi-
ent conditions.
Therefore, the fan may stop for a while until wa rm or cool air is ready to flow immediately
after is pressed.
Cool air may blow around the upper body even when the heater is on due to sunlight.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is h igh. Turning “A/C”
on will dehumidify the air from the outlets and defog the windshield effectively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
Front center outlets and front side
outletsRear seat outlets
1
2

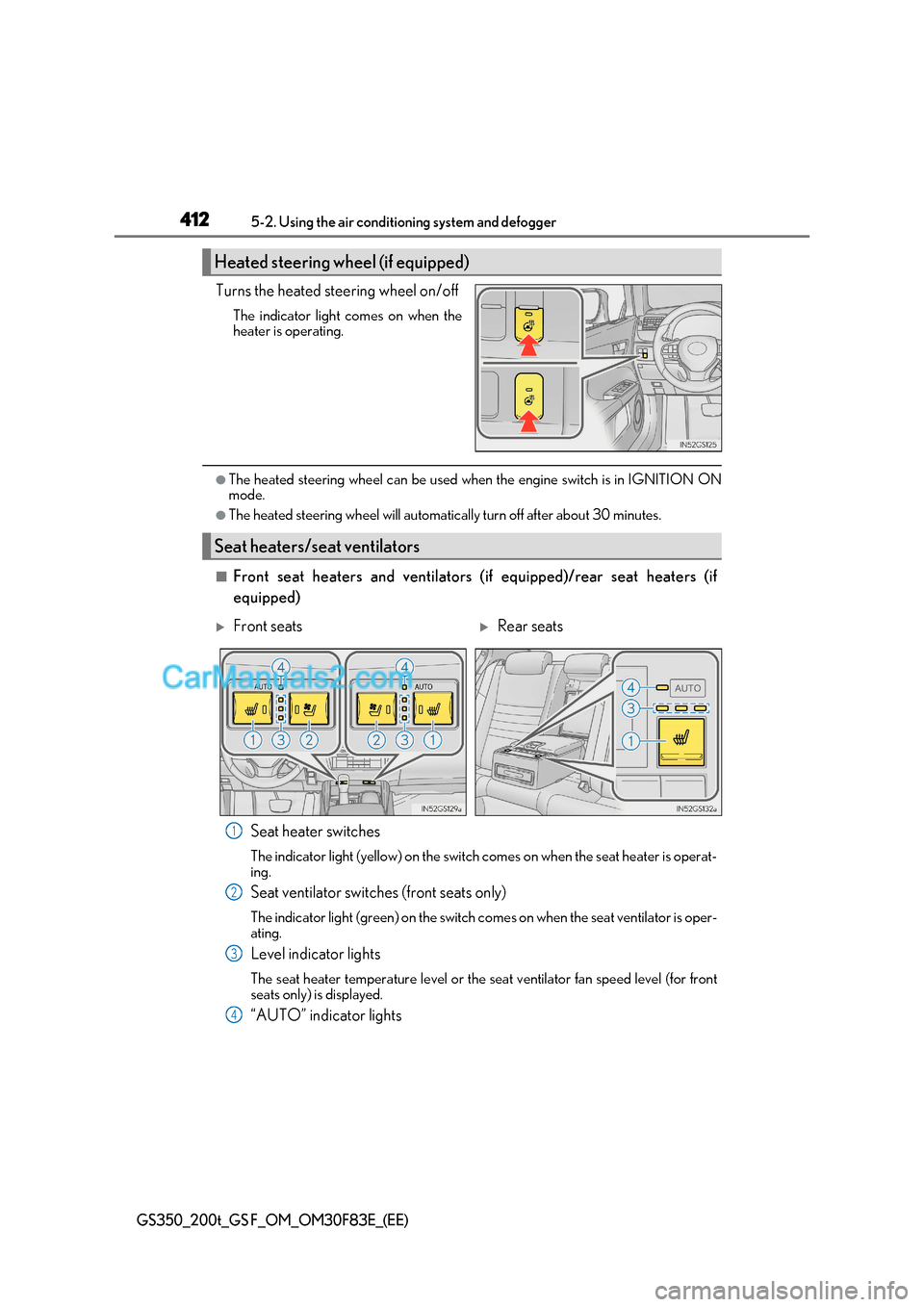

4125-2. Using the air conditio ning system and defogger
GS350_200t_GS F_OM_OM30F83E_(EE)
Turns the heated steering wheel on/off
The indicator light comes on when the
heater is operating.
●The heated steering wheel can be used when the engine switch is in IGNITION ON
mode.
●The heated steering wheel will automatically turn off after about 30 minutes.
■Front seat heaters and ventilators (if equipped)/rear seat heaters (if equipped)
Seat heater switches
The indicator light (yellow) on the switch comes on when the seat heater is operat- ing.
Seat ventilator switches (front seats only)
The indicator light (green) on the switch co mes on when the seat ventilator is oper-
ating.
Level indicator lights
The seat heater temperature level or the seat ventilator fan speed level (for front
seats only) is displayed.
“AUTO” indicator lights
Heated steering wheel (if equipped)
Seat heaters/seat ventilators
Front seatsRear seats
1
2
3
4

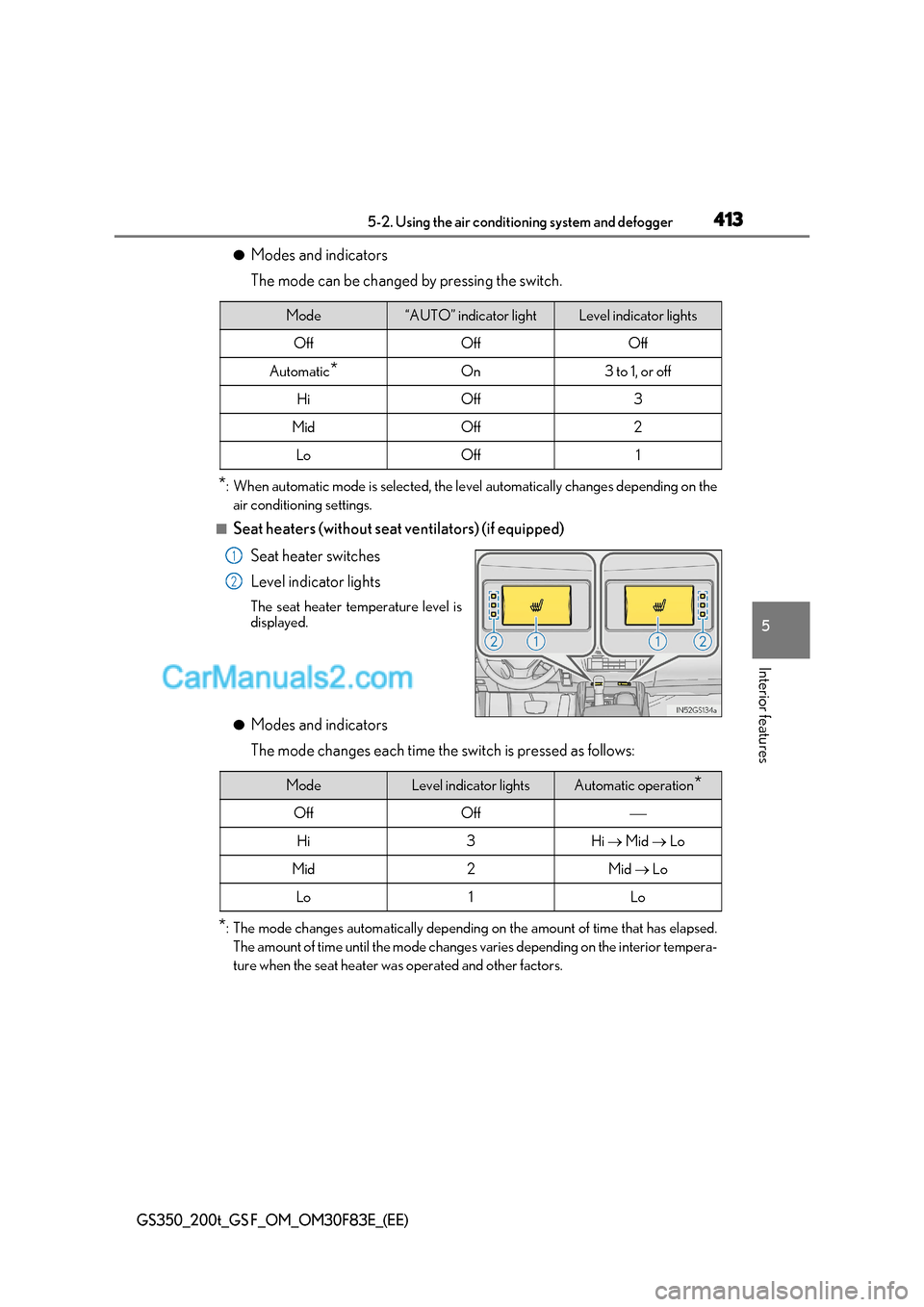

413
5-2. Using the air conditioning system and defogger
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
● Modes and indicators
The mode can be changed by pressing the switch.
* : When automatic mode is selected, the leve l automatically changes depending on the
air conditioning settings.
■Seat heaters (without seat ventilators) (if equipped)
Seat heater switches
Level indicator lights The seat heater temperature level is
displayed.
● Modes and indicators
The mode changes each time the switch is pressed as follows:
* : The mode changes automatically depending on the amount of time that has elapsed.
The amount of time until the mode changes varies depending on the interior tempera-
ture when the seat heater was operated and other factors.
Mode“AUTO” indicator lightLevel indicator lights
OffOffOff
Automatic *On3 to 1, or off
HiOff3
MidOff2
LoOff1
1
2
ModeLevel indicator lightsAutomatic operation *
OffOff
Hi3Hi  Mid  Lo
Mid2Mid  Lo
Lo1Lo

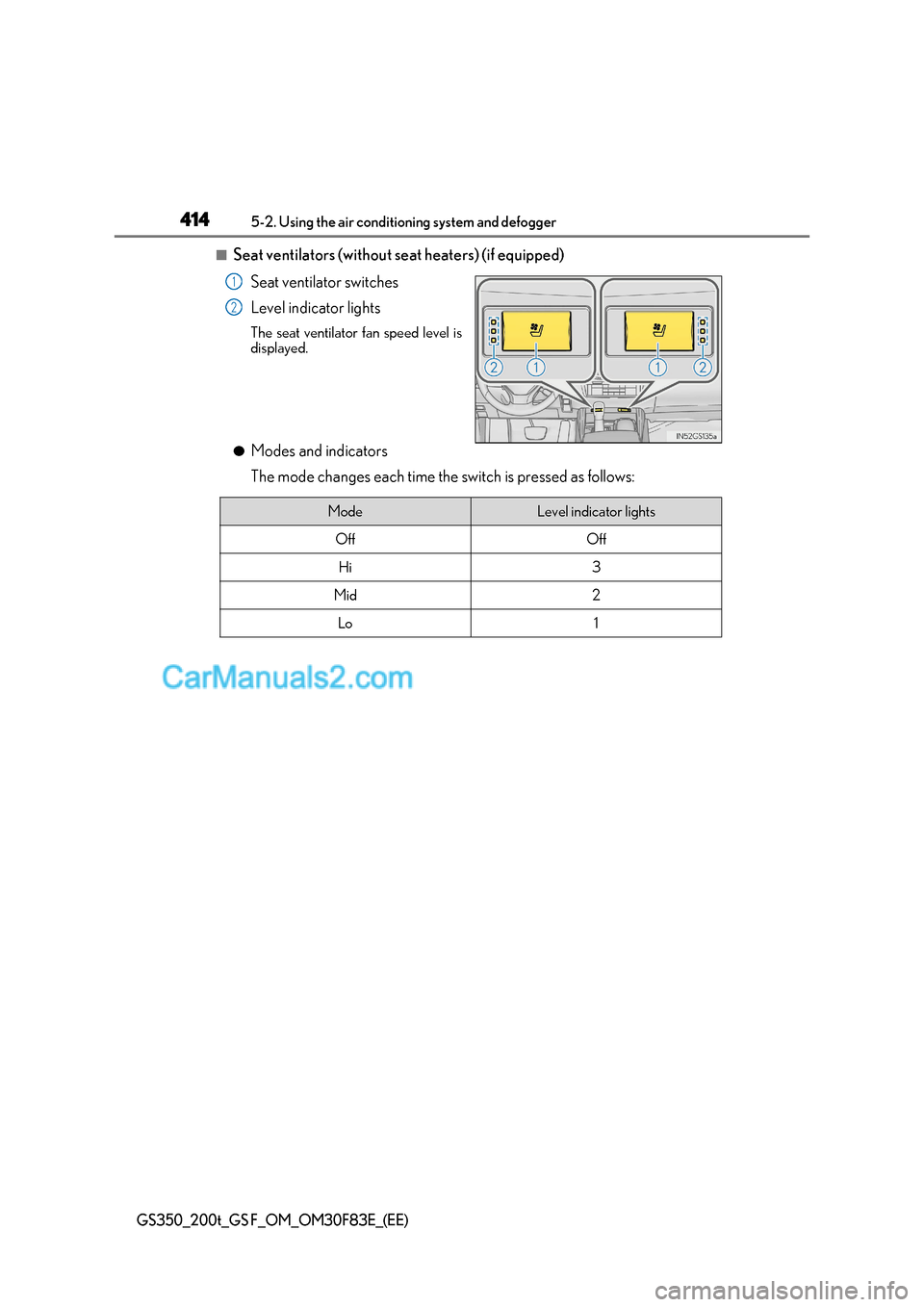

4145-2. Using the air conditio ning system and defogger
GS350_200t_GS F_OM_OM30F83E_(EE)
■Seat ventilators (without seat heaters) (if equipped)
Seat ventilator switches
Level indicator lights
The seat ventilator fan speed level is
displayed.
● Modes and indicators
The mode changes each time the switch is pressed as follows:
1
2
ModeLevel indicator lights
OffOff
Hi3
Mid2
Lo1

5046-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer. ●Headlights
● Front position lights/daytime running lights
● Front fog lights (GS350/GS200t)
● Front turn signal lights (vehicles with triple-beam headlights)
● Side turn signal lights
● Stop/tail lights
● Stop lights
● Rear fog light
● Rear turn signal lights
● Back-up lights
● High mounted stoplight
● License plate lights
■LED Lights
The lights other than the front turn signal lig ht (vehicles with single-beam headlights) and
outer foot lights each consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus reta iler or Lexus authorized repairer, or any
reliable repairer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs P. 497

661
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Clock ...............................................109, 429
Coat hooks .............................................. 434
Condenser ............................................. 466
Console box ........................................... 420
Console box light................................... 421
Coolant ..................................................... 464
Capacity ................................................. 625
Checking ............................................... 464
Preparing and checking before winter ....................................383
Cooling system ...................................... 464 Engine overheating ..........................602
Cruise control Cruise control .....................................355
Dynamic radar cruise control with full-speed range......................331
Dynamic radar cruise control ..... 343
Cup holders ............................................. 421
Curtain shield airbags ............................ 51
Customizable features ....................... 634
DAB (Digital Audio Broadcast) *
Daytime running light system ......... 264
Defogger Front windshield ................................. 402
Outside rear view mirrors.............402
Rear window ........................................ 402
Differential Front differential.................................. 627
Rear differential ................................... 627 Digital Audio Broadcast (DAB)
*
Dimensions ............................................... 612
Display 12.3-inch display ................................ 394
Drive information.......................122, 130
Dynamic radar cruise control
with full-speed range ..................... 331
Dynamic radar cruise control ..... 343
LDA (Lane Departure Alert with steering control)..................... 321
LKA (Lane-Keeping Assist) .......... 312
Multi-information display.........121, 129
Trip information ...........................108, 113
Warning message ............................ 524
Do-it-yourself maintenance ............. 449
Door courtesy lights Location ................................................... 416
Wattage ................................................... 631
Door lock Doors......................................................... 159
Smart entry & start system ............. 173
Wireless remote control ................. 154
Doors...........................................................159 Automatic door locking and
unlocking system ............................. 163
Door glasses.......................................... 214
Door lock ................................................ 162
Open door warning buzzer .......... 174
Open door warning light .............. 520
Outside rear view mirrors ................ 211
Rear door child-protector ............. 163
D
* : Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

663
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Emergency brake signal .................... 376
Emergency flashers ............................ 508
Emergency tire puncture
repair kit ................................................ 573
Engine......................................................... 616 Accessory mode.................................. 241
Compartment...................................... 454
Engine switch....................................... 240
Hood ..........................................................451
How to start the engine .................. 240
Identification number ........................ 615
Ignition switch
(engine switch) ................................ 240
Overheating .........................................602
Engine compartment cover ............. 457
Engine coolant ....................................... 464 Capacity ................................................. 625
Checking ............................................... 464
Preparing and checking before winter ....................................383
Engine coolant temperature gauge.............................................. 108, 113
Engine oil.................................................. 459 Capacity .................................................. 618
Checking ...............................................459
Oil level warning message ........... 524
Oil pressure warning message.............................................. 524
Preparing and checking before winter ....................................383 Engine switch ......................................... 240
Auto power off function ..................242
Changing the engine switch modes.................................................... 241
If your vehicle has to be stopped in an emergency .........509
Starting the engine............................ 240
EPS (Electric Power Steering) ....... 376
Function.................................................. 376
Warning light.........................................519
Warning message ............................ 524
Expert mode........................................... 378
First-aid kit storage net ...................... 425
Flat tire
Vehicles with spare tire.................. 557
Vehicles without spare tire........... 573
Floor mats ................................................... 42
Fluid Automatic transmission.................. 626
Brake ....................................................... 628
Washer ................................................... 470
Fog lights .................................................. 275
Replacing light bulbs ....................... 504
Switch .......................................................275
Follow me home system .................... 263
Footwell light ............................................416
Front air conditioning system .......... 396
Front fog lights ....................................... 275 Replacing light bulbs ....................... 504
Switch .......................................................275
F
*: Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
