6128-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Maintenance data (fuel, oil level, etc.)
GS350/GS200t
* 1
: Unladen vehicle
* 2
: Vehicles with 265/35R19 tires
* 3
: Vehicles with towing package
* 4
:2WD models
* 5
:AWD models
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height *12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tread
*1
Front 1575 mm (62.0 in.)
Rear 1590 mm (62.6 in.)
1560 mm (61.4 in.)
*2
Gross vehicle mass2WD
2170 kg (4784 lb.)
AWD2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*3
80 kg (176 lb.)
Towing capacity*3With brake 1600 kg (3527 lb.)
*4
1000 kg (2205 lb.) *5
Without brake
750 kg (1653 lb.)

6188-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)

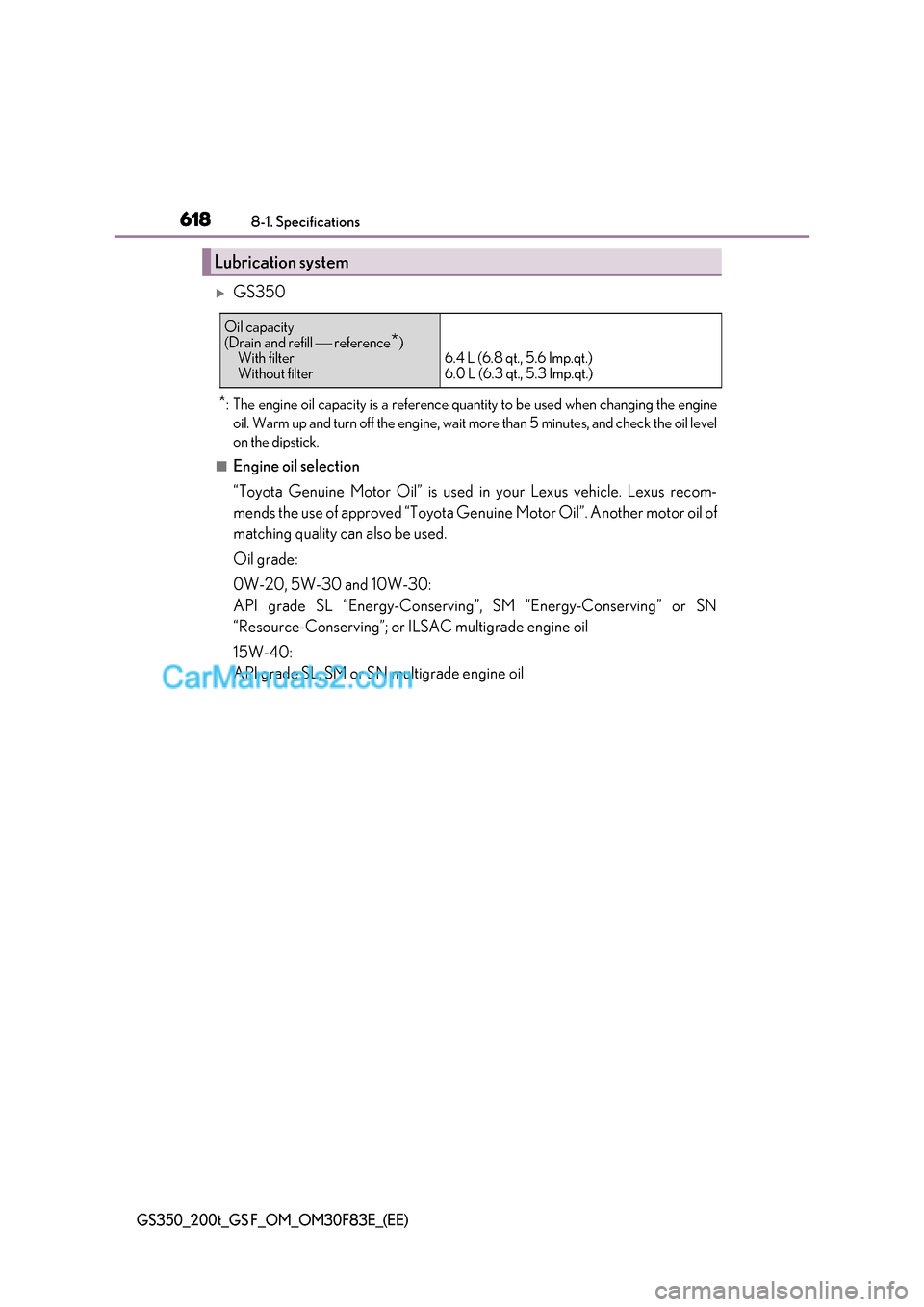

GS350
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference *)
With filter
Without filter
6.4 L (6.8 qt., 5.6 Imp.qt.)
6.0 L (6.3 qt., 5.3 Imp.qt.)

621
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS200t
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” or API grade SL “Energy-Co nserving”, SM “Energy-Conserving” or
SN “Resource-Conserving”; or ILSAC multigrade engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo Gaso-
line Engines” is filled into your Lexus
vehicle at manufacturing, and SAE
0W-20 is the best choice for good
fuel economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
Oil capacity
(Drain and refill  reference *)
With filter
Without filter
4.6 L (4.9 qt., 4.0 Imp.qt.)
4.3 L (4.5 qt., 3.8 Imp.qt.)
Temperature range anticipated
before next oil change Preferred

623
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 5W-30 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
5W-30 engine oil is recommended.
Oil capacity
(Drain and refill  reference *)
With filter
Without filter
8.8 L (9.3 qt., 7.7 Imp.qt.)
7.9 L (8.3 qt., 7.0 Imp.qt.)
Temperature range anticipated
before next oil change Preferred

627
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS350/GS200t
GS F (vehicles with LSD [Limited Slip Differential])

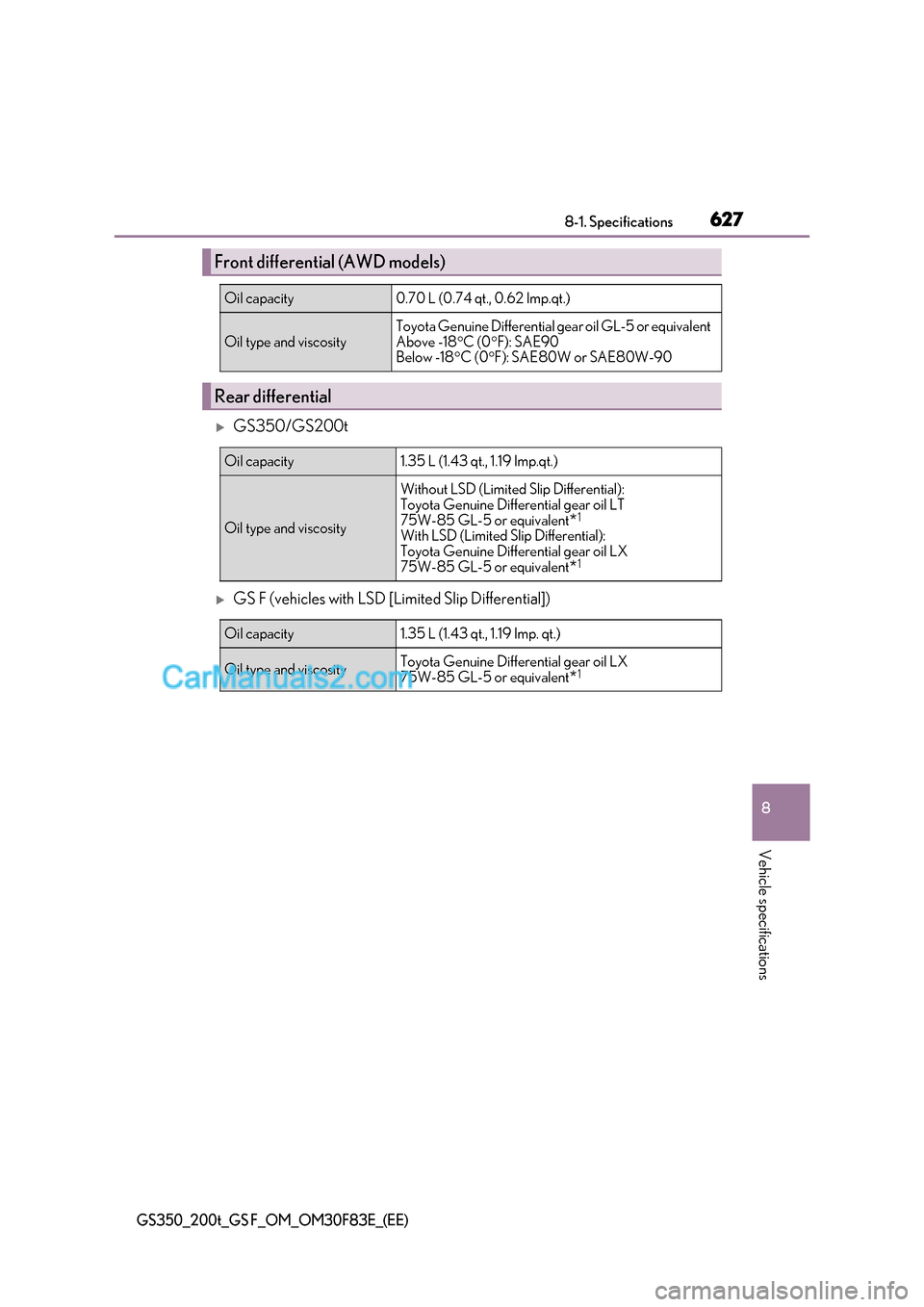

Front differential (AWD models)
Oil capacity0.70 L (0.74 qt., 0.62 Imp.qt.)
Oil type and viscosity
Toyota Genuine Differential gear oil GL-5 or equivalent
Above -18C (0 F): SAE90
Below -18 C (0 F): SAE80W or SAE80W-90
Rear differential
Oil capacity1.35 L (1.43 qt., 1.19 Imp.qt.)
Oil type and viscosity
Without LSD (Limited Slip Differential):
Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
*1
With LSD (Limited Slip Differential):
Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent *1
Oil capacity1.35 L (1.43 qt., 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent
*1

6288-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)

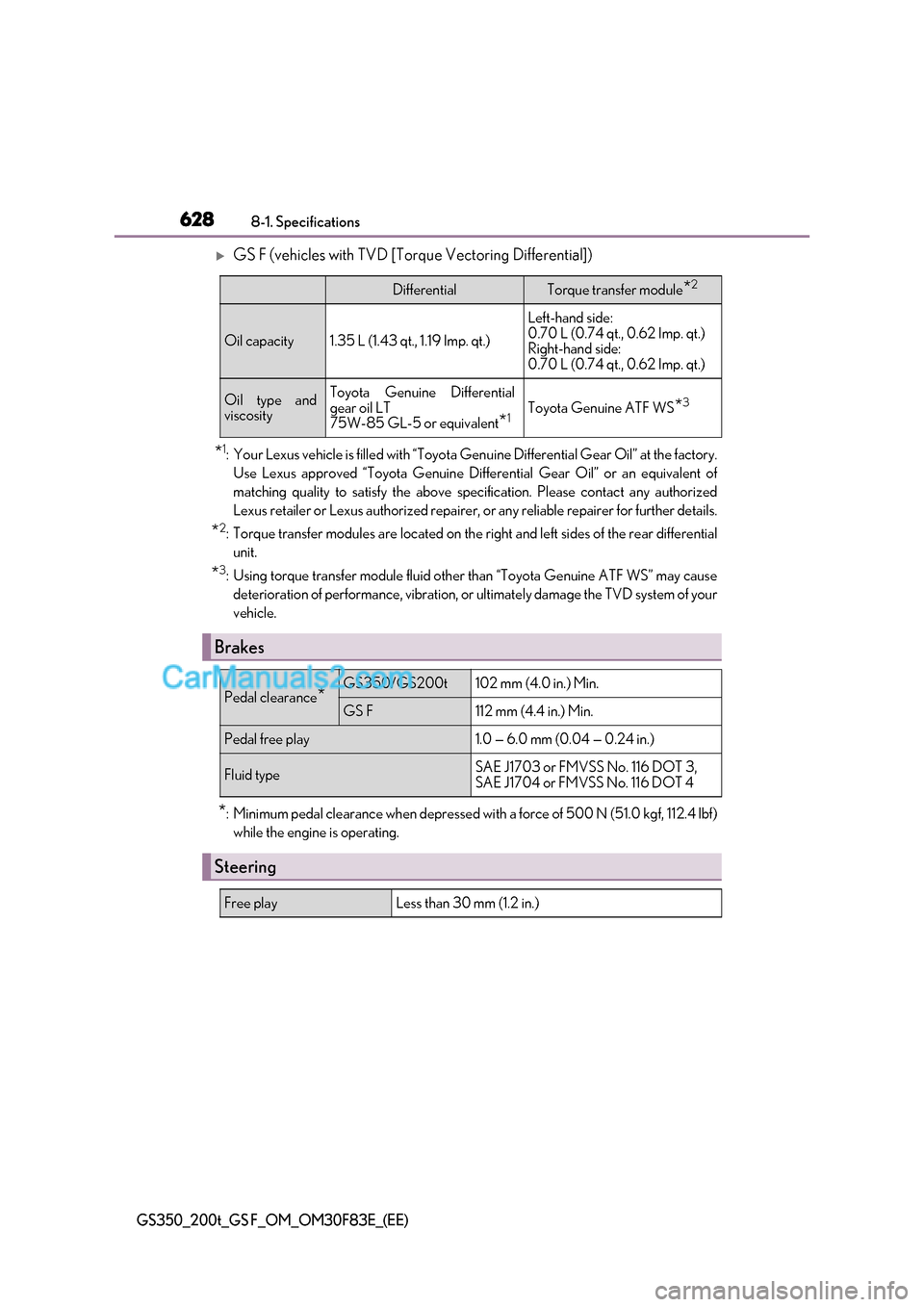

GS F (vehicles with TVD [Torque Vectoring Differential])
* 1
: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differe ntial Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer for further details.
* 2
: Torque transfer modules are located on the ri ght and left sides of the rear differential
unit.
* 3
: Using torque transfer module fluid other than “Toyota Genuine ATF WS” may cause
deterioration of performance, vibration, or ultimately damage the TVD system of your
vehicle.
* : Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)
while the engine is operating.
DifferentialTorque transfer module *2
Oil capacity 1.35 L (1.43 qt., 1.19 Imp. qt.)
Left-hand side:
0.70 L (0.74 qt., 0.62 Imp. qt.)
Right-hand side:
0.70 L (0.74 qt., 0.62 Imp. qt.)
Oil type and
viscosity Toyota Genuine Differential
gear oil LT
75W-85 GL-5 or equivalent
*1Toyota Genuine ATF WS
*3
Brakes
Pedal clearance
*GS350/GS200t 102 mm (4.0 in.) Min.
GS F112 mm (4.4 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Fluid type SAE J1703 or FMVSS No. 116 DOT 3,
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

663
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Emergency brake signal .................... 376
Emergency flashers ............................ 508
Emergency tire puncture
repair kit ................................................ 573
Engine......................................................... 616 Accessory mode.................................. 241
Compartment...................................... 454
Engine switch....................................... 240
Hood ..........................................................451
How to start the engine .................. 240
Identification number ........................ 615
Ignition switch
(engine switch) ................................ 240
Overheating .........................................602
Engine compartment cover ............. 457
Engine coolant ....................................... 464 Capacity ................................................. 625
Checking ............................................... 464
Preparing and checking before winter ....................................383
Engine coolant temperature gauge.............................................. 108, 113
Engine oil.................................................. 459 Capacity .................................................. 618
Checking ...............................................459
Oil level warning message ........... 524
Oil pressure warning message.............................................. 524
Preparing and checking before winter ....................................383 Engine switch ......................................... 240
Auto power off function ..................242
Changing the engine switch modes.................................................... 241
If your vehicle has to be stopped in an emergency .........509
Starting the engine............................ 240
EPS (Electric Power Steering) ....... 376
Function.................................................. 376
Warning light.........................................519
Warning message ............................ 524
Expert mode........................................... 378
First-aid kit storage net ...................... 425
Flat tire
Vehicles with spare tire.................. 557
Vehicles without spare tire........... 573
Floor mats ................................................... 42
Fluid Automatic transmission.................. 626
Brake ....................................................... 628
Washer ................................................... 470
Fog lights .................................................. 275
Replacing light bulbs ....................... 504
Switch .......................................................275
Follow me home system .................... 263
Footwell light ............................................416
Front air conditioning system .......... 396
Front fog lights ....................................... 275 Replacing light bulbs ....................... 504
Switch .......................................................275
F
*: Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

676
GS350_200t_GS F_OM_OM30F83E_(EE)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 451 P. 166 P. 284
Hood lock release leverTire inflation pressure
P. 451
P. 629
Fuel tank capacity
(Reference) 66 L (17.4 gal., 14.5 Imp.gal.)
Fuel typeEU area: Unleaded gasoline conforming to European
standard EN228 only
Except EU area: Unleaded gasoline only
P. 617
Cold tire inflation
pressure P. 629
Engine oil capacity (Drain and refill —
reference) P. 618
Engine oil type
P. 618
