Page 115 of 676
115
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
Multi-information display
Presents the driver with a variety of vehicle data ( P. 129)
Displays warning messages in case of a malfunction (P. 524)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge
indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red
and start flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator
( ) enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position and gear position
Displays the selected shift posi tion or selected shift range (P. 246)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Eco driving meter
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the
lower the number of blue segments displayed, indicating that your driving is less eco-
friendly. This meter is designed as a guid eline to show the eco-friendliness of your
driving.1
2
3
4
5
6
7
8
9
10
11

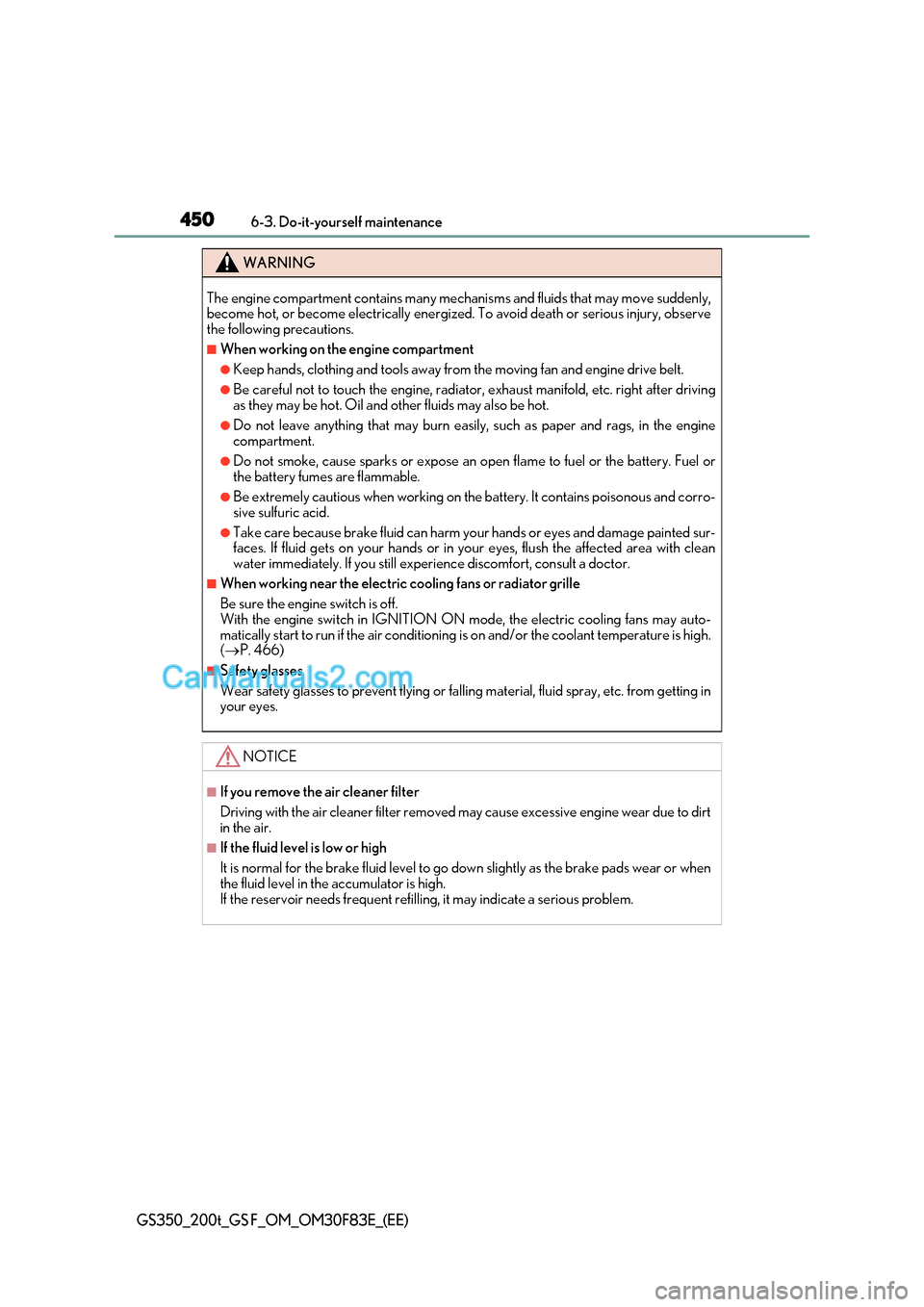

Page 450 of 676
4506-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
The engine compartment contains many mech anisms and fluids that may move suddenly,
become hot, or become electrically energize d. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the b attery. Fuel or
the battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted sur-
faces. If fluid gets on your hands or in your eyes, flush t he affected area with clean
water immediately. If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant temperature is high.( P. 466)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or when
the fluid level in the accumulator is high.
If the reservoir needs frequent refillin g, it may indicate a serious problem.
Page 459 of 676
459
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
it off, wait more than 5 minutes for the oil to drain back into the bottom of
the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2
GS350GS200t
GS F
Page 548 of 676
5487-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Indicates that the washer fluid level is low Add washer fluid.
Indicates that remaining fuel is approximately 9.9 L
(2.6 gal., 2.2 Imp.gal.) or less Refuel the vehicle.
Indicates that the outside temperature is approximately 3C (37 F) or lower
A buzzer also sounds.
Drive carefully, as the road may be icy.
(GS350/GS200t only)
Indicates that the engine oil is scheduled to be changed
Check the engine oil and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 461)
(The indicator will not work properly unless the oil
maintenance data has been reset.)
(If equipped)
Indicates that the fuel in jectors require maintenance
soon Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer replenish the
injector cleaner to the fuel tank and reset the mes-
sage as necessary.
(GS350/GS200t only)
Indicates that the engine oil and oil filter should be
changed Have the engine oil and oil filter checked and/or
changed by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. After
changing the engine oil, the oil change system
should be reset. ( P. 461)
Warning messageDetails/Actions
Page 619 of 676
619
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Temperature range anticipated
before next oil changePreferred
Page 621 of 676
621
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS200t
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” or API grade SL “Energy-Co nserving”, SM “Energy-Conserving” or
SN “Resource-Conserving”; or ILSAC multigrade engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo Gaso-
line Engines” is filled into your Lexus
vehicle at manufacturing, and SAE
0W-20 is the best choice for good
fuel economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
Oil capacity
(Drain and refill reference *)
With filter
Without filter
4.6 L (4.9 qt., 4.0 Imp.qt.)
4.3 L (4.5 qt., 3.8 Imp.qt.)
Temperature range anticipated
before next oil change Preferred
Page 623 of 676
623
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 5W-30 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
5W-30 engine oil is recommended.
Oil capacity
(Drain and refill reference *)
With filter
Without filter
8.8 L (9.3 qt., 7.7 Imp.qt.)
7.9 L (8.3 qt., 7.0 Imp.qt.)
Temperature range anticipated
before next oil change Preferred
Page 663 of 676
663
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Emergency brake signal .................... 376
Emergency flashers ............................ 508
Emergency tire puncture
repair kit ................................................ 573
Engine......................................................... 616 Accessory mode.................................. 241
Compartment...................................... 454
Engine switch....................................... 240
Hood ..........................................................451
How to start the engine .................. 240
Identification number ........................ 615
Ignition switch
(engine switch) ................................ 240
Overheating .........................................602
Engine compartment cover ............. 457
Engine coolant ....................................... 464 Capacity ................................................. 625
Checking ............................................... 464
Preparing and checking before winter ....................................383
Engine coolant temperature gauge.............................................. 108, 113
Engine oil.................................................. 459 Capacity .................................................. 618
Checking ...............................................459
Oil level warning message ........... 524
Oil pressure warning message.............................................. 524
Preparing and checking before winter ....................................383 Engine switch ......................................... 240
Auto power off function ..................242
Changing the engine switch modes.................................................... 241
If your vehicle has to be stopped in an emergency .........509
Starting the engine............................ 240
EPS (Electric Power Steering) ....... 376
Function.................................................. 376
Warning light.........................................519
Warning message ............................ 524
Expert mode........................................... 378
First-aid kit storage net ...................... 425
Flat tire
Vehicles with spare tire.................. 557
Vehicles without spare tire........... 573
Floor mats ................................................... 42
Fluid Automatic transmission.................. 626
Brake ....................................................... 628
Washer ................................................... 470
Fog lights .................................................. 275
Replacing light bulbs ....................... 504
Switch .......................................................275
Follow me home system .................... 263
Footwell light ............................................416
Front air conditioning system .......... 396
Front fog lights ....................................... 275 Replacing light bulbs ....................... 504
Switch .......................................................275
F
*: Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

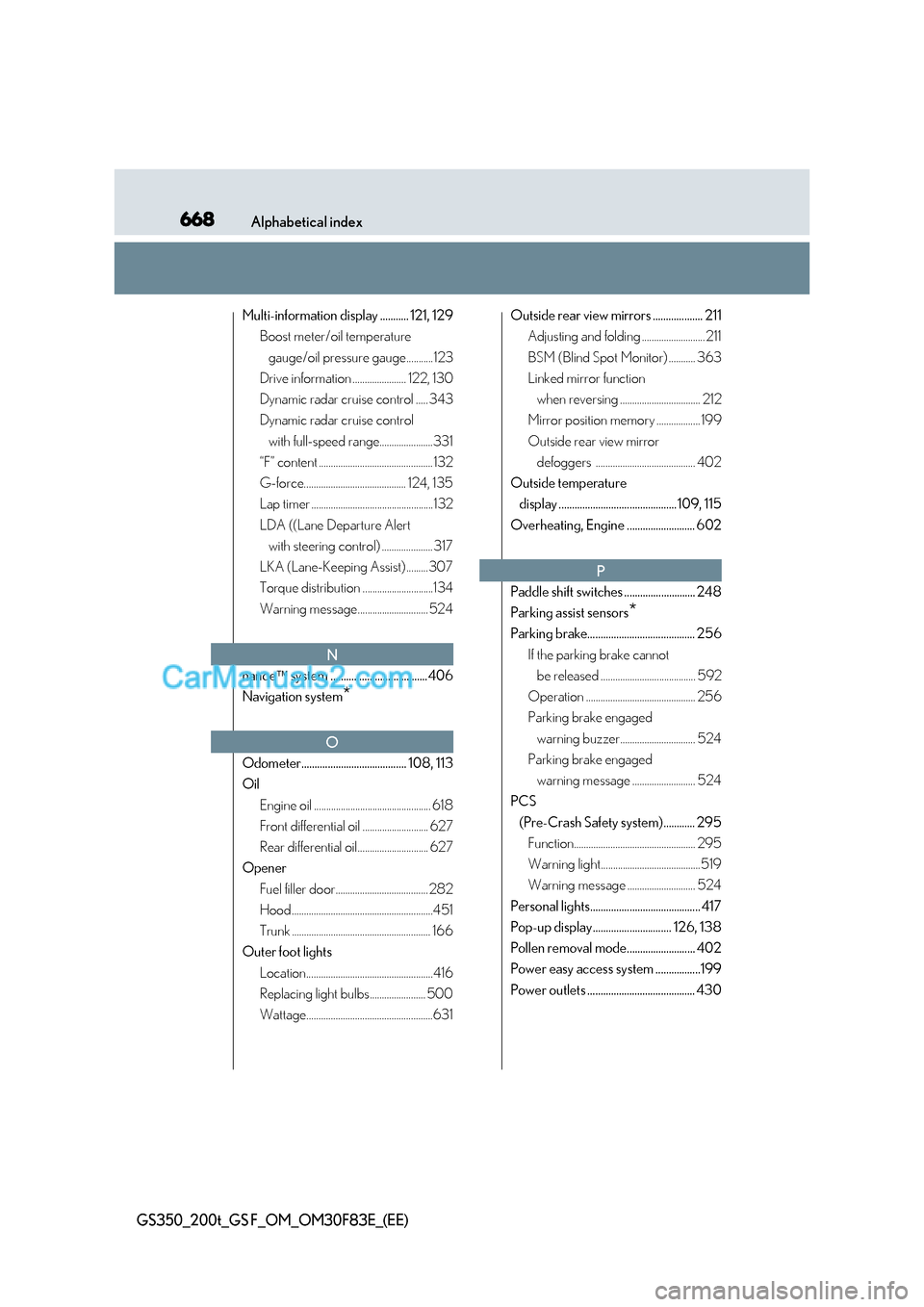

Page 668 of 676
668Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Multi-information display ........... 121, 129
Boost meter/oil temperature
gauge/oil pressure gauge...........123
Drive information ...................... 122, 130
Dynamic radar cruise control ..... 343
Dynamic radar cruise control
with full-speed range......................331
“F” content ............................................... 132
G-force.......................................... 124, 135
Lap timer ..................................................132
LDA ((Lane Departure Alert with steering control) ..................... 317
LKA (Lane-Keeping Assist) .........307
Torque distribution .............................134
Warning message............................. 524
nanoe system .....................................406
Navigation system *
Odometer........................................ 108, 113 Oil Engine oil ................................................ 618
Front differential oil ........................... 627
Rear differential oil............................. 627
Opener
Fuel filler door...................................... 282
Hood ..........................................................451
Trunk ......................................................... 166
Outer foot lights
Location....................................................416
Replacing light bulbs....................... 500
Wattage....................................................631 Outside rear view mirrors ................... 211
Adjusting and folding .......................... 211
BSM (Blind Spot Monitor) ........... 363
Linked mirror function
when reversing ................................. 212
Mirror position memory .................. 199
Outside rear view mirror defoggers ......................................... 402
Outside temperature display .............................................109, 115
Overheating, Engine .......................... 602
Paddle shift switches ........................... 248
Parking assist sensors *
Parking brake......................................... 256
If the parking brake cannot be released ....................................... 592
Operation ............................................. 256
Parking brake engaged warning buzzer............................... 524
Parking brake engaged
warning message .......................... 524
PCS
(Pre-Crash Safety system)............ 295Function.................................................. 295
Warning light.........................................519
Warning message ............................ 524
Personal lights.......................................... 417
Pop-up display.............................. 126, 138
Pollen removal mode.......................... 402
Power easy access system .................199
Power outlets ......................................... 430
N
O
P
