Lexus GS250 2012 Owner's Manual

1102. Instrument cluster
GS350/250_EE (OM30C36E)
Tire inflation pressure (if equipped)
It may take a few minutes to display the tire inflation pressure after the
engine switch is turned to IGNITION ON mode. It may also take a few
minutes to display the tire inflation pressure after inflation pressure has
been adjusted.
“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.
Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Customization
Setting of available languages can be changed. (Customizable features P.
857)
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information dis-
play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious health
hazard.

1112. Instrument cluster
2
Instrument cluster
GS350/250_EE (OM30C36E)

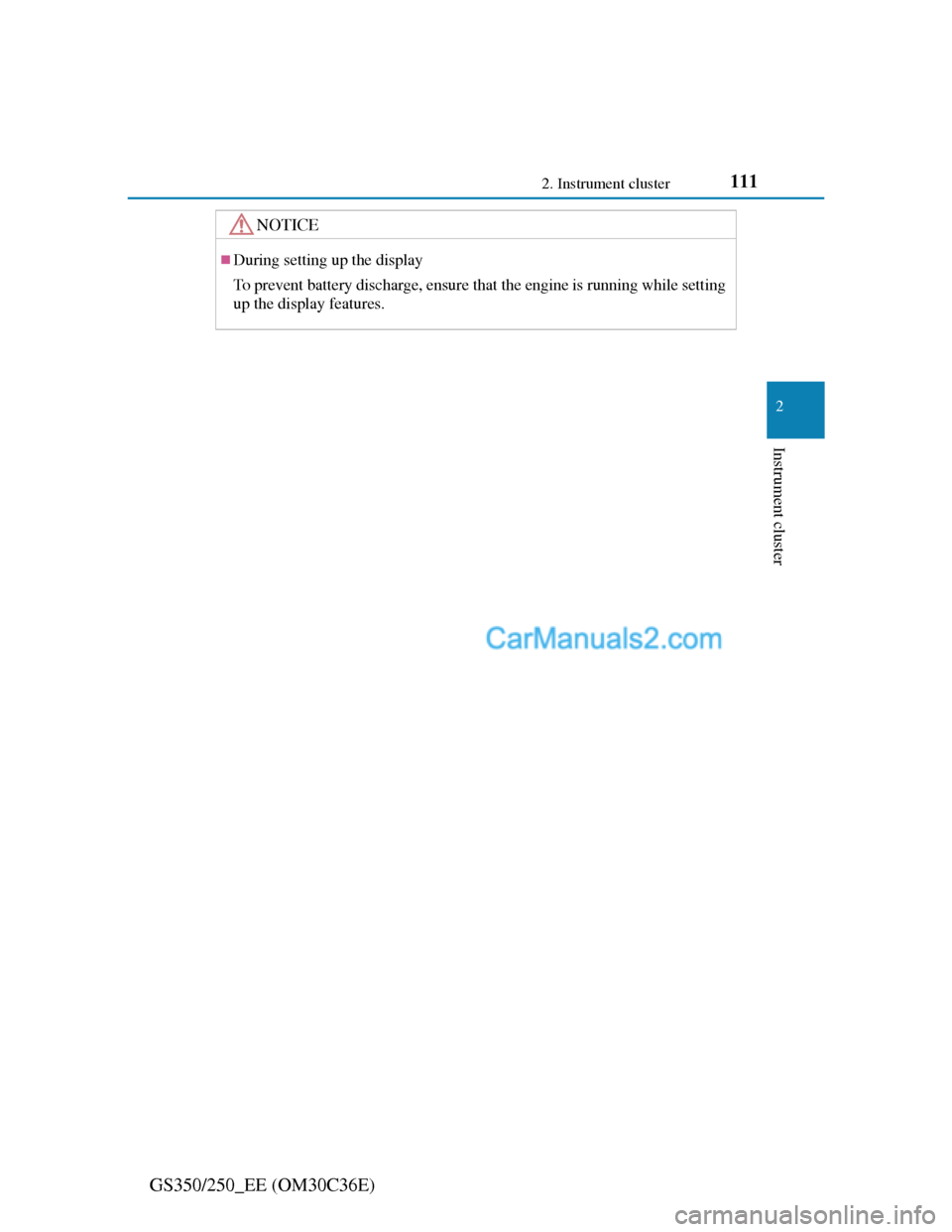

NOTICE
During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

1122. Instrument cluster
GS350/250_EE (OM30C36E)

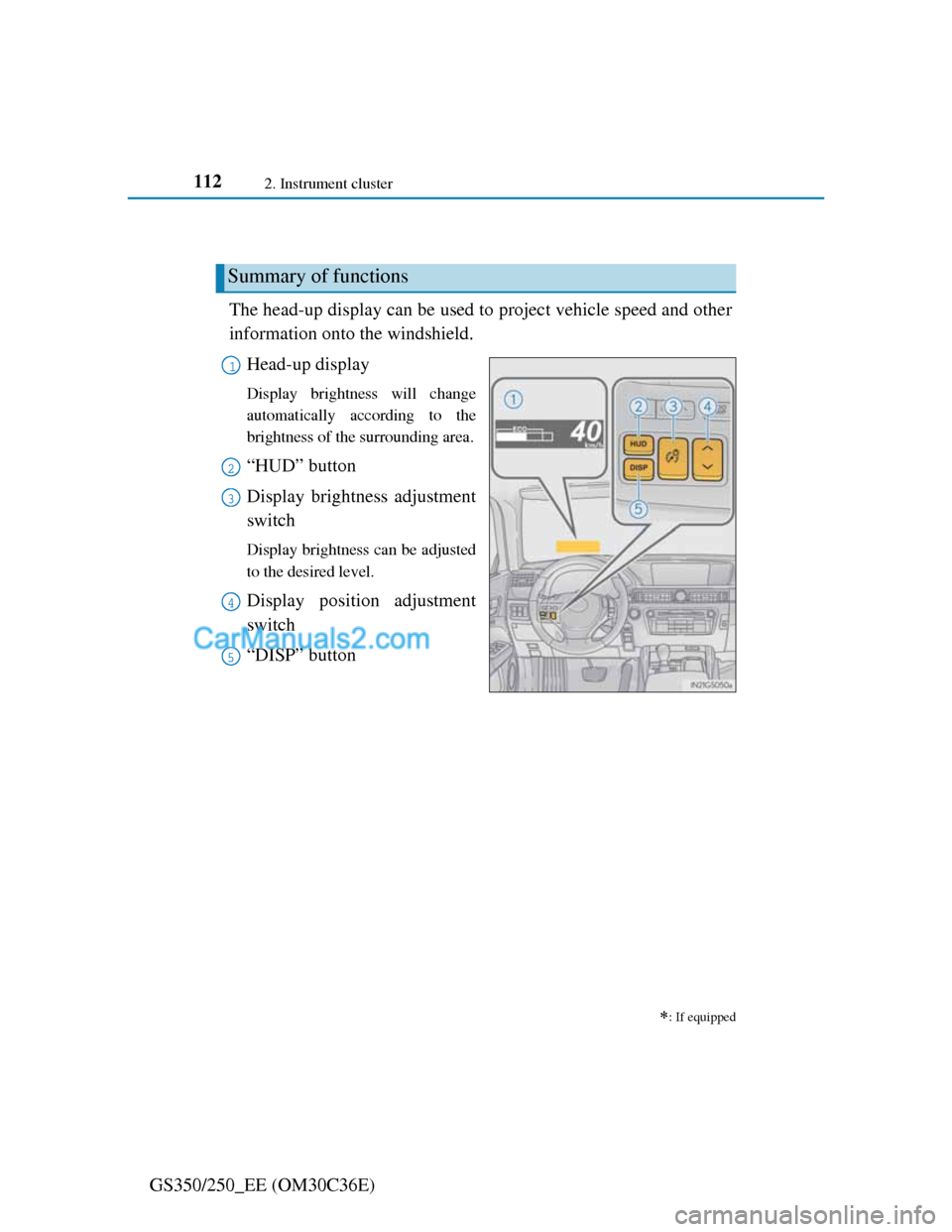

Head-up display
The head-up display can be used to project vehicle speed and other
information onto the windshield.
Head-up display
Display brightness will change
automatically according to the
brightness of the surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted
to the desired level.
Display position adjustment
switch
“DISP” button

: If equipped
Summary of functions
1
2
3
4
5

1132. Instrument cluster
2
Instrument cluster
GS350/250_EE (OM30C36E)
Vehicle speed
Tachometer
Shift position and shift range
Displays the selected shift position or selected shift range (P. 214)

Eco Driving Indicator (P. 109)
Audio display
Displays audio information for approximately 3 seconds when the audio
system is operated

Route guidance display (vehicles with navigation system)
(P. 116)
When approaching an intersection while the navigation system is giving
route guidance, an arrow will automatically be displayed to indicate the
direction of travel.

Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) (P. 767)
Approach warning display (dynamic radar cruise control) (if
equipped)
(P. 767)
Pre-crash braking warning message (pre-crash safety system)
(if equipped) (P. 767)
Head-up display contents

1142. Instrument cluster
GS350/250_EE (OM30C36E)

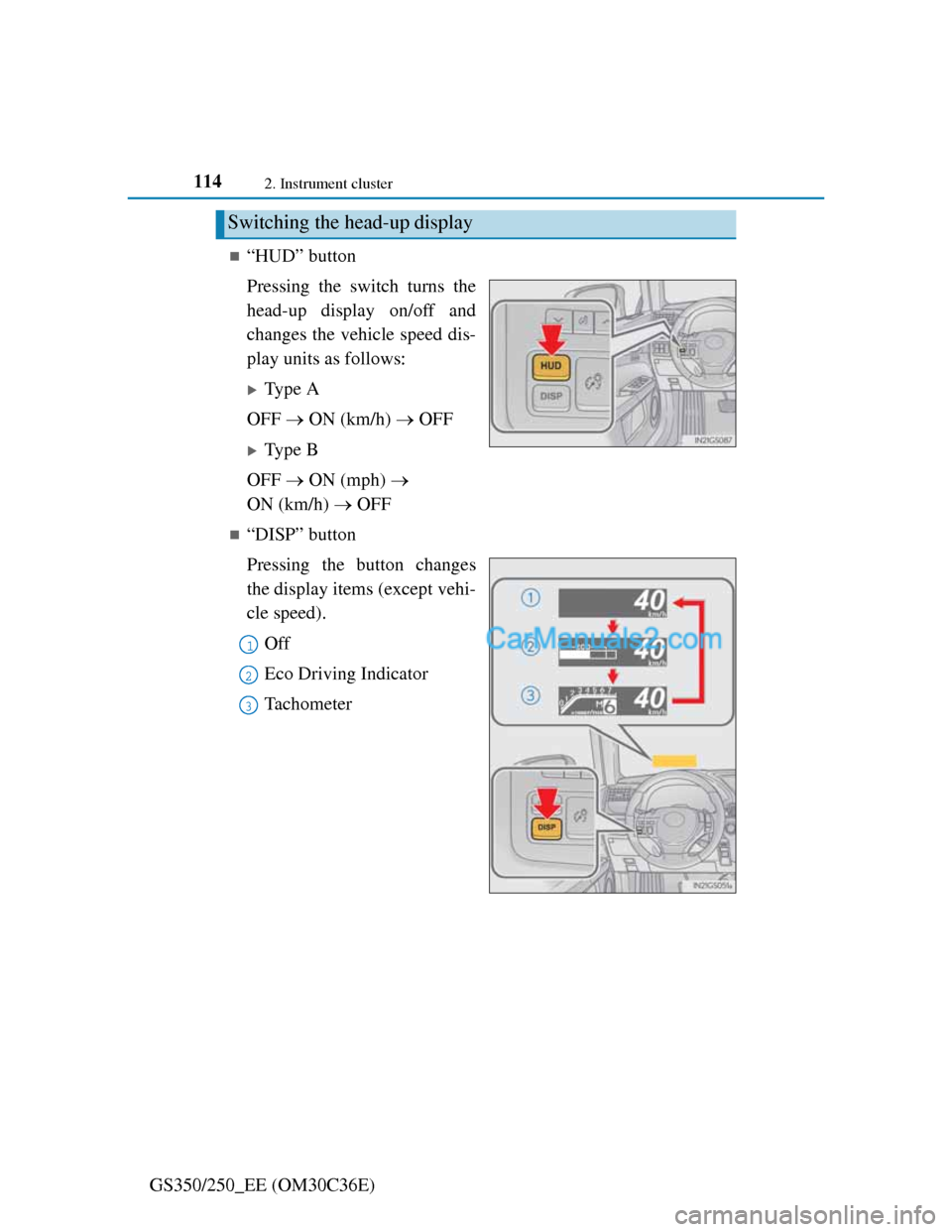

“HUD” button
Pressing the switch turns the
head-up display on/off and
changes the vehicle speed dis-
play units as follows:
Type A
OFF  ON (km/h)  OFF
Type B
OFF  ON (mph) 
ON (km/h)  OFF
“DISP” button
Pressing the button changes
the display items (except vehi-
cle speed).
Off
Eco Driving Indicator
Tachometer
Switching the head-up display
1
2
3

1152. Instrument cluster
2
Instrument cluster
GS350/250_EE (OM30C36E)

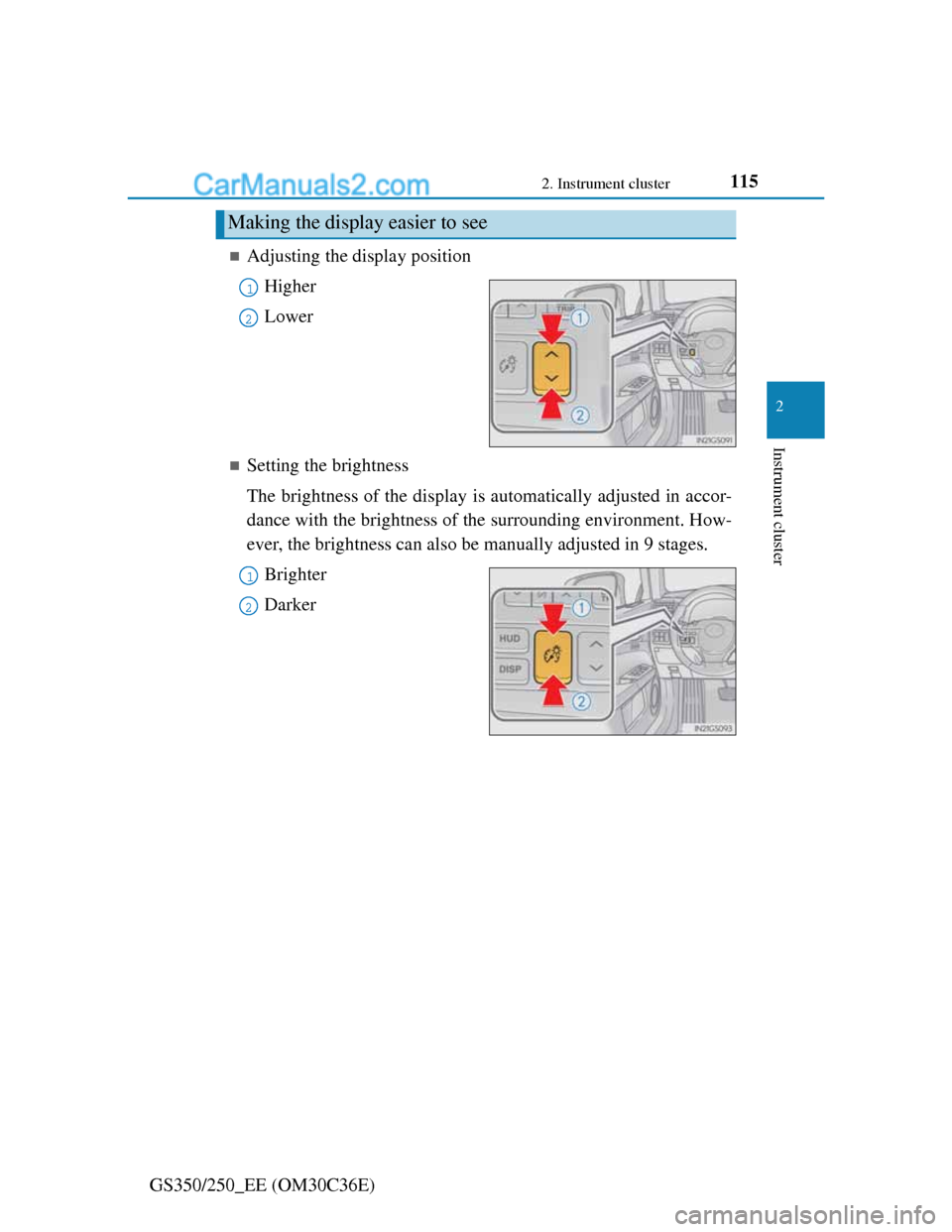

Adjusting the display position
Higher
Lower
Setting the brightness
The brightness of the display is automatically adjusted in accor-
dance with the brightness of the surrounding environment. How-
ever, the brightness can also be manually adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2

1162. Instrument cluster

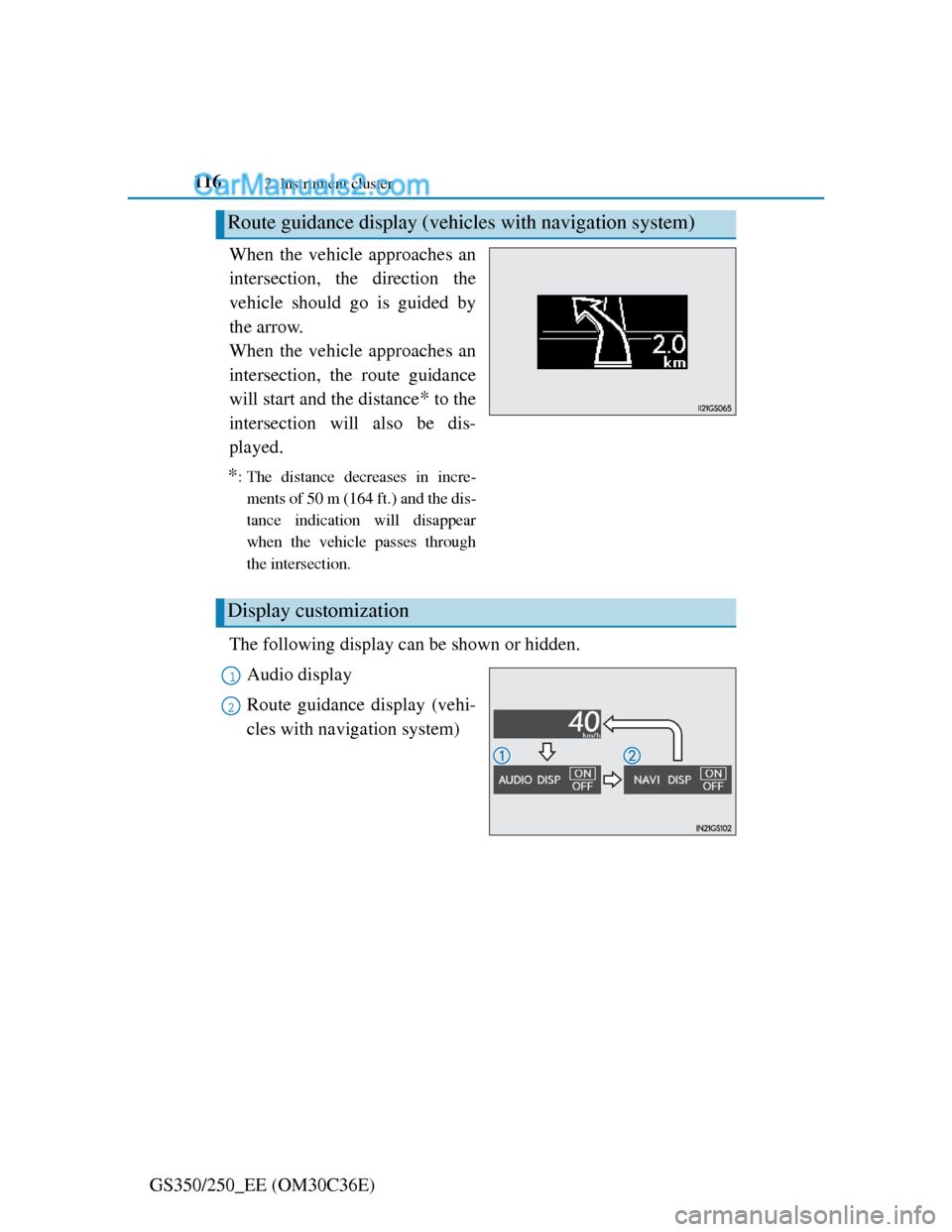

GS350/250_EE (OM30C36E)When the vehicle approaches an
intersection, the direction the
vehicle should go is guided by
the arrow.
When the vehicle approaches an
intersection, the route guidance
will start and the distance
* to the
intersection will also be dis-
played.
*: The distance decreases in incre-
ments of 50 m (164 ft.) and the dis-
tance indication will disappear
when the vehicle passes through
the intersection.
The following display can be shown or hidden.
Audio display
Route guidance display (vehi-
cles with navigation system)
Route guidance display (vehicles with navigation system)
Display customization
1
2

1172. Instrument cluster
2
Instrument cluster
GS350/250_EE (OM30C36E)

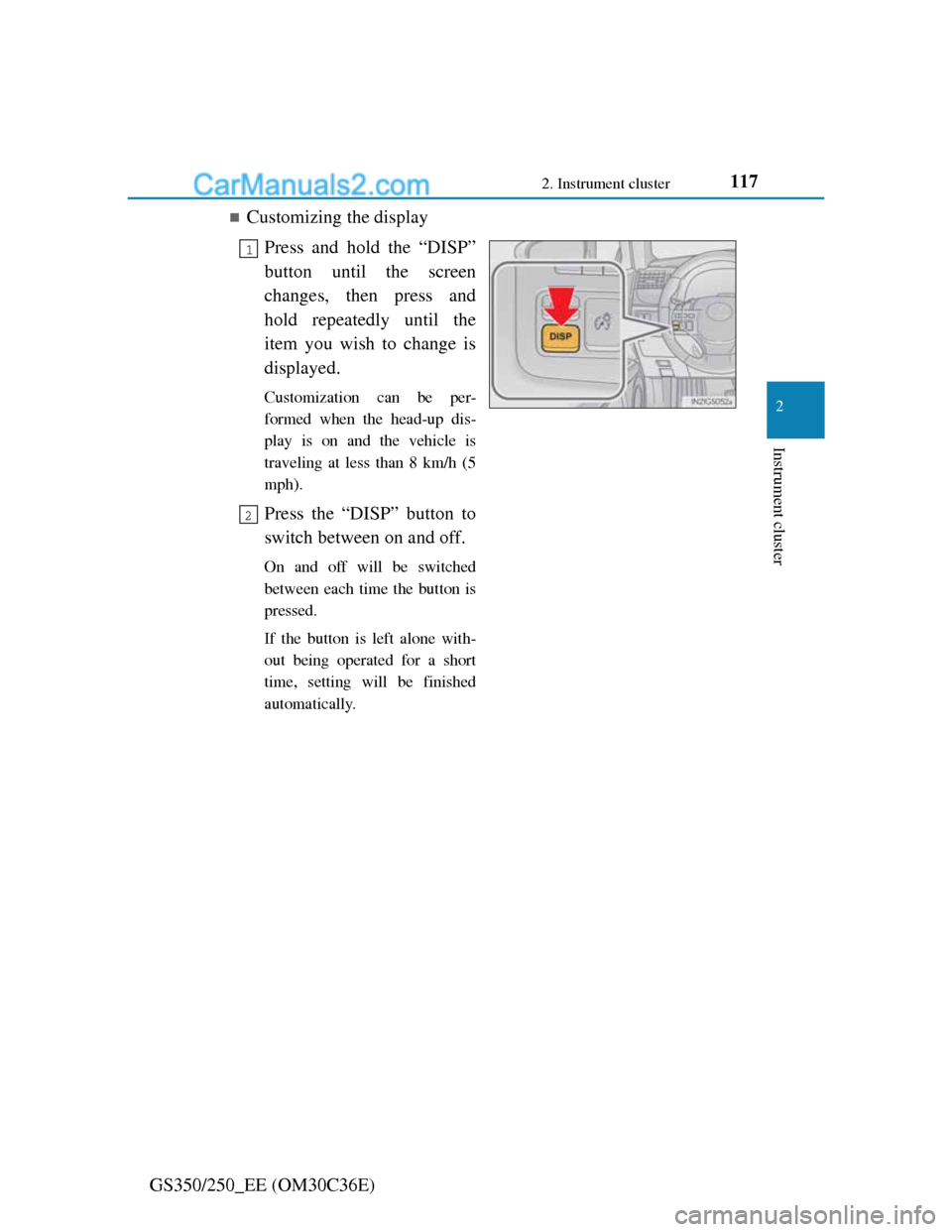

Customizing the display
Press and hold the “DISP”
button until the screen
changes, then press and
hold repeatedly until the
item you wish to change is
displayed.
Customization can be per-
formed when the head-up dis-
play is on and the vehicle is
traveling at less than 8 km/h (5
mph).
Press the “DISP” button to
switch between on and off.
On and off will be switched
between each time the button is
pressed.
If the button is left alone with-
out being operated for a short
time, setting will be finished
automatically.
1
2

1182. Instrument cluster
GS350/250_EE (OM30C36E)
Head-up display
The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
When the head-up display is turned off, it will remain off even if the engine
switch is turned to IGNITION ON mode after the engine switch has been
turned off.
When the battery is disconnected
The customize settings of the head-up display will be reset.
CAUTION
Before using the head-up display
Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident, result-
ing in death or serious injury.
NOTICE
To prevent damage to components
Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-

117
