Page 719 of 914
701 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
Engine compartment (type B fuse box)
Push the tab in and lift the lid
off.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.
Left side instrument panel (right-hand drive vehicles)
Remove the lid.
Page 721 of 914
703 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)

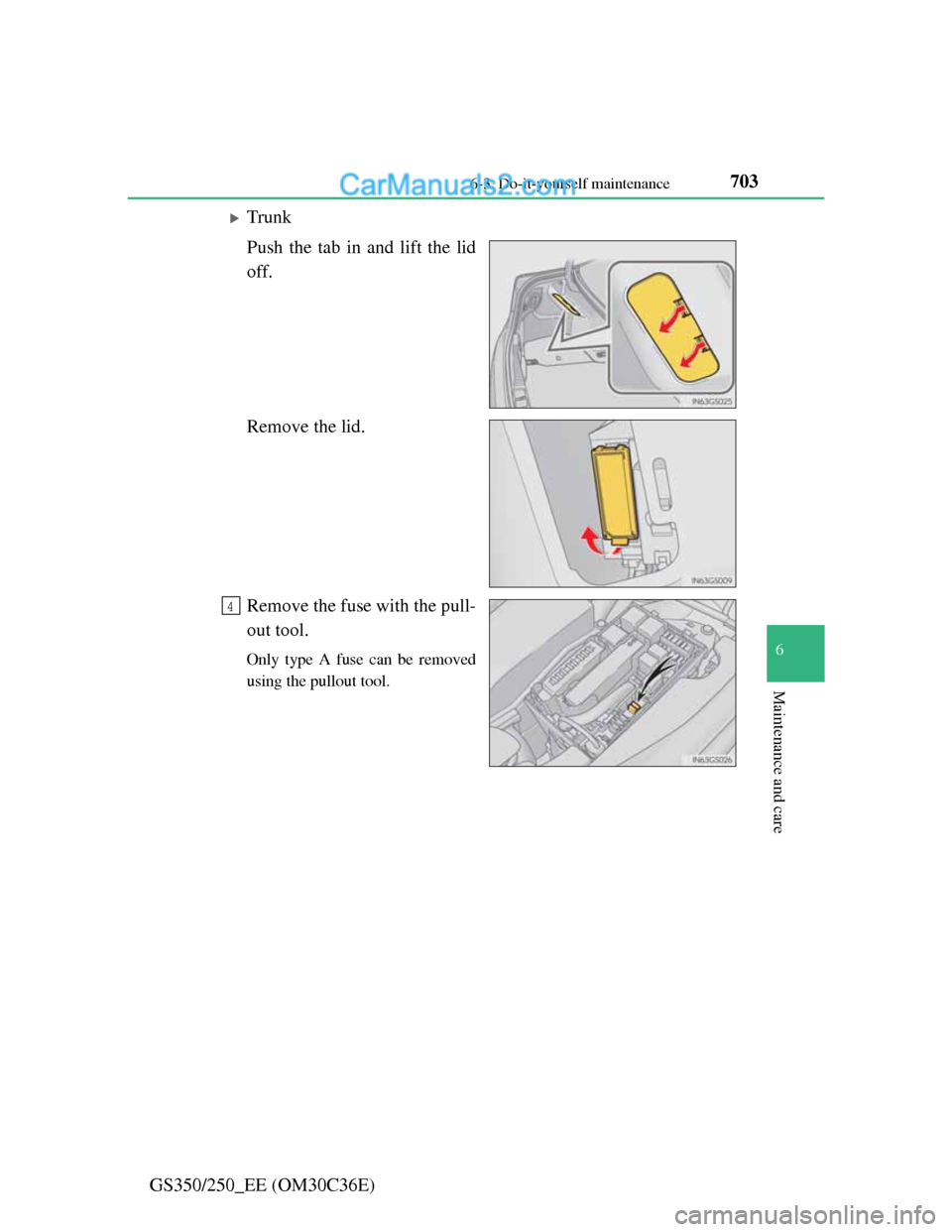

Trunk
Push the tab in and lift the lid
off.
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
4
Page 722 of 914
7046-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating.
The amperage rating can be found on the fuse box lid.
Ty p e C a n d D :
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
5
1
2
Type AType B
Type CType D
Page 723 of 914
705 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
Engine compartment (type A fuse box)
Left-hand drive vehicles
Fuse layout and amperage ratings
FuseAmpereCircuit
1LH J/B-B40Left-hand junction block
2VGRS40No circuit
3RH J/B-B40Right-hand junction block
4P/I-B NO.280F/PMP, EFI MAIN, A/F HTR, EDU, IG2
MAIN
5ALT150R H J / B A LT, P / I A LT, L H J / B A LT,
LUG J/B ALT
6P/I ALT100RR DEF, TAIL, FR FOG, DEICER,
PANEL, RR S/SHADE
7RH J/B ALT80Right-hand junction block
Page 724 of 914
7066-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
8MPX-B10
Smart entry & start system, electric tilt
and telescopic steering column, power
seats, head-up display, front right-hand
door ECU, gauges and meters, steering
sensor, yaw rate and G sensor, overhead
module, front left-hand door ECU,
power trunk lid, RR CTRL SW, clock,
body ECU, CAN gateway ECU
9DOME7.5
Personal lights, ornament lights, trunk
light, footwell lights, door courtesy
lights, vanity lights, rear door inside han-
dle illuminations, power trunk lid
10EPS80EPS
11ARS80No circuit
12HTR50Air conditioning system
13ABS NO.140VDIM
14LUG J/B ALT50Luggage compartment junction block
15PTC NO.150PTC heater
16PTC NO.250PTC heater
17ABS NO.250VDIM
18ST30Starting system
19H-LP LO30Headlights, H-LP RLY
20D/C CUT30DOME, MPX-B
21DCM7.5DCM
22ECU-B7.5Smart entry & start system
23ALT-S7.5Charging system
FuseAmpereCircuit
Page 725 of 914
707 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
24ETCS10Multiport fuel injection system/sequen-
tial multiport fuel injection system
25HORN10Horn
26R/B-B20EPS-B, TV
27P/I-B NO.150Headlights, daytime running lights, EBS
28EPB30Parking brake
29LUG J/B-B40Luggage compartment junction block
30FAN NO.180Electric cooling fans
31LH J/B ALT60Left-hand junction block
32H-LP CLN30Headlight cleaner
33FAN NO.240Electric cooling fans
34A/C COMP7.5Air conditioning system
35FILTER10Condenser
FuseAmpereCircuit
Page 726 of 914
7086-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)

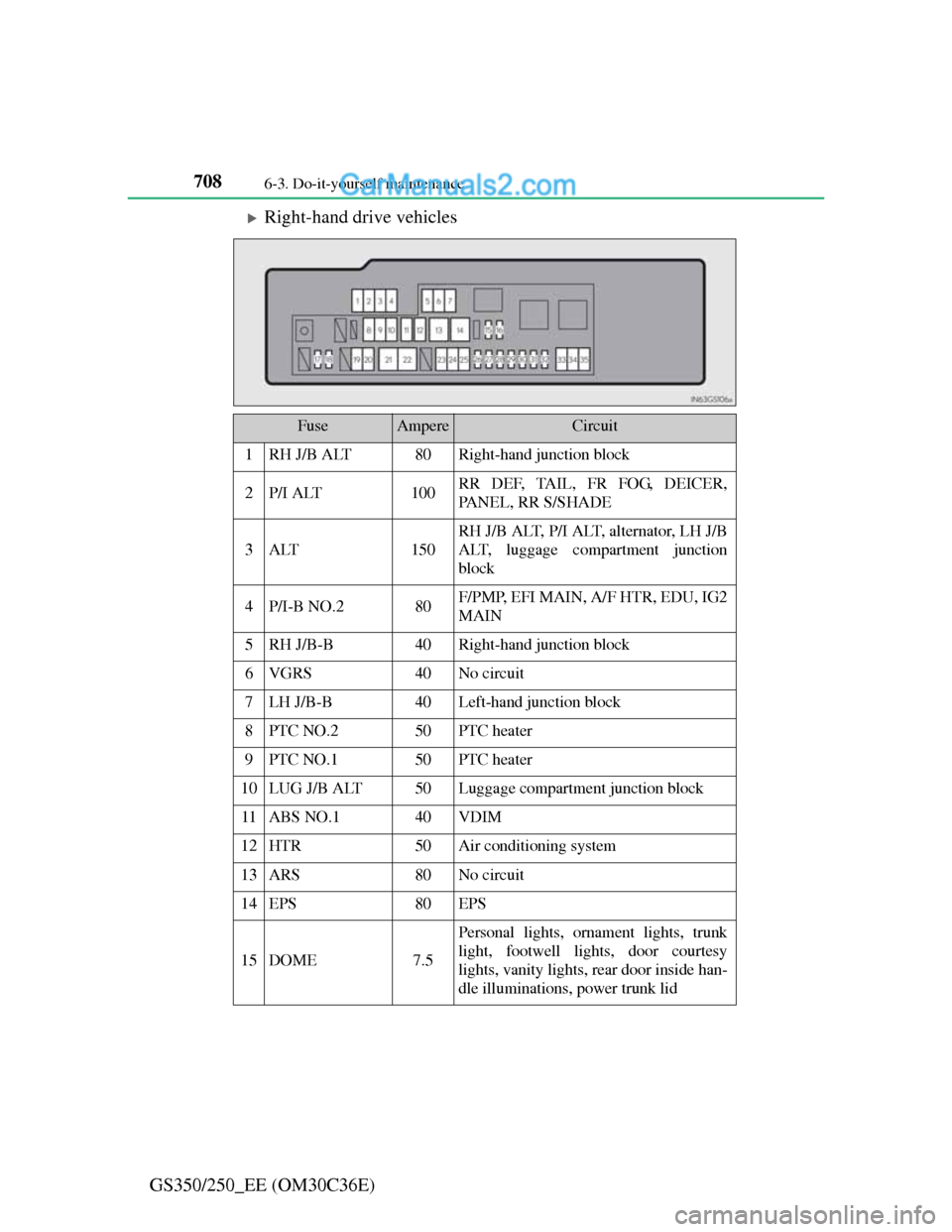

Right-hand drive vehicles
FuseAmpereCircuit
1RH J/B ALT80Right-hand junction block
2P/I ALT100RR DEF, TAIL, FR FOG, DEICER,
PANEL, RR S/SHADE
3ALT150
RH J/B ALT, P/I ALT, alternator, LH J/B
ALT, luggage compartment junction
block
4P/I-B NO.280F/PMP, EFI MAIN, A/F HTR, EDU, IG2
MAIN
5RH J/B-B40Right-hand junction block
6VGRS40No circuit
7LH J/B-B40Left-hand junction block
8PTC NO.250PTC heater
9PTC NO.150PTC heater
10LUG J/B ALT50Luggage compartment junction block
11ABS NO.140VDIM
12HTR50Air conditioning system
13ARS80No circuit
14EPS80EPS
15DOME7.5
Personal lights, ornament lights, trunk
light, footwell lights, door courtesy
lights, vanity lights, rear door inside han-
dle illuminations, power trunk lid
Page 727 of 914
709 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
16MPX-B10
Smart entry & start system, electric tilt
and telescopic steering column, power
seats, head-up display, front right-hand
door ECU, gauges and meters, steering
sensor, yaw rate and G sensor, overhead
module, front left-hand door ECU,
power trunk lid, clock, body ECU, RR
CTRL SW, CAN gateway ECU
17FILTER10Condenser
18A/C COMP7.5Air conditioning system
19H-LP CLN30Headlight cleaner
20FAN NO.240Electric cooling fans
21LH J/B ALT60Left-hand junction block
22FAN NO.180Electric cooling fans
23P/I-B NO.150H-LP HI RH, H-LP HI LH, DRL, emer-
gency brake signal
24EPB30Parking brake
25LUG J/B-B40Luggage compartment junction block
26R/B-B20EPS-B, TV
27HORN10Horn
28ETCS10Multiport fuel injection system/sequen-
tial multiport fuel injection system
29ALT-S7.5Charging system
30ECU-B7.5Smart entry & start system
31DCM7.5DCM
32D/C CUT30DOME, MPX-B
33ABS NO.250VDIM
34ST30Starting system
35H-LP LO30Headlights, H-LP RLY
FuseAmpereCircuit
Page 728 of 914
7106-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Engine compartment (type B fuse box)
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequen-
tial multiport fuel injection system
3EFI NO.210Fuel system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2
NO.1, LH-IG2
5EFI MAIN25
Multiport fuel injection system/sequen-
tial multiport fuel injection system, EFI
NO.2
6A/F15Air intake system
7EDU20Multiport fuel injection system/sequen-
tial multiport fuel injection system
8F/PMP25Multiport fuel injection system/sequen-
tial multiport fuel injection system
9SPARE30Spare fuse
10SPARE20Spare fuse
11SPARE10Spare fuse
Page 729 of 914

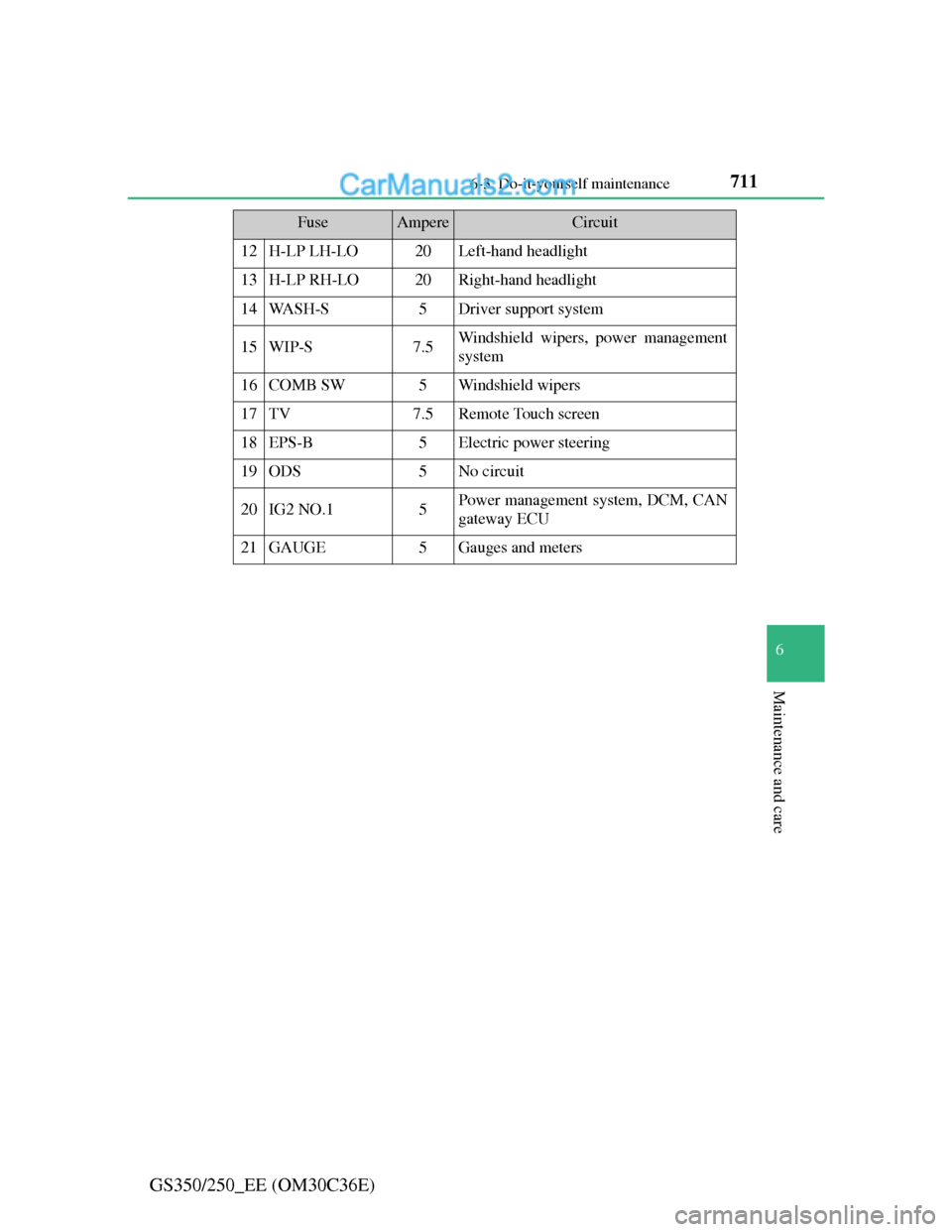

711 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
12H-LP LH-LO20Left-hand headlight
13H-LP RH-LO20Right-hand headlight
14WA S H - S5Driver support system
15WIP-S7.5Windshield wipers, power management
system
16COMB SW5Windshield wipers
17TV7.5Remote Touch screen
18EPS-B5Electric power steering
19ODS5No circuit
20IG2 NO.15Power management system, DCM, CAN
gateway ECU
21GAUGE5Gauges and meters
FuseAmpereCircuit
