Lexus GS250 2012 Owner's Manual

2444-3. Operating the lights and wipers
GS350/250_EE (OM30C36E)When AUTO mode is selected, the sensor sensitivity can be
adjusted by turning the switch ring.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate
a couple of times after the washer
squirts.
6
7
8

2454-3. Operating the lights and wipers
4
Driving
GS350/250_EE (OM30C36E)The wipers can be used as intermittent windshield wipers, which
operate regardless of vehicle speed or amount of raindrops.
Press and hold until the
AUTO mode indicator stops
flashing.
If is pressed and held until the
AUTO mode indicator stops flash-
ing again, it will return to its previ-
ous state.
The wiper can be switched when
the vehicle is stopped and the
wiper is off.
The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one
more time after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 170
km/h (106 mph).
Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in AUTO
mode.
Intermittent wiper interval
Wiper operation when the washer is being used (delay until drip prevention
wiper sweep occurs)
With low speed windshield wiper operation selected, wiper operation will be
switched from low speed to intermittent wiper operation only when the vehi-
cle is stationary.
Switching between the intermittent windshield wipers and
rain-sensing windshield wipers (vehicles with rain-sensing
windshield wipers)

2464-3. Operating the lights and wipers
GS350/250_EE (OM30C36E)
Raindrop sensor (vehicles with rain-sensing windshield wipers)
If the wiper is turned to AUTO mode while the engine switch is in IGNI-
TION ON mode, the wipers will operate once to show that AUTO mode is
activated.
If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -
30°C (-22°F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than AUTO mode.
When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from
the rising or setting of the sun intermit-
tently strikes the windshield, or if bugs
etc. are present on the windshield.
CAUTION
Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched
or the windshield is subject to vibration in AUTO mode. Take care that
your fingers or anything else do not become caught in the windshield wip-
ers.
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility.
This may lead to an accident, resulting in death or serious injury.

2474-3. Operating the lights and wipers
4
Driving
GS350/250_EE (OM30C36E)

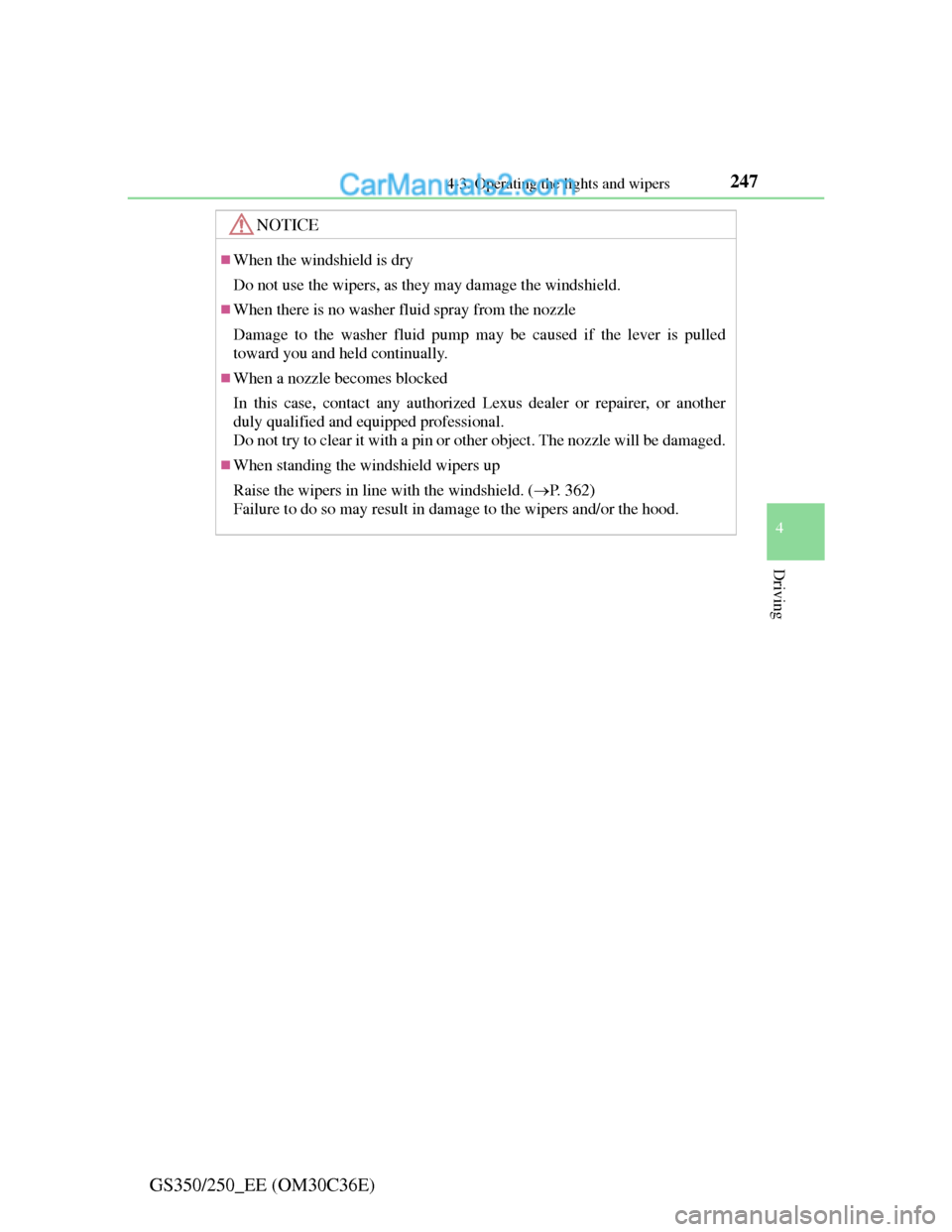

NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
When a nozzle becomes blocked
In this case, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
When standing the windshield wipers up
Raise the wipers in line with the windshield. (P. 362)
Failure to do so may result in damage to the wipers and/or the hood.

2484-3. Operating the lights and wipers
GS350/250_EE (OM30C36E)
Headlight cleaner switch
Press the switch to clean the
headlights.
The headlight cleaners can be operated when
The engine switch is in IGNITION ON mode and the headlight switch is
turned on.
Windshield washer linked operation
When the windshield washer is operated with the engine switch in IGNI-
TION ON mode and the headlights on, the headlight cleaners will operate
once. (P. 241)
Washer fluid can be sprayed on the headlights.
NOTICE
When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.

249

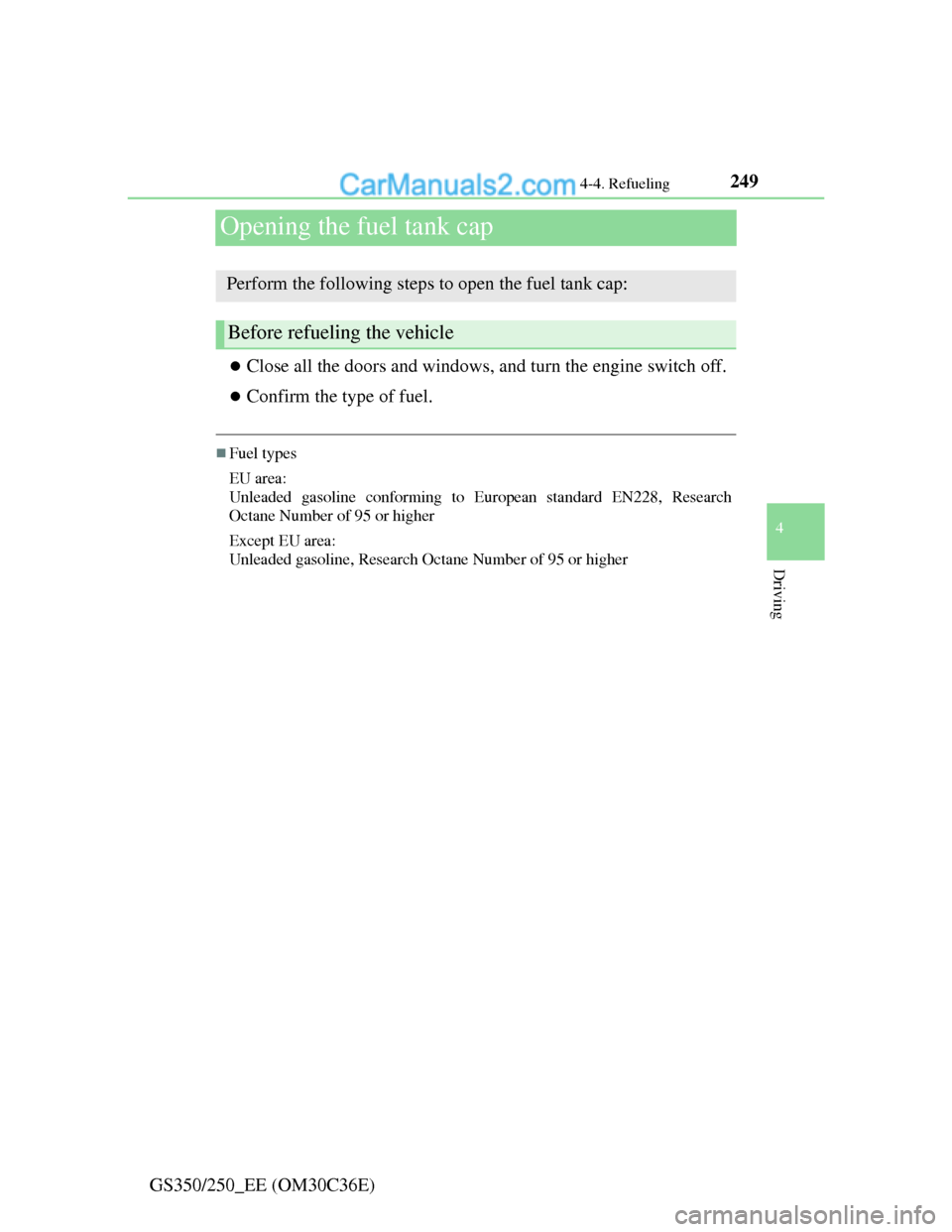

4 4-4. Refueling
Driving
GS350/250_EE (OM30C36E)
Opening the fuel tank cap
Close all the doors and windows, and turn the engine switch off.
Confirm the type of fuel.
Fuel types
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

2504-4. Refueling
GS350/250_EE (OM30C36E)

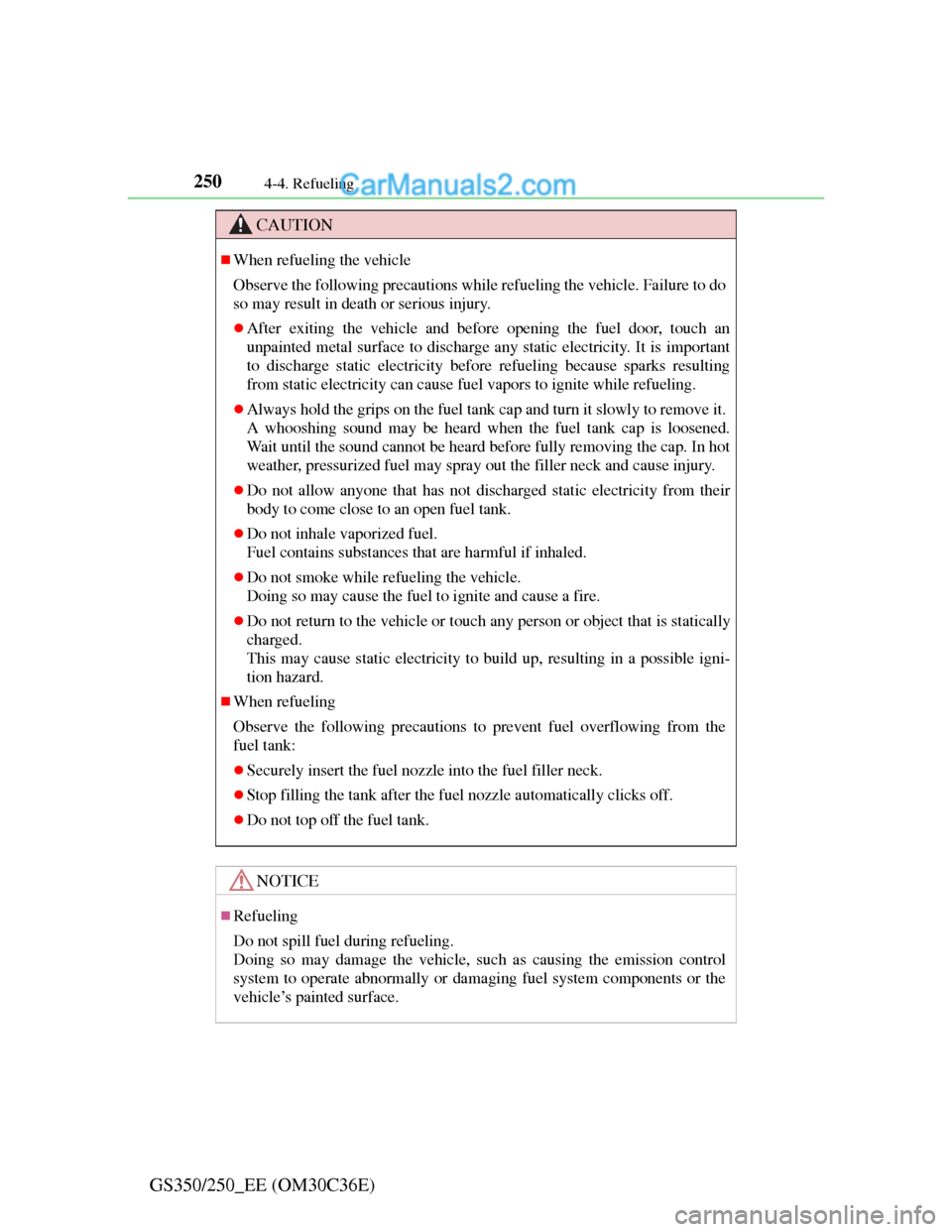

CAUTION
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important
to discharge static electricity before refueling because sparks resulting
from static electricity can cause fuel vapors to ignite while refueling.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible igni-
tion hazard.
When refueling
Observe the following precautions to prevent fuel overflowing from the
fuel tank:
Securely insert the fuel nozzle into the fuel filler neck.
Stop filling the tank after the fuel nozzle automatically clicks off.
Do not top off the fuel tank.
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

2514-4. Refueling
4
Driving

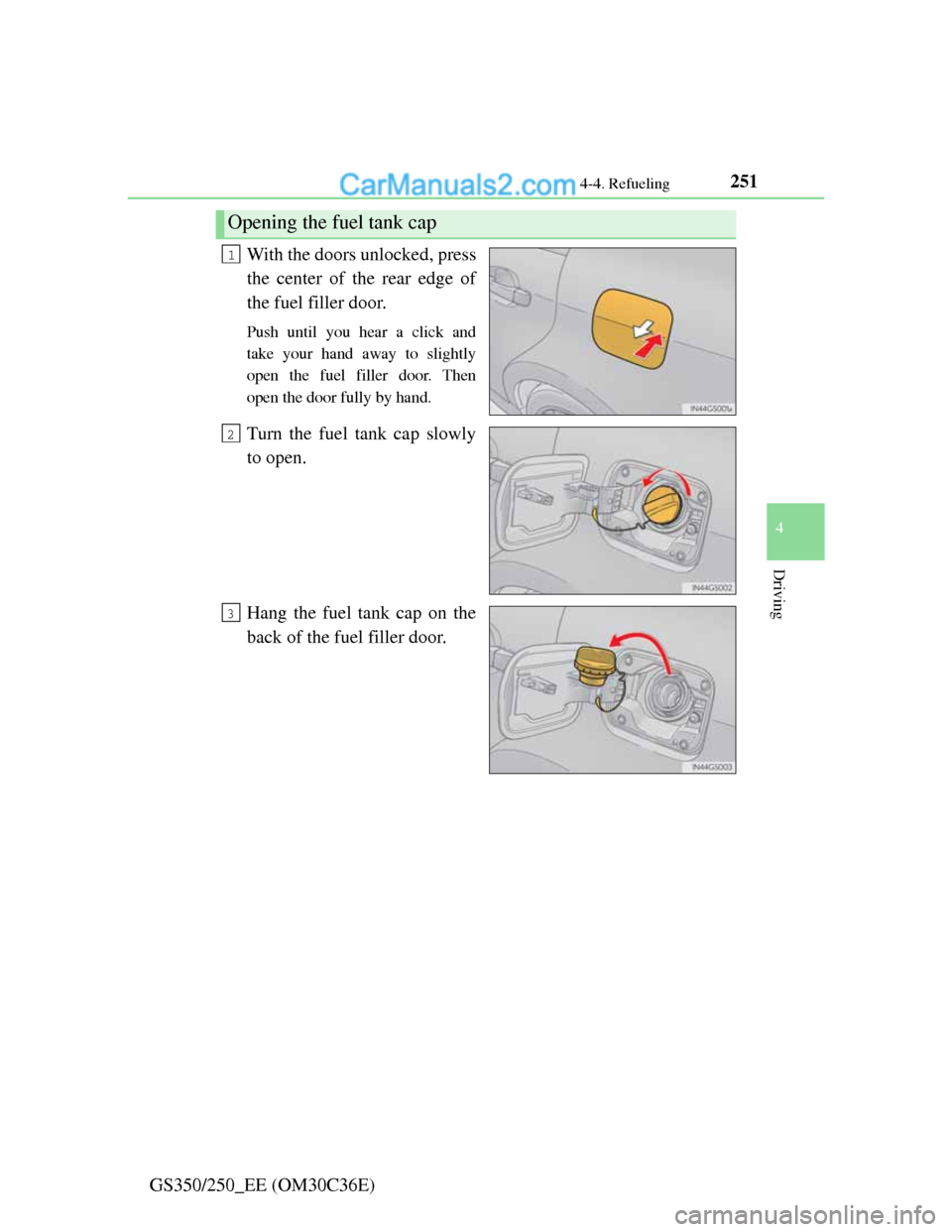

GS350/250_EE (OM30C36E)With the doors unlocked, press
the center of the rear edge of
the fuel filler door.
Push until you hear a click and
take your hand away to slightly
open the fuel filler door. Then
open the door fully by hand.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
Opening the fuel tank cap
1
2
3

2524-4. Refueling
GS350/250_EE (OM30C36E)

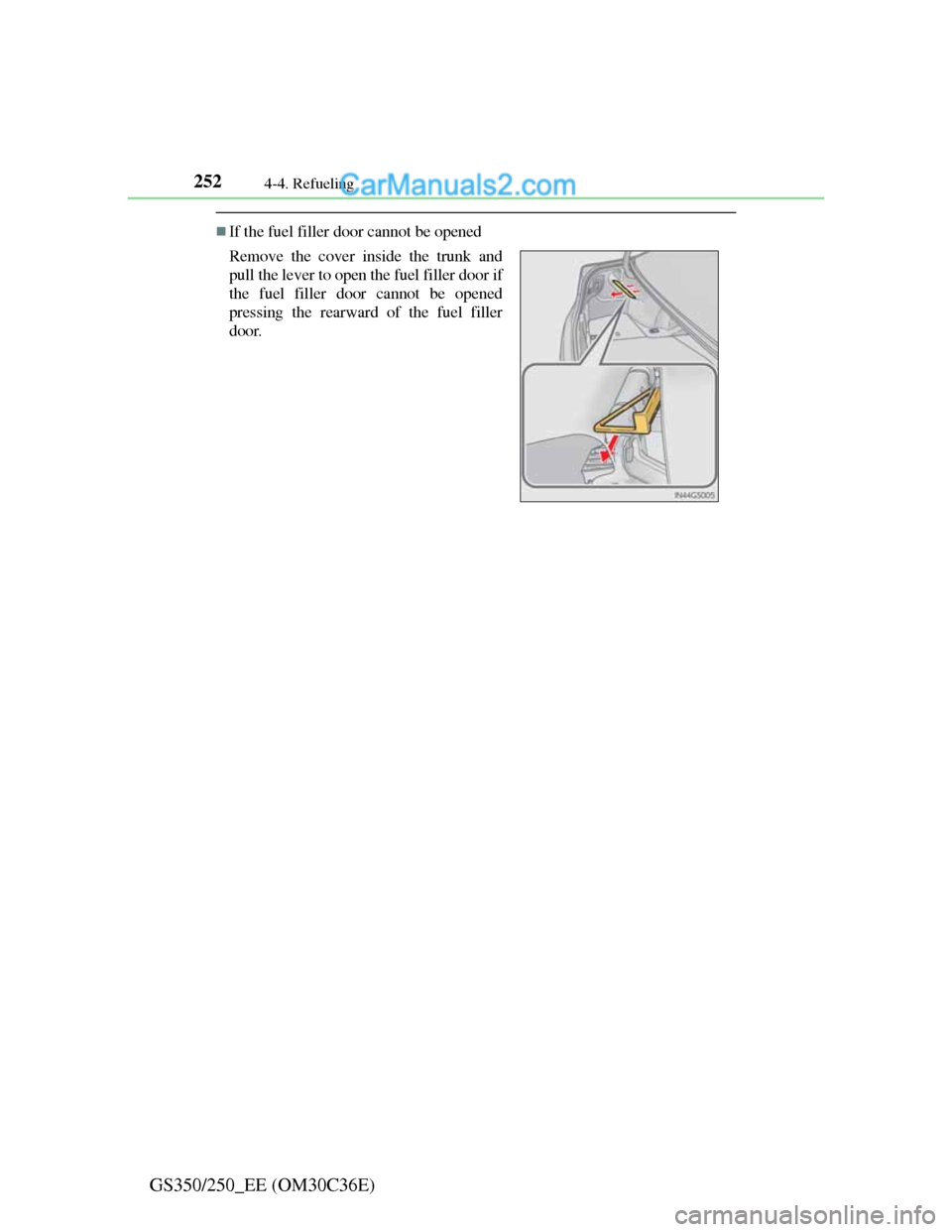

If the fuel filler door cannot be opened
Remove the cover inside the trunk and
pull the lever to open the fuel filler door if
the fuel filler door cannot be opened
pressing the rearward of the fuel filler
door.

2534-4. Refueling
4
Driving

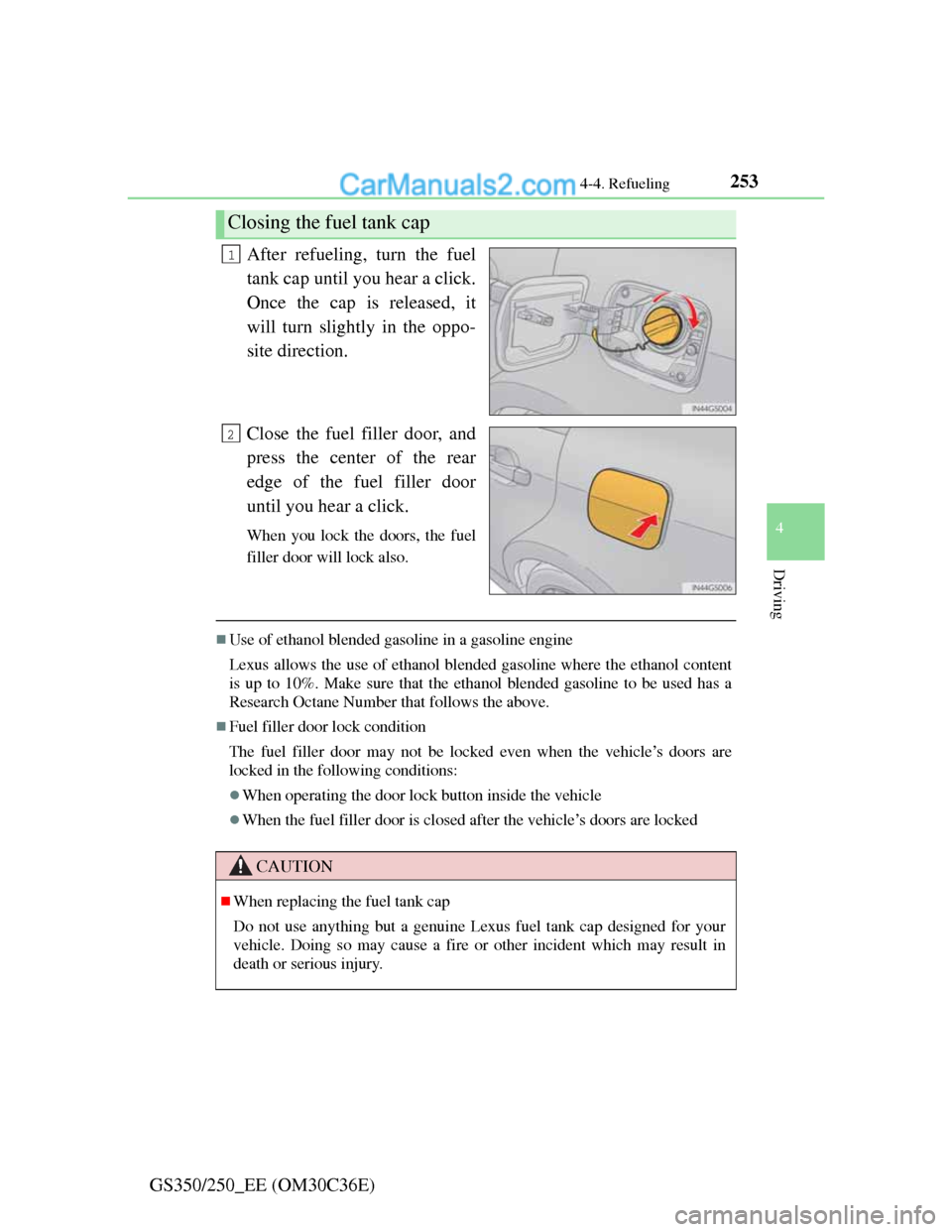

GS350/250_EE (OM30C36E)After refueling, turn the fuel
tank cap until you hear a click.
Once the cap is released, it
will turn slightly in the oppo-
site direction.
Close the fuel filler door, and
press the center of the rear
edge of the fuel filler door
until you hear a click.
When you lock the doors, the fuel
filler door will lock also.
Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Fuel filler door lock condition
The fuel filler door may not be locked even when the vehicle’s doors are
locked in the following conditions:
When operating the door lock button inside the vehicle
When the fuel filler door is closed after the vehicle’s doors are locked
Closing the fuel tank cap
1
2
CAUTION
When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
