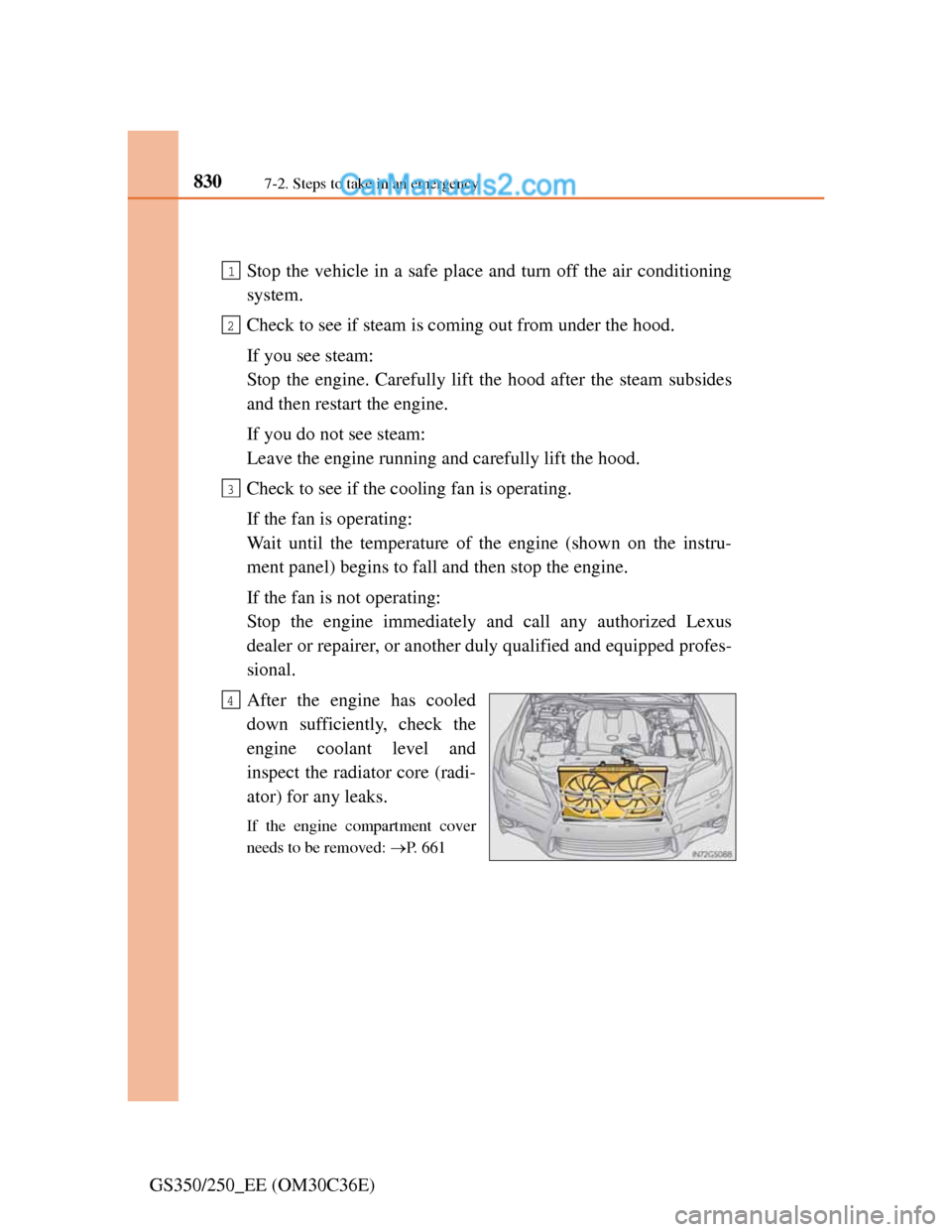

Page 851 of 914
8307-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine. Carefully lift the hood after the steam subsides
and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the temperature of the engine (shown on the instru-
ment panel) begins to fall and then stop the engine.
If the fan is not operating:
Stop the engine immediately and call any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.
If the engine compartment cover
needs to be removed: P. 6 6 1
1
2
3
4

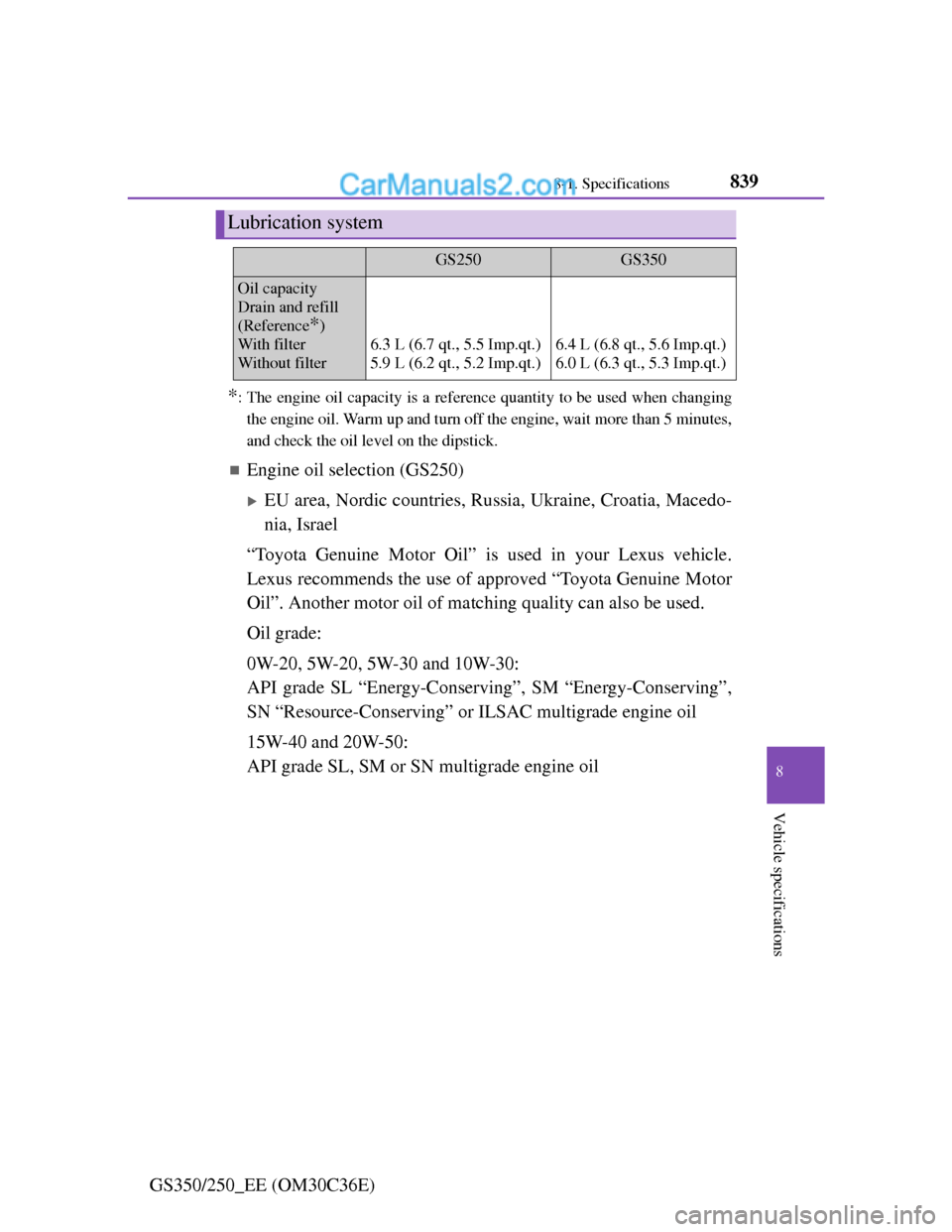

Page 860 of 914
839
8 8-1. Specifications
Vehicle specifications
GS350/250_EE (OM30C36E)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection (GS250)
EU area, Nordic countries, Russia, Ukraine, Croatia, Macedo-
nia, Israel
“Toyota Genuine Motor Oil” is used in your Lexus vehicle.
Lexus recommends the use of approved “Toyota Genuine Motor
Oil”. Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”,
SN “Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Lubrication system
GS250GS350
Oil capacity
Drain and refill
(Reference
*)
With filter
Without filter
6.3 L (6.7 qt., 5.5 Imp.qt.)
5.9 L (6.2 qt., 5.2 Imp.qt.)6.4 L (6.8 qt., 5.6 Imp.qt.)
6.0 L (6.3 qt., 5.3 Imp.qt.)
Page 869 of 914
8488-1. Specifications
GS350/250_EE (OM30C36E)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
Battery
Open voltage at 20 C
(68 F):
Specific gravity read-
ing at 20C (68F):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11.8 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
1.250 1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Automatic transmission
Fluid capacity*GS2507.5 L (7.9 qt., 6.6 Imp.qt.)
GS35010.0 L (10.6 qt., 8.8 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

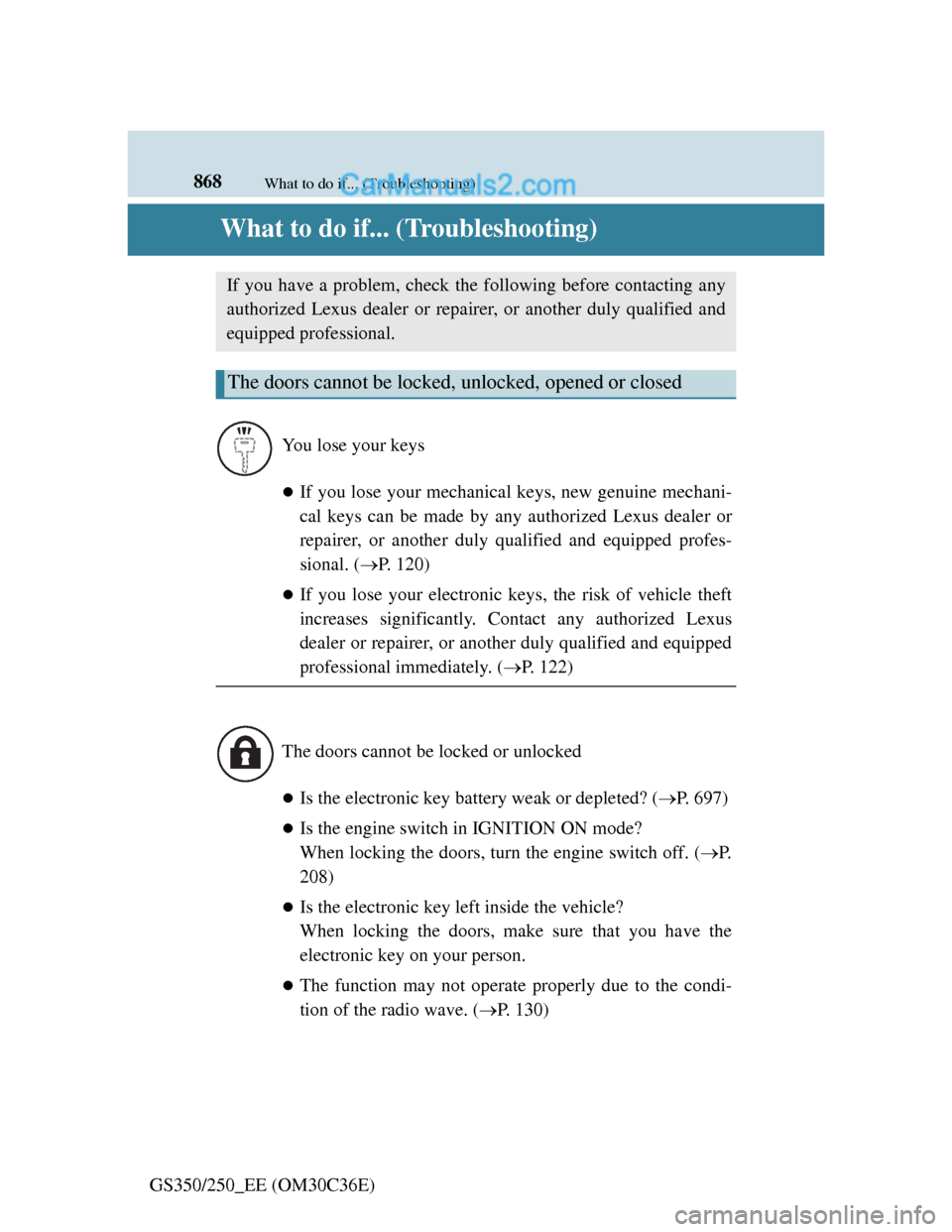

Page 890 of 914
868What to do if... (Troubleshooting)
GS350/250_EE (OM30C36E)
What to do if... (Troubleshooting)
If you lose your mechanical keys, new genuine mechani-
cal keys can be made by any authorized Lexus dealer or
repairer, or another duly qualified and equipped profes-
sional. (P. 120)
If you lose your electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped
professional immediately. (P. 122)
Is the electronic key battery weak or depleted? (P. 697)
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P.
208)
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the
electronic key on your person.
The function may not operate properly due to the condi-
tion of the radio wave. (P. 130)
If you have a problem, check the following before contacting any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

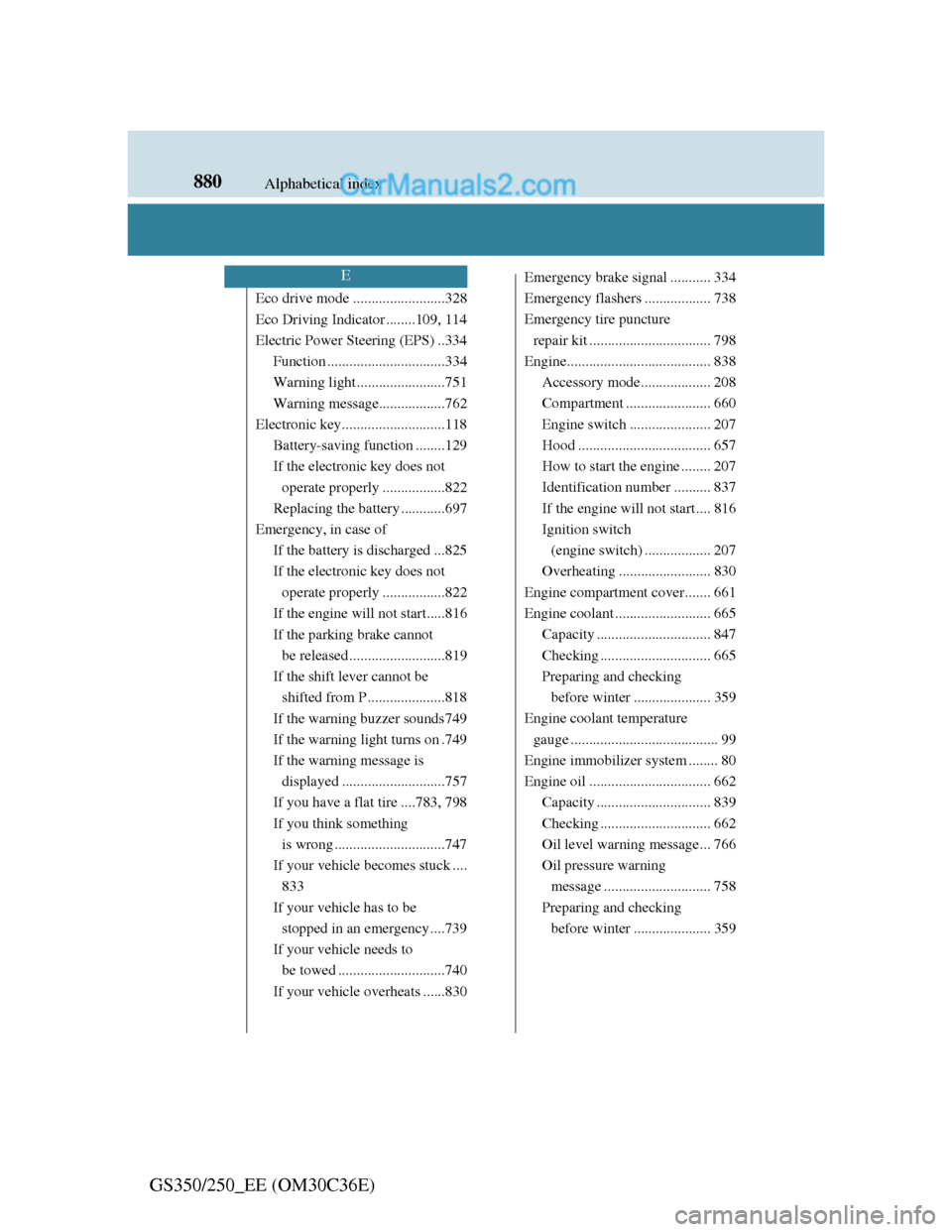

Page 902 of 914
880Alphabetical index
GS350/250_EE (OM30C36E)
Eco drive mode .........................328
Eco Driving Indicator ........109, 114
Electric Power Steering (EPS) ..334
Function ................................334
Warning light........................751
Warning message..................762
Electronic key............................118
Battery-saving function ........129
If the electronic key does not
operate properly .................822
Replacing the battery ............697
Emergency, in case of
If the battery is discharged ...825
If the electronic key does not
operate properly .................822
If the engine will not start.....816
If the parking brake cannot
be released ..........................819
If the shift lever cannot be
shifted from P .....................818
If the warning buzzer sounds749
If the warning light turns on .749
If the warning message is
displayed ............................757
If you have a flat tire ....783, 798
If you think something
is wrong ..............................747
If your vehicle becomes stuck ....
833
If your vehicle has to be
stopped in an emergency ....739
If your vehicle needs to
be towed .............................740
If your vehicle overheats ......830Emergency brake signal ........... 334
Emergency flashers .................. 738
Emergency tire puncture
repair kit ................................. 798
Engine....................................... 838
Accessory mode................... 208
Compartment ....................... 660
Engine switch ...................... 207
Hood .................................... 657
How to start the engine ........ 207
Identification number .......... 837
If the engine will not start .... 816
Ignition switch
(engine switch) .................. 207
Overheating ......................... 830
Engine compartment cover....... 661
Engine coolant .......................... 665
Capacity ............................... 847
Checking .............................. 665
Preparing and checking
before winter ..................... 359
Engine coolant temperature
gauge ........................................ 99
Engine immobilizer system ........ 80
Engine oil ................................. 662
Capacity ............................... 839
Checking .............................. 662
Oil level warning message... 766
Oil pressure warning
message ............................. 758
Preparing and checking
before winter ..................... 359
E

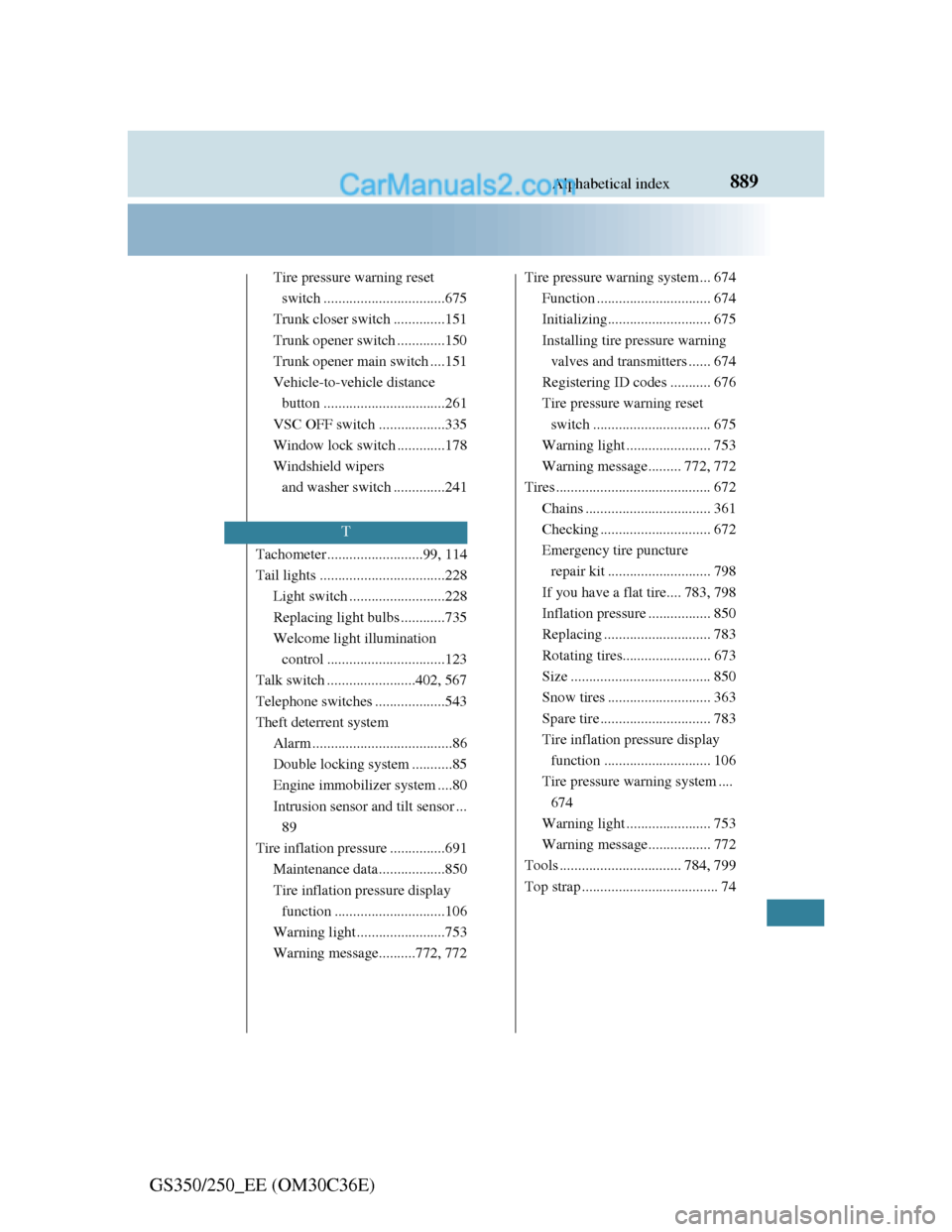

Page 911 of 914
889Alphabetical index
GS350/250_EE (OM30C36E)
Tire pressure warning reset
switch .................................675
Trunk closer switch..............151
Trunk opener switch .............150
Trunk opener main switch ....151
Vehicle-to-vehicle distance
button .................................261
VSC OFF switch ..................335
Window lock switch .............178
Windshield wipers
and washer switch ..............241
Tachometer ..........................99, 114
Tail lights ..................................228
Light switch ..........................228
Replacing light bulbs ............735
Welcome light illumination
control ................................123
Talk switch ........................402, 567
Telephone switches ...................543
Theft deterrent system
Alarm ......................................86
Double locking system ...........85
Engine immobilizer system ....80
Intrusion sensor and tilt sensor ...
89
Tire inflation pressure ...............691
Maintenance data ..................850
Tire inflation pressure display
function ..............................106
Warning light........................753
Warning message..........772, 772Tire pressure warning system ... 674
Function ............................... 674
Initializing............................ 675
Installing tire pressure warning
valves and transmitters ...... 674
Registering ID codes ........... 676
Tire pressure warning reset
switch ................................ 675
Warning light ....................... 753
Warning message......... 772, 772
Tires .......................................... 672
Chains .................................. 361
Checking .............................. 672
Emergency tire puncture
repair kit ............................ 798
If you have a flat tire.... 783, 798
Inflation pressure ................. 850
Replacing ............................. 783
Rotating tires........................ 673
Size ...................................... 850
Snow tires ............................ 363
Spare tire .............................. 783
Tire inflation pressure display
function ............................. 106
Tire pressure warning system ....
674
Warning light ....................... 753
Warning message................. 772
Tools ................................. 784, 799
Top strap ..................................... 74
T
