Page 100 of 914
992. Instrument cluster
2
Instrument cluster
GS350/250_EE (OM30C36E)
Gauges and meters
The units used on the speedometer may differ depending on the target
region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
ECO lamp and SPORT lamp
Changes colors according to driving mode
Multi-information display
Presents the driver with a variety of driving-related data (P. 102)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range (P. 214)
1
2
3
4
5
6
7
Page 102 of 914
101
2 2. Instrument cluster
Instrument cluster
GS350/250_EE (OM30C36E)
The meters and display illuminate when
The engine switch is in IGNITION ON mode.
Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually. However, when the surroundings are bright (day-
time, etc.), turning on the tail lights will not change the instrument panel
brightness.
Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based
on the light sensor detecting how bright the surroundings are. However, if the
instrument panel brightness has been manually set to either the brightest or
darkest setting, the automatic adjustment will not be performed.
ECO lamp and SPORT lamp
When sport mode is selected, SPORT lamp (red) will illuminate.
When all of the following conditions are satisfied and Eco-friendly driving,
ECO lamp (blue) will illuminate. (ECO lamp will become brighter the more
Eco-friendly driving you perform. Also, while the acceleration exceeds
Zone of Eco driving, ECO lamp turns off. (P. 109) However, when Eco
drive mode is selected, while the acceleration exceeds Zone of Eco driving,
ECO lamp does not turn off.):
• Driving with the shift lever in D
• Paddle shift switch is not operated.
• Either normal mode or Eco drive mode is selected.
• The vehicle speed is approximately 130 km/h (80 mph) or below.
Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features P. 857)
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 829)

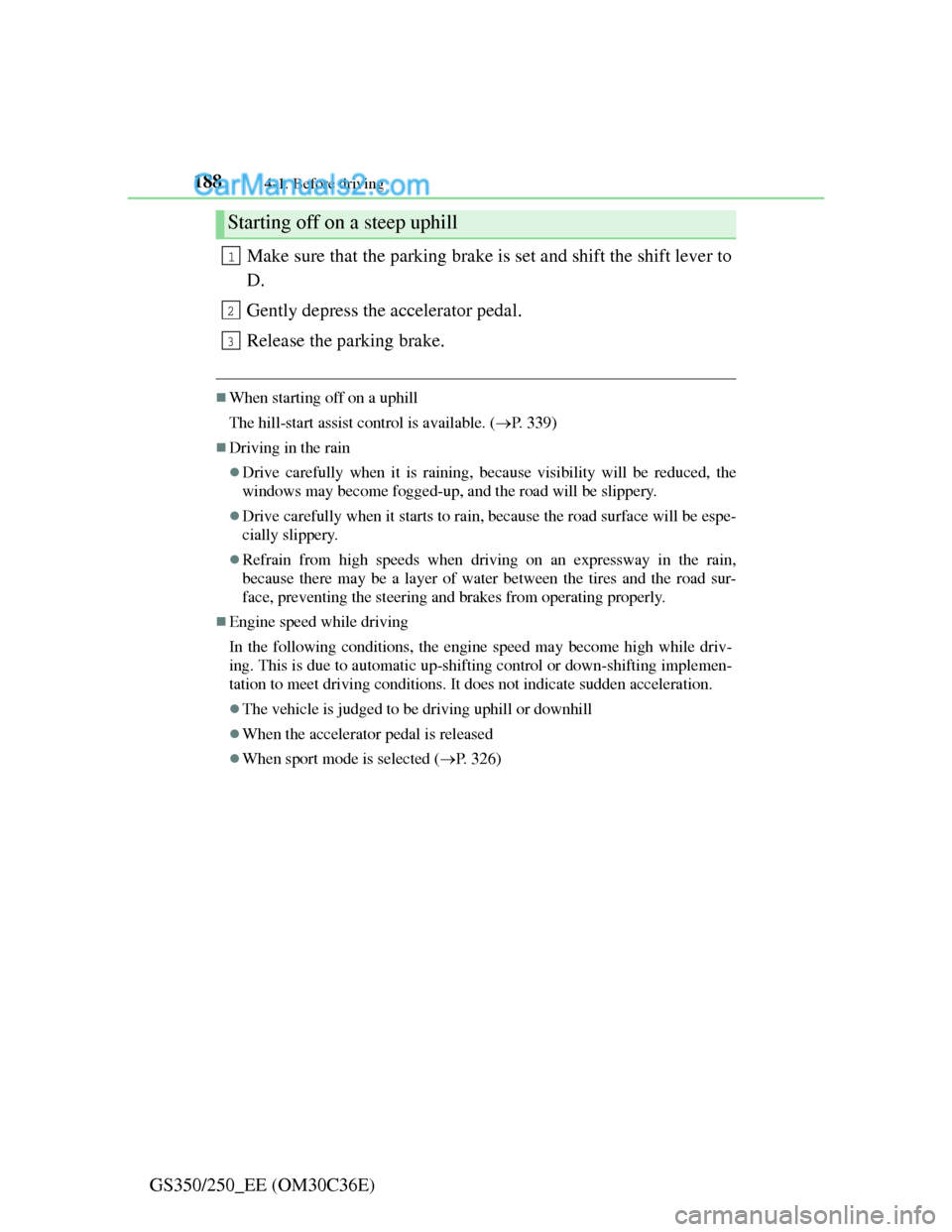

Page 192 of 914
1884-1. Before driving
GS350/250_EE (OM30C36E)Make sure that the parking brake is set and shift the shift lever to
D.
Gently depress the accelerator pedal.
Release the parking brake.
When starting off on a uphill
The hill-start assist control is available. (P. 339)
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
Engine speed while driving
In the following conditions, the engine speed may become high while driv-
ing. This is due to automatic up-shifting control or down-shifting implemen-
tation to meet driving conditions. It does not indicate sudden acceleration.
The vehicle is judged to be driving uphill or downhill
When the accelerator pedal is released
When sport mode is selected (P. 3 2 6 )
Starting off on a steep uphill
1
2
3

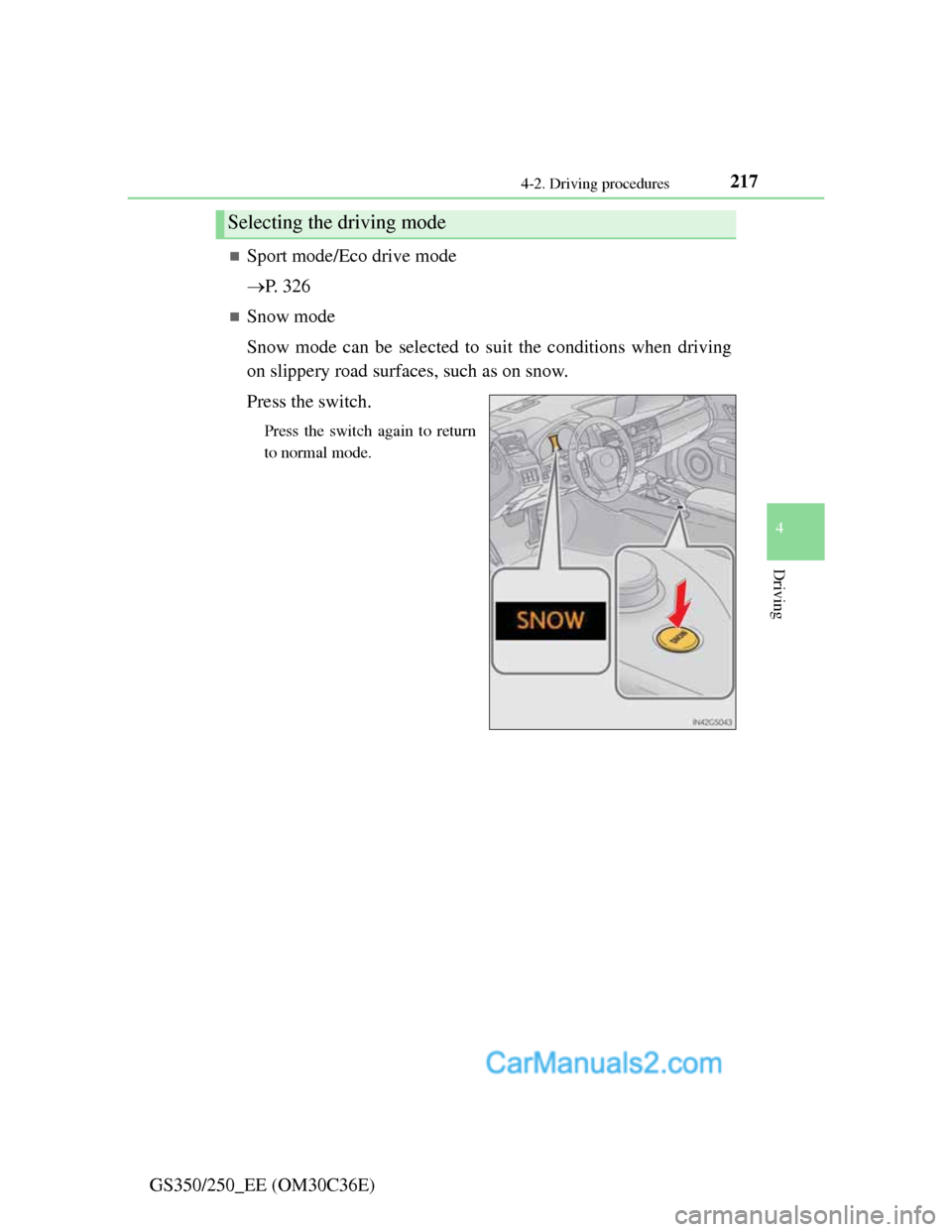

Page 223 of 914
2174-2. Driving procedures
4
Driving
GS350/250_EE (OM30C36E)
Sport mode/Eco drive mode
P. 326
Snow mode
Snow mode can be selected to suit the conditions when driving
on slippery road surfaces, such as on snow.
Press the switch.
Press the switch again to return
to normal mode.
Selecting the driving mode

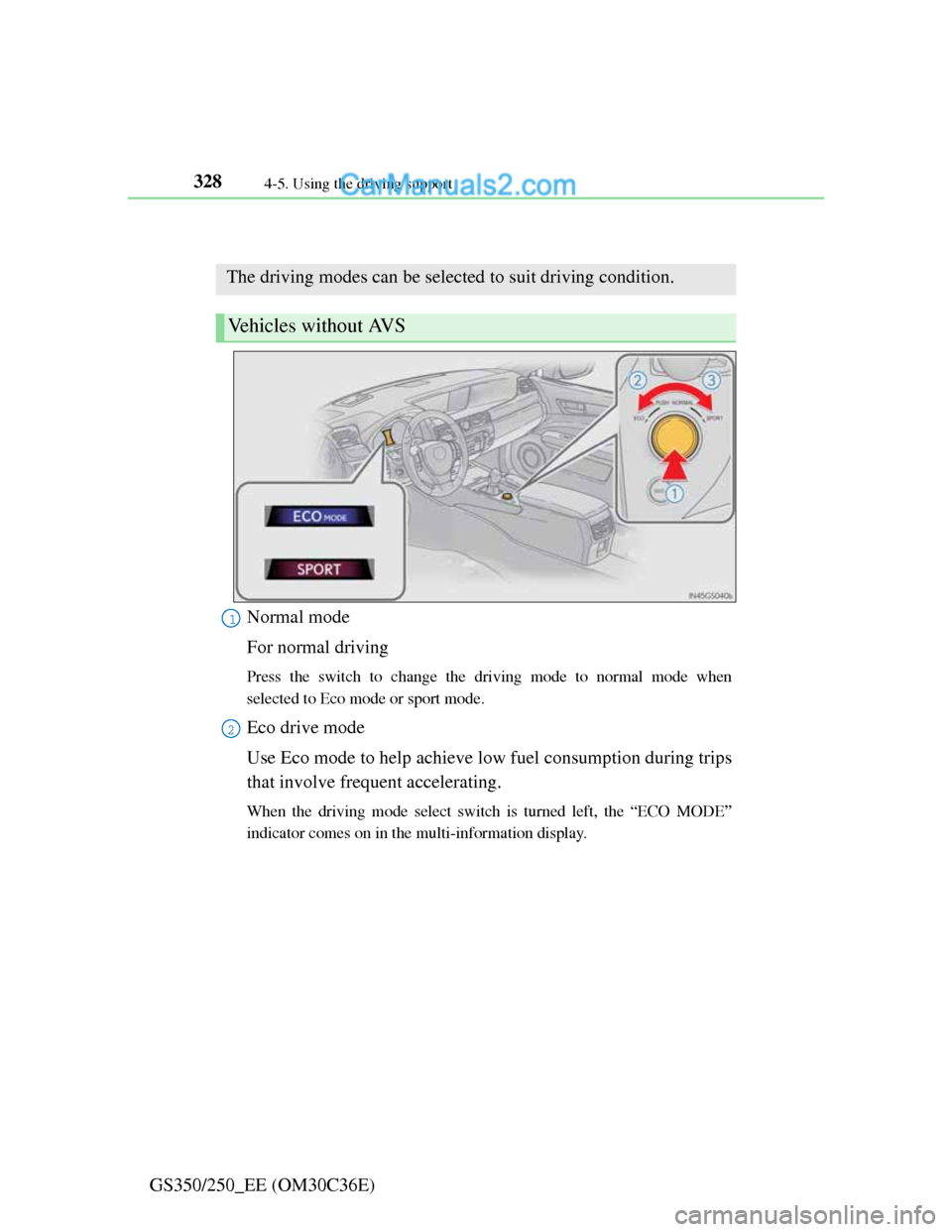

Page 335 of 914
3284-5. Using the driving support
GS350/250_EE (OM30C36E)
Driving mode select switch
Normal mode
For normal driving
Press the switch to change the driving mode to normal mode when
selected to Eco mode or sport mode.
Eco drive mode
Use Eco mode to help achieve low fuel consumption during trips
that involve frequent accelerating.
When the driving mode select switch is turned left, the “ECO MODE”
indicator comes on in the multi-information display.
The driving modes can be selected to suit driving condition.
Vehicles without AVS
1
2

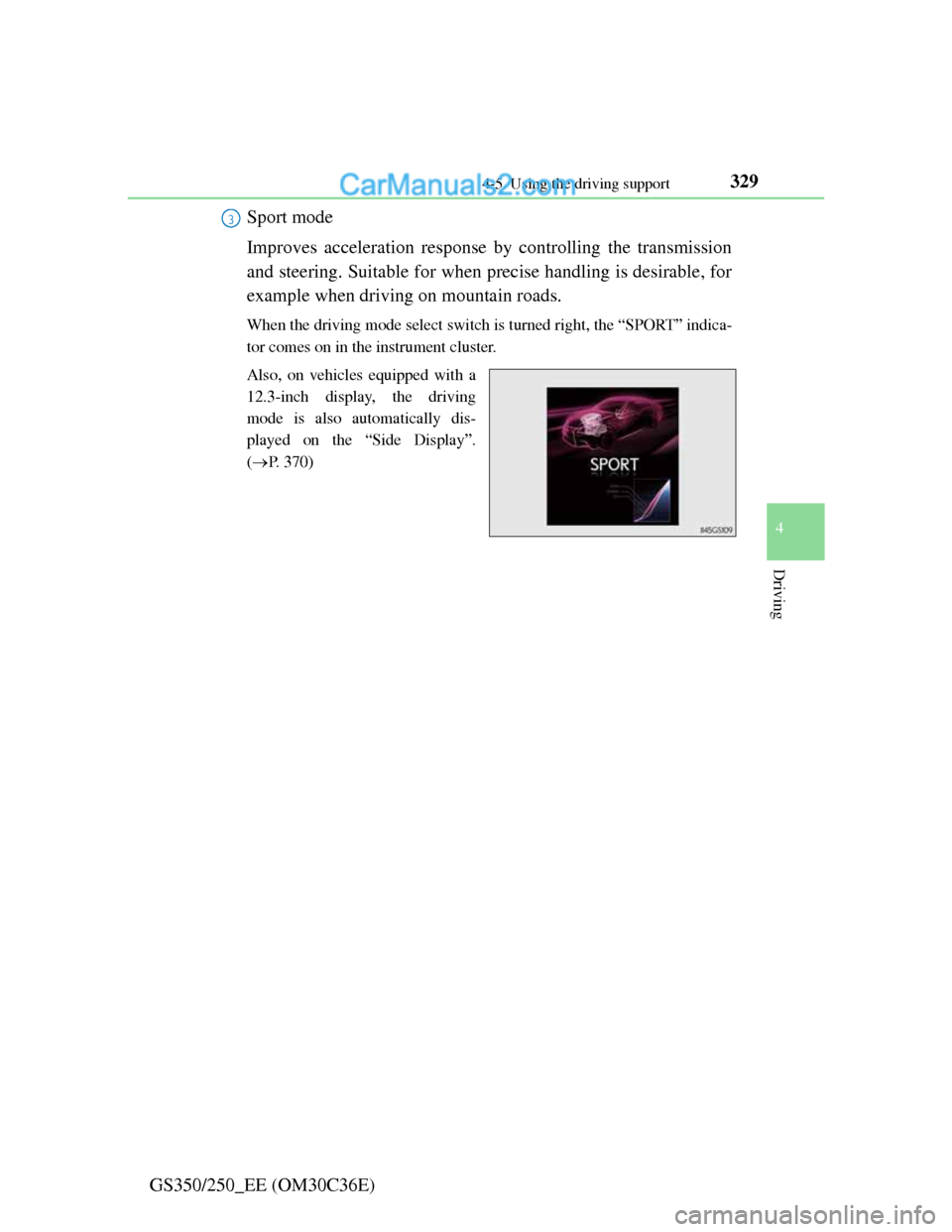

Page 336 of 914
3294-5. Using the driving support
4
Driving
GS350/250_EE (OM30C36E)Sport mode
Improves acceleration response by controlling the transmission
and steering. Suitable for when precise handling is desirable, for
example when driving on mountain roads.
When the driving mode select switch is turned right, the “SPORT” indica-
tor comes on in the instrument cluster.
Also, on vehicles equipped with a
12.3-inch display, the driving
mode is also automatically dis-
played on the “Side Display”.
(P. 370)
3

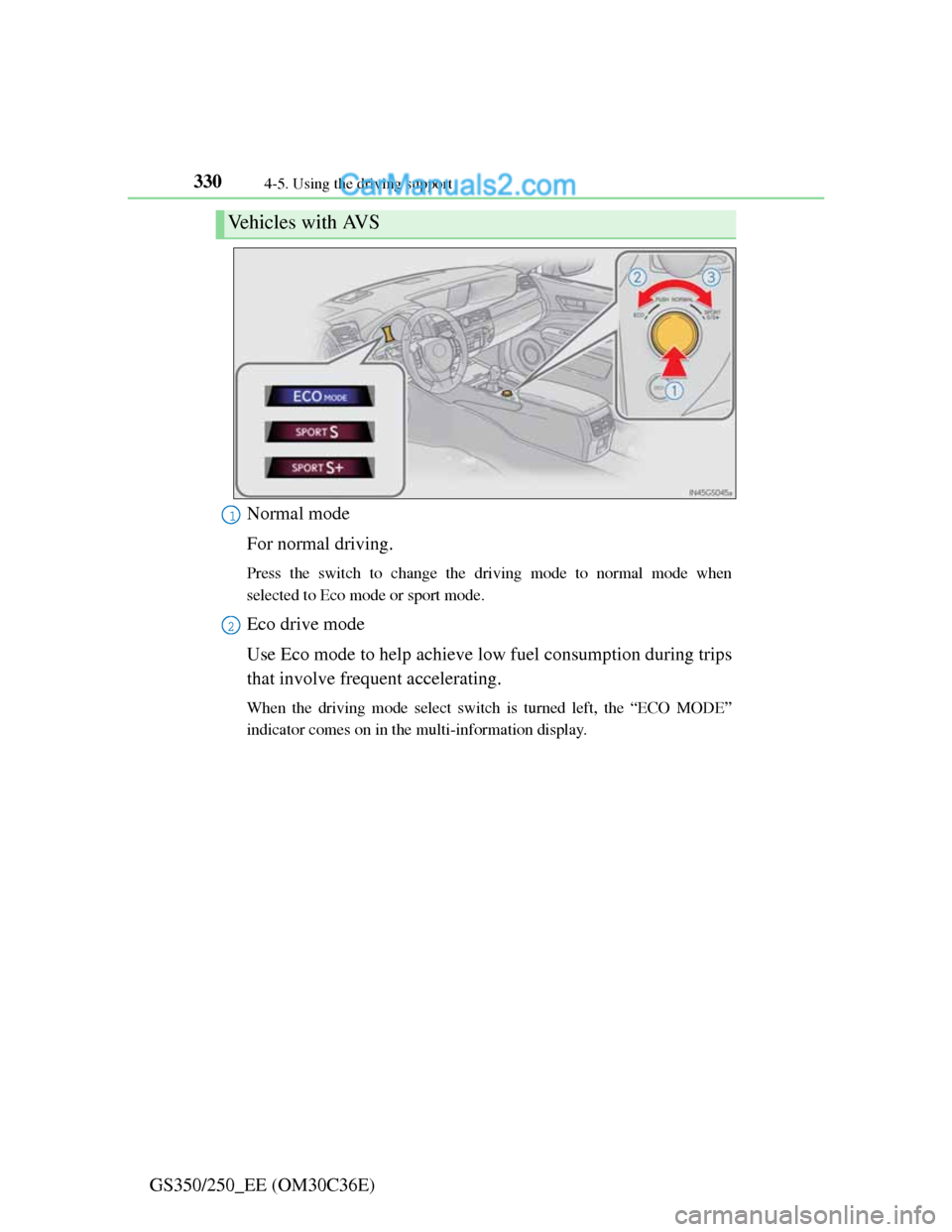

Page 337 of 914
3304-5. Using the driving support
GS350/250_EE (OM30C36E)Normal mode
For normal driving.
Press the switch to change the driving mode to normal mode when
selected to Eco mode or sport mode.
Eco drive mode
Use Eco mode to help achieve low fuel consumption during trips
that involve frequent accelerating.
When the driving mode select switch is turned left, the “ECO MODE”
indicator comes on in the multi-information display.
Vehicles with AVS
1
2

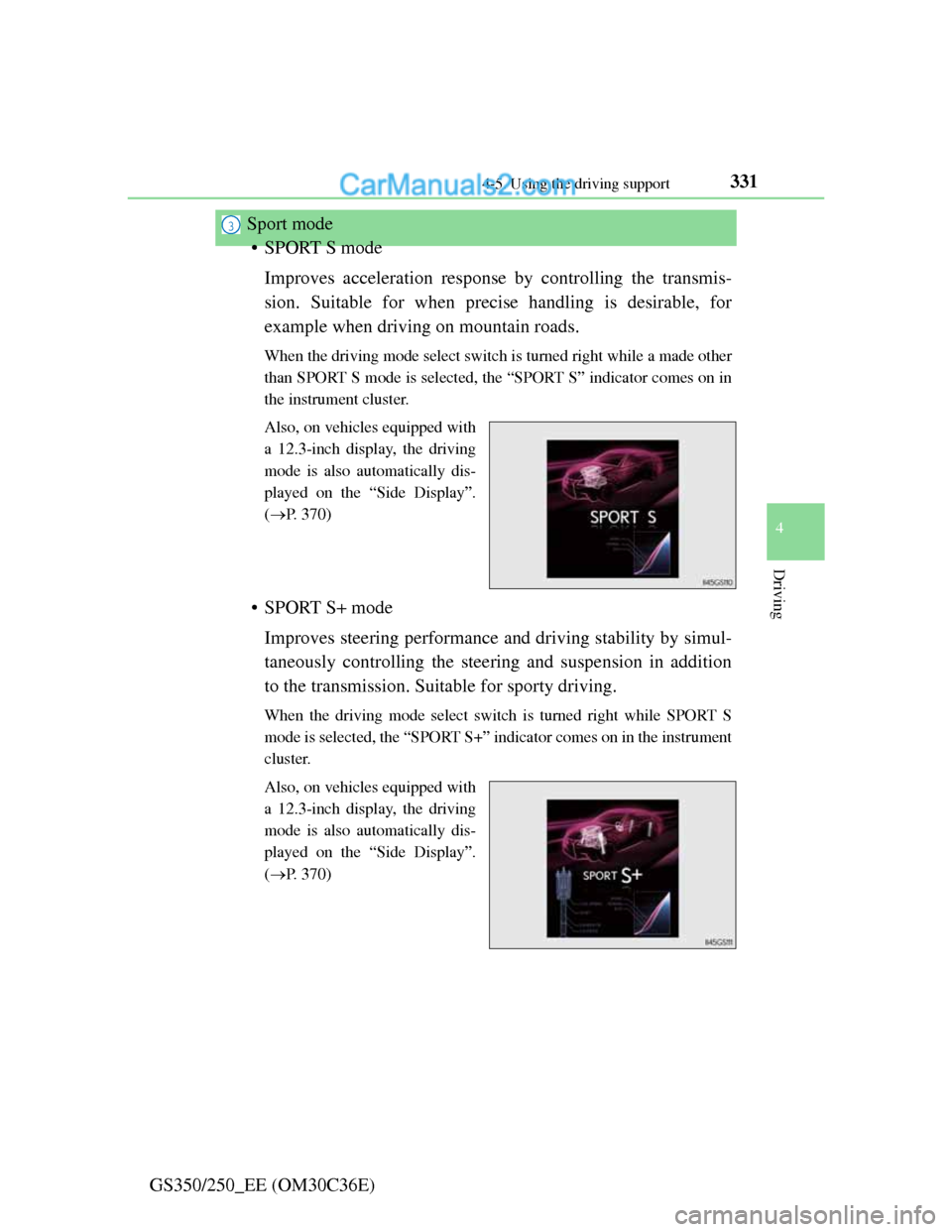

Page 338 of 914
331
4 4-5. Using the driving support
Driving
GS350/250_EE (OM30C36E)Sport mode
• SPORT S mode
Improves acceleration response by controlling the transmis-
sion. Suitable for when precise handling is desirable, for
example when driving on mountain roads.
When the driving mode select switch is turned right while a made other
than SPORT S mode is selected, the “SPORT S” indicator comes on in
the instrument cluster.
Also, on vehicles equipped with
a 12.3-inch display, the driving
mode is also automatically dis-
played on the “Side Display”.
(P. 370)
• SPORT S+ mode
Improves steering performance and driving stability by simul-
taneously controlling the steering and suspension in addition
to the transmission. Suitable for sporty driving.
When the driving mode select switch is turned right while SPORT S
mode is selected, the “SPORT S+” indicator comes on in the instrument
cluster.
Also, on vehicles equipped with
a 12.3-inch display, the driving
mode is also automatically dis-
played on the “Side Display”.
(P. 370)
3

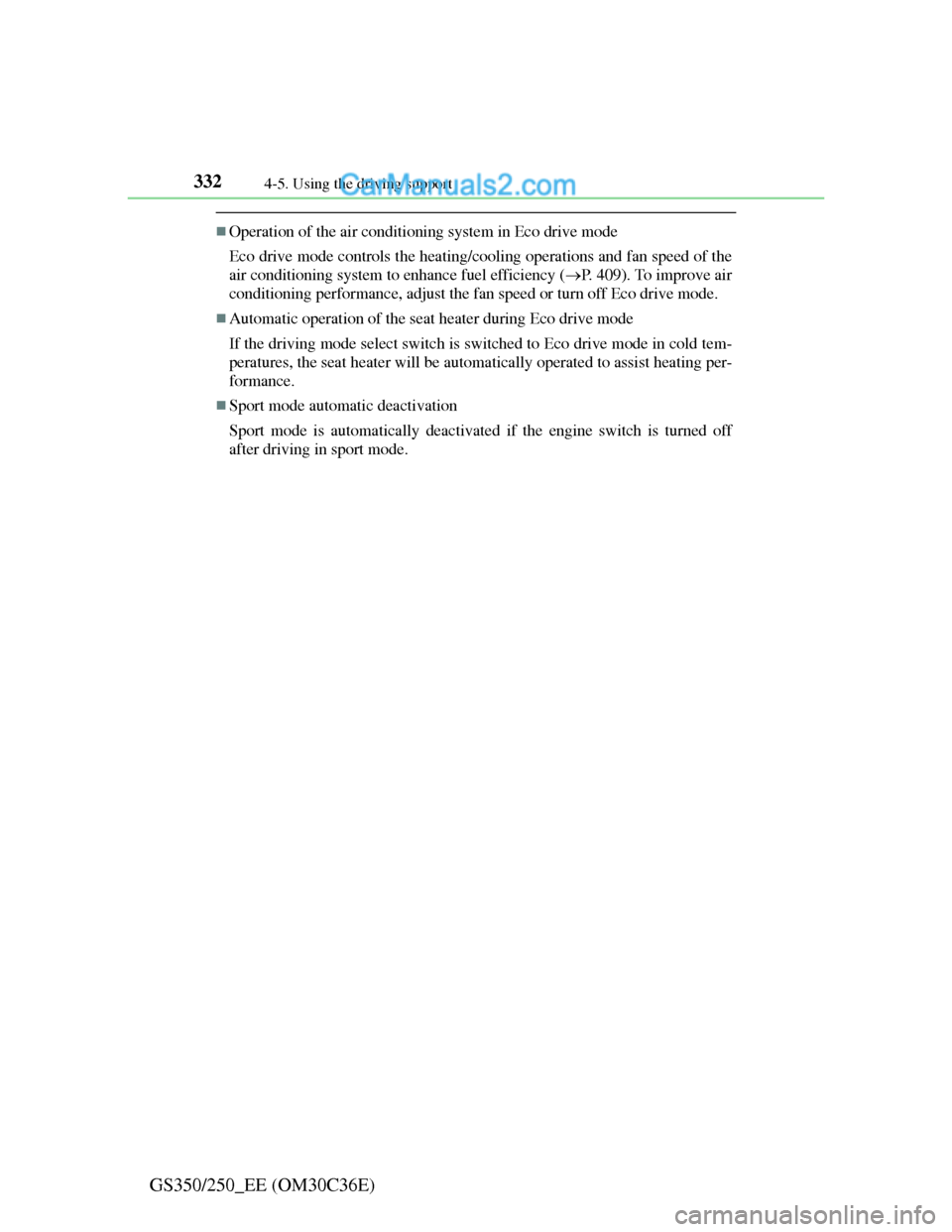

Page 339 of 914
3324-5. Using the driving support
GS350/250_EE (OM30C36E)
Operation of the air conditioning system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency (P. 409). To improve air
conditioning performance, adjust the fan speed or turn off Eco drive mode.
Automatic operation of the seat heater during Eco drive mode
If the driving mode select switch is switched to Eco drive mode in cold tem-
peratures, the seat heater will be automatically operated to assist heating per-
formance.
Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off
after driving in sport mode.

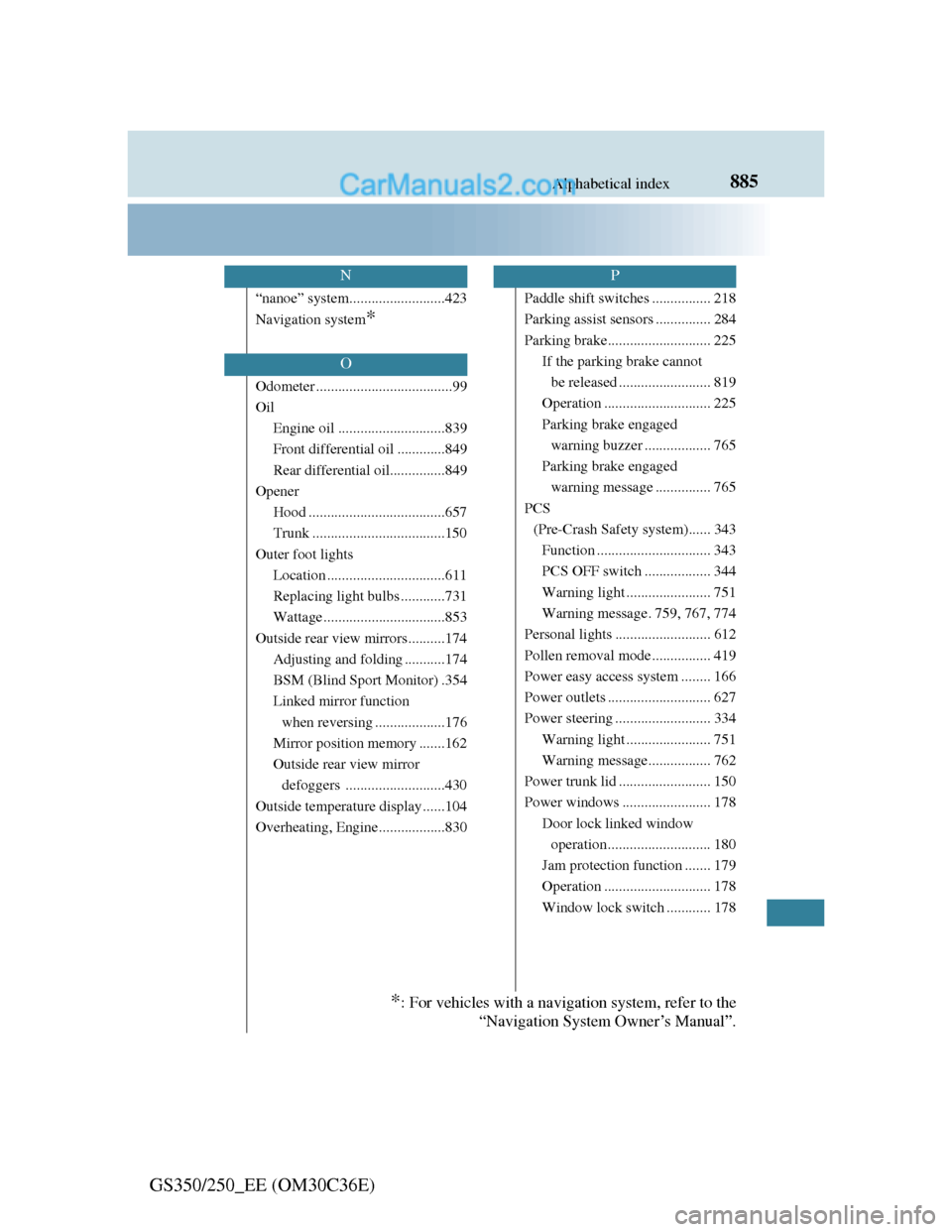

Page 907 of 914
885Alphabetical index
GS350/250_EE (OM30C36E)
“nanoe” system..........................423
Navigation system
*
Odometer .....................................99
Oil
Engine oil .............................839
Front differential oil .............849
Rear differential oil...............849
Opener
Hood .....................................657
Trunk ....................................150
Outer foot lights
Location ................................611
Replacing light bulbs ............731
Wattage .................................853
Outside rear view mirrors..........174
Adjusting and folding ...........174
BSM (Blind Sport Monitor) .354
Linked mirror function
when reversing ...................176
Mirror position memory .......162
Outside rear view mirror
defoggers ...........................430
Outside temperature display ......104
Overheating, Engine ..................830Paddle shift switches ................ 218
Parking assist sensors ............... 284
Parking brake............................ 225
If the parking brake cannot
be released ......................... 819
Operation ............................. 225
Parking brake engaged
warning buzzer .................. 765
Parking brake engaged
warning message ............... 765
PCS
(Pre-Crash Safety system)...... 343
Function ............................... 343
PCS OFF switch .................. 344
Warning light ....................... 751
Warning message. 759, 767, 774
Personal lights .......................... 612
Pollen removal mode ................ 419
Power easy access system ........ 166
Power outlets ............................ 627
Power steering .......................... 334
Warning light ....................... 751
Warning message................. 762
Power trunk lid ......................... 150
Power windows ........................ 178
Door lock linked window
operation............................ 180
Jam protection function ....... 179
Operation ............................. 178
Window lock switch ............ 178
N
O
P
*: For vehicles with a navigation system, refer to the
“Navigation System Owner’s Manual”.
