15Pictorial index
GS350/250_EE (OM30C36E)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Precautions against winter season. . . . . . . . . . . . . . . . . . . . . . . P. 359
To prevent freezing (windshield wiper de-icer)
*1 . . . . . . . . . . P. 431
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . P. 646
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 838
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 850
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 359
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 672
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 782, 797
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 657
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 657
Engine compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 661
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 839
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 829
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 763
Headlights/front position lights/daytime running lights . . . . . . P. 228
Front fog lights
*1/rear fog light*2. . . . . . . . . . . . . . . . . . . . . . P. 239
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Back-up light
*2
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 720, Watts: P. 852)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14

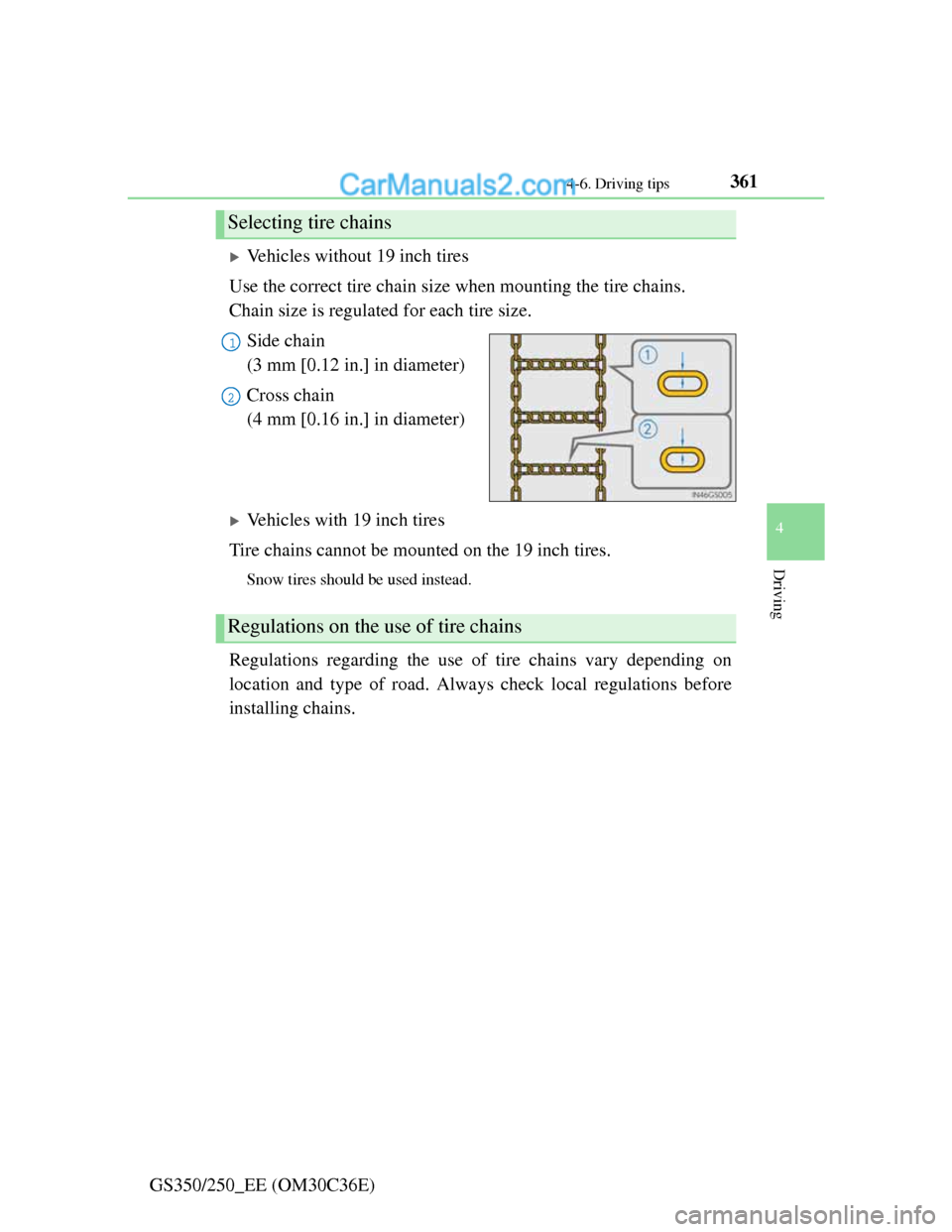

3614-6. Driving tips
4
Driving
GS350/250_EE (OM30C36E)
Vehicles without 19 inch tires
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(3 mm [0.12 in.] in diameter)
Cross chain
(4 mm [0.16 in.] in diameter)
Vehicles with 19 inch tires
Tire chains cannot be mounted on the 19 inch tires.
Snow tires should be used instead.
Regulations regarding the use of tire chains vary depending on
location and type of road. Always check local regulations before
installing chains.
Selecting tire chains
1
2
Regulations on the use of tire chains

693
6 6-3. Do-it-yourself maintenance
Maintenance and care
GS350/250_EE (OM30C36E)
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width
and inset
*.
Replacement wheels are available at any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “off-
set”.
Lexus does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
Be careful not to damage the aluminum wheels when using tire
chains.
Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or cause
a loss of handling control.
Wheel selection
Aluminum wheel precautions

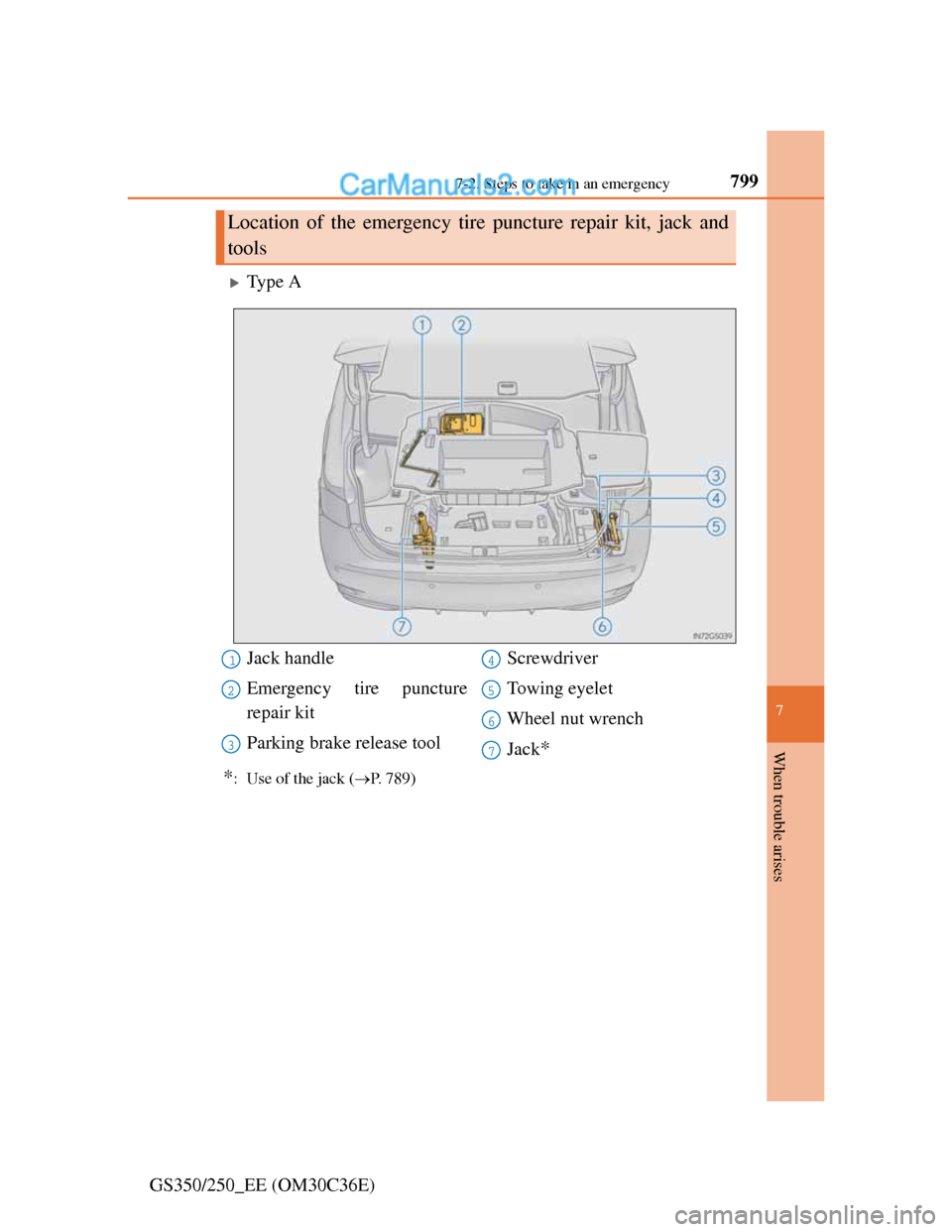

7997-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)
Type A
*: Use of the jack (P. 789)
Location of the emergency tire puncture repair kit, jack and
tools
Jack handle
Emergency tire puncture
repair kit
Parking brake release toolScrewdriver
Towing eyelet
Wheel nut wrench
Jack
*
1
2
3
4
5
6
7

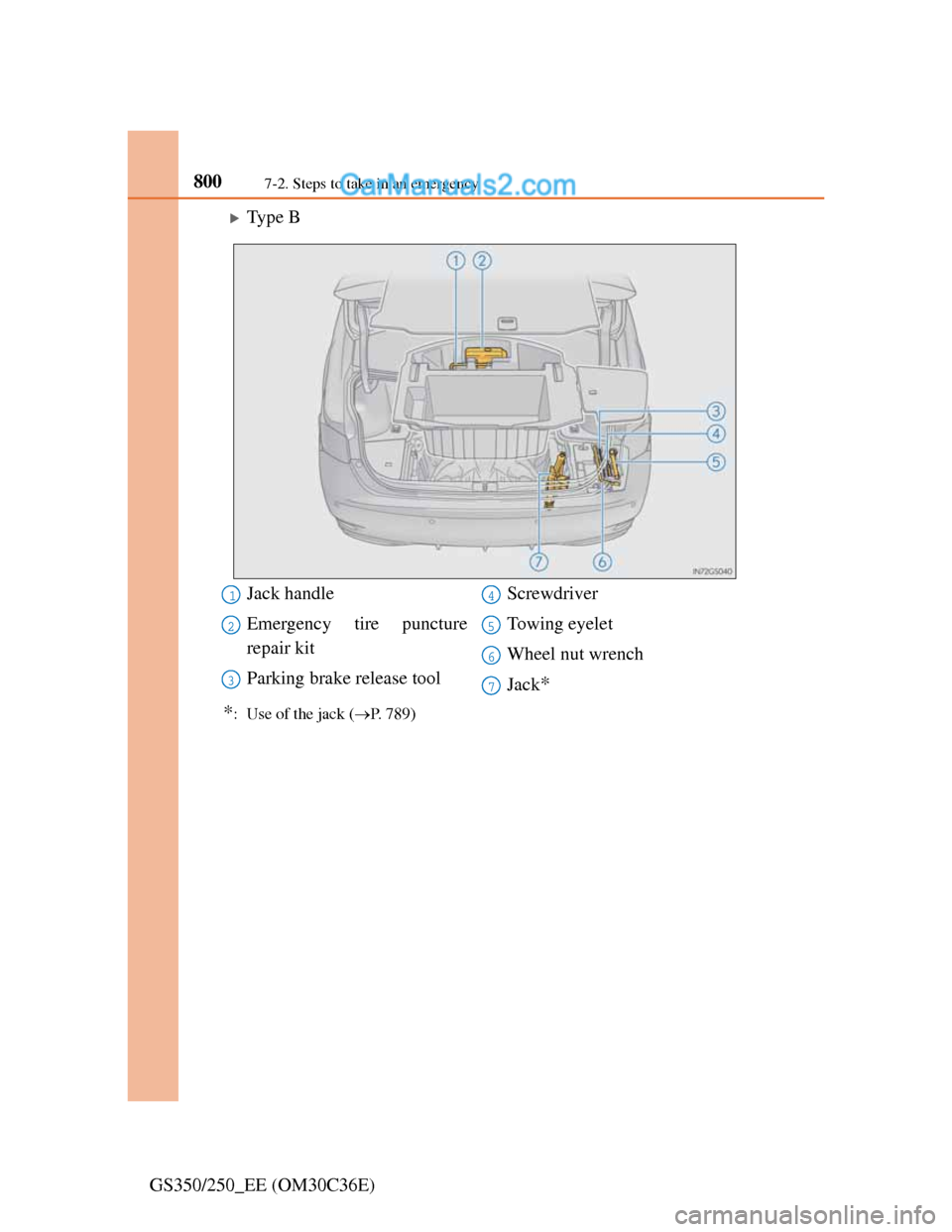

8007-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
Type B
*: Use of the jack (P. 789)
Jack handle
Emergency tire puncture
repair kit
Parking brake release toolScrewdriver
Towing eyelet
Wheel nut wrench
Jack
*
1
2
3
4
5
6
7

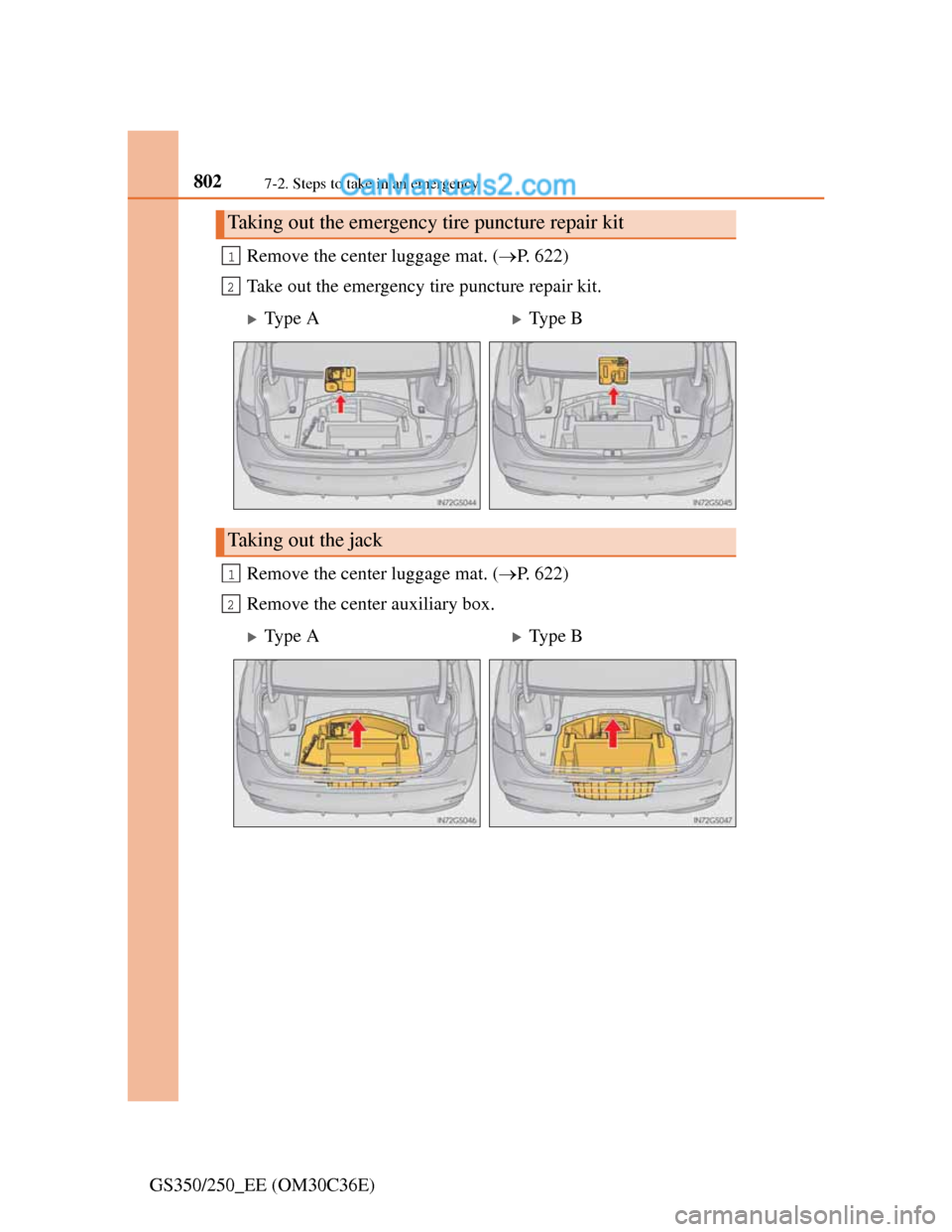

8027-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)Remove the center luggage mat. (P. 622)
Take out the emergency tire puncture repair kit.
Remove the center luggage mat. (P. 622)
Remove the center auxiliary box.
Taking out the emergency tire puncture repair kit
1
2
Type AType B
Taking out the jack
1
2
Type AType B

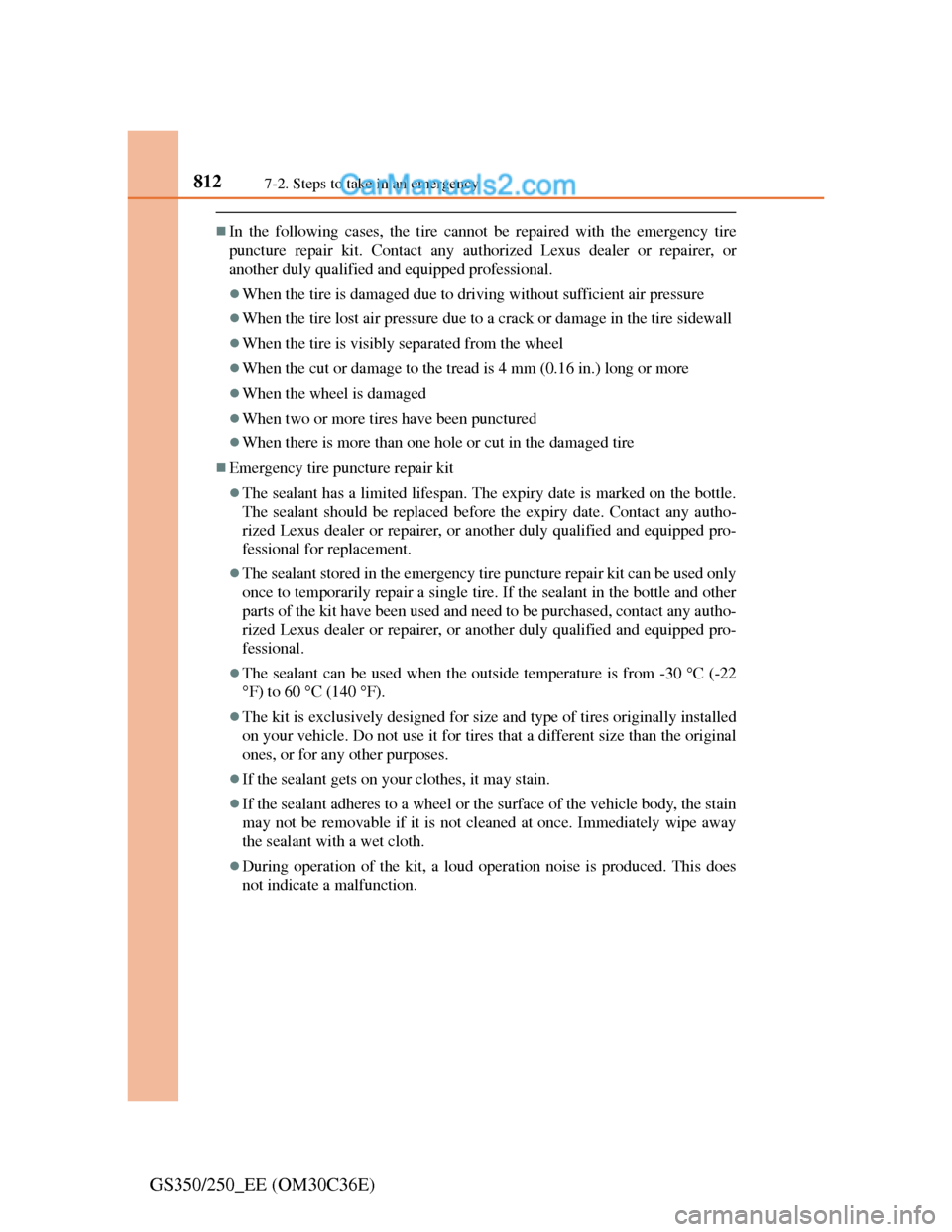

8127-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When the tire lost air pressure due to a crack or damage in the tire sidewall
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When there is more than one hole or cut in the damaged tire
Emergency tire puncture repair kit
The sealant has a limited lifespan. The expiry date is marked on the bottle.
The sealant should be replaced before the expiry date. Contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional for replacement.
The sealant stored in the emergency tire puncture repair kit can be used only
once to temporarily repair a single tire. If the sealant in the bottle and other
parts of the kit have been used and need to be purchased, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
The sealant can be used when the outside temperature is from -30 C (-22
F) to 60 C (140 F).
The kit is exclusively designed for size and type of tires originally installed
on your vehicle. Do not use it for tires that a different size than the original
ones, or for any other purposes.
If the sealant gets on your clothes, it may stain.
If the sealant adheres to a wheel or the surface of the vehicle body, the stain
may not be removable if it is not cleaned at once. Immediately wipe away
the sealant with a wet cloth.
During operation of the kit, a loud operation noise is produced. This does
not indicate a malfunction.

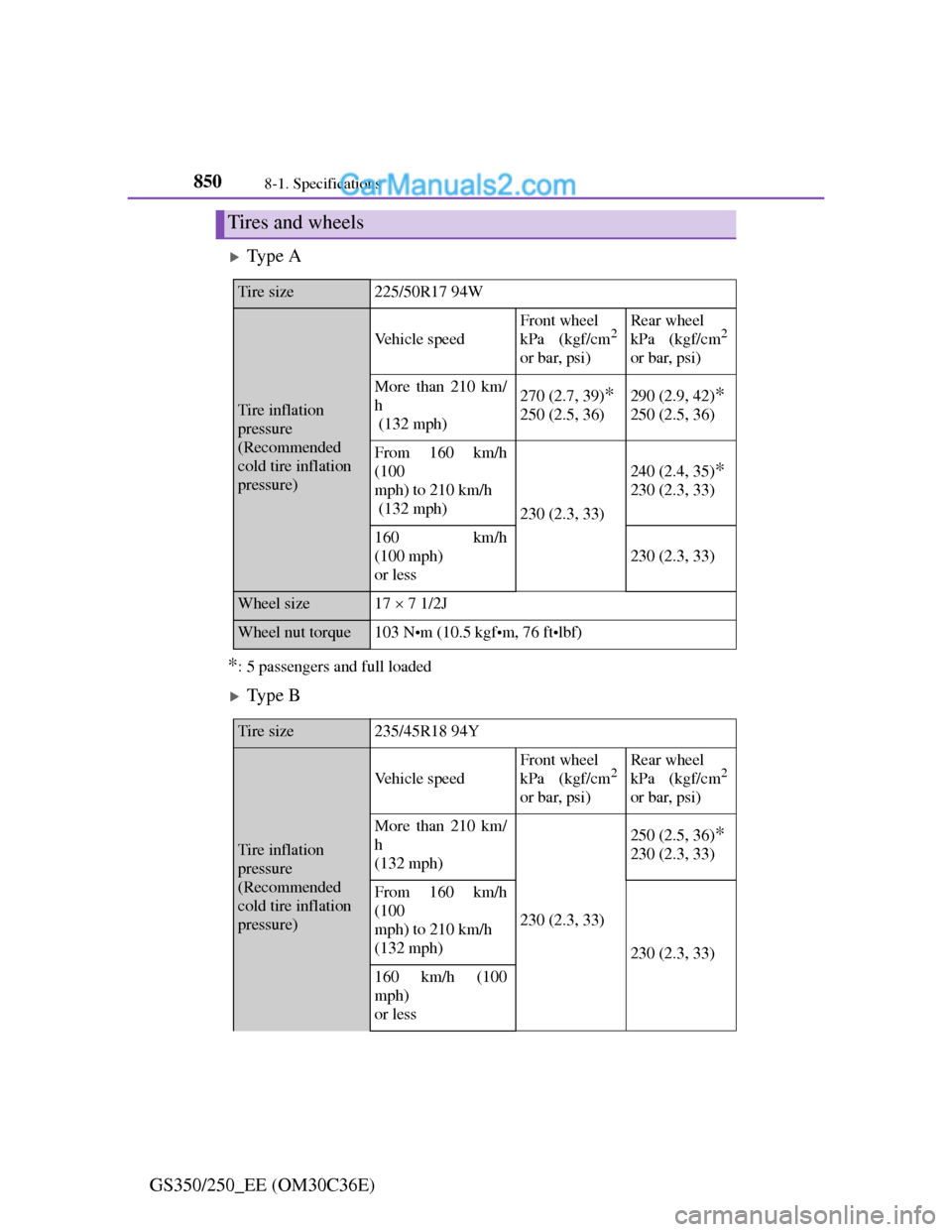

8508-1. Specifications
GS350/250_EE (OM30C36E)
Type A
*: 5 passengers and full loaded
Type B
Tires and wheels
Tire size225/50R17 94W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 210 km/
h
(132 mph)270 (2.7, 39)*
250 (2.5, 36)
290 (2.9, 42)*
250 (2.5, 36)
From 160 km/h
(100
mph) to 210 km/h
(132 mph)
230 (2.3, 33)
240 (2.4, 35)*
230 (2.3, 33)
160 km/h
(100 mph)
or less
230 (2.3, 33)
Wheel size17  7 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size235/45R18 94Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 210 km/
h
(132 mph)
230 (2.3, 33)
250 (2.5, 36)*
230 (2.3, 33)
From 160 km/h
(100
mph) to 210 km/h
(132 mph)
230 (2.3, 33)
160 km/h (100
mph)
or less

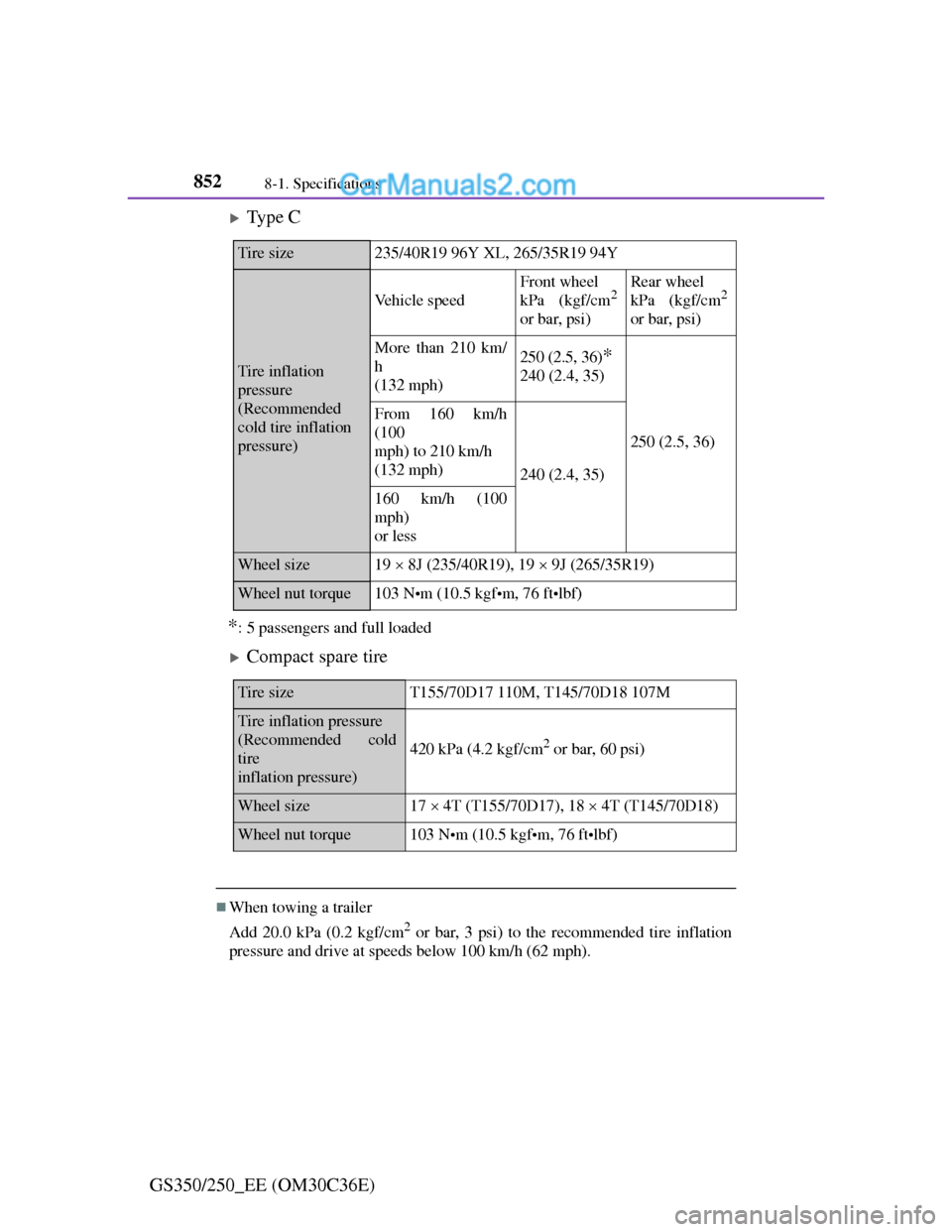

8528-1. Specifications
GS350/250_EE (OM30C36E)
Type C
*: 5 passengers and full loaded
Compact spare tire
When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size235/40R19 96Y XL, 265/35R19 94Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 210 km/
h
(132 mph)250 (2.5, 36)*
240 (2.4, 35)
250 (2.5, 36)
From 160 km/h
(100
mph) to 210 km/h
(132 mph)
240 (2.4, 35)
160 km/h (100
mph)
or less
Wheel size19  8J (235/40R19), 19  9J (265/35R19)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT155/70D17 110M, T145/70D18 107M
Tire inflation pressure
(Recommended cold
tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T (T155/70D17), 18  4T (T145/70D18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

881Alphabetical index
GS350/250_EE (OM30C36E)
Engine switch ............................207
EPS (Electric Power Steering) ..334
Function ................................334
Warning light........................751
Warning message..................762
First-aid kit storage net..............621
Flat tire
Vehicles with a spare tire .....783
Vehicles without a spare tire 798
Floor mats....................................34
Fluid
Automatic transmission ........848
Brake ....................................849
Washer ..................................671
Fog lights ...................................239
Replacing light bulbs ....724, 735
Switch ...................................239
Wattage .................................853
Follow me home system............229
Footwell light ............................611
Front air conditioning system....409
Front fog lights ..........................239
Replacing light bulbs ............724
Switch ...................................239
Wattage .................................853
Front personal lights ..................612
Front position lights ..................228
Light switch ..........................228
Replacing light bulbs ............735
Welcome light illumination
control ................................123Front seats................................. 157
Adjustment........................... 157
Cleaning ............................... 648
Correct driving posture .......... 36
Driving position memory..... 162
Head restraints ..................... 168
Power easy access system.... 166
Seat heaters .......................... 631
Seat position memory .......... 162
Seat ventilators .................... 632
Front turn signal lights ............. 223
Replacing light bulbs ........... 726
Turn signal lever .................. 223
Wattage ................................ 853
Fuel ........................................... 249
Capacity ............................... 838
Fuel gauge.............................. 99
Fuel pump shut off system... 748
Information .......................... 854
Refueling ............................. 249
Type ............................. 249, 838
Warning light ....................... 752
Warning messages ............... 769
Fuel filler door .......................... 249
If the fuel filler door
cannot be opened ............... 252
Refueling ............................. 249
Fuel pump shut off system ....... 748
Fuses ......................................... 700
F
