Lexus GS250 2014 Owner's Manual

631
8Vehicle specifications
GS350_250_OM_OM30E16E_(EE)
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 632
Fuel information..........................648
8-2. Customization Customizable features ............650
8-3. Initialization Item to initialize .............................661
GS350_250_OM_OM30E16E_(EE).book Page 631 Tuesday, July 8, 201 4 7:11 PM

6328-1. Specifications
GS350_250_OM_OM30E16E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2:Vehicles with 265/35R19 tires
*3: Vehicles with towing package
*4:AWD models
Dimensions and weights
Overall length 4850mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tr e a d*1
Front 1575 mm (62.0 in.)
Rear1590 mm (62.6 in.)
1560 mm (61.4 in.)*2
Gross vehicle
mass2WD 2170 kg (4784 lb.)
AWD 2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*380 kg (176 lb.)
Towing capacity*3With brake1600 kg (3527 lb.)
1000 kg (2205 lb.)*4
Without brake 750 kg (1653 lb.)
GS350_250_OM_OM30E16E_(EE).book Page 632 Tuesday, July 8, 201
4 7:11 PM

633
8
8-1. Specifications
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)

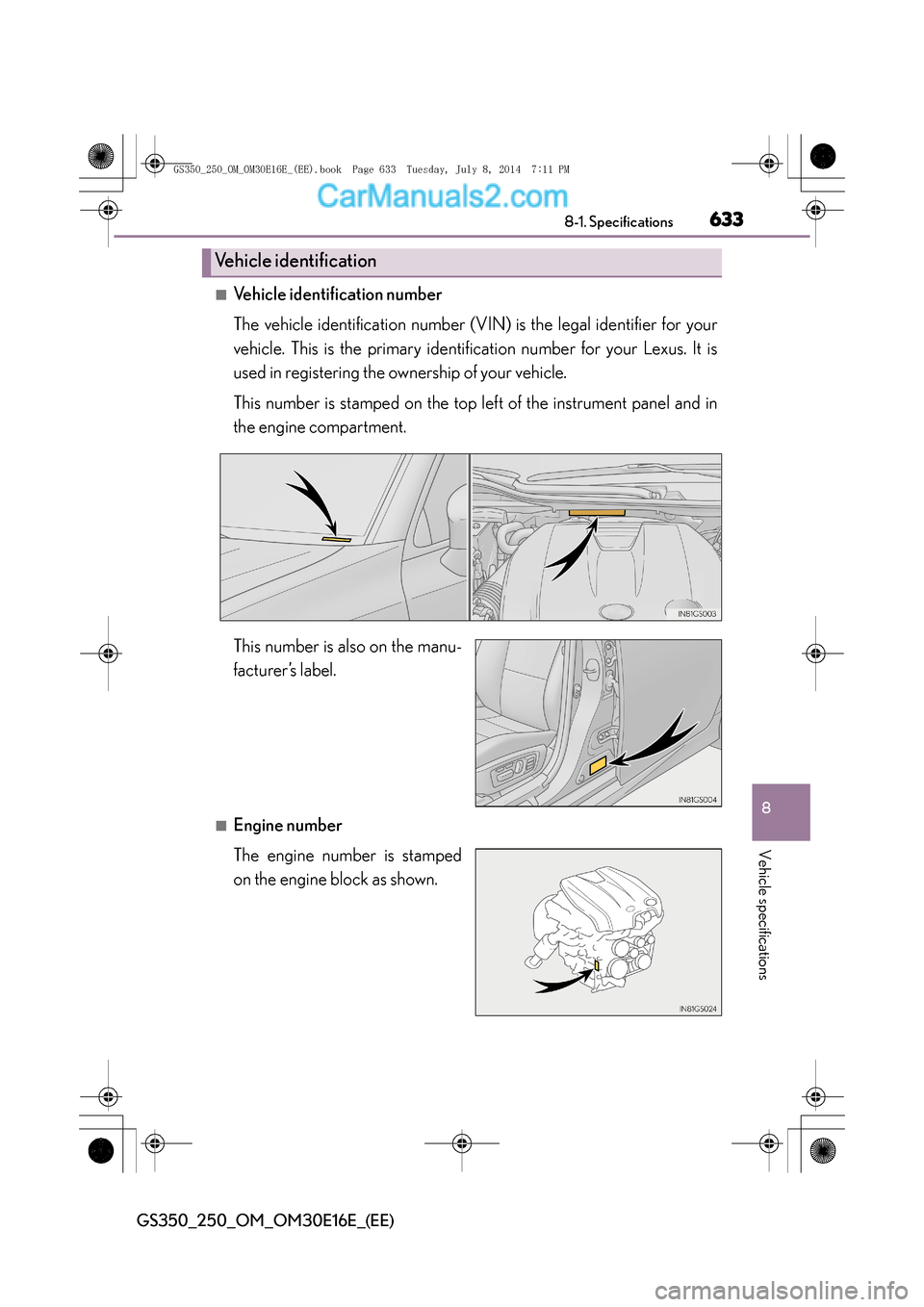

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
GS350_250_OM_OM30E16E_(EE).book Page 633 Tuesday, July 8, 201
4 7:11 PM

6348-1. Specifications
GS350_250_OM_OM30E16E_(EE)

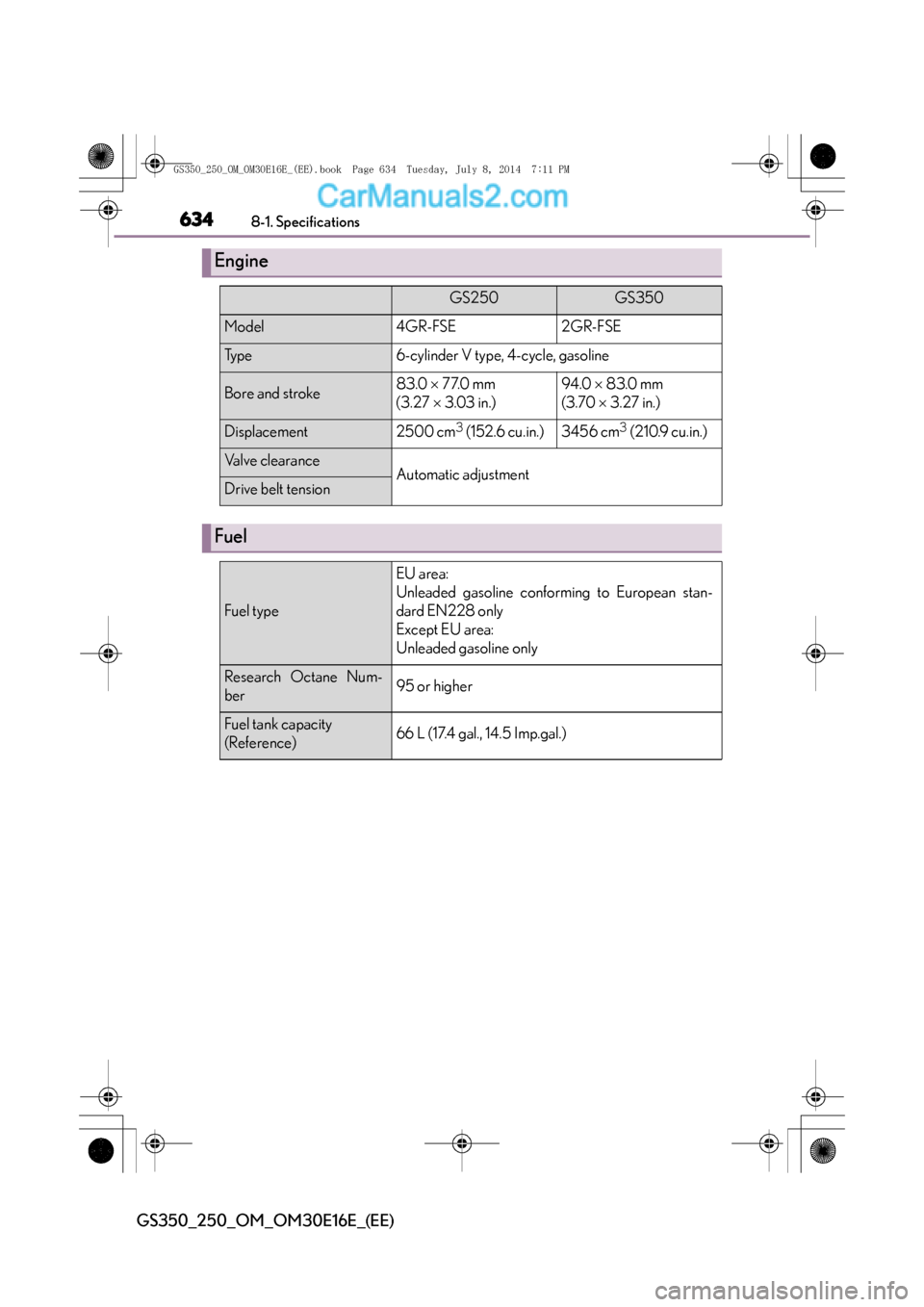

Engine
GS250GS350
Model4GR-FSE2GR-FSE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke83.0 × 77.0 mm
(3.27 × 3.03 in.)94.0 × 83.0 mm
(3.70 × 3.27 in.)
Displacement2500 cm3 (152.6 cu.in.)3456 cm3 (210.9 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Num-
ber95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp.gal.)
GS350_250_OM_OM30E16E_(EE).book Page 634 Tuesday, July 8, 201 4 7:11 PM

635
8
8-1. Specifications
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
■Engine oil selection (GS250)
XEU area, Nordic countries, Russia, Ukraine, Macedonia, Israel
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Lubrication system
GS250GS350
Oil capacity
(Drain and refill  reference
*)
With filter6.2 L
(6.6 qt., 5.5 Imp.qt.)6.4 L
(6.8 qt., 5.6 Imp.qt.)
Without filter5.9 L
(6.2 qt., 5.2 Imp.qt.)6.0 L
(6.3 qt., 5.3 Imp.qt.)
GS350_250_OM_OM30E16E_(EE).book Page 635 Tuesday, July 8, 201 4 7:11 PM

6368-1. Specifications
GS350_250_OM_OM30E16E_(EE)

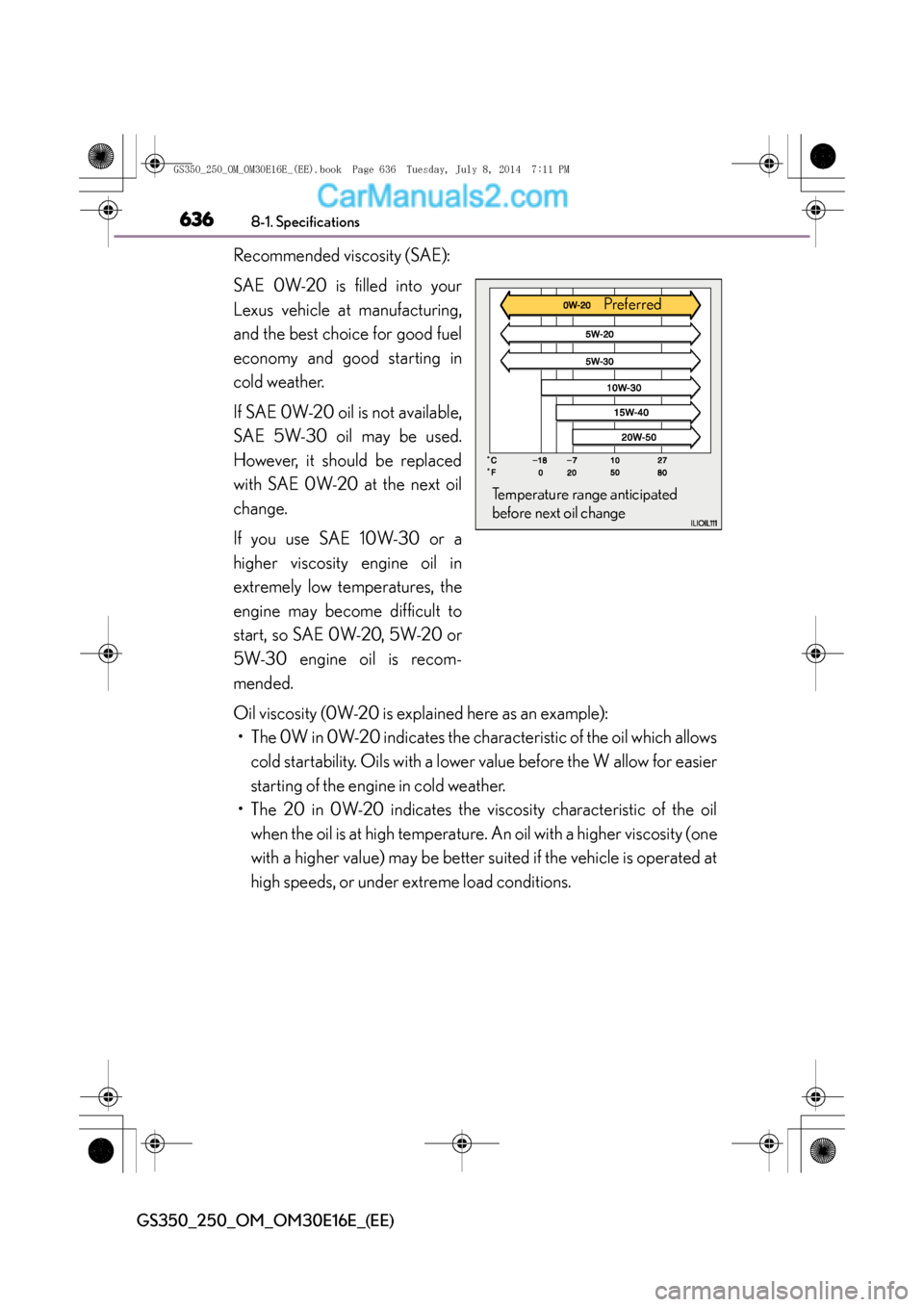

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change Preferred
GS350_250_OM_OM30E16E_(EE).book Page 636 Tuesday, July 8, 201
4 7:11 PM

637
8
8-1. Specifications
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)

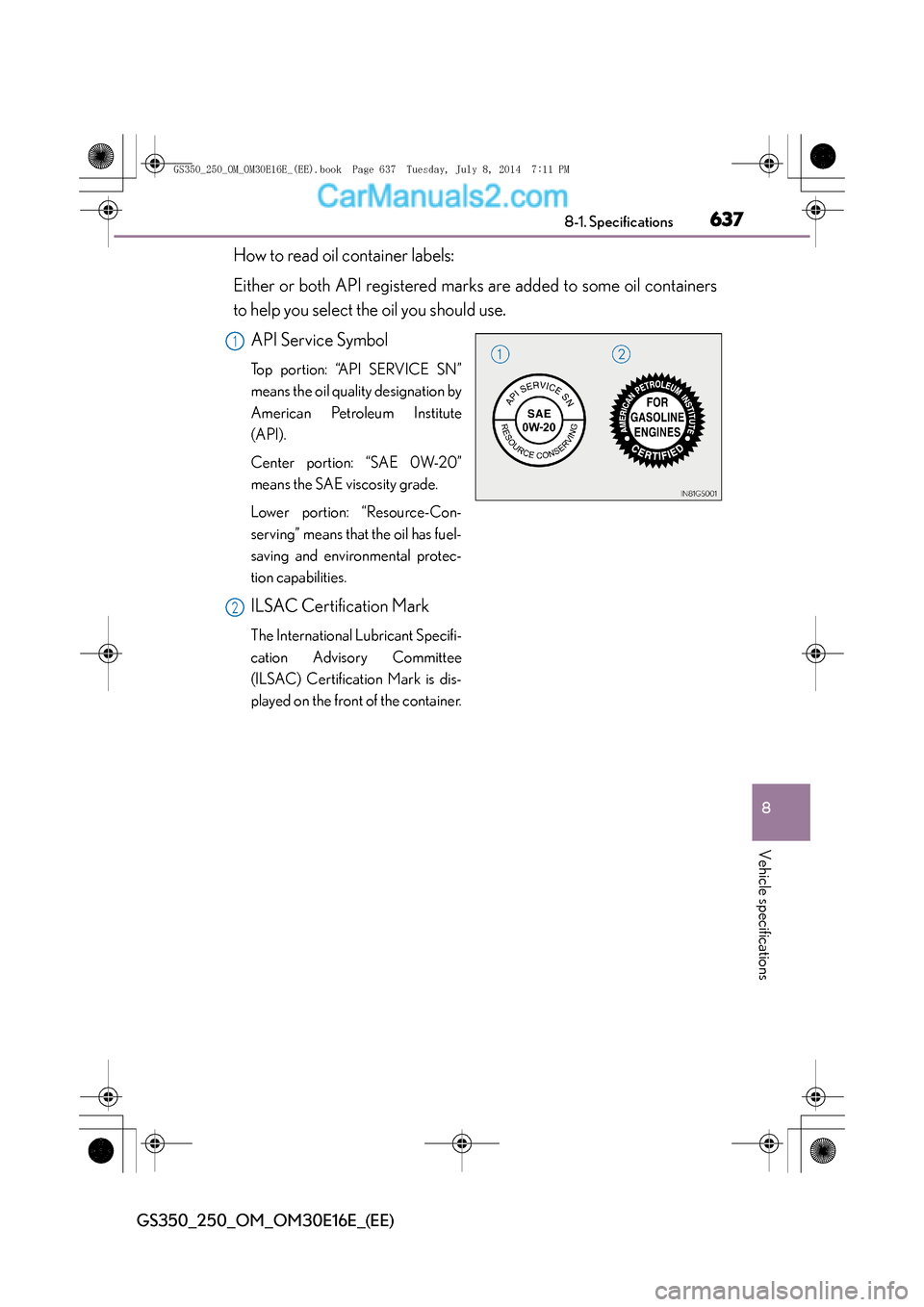

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has fuel-
saving and environmental protec-
tion capabilities.
ILSAC Certification Mark
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the container.
1
2
GS350_250_OM_OM30E16E_(EE).book Page 637 Tuesday, July 8, 201 4 7:11 PM

6388-1. Specifications
GS350_250_OM_OM30E16E_(EE)

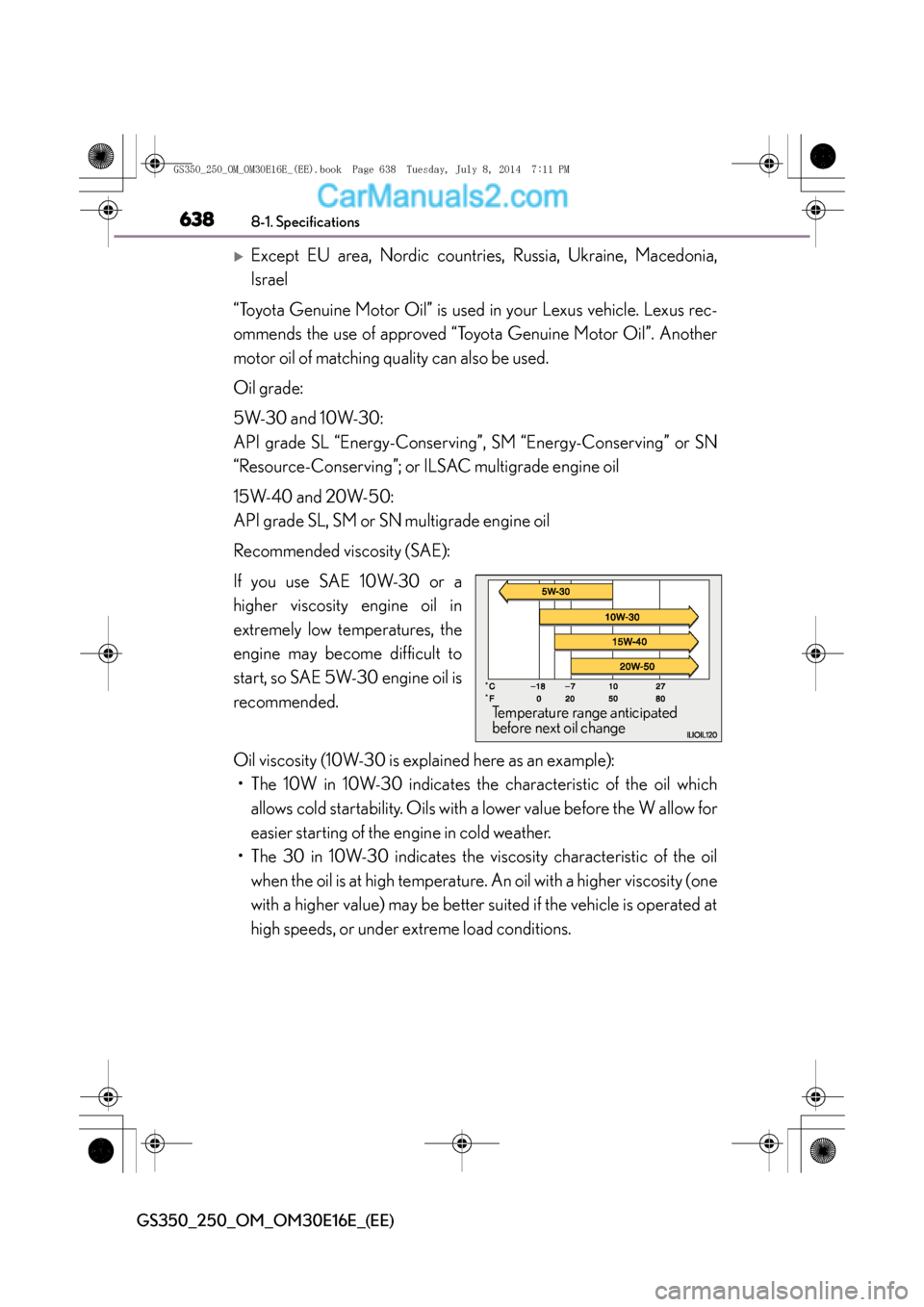

XExcept EU area, Nordic countries, Russia, Ukraine, Macedonia,
Israel
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (10W-30 is explained here as an example): • The 10W in 10W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
• The 30 in 10W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
GS350_250_OM_OM30E16E_(EE).book Page 638 Tuesday, July 8, 201 4 7:11 PM

639
8
8-1. Specifications
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute
(API).
Center portion: “SAE 10W-30”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has fuel-
saving and environmental protec-
tion capabilities.
ILSAC Certification Mark
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is dis-
played on the front of the container.
1
2
GS350_250_OM_OM30E16E_(EE).book Page 639 Tuesday, July 8, 201 4 7:11 PM

6408-1. Specifications
GS350_250_OM_OM30E16E_(EE)

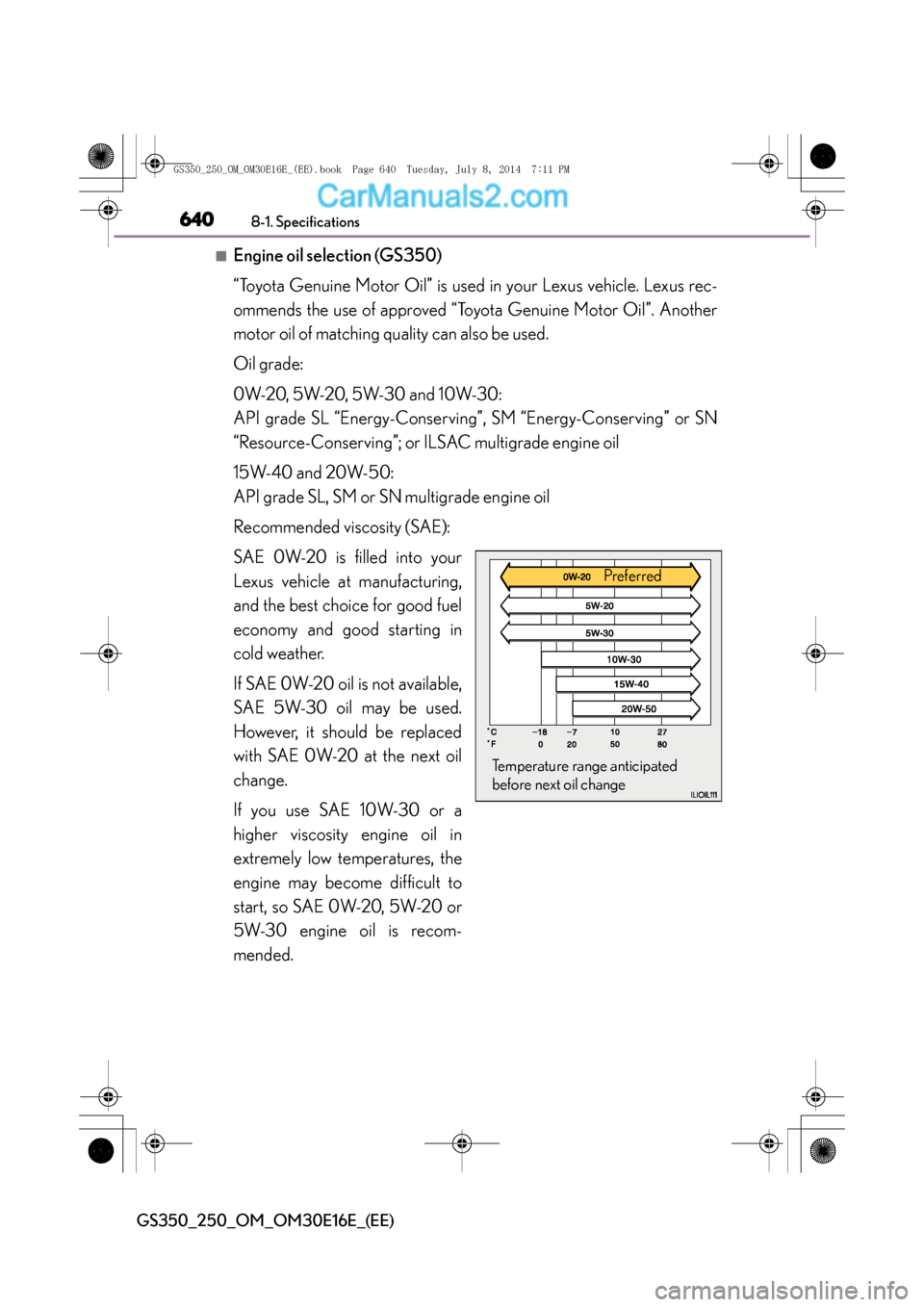

■Engine oil selection (GS350)
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Temperature range anticipated
before next oil changePreferred
