Page 3 of 688
3
1
8 7
6
5
4
3
2
GS350_250_OM_OM30E16E_(EE)
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 195
Inside rear view mirror .............. 196
Outside rear view mirrors ....... 199
3-5. Opening, closing the windows and moon roof
Power windows ...........................204
Moon roof .................................... 208
4-1. Before driving Driving the vehicle ...................... 214
Cargo and luggage ...................225
Trailer towing (vehicles without towing package) ..... 226
Trailer towing (vehicles with towing package) ...................... 227
4-2. Driving procedures Engine (ignition) switch ........... 237
Automatic transmission ........... 244
Turn signal lever ..........................253
Parking brake ...............................255
Horn................................................ 258 4-3. Operating the lights
and wipers
Headlight switch ......................... 259
Automatic High Beam ............. 264
Fog light switch............................ 270
Windshield wipers and washer................................. 272
Headlight cleaner switch ........ 279
4-4. Refueling Opening the fuel tank cap..... 280
4-5. Using the driving support systems
Cruise control .............................285
Dynamic radar cruise control..........................................289
LKA (Lane-Keeping Assist) ......... 305
Driving mode select switch..... 315
Driving assist systems ...............320
Hill-start assist control..............328
PCS (Pre-Crash Safety system).........................................330
BSM (Blind Spot Monitor) ...... 341 •The Blind Spot Monitor function.................................... 348
• The Rear Crossing Traffic Alert function .......................... 351
4-6. Driving tips Winter driving tips .....................354
4Driving
GS350_250_OM_OM30E16E_(EE).book Page 3 Tuesday, July 8, 2014 7:11 PM
Page 213 of 688
213
4Driving
GS350_250_OM_OM30E16E_(EE)
4-1. Before drivingDriving the vehicle ...................... 214
Cargo and luggage ................... 225
Trailer towing (vehicles without towing package) ..... 226
Trailer towing (vehicles with towing package)...................... 227
4-2. Driving procedures Engine (ignition) switch ........... 237
Automatic transmission ........... 244
Turn signal lever ..........................253
Parking brake...............................255
Horn................................................ 258
4-3. Operating the lights and wipers
Headlight switch ......................... 259
Automatic High Beam ............. 264
Fog light switch............................ 270
Windshield w ipers and washer................................. 272
Headlight cleaner switch ........ 279 4-4. Refueling
Opening the fuel tank cap .....280
4-5. Using the driving support systems
Cruise control ............................. 285
Dynamic radar cruise control ......................................... 289
LKA (Lane-Keeping Assist) ..........305
Driving mode select switch .... 315
Driving assist systems...............320
Hill-start assist control ............. 328
PCS (Pre-Crash Safety system) ........................................330
BSM (Blind Spot Monitor) ...... 341 •The Blind Spot Monitor function ....................................348
• The Rear Crossing Traffic Alert function...........................351
4-6. Driving tips Winter driving tips ..................... 354
GS350_250_OM_OM30E16E_(EE).book Page 213 Tuesday, July 8, 201 4 7:11 PM

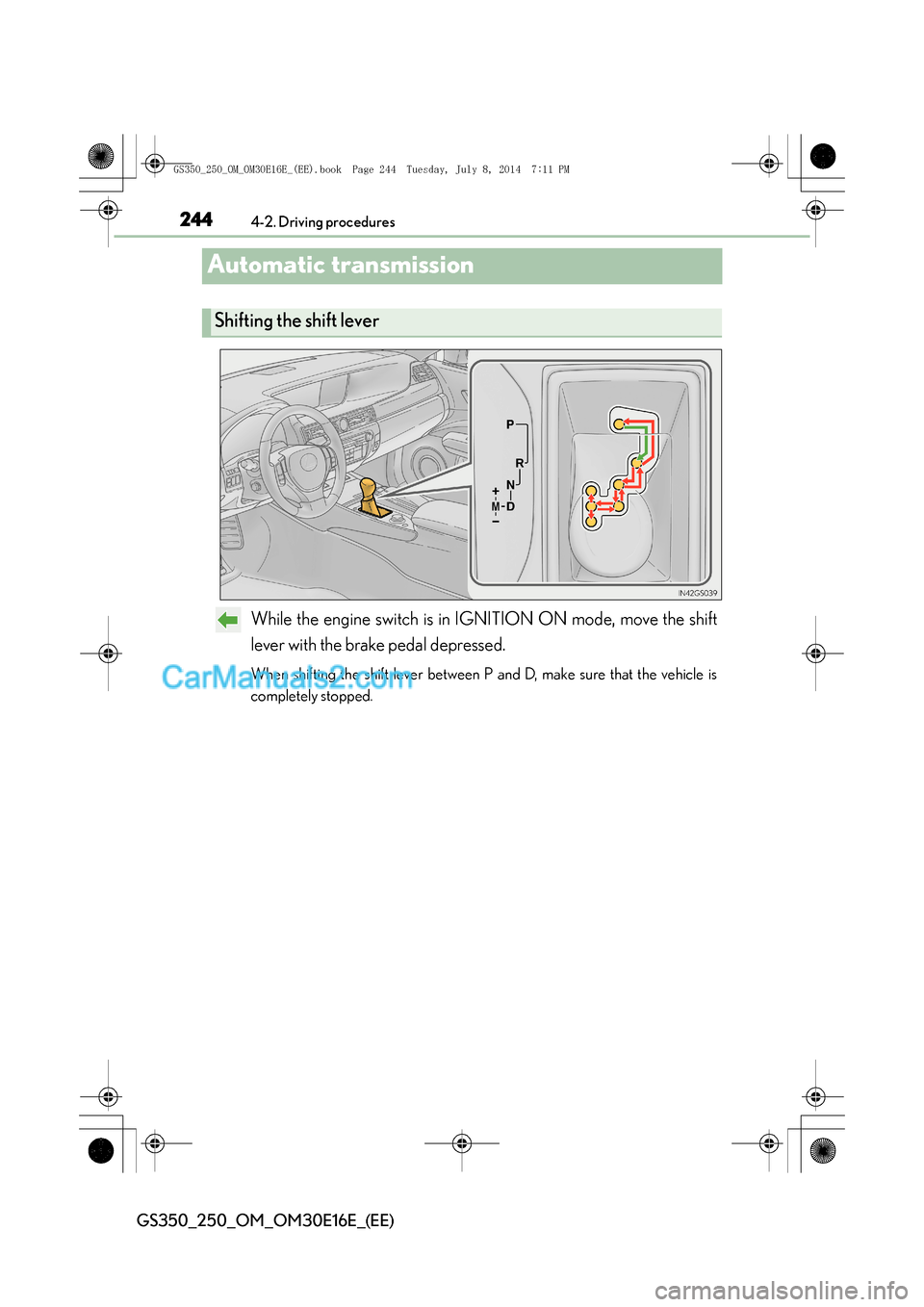

Page 244 of 688
2444-2. Driving procedures
GS350_250_OM_OM30E16E_(EE)
Automatic transmission
While the engine switch is in IGNITION ON mode, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
Shifting the shift lever
GS350_250_OM_OM30E16E_(EE).book Page 244 Tuesday, July 8, 201 4 7:11 PM
Page 249 of 688
2494-2. Driving procedures
4
Driving
GS350_250_OM_OM30E16E_(EE)
When in the M position, the gear will not change unless the shift lever
or paddle shift switches are operated.
However, even when in the M position, the gears will be automatically
changed in the following situation:
●When vehicle speed drops (downshift only).
●When the automatic transmission fluid or engine coolant tempera-
ture is low.
●When automatic transmission fluid temperature is high.
●When the needle of the tachometer is in the red zone (the range
which exceeds the allowable revs of the engine).
In the following situations, the gear will not shift even if the shift lever or
paddle shift switches are operated.
●“1st Gear not available due to slippery road surface” is displayed on
the multi information display.
●The vehicle speed is low (upshift only).
GS350_250_OM_OM30E16E_(EE).book Page 249 Tuesday, July 8, 201 4 7:11 PM

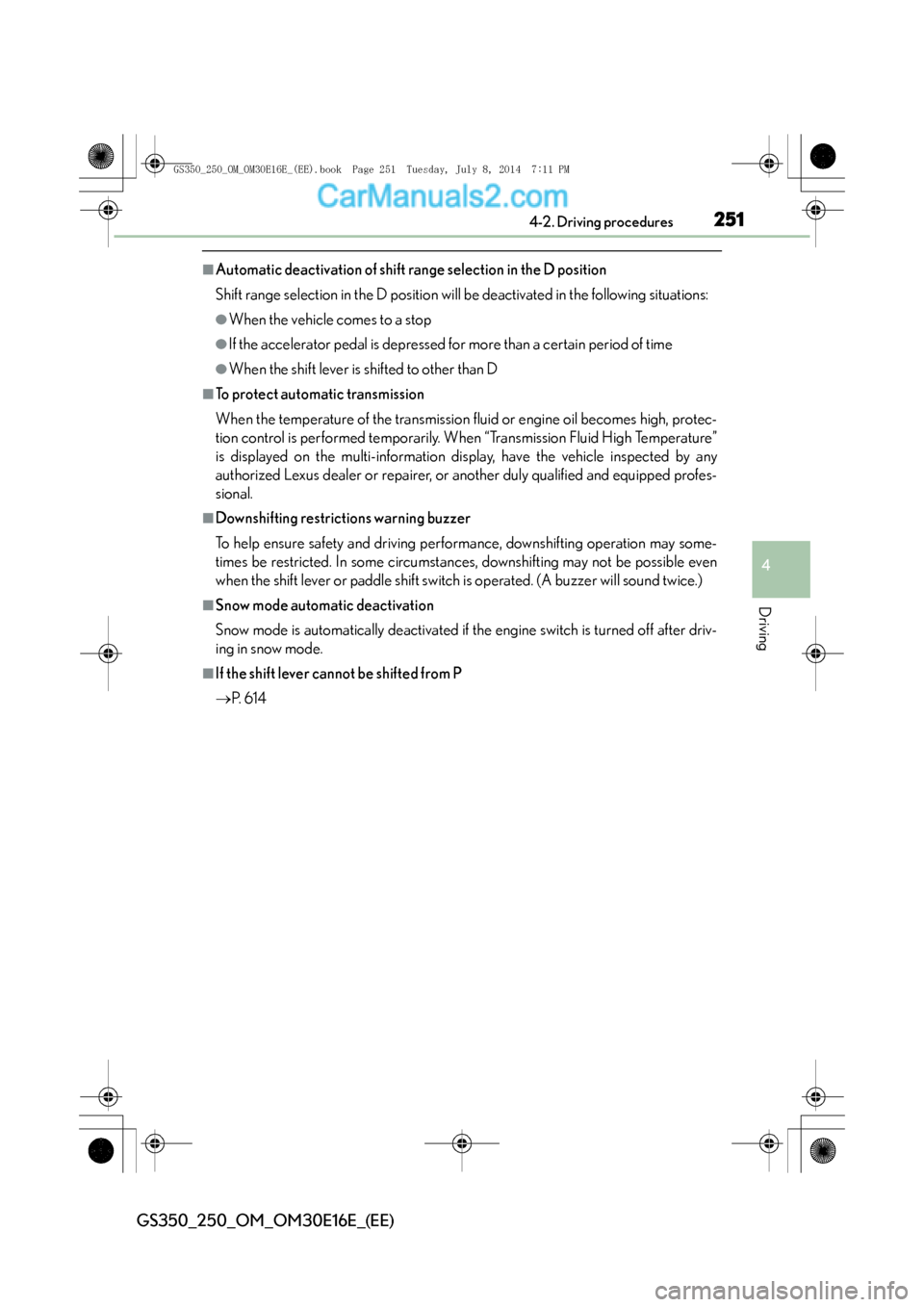

Page 251 of 688
2514-2. Driving procedures
4
Driving
GS350_250_OM_OM30E16E_(EE)
■Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time
●When the shift lever is shifted to other than D
■To protect automatic transmission
When the temperature of the transmission fluid or engine oil becomes high, protec-
tion control is performed temporarily. When “Transmission Fluid High Temperature”
is displayed on the multi-information display, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
■Downshifting restrict ions warning buzzer
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever or paddle shift switch is operated. (A buzzer will sound twice.)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the engine switch is turned off after driv-
ing in snow mode.
■If the shift lever cannot be shifted from P
→ P. 6 1 4
GS350_250_OM_OM30E16E_(EE).book Page 251 Tuesday, July 8, 201 4 7:11 PM

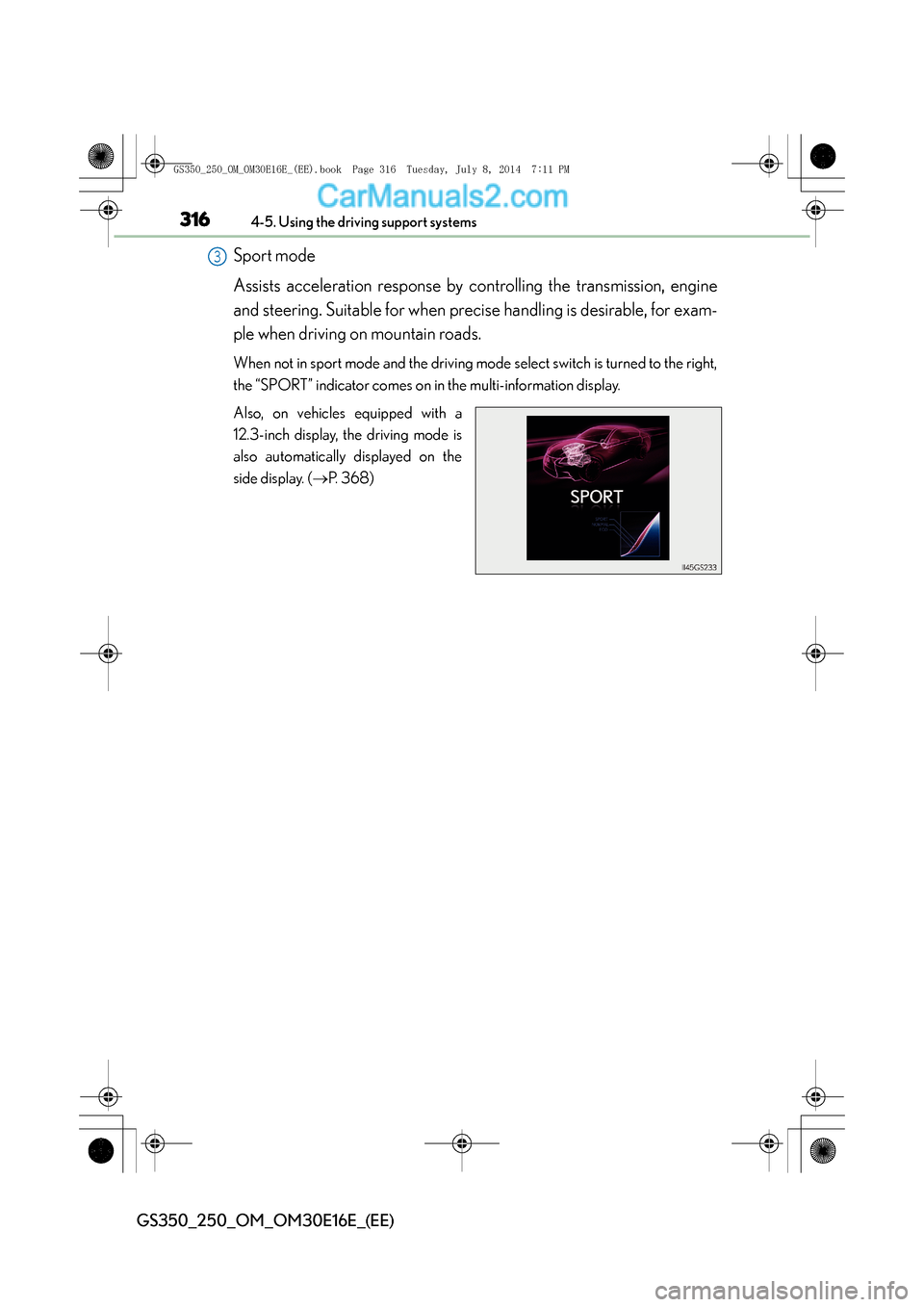

Page 316 of 688
3164-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)
Sport mode
Assists acceleration response by controlling the transmission, engine
and steering. Suitable for when precise handling is desirable, for exam-
ple when driving on mountain roads.
When not in sport mode and the driving mode select switch is turned to the right,
the “SPORT” indicator comes on in the multi-information display.
Also, on vehicles equipped with a
12.3-inch display, the driving mode is
also automatically displayed on the
side display. (→P. 3 6 8 )
3
GS350_250_OM_OM30E16E_(EE).book Page 316 Tuesday, July 8, 201 4 7:11 PM

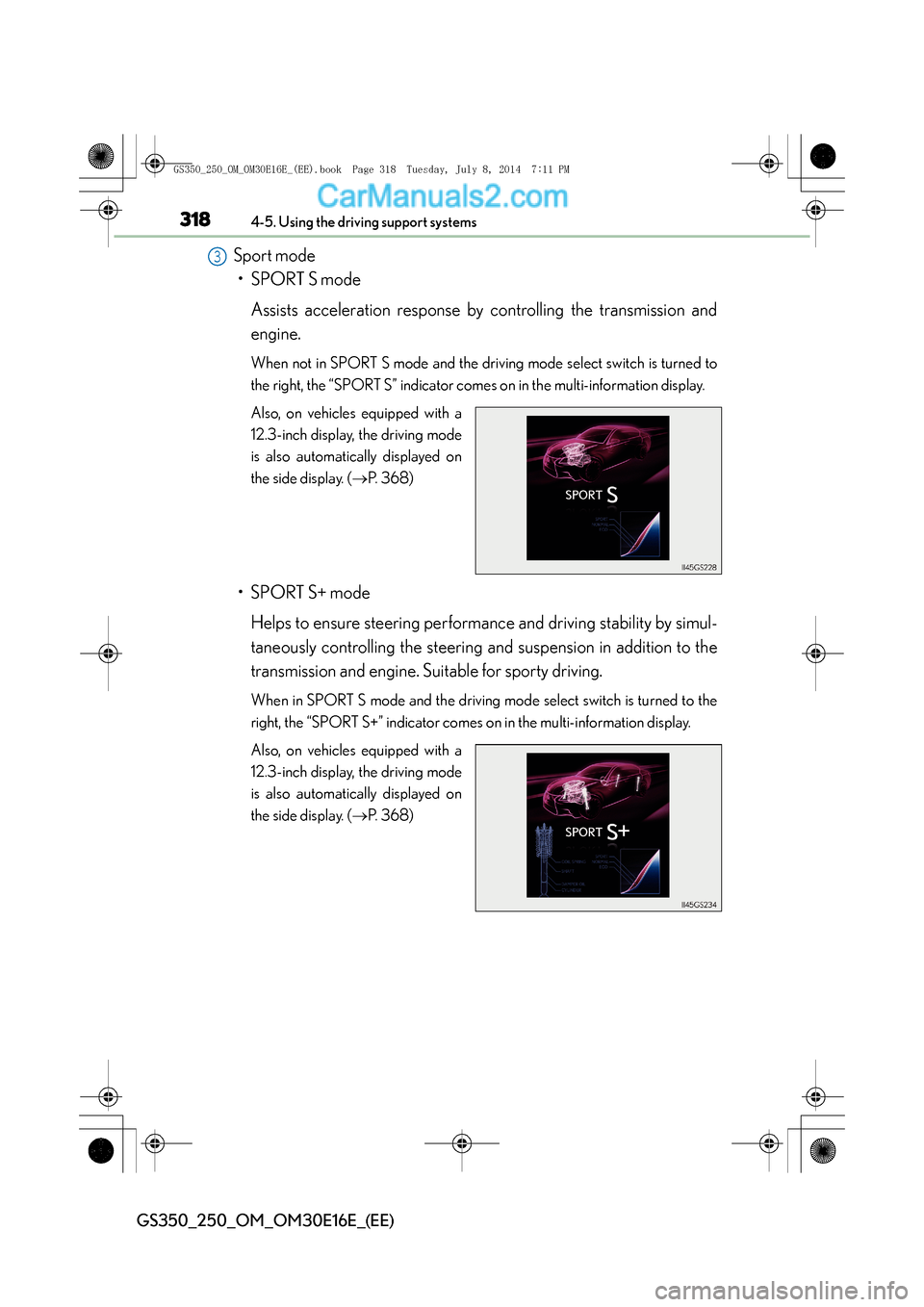

Page 318 of 688
3184-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)
Sport mode• SPORT S mode
Assists acceleration response by controlling the transmission and
engine.
When not in SPORT S mode and the driving mode select switch is turned to
the right, the “SPORT S” indicator comes on in the multi-information display.
Also, on vehicles equipped with a
12.3-inch display, the driving mode
is also automatically displayed on
the side display. ( →P. 3 6 8 )
• SPORT S+ mode
Helps to ensure steering performa nce and driving stability by simul-
taneously controlling the steering and suspension in addition to the
transmission and engine. Suitable for sporty driving.
When in SPORT S mode and the driving mode select switch is turned to the
right, the “SPORT S+” indicator comes on in the multi-information display.
Also, on vehicles equipped with a
12.3-inch display, the driving mode
is also automatically displayed on
the side display. ( →P. 3 6 8 )
3
GS350_250_OM_OM30E16E_(EE).book Page 318 Tuesday, July 8, 201 4 7:11 PM

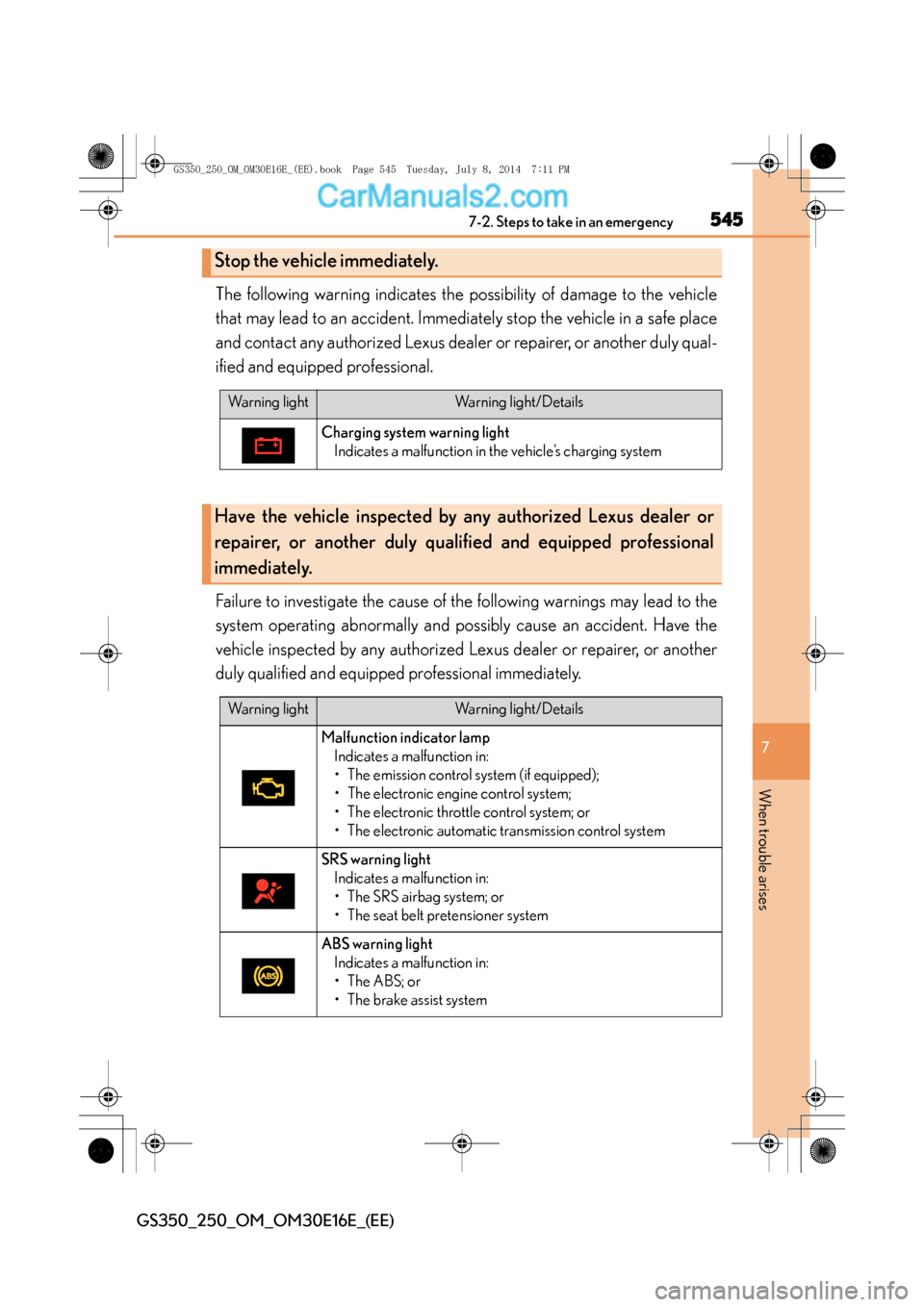

Page 545 of 688
5457-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact any authorized Lexus dealer or repairer, or another duly qual-
ified and equipped professional.
Failure to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional immediately.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lampIndicates a malfunction in:
• The emission control system (if equipped);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
SRS warning lightIndicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
GS350_250_OM_OM30E16E_(EE).book Page 545 Tuesday, July 8, 201 4 7:11 PM

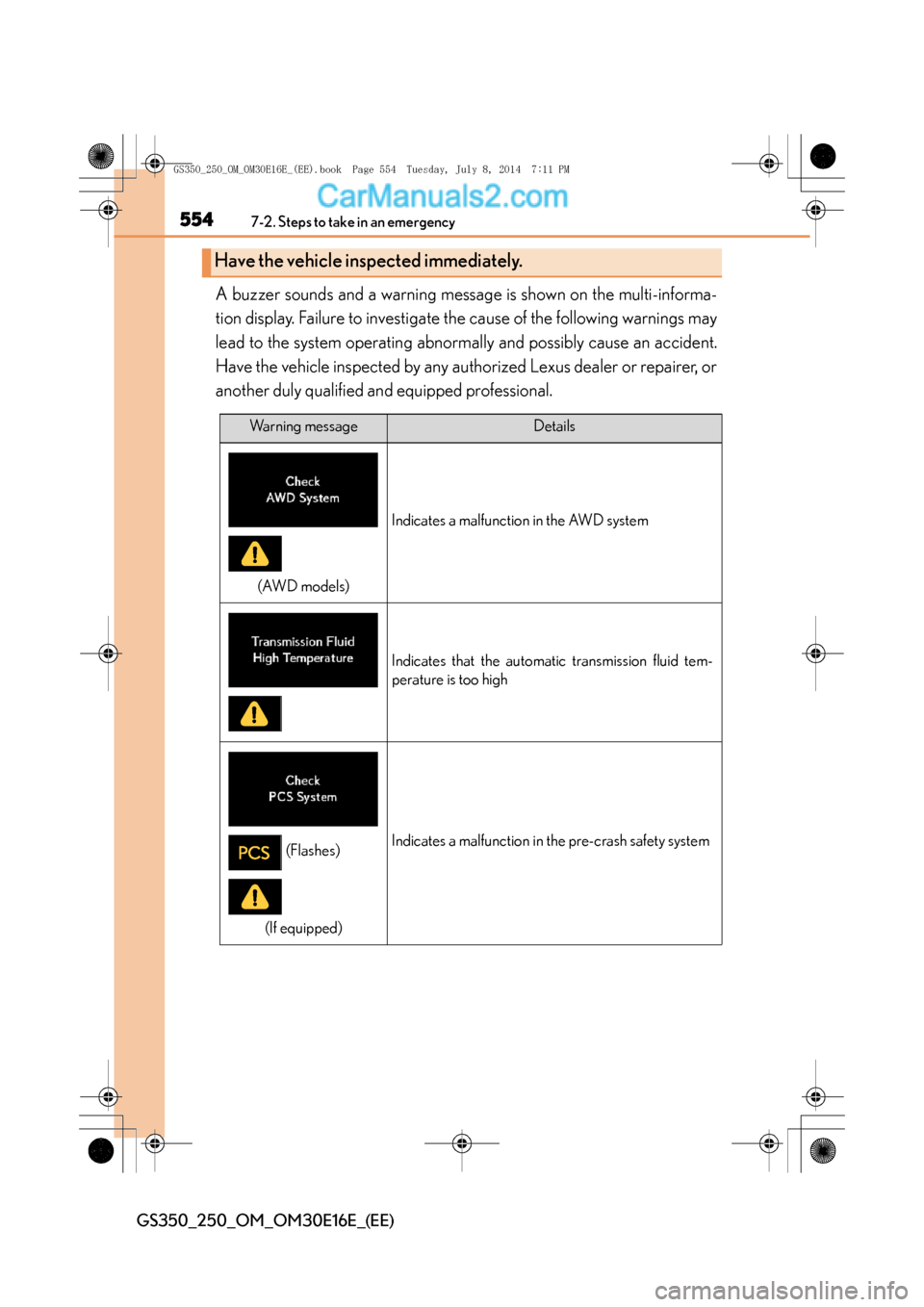

Page 554 of 688
5547-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnorm ally and possibly cause an accident.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Have the vehicle inspected immediately.
Wa r n i n g m e s s a g eDetails
(AWD models)
Indicates a malfunction in the AWD system
Indicates that the automatic transmission fluid tem-
perature is too high
(If equipped)
Indicates a malfunction in the pre-crash safety system(Flashes)
GS350_250_OM_OM30E16E_(EE).book Page 554 Tuesday, July 8, 201 4 7:11 PM

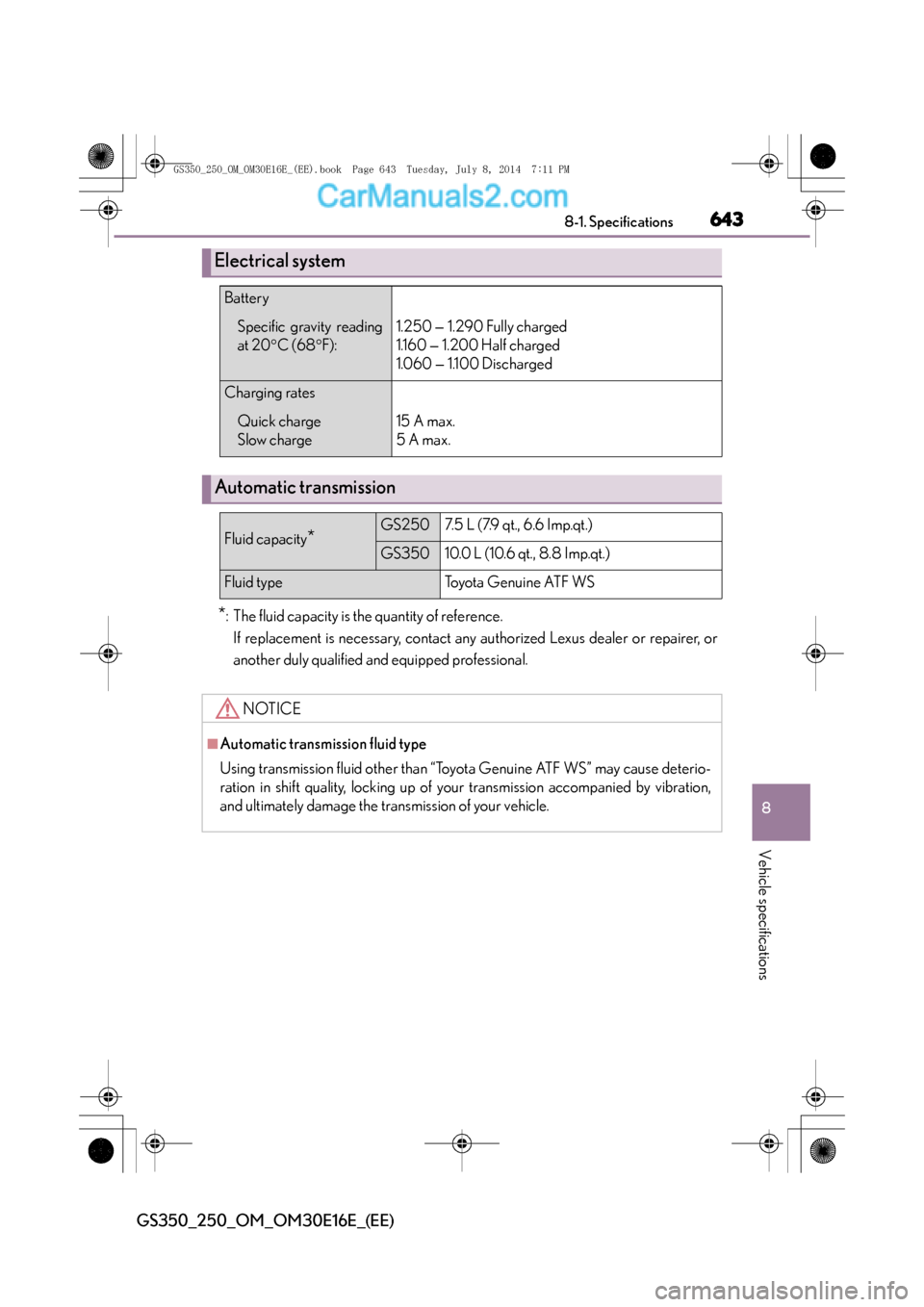

Page 643 of 688
643
8
8-1. Specifications
Vehicle specifications
GS350_250_OM_OM30E16E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Electrical system
Battery
Specific gravity reading
at 20 °C (68 °F):1.250 — 1.290 Fully charged
1.160 — 1.200 Half charged
1.060 — 1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Automatic transmission
Fluid capacity*GS2507.5 L (7.9 qt., 6.6 Imp.qt.)
GS35010.0 L (10.6 qt., 8.8 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration,
and ultimately damage the transmission of your vehicle.
GS350_250_OM_OM30E16E_(EE).book Page 643 Tuesday, July 8, 201 4 7:11 PM
