2624-3. Operating the lights and wipers
GS350_250_OM_OM30E16E_(EE)
■Daytime running light system
To make your vehicle more visible to other drivers, the front position lights turn on
automatically whenever the engine is started and the parking brake is released. Day-
time running lights are not designed for use at night.
■Headlight control sensor
■Automatic light off system
●When the light switch is in : The headlights turn off automatically if the engine
switch is turned to ACCESSORY mode or turned off.
●When the light switch is in : The headlights and all lights turn off automatically if
the engine switch is turned to ACCESSORY mode or turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn
the light switch off once and then back to or .
If any of the doors or trunk lid is kept op en, the lights automatically turn off after 20
minutes.
■Light reminder buzzer
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY
mode and the driver’s door is opened while the lights are turned on.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehicle to ensure that the headlights do not
interfere with other road users. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GS350_250_OM_OM30E16E_(EE).book Page 262 Tuesday, July 8, 201 4 7:11 PM

2944-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 120 m (400 ft.) ahead, determines the current vehicle-to-
vehicle following distance, and operates to maintain a suitable following
distance from the vehicle ahead.
Note that vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Example of constant speed cruising
When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-vehicle
distance can also be set by operating the vehicle-to-vehicle distance control.
Example of deceleration cruising
When the vehicle ahead is driving slower than the set speed
When a vehicle is detected running ahead of you, the system automatically decel-
erates your vehicle. When a greater reduction in vehicle speed is necessary, the
system applies the brakes. A warning tone warns you when the system cannot
decelerate sufficiently to prevent your vehicle from closing in on the vehicle
ahead.
Driving in vehicle-to-vehicle distance control mode
1
2
GS350_250_OM_OM30E16E_(EE).book Page 294 Tuesday, July 8, 201 4 7:11 PM

3034-5. Using the driving support systems
4
Driving
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary when any of the following types of vehicles are in
front of you.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (→P. 295) will not be activated, and a fatal or serious accident
may result.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Vehicles that are not moving
●Vehicles with small rear ends (trailers with no load on board etc.)
●Motorcycles traveling in the same lane
■Conditions under which the vehicle-to-vehicle distance control may not function
correctly
Apply the brakes as necessary in the following conditions as the radar sensor may
not be able to correctly detect vehicles ahead, and a fatal or serious accident may
result:
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the trunk etc.)
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decelerates suddenly
GS350_250_OM_OM30E16E_(EE).book Page 303 Tuesday, July 8, 201 4 7:11 PM

3304-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)
PCS (Pre-Crash Safety system)∗
◆Pre-crash seat belts (front seat only)
If the pre-crash sensor detects that a collision is unavoidable, the pre-
crash safety system will retract the seat belt before the collision occurs.
The same will happen if the driver makes an emergency braking or
loses control of the vehicle. (→P. 4 0 )
◆Pre-crash brake assist
When there is a high possibility of a frontal collision, the system applies
greater braking force in relation to how strongly the brake pedal is
depressed.
◆Pre-crash braking
When there is a high possibility of a frontal collision, the system warns
the driver using a warning light, warning display and buzzer. If the sys-
tem determines that a collision is unavoidable, the brakes are automati-
cally applied to reduce the collision speed.
∗
: If equipped
When the radar sensor detects possibility of a frontal collision, the pre-
crash safety system such as the brakes and seat belts are automatically
engaged to lessen impact as well as vehicle damage.
The pre-crash safety system can be turned on and off as necessary by
operating the switch. ( →P. 3 3 1 )
GS350_250_OM_OM30E16E_(EE).book Page 330 Tuesday, July 8, 201 4 7:11 PM

3344-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)
●Pre-crash alert braking:
• The system determines that the driver is not facing forward, or that the driver’seyes are closed.
• Vehicle speed is greater than about 40 km/h (25 mph).
• The speed at which your vehicle is approaching the vehicle running ahead of you is greater than about 40 km/h (25 mph).
• The steering is not being turned.
■Conditions that may trigger the system even if there is no danger of a collision
●When there is an object by the roadside at the entrance to a curve
●When passing an oncoming vehicle on a curve
●When driving over a narrow iron bridge
●When there is a metal object on the road surface
●When driving on an uneven road surface
●When passing an oncoming vehicle on a left-turn (left-hand drive vehicles) or right-
turn (right-hand drive vehicles)
●When your vehicle rapidly closes on the vehicle in front
●When a grade separation/interchange, sign, billboard, or other structure appears
to be directly in the vehicle’s line of travel
●When climbing a steep hill causes an overhead billboard or other metallic structure
to appear directly in the vehicle’s line of travel
When the system is activated in the situations described above, there is also a possi-
bility that the seat belts will retract quickly and the brakes will be applied with a force
greater than normal. When the seat belt is locked in the retracted position, stop the
vehicle in a safe place, release the seat belt and refasten it.
■Obstacles not detected
The sensor cannot detect plastic obstacles such as traffic cones. There may also be
occasions when the sensor cannot detect pedestrians, animals, bicycles, motorcy-
cles, trees, or snowdrifts.
GS350_250_OM_OM30E16E_(EE).book Page 334 Tuesday, July 8, 201 4 7:11 PM

3404-5. Using the driving support systems
GS350_250_OM_OM30E16E_(EE)
CAUTION
■Cautions regarding the assist contents of the system
By means of alarms and brake control, the pre-crash safety system is intended to
assist the driver in avoiding collisions through the process of LOOK-JUDGE-ACT.
There are limits to the degree of assistance the system can provide, so please keep
in mind the following important points.
●Assisting the driver in watching the road
The pre-crash safety system is only able to detect obstacles directly in front of the
vehicle, and only within a limited range. It is not a mechanism that allows careless
or inattentive driving, and it is not a system that can assist the driver in low-visibil-
ity conditions. It is still necessary for the driver to pay close attention to the vehi-
cle’s surroundings.
●Assisting the driver in making correct judgment
When attempting to estimate the possibility of a collision, the only data available
to the pre-crash safety system is that from obstacles it has detected directly in
front of the vehicle. Therefore, it is absolutely necessary for the driver to remain
vigilant and to determine whether or not there is a possibility of collision in any
given situation.
●Assisting the driver in taking action
The pre-crash safety system’s braking assist feature is designed to help reduce
the severity of a collision, and so only acts when the system has judged that a col-
lision is unavoidable. This system by itself is not capable of automatically avoiding
a collision or bringing the vehicle to a stop safely. For this reason, when encoun-
tering a dangerous situation the driver must take direct and immediate action in
order to ensure the safety of all involved.
NOTICE
■Precautions for cleaning the driver monitor sensor
●Gently wipe the sensor with a soft cloth to prevent damage.
●Wipe any excess dirt with a cloth dampened with neutral detergent, all liquids
having been wringed out of the cloth. After that, wipe again with a dry cloth.
●Do not use benzene, thinner, glass cleaners, wax, etc.
GS350_250_OM_OM30E16E_(EE).book Page 340 Tuesday, July 8, 201 4 7:11 PM

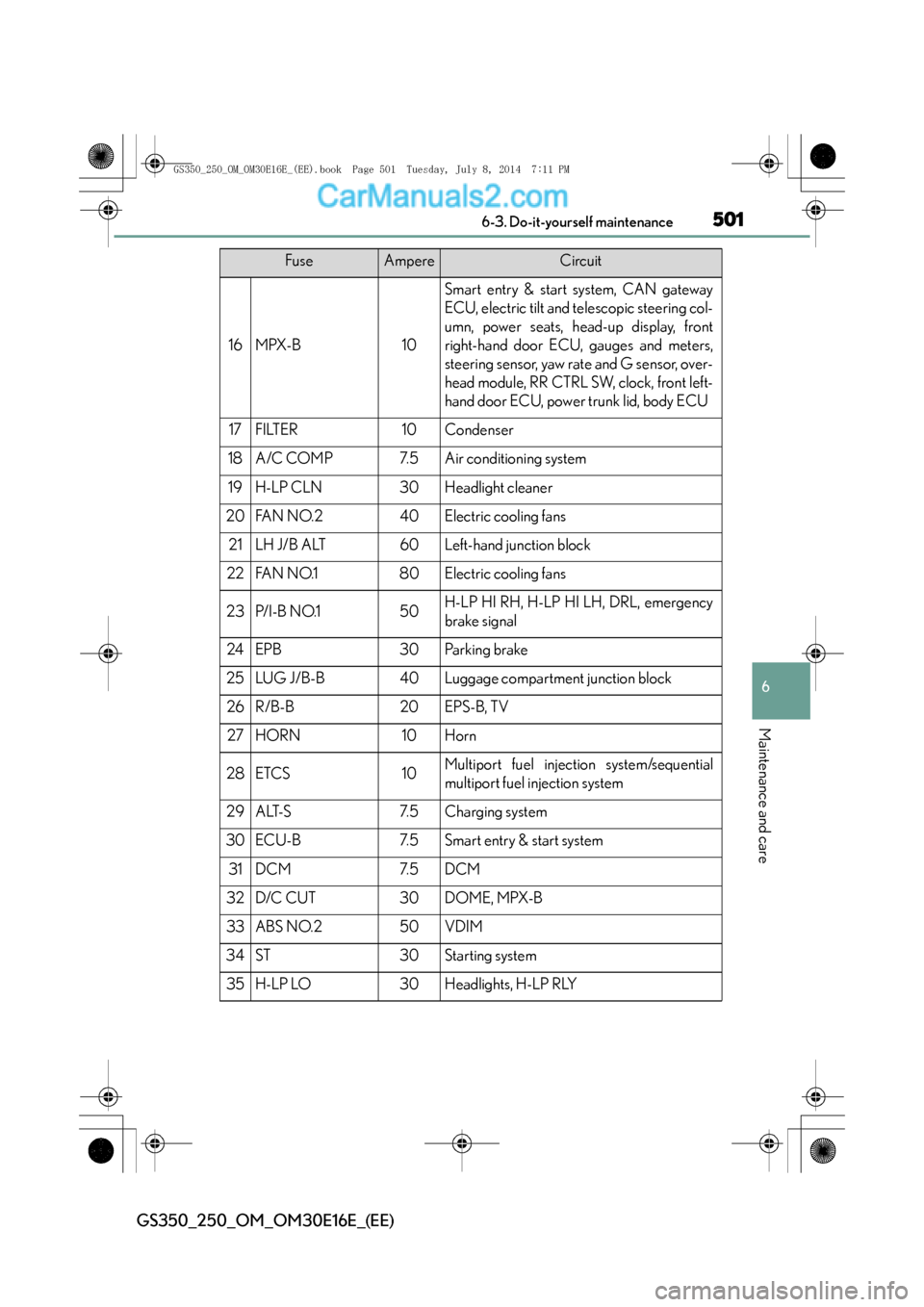

501 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
16MPX-B10
Smart entry & start system, CAN gateway
ECU, electric tilt and telescopic steering col-
umn, power seats, head-up display, front
right-hand door ECU, gauges and meters,
steering sensor, yaw rate and G sensor, over-
head module, RR CTRL SW, clock, front left-
hand door ECU, power trunk lid, body ECU
17FILTER10Condenser
18A/C COMP7. 5Air conditioning system
19H-LP CLN30Headlight cleaner
20FAN NO.240Electric cooling fans
21LH J/B ALT60Left-hand junction block
22FAN NO.180Electric cooling fans
23P/ I - B N O.150H-LP HI RH, H-LP HI LH, DRL, emergency
brake signal
24EPB30Pa r k in g b ra ke
25LUG J/B-B40Luggage compartment junction block
26R/B-B20EPS-B, TV
27HORN10Horn
28ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
29ALT-S7. 5Charging system
30ECU-B7. 5Smart entry & start system
31DCM7. 5DCM
32D/C C UT30DOME, MPX-B
33ABS NO.250VDIM
34ST30Starting system
35H-LP LO30Headlights, H-LP RLY
FuseAmpereCircuit
GS350_250_OM_OM30E16E_(EE).book Page 501 Tuesday, July 8, 2014 7:11 PM

5126-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)

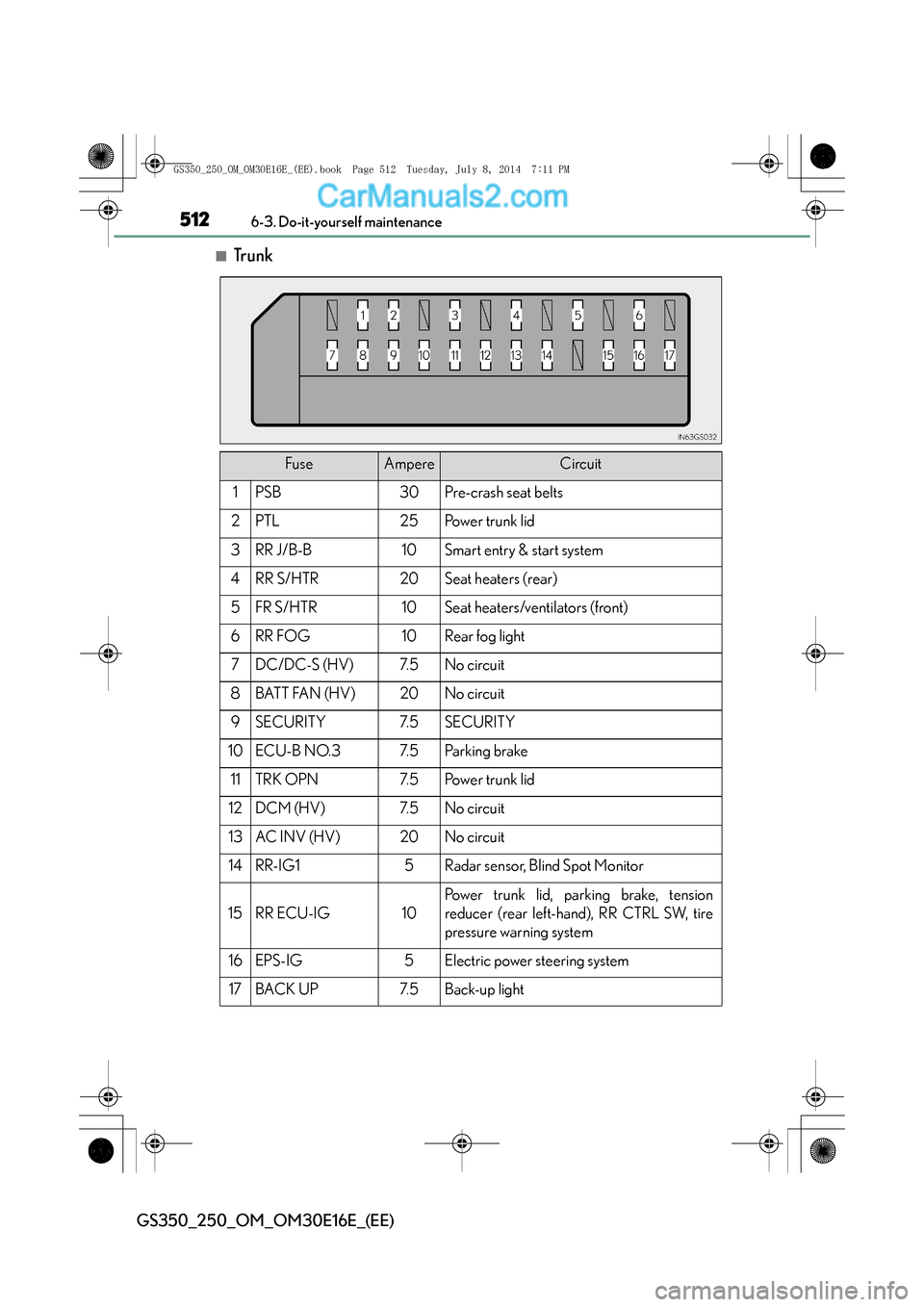

■Tr u n k
FuseAmpereCircuit
1PSB30Pre-crash seat belts
2PTL25Power trunk lid
3RR J/B-B10Smart entry & start system
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10Rear fog light
7DC/DC-S (HV)7. 5No circuit
8BATT FAN (HV)20No circuit
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Pa r k in g b ra ke
11TRK OPN7. 5Power trunk lid
12DCM (HV)7. 5No circuit
13AC INV (HV)20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk lid, parking brake, tension
reducer (rear left-hand), RR CTRL SW, tire
pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up light
GS350_250_OM_OM30E16E_(EE).book Page 512 Tuesday, July 8, 2014 7:11 PM

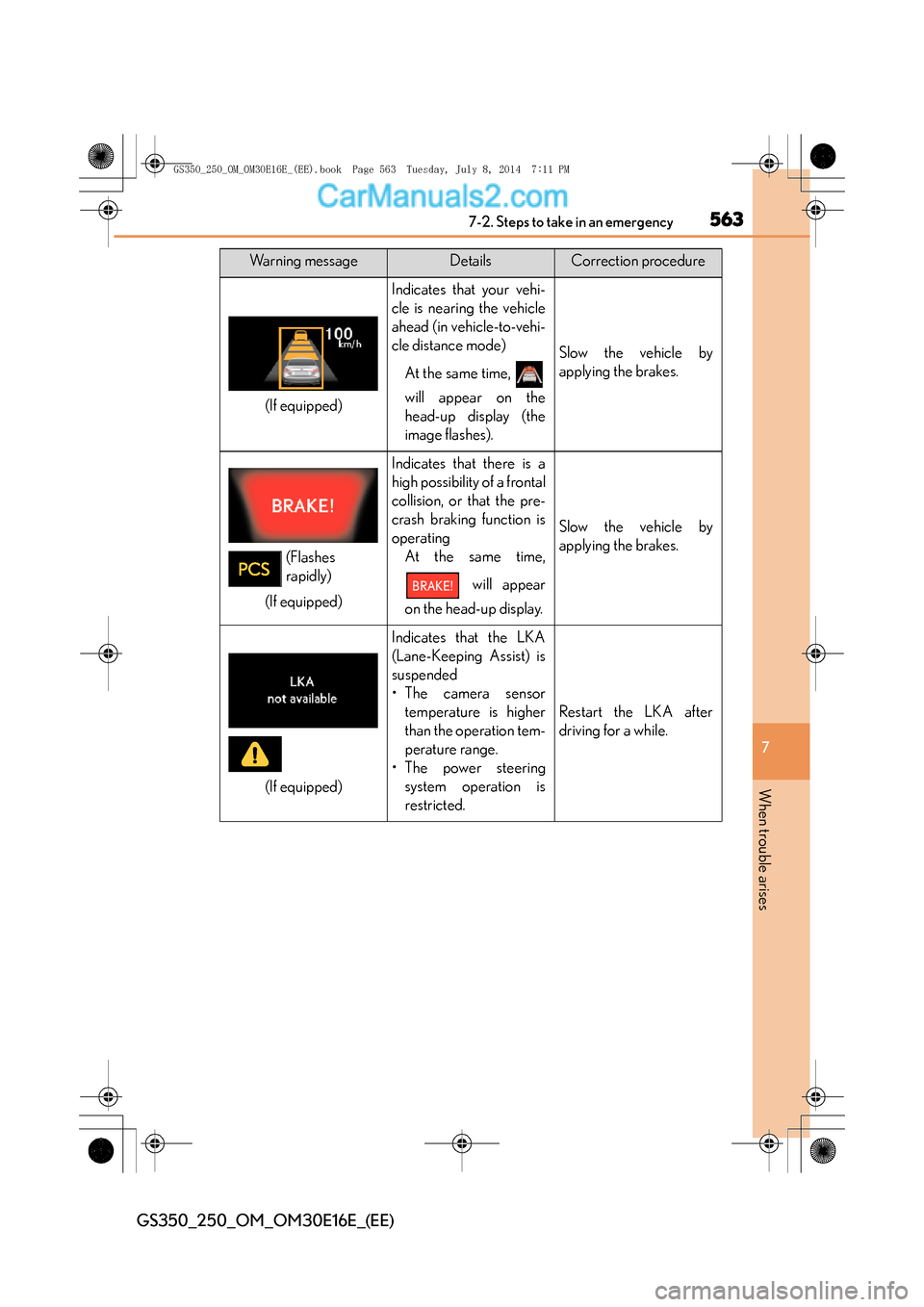

5637-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)At the same time,
will appear on the
head-up display (the
image flashes).
Slow the vehicle by
applying the brakes.
(If equipped)
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
crash braking function is
operatingAt the same time,
will appear
on the head-up display.
Slow the vehicle by
applying the brakes.
(If equipped)
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes
rapidly)
GS350_250_OM_OM30E16E_(EE).book Page 563 Tuesday, July 8, 201 4 7:11 PM
