instrument panel Lexus GS250 2014 Owner's Manual

16Pictorial index
GS350_250_OM_OM30E16E_(EE)
■Instrument panel (Left-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Starting the engine/changing the modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 99
Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . P. 99
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 94
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5441
2
3
GS350_250_OM_OM30E16E_(EE).book Page 16 Tuesday, July 8, 2014 7:11 PM

18Pictorial index
GS350_250_OM_OM30E16E_(EE)
■Switches (Left-hand drive vehicles)
Headlight cleaner switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Automatic High Beam switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 100
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . . . . .P. 100
HUD (Head-up display) switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Heated steering wheel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
BSM (Blind Spot Monitor) main switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 341
1
2
3
4
5
6
7
8
GS350_250_OM_OM30E16E_(EE).book Page 18 Tuesday, July 8, 2014 7:11 PM

24Pictorial index
GS350_250_OM_OM30E16E_(EE)

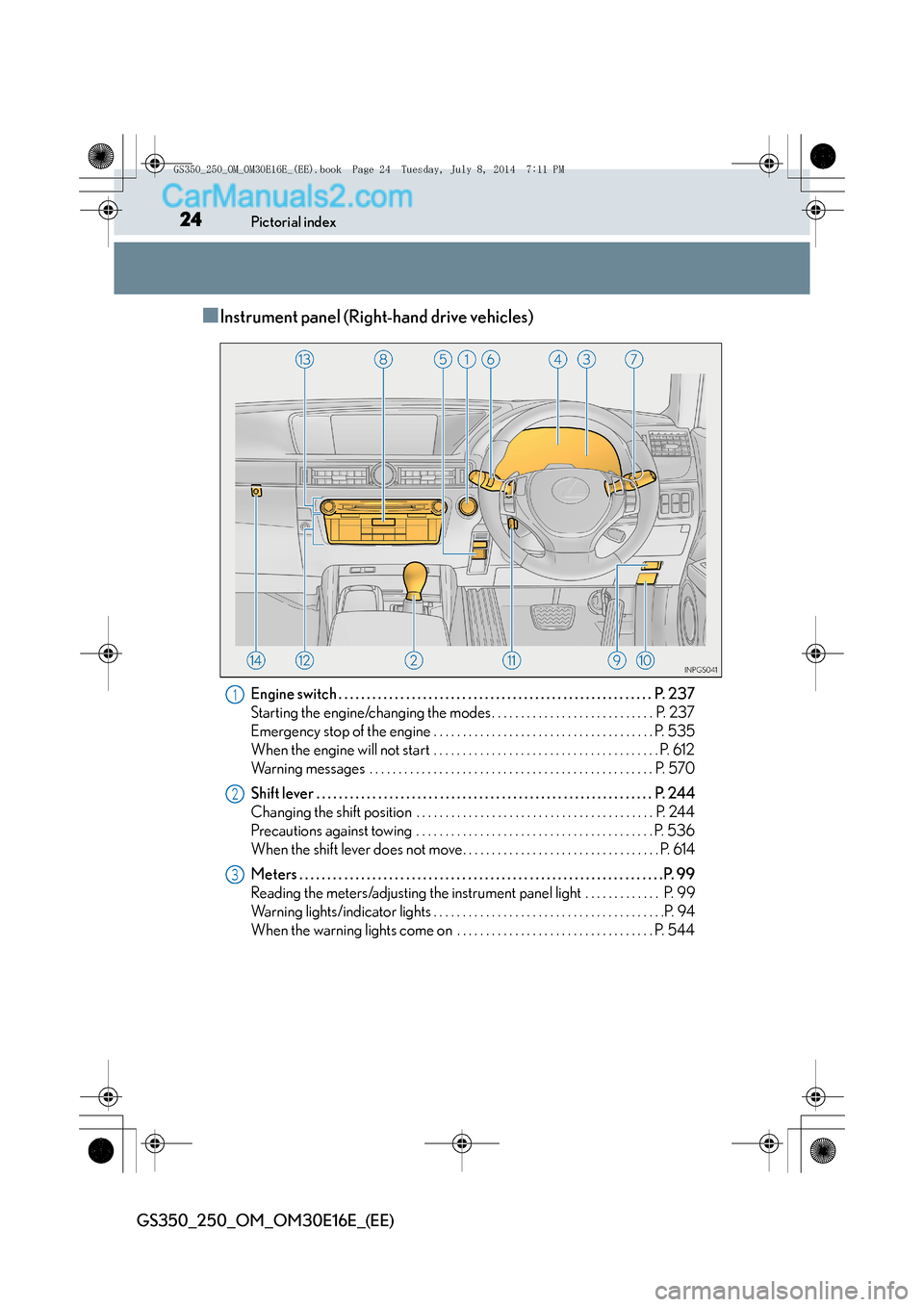

■Instrument panel (Right-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Starting the engine/changing the modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 99
Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . P. 99
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 94
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5441
2
3
GS350_250_OM_OM30E16E_(EE).book Page 24 Tuesday, July 8, 2014 7:11 PM

26Pictorial index
GS350_250_OM_OM30E16E_(EE)

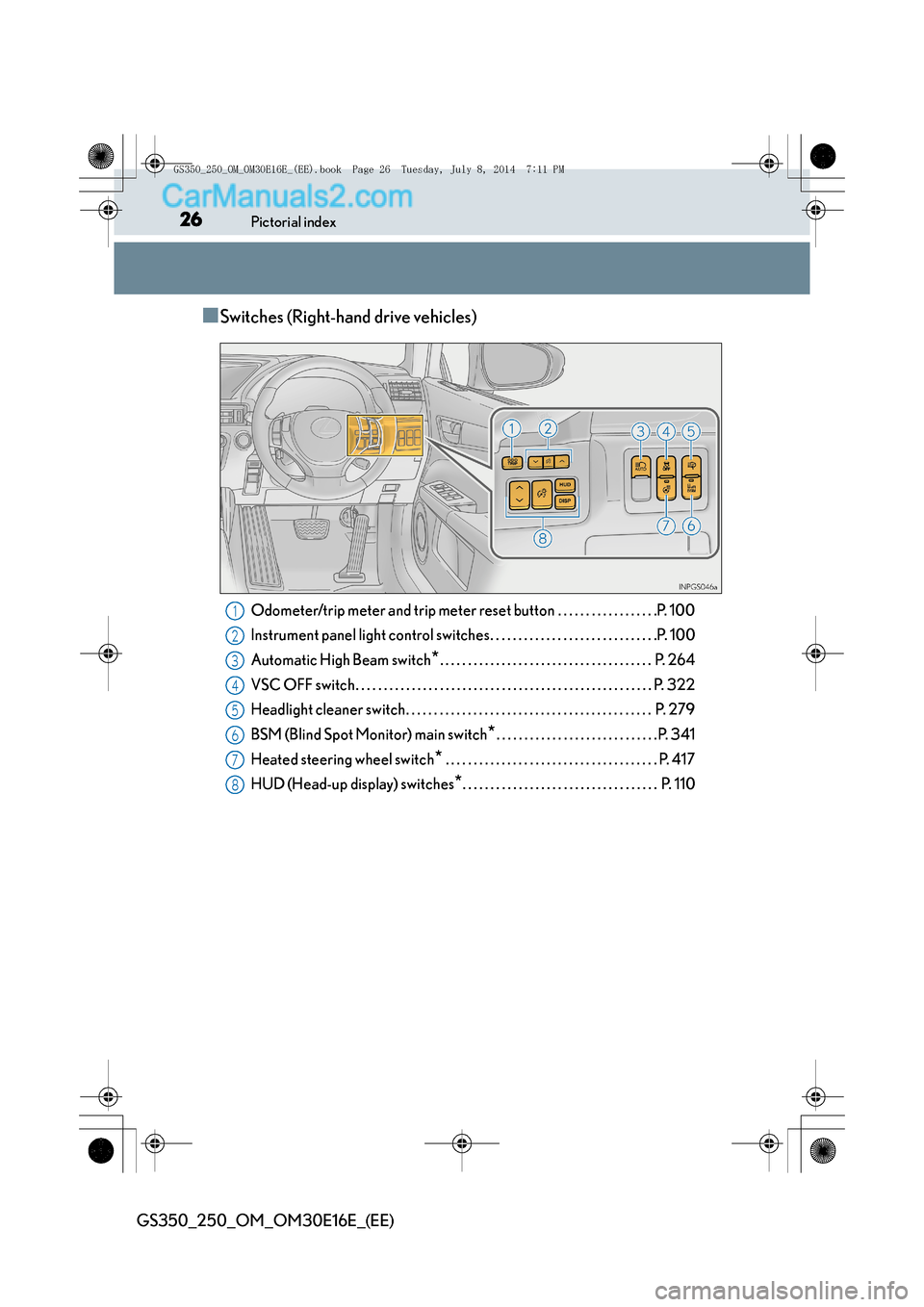

■Switches (Right-hand drive vehicles)
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . . . . .P. 100
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 100
Automatic High Beam switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Headlight cleaner switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
BSM (Blind Spot Monitor) main switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 341
Heated steering wheel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
HUD (Head-up display) switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
1
2
3
4
5
6
7
8
GS350_250_OM_OM30E16E_(EE).book Page 26 Tuesday, July 8, 2014 7:11 PM

471-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedalscomfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining con-
trol of the foot pedals, steering wheel, an d your view of the instrument panel con-
trols.
GS350_250_OM_OM30E16E_(EE).book Page 47 Tuesday, July 8, 2014 7:11 PM

501-1. For safe use
GS350_250_OM_OM30E16E_(EE)
CAUTION
■SRS airbag precautions
●Do not strike or apply significant levels of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad,
door of the glove box and front and rear pillar garnishes are damaged or cracked,
have them replaced by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications with-
out consulting any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. The SRS airbags may malfunction or deploy (inflate)
accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, glove box, seats or seat upholstery, front, side and rear pillars
or roof side rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter)
and CD players
●Modifications to your vehicle for a person with a physical disability
GS350_250_OM_OM30E16E_(EE).book Page 50 Tuesday, July 8, 2014 7:11 PM

541-1. For safe use
GS350_250_OM_OM30E16E_(EE)

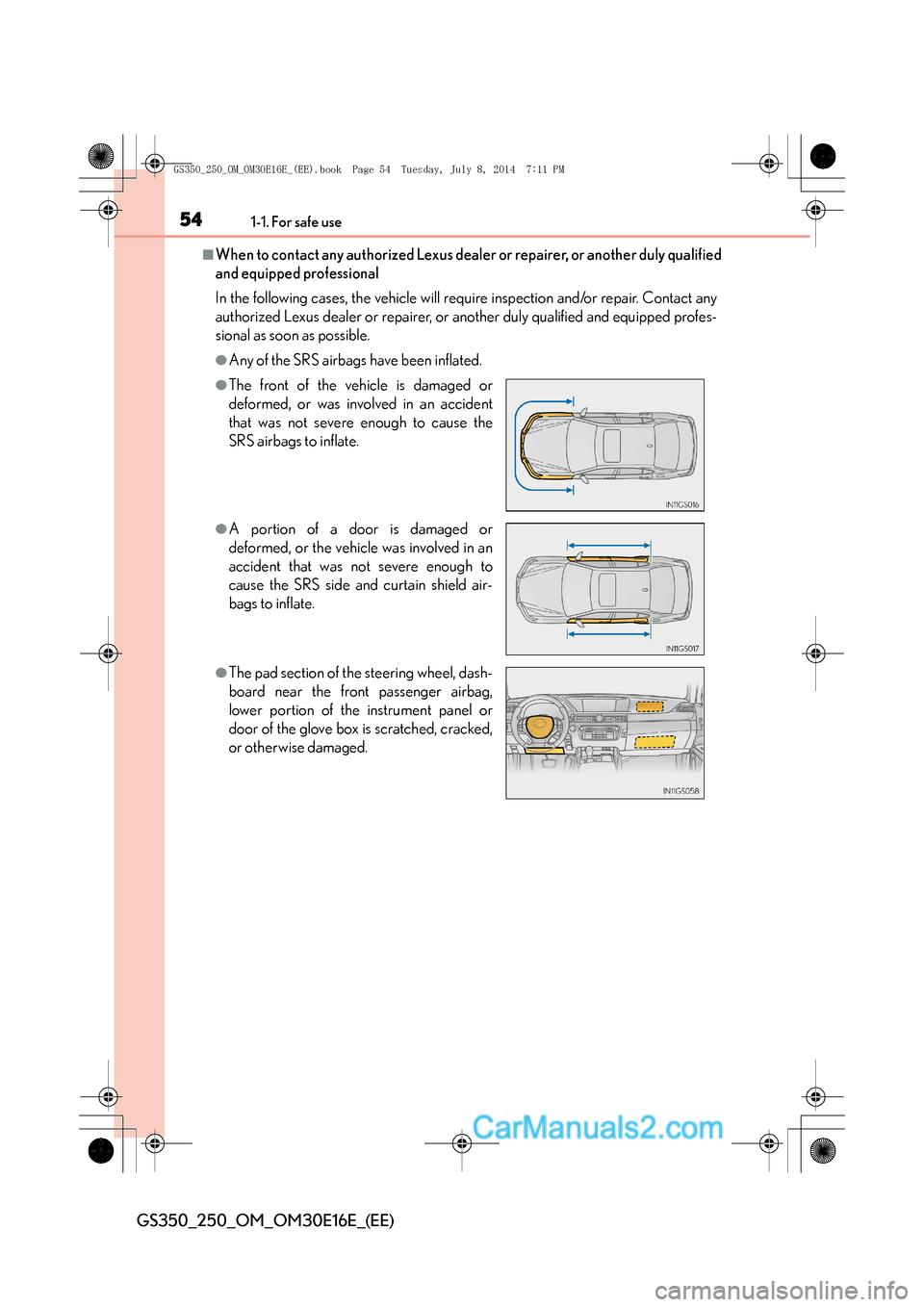

■When to contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional
In the following cases, the vehicle will require inspection and/or repair. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional as soon as possible.
●Any of the SRS airbags have been inflated.
●The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS airbags to inflate.
●A portion of a door is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side and curtain shield air-
bags to inflate.
●The pad section of the steering wheel, dash-
board near the front passenger airbag,
lower portion of the instrument panel or
door of the glove box is scratched, cracked,
or otherwise damaged.
GS350_250_OM_OM30E16E_(EE).book Page 54 Tuesday, July 8, 2014 7:11 PM

942. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Warning lights and indicators
◆Instrument cluster
The units used on the speedometer may differ depending on the target region.
◆Center panel
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and in dicators illuminated.
GS350_250_OM_OM30E16E_(EE).book Page 94 Tuesday, July 8, 2014 7:11 PM

1002. Instrument cluster
GS350_250_OM_OM30E16E_(EE)

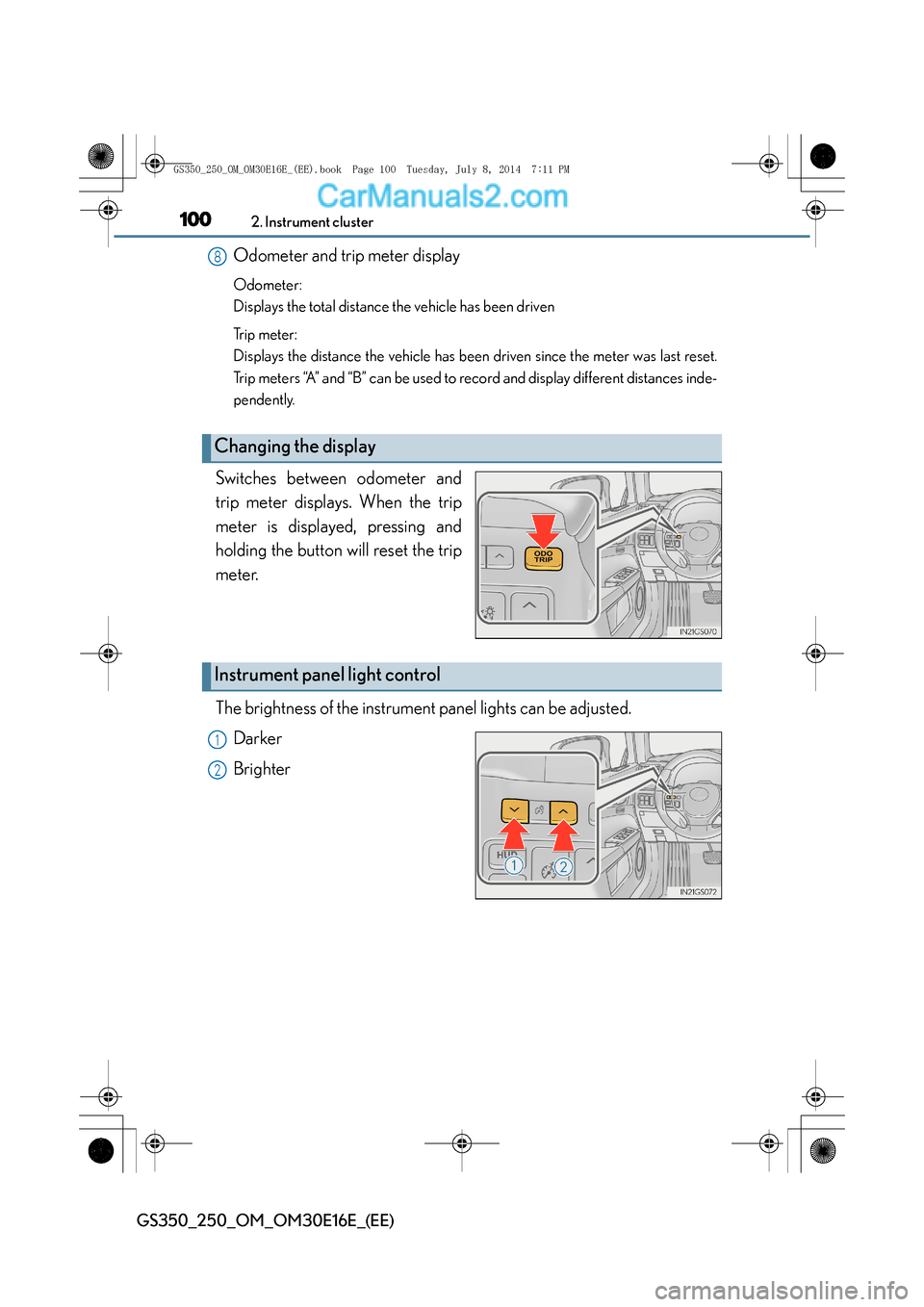

Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Changing the display
8
Instrument panel light control
1
2
GS350_250_OM_OM30E16E_(EE).book Page 100 Tuesday, July 8, 201 4 7:11 PM

1012. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change the instrument panel brightness.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to either the brightest or darkest setting, the
automatic adjustment will not be performed.
■ECO lamp and SPORT lamp
●When sport mode is selected, SPORT lamp (red) will illuminate.
●When all of the following conditions are satisfied and Eco-friendly driving, ECO
lamp (blue) will illuminate. (ECO lamp will become brighter the more Eco-friendly
driving you perform. Also, while the acceleration exceeds Zone of Eco driving,
ECO lamp turns off. [→P. 108] However, when Eco drive mode is selected, while
the acceleration exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D
• Paddle shift switch is not operated.
• Either normal mode or Eco drive mode is selected.
• The vehicle speed is approximately 130 km/h (80 mph) or below.
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features: →P. 6 5 2 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 6 2 5 )
GS350_250_OM_OM30E16E_(EE).book Page 101 Tuesday, July 8, 201 4 7:11 PM
