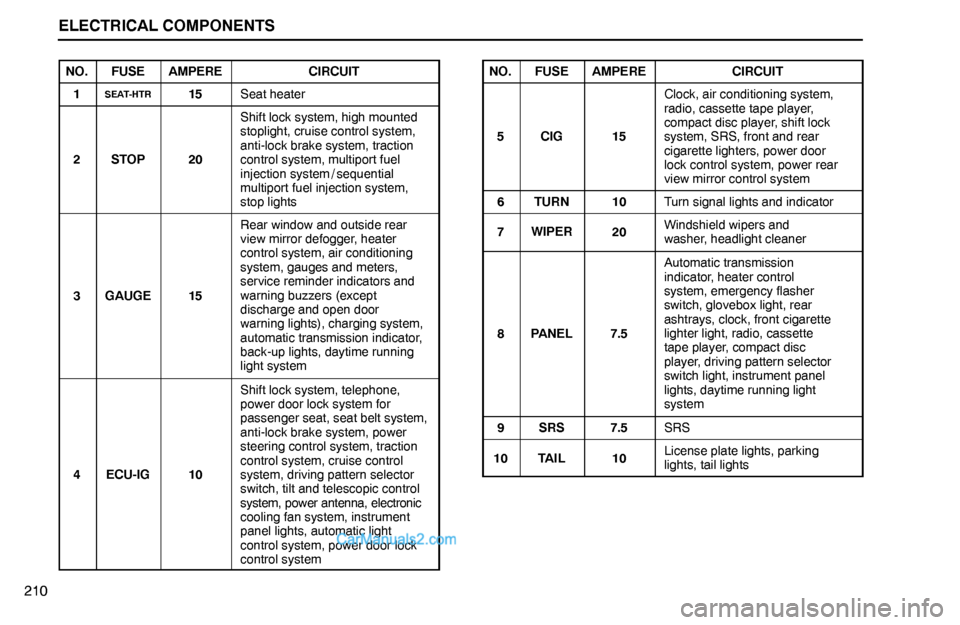

ELECTRICAL COMPONENTS
210
NO.FUSEAMPERECIRCUIT
1SEAT-HTR15Seat heater
2STOP20
Shift lock system, high mounted
stoplight, cruise control system,
anti-lock brake system, traction
control system, multiport fuel
injection system / sequential
multiport fuel injection system,
stop lights
3GAUGE15
Rear window and outside rear
view mirror defogger, heater
control system, air conditioning
system, gauges and meters,
service reminder indicators and
warning buzzers (except
discharge and open door
warning lights), charging system,
automatic transmission indicator,
back-up lights, daytime running
light system
4ECU-IG10
Shift lock system, telephone,
power door lock system for
passenger seat, seat belt system,
anti-lock brake system, power
steering control system, traction
control system, cruise control
system, driving pattern selector
switch, tilt and telescopic control
system, power antenna, electronic
cooling fan system, instrument
panel lights, automatic light
control system, power door lock
control system
NO.FUSEAMPERECIRCUIT
5CIG15
Clock, air conditioning system,
radio, cassette tape player,
compact disc player, shift lock
system, SRS, front and rear
cigarette lighters, power door
lock control system, power rear
view mirror control system
6TURN10Turn signal lights and indicator
7WIPER20Windshield wipers and
washer, headlight cleaner
8PANEL7.5
Automatic transmission
indicator, heater control
system, emergency flasher
switch, glovebox light, rear
ashtrays, clock, front cigarette
lighter light, radio, cassette
tape player, compact disc
player, driving pattern selector
switch light, instrument panel
lights, daytime running light
system
9SRS7.5SRS
10TAIL10License plate lights, parking
lights, tail lights

Type A
Good
Blown
Type B
Good
Blown

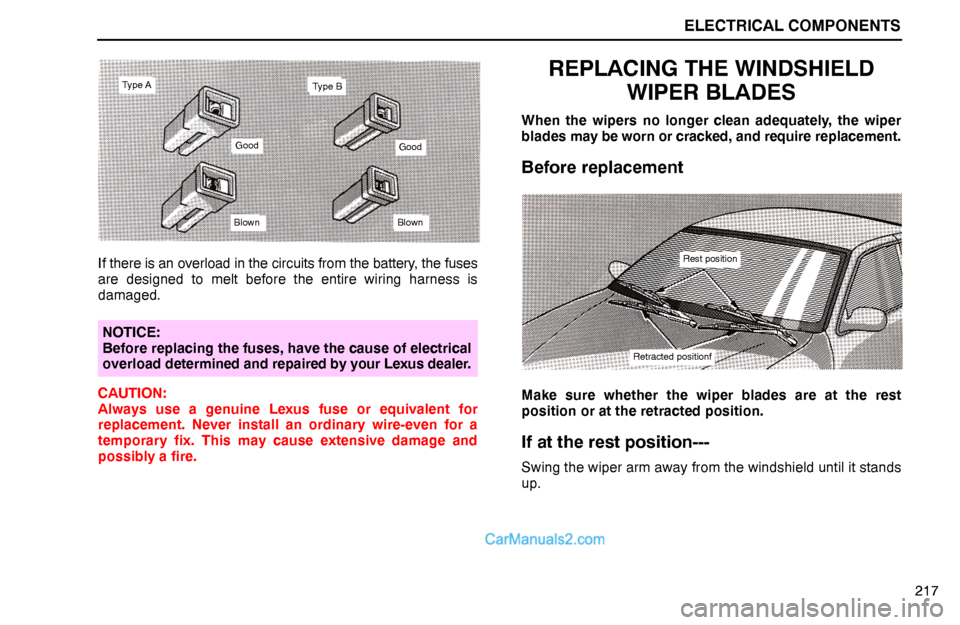

ELECTRICAL COMPONENTS
Rest position
Retracted positionf
217 If there is an overload in the circuits from the battery, the fuses
are designed to melt before the entire wiring harness is
damaged.
NOTICE:
Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.
CAUTION:
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire-even for a
temporary fix. This may cause extensive damage and
possibly a fire.
REPLACING THE WINDSHIELD
WIPER BLADES
When the wipers no longer clean adequately, the wiper
blades may be worn or cracked, and require replacement.
Before replacement
Make sure whether the wiper blades are at the rest
position or at the retracted position.
If at the rest position---
Swing the wiper arm away from the windshield until it stands
up.
