Lexus GS300 1998 Electrical Components

ELECTRICAL COMPONENTS
423
64L013
2. Make sure the inoperative component is turned off.
Pull the suspected fuse straight out with the pull±out tool
and check it. If it has blown, push a new fuse into the clips.

ELECTRICAL COMPONENTS
424
64G008

Good
Blown
a. Look carefully at the fuse. If the thin wire is broken, the
fuse has blown. If you are not sure or if it is too dark to see,
try replacing the suspected fuse with one of the same value
that you know is good.
b. Install only a fuse with the amperage rating designated on
the fuse box lid.
If you do not have a spare fuse, in an emergency you can pull
out the ºCIGº, ºRAD NO.1º or ºOBDº fuse, which may be
dispensable for normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amperage, use one lower
than, but as close as possible to, the amperage. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to
get the correct fuse as soon as possible and return the
substitute to its original clips.It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.

ELECTRICAL COMPONENTS
425
CAUTION
Never use a fuse with a higher amperage rating, or any other
object, in place of a fuse. This may cause extensive damage
and possibly a fire.

ELECTRICAL COMPONENTS
426
CHECKING THE CARTRIDGE
TYPE FUSES
64G019±1

1
Good 2
Melted
If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.
NOTICE
Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.

ELECTRICAL COMPONENTS
427

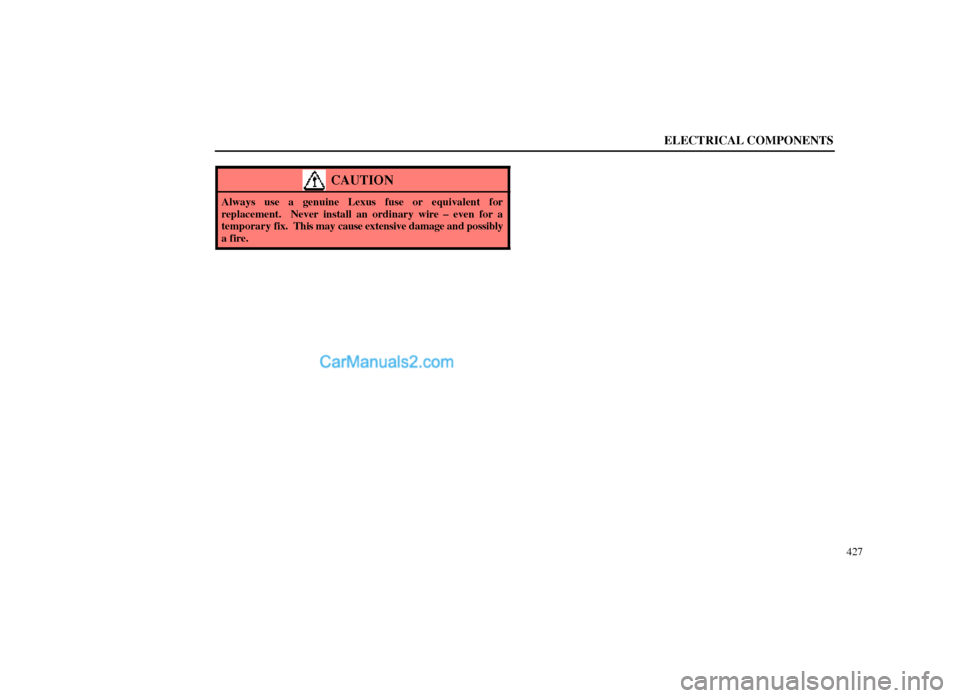

CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire ± even for a
temporary fix. This may cause extensive damage and possibly
a fire.

ELECTRICAL COMPONENTS
428
ADDING WASHER FLUID
64G009
If the washer tank becomes nearly empty, add washer
fluid.
You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available
at your Lexus dealer and most auto parts stores. Follow the
manufacturer 's directions for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle's paint.
CHECKING THE HEADLIGHT
AIM

ELECTRICAL COMPONENTS
429
64G020±1

1
Beam angle gauge (vertical movement)
2
Beam angle gauge (horizontal movement)
Before checking the headlight aim:
1. Be sure that the body around the headlight is not deformed.
2. Park the vehicle on a level spot.
3. The driver gets into the driver's seat and puts the vehicle
in a state readying for a driving (with a full tank).
4. Bounce the vehicle several times.

ELECTRICAL COMPONENTS
430
64G021±1

1
Bubble 2
Acceptable range
Vertical movement gauge: The bubble of the gauge should
not deviate from the center of the gauge by more than 2 marks
to either side of the gauge.

ELECTRICAL COMPONENTS
431
64G022

1
Mark 2
Acceptable range
Horizontal movement gauge: The mark should not deviate
by more than one mark to either side of the gauge.
If the error is over the value specified above, take the vehicle
to your Lexus dealer to adjust the headlight aim.REPLACING LIGHT BULBS
The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your
vehicle to your Lexus dealer as soon as possible. Use bulbs
with the bulb numbers and wattage ratings given in the table.

ELECTRICAL COMPONENTS
432

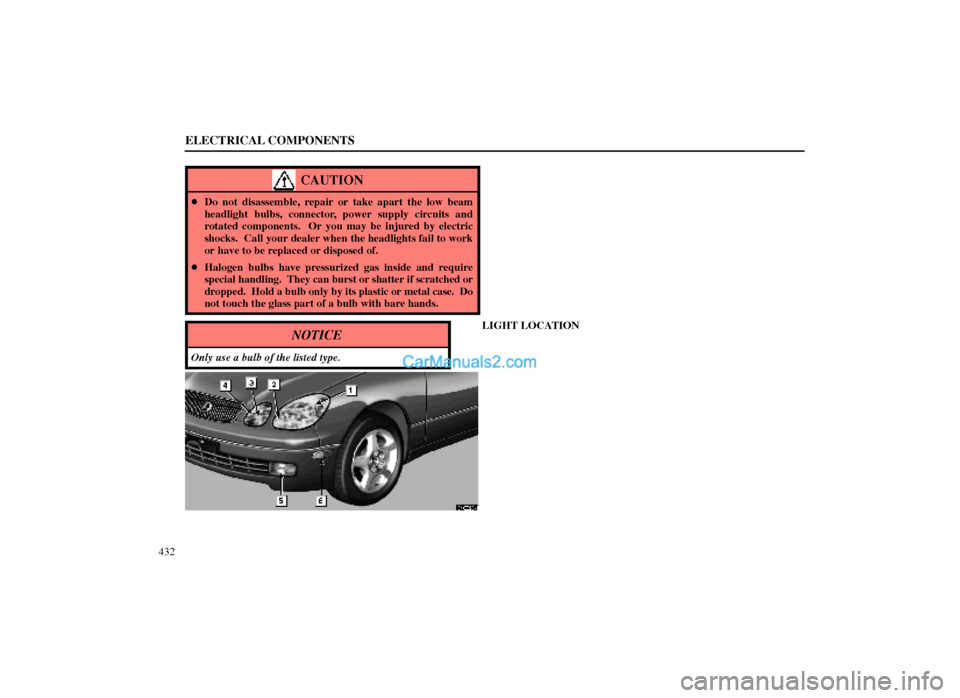

CAUTION
Do not disassemble, repair or take apart the low beam
headlight bulbs, connector, power supply circuits and
rotated components. Or you may be injured by electric
shocks. Call your dealer when the headlights fail to work
or have to be replaced or disposed of.
Halogen bulbs have pressurized gas inside and require
special handling. They can burst or shatter if scratched or
dropped. Hold a bulb only by its plastic or metal case. Do
not touch the glass part of a bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
LIGHT LOCATION
64G023±1
