COMFORT ADJUSTMENT
123

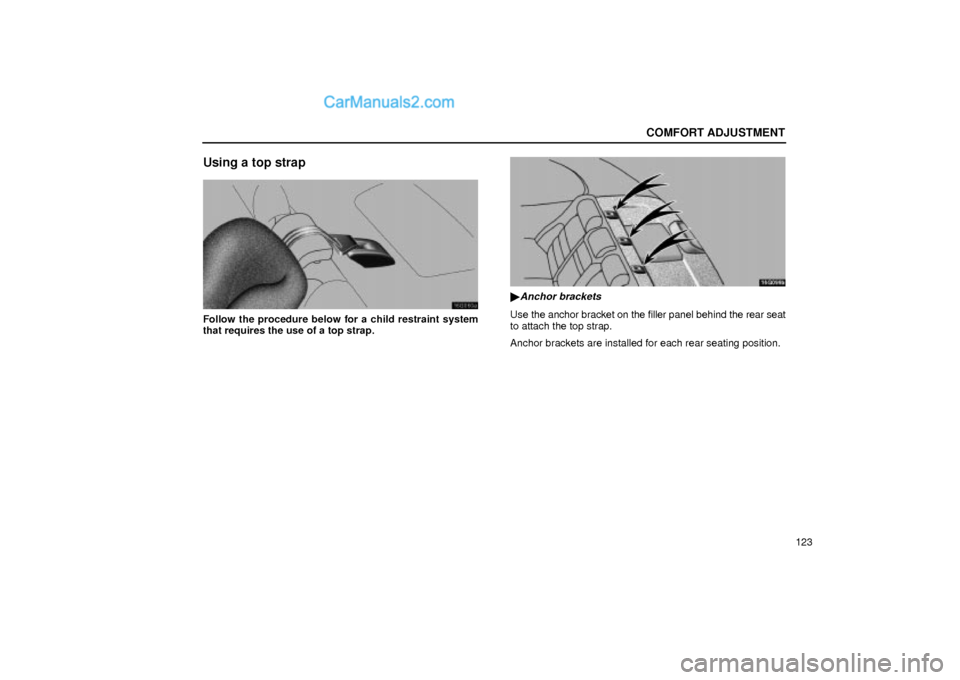

Using a top strap
16G060a
Follow the procedure below for a child restraint system
that requires the use of a top strap.
16G099b
Anchor brackets
Use the anchor bracket on the filler panel behind the rear seat
to attach the top strap.
Anchor brackets are installed for each rear seating position.
Page 52 of 56
COMFORT ADJUSTMENT
124

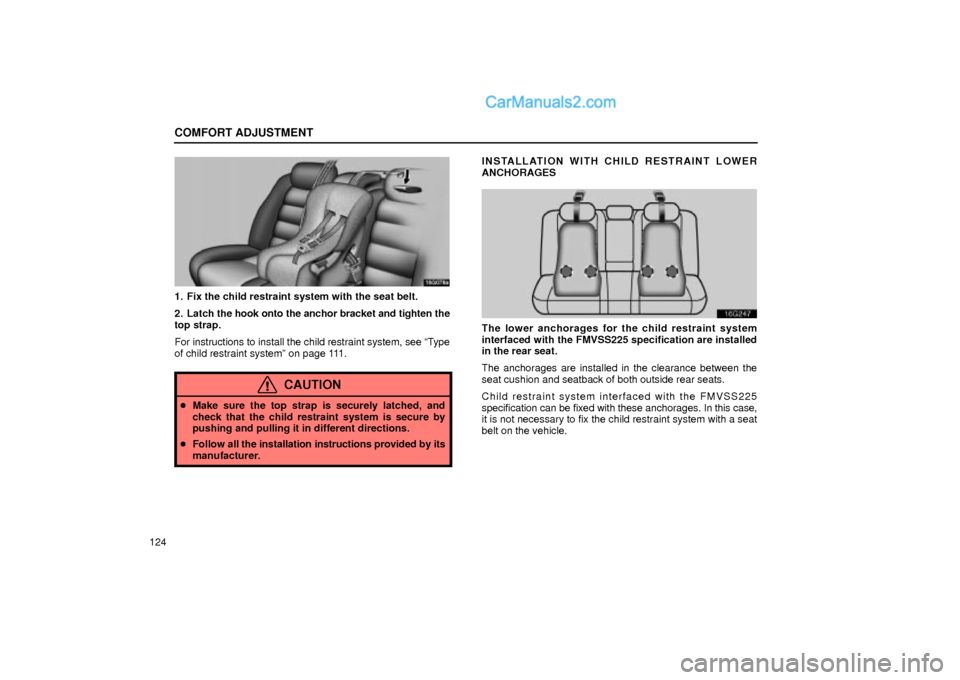

16G078a
1. Fix the child restraint system with the seat belt.
2. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see ªType
of child restraint systemº on page 111.
CAUTION
Make sure the top strap is securely latched, and
check that the child restraint system is secure by
pushing and pulling it in different directions.
Follow all the installation instructions provided by its
manufacturer.
INSTALLATION WITH CHILD RESTRAINT LOWER
ANCHORAGES
16g247
The lower anchorages for the child restraint system
interfaced with the FMVSS225 specification are installed
in the rear seat.
The anchorages are installed in the clearance between the
seat cushion and seatback of both outside rear seats.
Child restraint system interfaced with the FMVSS225
specification can be fixed with these anchorages. In this case,
it is not necessary to fix the child restraint system with a seat
belt on the vehicle.
Page 53 of 56
COMFORT ADJUSTMENT
125

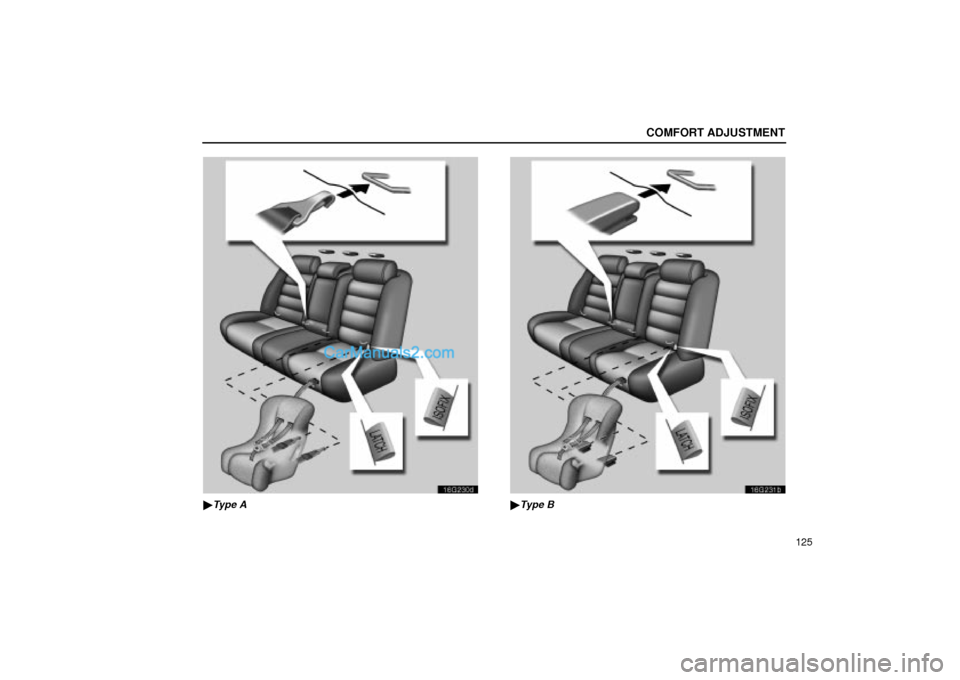

16g230d
Type A
16g231b
Type B
Page 54 of 56
COMFORT ADJUSTMENT

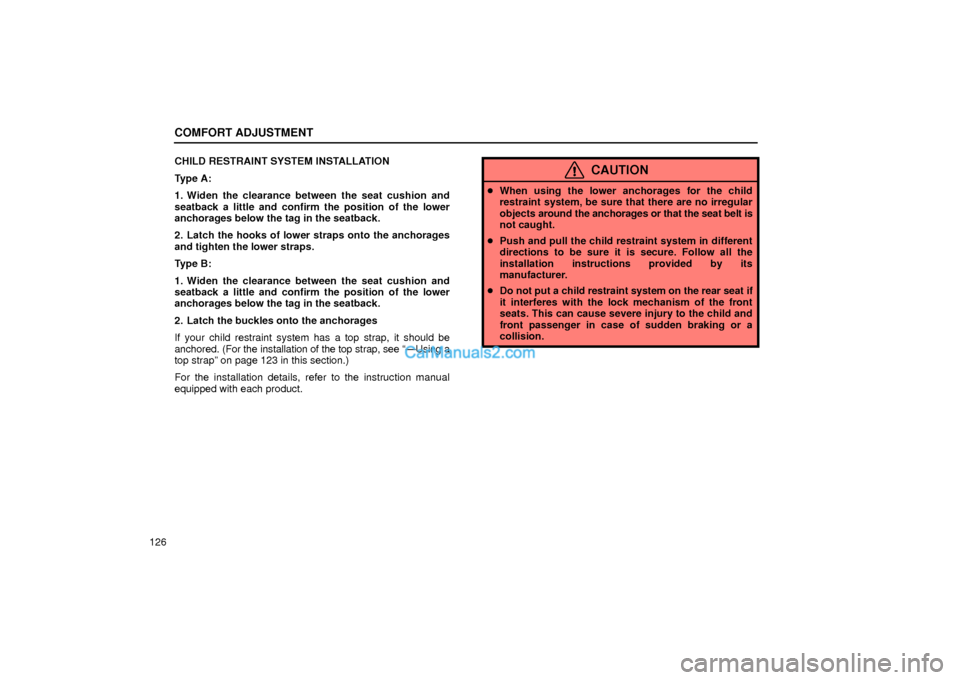

126CHILD RESTRAINT SYSTEM INSTALLATION
Type A:
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B:
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the buckles onto the anchorages
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see ªÐUsing a
top strapº on page 123 in this section.)
For the installation details, refer to the instruction manual
equipped with each product.
CAUTION
When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
Do not put a child restraint system on the rear seat if
it interferes with the lock mechanism of the front
seats. This can cause severe injury to the child and
front passenger in case of sudden braking or a
collision.
Page 55 of 56
COMFORT ADJUSTMENT
127

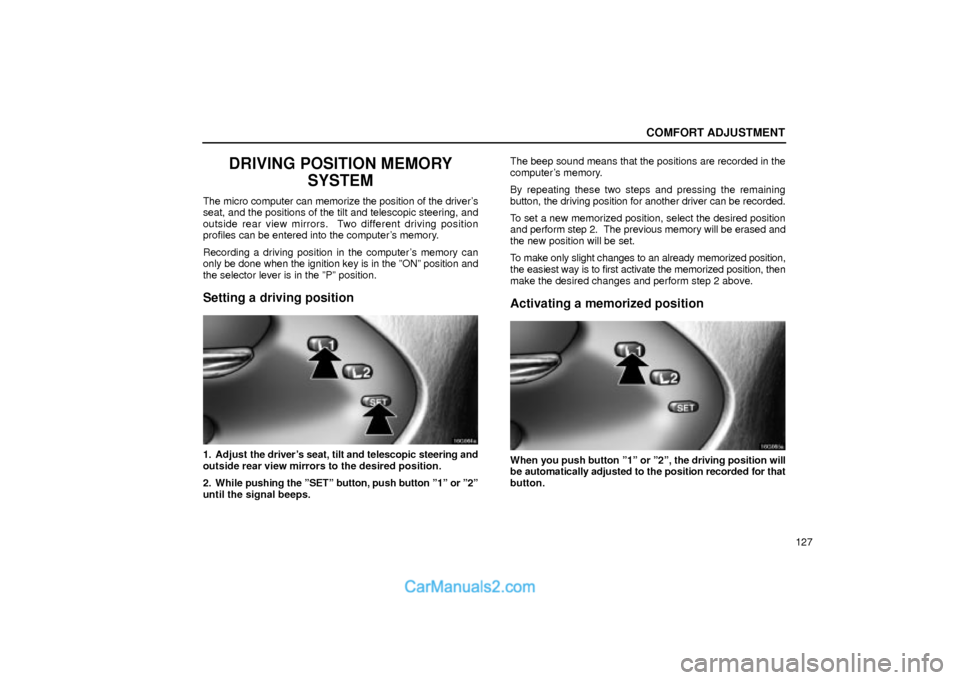

DRIVING POSITION MEMORY
SYSTEM
The micro computer can memorize the position of the driver's
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two different driving position
profiles can be entered into the computer's memory.
Recording a driving position in the computer's memory can
only be done when the ignition key is in the ºONº position and
the selector lever is in the ºPº position.
Setting a driving position
16G064a
1. Adjust the driver's seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the ºSETº button, push button º1º or º2º
until the signal beeps.The beep sound means that the positions are recorded in the
computer's memory.
By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Activating a memorized position
16G065a
When you push button º1º or º2º, the driving position will
be automatically adjusted to the position recorded for that
button.
Page 56 of 56
COMFORT ADJUSTMENT
128Conditions for memorized position activation
Ignition key ºONº and selector lever in ºPº position.
All parts of the memorized positions can be activated.
However, if the brake pedal is being depressed, the seat
position will not change.
Key not in ignition switch and within 30 seconds of opening
driver's door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (º1º or º2º)
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will have
to be set again.
CAUTION
Do not start the vehicle while the adjustments are
being made.
Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch, or depressing the brake
pedal.
