SECTION 1 ± 6
73
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seats74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt and telescopic steering wheel79 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbags94 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving position memory system127 . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMFORT ADJUSTMENT
74
FRONT SEATS
Front seat precautions
CAUTION
The side airbags are installed in the driver and front
passenger seats, observe the following precautions.
Do not lean over the front door when the vehicle is in
use. The side airbag inflates with considerable speed
and force; you may be killed or severely injured.
Do not use accessories for the seats which cover the
parts where the side airbags inflate. Such
accessories may prevent the side airbags from
activating correctly, causing death or serious injury.
Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
disable the system, or cause the side airbags to
inflate accidentally, resulting in death or serious
injury. Consult your Lexus dealer if you insist on
modifications of this kind.
Seat adjustment precautions
Adjust the driver's seat so that the foot pedals, steering wheel
and instrument panel controls are within easy reach of the
driver.
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful not to hit the seat against a passenger,
luggage or the rear seat.
NOTICE
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.

COMFORT ADJUSTMENT
79
TILT AND TELESCOPIC STEERING
WHEEL
Adjustment of steering wheel tilt
16G010b
To adjust the tilt of the steering wheel, push the control
switch upward or downward to set it to the desired
position.
CAUTION
Do not adjust the steering wheel while the vehicle is
moving. It may cause the driver to mishandle the
vehicle and an accident may occur resulting in death or
serious injuries.
Adjustment of telescopic steering column
16G011b
To adjust the steering column length, push the control
switch forward or backward to set the steering wheel to
the desired position.
CAUTION
Do not adjust the steering column while the vehicle is
moving. It may cause the driver to mishandle the
vehicle and an accident may occur resulting in death or
serious injuries.

COMFORT ADJUSTMENT
94
16G136

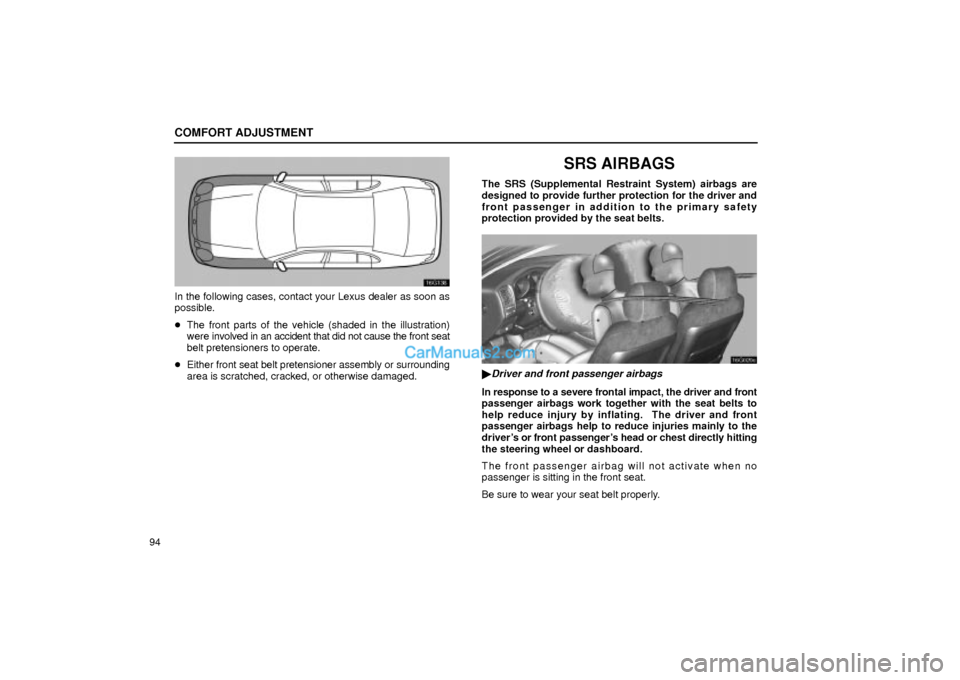

In the following cases, contact your Lexus dealer as soon as
possible.
The front parts of the vehicle (shaded in the illustration)
were involved in an accident that did not cause the front seat
belt pretensioners to operate.
Either front seat belt pretensioner assembly or surrounding
area is scratched, cracked, or otherwise damaged.
SRS AIRBAGS
The SRS (Supplemental Restraint System) airbags are
designed to provide further protection for the driver and
front passenger in addition to the primary safety
protection provided by the seat belts.
16G020c

Driver and front passenger airbags
In response to a severe frontal impact, the driver and front
passenger airbags work together with the seat belts to
help reduce injury by inflating. The driver and front
passenger airbags help to reduce injuries mainly to the
driver's or front passenger's head or chest directly hitting
the steering wheel or dashboard.
The front passenger airbag will not activate when no
passenger is sitting in the front seat.
Be sure to wear your seat belt properly.

COMFORT ADJUSTMENT

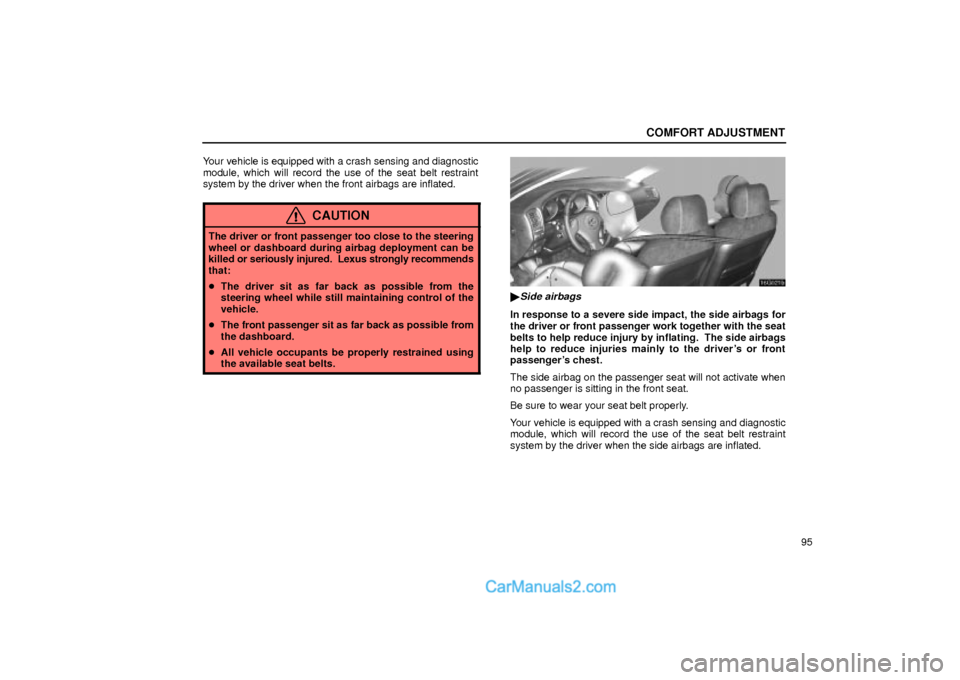

95 Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver when the front airbags are inflated.
CAUTION
The driver or front passenger too close to the steering
wheel or dashboard during airbag deployment can be
killed or seriously injured. Lexus strongly recommends
that:
The driver sit as far back as possible from the
steering wheel while still maintaining control of the
vehicle.
The front passenger sit as far back as possible from
the dashboard.
All vehicle occupants be properly restrained using
the available seat belts.
16G021b

Side airbags
In response to a severe side impact, the side airbags for
the driver or front passenger work together with the seat
belts to help reduce injury by inflating. The side airbags
help to reduce injuries mainly to the driver's or front
passenger's chest.
The side airbag on the passenger seat will not activate when
no passenger is sitting in the front seat.
Be sure to wear your seat belt properly.
Your vehicle is equipped with a crash sensing and diagnostic
module, which will record the use of the seat belt restraint
system by the driver when the side airbags are inflated.

COMFORT ADJUSTMENT
100
16G144b

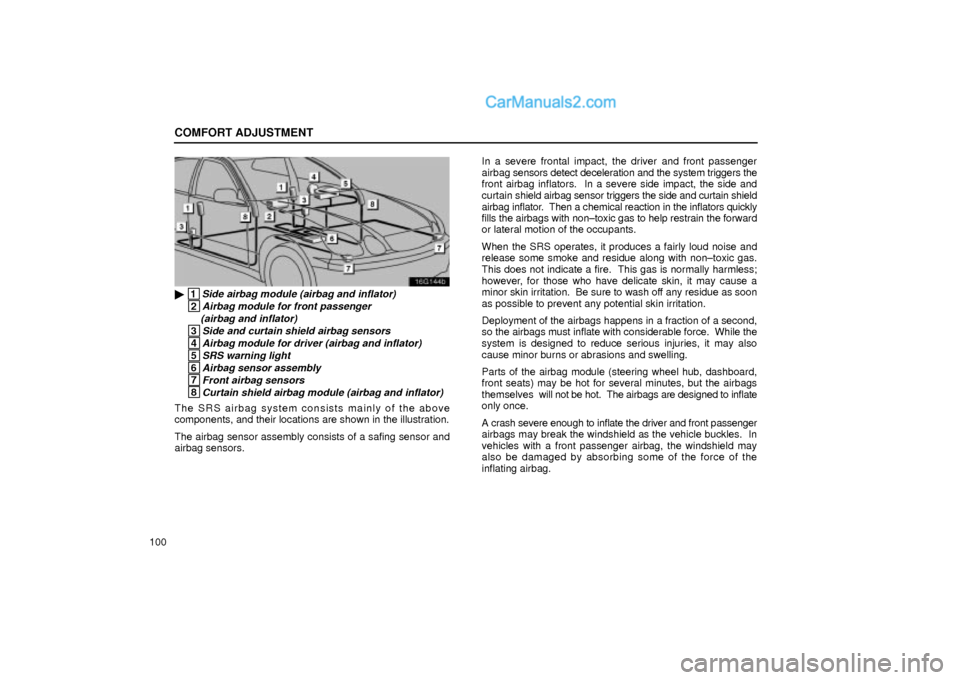

1Side airbag module (airbag and inflator)
2Airbag module for front passenger
(airbag and inflator)
3Side and curtain shield airbag sensors
4Airbag module for driver (airbag and inflator)
5SRS warning light
6Airbag sensor assembly
7Front airbag sensors
8Curtain shield airbag module (airbag and inflator)
The SRS airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensors.In a severe frontal impact, the driver and front passenger
airbag sensors detect deceleration and the system triggers the
front airbag inflators. In a severe side impact, the side and
curtain shield airbag sensor triggers the side and curtain shield
airbag inflator. Then a chemical reaction in the inflators quickly
fills the airbags with non±toxic gas to help restrain the forward
or lateral motion of the occupants.
When the SRS operates, it produces a fairly loud noise and
release some smoke and residue along with non±toxic gas.
This does not indicate a fire. This gas is normally harmless;
however, for those who have delicate skin, it may cause a
minor skin irritation. Be sure to wash off any residue as soon
as possible to prevent any potential skin irritation.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns or abrasions and swelling.
Parts of the airbag module (steering wheel hub, dashboard,
front seats) may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
A crash severe enough to inflate the driver and front passenger
airbags may break the windshield as the vehicle buckles. In
vehicles with a front passenger airbag, the windshield may
also be damaged by absorbing some of the force of the
inflating airbag.

COMFORT ADJUSTMENT
104
16G031a

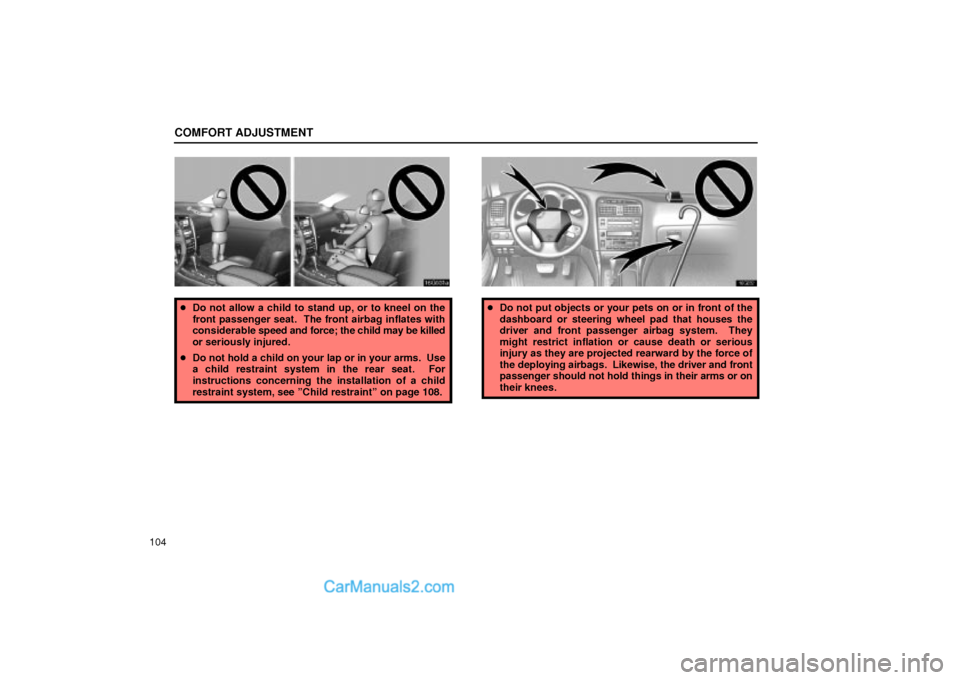

Do not allow a child to stand up, or to kneel on the
front passenger seat. The front airbag inflates with
considerable speed and force; the child may be killed
or seriously injured.
Do not hold a child on your lap or in your arms. Use
a child restraint system in the rear seat. For
instructions concerning the installation of a child
restraint system, see ºChild restraintº on page 108.
16G032
Do not put objects or your pets on or in front of the
dashboard or steering wheel pad that houses the
driver and front passenger airbag system. They
might restrict inflation or cause death or serious
injury as they are projected rearward by the force of
the deploying airbags. Likewise, the driver and front
passenger should not hold things in their arms or on
their knees.

COMFORT ADJUSTMENT
106

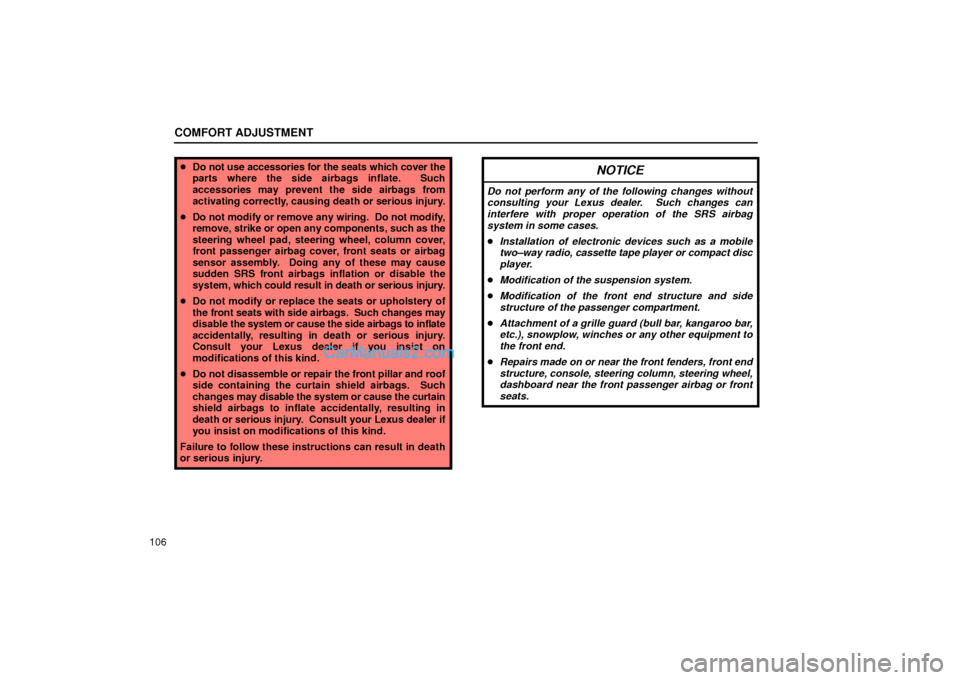

Do not use accessories for the seats which cover the
parts where the side airbags inflate. Such
accessories may prevent the side airbags from
activating correctly, causing death or serious injury.
Do not modify or remove any wiring. Do not modify,
remove, strike or open any components, such as the
steering wheel pad, steering wheel, column cover,
front passenger airbag cover, front seats or airbag
sensor assembly. Doing any of these may cause
sudden SRS front airbags inflation or disable the
system, which could result in death or serious injury.
Do not modify or replace the seats or upholstery of
the front seats with side airbags. Such changes may
disable the system or cause the side airbags to inflate
accidentally, resulting in death or serious injury.
Consult your Lexus dealer if you insist on
modifications of this kind.
Do not disassemble or repair the front pillar and roof
side containing the curtain shield airbags. Such
changes may disable the system or cause the curtain
shield airbags to inflate accidentally, resulting in
death or serious injury. Consult your Lexus dealer if
you insist on modifications of this kind.
Failure to follow these instructions can result in death
or serious injury.NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS airbag
system in some cases.
Installation of electronic devices such as a mobile
two±way radio, cassette tape player or compact disc
player.
Modification of the suspension system.
Modification of the front end structure and side
structure of the passenger compartment.
Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.
Repairs made on or near the front fenders, front end
structure, console, steering column, steering wheel,
dashboard near the front passenger airbag or front
seats.

COMFORT ADJUSTMENT

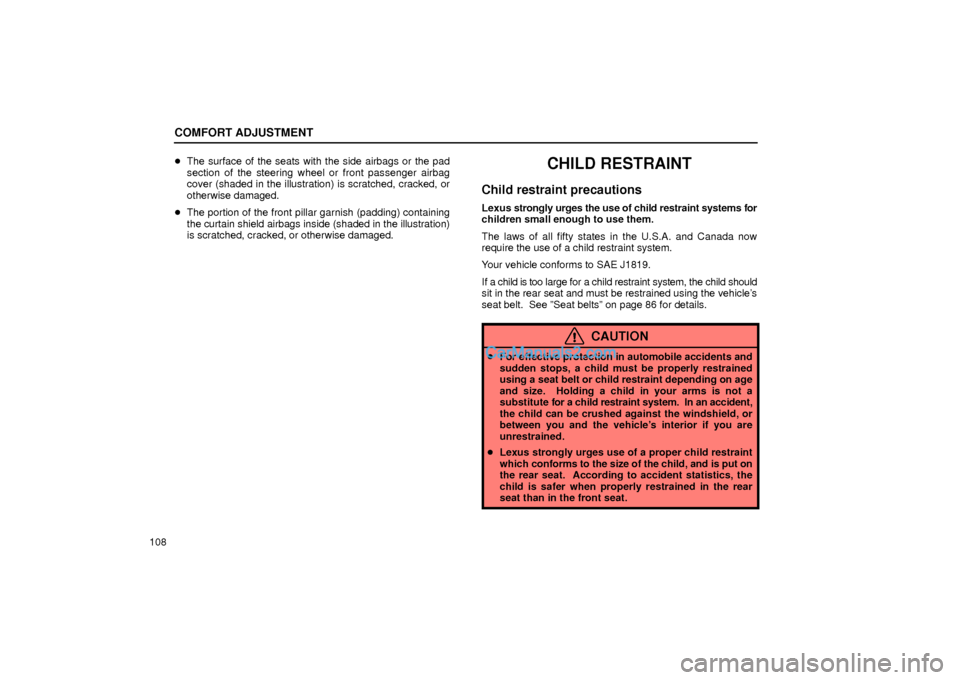

108The surface of the seats with the side airbags or the pad
section of the steering wheel or front passenger airbag
cover (shaded in the illustration) is scratched, cracked, or
otherwise damaged.
The portion of the front pillar garnish (padding) containing
the curtain shield airbags inside (shaded in the illustration)
is scratched, cracked, or otherwise damaged.
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of child restraint systems for
children small enough to use them.
The laws of all fifty states in the U.S.A. and Canada now
require the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle's
seat belt. See ºSeat beltsº on page 86 for details.
CAUTION
For effective protection in automobile accidents and
sudden stops, a child must be properly restrained
using a seat belt or child restraint depending on age
and size. Holding a child in your arms is not a
substitute for a child restraint system. In an accident,
the child can be crushed against the windshield, or
between you and the vehicle's interior if you are
unrestrained.
Lexus strongly urges use of a proper child restraint
which conforms to the size of the child, and is put on
the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear
seat than in the front seat.

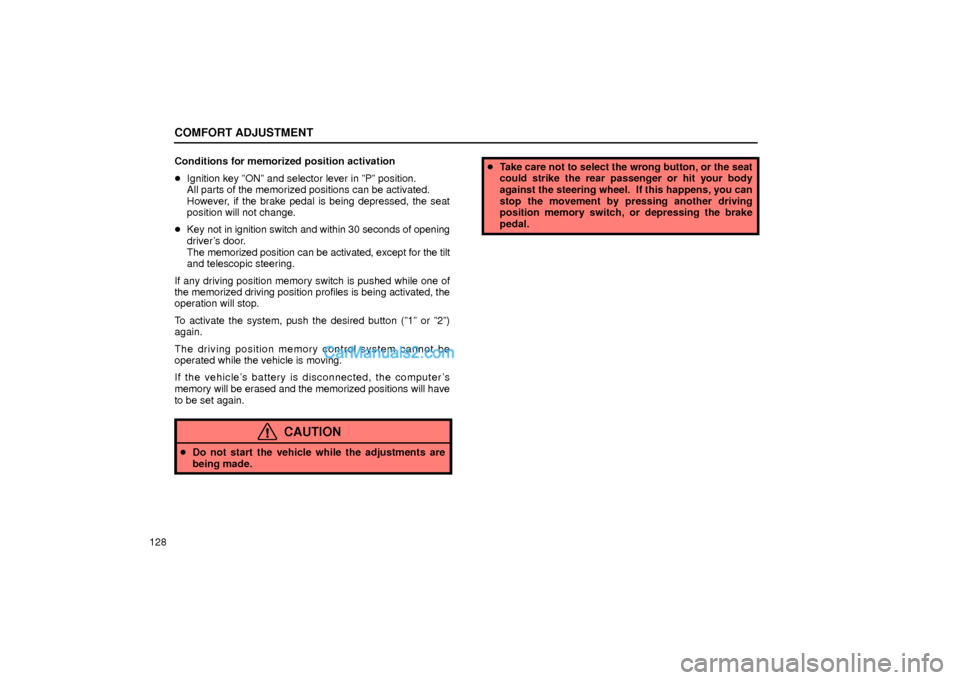

COMFORT ADJUSTMENT
128Conditions for memorized position activation
Ignition key ºONº and selector lever in ºPº position.
All parts of the memorized positions can be activated.
However, if the brake pedal is being depressed, the seat
position will not change.
Key not in ignition switch and within 30 seconds of opening
driver's door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (º1º or º2º)
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will have
to be set again.
CAUTION
Do not start the vehicle while the adjustments are
being made.
Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch, or depressing the brake
pedal.
