SECTION 6 ± 2
243
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications (GS430) 244. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications (GS300) 246. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel248 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption251 . . . . . . . . . . . . . . . . . . . . . . . .
Used engine oil252 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine oil level253 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level255 . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark plugs257 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE
245 ± COOLING SYSTEM
Capacity
Coolant type
9.0 L (9.5 qt., 7.9 lmp.qt.)
ºToyota Long Life Coolantº or equivalent
With ethylene±glycol type coolant for a proper corrosion
protection of aluminum components
Do not use alcohol type antifreeze or plain water alone.
± FUEL
Fuel type
Octane rating
Only UNLEADED
91 (Research octane number 96) or higher
± IGNITION SYSTEM
Spark plug ± Make DENSO
NGK
± Gap
SK20R11
IFR6A11
1.1 mm (0.043 in.)
± ELECTRICAL SYSTEM
Battery Open voltage at 20C (68F):
Charging rates
12.7V Fully charged
12.3V Half charged
11.9V Discharged
[Voltage that is checked 20 minutes after the key is removed
with all the lights turned off]
5A max.

ENGINE
247 ± COOLING SYSTEM
Capacity
Coolant type
7.7 L (8.1 qt., 6.8 lmp.qt.)
ºToyota Long Life Coolantº or equivalent
With ethylene±glycol type coolant for a proper corrosion
protection of aluminum components
Do not use alcohol type antifreeze or plain water alone.
± FUEL
Fuel type
Octane rating
Only UNLEADED
91 (Research octane number 96) or higher
± IGNITION SYSTEM
Spark plug ± Make DENSO
± Gap
SK16R±P11
1.1 mm (0.043 in.)
± ELECTRICAL SYSTEM
Battery ± Open voltage at 20C (68F):
Charging rates
12.7V Fully charged
12.3V Half charged
11.9V Discharged
[Voltage that is checked 20 minutes after the key is removed
with all the lights turned off]
5A max.

ENGINE
252
Importance of engine oil level check
One of the most important points in proper vehicle
maintenance is to keep the engine oil at the optimum level so
that oil function will not be impaired. Therefore, it is essential
that the oil level be checked regularly. Lexus recommends that
the oil level be checked every time you refuel the vehicle.
NOTICE
Failure to check the oil level regularly could lead to
serious engine trouble due to insufficient oil.
For detailed information on oil level check, see ºChecking the
engine oil levelº on page 253.
USED ENGINE OIL
CAUTION
Used engine oil contains potentially harmful
contaminants which may cause skin disorders such
as inflammation or skin cancer, so care should be
taken to avoid prolonged and repeated contact with
it. To remove used engine oil from your skin, wash
thoroughly with soap and water.
Do not leave used oil within the reach of children.
Dispose of used oil and used oil filters only in a safe
and acceptable manner. Do not dispose of used oil
and used oil filters in household trash, in sewers or
onto the ground. Call your Lexus dealer or a service
station for information concerning recycling or
disposal.

ENGINE
253
CHECKING THE ENGINE OIL LEVEL
62G005c

GS430
GS300
With the engine at operating temperature and turned off,
check the oil level on the dipstick.
1. To get a true reading, the vehicle should be on a level spot.
After turning off the engine, wait a few minutes for the oil to
drain back into the bottom of the engine.
2. Pull out the dipstick, and wipe it clean with a rag.
3. Reinsert the dipstick and push it in as far as it will go, or the
reading will not be correct.
62G006±1
1Add oil 2O.K. 3Too full
4. Pull the dipstick out and look at the oil level on the end. If
it is between the low level mark ( 4
) and the full level mark
( 5
), it is O.K.

ENGINE
254
62G007d

GS430
GS300
If the oil level is below or only slightly above the low level
mark, add engine oil of the same type as already in the
engine.
Remove the oil filler cap and add engine oil a little at a time,
checking the dipstick. The approximate quantity of oil needed
to fill between the low level mark and the full level mark on the
dipstick is indicated below for reference.
When the level reaches within the correct range, return the
filler cap and turn the cap clockwise until you hear a click.
Oil quantity. L (qt., lmp. qt.) 1.8 (1.9, 1.6)
NOTICE
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick once again after
adding the oil.
Engine oil selection
Use API SJ, ºEnergy±Conservingº multigrade engine oil or
ILSAC multigrade engine oil.
Recommended viscosity (SAE):
62L005±1
Temperature range anticipated before next oil change
SAE 5W±30 is the best choice for your vehicle, for good
fuel economy, and good starting in cold weather.
If you use SAE 10W±30 engine oil in extremely low
temperatures, the engine may become difficult to start, so
SAE 5W±30 engine oil is recommended.

ENGINE
255

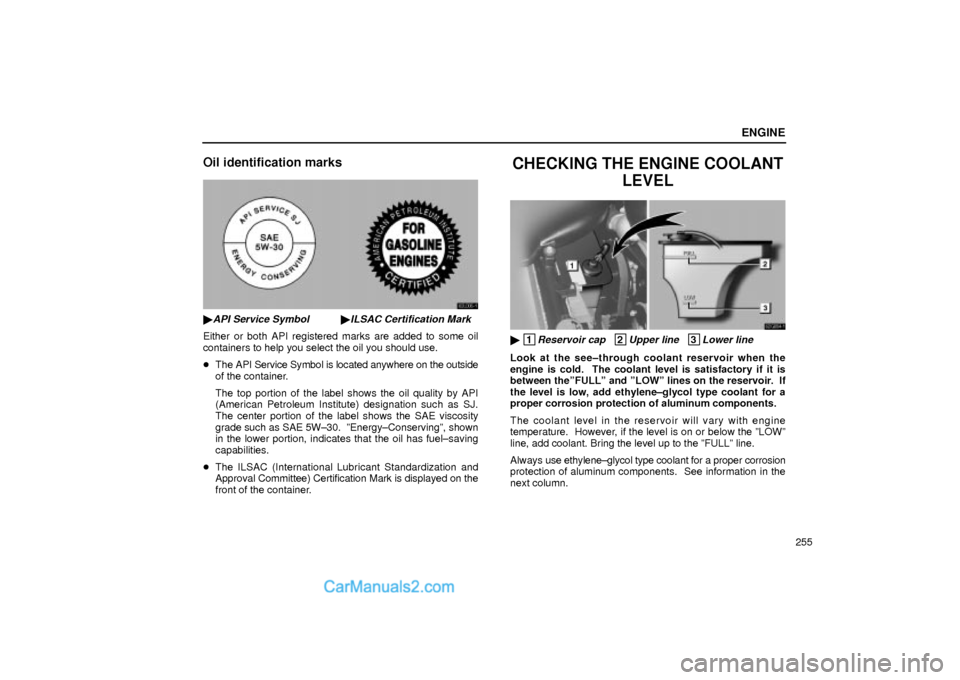

Oil identification marks
62L006±1

API Service Symbol
ILSAC Certification Mark
Either or both API registered marks are added to some oil
containers to help you select the oil you should use.
The API Service Symbol is located anywhere on the outside
of the container.
The top portion of the label shows the oil quality by API
(American Petroleum Institute) designation such as SJ.
The center portion of the label shows the SAE viscosity
grade such as SAE 5W±30. ºEnergy±Conservingº, shown
in the lower portion, indicates that the oil has fuel±saving
capabilities.
The ILSAC (International Lubricant Standardization and
Approval Committee) Certification Mark is displayed on the
front of the container.
CHECKING THE ENGINE COOLANT
LEVEL
62G004±1

1Reservoir cap 2Upper line 3Lower line
Look at the see±through coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between theºFULLº and ºLOWº lines on the reservoir. If
the level is low, add ethylene±glycol type coolant for a
proper corrosion protection of aluminum components.
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the ºLOWº
line, add coolant. Bring the level up to the ºFULLº line.
Always use ethylene±glycol type coolant for a proper corrosion
protection of aluminum components. See information in the
next column.

ENGINE
256If the coolant level drops within a short time after replenishing,
there may be a leak in the system. Visually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the cap
pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.
Coolant type selection
Use of improper coolants may damage your engine cooling
system. Your coolant must contain ethylene±glycol type
coolant for a proper corrosion protection of your engine that
contains aluminum components. Use ºToyota Long Life
Coolantº or equivalent.
In addition to preventing freezing and subsequent damage to
the engine, this type of coolant will also prevent corrosion.
Further supplemental inhibitors or additives are neither
needed nor recommended.
Read the coolant container for information on freeze
protection. Follow the manufacturer's directions for how much
to mix with plain water (preferably demineralized water or
distilled water). The total capacity of the cooling system is
given on page 245 or 247.
We recommend to use 50% solution for your Lexus, to provide
protection down to about ±35C (±31F). When it is extremely
cold, to provide protection down to about ±50C (±58F), 60%
solution is recommended. Do not use more than 70% solution
for better coolant performance.
NOTICE
Do not use alcohol type antifreeze or plain water alone.
