display Lexus GS300 2003 Basic Functions

Setting and Deleting Destination
26Touch the
ªDetourº switch of ªRe-
stricted roadº to search for a route other
than restricted road.
Touching the
ªAllowº switch on each item
allows you to use it.
The switches you select are highlighted in
green. After choosing conditions, touch the
ªOKº switch.
1UE038
The system starts searching for a route to
your destination.
1UE039
If you want to see the other routes and make
a comparison, touch the
ª3 routesº
switch. Three types of the routes are dis-
played on the screen.Quick: A route on which you can reach the
destination in the shortest time
This route is shown as an orange line.
Short: A route on which you can reach the
destination in the shortest distance
This route is shown as a purple line.
Alternative: Other route
This route is shown as a green line.
Touch the switch to select the route.
If you want to add a destination, see the fol-
lowing ª(b) Adding destinationº.
After selecting one, you can start the route
guidance by touching the
ªStartº switch or
starting to move your vehicle.
If you want to change the search condition,
touch the
ªEdit. routeº switch. The
screen changes and displays the Edit route
screen. (For details, see page 33.)
When you keep touching the
ªStartº
switch until you hear a beep, Demo mode will
start.

Setting and Deleting Destination
27
(b) Adding destinations
1. Push the ªMENUº button to display
the Menu screen.
1UE040
2. Touch the ªEdit routeº switch.
1UE041
3. Touch the ªAddº switch of Destina-
tion.4. Input an additional destination in the
same way as the destination input. (See
page 25.)
1UE042
5. The Add destination screen appears.
Touch the ªAddº switch that you want to
add a destination.
(c) Reordering destinations
1. Push the ªMENUº button to display
the Menu screen and touch the ªEdit
routeº switch.
1UE041
2. Touch the ªReorderº switch of Des-
tination.

Route Guidance Screen
31 The route guidance system displays two
different screen modes.
1UE050a
Single map: Map is shown in a screen.
1UE051a
Dual map: Two different maps are shown in
a screen.
1UE052a
Split screen: Map and guidance screen are
shown in a screen mode. (For detail about
Guidance screen, see page 48.)
The two route guidance screens have a
number of indicators and switches with
which you should be familiar.
Map/guidance:
To change the screen mode.
Upon reception of signals from
the GPS (Global Positioning
System), this mark appears.
(For details, see page 53.)
These switches magnify or re-
duce the map scale. (For de-
tails, see page 50.)
Touch this switch, and icons
of points of interest are shown
on the screen. (For details,
see page 46.)
Touch this switch for one±touch
registration of the marked point.
(For details, see page 75.)

Route Guidance Screen
32
INFORMATION
The distance to your destination ap-
pears on the left of the screen.
The time to your destination can also
be displayed. (For the setting steps,
see page 86.)
The Change route screen
appears and the following
settings are available.
1UE053
Search condition: To change the condition
for Reroute.
Detour: To change the condition for Detour.
(For details, see page 45.)
Del. next dest.: To delete and skip the next
destination.
INFORMATION
If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After you travel by ferry, the cur-
rent vehicle position may be incorrect.
Upon reception of GPS signals, it is au-
tomatically corrected.

Route Guidance Screen
33
Search condition
Push the ªMENUº button to display the
Menu screen and touch the
ªEdit
routeº
switch.
1UE041
Touch the ªSearch conditionº
switch. The search condition screen ap-
pears.
1UE041
Touch the ªQuickº or ªShortº switch
and then the
ªOKº switch.
1UE055
Route overview
1UE040
Touch the ªRoute overviewº switch
on the Menu screen.
1UE056
The entire route from the starting point to the
destination is displayed.

Route Guidance Screen
34
Turn list
You can change from the Map screen to a
Turn list screen that displays the list of
the roads up to your destination. This list
can be used for a route guidance.
1UE040
1. Push the ªMENUº button to display
the Menu screen and touch the ªRoute
overviewº switch.
1UE076
2. The screen will change to the Entire
route map screen where you can touch
the
ªTurn listº switch.
1UE077
You can scroll through the list of roads by
touching
or switch. However,
not all road names in the route may appear
on the list. If a road changes its name without
requiring a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The street
name closest to the starting point will be dis-
played with the distance to the next turn.
These marks indicate the di-
rection which you should turn
at an intersection.

Route Guidance Screen Route Preview
35 Touch the
ªMapº switch of your desired
point. The point which you choose is dis-
played on the Map screen.
1UE078
INFORMATION
The current vehicle position mark
appears at the bottom of the screen
next to the name of the street you are
driving on. The mark does not move.
If you leave the guidance route, the
name of the street you are on is not
shown on the list next to the current
vehicle position mark.
If the road type you are on changes
between a highway, a main street or
a residential street (at an inter-
change or fork), it will appear on the
turn list.
If a long route has been selected, it
may take a long time to display the
turn list.
Push the ªMAP/VOICEº button to
return to the map display with a route
guidance.
Touch the ªRoute previewºswitch on
the Menu screen. The route preview
screen appears.
1UE057
To indicate the next destination
or selected POI
To preview the route to the next
destination or selected POI
To preview the route to the next
destination in fast±forward
mode
To stop the preview
To review the route to the cur-
rent position

Route Preview Current Position Display
36To review the route to the cur-
rent position in fast±forward mo-
de
To indicate the current position
1UE058
Touch the ªEditº switch, the Edit route
preview screen appears.
To next POI: Preview the Next POI
To next
: Preview the Next destination
Delete: To delete the POI icon.
Select POI: To select the POI icon.
Touch the
ªOKº switch after the selection.
1UE059
The current vehicle position mark ap-
pears in the center of the map screen. You
can return to this map screen showing
your current position at any time from
any screen by pushing the
ªMAP/
VOICEº
button.
During driving, the current vehicle position
mark is fixed in the center of the screen and
the map moves.
If you move the map with a ªone±touchº
scroll (see page 51 for details), the current
vehicle position mark continues to track your
current location.

Current Position Display Voice Guidance
37
INFORMATION
When you use the ªone±touchº scroll
feature, the current vehicle position
mark may disappear from the screen.
Move the map with a ªone±touchº
scroll again or push the
ªMAP/
VOICEº button to return to the current
vehicle position map location display.
The current position is automatically set
as your vehicle receives signals from the
GPS (Global Positioning System). If your
current position is not correct, it is auto-
matically corrected after your vehicle re-
ceives signals from the GPS.
INFORMATION
After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
If you must correct the current position
manually, follow the steps on page 80.Voice guidance is offered automatically
during route guidance. Use voice guid-
ance just for your reference.
You can adjust the volume of the voice or turn
off voice guidance.
1UE040
Push the ªMENUº button to display the
Menu screen. Then touch the
ªVolumeº
switch on the Menu screen.
1UE060
Touch any number to select the desired
volume. Touching the ªOffº switch turns
the voice route guidance off. If you turn
the
ªAdaptive volume controlº on,
the volume is turned up automatically
when the vehicle speed exceeds 80 km/h
(50 mph).
INFORMATION
During route guidance, the voice route
guidance continues even if the naviga-
tion screen is changed to the other
screens, such as the audio screen.

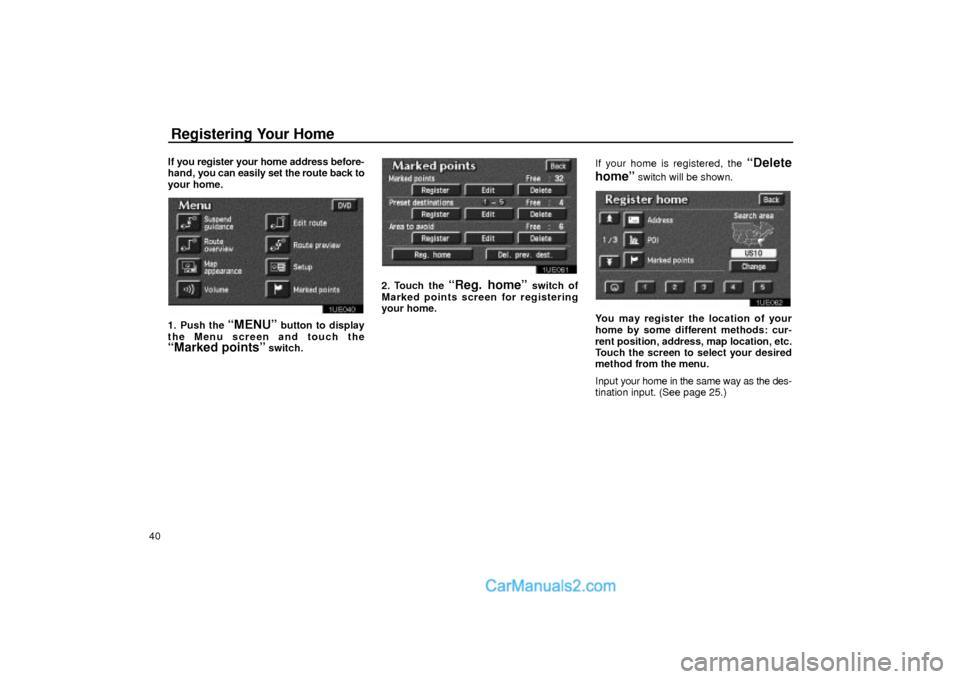

Registering Your Home
40If you register your home address before-
hand, you can easily set the route back to
your home.
1UE040
1. Push the ªMENUº button to display
the Menu screen and touch the
ªMarked pointsº switch.
1UE061
2. Touch the ªReg. homeº switch of
Marked points screen for registering
your home.If your home is registered, the
ªDelete
homeº
switch will be shown.
1UE062
You may register the location of your
home by some different methods: cur-
rent position, address, map location, etc.
Touch the screen to select your desired
method from the menu.
Input your home in the same way as the des-
tination input. (See page 25.)
