SWITCHES
53

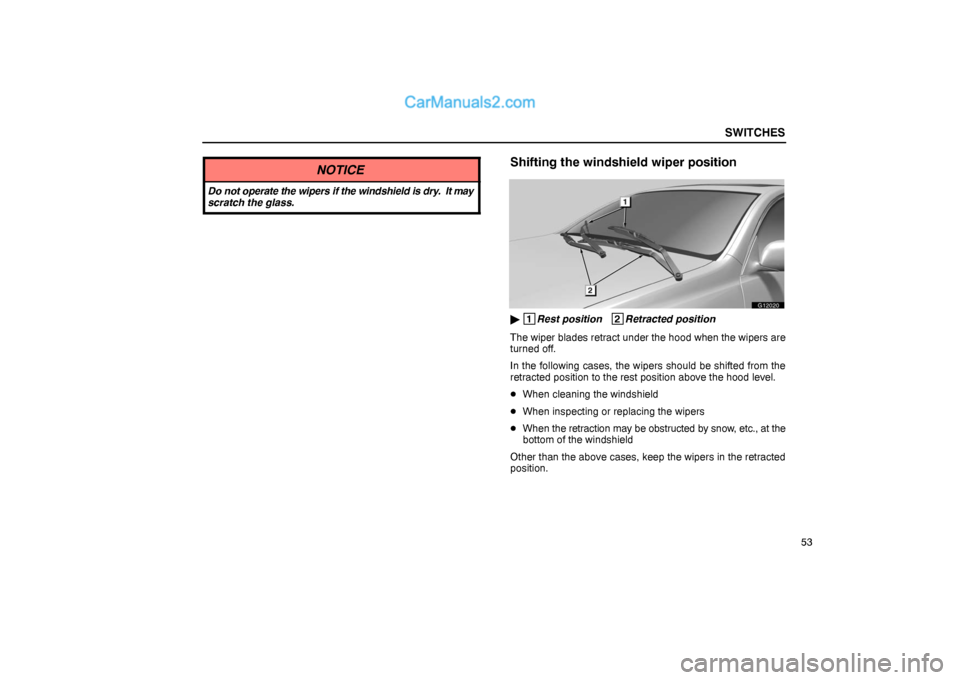

NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
Shifting the windshield wiper position
G12020
1
Rest position 2
Retracted position
The wiper blades retract under the hood when the wipers are
turned off.
In the following cases, the wipers should be shifted from the
retracted position to the rest position above the hood level.
When cleaning the windshield
When inspecting or replacing the wipers
When the retraction may be obstructed by snow, etc., at the
bottom of the windshield
Other than the above cases, keep the wipers in the retracted
position.
Page 12 of 24

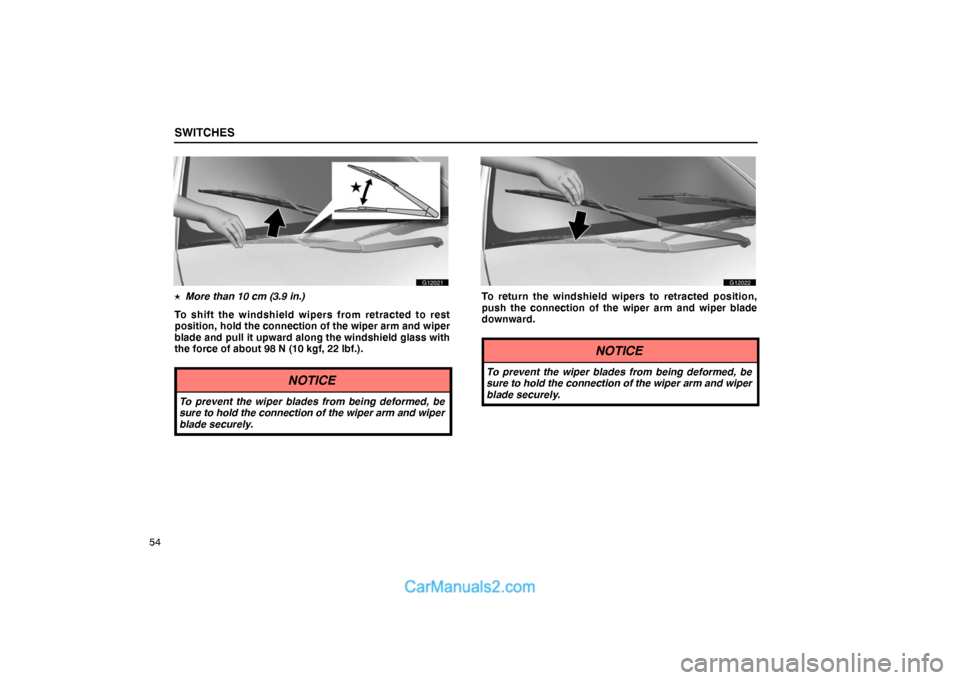

SWITCHES
54
G12021
More than 10 cm (3.9 in.)
To shift the windshield wipers from retracted to rest
position, hold the connection of the wiper arm and wiper
blade and pull it upward along the windshield glass with
the force of about 98 N (10 kgf, 22 lbf.).
NOTICE
To prevent the wiper blades from being deformed, be
sure to hold the connection of the wiper arm and wiper
blade securely.
G12022
To return the windshield wipers to retracted position,
push the connection of the wiper arm and wiper blade
downward.
NOTICE
To prevent the wiper blades from being deformed, be
sure to hold the connection of the wiper arm and wiper
blade securely.
Page 13 of 24
SWITCHES
55
HEADLIGHT CLEANER SWITCH
The headlight cleaner switch is located in the switch box.
G12010
Push the button to use the switch box. To spray fluid on
the headlights, push the switch with the headlights on.
The engine switch must be selected in “IG−ON” mode.
The warning message “LOW WASHER FLUID” is displayed in
the multi−information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
“Adding washer fluid” on page 579.
After operation, be sure to close the switch box to its original
position.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.
NOTICE
Do not turn the headlight cleaner on with the washer
fluid tank empty. It may cause the cleaner motor to
overheat.
Page 14 of 24
SWITCHES
56

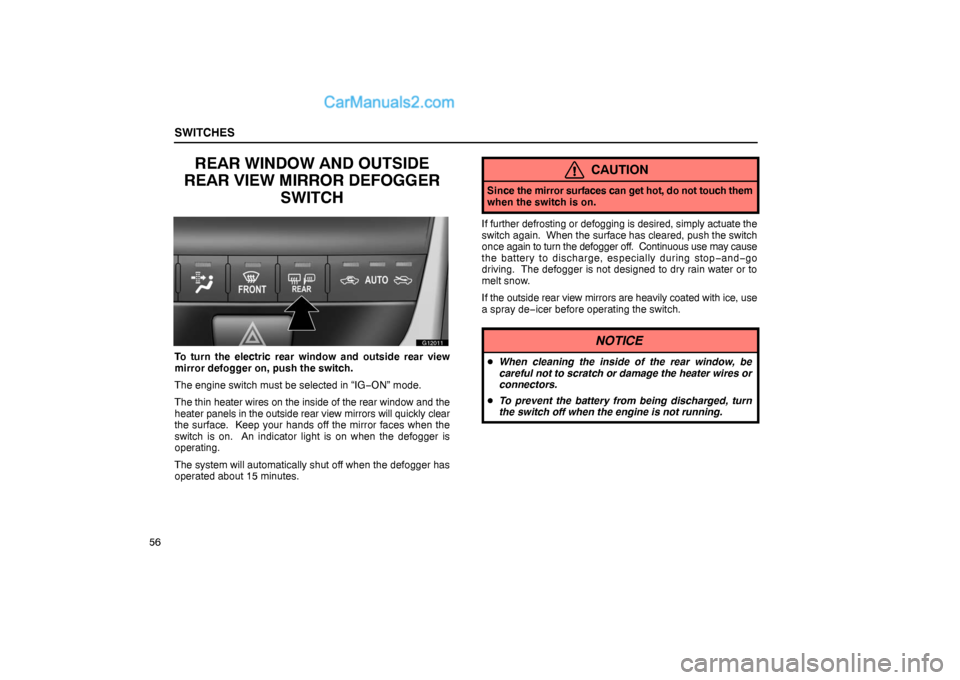

REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER
SWITCH
G12011
To turn the electric rear window and outside rear view
mirror defogger on, push the switch.
The engine switch must be selected in “IG−ON” mode.
The thin heater wires on the inside of the rear window and the
heater panels in the outside rear view mirrors will quickly clear
the surface. Keep your hands off the mirror faces when the
switch is on. An indicator light is on when the defogger is
operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop−and−go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de−icer before operating the switch.
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
To prevent the battery from being discharged, turn
the switch off when the engine is not running.
Page 15 of 24
SWITCHES
57

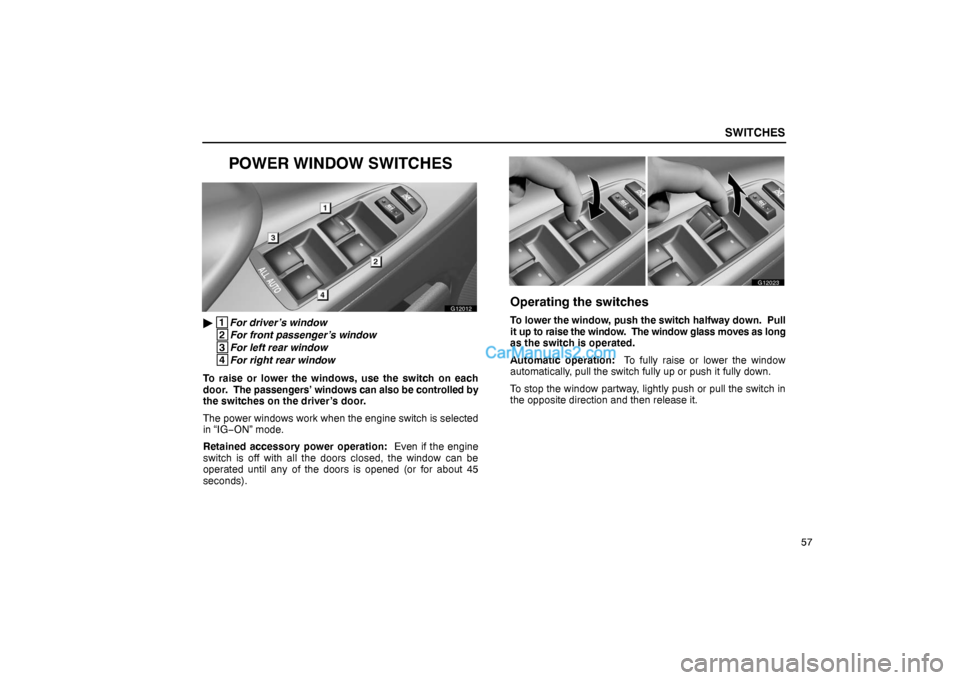

POWER WINDOW SWITCHES
G12012
1
For driver’s window
2
For front passenger’s window
3
For left rear window
4
For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the engine switch is selected
in “IG−ON” mode.
Retained accessory power operation: Even if the engine
switch is off with all the doors closed, the window can be
operated until any of the doors is opened (or for about 45
seconds).
G12023
Operating the switches
To lower the window, push the switch halfway down. Pull
it up to raise the window. The window glass moves as long
as the switch is operated.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in
the opposite direction and then release it.
Page 16 of 24
SWITCHES
58

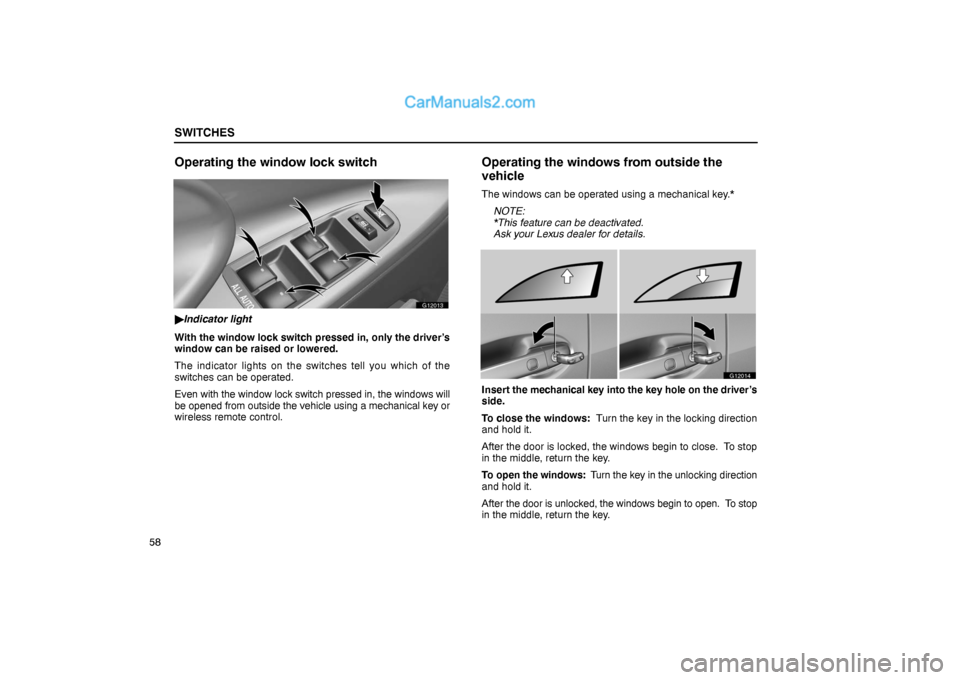

Operating the window lock switch
G12013
Indicator light
With the window lock switch pressed in, only the driver’s
window can be raised or lowered.
The indicator lights on the switches tell you which of the
switches can be operated.
Even with the window lock switch pressed in, the windows will
be opened from outside the vehicle using a mechanical key or
wireless remote control.
Operating the windows from outside the
vehicle
The windows can be operated using a mechanical key.*
NOTE:
*This feature can be deactivated.
Ask your Lexus dealer for details.
G12014
Insert the mechanical key into the key hole on the driver’s
side.
To close the windows: Turn the key in the locking direction
and hold it.
After the door is locked, the windows begin to close. To stop
in the middle, return the key.
To open the windows: Turn the key in the unlocking direction
and hold it.
After the door is unlocked, the windows begin to open. To stop
in the middle, return the key.
Page 17 of 24
SWITCHES

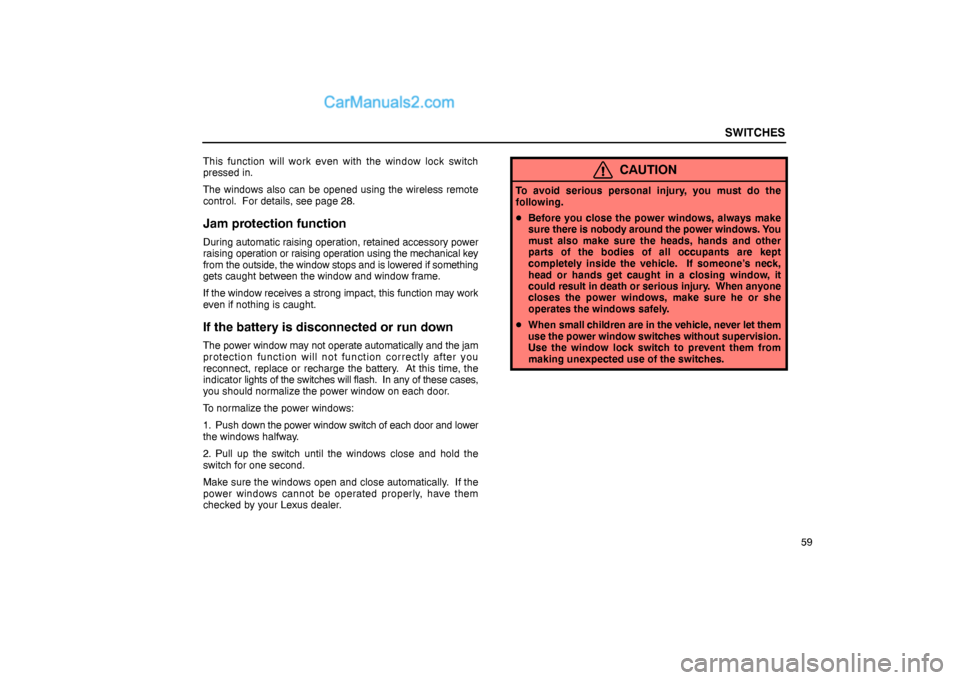

59 This function will work even with the window lock switch
pressed in.
The windows also can be opened using the wireless remote
control. For details, see page 28.
Jam protection function
During automatic raising operation, retained accessory power
raising operation or raising operation using the mechanical key
from the outside, the window stops and is lowered if something
gets caught between the window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
If the battery is disconnected or run down
The power window may not operate automatically and the jam
protection function will not function correctly after you
reconnect, replace or recharge the battery. At this time, the
indicator lights of the switches will flash. In any of these cases,
you should normalize the power window on each door.
To normalize the power windows:
1. Push down the power window switch of each door and lower
the windows halfway.
2. Pull up the switch until the windows close and hold the
switch for one second.
Make sure the windows open and close automatically. If the
power windows cannot be operated properly, have them
checked by your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.
Before you close the power windows, always make
sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in death or serious injury. When anyone
closes the power windows, make sure he or she
operates the windows safely.
When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
Page 18 of 24
SWITCHES
60

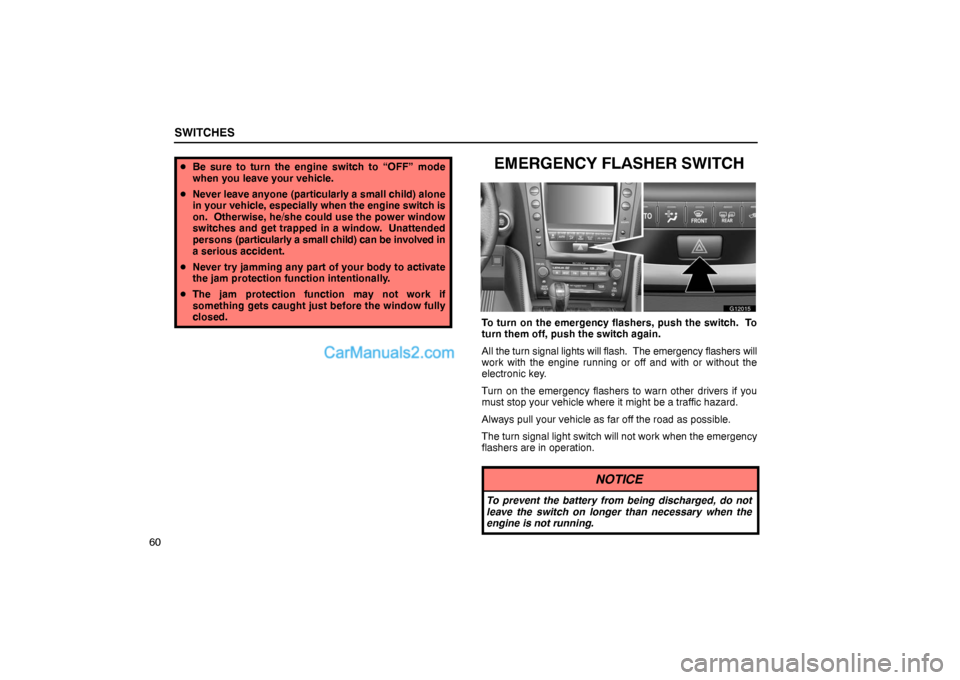

Be sure to turn the engine switch to “OFF” mode
when you leave your vehicle.
Never leave anyone (particularly a small child) alone
in your vehicle, especially when the engine switch is
on. Otherwise, he/she could use the power window
switches and get trapped in a window. Unattended
persons (particularly a small child) can be involved in
a serious accident.
Never try jamming any part of your body to activate
the jam protection function intentionally.
The jam protection function may not work if
something gets caught just before the window fully
closed.EMERGENCY FLASHER SWITCH
G12015
To turn on the emergency flashers, push the switch. To
turn them off, push the switch again.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
electronic key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.
Page 19 of 24
SWITCHES
61

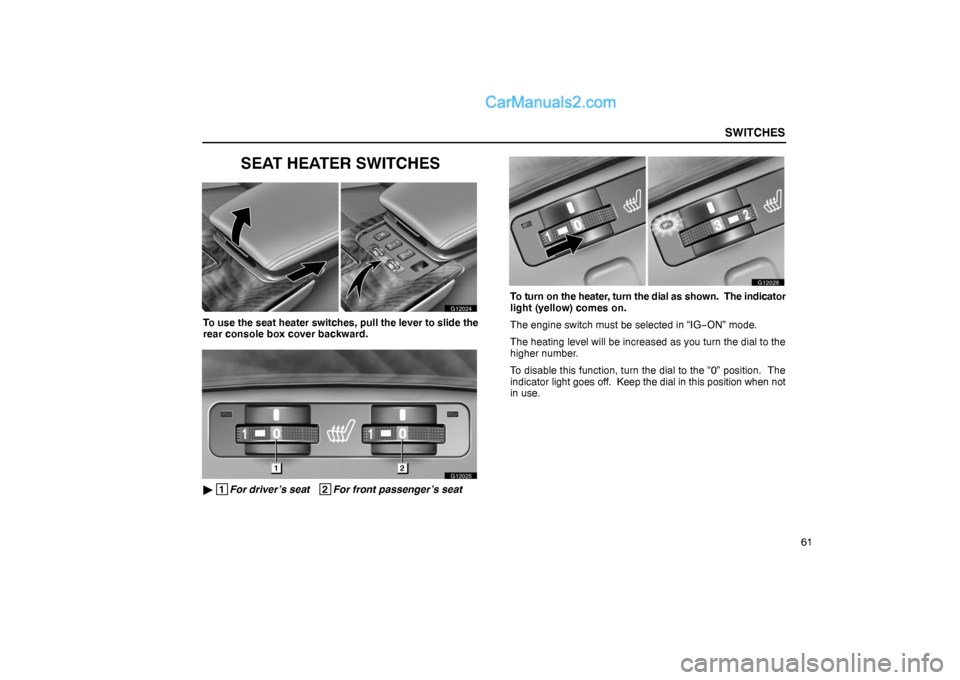

SEAT HEATER SWITCHES
G12024
To use the seat heater switches, pull the lever to slide the
rear console box cover backward.
G12025
1
For driver’s seat 2
For front passenger’s seat
G12026
To turn on the heater, turn the dial as shown. The indicator
light (yellow) comes on.
The engine switch must be selected in “IG−ON” mode.
The heating level will be increased as you turn the dial to the
higher number.
To disable this function, turn the dial to the “0” position. The
indicator light goes off. Keep the dial in this position when not
in use.
Page 20 of 24
SWITCHES
62

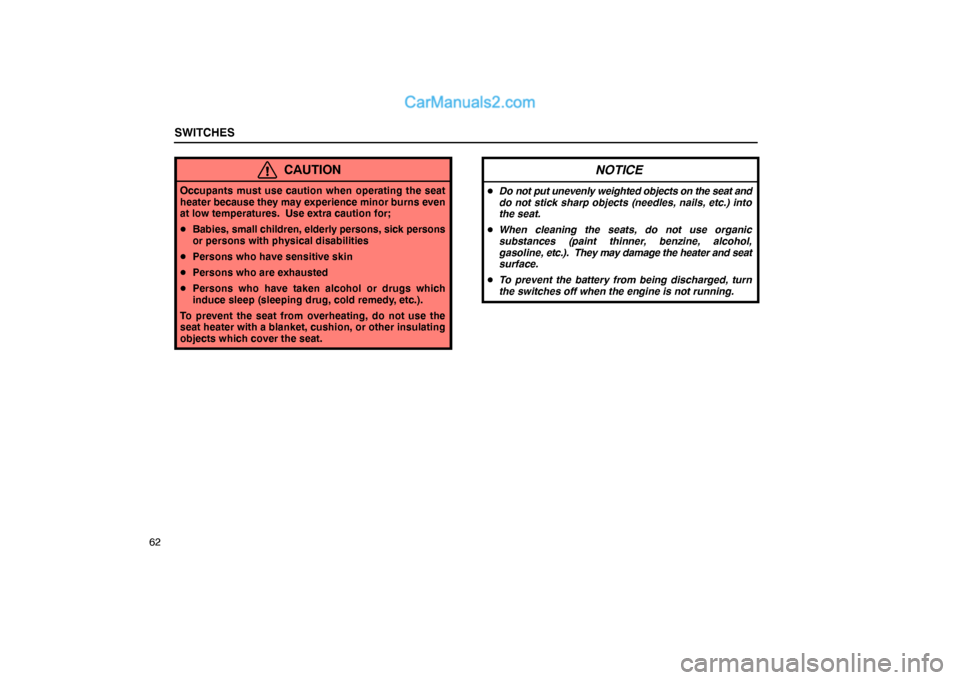

CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
Babies, small children, elderly persons, sick persons
or persons with physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
To prevent the battery from being discharged, turn
the switches off when the engine is not running.
