Lexus GS300 2018 Owner's Manuals

GS350_300_GS F_OM_OM30G34U_(U)

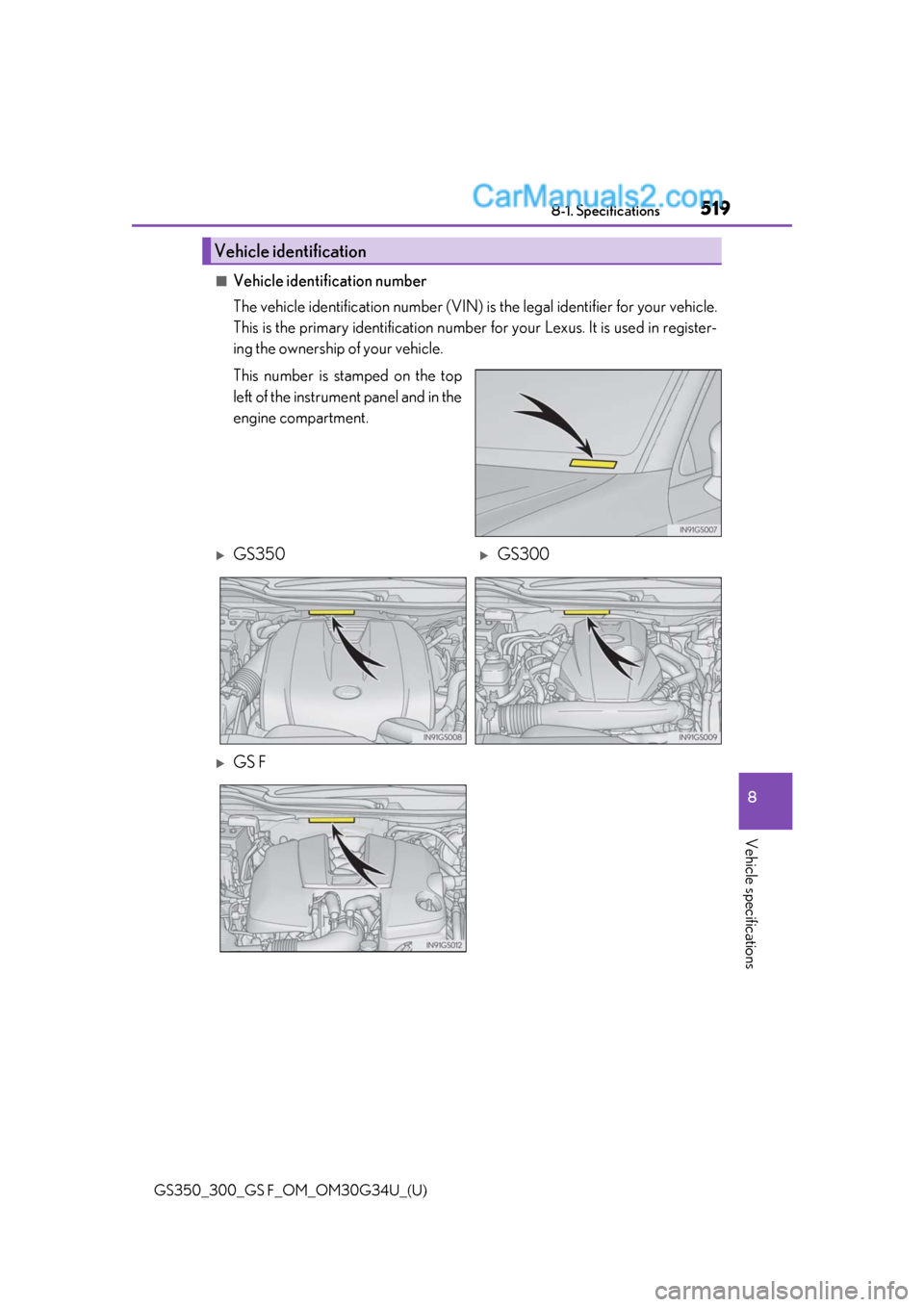

5198-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
Vehicle identification
GS350GS300
GS F

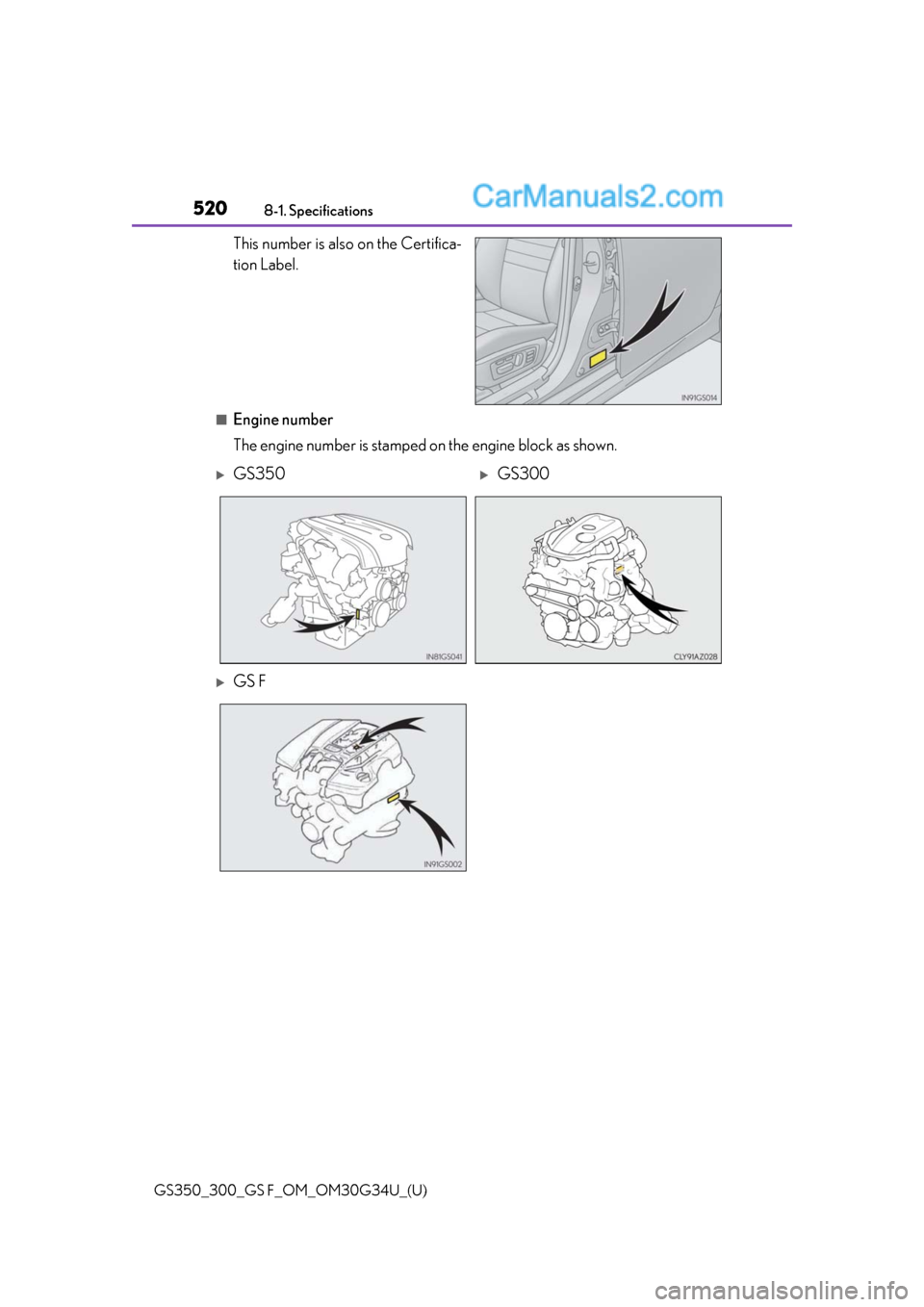

520
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
This number is also on the Certifica-
tion Label.
■Engine number
The engine number is stamped on the engine block as shown.
GS350GS300
GS F

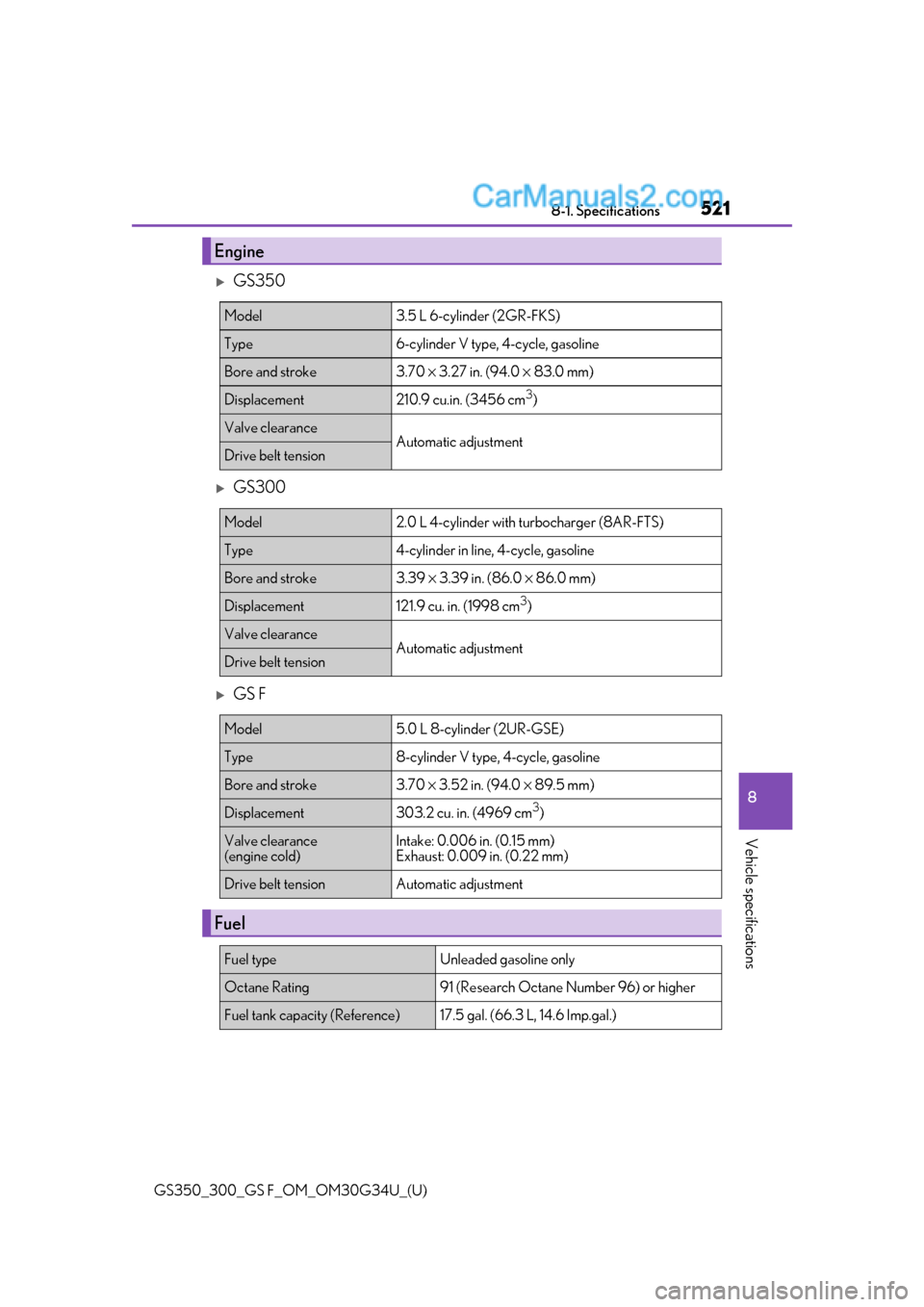

GS350_300_GS F_OM_OM30G34U_(U)
5218-1. Specifications
8
Vehicle specifications
GS350
GS300
GS F
Engine
Model3.5 L 6-cylinder (2GR-FKS)
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Model2.0 L 4-cylinder with turbocharger (8AR-FTS)
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.39 × 3.39 in. (86.0 × 86.0 mm)
Displacement121.9 cu. in. (1998 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Model5.0 L 8-cylinder (2UR-GSE)
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.52 in. (94.0 × 89.5 mm)
Displacement303.2 cu. in. (4969 cm3)
Valve clearance
(engine cold)Intake: 0.006 in. (0.15 mm)
Exhaust: 0.009 in. (0.22 mm)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)

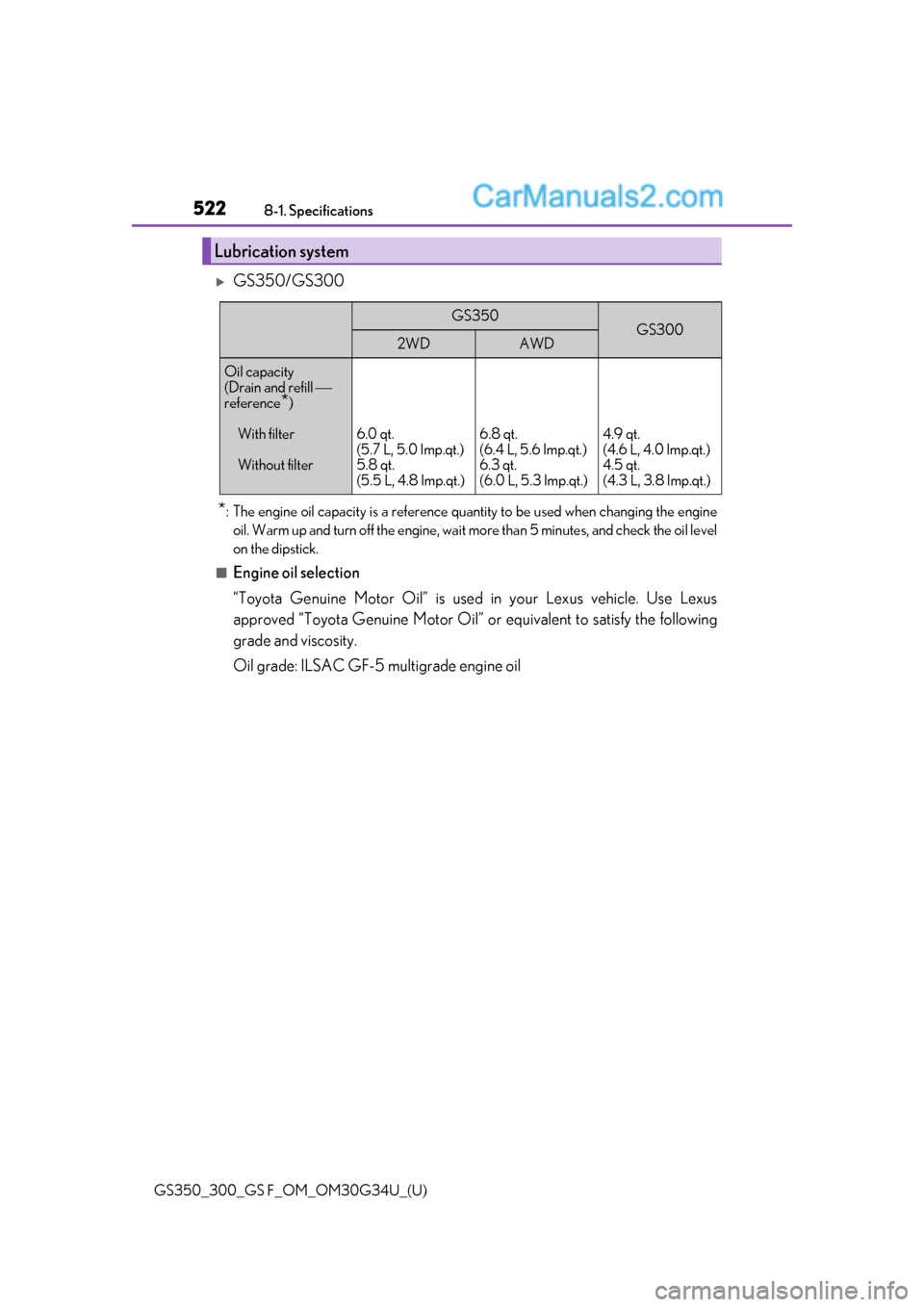

522
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
GS350/GS300
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Lubrication system
GS350GS3002WDAWD
Oil capacity
(Drain and refill ⎯
reference
*)
With filter
Without filter
6.0 qt.
(5.7 L, 5.0 Imp.qt.)
5.8 qt.
(5.5 L, 4.8 Imp.qt.)6.8 qt.
(6.4 L, 5.6 Imp.qt.)
6.3 qt.
(6.0 L, 5.3 Imp.qt.)4.9 qt.
(4.6 L, 4.0 Imp.qt.)
4.5 qt.
(4.3 L, 3.8 Imp.qt.)

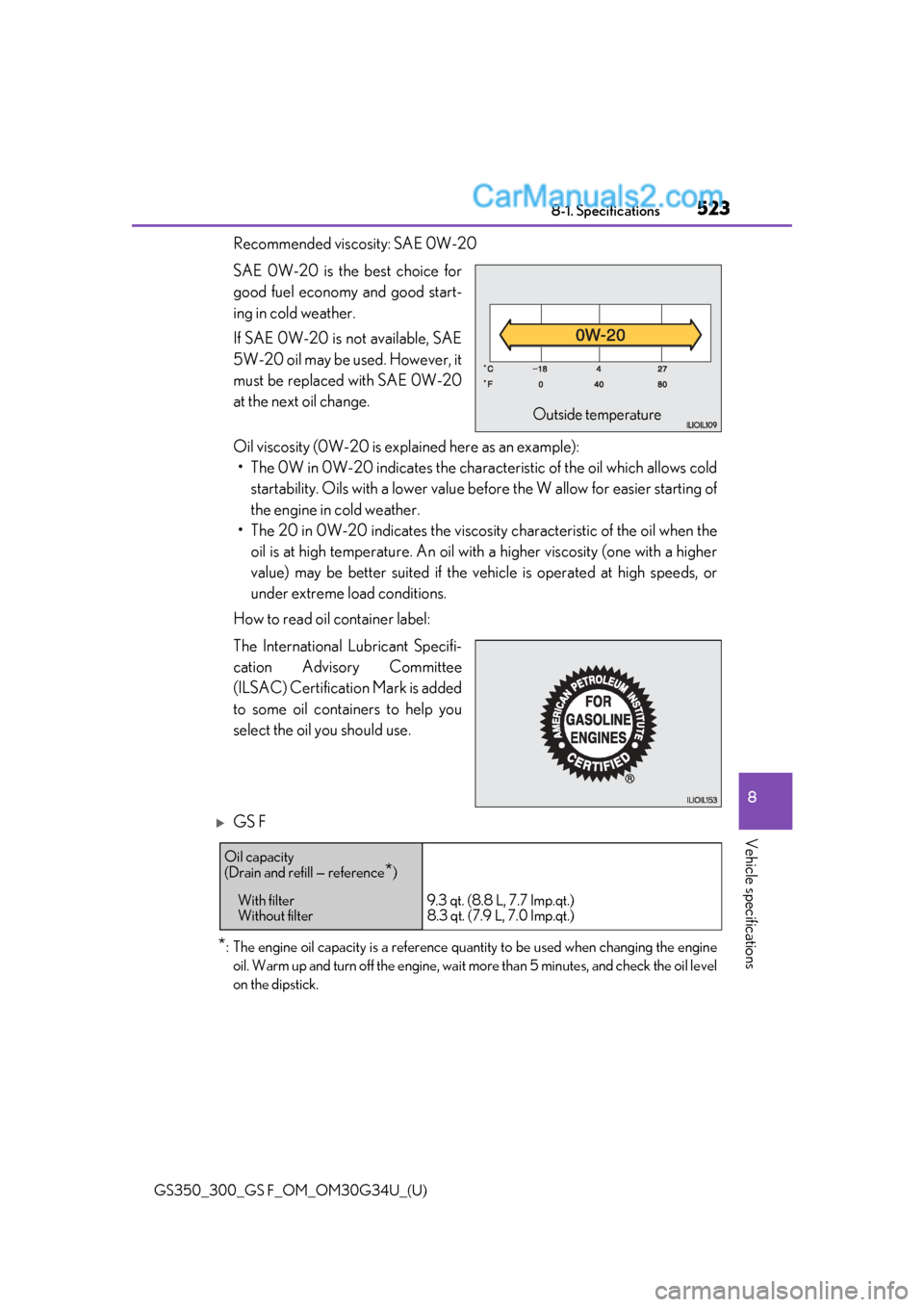

GS350_300_GS F_OM_OM30G34U_(U)
5238-1. Specifications
8
Vehicle specifications
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
GS F
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Outside temperature
Oil capacity
(Drain and refill — reference*)
With filter
Without filter9.3 qt. (8.8 L, 7.7 Imp.qt.)
8.3 qt. (7.9 L, 7.0 Imp.qt.)

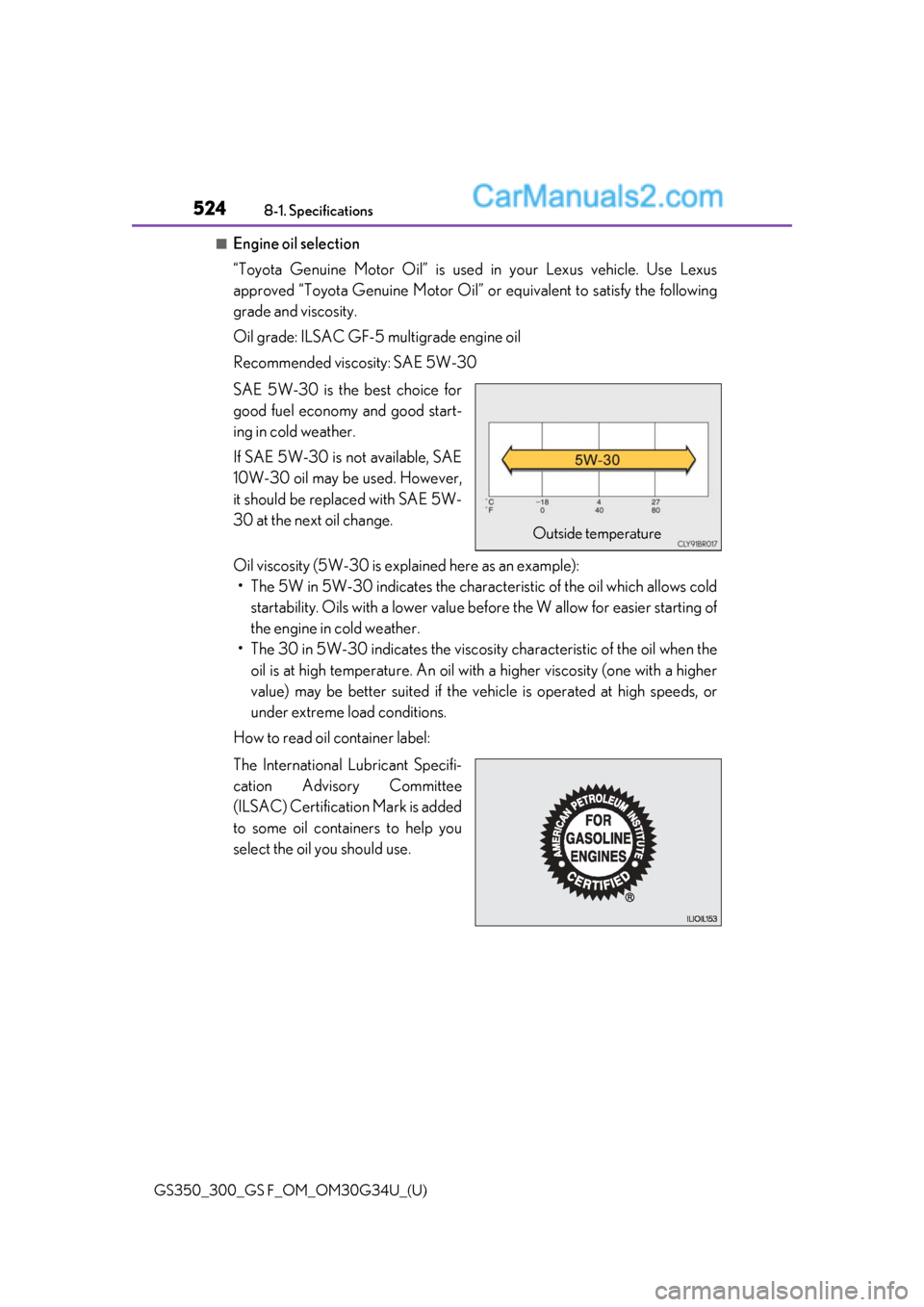

524
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However,
it should be replaced with SAE 5W-
30 at the next oil change.
Oil viscosity (5W-30 is explained here as an example): • The 5W in 5W-30 indicates the charact eristic of the oil which allows cold
startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

GS350_300_GS F_OM_OM30G34U_(U)
5258-1. Specifications
8
Vehicle specifications
Cooling system
Capacity
GS3509.9 qt.(9.4 L, 8.3 Imp.qt.)
GS300
Engine coolant
9.5 qt.(9.0 L, 7.9 Imp.qt.)
Intercooler
2.7 qt.(2.6 L, 2.3 Imp.qt.)
GS F11.9 qt. (11.3 L, 9.9 Imp.qt.)
Coolant typeUse either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non- silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system
GS350GS300GS F
Spark plug
Make
GapDENSO
FK20HBR8
0.031 in. (0.8 mm)NGK
DILFR7K9G
0.04 in. (0.9 mm)DENSO
FK20HBR-J8
0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

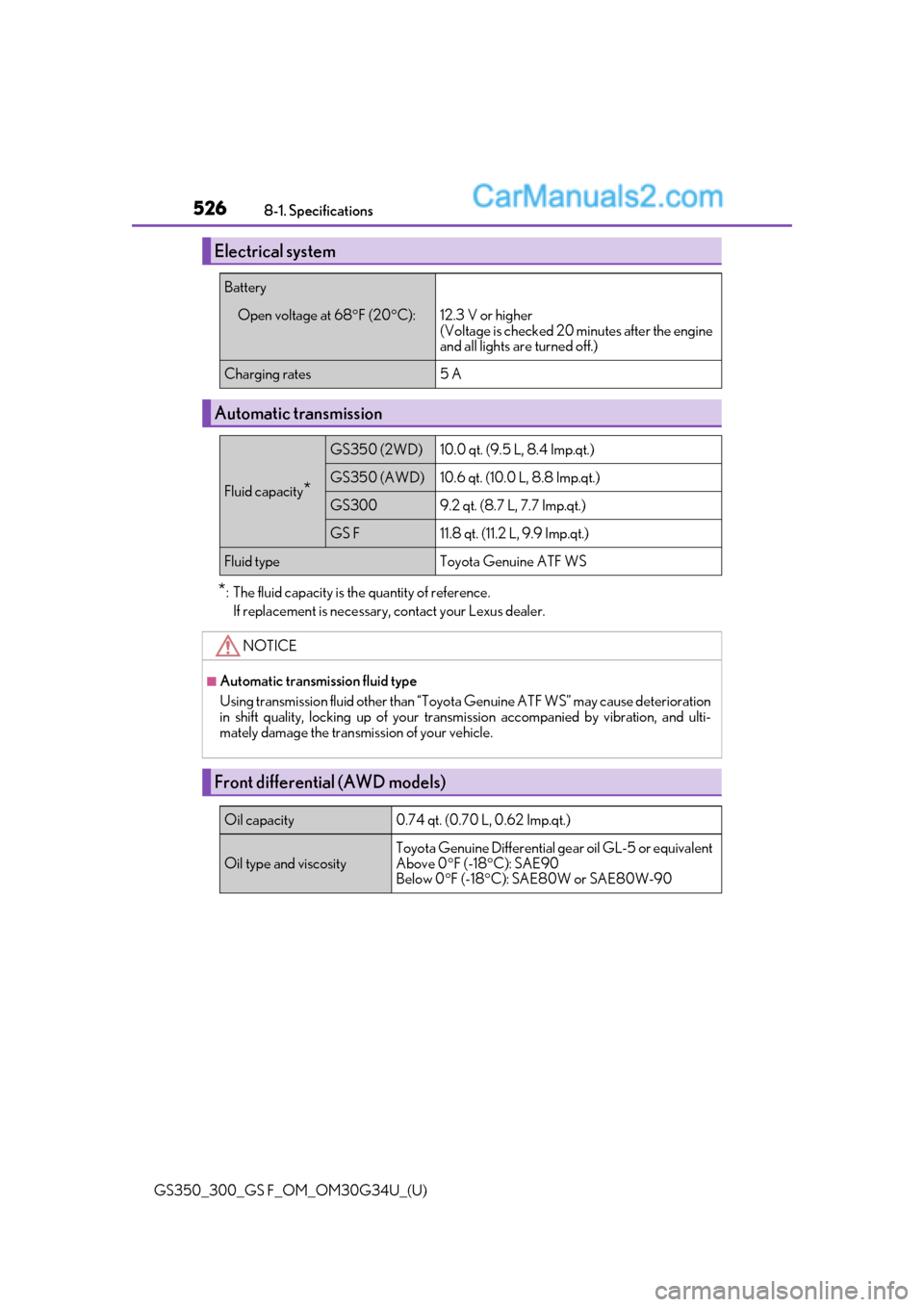

526
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Lexus dealer.
Electrical system
Battery
Open voltage at 68 °F (20 °C):12.3 V or higher
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A
Automatic transmission
Fluid capacity*
GS350 (2WD)10.0 qt. (9.5 L, 8.4 Imp.qt.)
GS350 (AWD)10.6 qt. (10.0 L, 8.8 Imp.qt.)
GS3009.2 qt. (8.7 L, 7.7 Imp.qt.)
GS F11.8 qt. (11.2 L, 9.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity0.74 qt. (0.70 L, 0.62 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil GL-5 or equivalent
Above 0 °F (-18 °C): SAE90
Below 0 °F (-18 °C): SAE80W or SAE80W-90

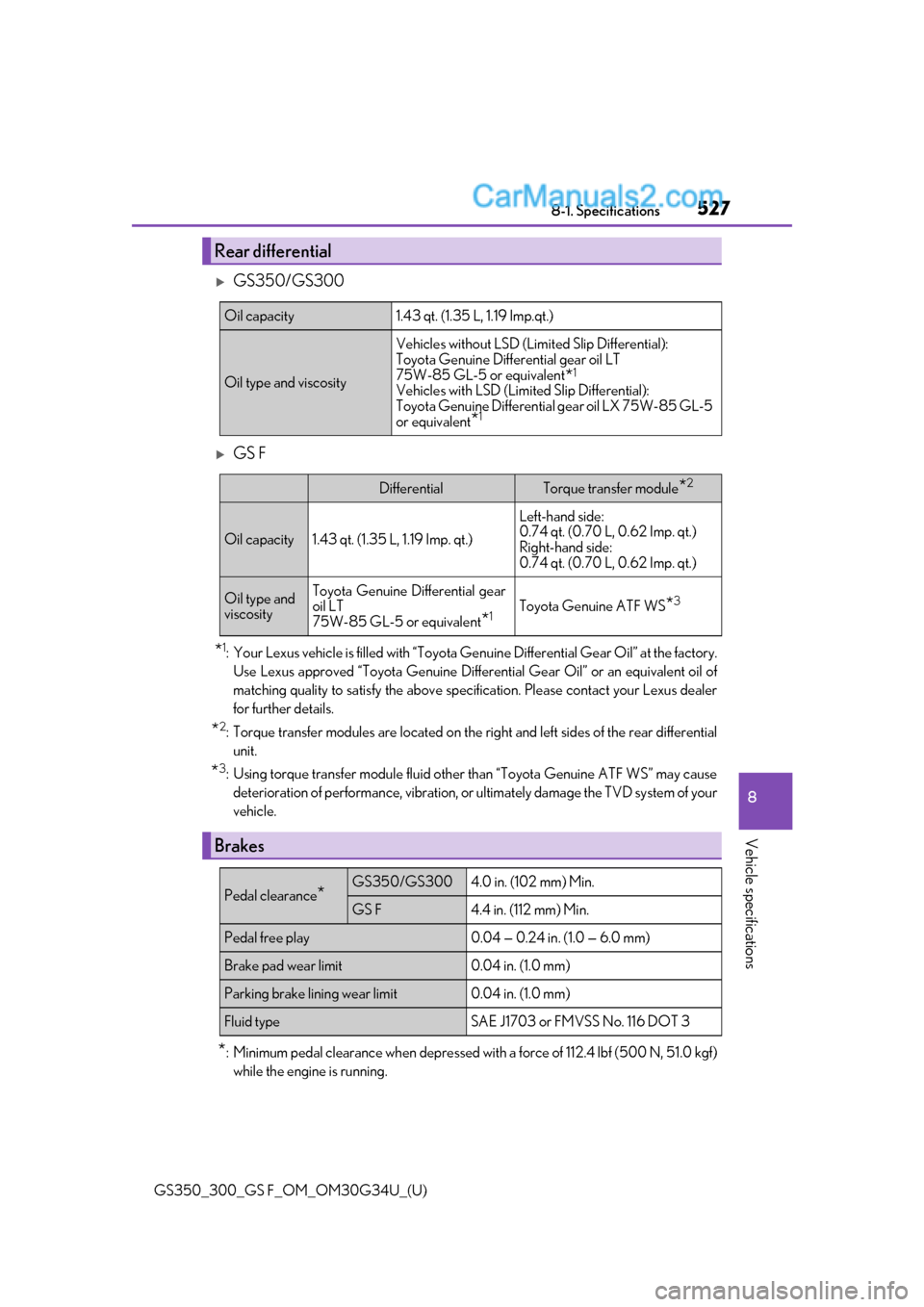

GS350_300_GS F_OM_OM30G34U_(U)
5278-1. Specifications
8
Vehicle specifications
GS350/GS300
GS F
*1: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differen tial Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*2: Torque transfer modules are located on the ri ght and left sides of the rear differential
unit.
*3: Using torque transfer module fluid other than “Toyota Genuine ATF WS” may cause deterioration of performance, vibration, or ultimately damage the TVD system of your
vehicle.
*: Minimum pedal clearance when depressed wi th a force of 112.4 lbf (500 N, 51.0 kgf)
while the engine is running.
Rear differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosity
Vehicles without LSD (Limited Slip Differential):
Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
*1
Vehicles with LSD (Limited Slip Differential):
Toyota Genuine Differential gear oil LX 75W-85 GL-5
or equivalent
*1
DifferentialTorque transfer module*2
Oil capacity 1.43 qt. (1.35 L, 1.19 Imp. qt.)
Left-hand side:
0.74 qt. (0.70 L, 0.62 Imp. qt.)
Right-hand side:
0.74 qt. (0.70 L, 0.62 Imp. qt.)
Oil type and
viscosity Toyota Genuine Differential gear
oil LT
75W-85 GL-5 or equivalent
*1Toyota Genuine ATF WS*3
Brakes
Pedal clearance*GS350/GS3004.0 in. (102 mm) Min.
GS F4.4 in. (112 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

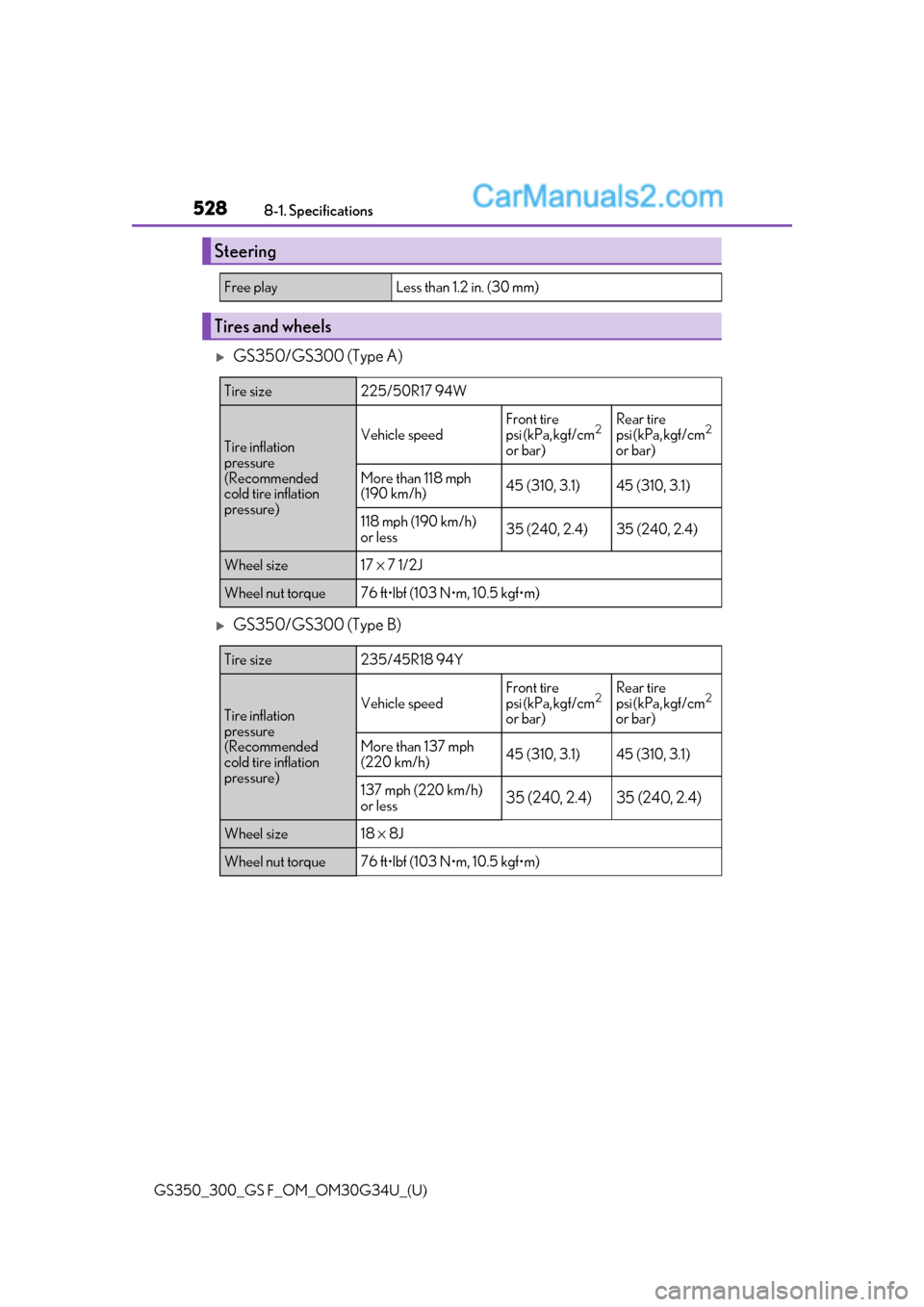

528
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
GS350/GS300 (Type A)
GS350/GS300 (Type B)
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size225/50R17 94W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront tire
psi (kPa, kgf/cm2
or bar)Rear tire
psi (kPa, kgf/cm2
or bar)
More than 118 mph
(190 km/h)45 (310, 3.1)45 (310, 3.1)
118 mph (190 km/h)
or less35 (240, 2.4)35 (240, 2.4)
Wheel size17 × 7 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size235/45R18 94Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)45 (310, 3.1)45 (310, 3.1)
137 mph (220 km/h)
or less35 (240, 2.4)35 (240, 2.4)
Wheel size18 × 8J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
