clock Lexus GS300 2018 Owner's Manuals

TABLE OF CONTENTS4
GS350_300_GS F_OM_OM30G34U_(U)
5-1. Remote Touch screenRemote Touch/12.3-inch display.......................................... 302
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system ........308
Rear air conditioning system............................................319
Heated steering wheel/ seat heaters/seat
ventilators................................... 322
5-3. Using the interior lights Interior lights list ......................... 327• Interior lights .......................... 328
• Personal lights....................... 328
5-4. Using the storage features List of storage features ............ 330• Glove box .................................331
• Console box ............................331
• Cup holders ........................... 332
• Auxiliary boxes ..................... 333
Trunk features ............................. 334 5-5. Using the other interior
features
Other interior features ............ 338 • Sun visors ................................ 338
• Vanity mirrors ....................... 338
• Clock ........................................ 339
• Ashtrays................................... 339
• Power outlets ........................ 340
• Armrest.................................... 340
•Rear sunshade/
rear door sunshades ............341
•Trunk storage extension ................................. 343
• Coat hooks............................. 344
• Assist grips ............................. 344
Garage door opener ............... 345
LEXUS Enform Safety Connect...................................... 352
6-1. Maintenance and care Cleaning and protecting the vehicle exterior ................358
Cleaning and protecting the vehicle interior.................. 362
6-2. Maintenance Maintenance requirements... 365
General maintenance.............. 367
Emission inspection and maintenance (I/M)
programs.................................... 370
5Interior features
6Maintenance and care

GS350_300_GS F_OM_OM30G34U_(U)
872. Instrument cluster
2
Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to 122 °F
(50 °C). Low outside temperature indicator comes on when the ambient temperature
is 37 °F (3 °C) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (→P. 339)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 100)
Displays warning me ssages in case of a malfunction ( →P. 441)
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information: • Displays the maintenance requ ired information when the engine switch is in IGNI-
TION ON mode.
• It can be reset from of th e multi-information display. (→P. 100)
Shift position and shift range
Displays the selected shift posi tion or selected shift range (→P. 202)
1
2
3
4
5
6
7
8
9

90

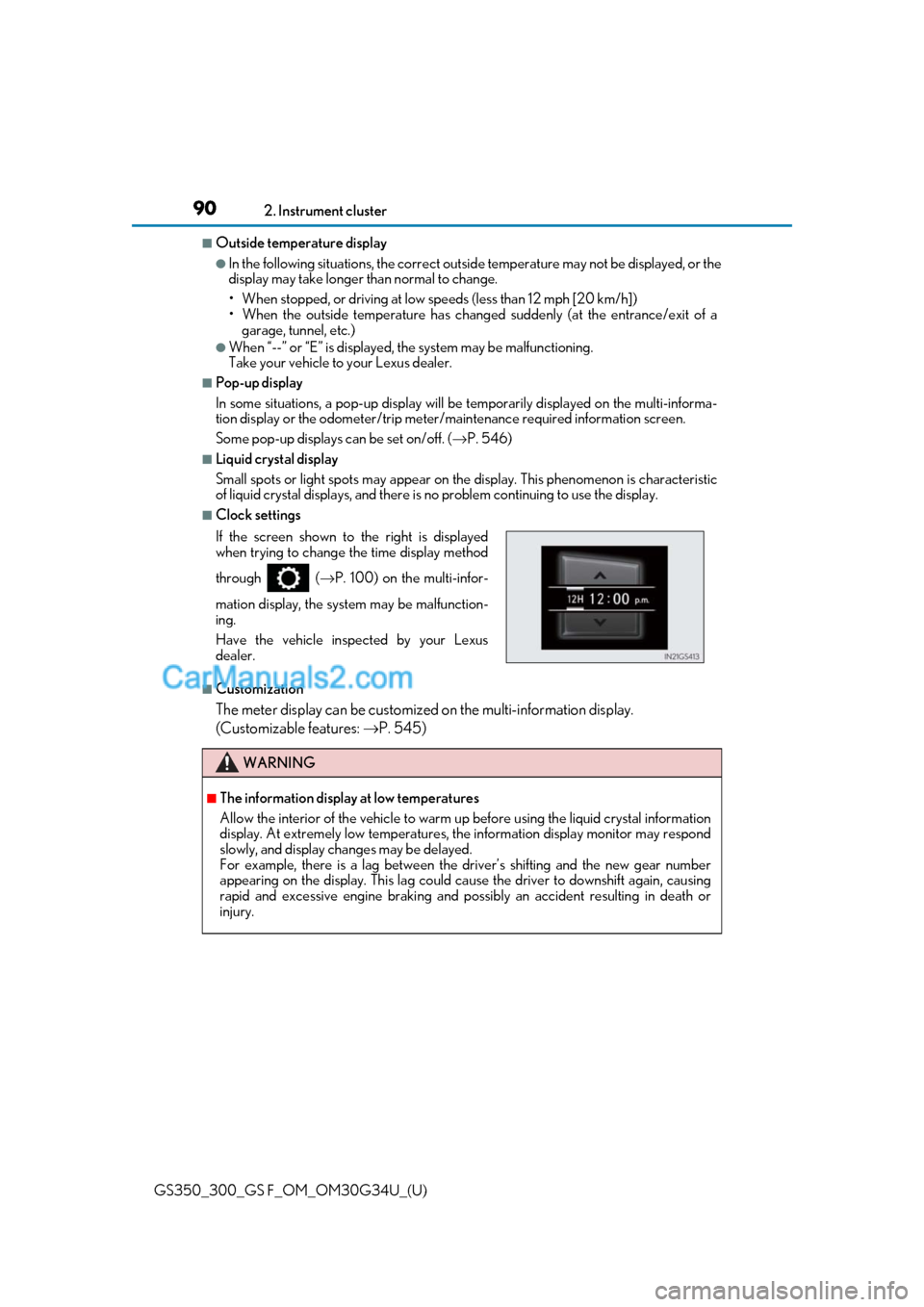

GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display or the odometer/trip meter/maintenance required information screen.
Some pop-up displays can be set on/off. ( →P. 546)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Clock settings
■Customization
The meter display can be customized on the multi-information display.
(Customizable features: →P. 545)
If the screen shown to the right is displayed
when trying to change the time display method
through ( →P. 100) on the multi-infor-
mation display, the system may be malfunction-
ing.
Have the vehicle inspected by your Lexus
dealer.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

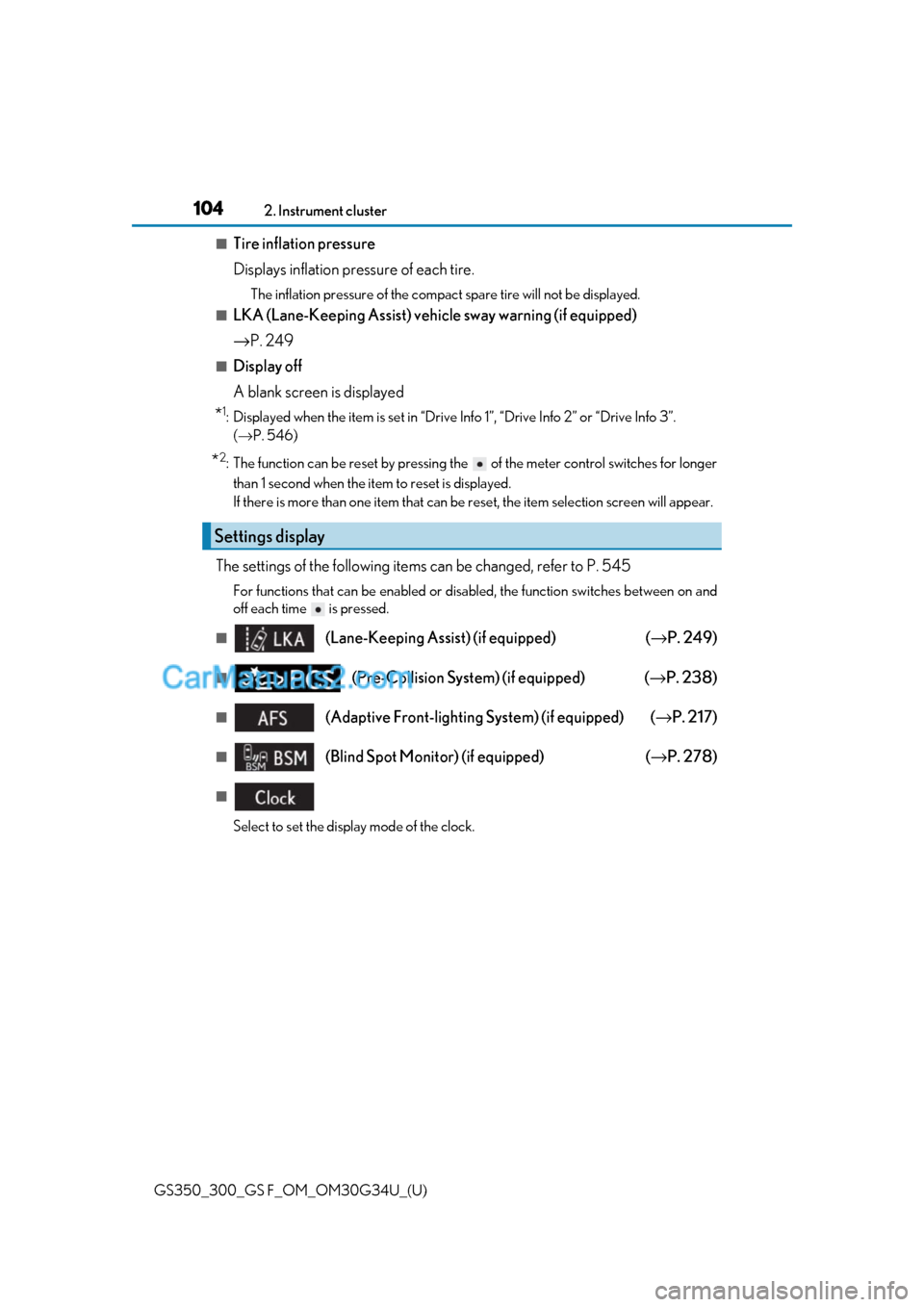

104
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the compac
t spare tire will not be displayed.
■LKA (Lane-Keeping Assist) vehicle sway warning (if equipped)
→ P. 249
■Display off
A blank screen is displayed
*1: Displayed when the item is se t in “Drive Info 1”, “Drive Info 2” or “Drive Info 3”.
( → P. 546)
*2: The function can be reset by pressing th e of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
The settings of the following items can be changed, refer to P. 545
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane-Keeping Assist) (if equipped) (→ P. 249)
■(Pre-Collision System) (if equipped) ( →P. 238)
■(Adaptive Front-lighting System) (if equipped) ( →P. 217)
■(Blind Spot Monitor) (if equipped) (→ P. 278)
■
Select to set the display mode of the clock.
Settings display

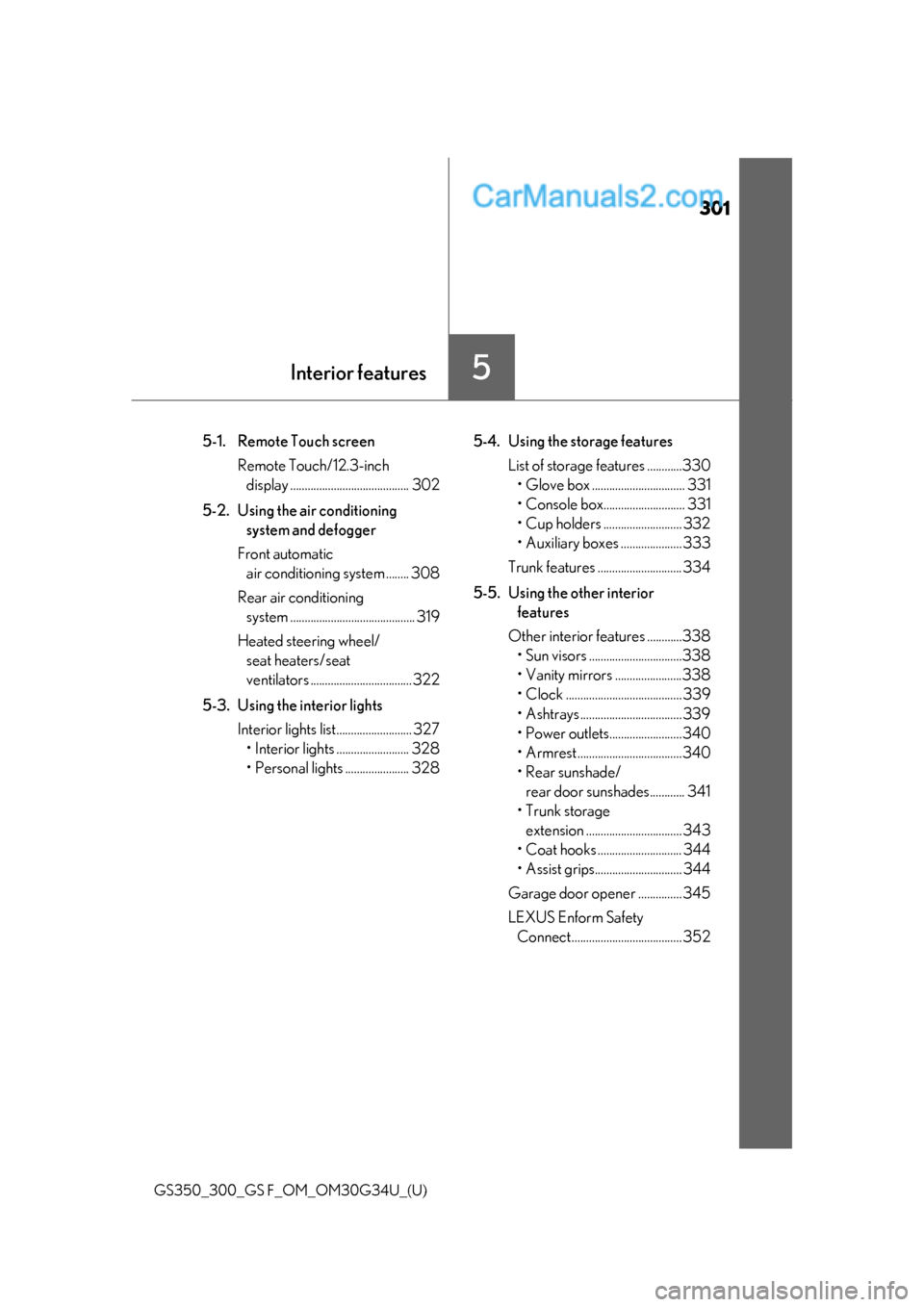

301
GS350_300_GS F_OM_OM30G34U_(U)
5Interior features
5-1. Remote Touch screenRemote Touch/12.3-inch display ......................................... 302
5-2. Using the air conditioning system and defogger
Front automatic air conditio ning system ........ 308
Rear air conditioning system ........................................... 319
Heated steering wheel/ seat heaters/seat
ventilators ...................................322
5-3. Using the interior lights Interior lights list.......................... 327• Interior lights ......................... 328
• Personal lights ...................... 328 5-4. Using the storage features
List of storage features ............330
• Glove box ................................ 331
• Console box............................ 331
• Cup holders ........................... 332
• Auxiliary boxes ..................... 333
Trunk features ............................. 334
5-5. Using the other interior features
Other interior features ............338 • Sun visors ................................338
• Vanity mirrors .......................338
• Clock ........................................ 339
• Ashtrays ................................... 339
• Power outlets.........................340
• Armrest ....................................340
•Rear sunshade/rear door sunshades............ 341
•Trunk storage
extension ................................. 343
• Coat hooks ............................. 344
• Assist grips.............................. 344
Garage door opener ............... 345
LEXUS Enform Safety Connect ...................................... 352

GS350_300_GS F_OM_OM30G34U_(U)

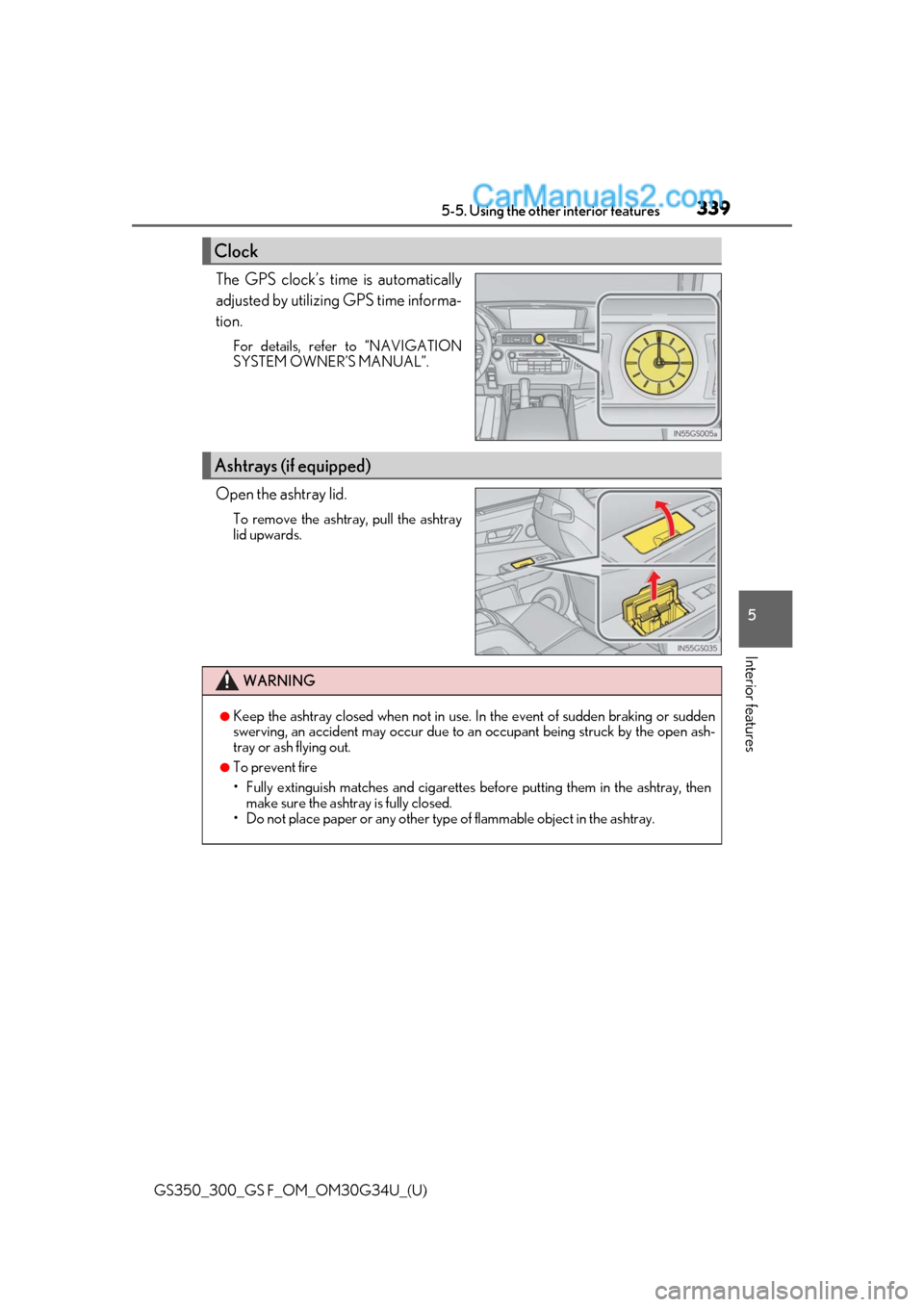

3395-5. Using the other interior features
5
Interior features
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
Clock
Ashtrays (if equipped)
WARNING
●Keep the ashtray closed when not in use. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
●To prevent fire
• Fully extinguish matches and cigarettes before putting them in the ashtray, then make sure the ashtray is fully closed.
• Do not place paper or any other type of flammable object in the ashtray.

GS350_300_GS F_OM_OM30G34U_(U)

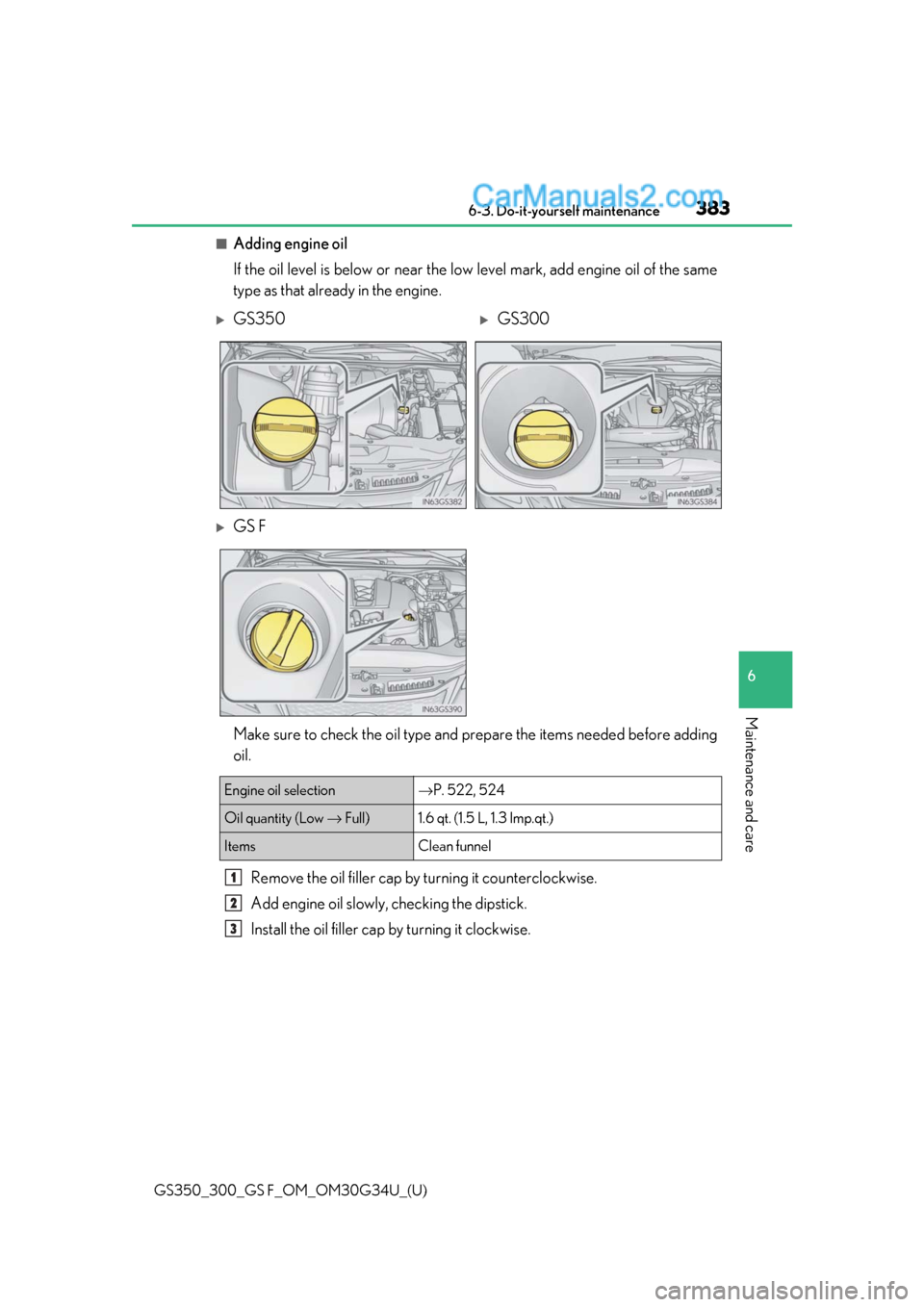

3836-3. Do-it-yourself maintenance
6
Maintenance and care
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
GS350GS300
GS F
Engine oil selection →P. 522, 524
Oil quantity (Low → Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3

GS350_300_GS F_OM_OM30G34U_(U)

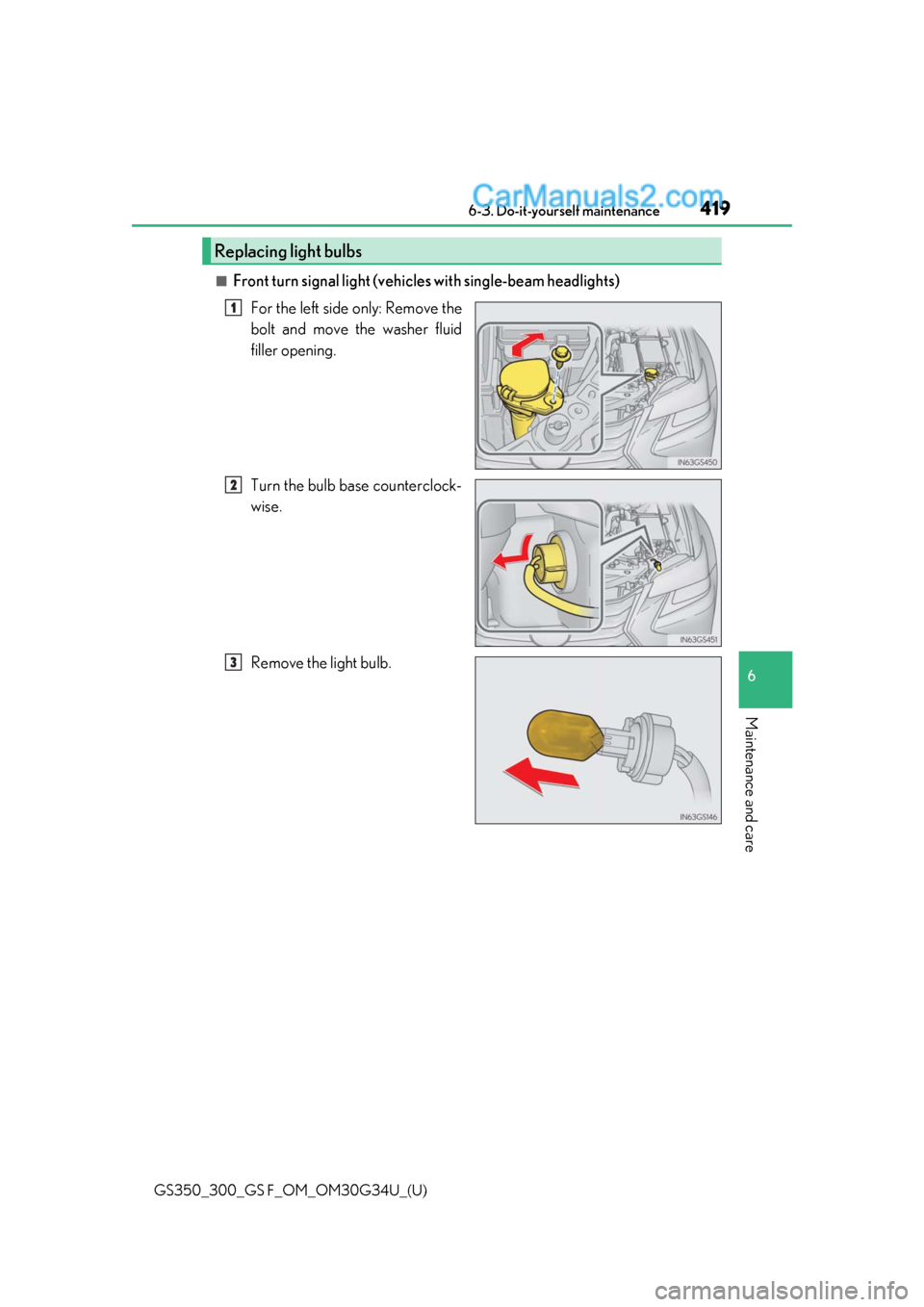

4196-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal light (vehicles with single-beam headlights)For the left side only: Remove the
bolt and move the washer fluid
filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Replacing light bulbs
1
2
3

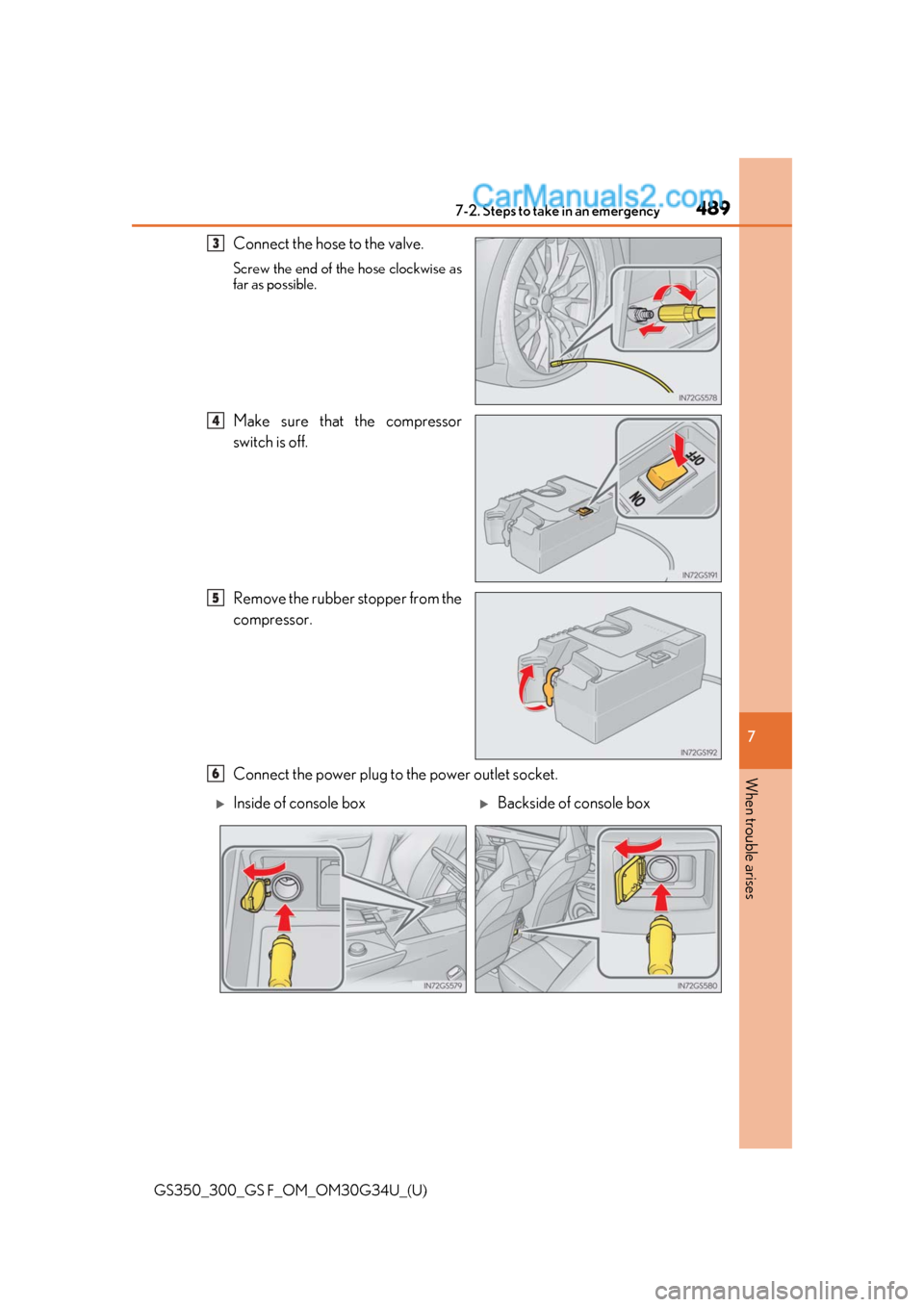

4897-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Make sure that the compressor
switch is off.
Remove the rubber stopper from the
compressor.
Connect the power plug to the power outlet socket.
3
4
5
6
Inside of console boxBackside of console box

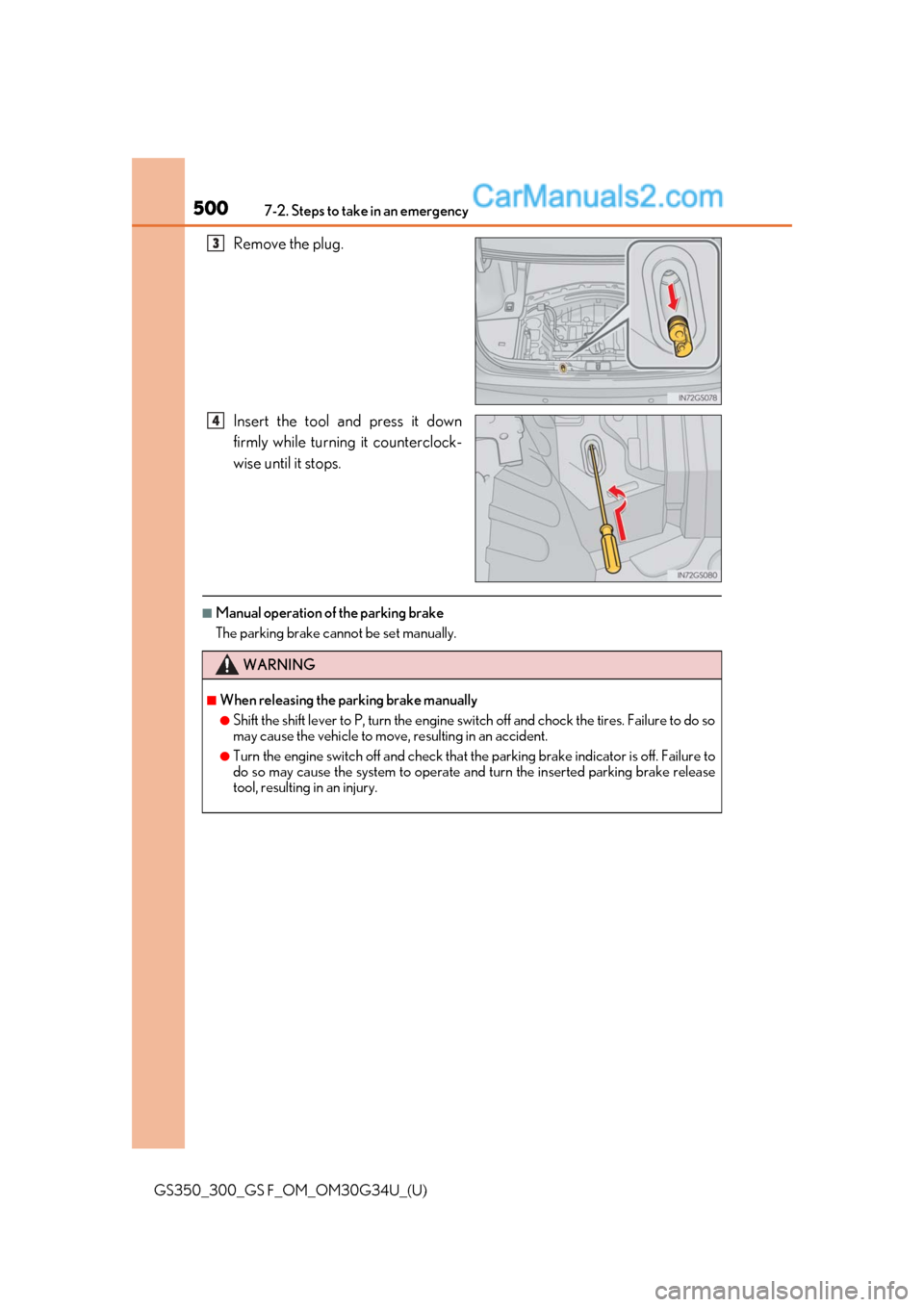

5007-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
Remove the plug.
Insert the tool and press it down
firmly while turning it counterclock-
wise until it stops.
■Manual operation of the parking brake
The parking brake cannot be set manually.
3
4
WARNING
■When releasing the parking brake manually
●Shift the shift lever to P, turn the engine switch off and chock the tires. Failure to do so
may cause the vehicle to move, resulting in an accident.
●Turn the engine switch off and check that the parking brake indicato r is off. Failure to
do so may cause the system to operate and turn the inserted parking brake release
tool, resulting in an injury.
