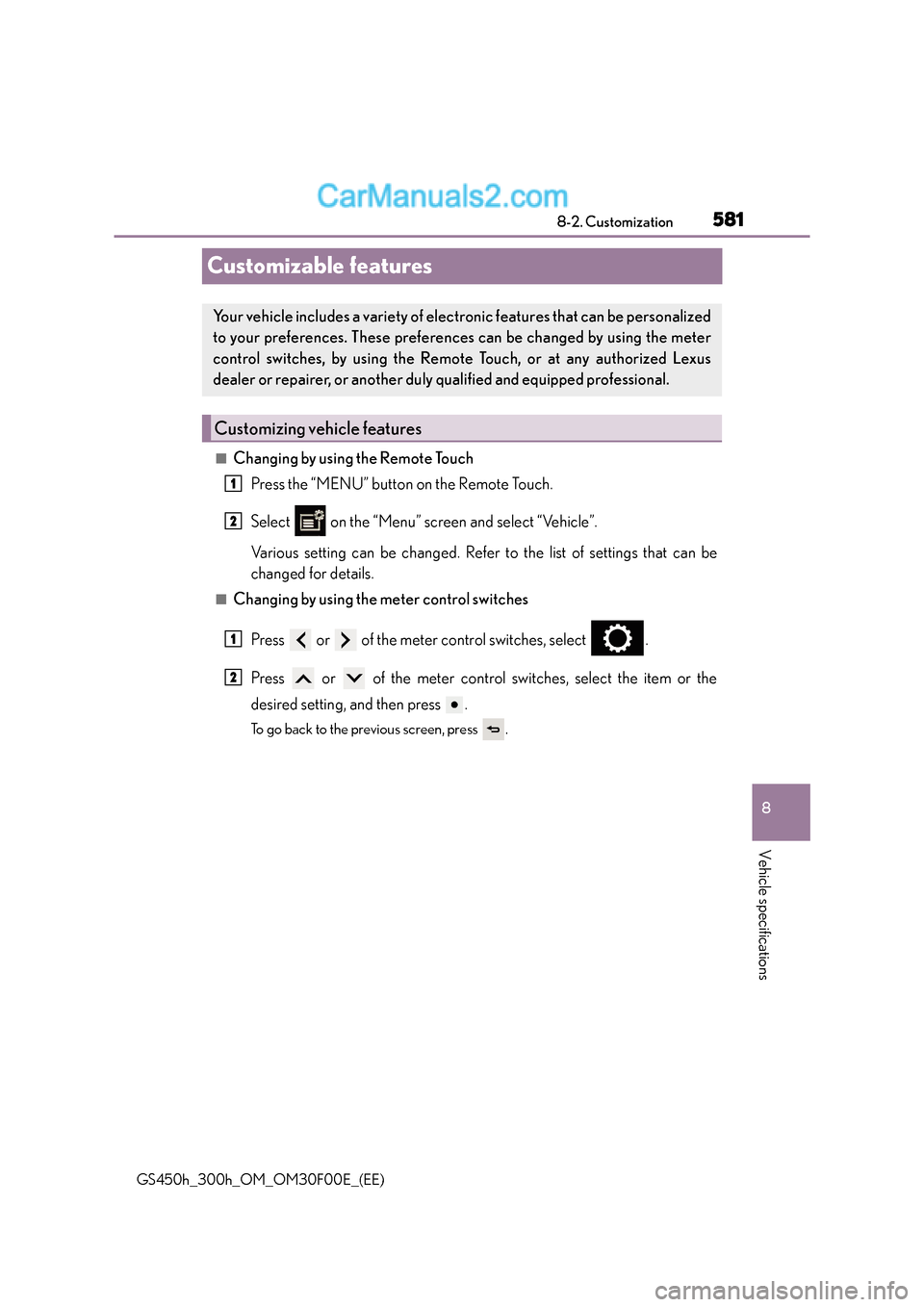

Lexus GS300h 2015 Owner's Manual

581
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
Customizable features
■Changing by using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
Press or of the meter control switches, select .
Press or of the meter control switches, select the item or the
desired setting, and then press .
To go back to the previous screen, press .
Your vehicle includes a variety of electr onic features that can be personalized
to your preferences. These preferences can be changed by using the meter
control switches, by using the Remote Touch, or at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Customizing vehicle features
1
2
1
2

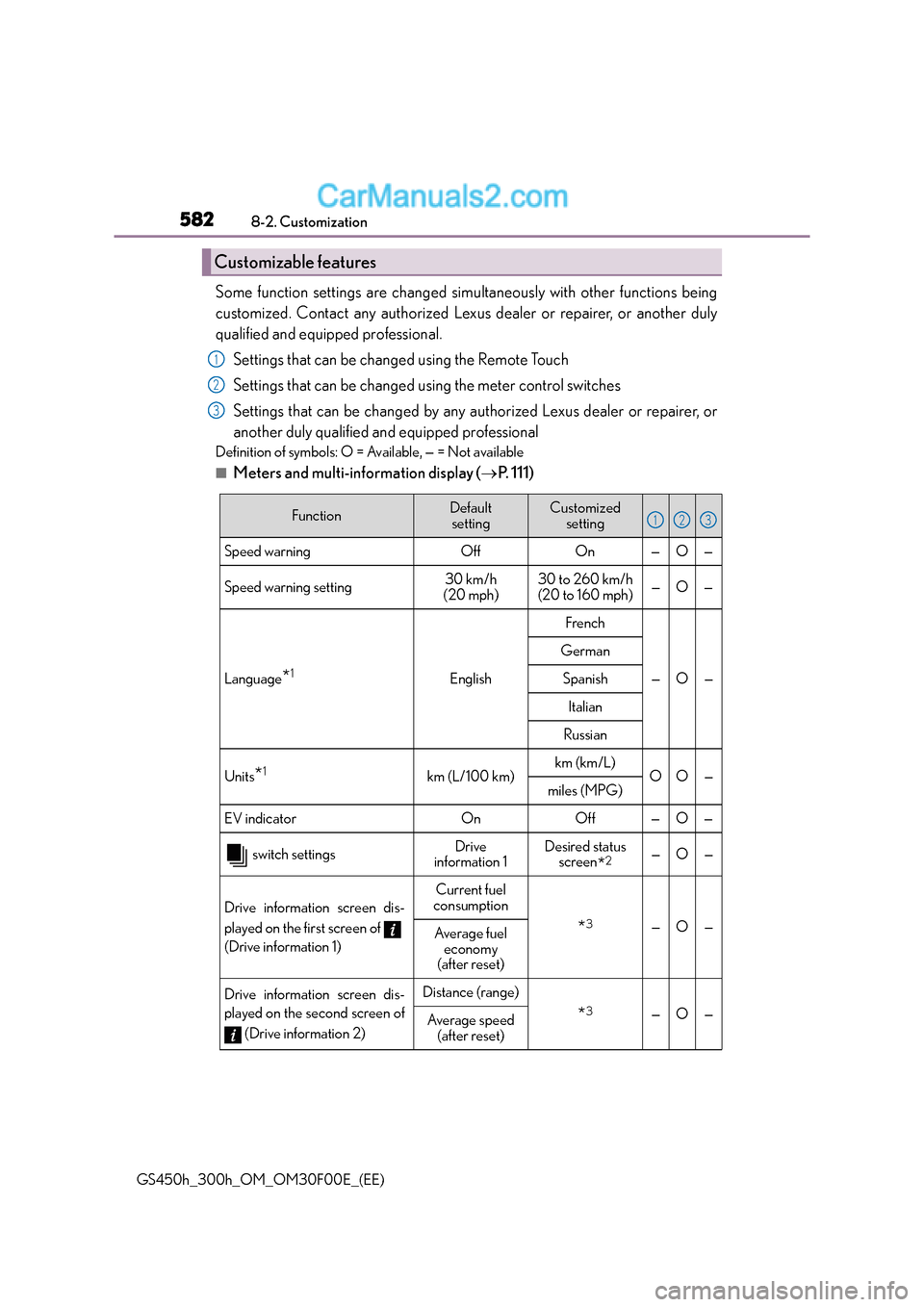

5828-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
Some function settings are changed simu ltaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Meters and multi-information display ( →P. 1 1 1 )
Customizable features
1
2
3
FunctionDefault
settingCustomized setting
Speed warning Off On — O —
Speed warning setting 30 km/h
(20 mph) 30 to 260 km/h
(20 to 160 mph)
—O—
Language*1English
French
—O—
German
Spanish
Italian
Russian
Units*1km (L/100 km)km (km/L)OO—miles (MPG)
EV indicator On Off — O —
switch settingsDrive
information 1Desired status screen
*2—O—
Drive information screen dis-
played on the first screen of
(Drive information 1)
Current fuel
consumption
*3—O—Average fuel economy
(after reset)
Drive information screen dis-
played on the second screen of
(Drive information 2)Distance (range)
*3—O—Average speed (after reset)
123

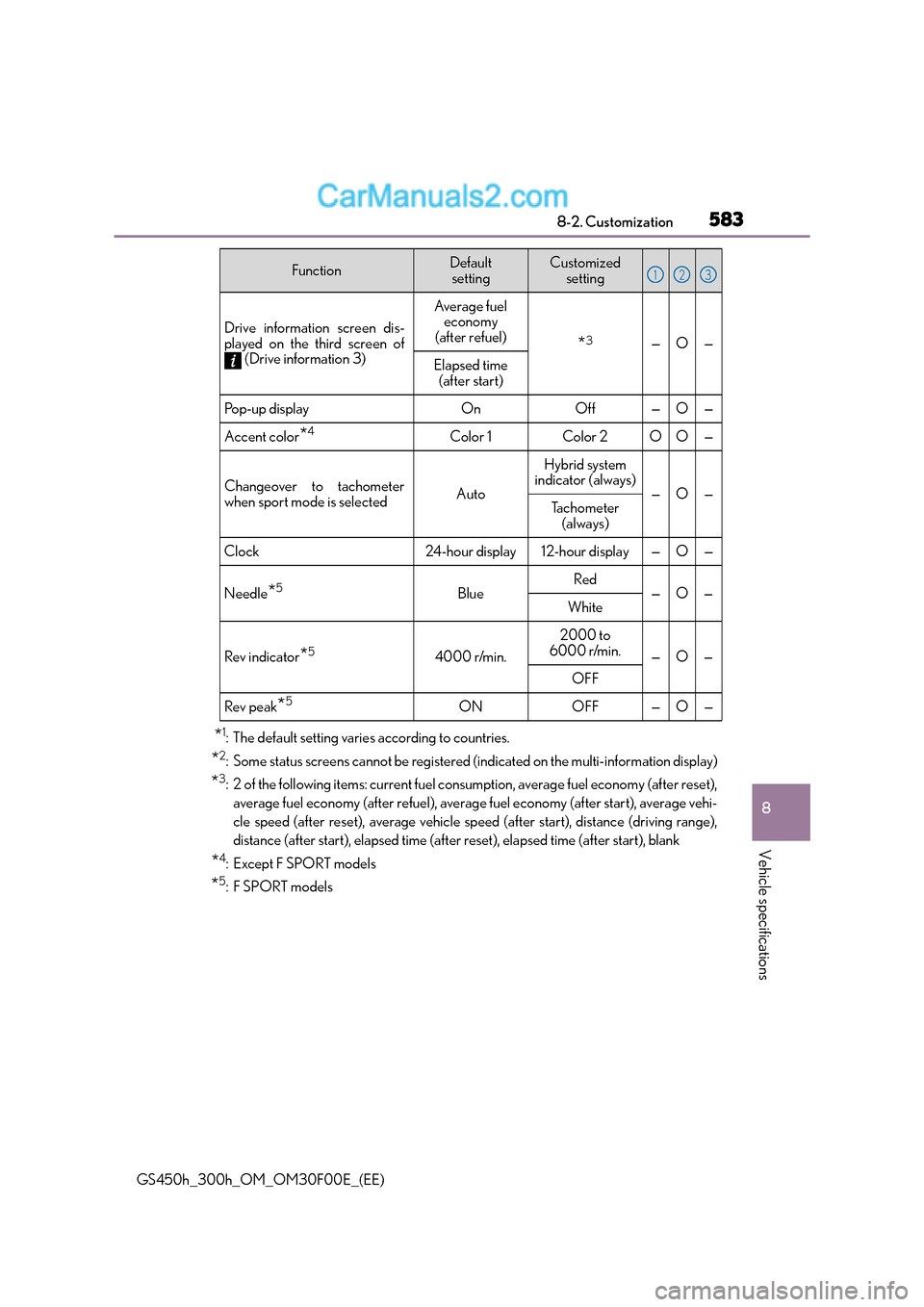

583
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
*1: The default setting varies according to countries.
*2: Some status screens cannot be
registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4:Except F SPORT models
*5:F SPORT models
Drive information screen dis-
played on the third screen of (Drive information 3)
Average fuel economy
(after refuel)
*3—O—
Elapsed time (after start)
Pop-up displayOnOff—O—
Accent color*4Color 1Color 2OO—
Changeover to tachometer
when sport mode is selected Auto
Hybrid system
indicator (always)
—O—Tachometer
(always)
Clock 24-hour display 12-hour display
—O—
Needle
*5Blue Red
—O—
White
Rev indicator
*54000 r/min. 2000 to
6000 r/min. —O—
OFF
Rev peak
*5ON OFF—O—
FunctionDefault settingCustomized setting123

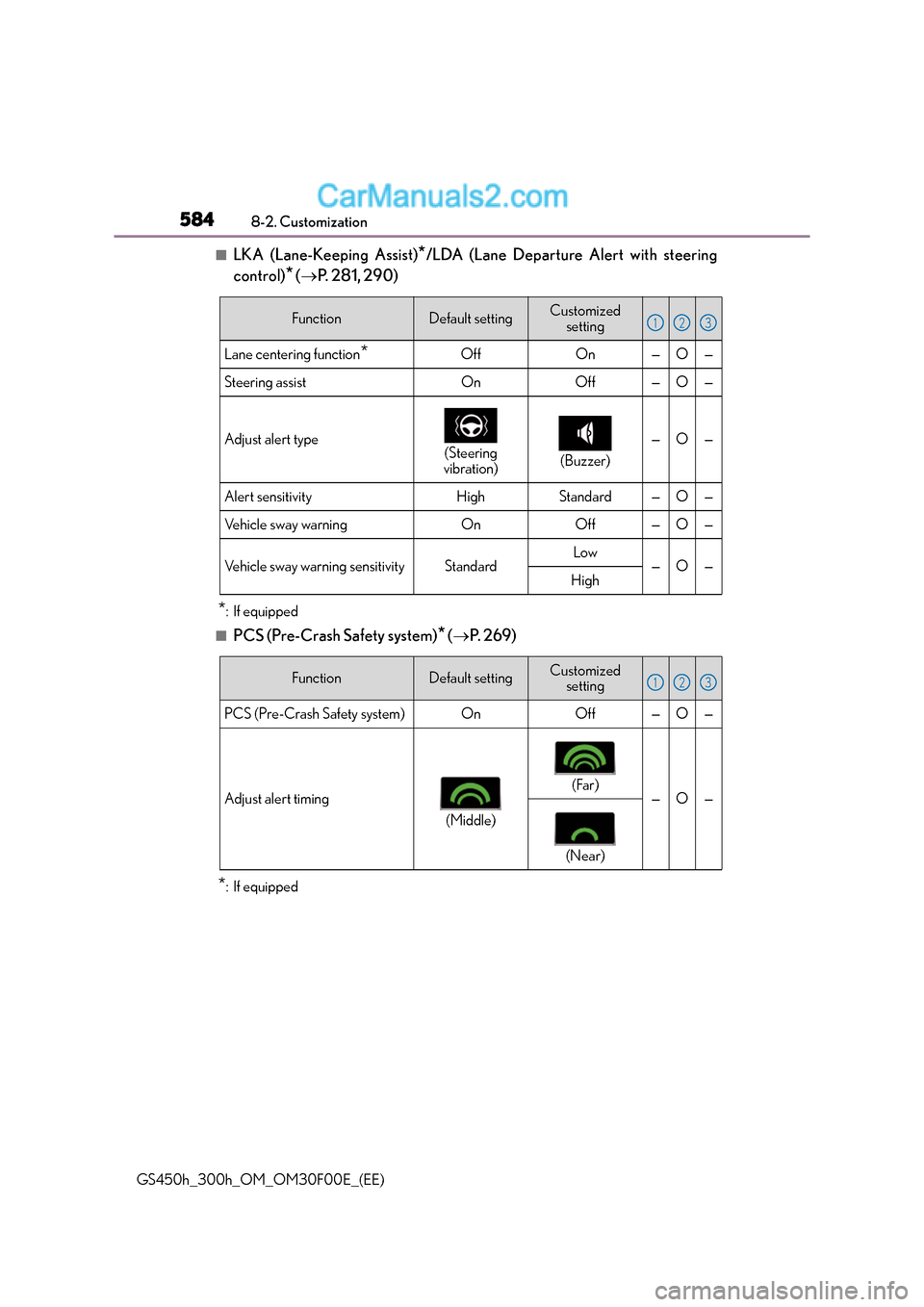

5848-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
■LKA (Lane-Keeping Assist)*/LDA (Lane Departure Alert with steering
control)
* ( → P. 2 8 1 , 2 9 0 )
*: If equipped
■PCS (Pre-Crash Safety system)* (→ P. 2 6 9 )
*: If equipped
FunctionDefault settingCustomized
setting
Lane centering function*OffOn—O—
Steering assistOnOff—O—
Adjust alert type(Steering
vibration)(Buzzer)
—O—
Alert sensitivityHighStandard—O—
Ve h i c l e s w a y w a r n i n gOnOff—O—
Vehicle sway warning sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized setting
PCS (Pre-Crash Safety system)OnOff—O—
Adjust alert timing
(Middle)
(Far)—O—
(Near)
123

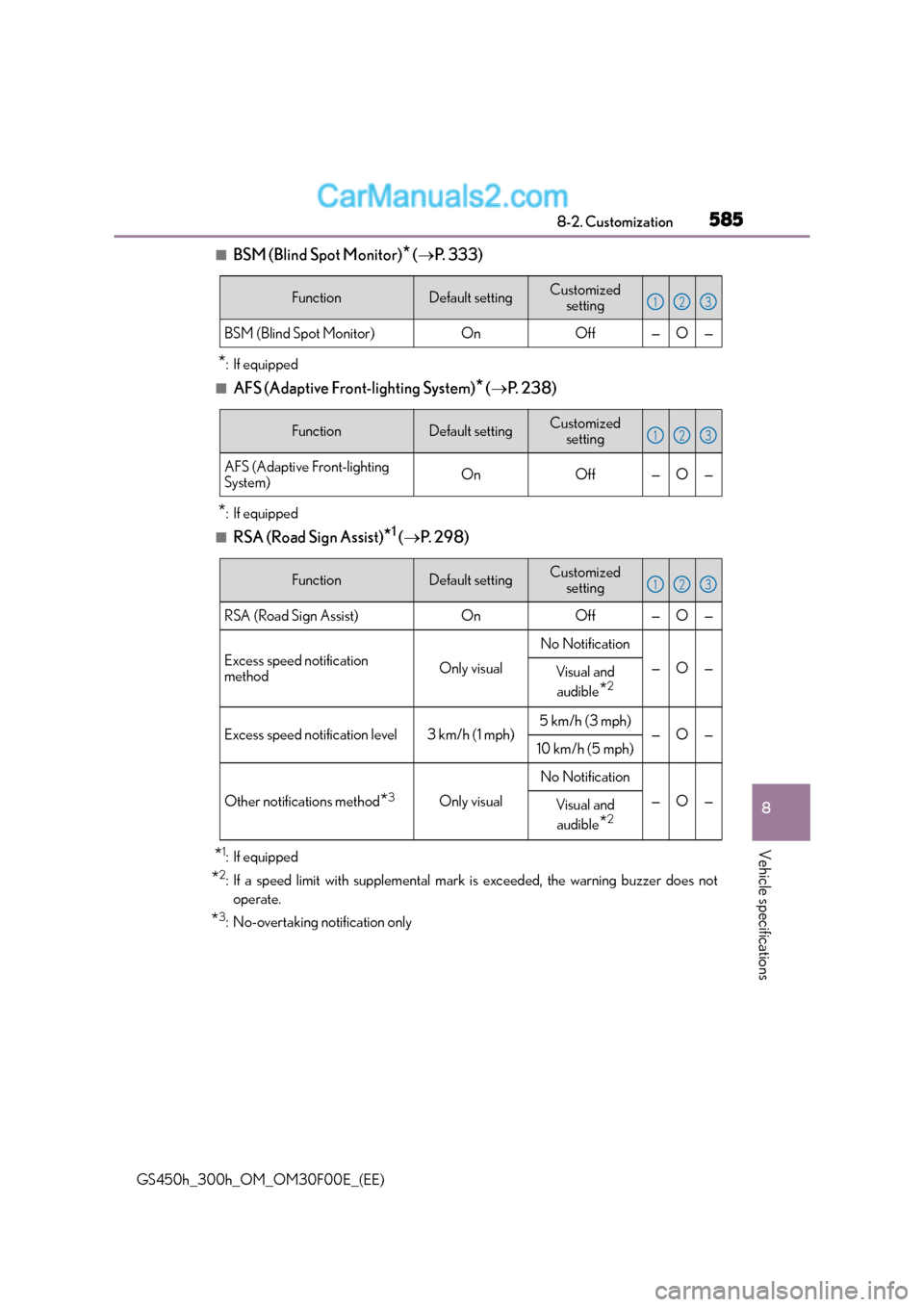

585
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
■BSM (Blind Spot Monitor)* (
→ P. 333)
*: If equipped
■AFS (Adaptive Front-lighting System)* (→ P. 238)
*: If equipped
■RSA (Road Sign Assist)*1 (→ P. 2 9 8 )
*1: If equipped
*2: If a speed limit with supplemental mark is exceeded, the warning buzzer does not
operate.
*3: No-overtaking notification only
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
123
FunctionDefault settingCustomized setting
AFS (Adaptive Front-lighting
System)OnOff—O—
123
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff—O—
Excess speed notification
methodOnly visual
No Notification
—O—Visual and
audible
*2
Excess speed notification level3 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
Other notifications method*3Only visual
No Notification
—O—Visual and audible
*2
123

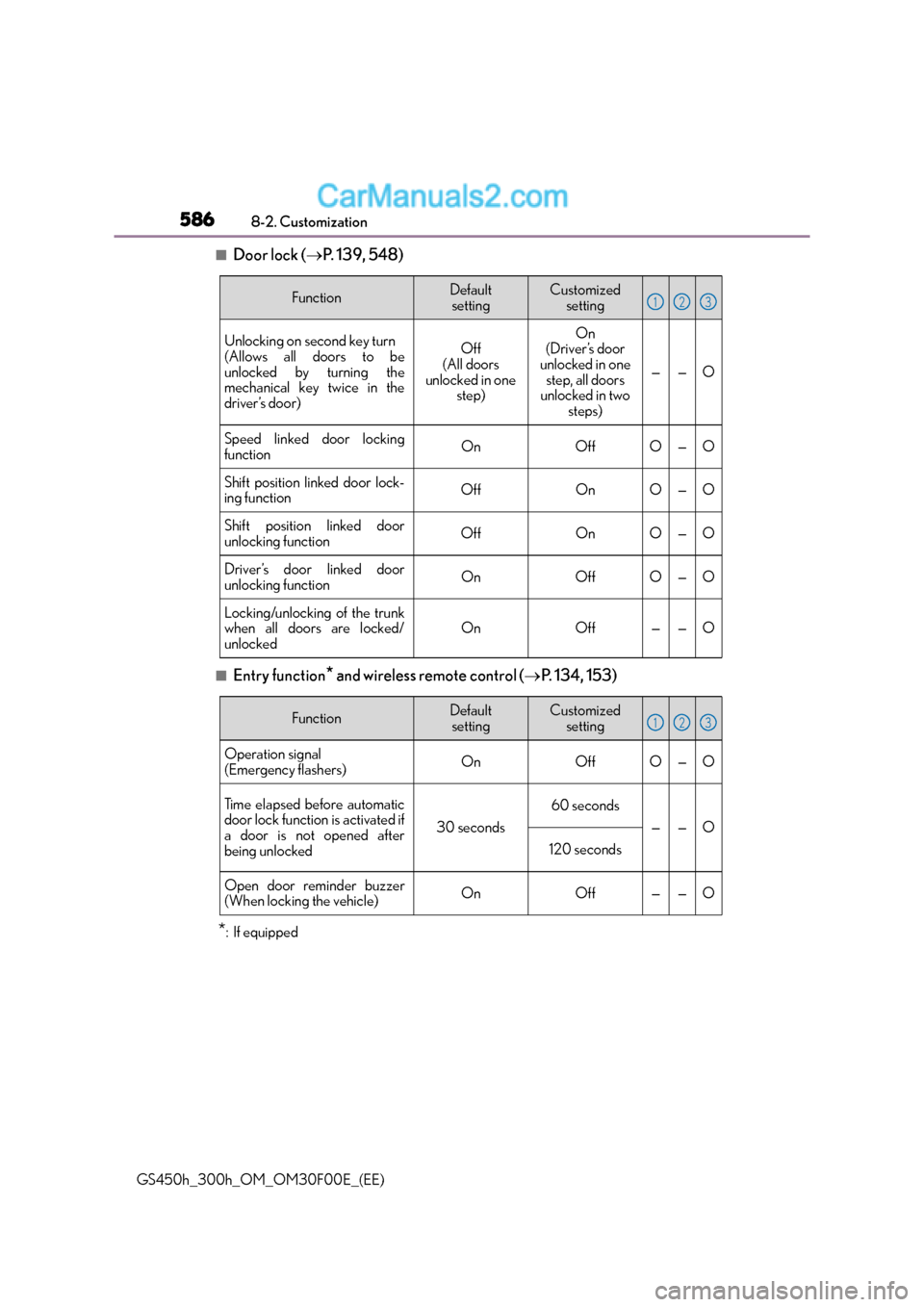

5868-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
■Door lock ( →P. 1 3 9 , 5 4 8 )
■Entry function* and wireless remote control ( →P. 1 3 4 , 1 5 3 )
*: If equipped
FunctionDefault
settingCustomized setting
Unlocking on second key turn
(Allows all doors to be
unlocked by turning the
mechanical key twice in the
driver’s door)Off
(All doors
unlocked in one step)On
(Driver’s door
unlocked in one
step, all doors
unlocked in two steps)
——O
Speed linked door locking
functionOnOffO—O
Shift position linked door lock-
ing functionOffOnO—O
Shift position linked door
unlocking functionOffOnO—O
Driver’s door linked door
unlocking functionOnOffO—O
Locking/unlocking of the trunk
when all doors are locked/
unlockedOnOff——O
123
FunctionDefaultsettingCustomized setting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated if
a door is not opened after
being unlocked
30 seconds
60 seconds
——O
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff——O
123

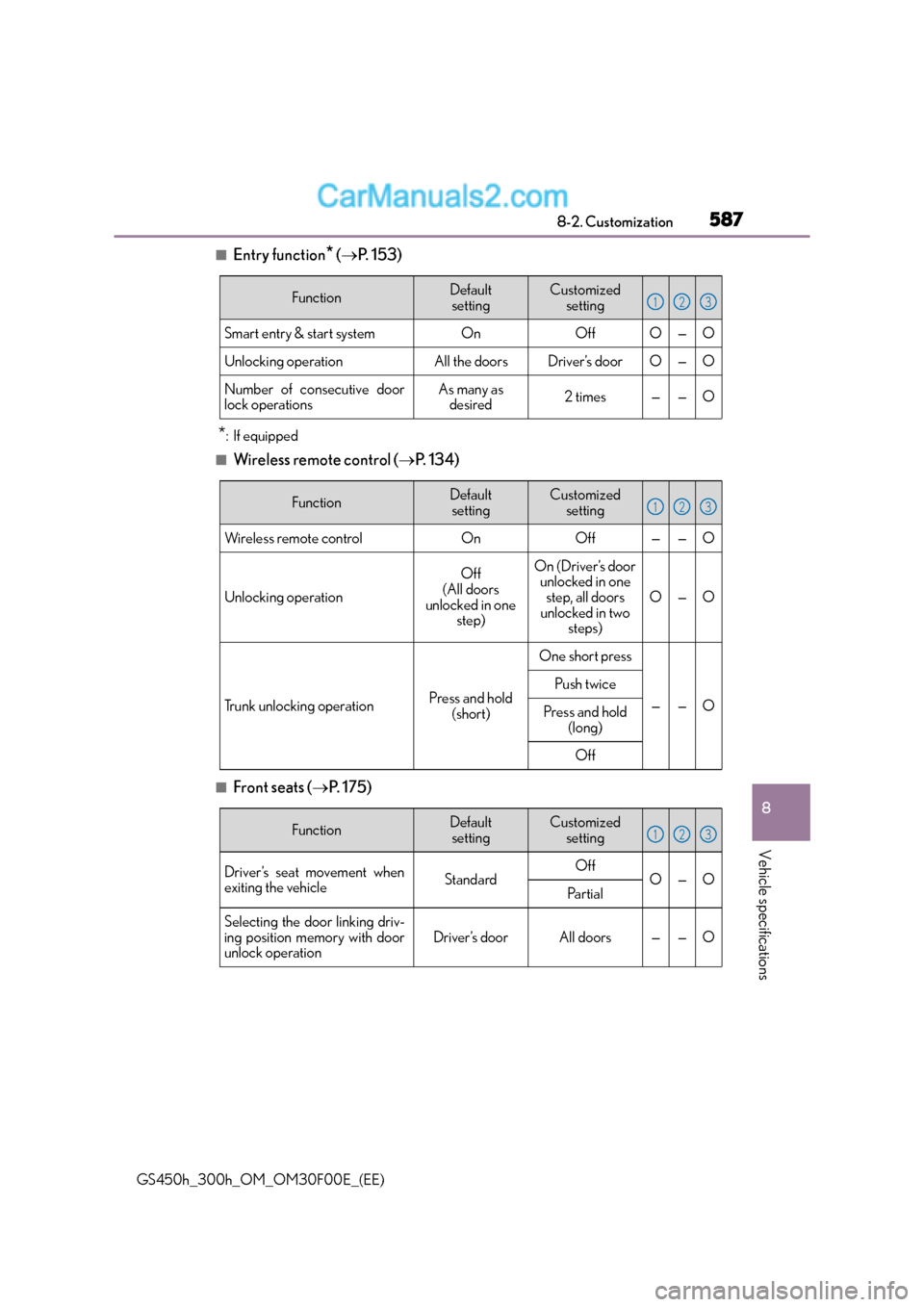

587
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
■Entry function* (
→ P. 1 5 3 )
*: If equipped
■Wireless remote control ( →P. 1 3 4 )
■Front seats ( →P. 1 7 5 )
FunctionDefault
settingCustomized setting
Smart entry & start systemOnOffO—O
Unlocking operationAll the doorsDriver’s doorO—O
Number of consecutive door
lock operationsAs many as desired2 times——O
123
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Off
(All doors
unlocked in one step)On (Driver’s door unlocked in one step, all doors
unlocked in two steps)
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——O
Push twice
Press and hold (long)
Off
123
FunctionDefaultsettingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffO—OPar t i a l
Selecting the door linking driv-
ing position memory with door
unlock operation
Driver’s doorAll doors——O
123

5888-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
■Outside rear view mirrors ( →P. 1 9 0 )
■Power windows and moon roof* (→ P. 193, 196)
*: If equipped
■Automatic light control system ( →P. 2 3 6 )
FunctionDefault
settingCustomized setting
Automatic mirror folding and
extending operationLinked to the locking/
unlocking of the doorsOff
——OLinked to opera-
tion of the power switch
Linked mirror function when
reversingOnOff——O
123
FunctionDefaultsettingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control linked
operationOffOn——O
Buzzer sounds if operated
using wireless remote controlOnOff——O
123
FunctionDefaultsettingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Follow me home
(Time elapsed before head-
lights automatically turn off)30 seconds
60 seconds
——O90 seconds
120 seconds
Welcome light illumination con-
trolOnOff——O
123

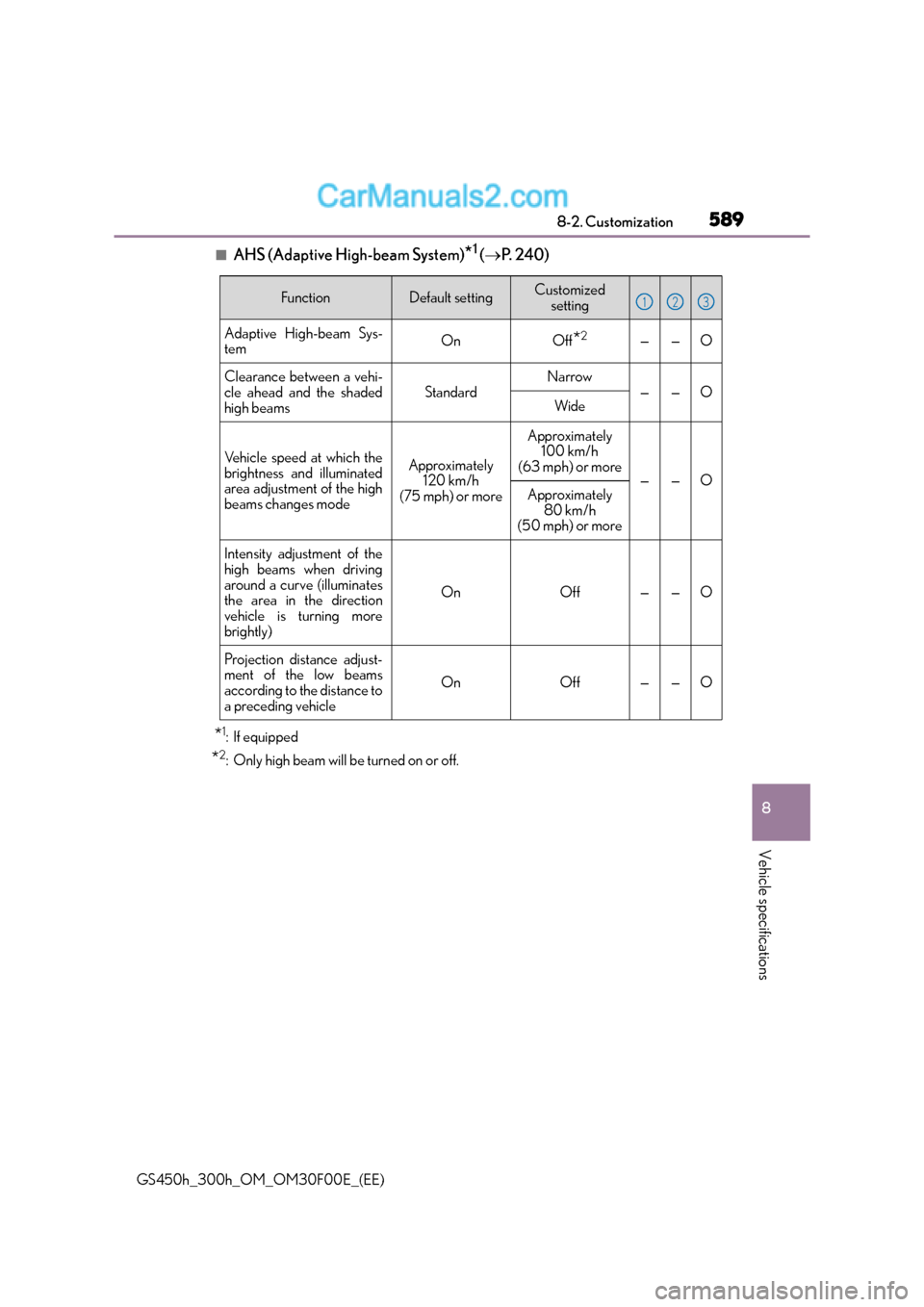

589
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
■AHS (Adaptive High-beam System)*1 (
→ P. 2 4 0 )
*1: If equipped
*2: Only high beam will be turned on or off.
FunctionDefault settingCustomized
setting
Adaptive High-beam Sys-
temOnOff*2——O
Clearance between a vehi-
cle ahead and the shaded
high beamsStandardNarrow——OWide
Vehicle speed at which the
brightness and illuminated
area adjustment of the high
beams changes modeApproximately 120 km/h
(75 mph) or more
Approximately 100 km/h
(63 mph) or more
——OApproximately
80 km/h
(50 mph) or more
Intensity adjustment of the
high beams when driving
around a curve (illuminates
the area in the direction
vehicle is turning more
brightly)
OnOff——O
Projection distance adjust-
ment of the low beams
according to the distance to
a preceding vehicle
OnOff——O
123

5908-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
■Lexus parking assist-sensor*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN- UAL”.
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) ( →P. 3 3 1 )
FunctionDefault
settingCustomized setting
Detection distance of the front
center sensorFarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Lexus parking assist-
sensor is operating)All sensors displayedDisplay offO—O
123
FunctionDefaultsettingCustomized setting
Po w e r t r a i n c o n t r o lNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123
