parking sensors Lexus GS300h 2016 Navigation manual

6
249
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:53
1
2
3
4
5 6
7
8
9
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE
DISPLAY MODE)................................. 260
SCREEN DESCRIPTION ................................... 260
PARKING .................................................................... 261
4. PARALLEL PARKING ........................... 262
VEHICLE MOVEMENT PROCEDURE..... 262
PARKING ................................................................... 264
NARROW MODE ................................................. 269
5. LEXUS PARKING ASSIST MONITOR PRECAUTIONS ............ 271
AREA DISPLAYED ON SCREEN................... 271
THE CAMERA ......................................................... 272
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL ROAD..... 273
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS ......... 274
6. THINGS YOU SHOULD KNOW ..... 276
IF YOU NOTICE ANY SYMPTOMS .......... 276
1. LEXUS PARKING ASSIST-SENSOR .................................. 279
TYPES OF SENSORS .......................................... 279
LEXUS PARKING ASSIST-SENSOR
SWITCH................................................................... 279
DISPLAY .................................................................... 280
SENSOR DETECTION DISPLAY, OBSTACLE DISTANCE ................................. 282
DETECTION RANGE OF THE SENSORS .............................................................. 285
THE LEXUS PARKING ASSIST-SENSOR CAN BE
OPERATED WHEN ......................................... 286
LEXUS PARKING ASSIST-SENSOR DISPLAY ................................................................ 286
SENSOR DETECTION INFORMATION................................................. 286
LEXUS PARKING ASSIST-SENSOR FAILURE WARNING ...................................... 288
2. SETTING UP LEXUS PARKING ASSIST-SENSOR .................................. 290
ALERT VOLUME SETTING ............................ 290
DISPLAY ON/OFF SETTING........................... 291
ALERT DISTANCE SETTING ........................... 291
2LEXUS PARKING ASSIST-
SENSOR
PERIPHERAL MONITORING SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while driving.

279
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
PERIPHERAL MONITORING SYSTEM
6
2. LEXUS PARKING ASSIST-SENSOR
1. LEXUS PARKING ASSIST-SENSOR*1
Front corner sensors
Front centre sensors*
2
Rear corner sensors
Rear centre sensors
1Turns the Lexus parking assist-sensor
on/off.
zWhen on, the indicato r light comes on to
inform the driver that the system is opera-
tional.
The distance from your vehicle to near-
by obstacles when parallel parking or
maneuvering into a garage is measured
by the sensors and communicated via
the multi-information display, Remote
Touch screen and a buzzer. Always
check the surrounding area when using
this system.
TYPES OF SENSORS
*1: If equipped
*2: Except for GS F
LEXUS PARKING ASSIST-
SENSOR SWITCH

280
2. LEXUS PARKING ASSIST-SENSOR
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
■MULTI-INFORMATION DISPLAY
Front corner sensor detection
Front centre sensor detection*
Rear corner sensor detection
Rear centre sensor detection
■Remote Touch SCREEN
X With 8-inch display
zWhen the parking assist monitor system is
not displayed.
A graphic is automatically displayed when
an obstacle is detected. The screen can be
set so that the graphic is not displayed.
(→ P.291)
: Select to mute the buzzer sounds.
z When the rear view monitor system is dis-
played. (insert display)
A simplified image is displayed on the right
upper corner of the Remote Touch screen
when an obstacle is detected.
DISPLAY
When the sensors detect an obstacle, a
graphic is shown on the multi-informa-
tion display and Remote Touch screen
depending on the position and distance
to the obstacle.
*: Except for GS F

283
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6

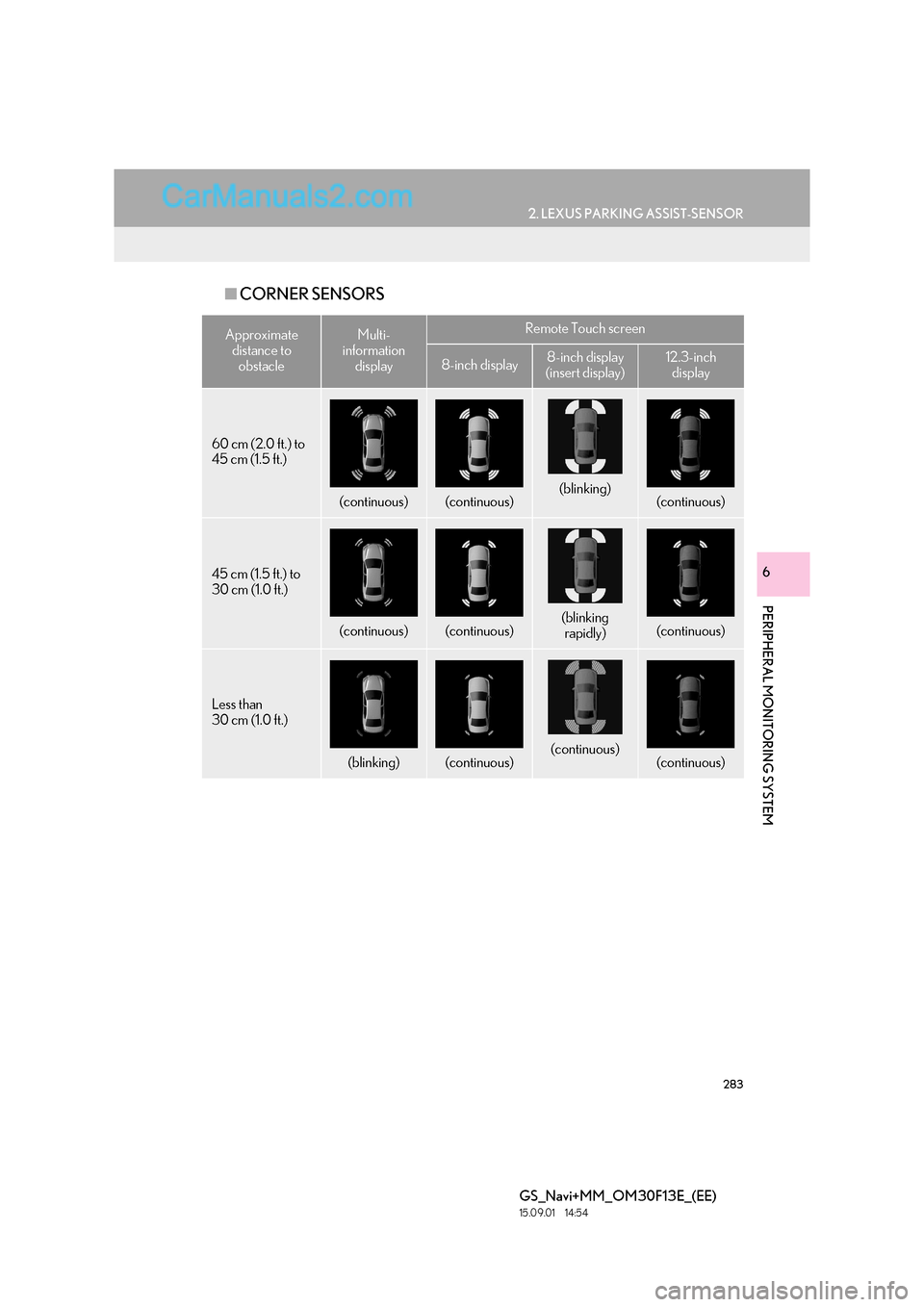

■CORNER SENSORS
Approximate
distance to obstacleMulti-
information displayRemote Touch screen
8-inch display8-inch display
(insert display)12.3-inch display
60 cm (2.0 ft.) to
45 cm (1.5 ft.)
(continuous)(continuous)(blinking)(continuous)
45 cm (1.5 ft.) to
30 cm (1.0 ft.)
(continuous)(continuous)(blinking rapidly)(continuous)
Less than
30 cm (1.0 ft.)
(blinking)(continuous)(continuous)(continuous)

285
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
■BUZZER OPERATION AND
DISTANCE TO AN OBSTACLE
zThe buzzer beeps faster as the vehicle
approaches an obstacle.
When the vehicle comes within the follow-
ing distance of the obstacle, the buzzer
sounds continuously:
• Front centre sensors (Except for GS F):
Approximately 30 cm (1.0 ft.)
• Corner sensors: Approximately 30 cm (1.0 ft.)
• Rear centre sensors: Approximately 35 cm (1.1 ft.)
z When 2 or more obstacles are detected
simultaneously, the buzzer system
responds to the nearest obstacle. If one or
both come within the above distances, the
beep will repeat a long tone, followed by
fast beeps.
Approximately 100 cm (3.3 ft.)*
Approximately 150 cm (4.9 ft.)
Approximately 60 cm (2.0 ft.)
zThe diagram shows the detection range of
the sensors. Note that the sensors cannot
detect obstacles that are extremely close to
the vehicle.
z The range of the sensors may change
depending on the shape of the object etc.
A buzzer sounds when the sensors are
operating.
DETECTION RANGE OF THE
SENSORS
*: Except for GS F

286
2. LEXUS PARKING ASSIST-SENSOR
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
zFront centre sensors:
• The engine switch is in
IGNITION ON mode.
• The shift lever is in a position other than P or R.
• The vehicle speed is less than about 10 km/h (6 mph).
z Front corner sensors:
• The engine switch is in
IGNITION ON mode.
• The shift lever is in a position other than P.
• The vehicle speed is less than about 10 km/h (6 mph).
z Rear corner and rear centre sensors:
• The engine switch is in
IGNITION ON mode.
• The shift lever is in R. z
There is dirt, snow or ice on the sensor.
(Wiping the sensors will resolve this prob-
lem.)
z The sensor is frozen. (Thawing the area will
resolve this problem.)
In especially cold weather, if a sensor is fro-
zen the screen may show an abnormal dis-
play, or obstacles may not be detected.
z The sensor is covered in any way.
z The vehicle is leaning considerably to one
side.
z On an extremely bumpy road, on an
incline, on grav el, or on grass.
z The vicinity of the vehicle is noisy due to
vehicle horns, motorcycle engines, air
brakes of large vehicles, or other loud
noises producing ultrasonic waves.
z There is another vehicle equipped with
parking assist sensors in the vicinity.
z The sensor is coated with a sheet of spray
or heavy rain.
z The vehicle is equipped with a fender pole
or wireless antenna.
THE LEXUS PARKING ASSIST-
SENSOR CAN BE OPERATED
WHEN
LEXUS PARKING ASSIST-
SENSOR DISPLAY
When an obstacle is detected while the
rear view monitor system, is in use, the
warning indicator will appear in the top
right of the screen even if the display set-
ting has been set to off.
SENSOR DETECTION
INFORMATION
The sensor’s detection areas are limited
to the areas around the vehicle’s
bumpers.
Certain vehicle conditions and the sur-
rounding environment may affect the
ability of the sensor to correctly detect
obstacles. Particular instances where
this may occur are listed below.

287
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
zTowing eyelets are installed.
z The bumper or sensor receives a strong
impact.
z The vehicle is approaching a tall or curved
curb.
z In harsh sunlight or intense cold weather.
z The area directly under the bumpers is not
detected.
z If obstacles draw too close to the sensor.
z A non-genuine Lexus suspension (lowered
suspension etc.) is installed.
People may not be detected if they are
wearing certain types of clothing.
z The shape of the obstacle may prevent a
sensor from detecting it. Pay particular
attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that
absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections project- ing outwards in the direction of your vehi-
cle
z The following situations may occur during
use.
• Depending on the shape of the obstacle
and other factors, the detection distance
may shorten, or detection may be impos-
sible.
• Obstacles may not be detected if they are too close to the sensor. • There will be a short delay between
obstacle detection and display. Even at
slow speeds, there is a possibility that the
obstacle will come within the sensor’s
detection areas before the display is
shown and the warning beep sounds.
• Thin posts or objects lower than the sen- sor may not be detected for collision
when approached, even if they have been
detected once.
• It might be difficult to hear beeps due to the volume of audio system or air flow
noise of air conditioning system.
z In addition to the examples above, there
are instances in which, because of their
shapes, signs and other objects may be
judged by the sensor to be closer than
they are.
WA R N I N G
●When using the Lexus parking assist-sen-
sor
Observe the following precautions.
Failing to do so may result in the vehicle
being unable to be driven safely and pos-
sibly cause an accident.
• Do not use the sensor at speeds in
excess of 10 km/h (6 mph).
• The sensors’ detection areas and reac- tion times are limited. When moving
forward or reversing, check the areas
surrounding the vehicle (especially the
sides of the vehicle) for safety, and drive
slowly, using the brake to control the
vehicle’s speed.
• Do not install accessories within the sensors’ detection areas.

289
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
zIf the location of sonar that cannot properly
detect obstacles is shown, remove the for-
eign matter from the sensor.
z If the failure warning does not go off even
after the foreign matter is removed, the
parking assist-sensor may be malfunction-
ing. Have it checked by any authorized
Lexus dealer or repairer, or another duly
qualified and equipped professional. z
All sonar sensors display abnormally. Have
your vehicle inspected by any authorized
Lexus dealer or repairer, or another duly
qualified and equipped professional.
WHEN SNOWFLAKES OR
MUD GETS ON THE SENSORSWHEN THE SENSOR IS
MALFUNCTIONING

291
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
1Display the “LEXUS park assist set-
tings” screen. (→P.290)
2Select “Display off” .
1Display the “LEXUS park assist set-
tings” screen. ( →P.290)
2Select “Front” or “Rear” .
zLong distance or short distance can be
selected.
DISPLAY ON/OFF SETTING
On or off can be selected for Lexus
parking assist-sensor display.
INFORMATION
●
When the “Display off” indicator is turned
on, the display of Lexus parking assist-
sensor will be off. Select “Display off”
again to turn the display of Lexus parking
assist-sensor on.
ALERT DISTANCE SETTING
Front or rear centre sensors display and
tone indication can be set.
*
*: Except for GS F

372
ALPHABETICAL INDEX
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:53
L
Lexus parking assist monitor ..............................250Driving precautions...........................................250
Lexus parking assist monitor .........................250
Screen display ..................................................... 252
Switching the parking mode screen........... 256
Using the system when parallel parking...............................................................255
Using the system when perpendicular parking............................................................... 254
Lexus parking assist monitor precautions ......271
Area displayed on screen.................................271
Differences between the screen and the actual road................................................ 273
The camera ........................................................... 272
When approaching three-dimensional objects................................................................ 274
Lexus parking assist-sensor................................ 279 Detection range of the sensors ....................285
Display ................................................................... 280
Lexus parking assist-sensor display ...........286
Lexus parking assist-sensor failure warning ............................................................. 288
Lexus parking assist-sensor switch............. 279
Sensor detection display, obstacle distance .............................................................282
Sensor detection information .......................286
The Lexus parking assist-sensor can be operated when ...............................................286
Types of sensors ................................................. 279
Linking multi-information display and navigation system.................................................. 44
M
Map database version and covered area.......163
About the map data ............................................164
Map data .................................................................163
Map screen information ......................................... 96 Displaying information about the icon where the cursor is set................................... 98
Displaying POI icons........................................... 96
Route trace ...............................................................97
Standard map icons ............................................. 99
Map screen operation ............................................. 90 Adjusting location in small increments ........ 95
Current position display .................................... 90
Map scale ...................................................................91
Orientation of the map ....................................... 92
Screen scroll operation ...................................... 94
Switching map configurations ......................... 92
Media operation....................................................... 183
“Menu” screen .............................................................. 14 Status display ............................................................ 16
My memory .................................................................. 131
My memory settings ................................................. 131 Backup to a USB memory ............................... 144
Copying from a USB memory .......................146
Setting up area to avoid ................................... 140
Setting up home ...................................................132
Setting up memory points ................................136
Setting up quick access.....................................134
Setting up route trace ........................................142
N
Navigation operation ............................................... 24
Navigation settings .................................................. 147
Navigation settings screen .............................. 147
Navigation system ..................................................... 83
Network settings........................................................ 45
