5617-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)

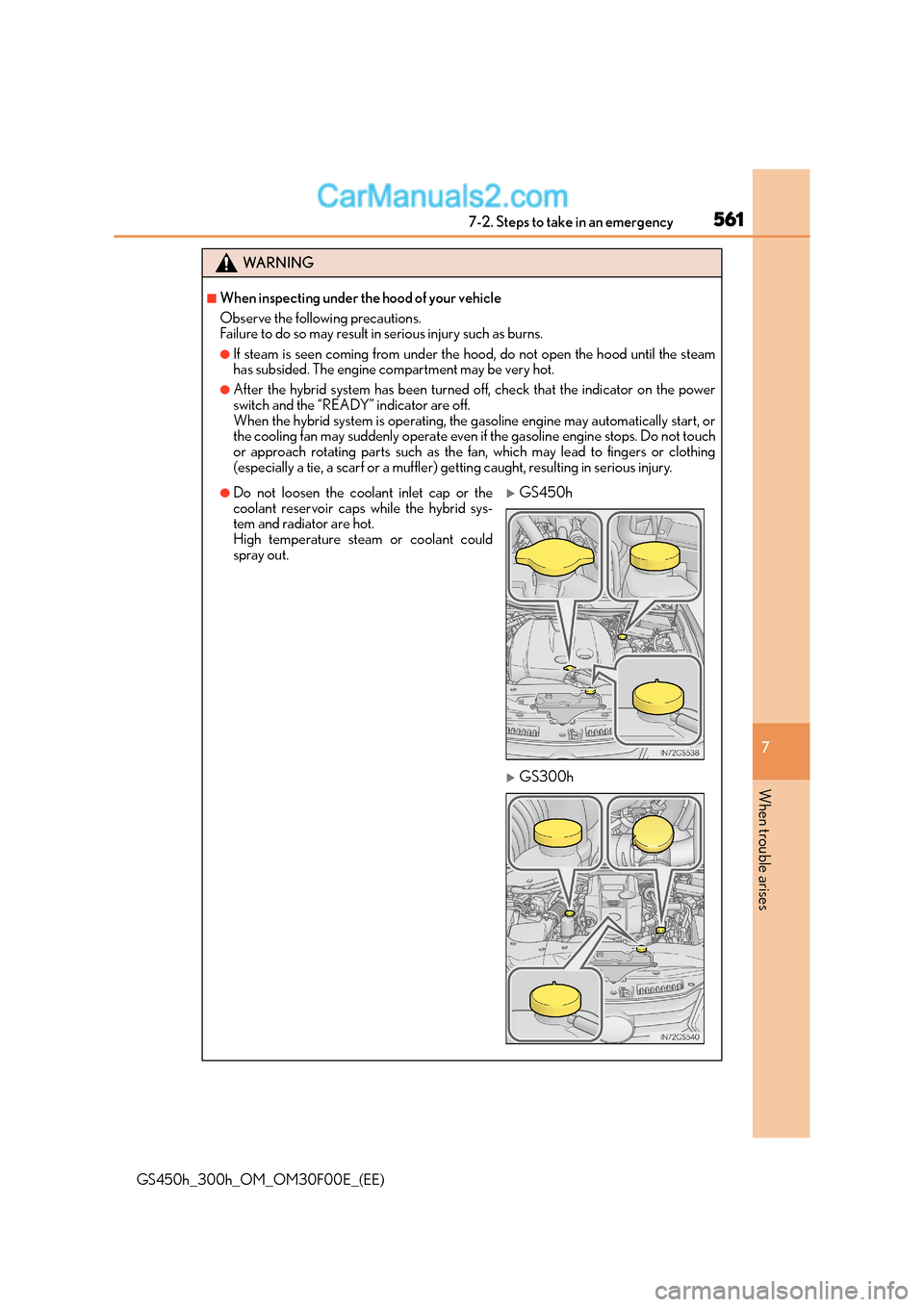

WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the power
switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fan, which may lead to fingers or clothing
(especially a tie, a scarf or a muffler) ge tting caught, resulting in serious injury.
●Do not loosen the coolant inlet cap or the
coolant reservoir caps while the hybrid sys-
tem and radiator are hot.
High temperature steam or coolant could
spray out.XGS450h
XGS300h

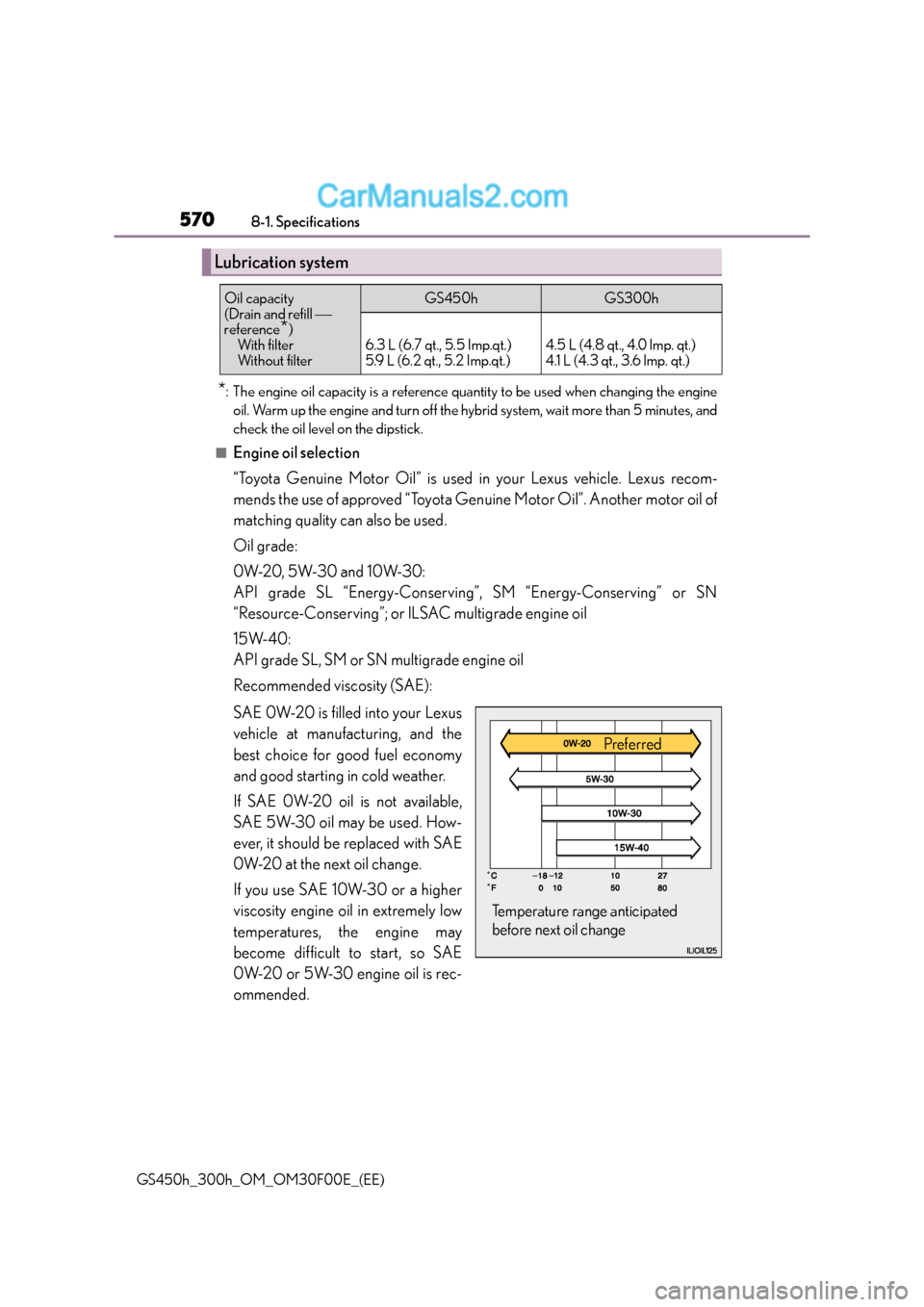

5708-1. Specifications
GS450h_300h_OM_OM30F00E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Ge nuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
Oil capacity
(Drain and refill 
reference
*)
With filter
Without filter
GS450hGS300h
6.3 L (6.7 qt., 5.5 Imp.qt.)
5.9 L (6.2 qt., 5.2 Imp.qt.)4.5 L (4.8 qt., 4.0 lmp. qt.)
4.1 L (4.3 qt., 3.6 lmp. qt.)
Temperature range anticipated
before next oil change Preferred

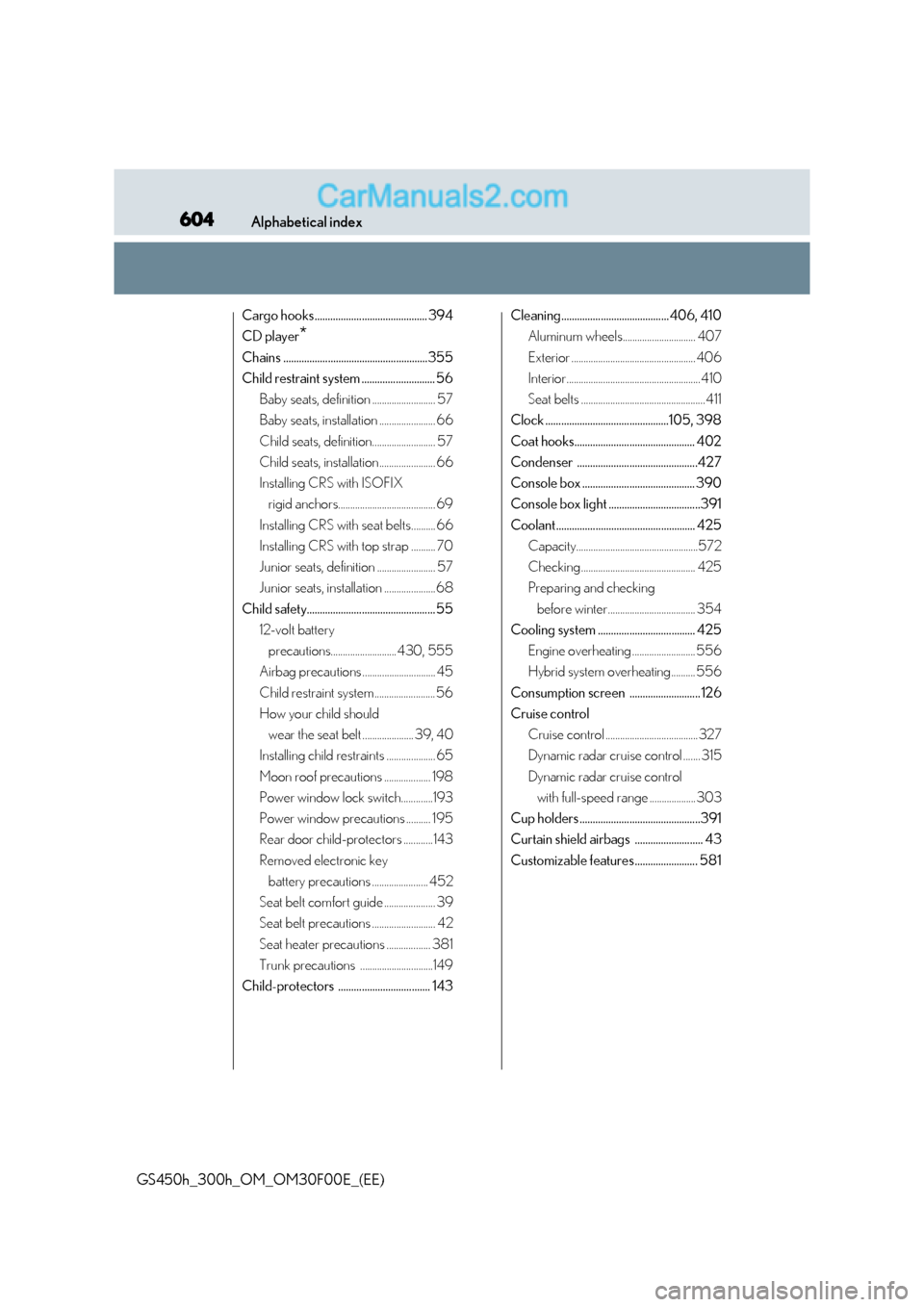

604Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Cargo hooks........................................... 394
CD player
*
Chains .......................................................355
Child restraint system ............................ 56Baby seats, definition .......................... 57
Baby seats, installation ....................... 66
Child seats, definition.......................... 57
Child seats, installation....................... 66
Installing CRS with ISOFIX rigid anchors........................................ 69
Installing CRS with seat belts.......... 66
Installing CRS with top strap .......... 70
Junior seats, definition ........................ 57
Junior seats, installation .....................68
Child safety................................................. 55 12-volt battery
precautions........................... 430, 555
Airbag precautions .............................. 45
Child restraint system......................... 56
How your child should
wear the seat belt ..................... 39, 40
Installing child restraints .................... 65
Moon roof precautions ................... 198
Power window lock switch.............193
Power window precautions .......... 195
Rear door child-protectors ............143
Removed electronic key battery precautions ....................... 452
Seat belt comfort guide ..................... 39
Seat belt precautions .......................... 42
Seat heater precautions .................. 381
Trunk precautions ..............................149
Child-protectors ................................... 143 Cleaning.........................................406, 410
Aluminum wheels.............................. 407
Exterior ................................................... 406
Interior.......................................................410
Seat belts ................................................... 411
Clock ...............................................105, 398
Coat hooks.............................................. 402
Condenser ..............................................427
Console box ........................................... 390
Console box light ...................................391
Coolant..................................................... 425 Capacity..................................................572
Checking ............................................... 425
Preparing and checking
before winter.................................... 354
Cooling system ..................................... 425
Engine overheating .......................... 556
Hybrid system overheating.......... 556
Consumption screen ........................... 126
Cruise control Cruise control ......................................327
Dynamic radar cruise control ....... 315
Dynamic radar cruise control with full-speed range ................... 303
Cup holders ..............................................391
Curtain shield airbags .......................... 43
Customizable features........................ 581

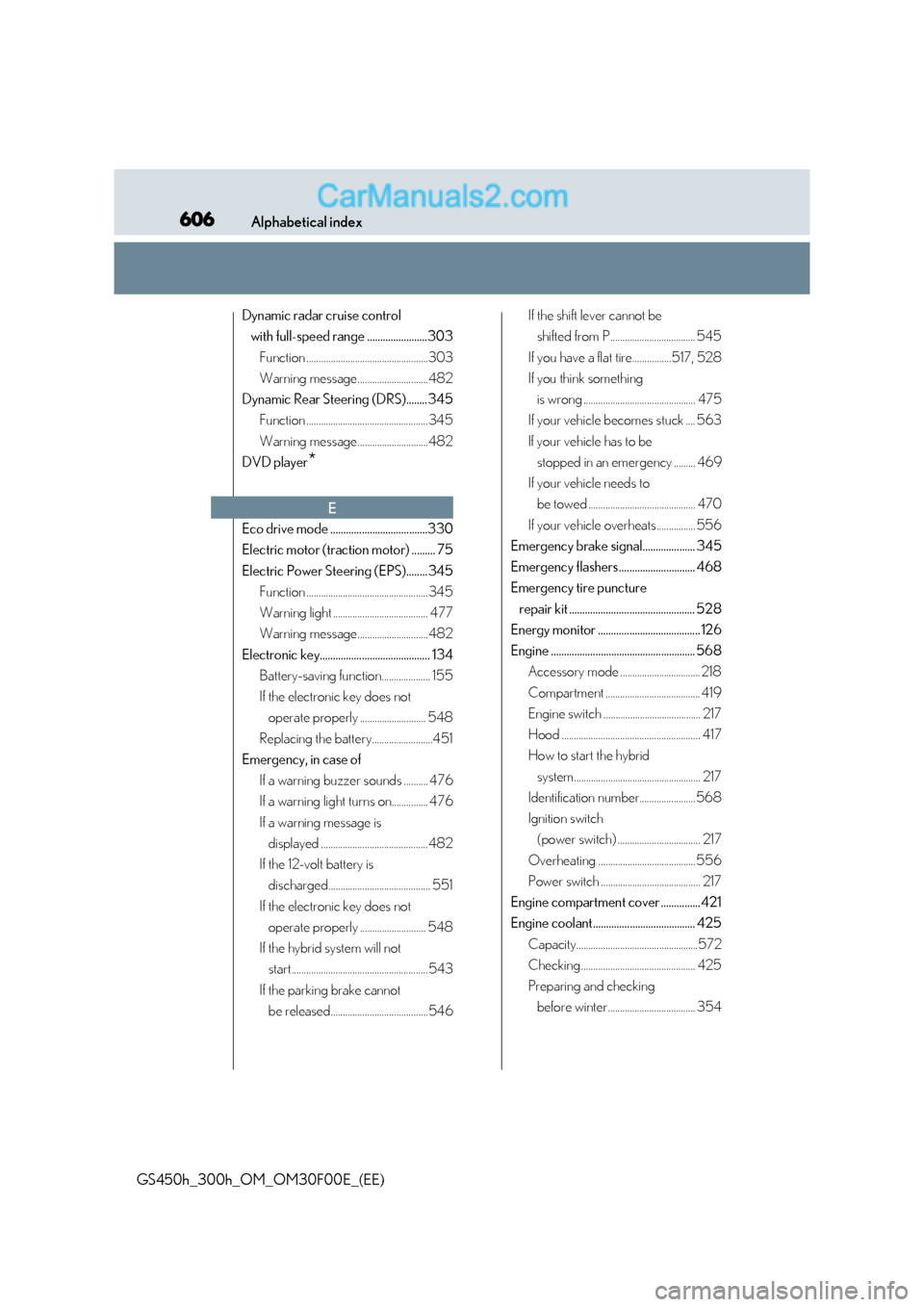

606Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Dynamic radar cruise control with full-speed range .......................303
Function ..................................................303
Warning message.............................482
Dynamic Rear Steering (DRS)........345 Function ..................................................345
Warning message.............................482
DVD player
*
Eco drive mode .....................................330
Electric motor (traction motor) ......... 75
Electric Power Steering (EPS)........345 Function ..................................................345
Warning light ....................................... 477
Warning message.............................482
Electronic key.......................................... 134 Battery-saving function.................... 155
If the electronic key does not operate properly ........................... 548
Replacing the battery.........................451
Emergency, in case of
If a warning buzzer sounds .......... 476
If a warning light turns on............... 476
If a warning message is displayed ............................................ 482
If the 12-volt battery is discharged.......................................... 551
If the electronic key does not operate properly ........................... 548
If the hybrid system will not start ........................................................543
If the parking brake cannot be released........................................546 If the shift lever cannot be
shifted from P................................... 545
If you have a flat tire................517, 528
If you think something is wrong .............................................. 475
If your vehicle becomes stuck .... 563
If your vehicle has to be stopped in an emergency ......... 469
If your vehicle needs to be towed ............................................ 470
If your vehicle overheats................ 556
Emergency brake signal.................... 345
Emergency flashers............................. 468
Emergency tire puncture
repair kit ................................................ 528
Energy monitor ....................................... 126
Engine ....................................................... 568 Accessory mode ................................. 218
Compartment ....................................... 419
Engine switch ........................................ 217
Hood ......................................................... 417
How to start the hybrid
system.................................................... 217
Identification number.......................568
Ignition switch (power switch) .................................. 217
Overheating ........................................ 556
Power switch ......................................... 217
Engine compartment cover ...............421
Engine coolant....................................... 425 Capacity..................................................572
Checking ............................................... 425
Preparing and checking before winter.................................... 354
E

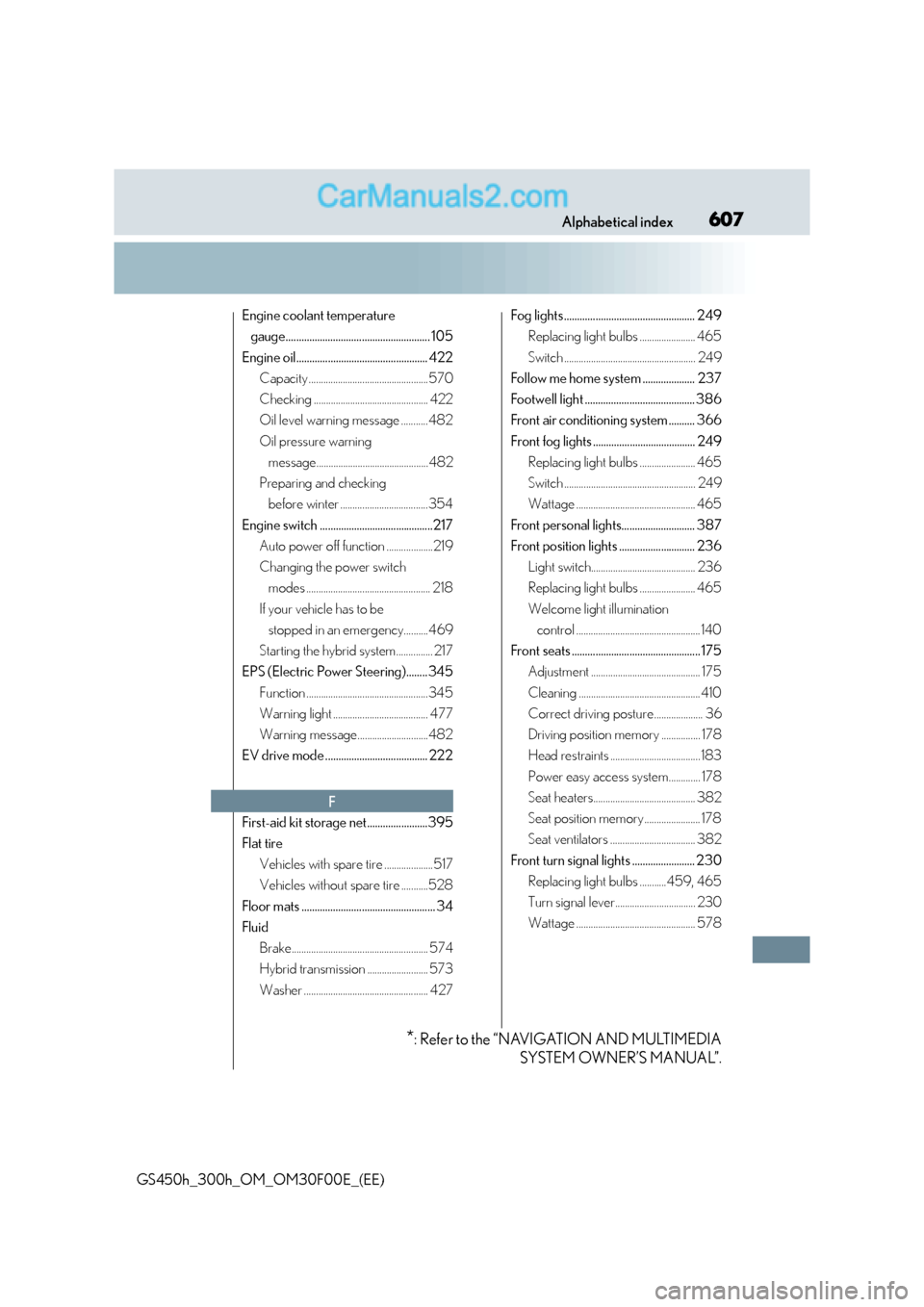

607Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Engine coolant temperature gauge....................................................... 105
Engine oil.................................................. 422 Capacity .................................................570
Checking ............................................... 422
Oil level warning message ........... 482
Oil pressure warning message..............................................482
Preparing and checking before winter ....................................354
Engine switch ...........................................217 Auto power off function ...................219
Changing the power switch modes ................................................... 218
If your vehicle has to be stopped in an emergency..........469
Starting the hybrid system............... 217
EPS (Electric Power Steering)........345
Function ..................................................345
Warning light ....................................... 477
Warning message.............................482
EV drive mode ....................................... 222
First-aid kit storage net.......................395
Flat tire
Vehicles with spare tire ....................517
Vehicles without spare tire ...........528
Floor mats ................................................... 34
Fluid Brake........................................................ 574
Hybrid transmission ......................... 573
Washer ................................................... 427 Fog lights .................................................. 249
Replacing light bulbs ....................... 465
Switch ...................................................... 249
Follow me home system .................... 237
Footwell light .......................................... 386
Front air conditioning system .......... 366
Front fog lights ....................................... 249 Replacing light bulbs ....................... 465
Switch ...................................................... 249
Wattage ................................................. 465
Front personal lights............................ 387
Front position lights ............................. 236 Light switch........................................... 236
Replacing light bulbs ....................... 465
Welcome light illumination control ...................................................140
Front seats ................................................. 175 Adjustment ............................................. 175
Cleaning .................................................. 410
Correct driving posture.................... 36
Driving position memory ................ 178
Head restraints .....................................183
Power easy access system............. 178
Seat heaters.......................................... 382
Seat position memory ....................... 178
Seat ventilators ................................... 382
Front turn signal lights ........................ 230 Replacing light bulbs ...........459, 465
Turn signal lever................................. 230
Wattage ................................................. 578
F
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
