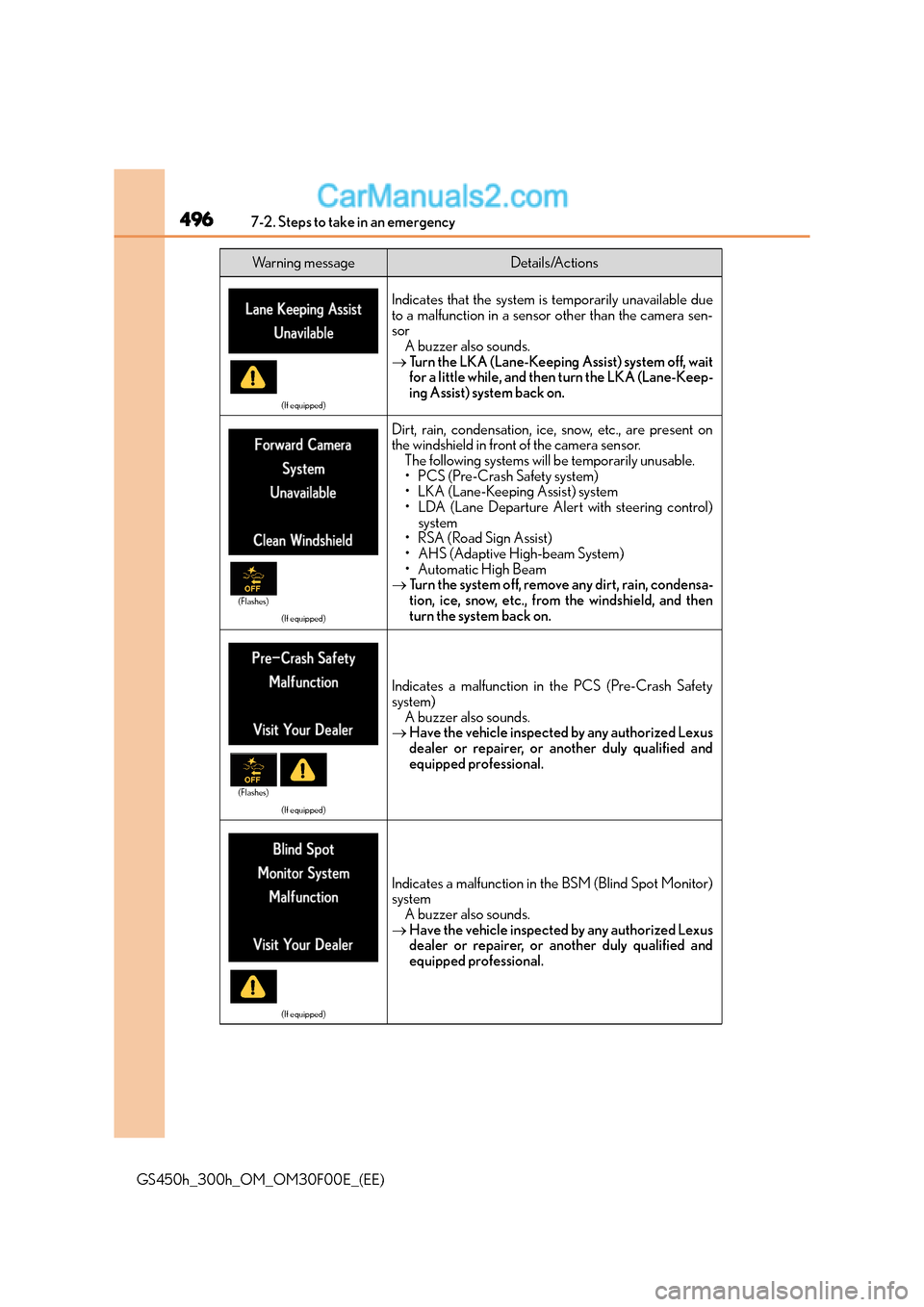

4967-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
→ Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor.
The following systems will be temporarily unusable.
• PCS (Pre-Crash Safety system)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control)
system
• RSA (Road Sign Assist)
• AHS (Adaptive High-beam System)
•Automatic High Beam
→ Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash Safety
system)
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

5077-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailableA buzzer also sounds.
→ When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption
→ Turn off unnecessary electronic equipment to
reduce power consumption.
Please wait until the power supply returns to nor-
mal.
If this item is frequently displayed, have the vehicle
inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped
professional.
(If equipped)
Indicates that part of the PCS (Pre-Crash Safety system)
sensor is dirty, covered with ice, etc.
A buzzer also sounds.
→ Remove any dirt, ice, etc.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

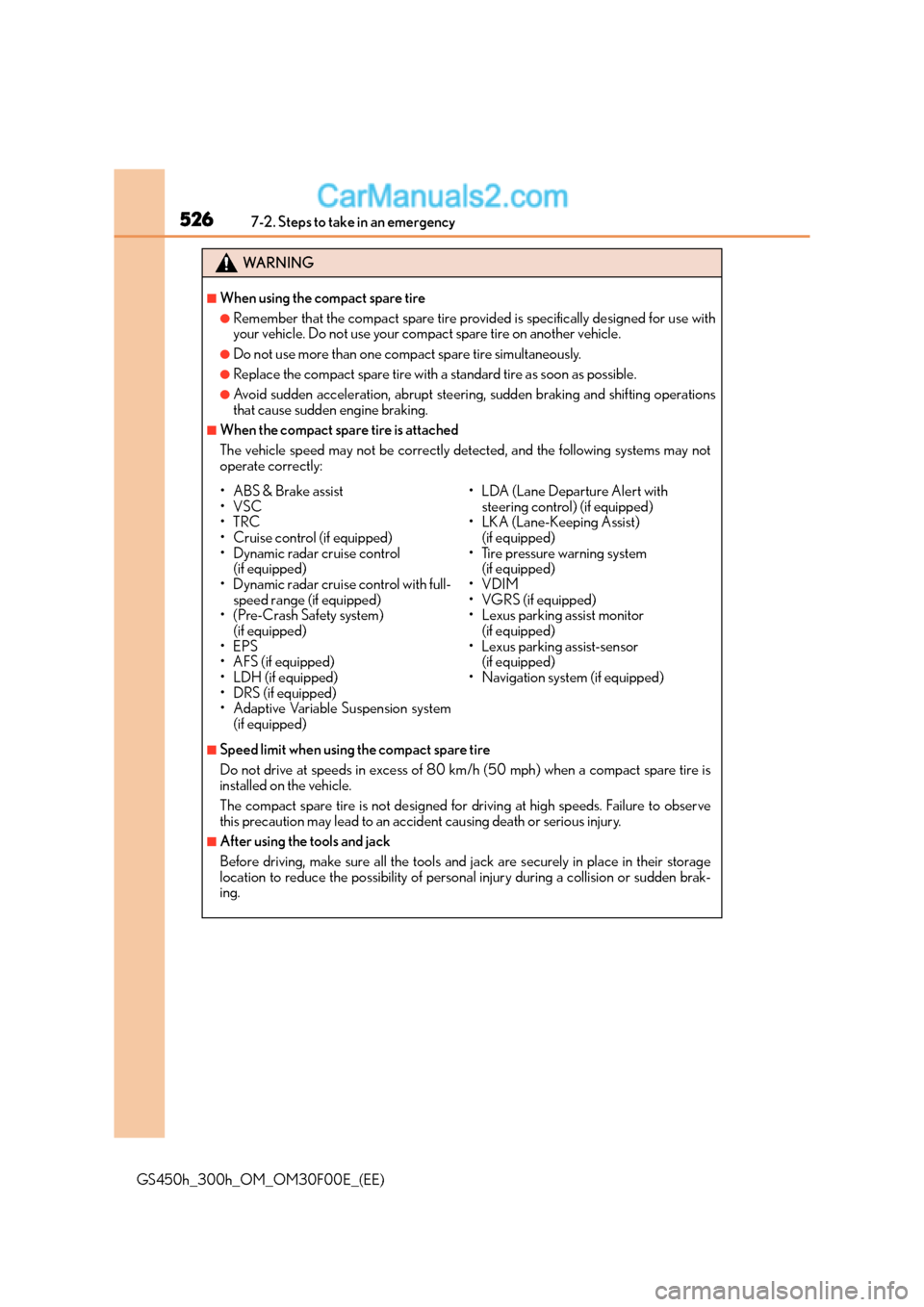

5267-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
WA R N I N G
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use with
your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steeri ng, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
• Dynamic radar cruise control with full-
speed range (if equipped)
• (Pre-Crash Safety system) (if equipped)
•EPS
•AFS (if equipped)
• LDH (if equipped)
• DRS (if equipped)
• Adaptive Variable Suspension system (if equipped) • LDA (Lane Departure Alert with
steering control) (if equipped)
• LKA (Lane-Keeping Assist) (if equipped)
• Tire pressure warning system (if equipped)
•VDIM
• VGRS (if equipped)
• Lexus parking assist monitor (if equipped)
• Lexus parking assist-sensor (if equipped)
• Navigation system (if equipped)

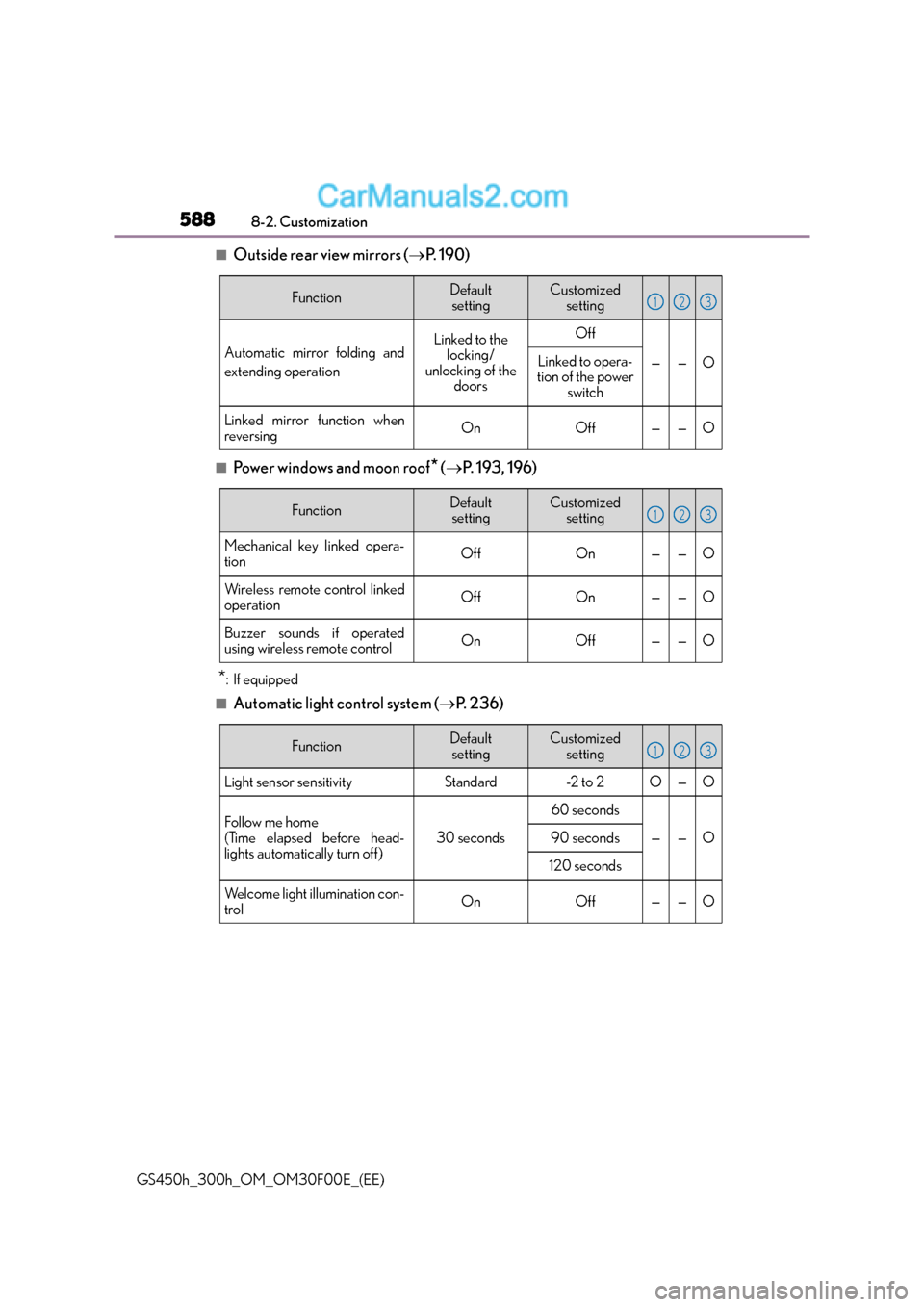

5888-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
■Outside rear view mirrors ( →P. 1 9 0 )
■Power windows and moon roof* (→ P. 193, 196)
*: If equipped
■Automatic light control system ( →P. 2 3 6 )
FunctionDefault
settingCustomized setting
Automatic mirror folding and
extending operationLinked to the locking/
unlocking of the doorsOff
——OLinked to opera-
tion of the power switch
Linked mirror function when
reversingOnOff——O
123
FunctionDefaultsettingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control linked
operationOffOn——O
Buzzer sounds if operated
using wireless remote controlOnOff——O
123
FunctionDefaultsettingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Follow me home
(Time elapsed before head-
lights automatically turn off)30 seconds
60 seconds
——O90 seconds
120 seconds
Welcome light illumination con-
trolOnOff——O
123

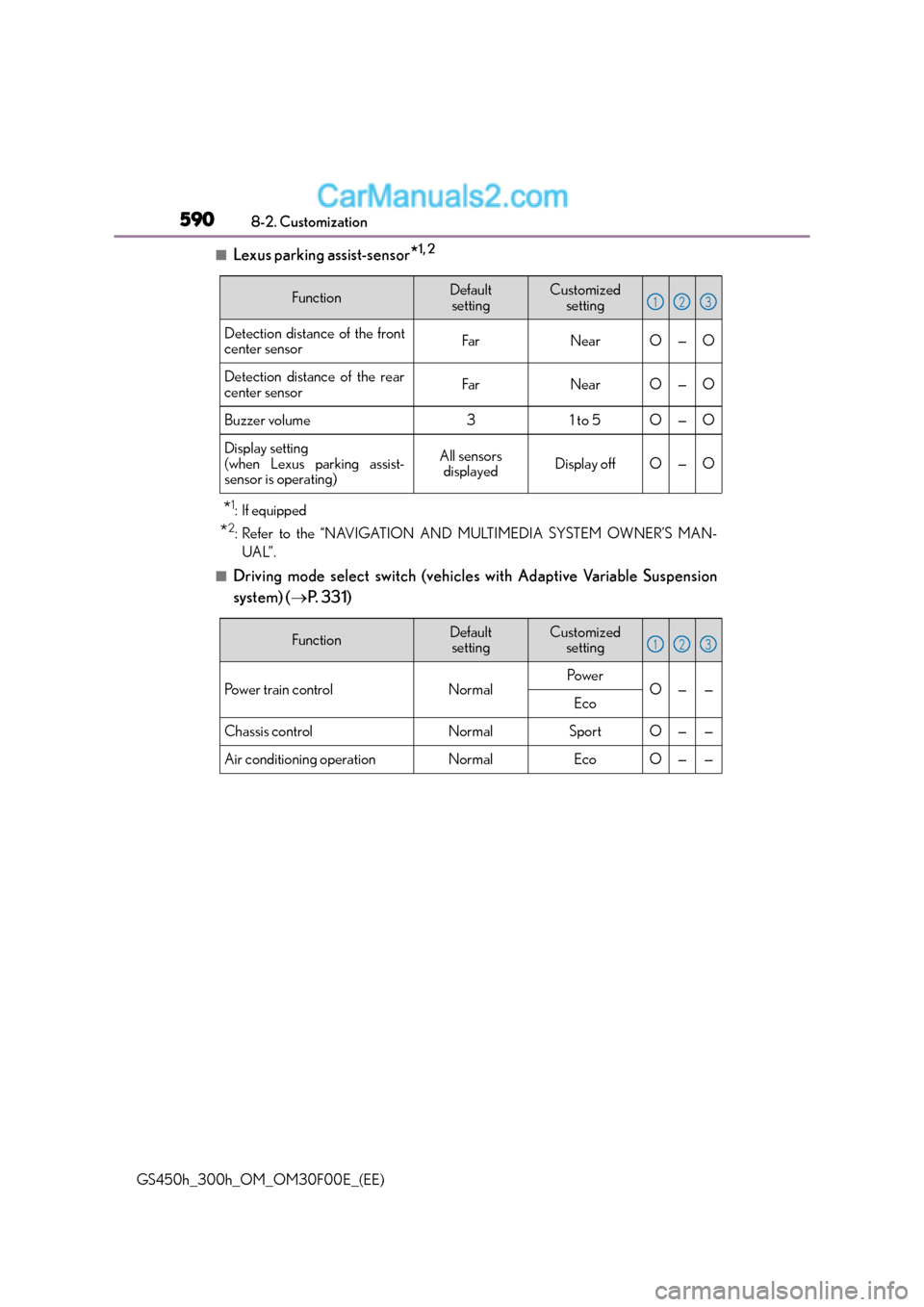

5908-2. Customization
GS450h_300h_OM_OM30F00E_(EE)
■Lexus parking assist-sensor*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN- UAL”.
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) ( →P. 3 3 1 )
FunctionDefault
settingCustomized setting
Detection distance of the front
center sensorFarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Lexus parking assist-
sensor is operating)All sensors displayedDisplay offO—O
123
FunctionDefaultsettingCustomized setting
Po w e r t r a i n c o n t r o lNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

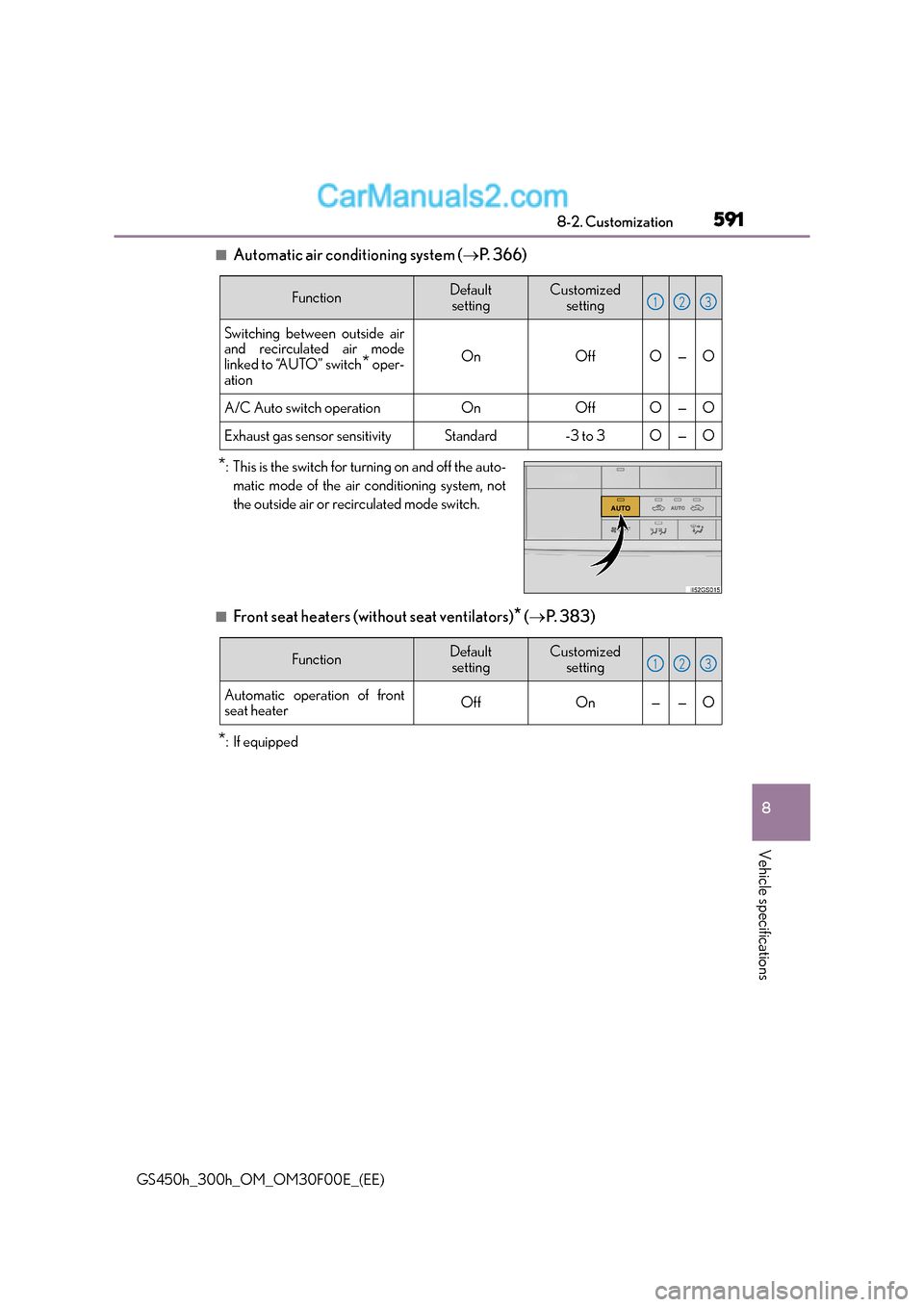

591
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
■Automatic air conditioning system (
→P. 366)
■Front seat heaters (without seat ventilators)* (→ P. 383)
*: If equipped
FunctionDefault
settingCustomized setting
Switching between outside air
and recirculated air mode
linked to “AUTO” switch
* oper-
ationOnOffO—O
A/C Auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
*: This is the switch for turning on and off the auto-
matic mode of the air conditioning system, not
the outside air or recirculated mode switch.
123
FunctionDefaultsettingCustomized setting
Automatic operation of front
seat heaterOffOn——O
123

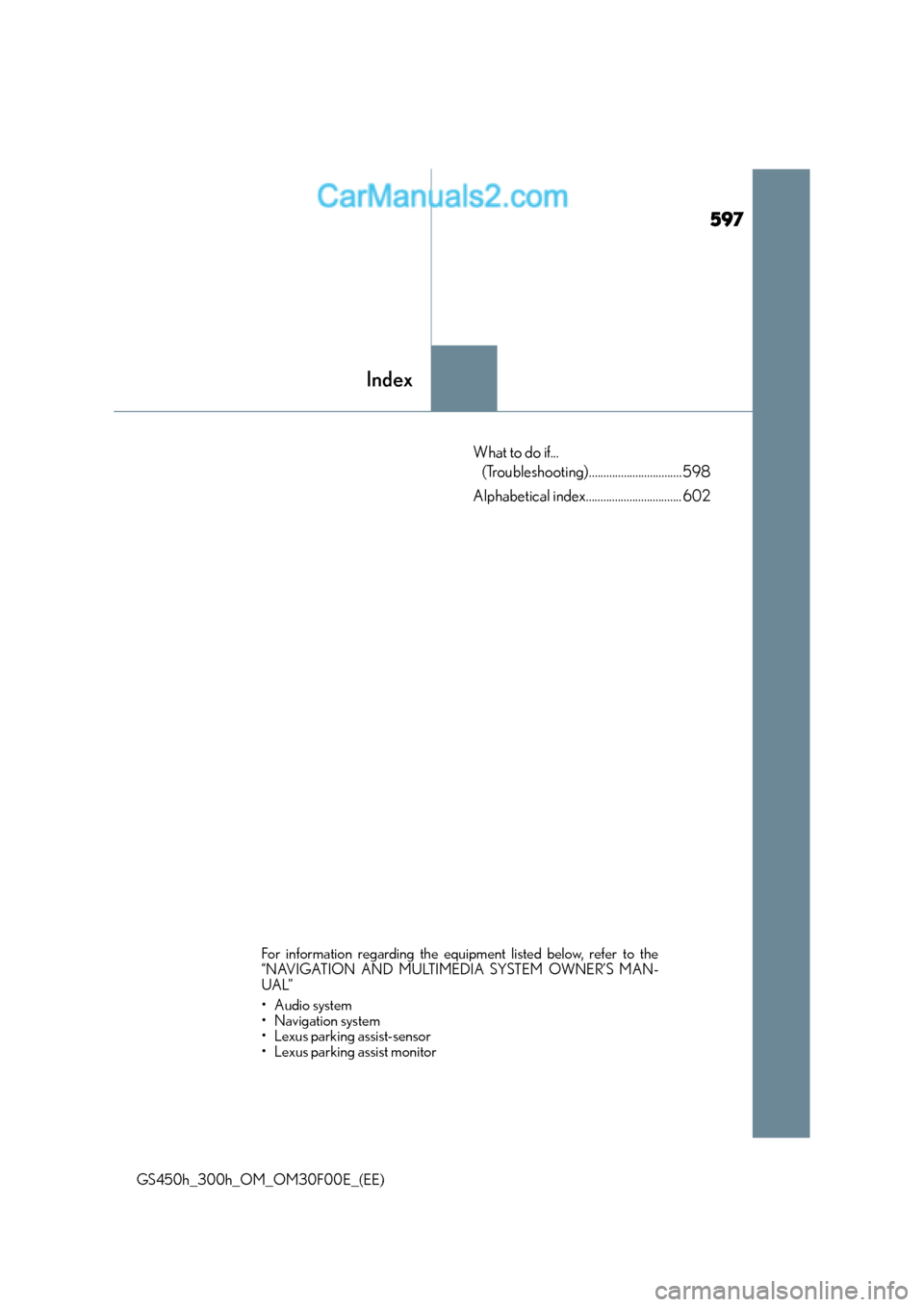

597
Index
GS450h_300h_OM_OM30F00E_(EE)
What to do if... (Troubleshooting)................................598
Alphabetical index................................. 602
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”
• Audio system
•Navigation system
• Lexus parking assist-sensor
• Lexus parking assist monitor

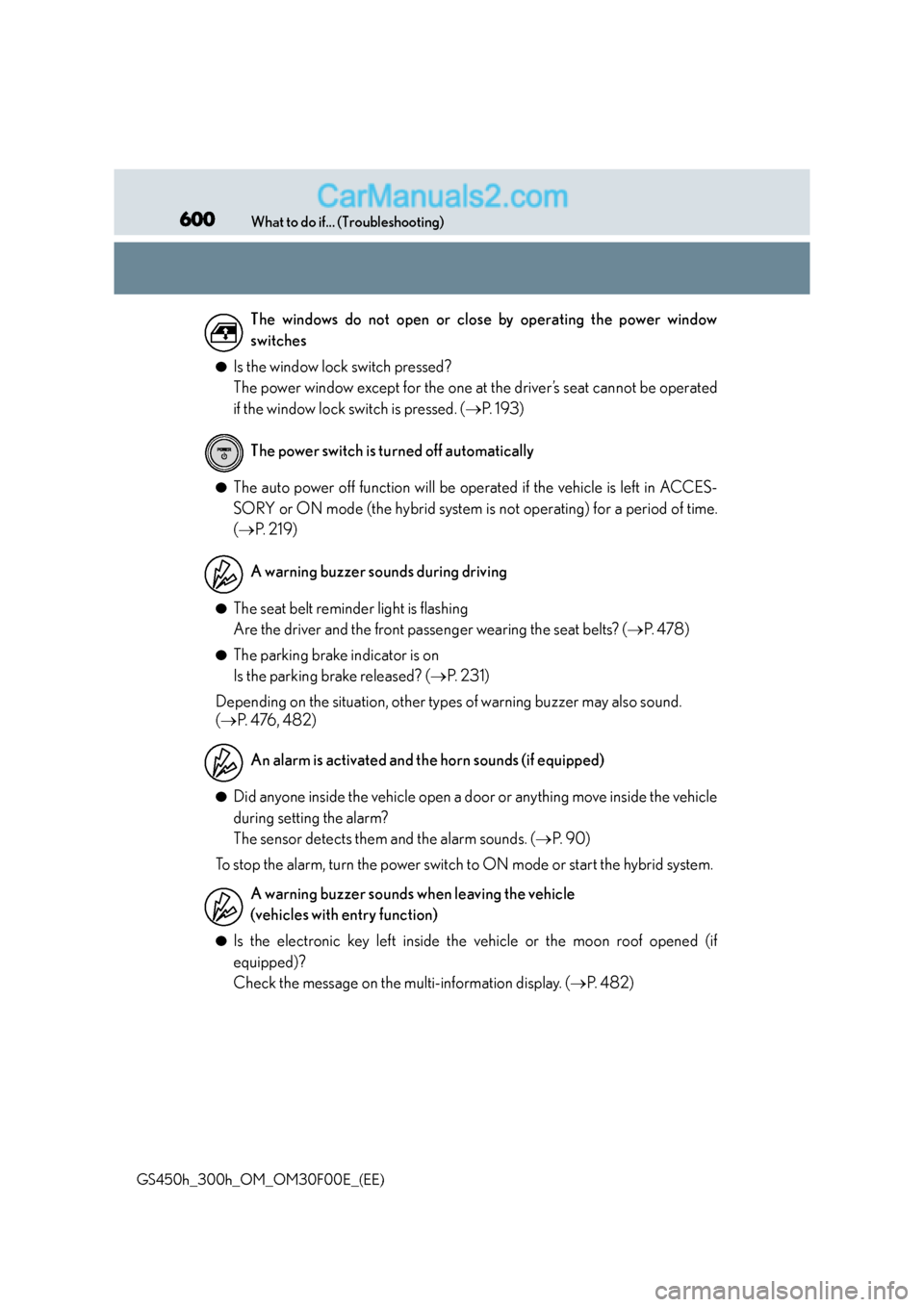

600What to do if... (Troubleshooting)
GS450h_300h_OM_OM30F00E_(EE)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( →P. 1 9 3 )
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of time.
(→ P. 2 1 9 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 4 7 8 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 3 1 )
Depending on the situation, other types of warning buzzer may also sound.
( → P. 4 76 , 4 8 2 )
●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( →P. 9 0 )
To stop the alarm, turn the power switch to ON mode or start the hybrid system.
●Is the electronic key left inside the vehicle or the moon roof opened (if
equipped)?
Check the message on the multi-information display. ( →P. 4 8 2 )
The windows do not open or close by operating the power window
switches
The power switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th
e horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with entry function)

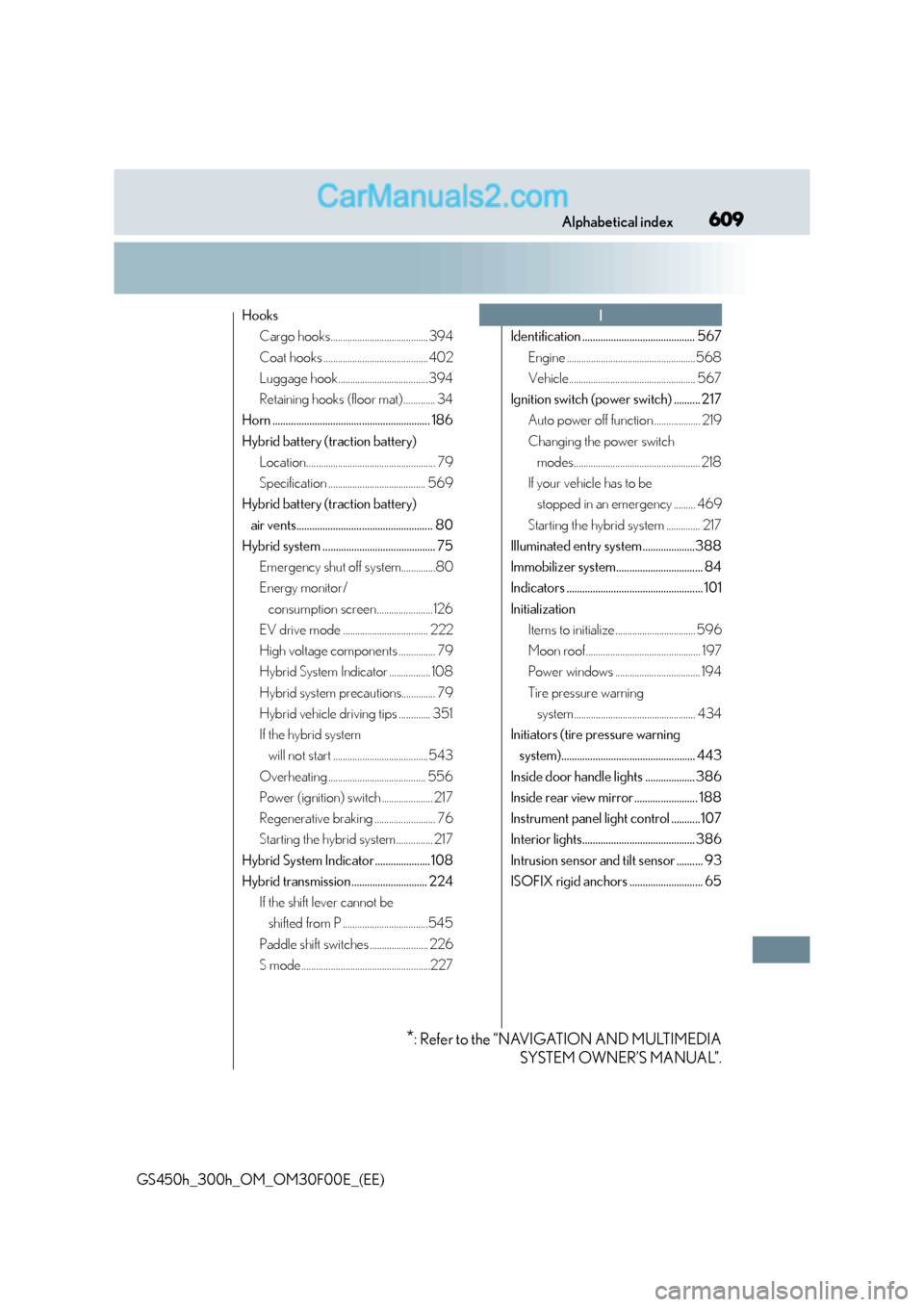

609Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
HooksCargo hooks........................................394
Coat hooks ...........................................402
Luggage hook..................................... 394
Retaining hooks (floor mat)............. 34
Horn ............................................................ 186
Hybrid battery (traction battery) Location..................................................... 79
Specification ........................................ 569
Hybrid battery (traction battery)
air vents.................................................... 80
Hybrid system ........................................... 75
Emergency shut off system..............80
Energy monitor/consumption screen.......................126
EV drive mode ................................... 222
High voltage components ............... 79
Hybrid System Indicator ................. 108
Hybrid system precautions.............. 79
Hybrid vehicle driving tips ............. 351
If the hybrid system will not start .......................................543
Overheating ........................................ 556
Power (ignition) switch ..................... 217
Regenerative braking ......................... 76
Starting the hybrid system............... 217
Hybrid System Indicator .....................108
Hybrid transmission............................. 224 If the shift lever cannot be shifted from P ...................................545
Paddle shift switches ........................ 226
S mode.....................................................227 Identification ........................................... 567
Engine .....................................................568
Vehicle.................................................... 567
Ignition switch (power switch) .......... 217 Auto power off function ................... 219
Changing the power switch modes.................................................... 218
If your vehicle has to be stopped in an emergency ......... 469
Starting the hybrid system .............. 217
Illuminated entry system....................388
Immobilizer system................................. 84
Indicators .................................................... 101
Initialization Items to initialize ................................. 596
Moon roof............................................... 197
Power windows ................................... 194
Tire pressure warning system.................................................. 434
Initiators (tire pressure warning system)................................................... 443
Inside door handle lights ................... 386
Inside rear view mirror ........................ 188
Instrument panel light control ...........107
Interior lights........................................... 386
Intrusion sensor and tilt sensor .......... 93
ISOFIX rigid anchors ............................ 65I
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

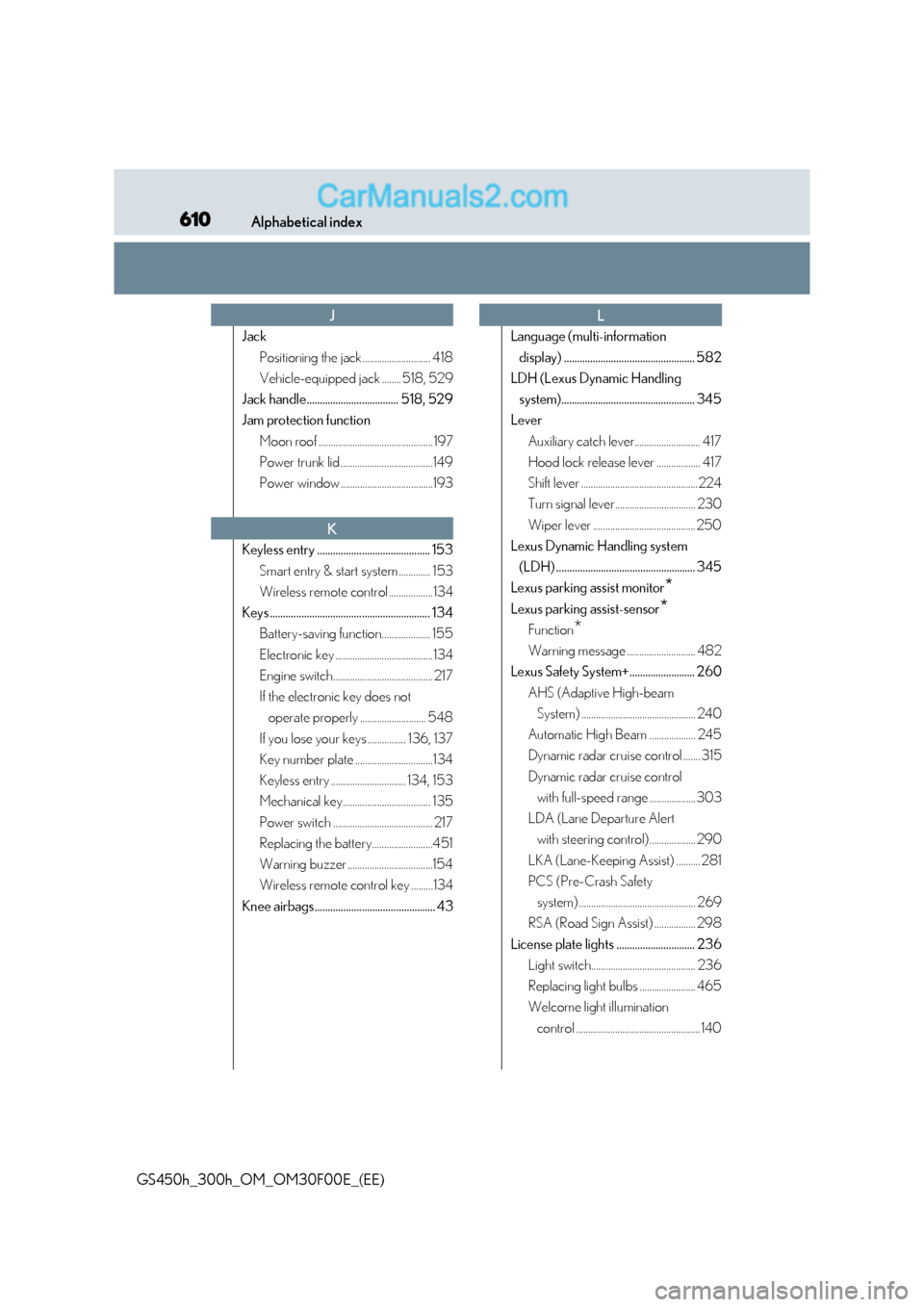

610Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
JackPositioning the jack ............................ 418
Vehicle-equipped jack ........ 518, 529
Jack handle................................... 518, 529
Jam protection function Moon roof ...............................................197
Power trunk lid......................................149
Power window ......................................193
Keyless entry ........................................... 153 Smart entry & start system ............. 153
Wireless remote control ..................134
Keys ............................................................. 134 Battery-saving function.................... 155
Electronic key ........................................134
Engine switch......................................... 217
If the electronic key does not operate properly ........................... 548
If you lose your keys ................ 136, 137
Key number plate ................................134
Keyless entry ............................... 134, 153
Mechanical key.................................... 135
Power switch ......................................... 217
Replacing the battery.........................451
Warning buzzer ...................................154
Wireless remote control key .........134
Knee airbags.............................................. 43 Language (multi-information
display) .................................................. 582
LDH (Lexus Dynamic Handling
system)................................................... 345
Lever
Auxiliary catch lever........................... 417
Hood lock release lever .................. 417
Shift lever ................................................224
Turn signal lever................................. 230
Wiper lever .......................................... 250
Lexus Dynamic Handling system
(LDH) ..................................................... 345
Lexus parking assist monitor
*
Lexus parking assist-sensor*
Function*
Warning message ............................ 482
Lexus Safety System+......................... 260
AHS (Adaptive High-beam System) ............................................... 240
Automatic High Beam ................... 245
Dynamic radar cruise control ....... 315
Dynamic radar cruise control with full-speed range ................... 303
LDA (Lane Departure Alert with steering control)................... 290
LKA (Lane-Keeping Assist) .......... 281
PCS (Pre-Crash Safety system) ................................................ 269
RSA (Road Sign Assist) ................. 298
License plate lights .............................. 236 Light switch........................................... 236
Replacing light bulbs ....................... 465
Welcome light illumination
control ...................................................140
J
K
L
