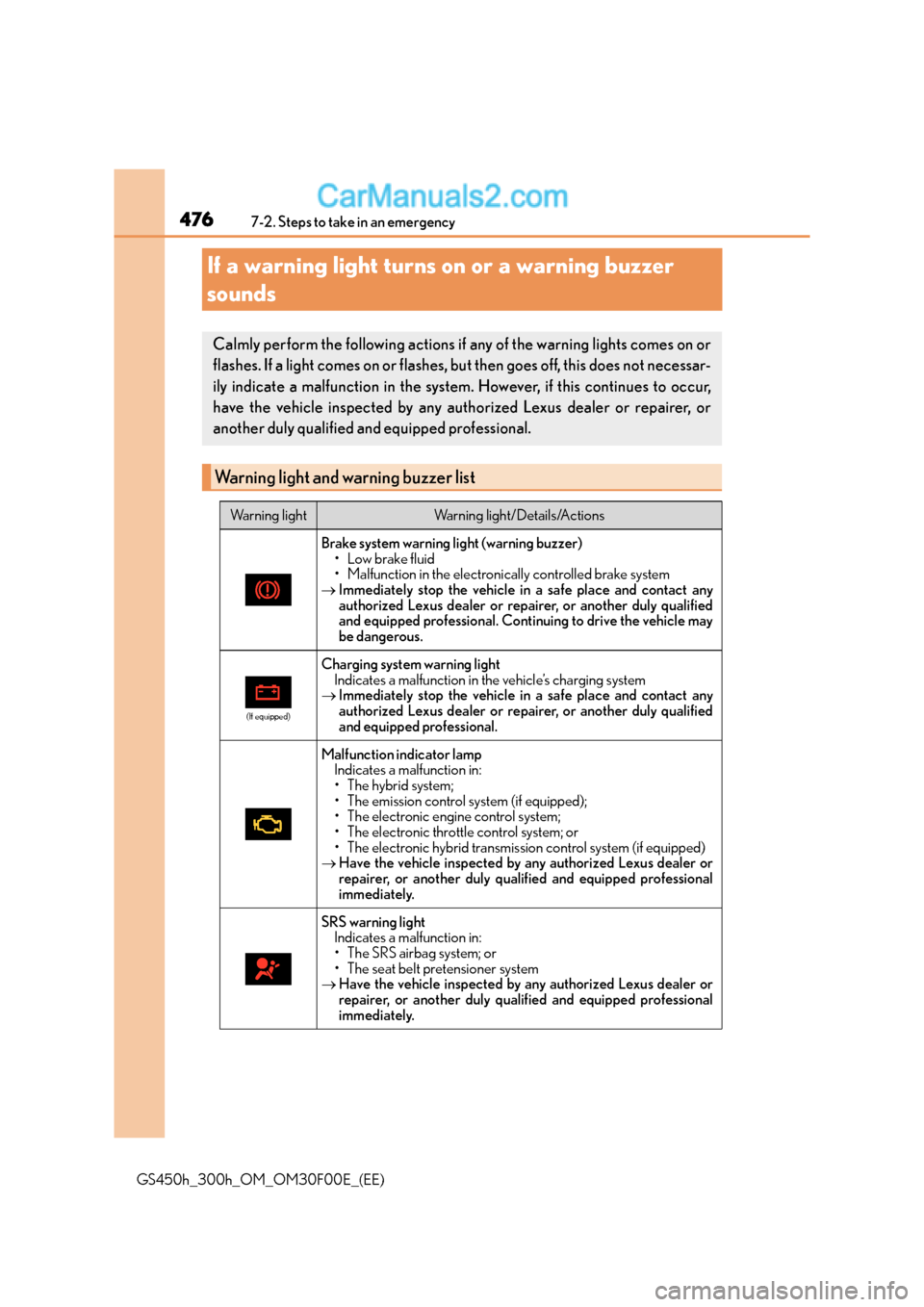

Page 476 of 620
4767-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)
•Low brake fluid
• Malfunction in the electron ically controlled brake system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. Continuing to drive the vehicle may
be dangerous.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The emission control system (if equipped);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic hybrid transmission control system (if equipped)
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.

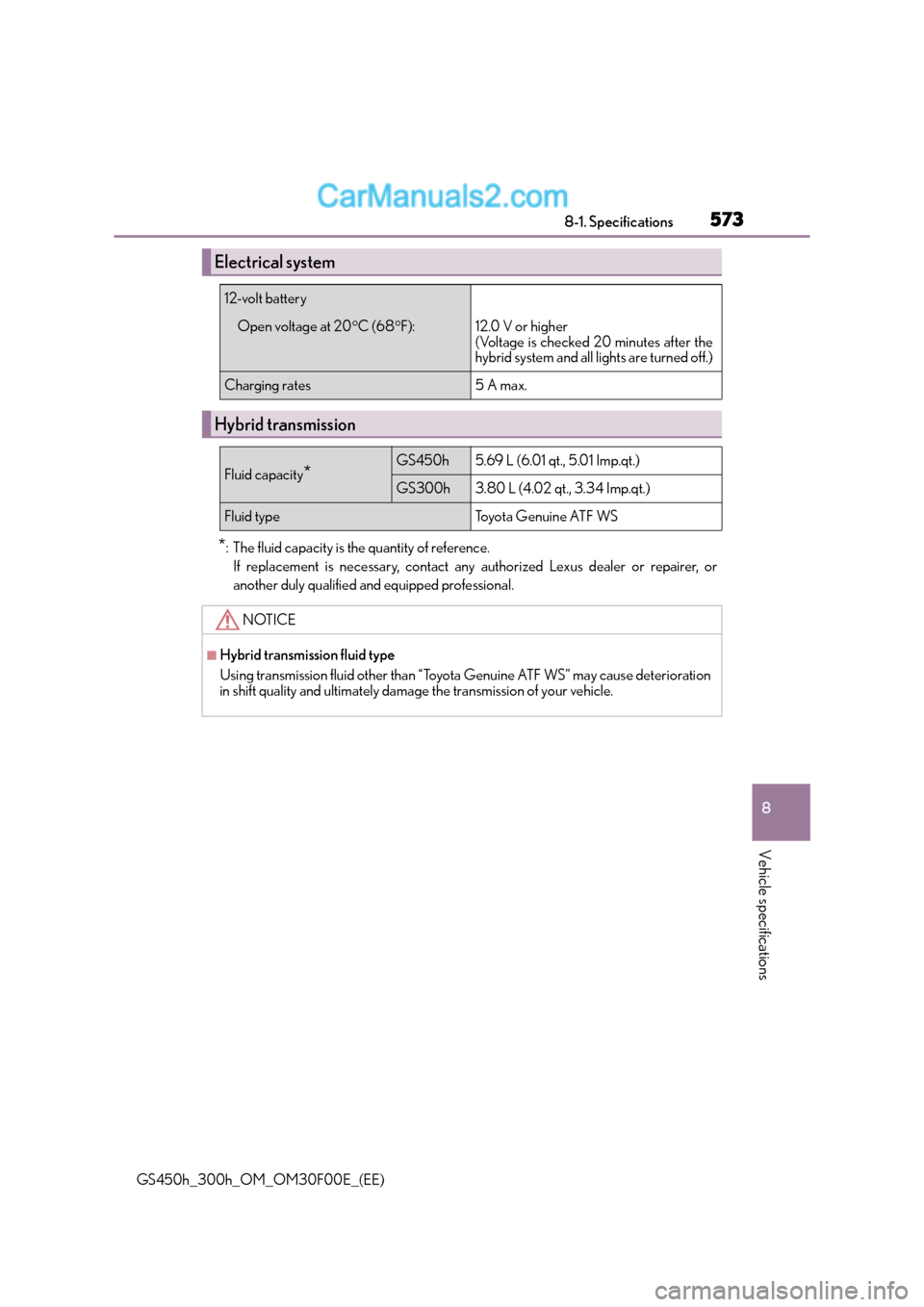

Page 573 of 620
573
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Electrical system
12-volt battery
Open voltage at 20 °C (68 °F):12.0 V or higher
(Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates5 A max.
Hybrid transmission
Fluid capacity*GS450h5.69 L (6.01 qt., 5.01 Imp.qt.)
GS300h3.80 L (4.02 qt., 3.34 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality and ultimately damage the transmission of your vehicle.
Page 607 of 620
607Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Engine coolant temperature gauge....................................................... 105
Engine oil.................................................. 422 Capacity .................................................570
Checking ............................................... 422
Oil level warning message ........... 482
Oil pressure warning message..............................................482
Preparing and checking before winter ....................................354
Engine switch ...........................................217 Auto power off function ...................219
Changing the power switch modes ................................................... 218
If your vehicle has to be stopped in an emergency..........469
Starting the hybrid system............... 217
EPS (Electric Power Steering)........345
Function ..................................................345
Warning light ....................................... 477
Warning message.............................482
EV drive mode ....................................... 222
First-aid kit storage net.......................395
Flat tire
Vehicles with spare tire ....................517
Vehicles without spare tire ...........528
Floor mats ................................................... 34
Fluid Brake........................................................ 574
Hybrid transmission ......................... 573
Washer ................................................... 427 Fog lights .................................................. 249
Replacing light bulbs ....................... 465
Switch ...................................................... 249
Follow me home system .................... 237
Footwell light .......................................... 386
Front air conditioning system .......... 366
Front fog lights ....................................... 249 Replacing light bulbs ....................... 465
Switch ...................................................... 249
Wattage ................................................. 465
Front personal lights............................ 387
Front position lights ............................. 236 Light switch........................................... 236
Replacing light bulbs ....................... 465
Welcome light illumination control ...................................................140
Front seats ................................................. 175 Adjustment ............................................. 175
Cleaning .................................................. 410
Correct driving posture.................... 36
Driving position memory ................ 178
Head restraints .....................................183
Power easy access system............. 178
Seat heaters.......................................... 382
Seat position memory ....................... 178
Seat ventilators ................................... 382
Front turn signal lights ........................ 230 Replacing light bulbs ...........459, 465
Turn signal lever................................. 230
Wattage ................................................. 578
F
