Page 403 of 600
403
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)

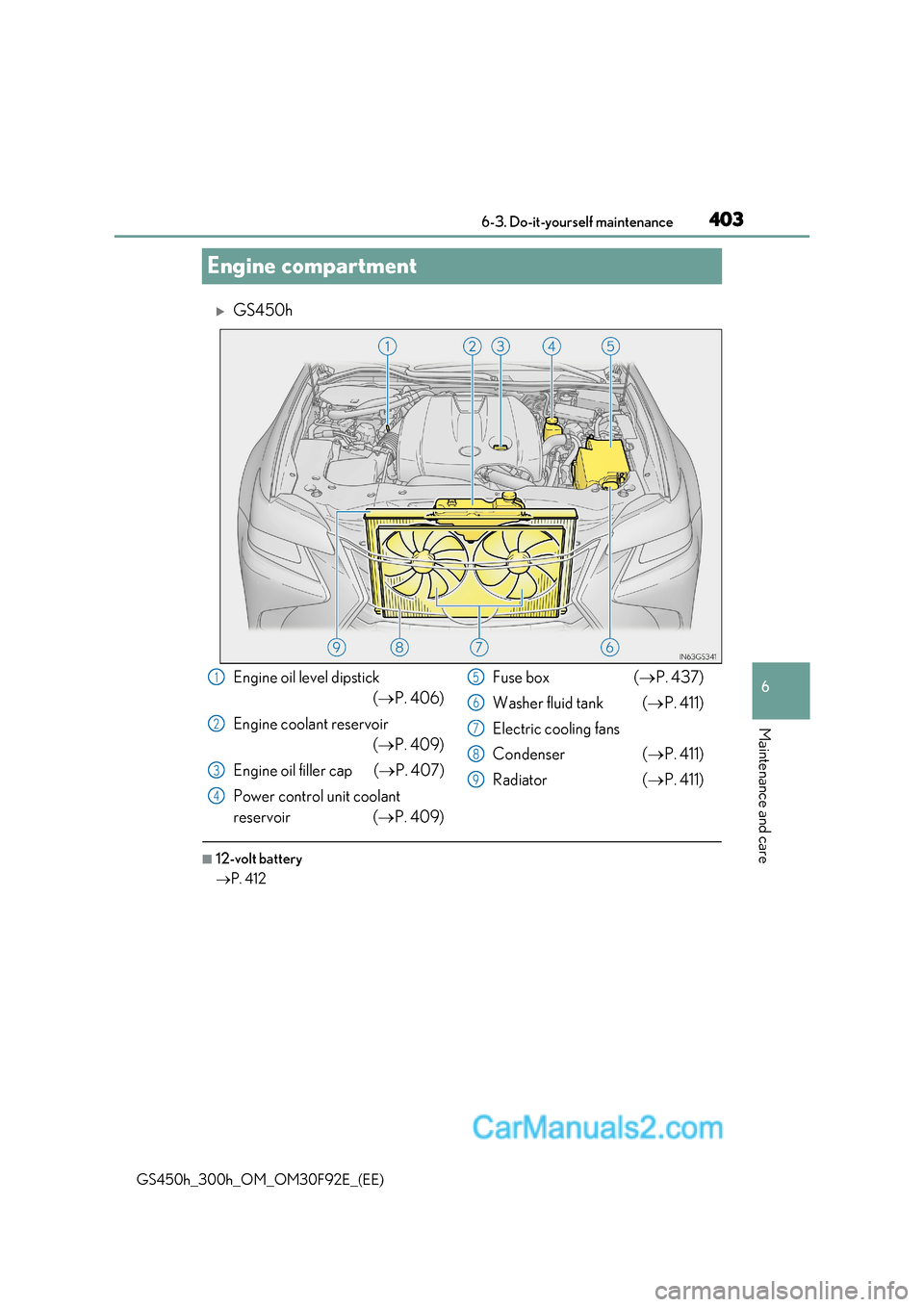

Engine compartment
GS450h
■12-volt battery P. 412
Engine oil level dipstick
( P. 406)
Engine coolant reservoir ( P. 409)
Engine oil filler cap ( P. 407)
Power control unit coolant
reservoir ( P. 409) Fuse box (
P. 437)
Washer fluid tank ( P. 411)
Electric cooling fans
Condenser ( P. 411)
Radiator ( P. 411)1
2
3
4
5
6
7
8
9
Page 404 of 600
4046-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)

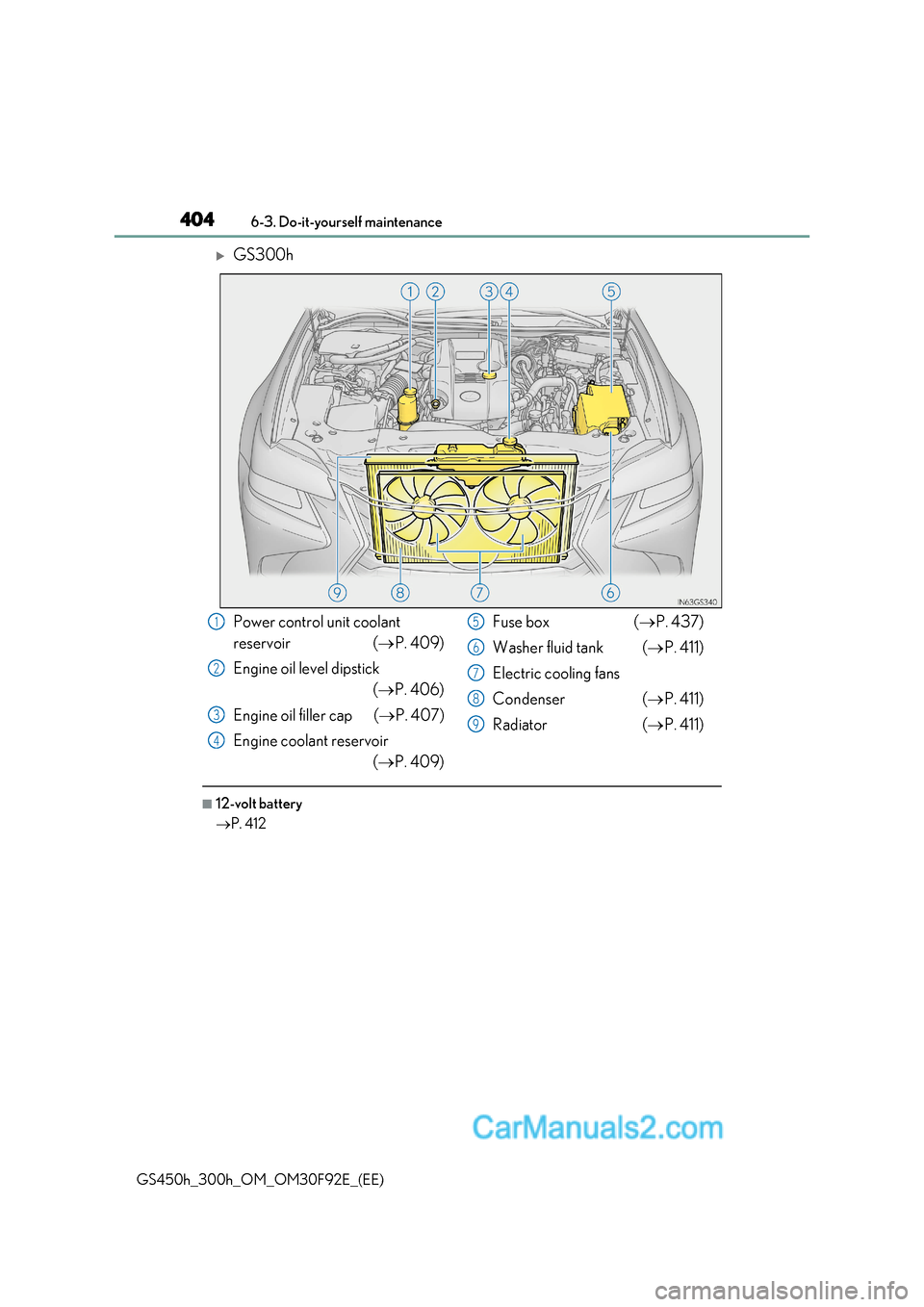

GS300h
■12-volt battery P. 412
Power control unit coolant
reservoir ( P. 409)
Engine oil level dipstick ( P. 406)
Engine oil filler cap ( P. 407)
Engine coolant reservoir ( P. 409) Fuse box (
P. 437)
Washer fluid tank ( P. 411)
Electric cooling fans
Condenser ( P. 411)
Radiator ( P. 411)1
2
3
4
5
6
7
8
9
Page 437 of 600
437
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)

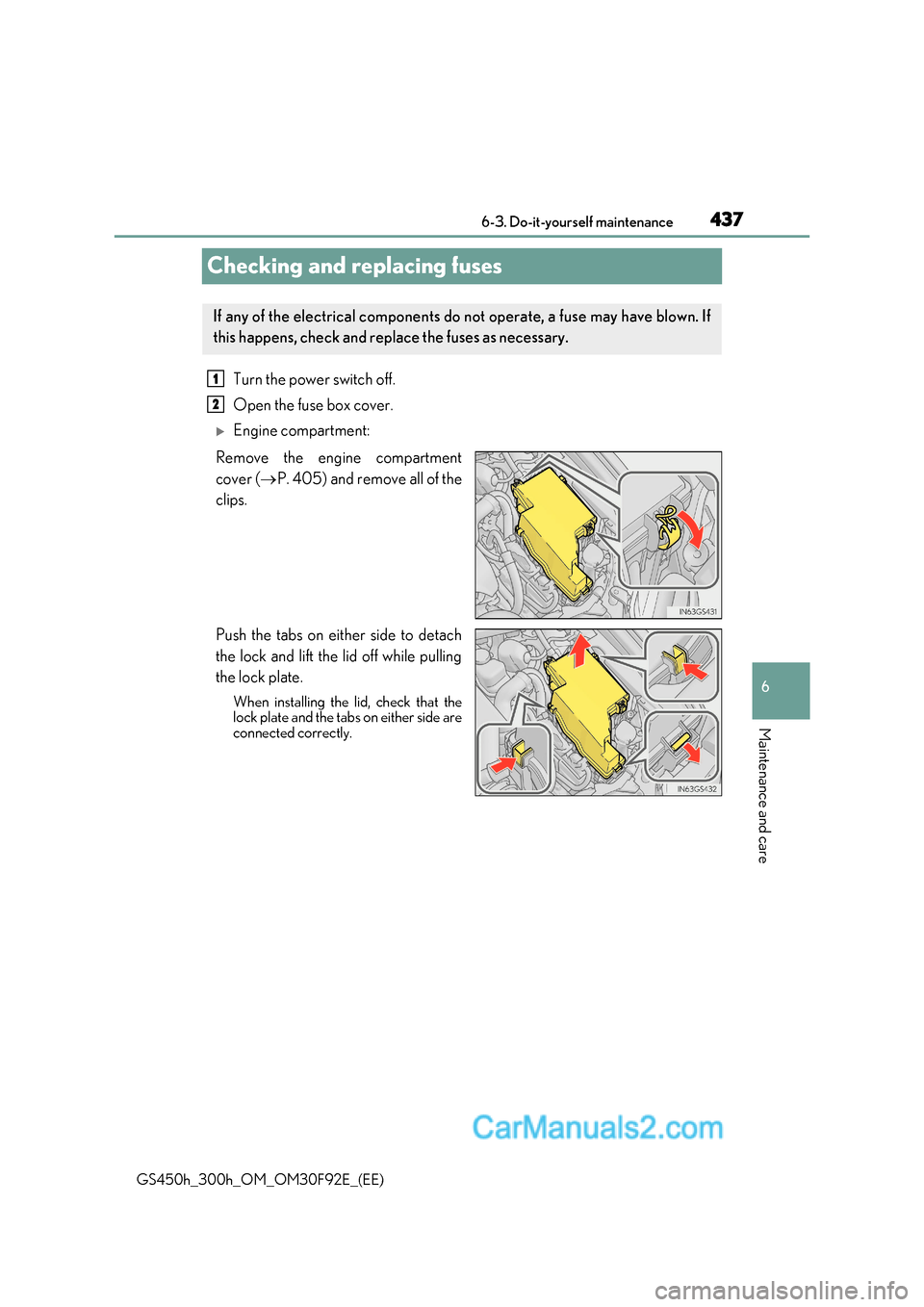

Checking and replacing fuses
Turn the power switch off.
Open the fuse box cover.
Engine compartment:
Remove the engine compartment
cover ( P. 405) and remove all of the
clips.
Push the tabs on either side to detach
the lock and lift the lid off while pulling
the lock plate.
When installing the lid, check that the
lock plate and the tabs on either side are
connected correctly.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2
Page 440 of 600
4406-3. Do-it-yourself maintenance

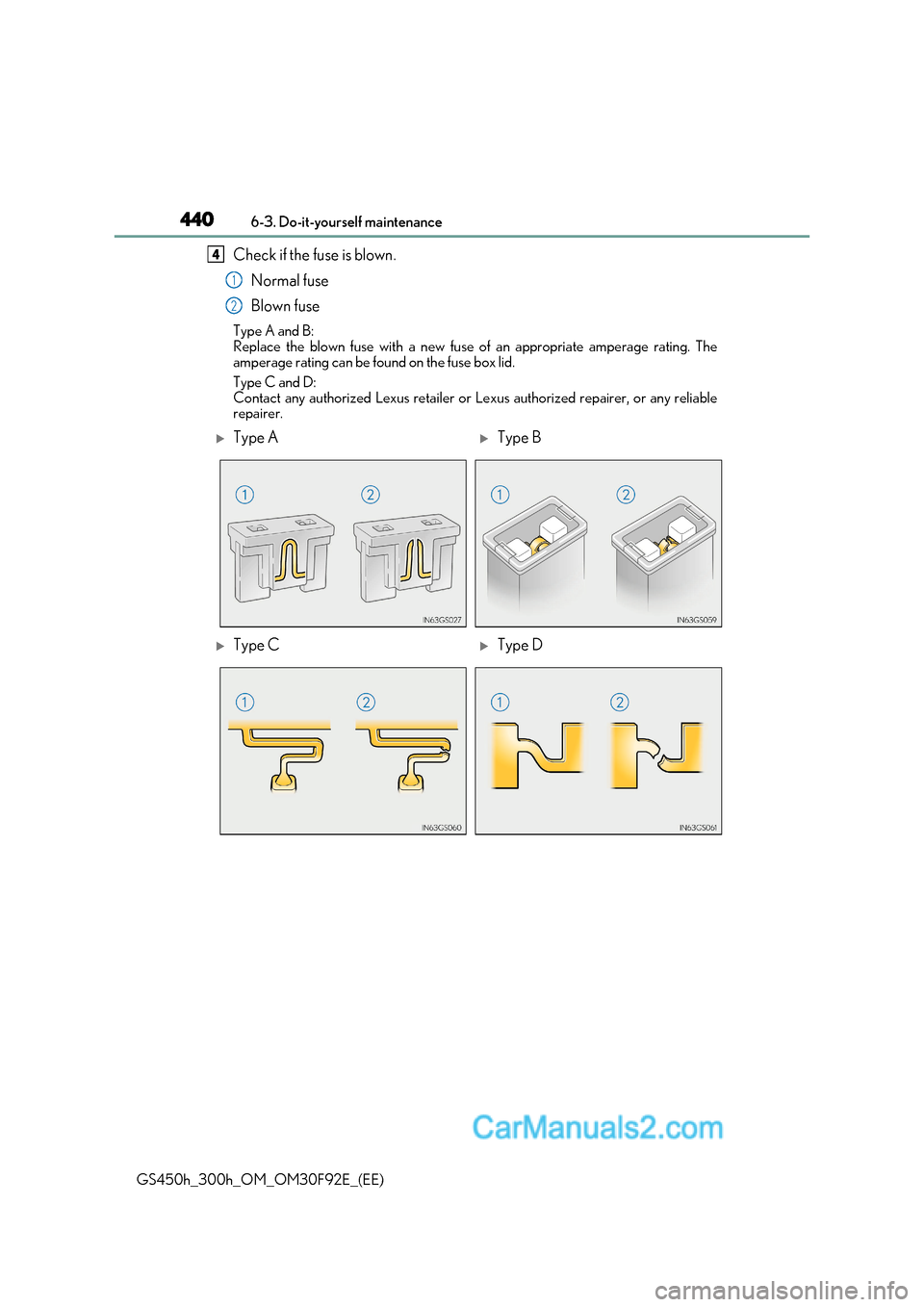

GS450h_300h_OM_OM30F92E_(EE) Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact any authorized Lexus retailer or Le xus authorized repairer, or any reliable
repairer.
4
1
2
Type AType B
Type CType D
Page 441 of 600
441
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)

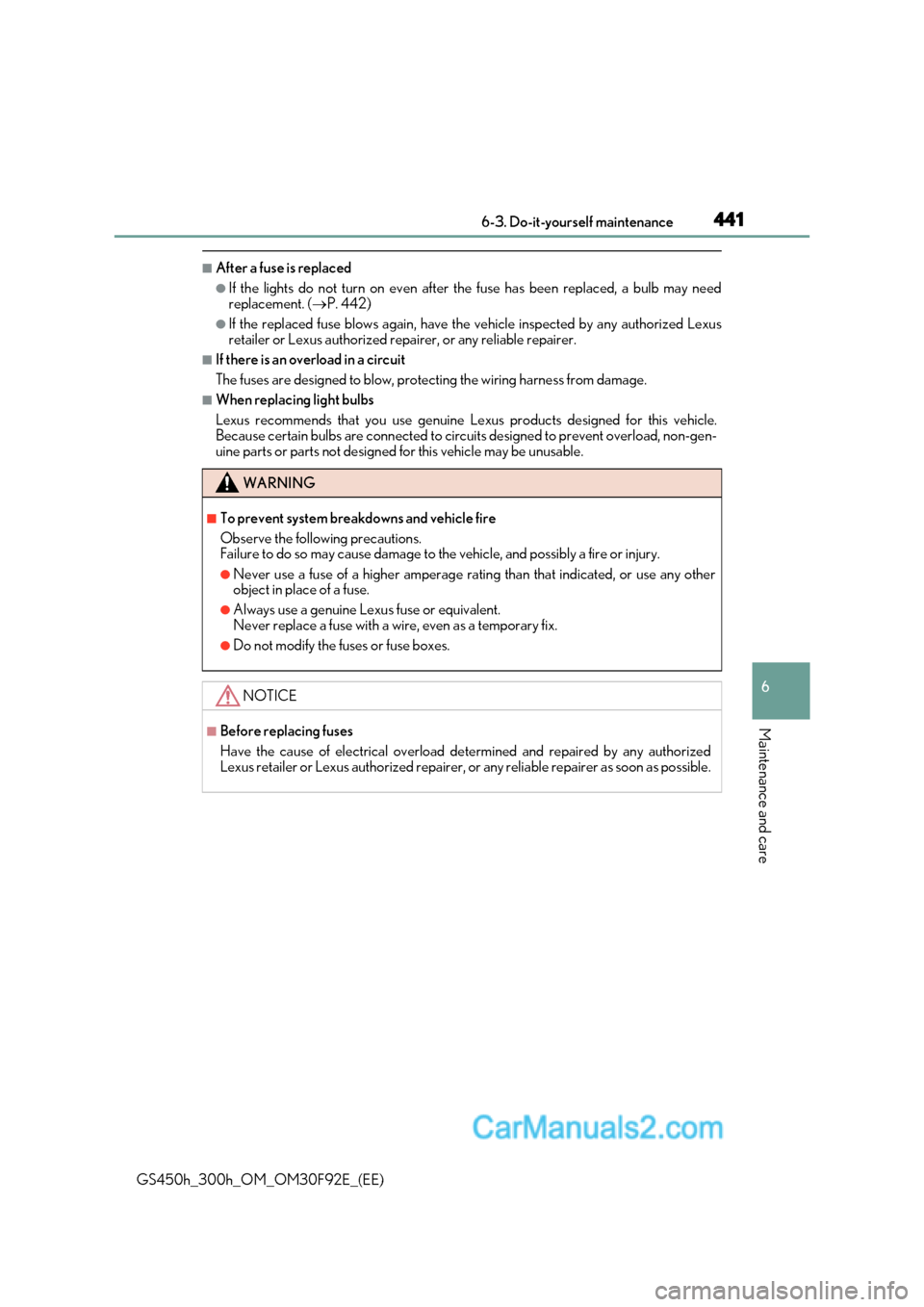

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 442)
●If the replaced fuse blows again, have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repa irer, or any reliable repairer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you us e genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer as soon as possible.
Page 530 of 600
5307-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

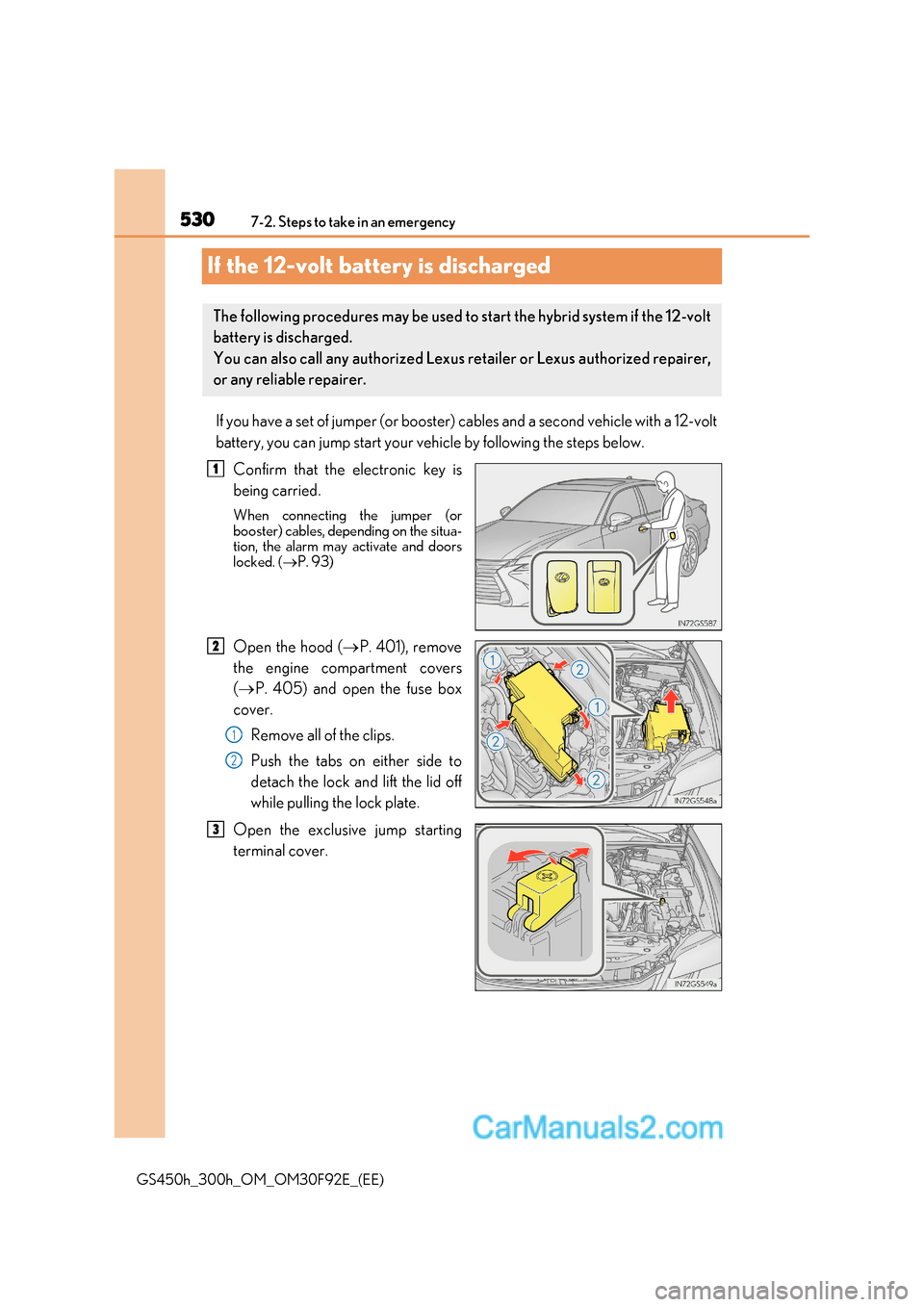

If the 12-volt battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below. Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the situa-
tion, the alarm may activate and doors
locked. ( P. 93)
Open the hood ( P. 401), remove
the engine compartment covers ( P. 405) and open the fuse box
cover.
Remove all of the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
Open the exclusive jump starting
terminal cover.
The following procedures may be used to start the hybrid system if the 12-volt
battery is discharged.
You can also call any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
1
2
1
2
3
Page 588 of 600

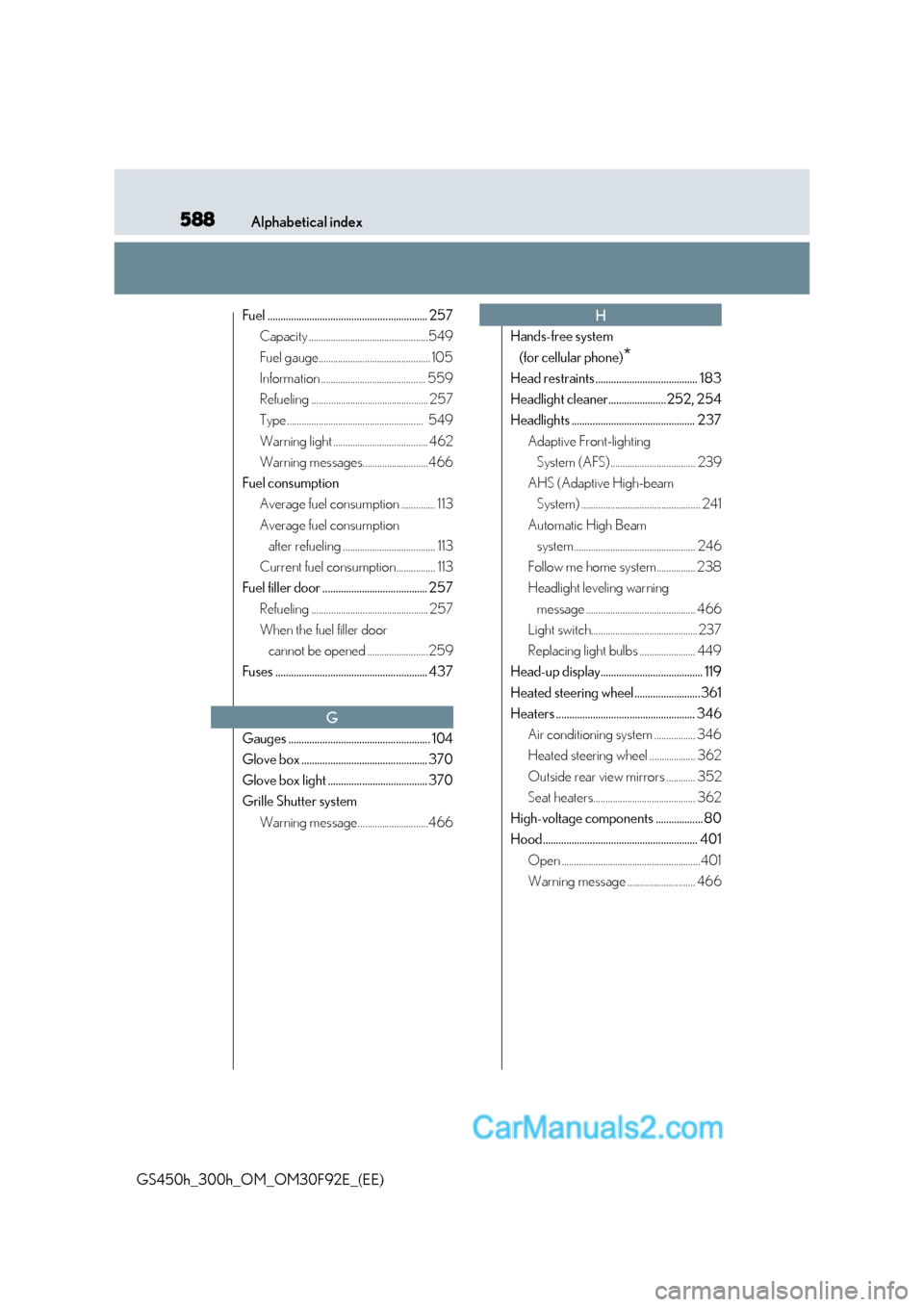

588Alphabetical index
