1-2. Hybrid system
1
GS450h_300h_OM_OM30F92E_(EE)
For safety and security
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration ev en though the vehicle is able to move with
the “READY” indicator is illuminated. For sa fety, apply the parking brake and make sure
to shift the shift lever to P when parked.
The following sounds or vibrations may occu r when the hybrid system is operating and
are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid system starts or stops.
●Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear se ats, when the hybrid system is started or
stopped.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the brake pedal is depressed
or as the accelerator pedal is released.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vents on the both sides of the rear
seatback.
■Maintenance, repair, recycling, and disposal
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer regarding maintenance, repair, recy cling and disposal. Do not dispose of the
vehicle yourself.
■Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features: P. 561)

199
4Driving
GS450h_300h_OM_OM30F92E_(EE) 4-1. Before driving
Driving the vehicle.................... 200
Cargo and luggage .................. 208
Trailer towing (vehicles without towing package) .....209
Trailer towing (vehicles with towing package)....................... 210
4-2. Driving procedures Power (ignition) switch ..............217
EV drive mode ............................ 222
Hybrid transmission .................. 224
Turn signal lever .......................... 231
Parking brake .............................. 232
Brake Hold....................................235
4-3. Operating the lights and wipers
Headlight switch ......................... 237
AHS (Adaptive High-beam System)......................................... 241
Automatic High Beam ............. 246
Fog light switch .......................... 250
Windshield wipers and washer.................................. 251 4-4. Refueling
Opening the fuel tank cap ..... 257
4-5. Using the driving support systems
Lexus Safety System+ ................261
PCS (Pre-Crash Safety system) ........................................ 270
LKA (Lane-Keeping Assist) .......................................... 282
RSA (Road Sign Assist) ............291
Dynamic radar cruise control with full-speed
range ............................................ 296
Cruise control ............................ 308
Driving mode select switch ...... 311
BSM (Blind Spot Monitor) ...... 314

2044-1. Before driving
GS450h_300h_OM_OM30F92E_(EE)

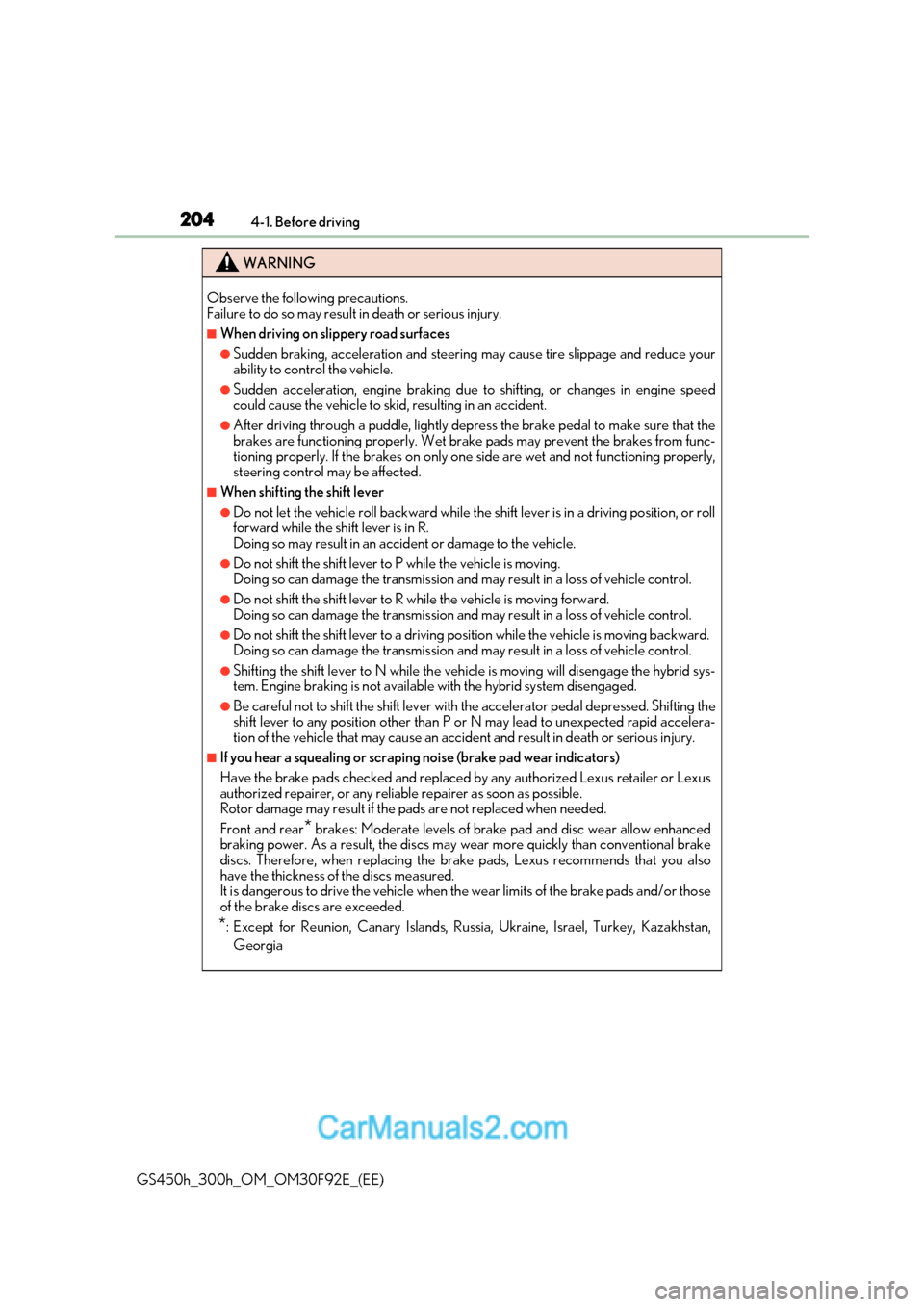

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce your
ability to control the vehicle.
●Sudden acceleration, engine braking due to shifting, or changes in engine speed
could cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that the
brakes are functioning properly. Wet brake pads may prevent the brakes from func-
tioning properly. If the brakes on only one side are wet and not functioning properly,
steering control may be affected.
■When shifting the shift lever
●Do not let the vehicle roll backward while the shift lever is in a driving position, or roll
forward while the shift lever is in R.
Doing so may result in an accident or damage to the vehicle.
●Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to a driving position while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Shifting the shift lever to N while the vehicle is moving will disengage the hybrid sys-
tem. Engine braking is not available with the hybrid system disengaged.
●Be careful not to shift the shift lever with the accelerator pedal depressed. Shifting the
shift lever to any position other than P or N may lead to unexpected rapid accelera-
tion of the vehicle that may cause an accident and result in death or s erious injury.
■If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer as soon as possible.
Rotor damage may result if the pads are not replaced when needed.
Front and rear*
brakes: Moderate levels of brake pad and disc wear allow enhanced
braking power. As a result, the discs may wear more quickly than conventional brake
discs. Therefore, when replacing the brake pads, Lexus recommends that you also
have the thickness of the discs measured.
It is dangerous to drive the vehicle when th e wear limits of the brake pads and/or those
of the brake discs are exceeded.
* : Except for Reunion, Canary Islands, Russi a, Ukraine, Israel, Turkey, Kazakhstan,
Georgia

215
4-1. Before driving
4
Driving
GS450h_300h_OM_OM30F92E_(EE)

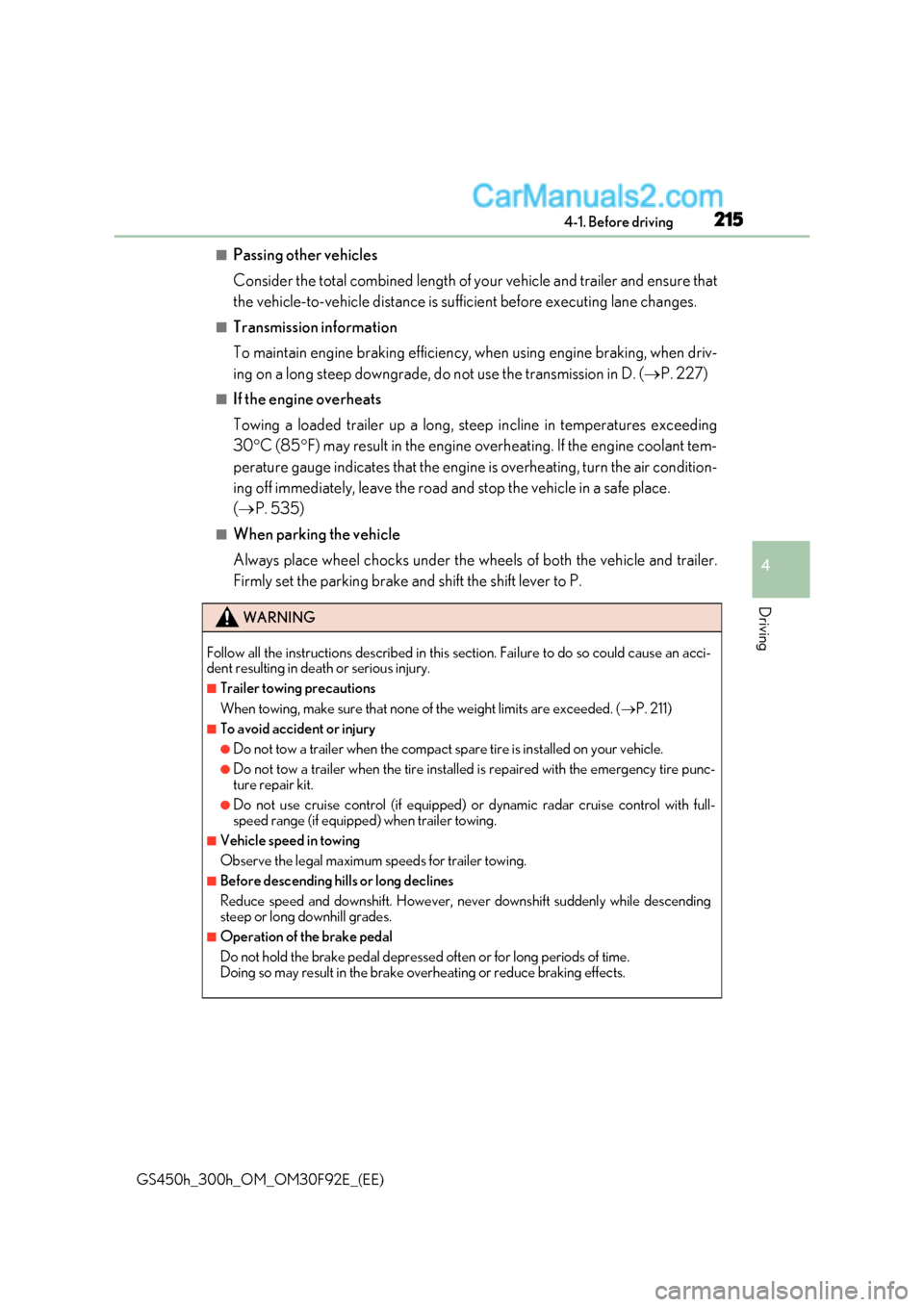

■Passing other vehicles
Consider the total combined length of your vehicle and trailer and ensure that
the vehicle-to-vehicle distance is sufficient before executing lane change s.
■Transmission information
To maintain engine braking efficiency, when using engine braking, when driv-
ing on a long steep downgrade, do not use the transmission in D. (P. 227)
■If the engine overheats
Towing a loaded trailer up a long, steep incline in temperatures exceeding 30 C (85 F) may result in the engine overheating. If the engine coolant tem-
perature gauge indicates that the engine is overheating, turn the air condition-
ing off immediately, leave the road and stop the vehicle in a safe place. (  P. 535)
■When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle and trailer.
Firmly set the parking brake and shift the shift lever to P.
WARNING
Follow all the instructions described in this se ction. Failure to do so could cause an acci-
dent resulting in death or serious injury.
■Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded. ( P. 211)
■To avoid accident or injury
●Do not tow a trailer when the compact spare tire is installed on your vehicle.
●Do not tow a trailer when the tire installed is repaired with the emergency tire punc-
ture repair kit.
●Do not use cruise control (if equipped) or dynamic radar cruise control with full-
speed range (if equipped) when trailer towing.
■Vehicle speed in towing
Observe the legal maximum speeds for trailer towing.
■Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while descending
steep or long downhill grades.
■Operation of the brake pedal
Do not hold the brake pedal depressed often or for long periods of time.
Doing so may result in the brake ov erheating or reduce braking effects.

2244-2. Driving procedures
GS450h_300h_OM_OM30F92E_(EE)

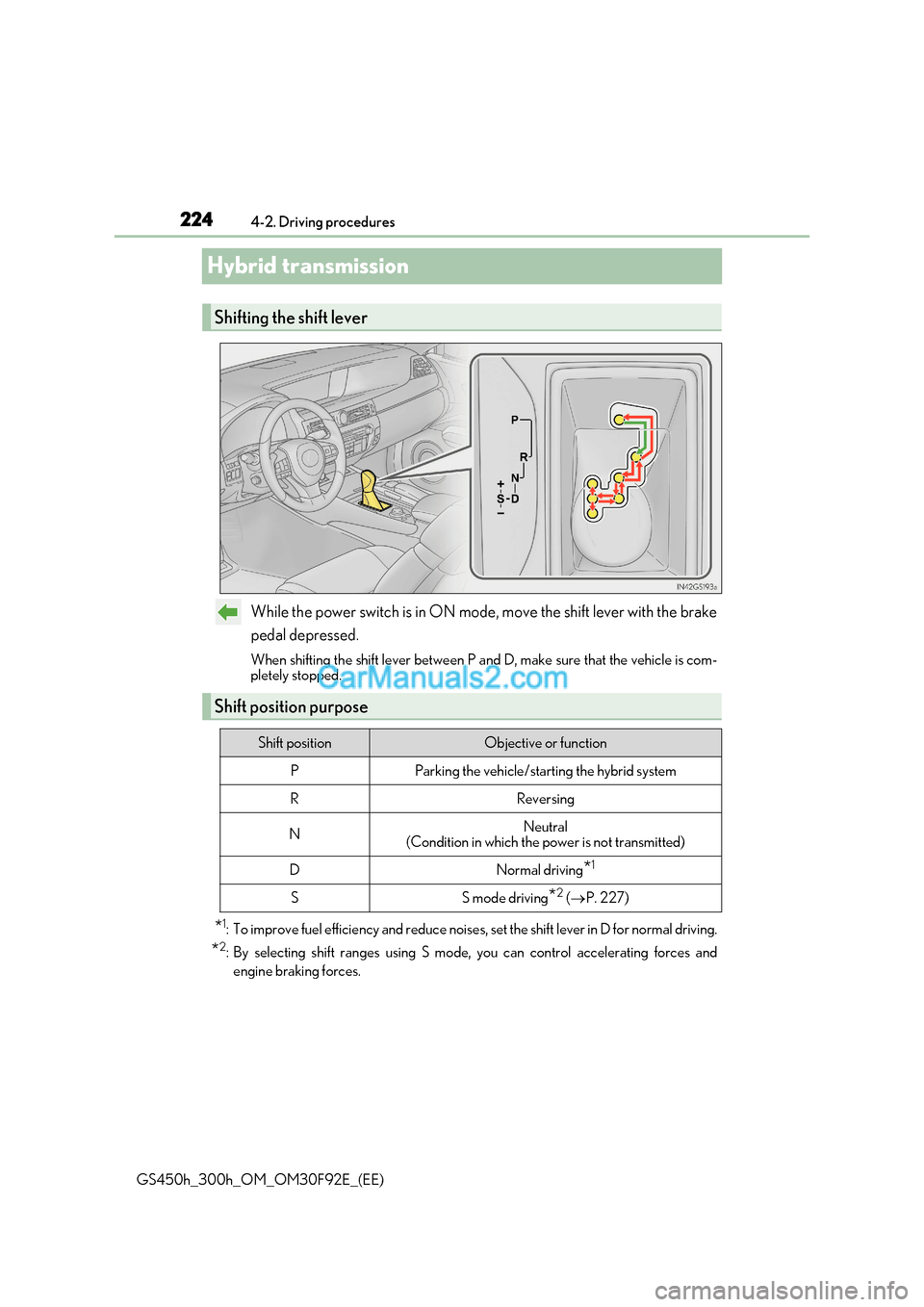

Hybrid transmission
While the power switch is in ON mode, move the shift lever with the brake
pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is com-
pletely stopped.
* 1
: To improve fuel efficiency and reduce noises , set the shift lever in D for normal driving.
* 2
: By selecting shift ranges using S mode, you can control accelerating forces and
engine braking forces.
Shifting the shift lever
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving *1
SS mode driving
*2
(  P. 227)

4547-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

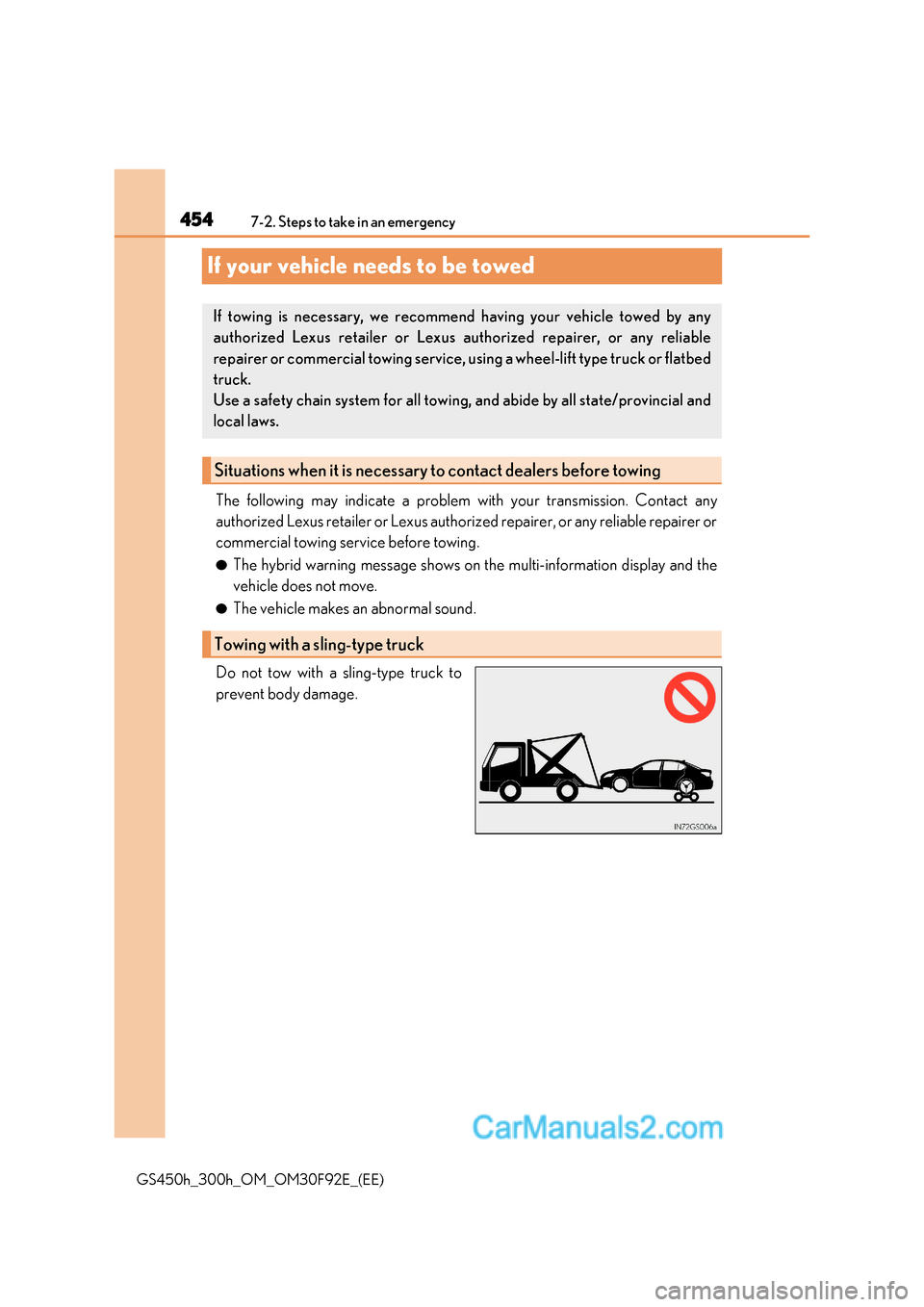

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer or
commercial towing service before towing. ● The hybrid warning message shows on the multi-information display and the
vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck to
prevent body damage.
If towing is necessary, we recommen d having your vehicle towed by any
authorized Lexus retailer or Lexus au thorized repairer, or any reliable
repairer or commercial towing service, using a wheel-lift type truck or flatbed
truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

483
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

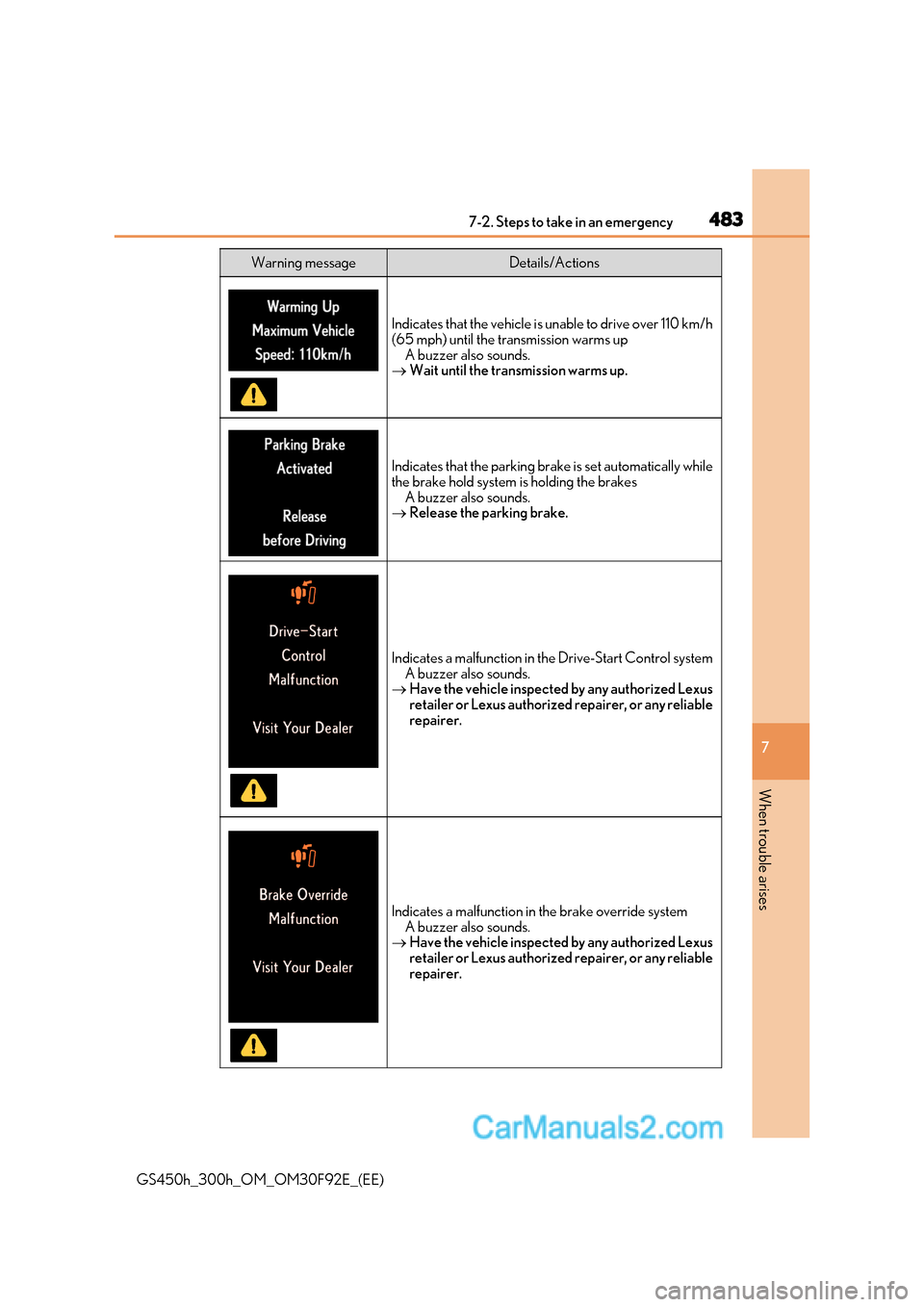

Indicates that the vehicle is unable to drive over 110 km/h
(65 mph) until the transmission warms up
A buzzer also sounds.
 Wait until the transmission warms up.
Indicates that the parking brake is set automatically while
the brake hold system is holding the brakes
A buzzer also sounds.
 Release the parking brake.
Indicates a malfunction in th e Drive-Start Control system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Indicates a malfunction in the brake override system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

543
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

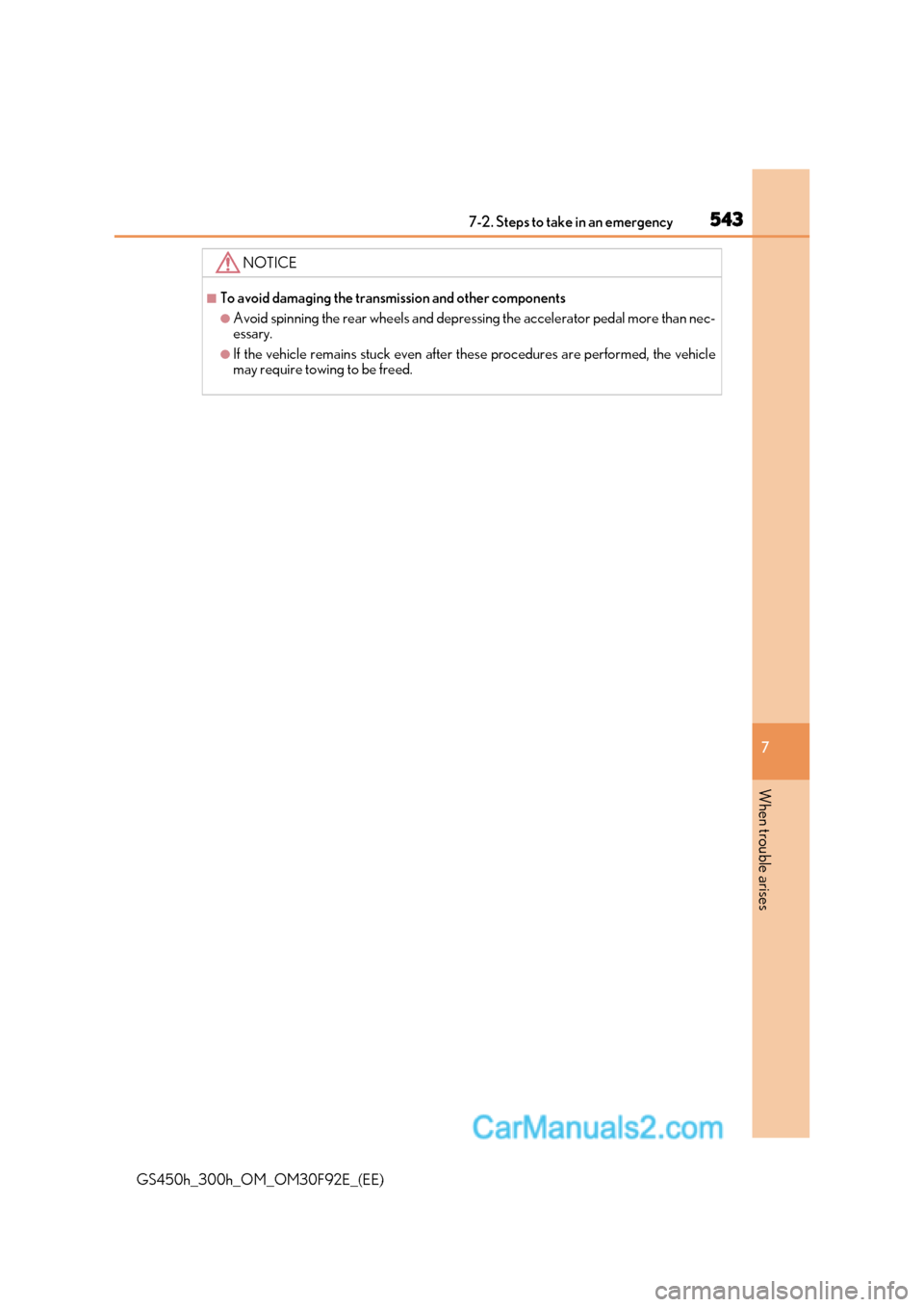

NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec- essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

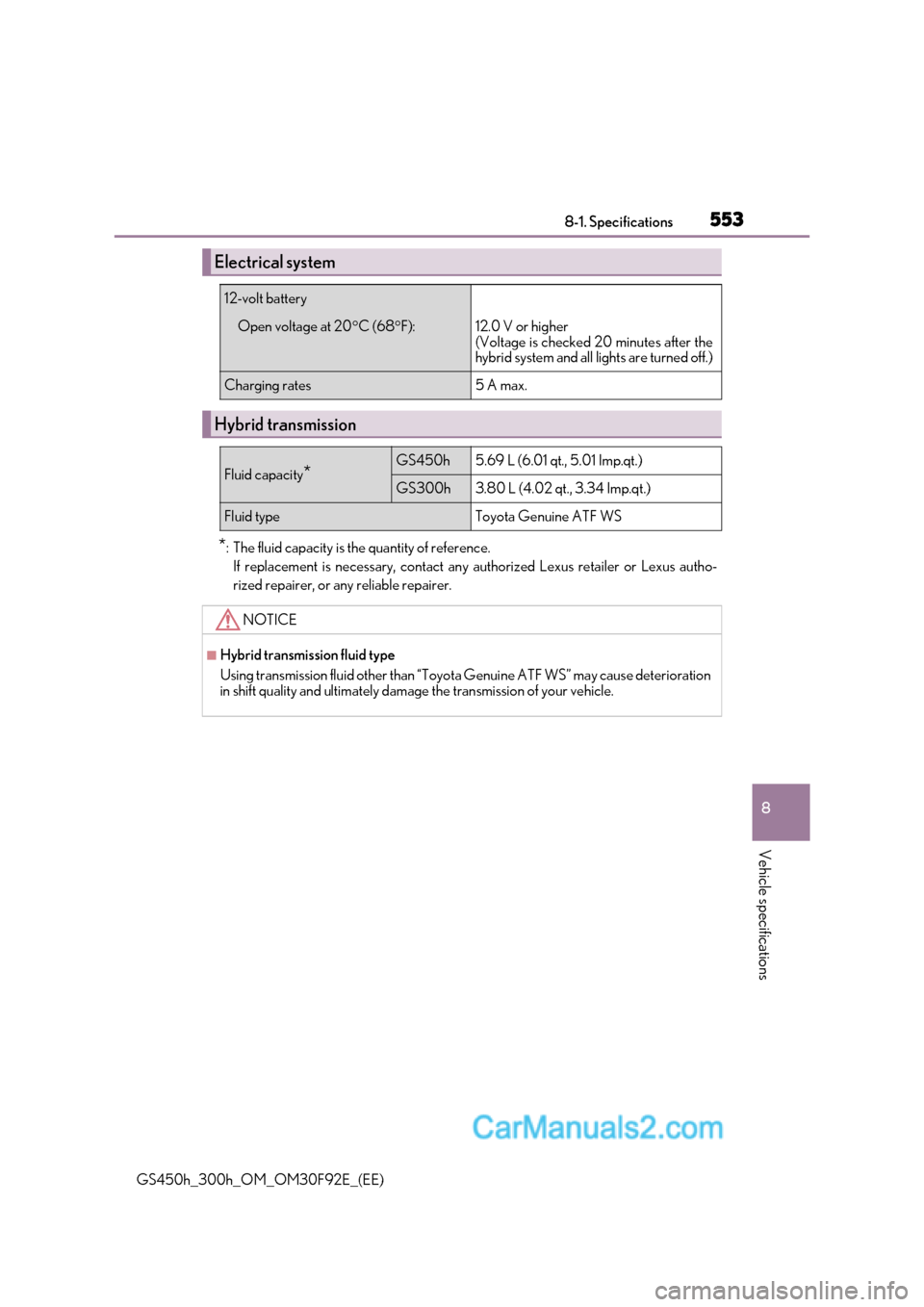

553
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)*
: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
Electrical system
12-volt battery
Open voltage at 20 C (68 F):12.0 V or higher
(Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates5 A max.
Hybrid transmission
Fluid capacity *GS450h5.69 L (6.01 qt., 5.01 Imp.qt.)
GS300h3.80 L (4.02 qt., 3.34 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyot a Genuine ATF WS” may cause deterioration
in shift quality and ultimately damage the transmission of your vehicle.
