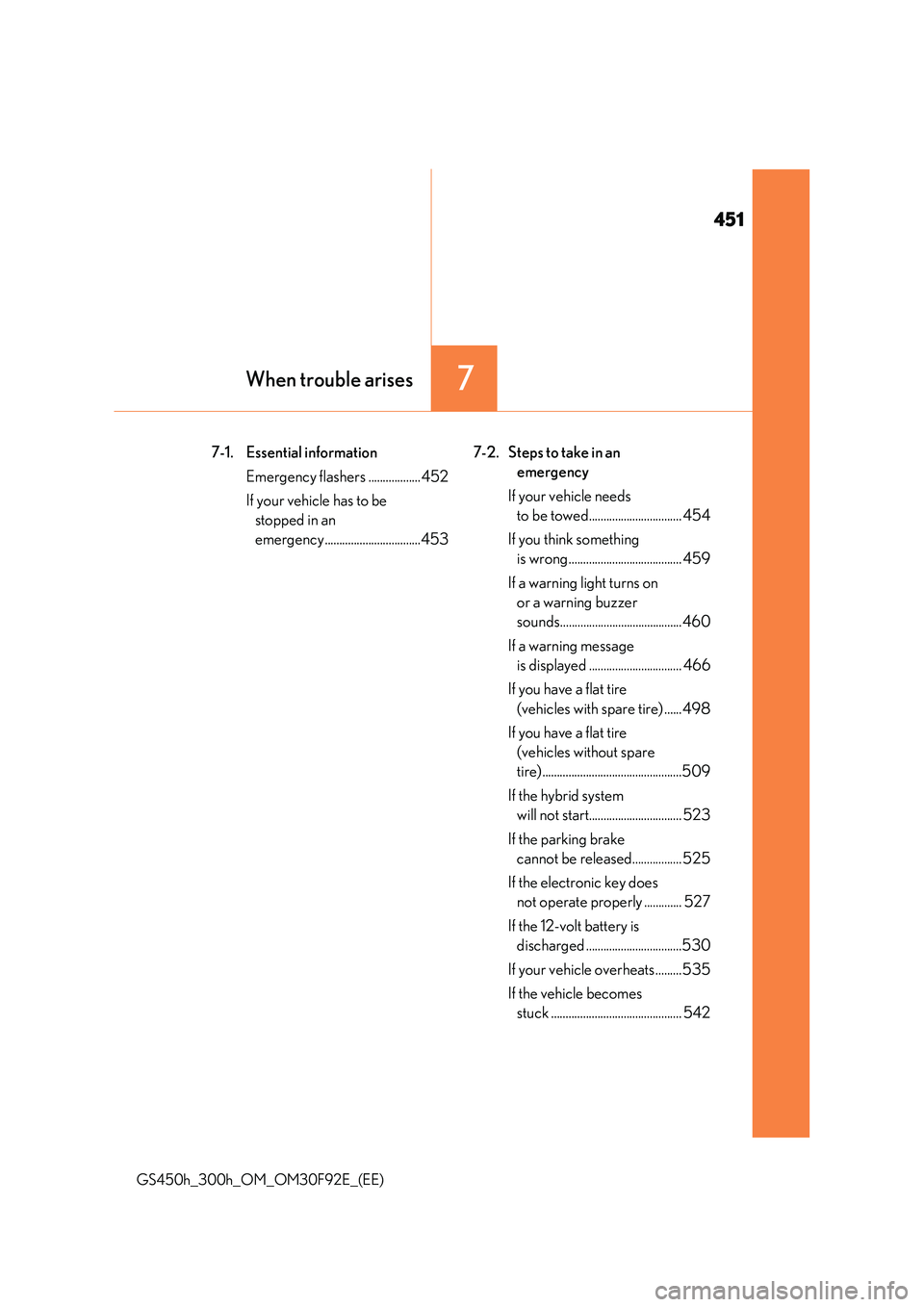

LEXUS GS300H 2019 Owners Manual

451
7When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
7-1. Essential information
Emergency flashers ..................452
If your vehicle has to be
stopped in an
emergency.................................453
7-2. Steps to take in an
emergency
If your vehicle needs
to be towed................................ 454
If you think something
is wrong....................................... 459
If a warning light turns on
or a warning buzzer
sounds..........................................460
If a warning message
is displayed ................................ 466
If you have a flat tire
(vehicles with spare tire) ......498
If you have a flat tire
(vehicles without spare
tire)................................................509
If the hybrid system
will not start................................ 523
If the parking brake
cannot be released................. 525
If the electronic key does
not operate properly ............. 527
If the 12-volt battery is
discharged .................................530
If your vehicle overheats .........535
If the vehicle becomes
stuck ............................................. 542

4527-1. Essential information
GS450h_300h_OM_OM30F92E_(EE)

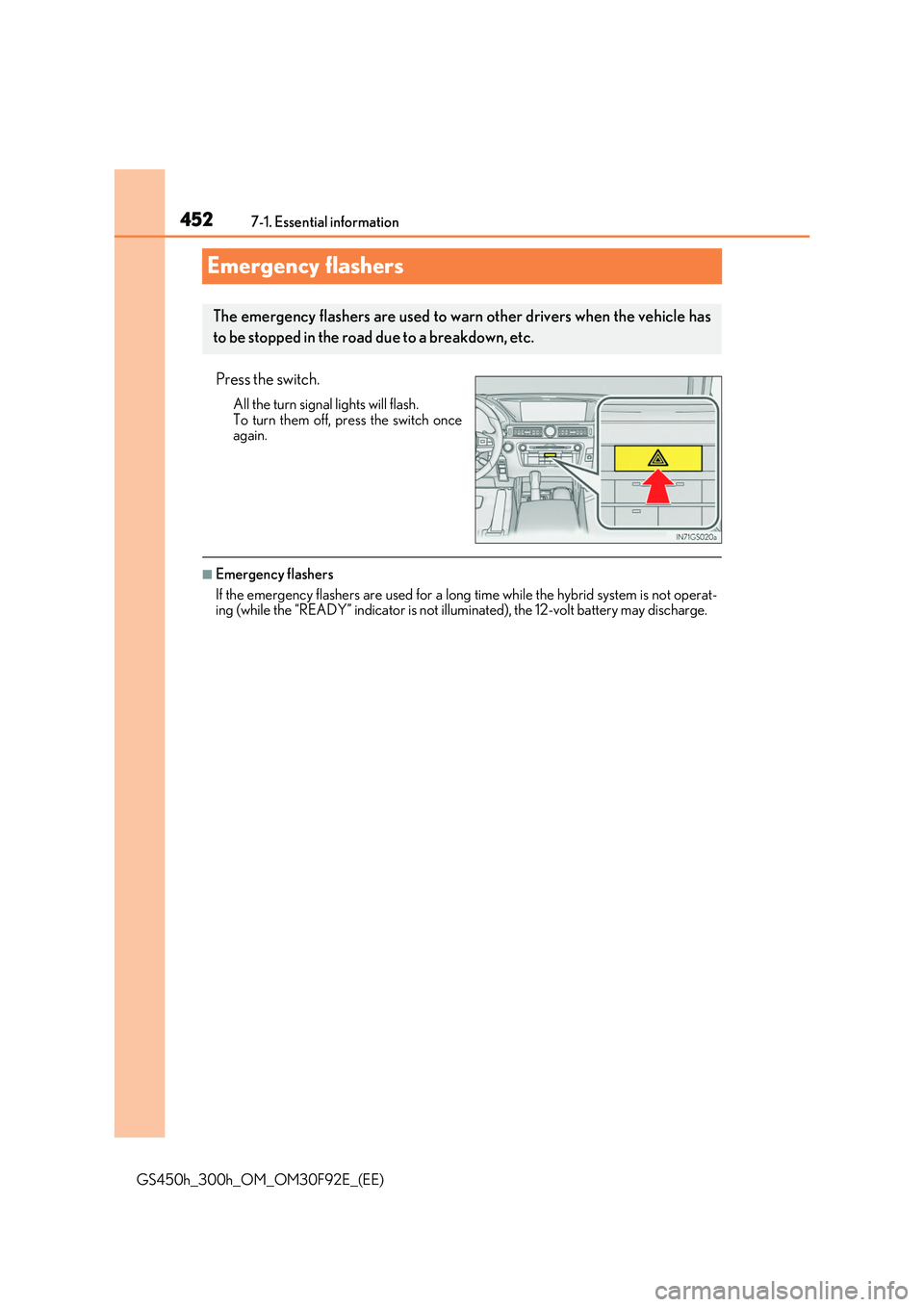

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not operat- ing (while the “READY” indicator is not illuminated), the 12-volt battery may discharge.
The emergency flashers are used to wa rn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

453
7
7-1. Essential information
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

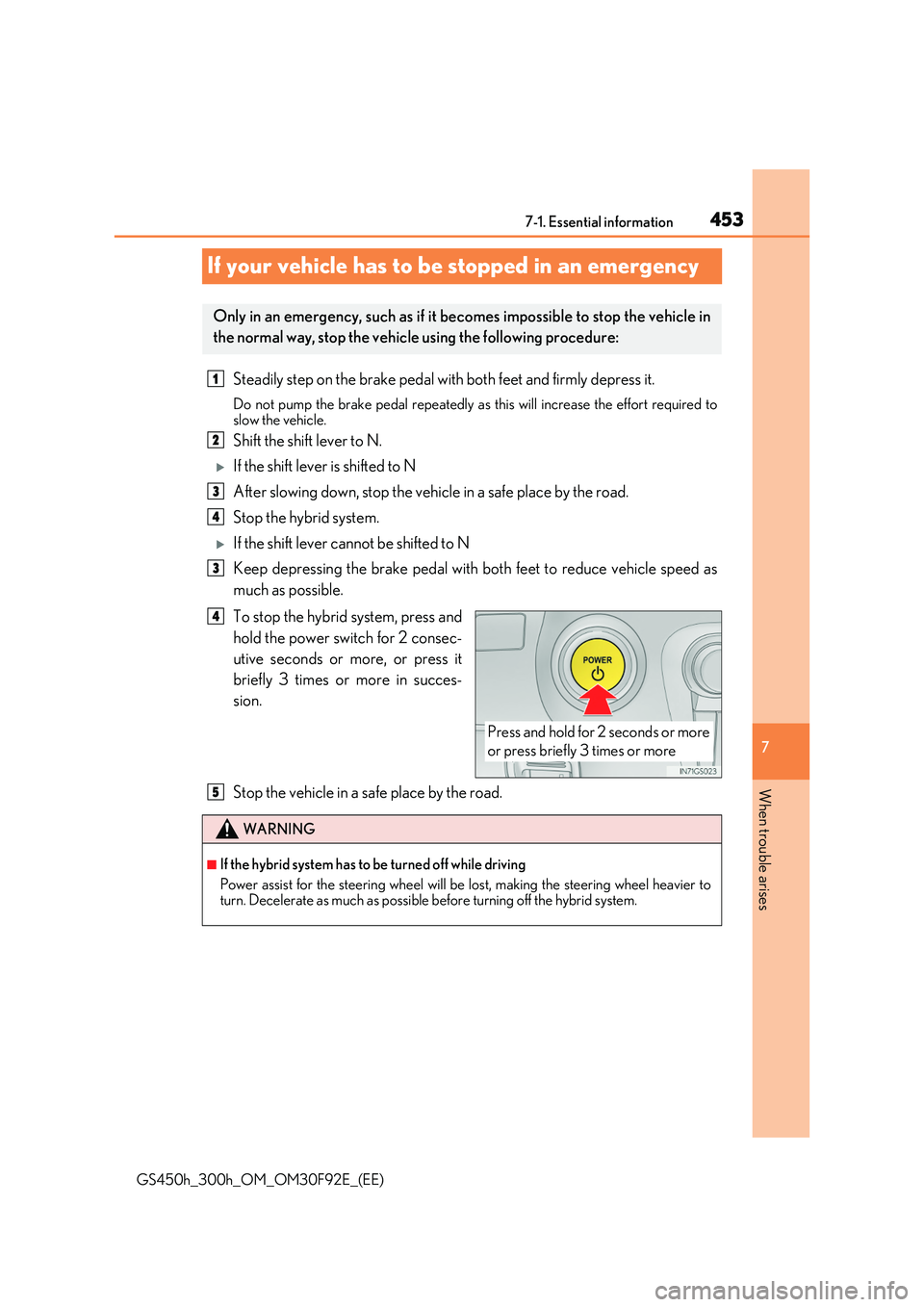

If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the hybrid system, press and
hold the power switch for 2 consec-
utive seconds or more, or press it
briefly 3 times or more in succes-
sion.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicl e using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
WARNING
■If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier to turn. Decelerate as much as possible before turning off the hybrid system.
5

4547-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

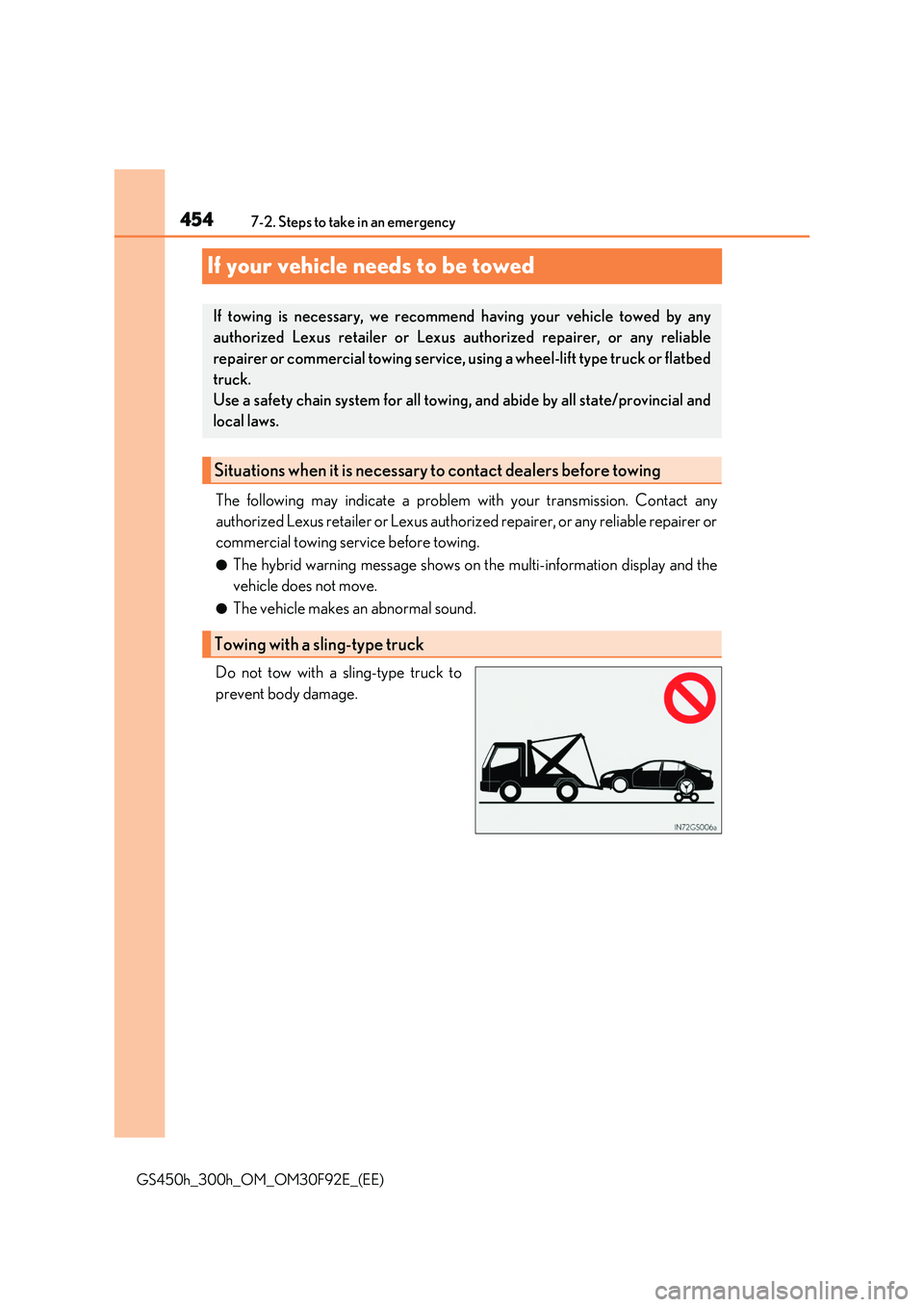

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer or
commercial towing service before towing.
●The hybrid warning message shows on the multi-information display and the
vehicle does not move.
●The vehicle makes an abnormal sound.
Do not tow with a sling-type truck to
prevent body damage.
If towing is necessary, we recommen d having your vehicle towed by any
authorized Lexus retailer or Lexus au thorized repairer, or any reliable
repairer or commercial towing service, using a wheel-lift type truck or flatbed
truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

4557-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

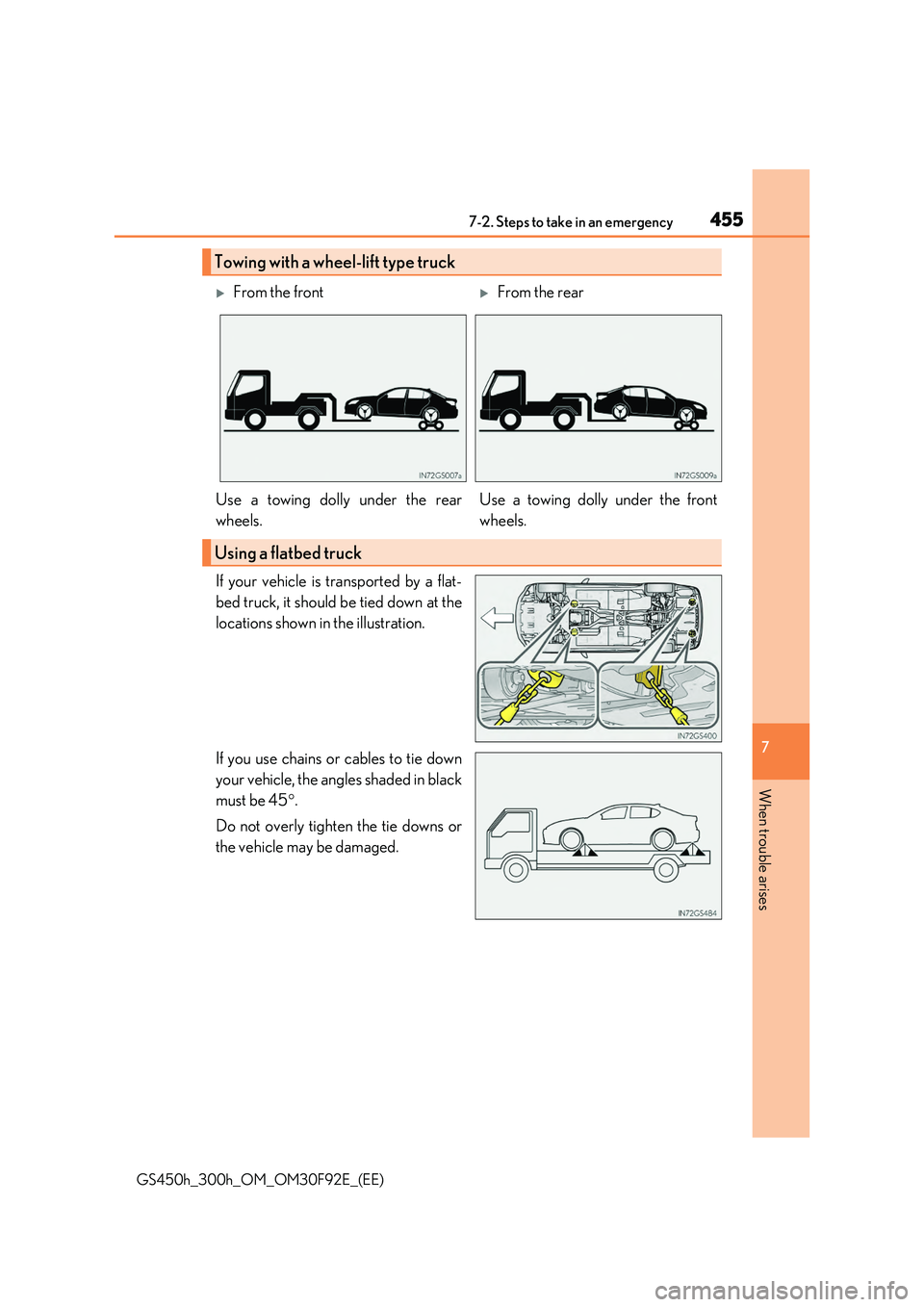

If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45 .
Do not overly tighten the tie downs or
the vehicle may be damaged.
Towing with a wheel -lift type truck
From the frontFrom the rear
Use a towing dolly under the rear
wheels.
Use a towing dolly under the front
wheels.
Using a flatbed truck

4567-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

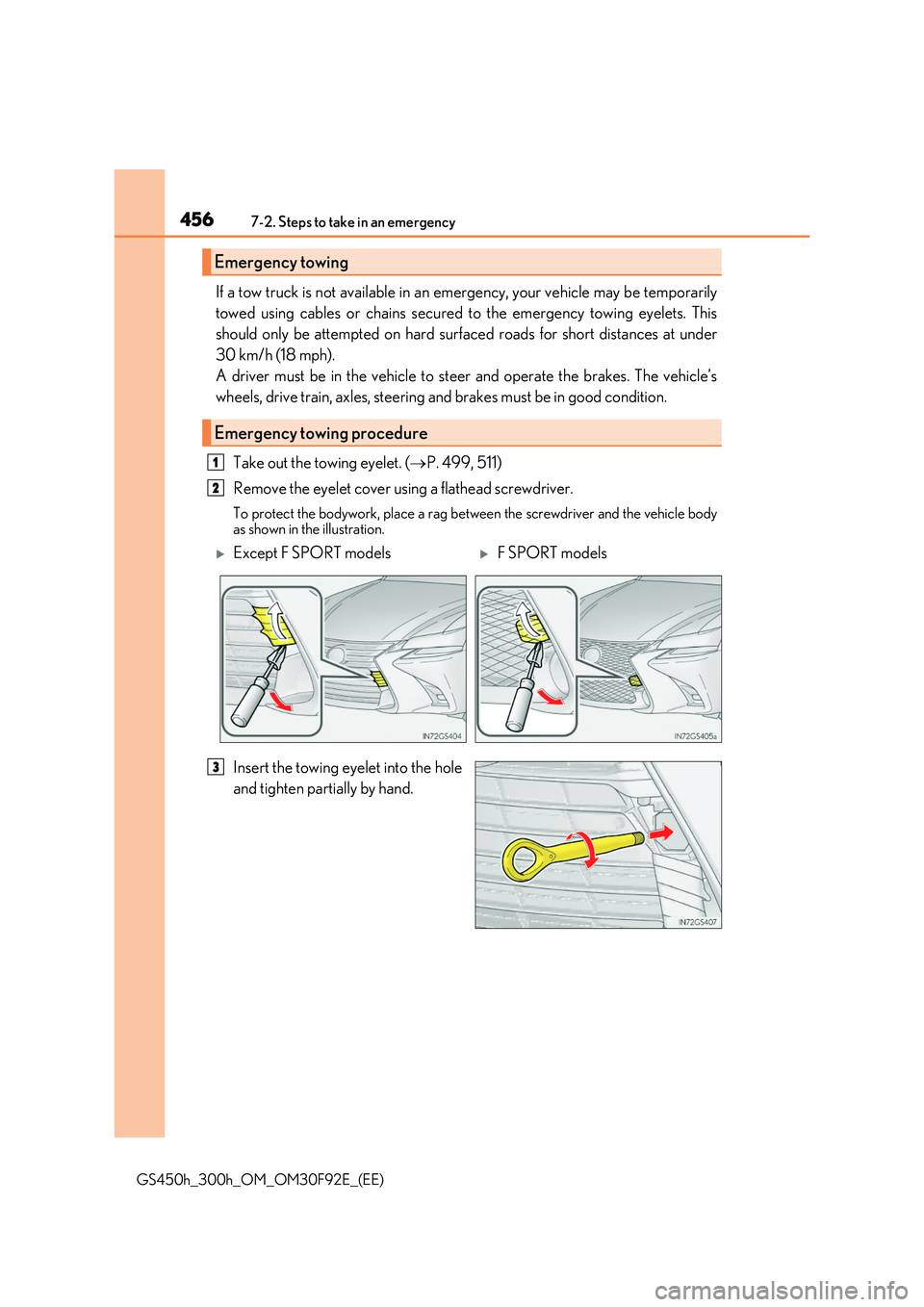

If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfaced roads for short distances at under
30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
Take out the towing eyelet. ( P. 499, 511)
Remove the eyelet cover using a flathead screwdriver.
To protect the bodywork, place a rag between the screwdriver and the vehicle body
as shown in the illustration.
Insert the towing eyelet into the hole
and tighten partially by hand.
Emergency towing
Emergency towing procedure
1
2
Except F SPORT modelsF SPORT models
3

4577-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

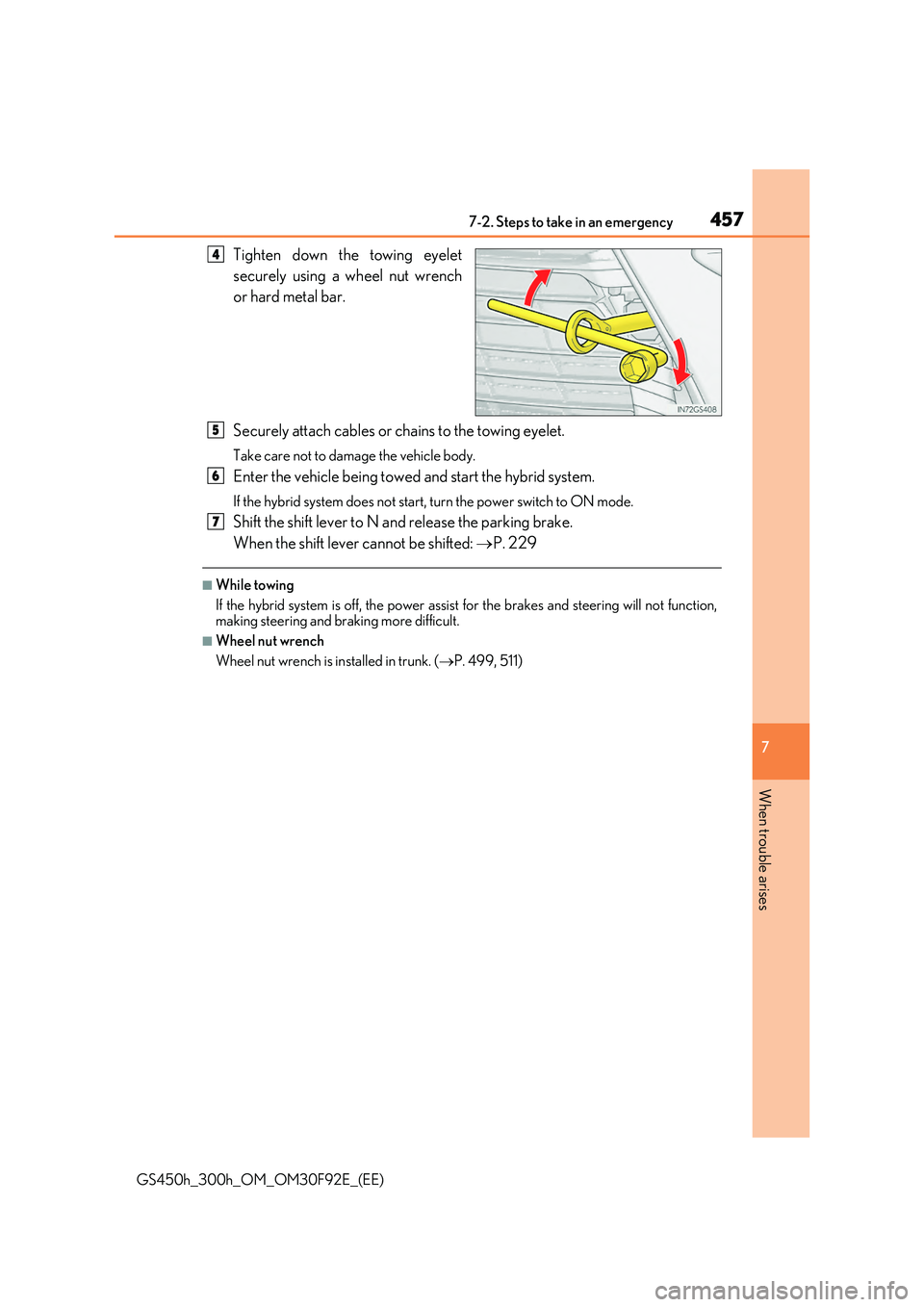

Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 229
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not function, making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in trunk. ( P. 499, 511)
4
5
6
7

4587-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

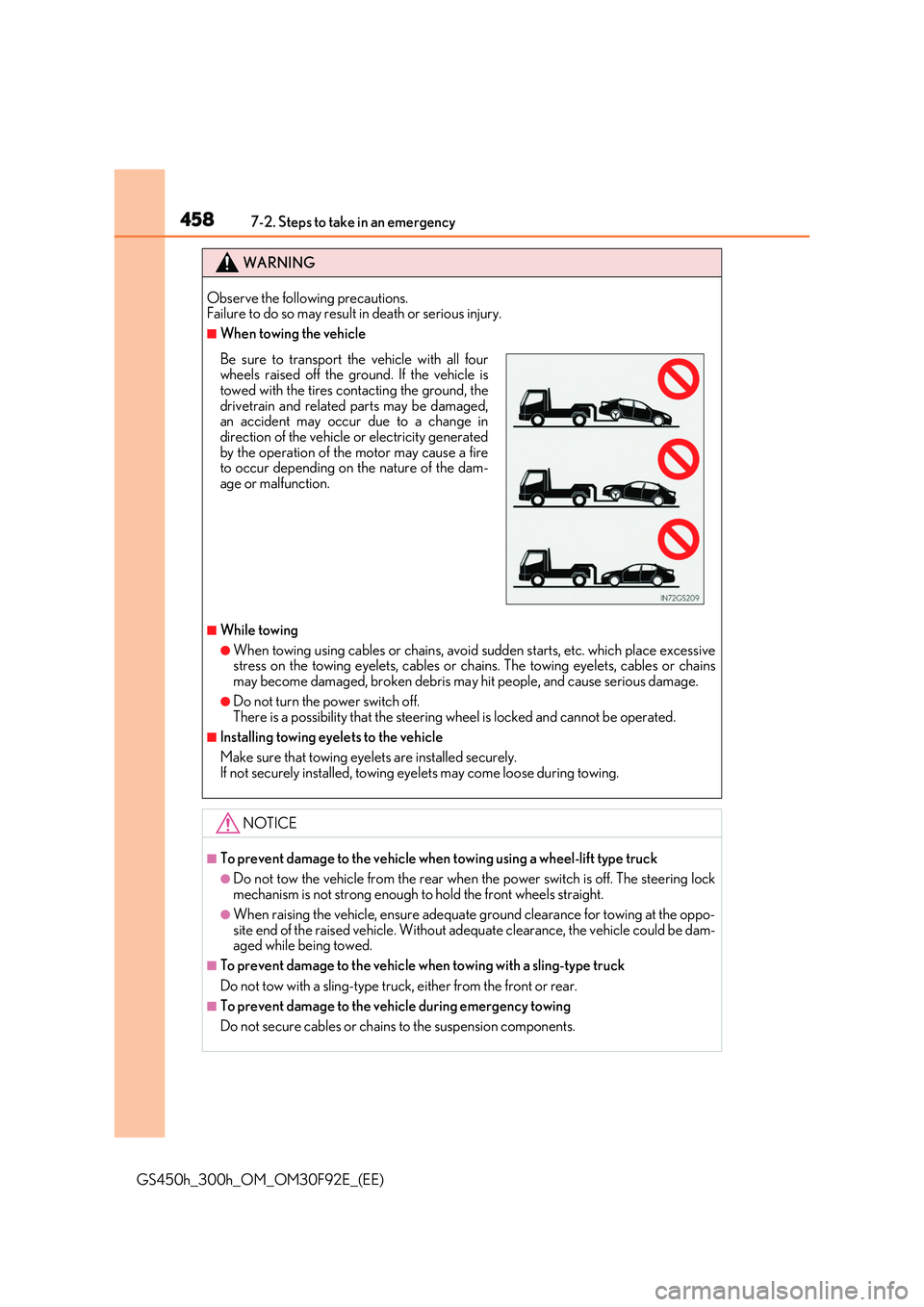

WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place excessivestress on the towing eyelets, cables or chains. The towing eyelets, cables or chains
may become damaged, broken debris ma y hit people, and cause serious damage.
●Do not turn the power switch off. There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing ey elets may come loose during towing.
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the power switch is off. The steering lock mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam- aged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
Be sure to transport the vehicle with all four wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground, the drivetrain and related parts may be damaged,an accident may occur due to a change in
direction of the vehicle or electricity generated by the operation of the motor may cause a fireto occur depending on the nature of the dam-
age or malfunction.

459
7
7-2. Steps to take in an emergency
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

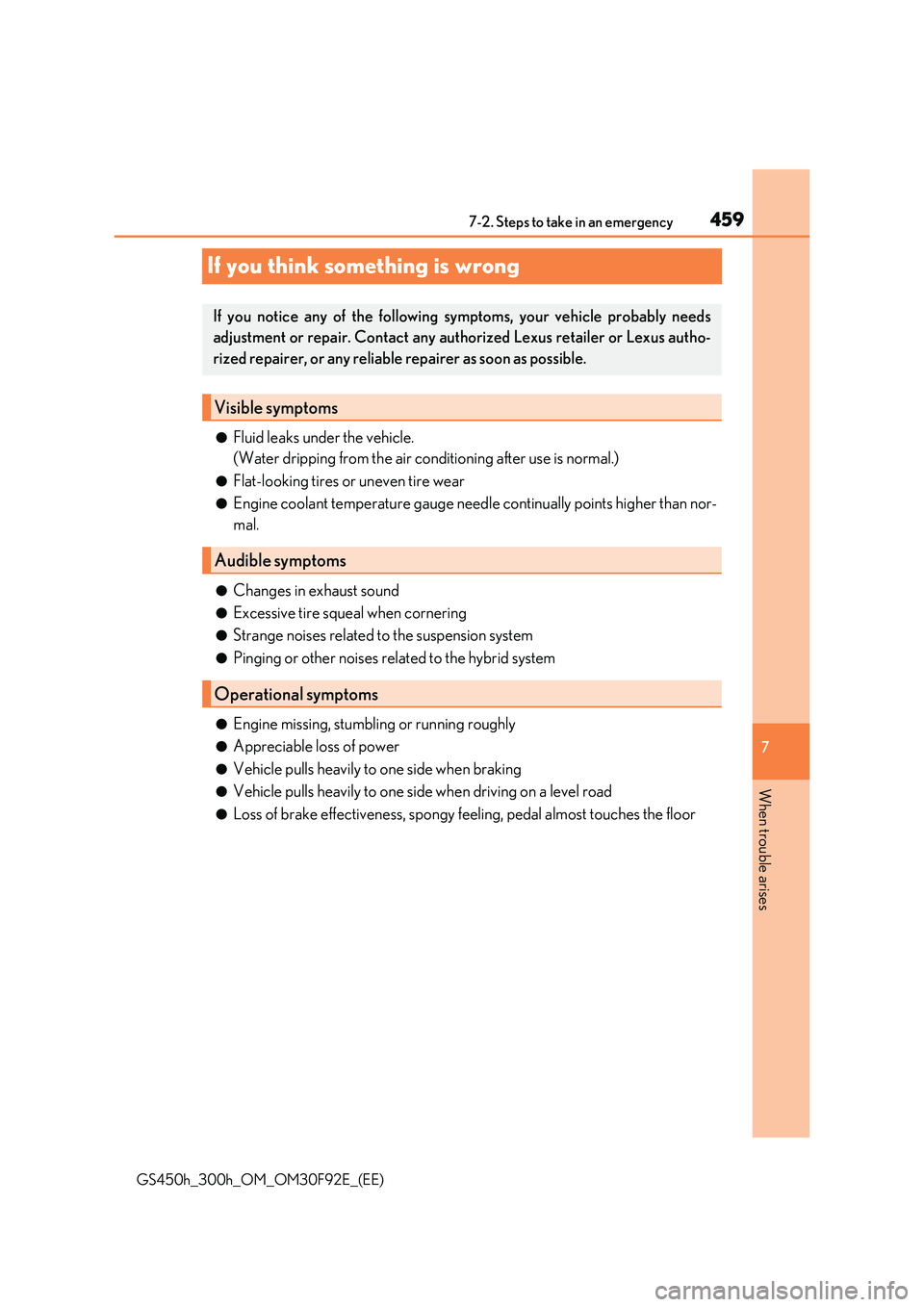

If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the hybrid system
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you notice any of the following sy mptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

4607-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

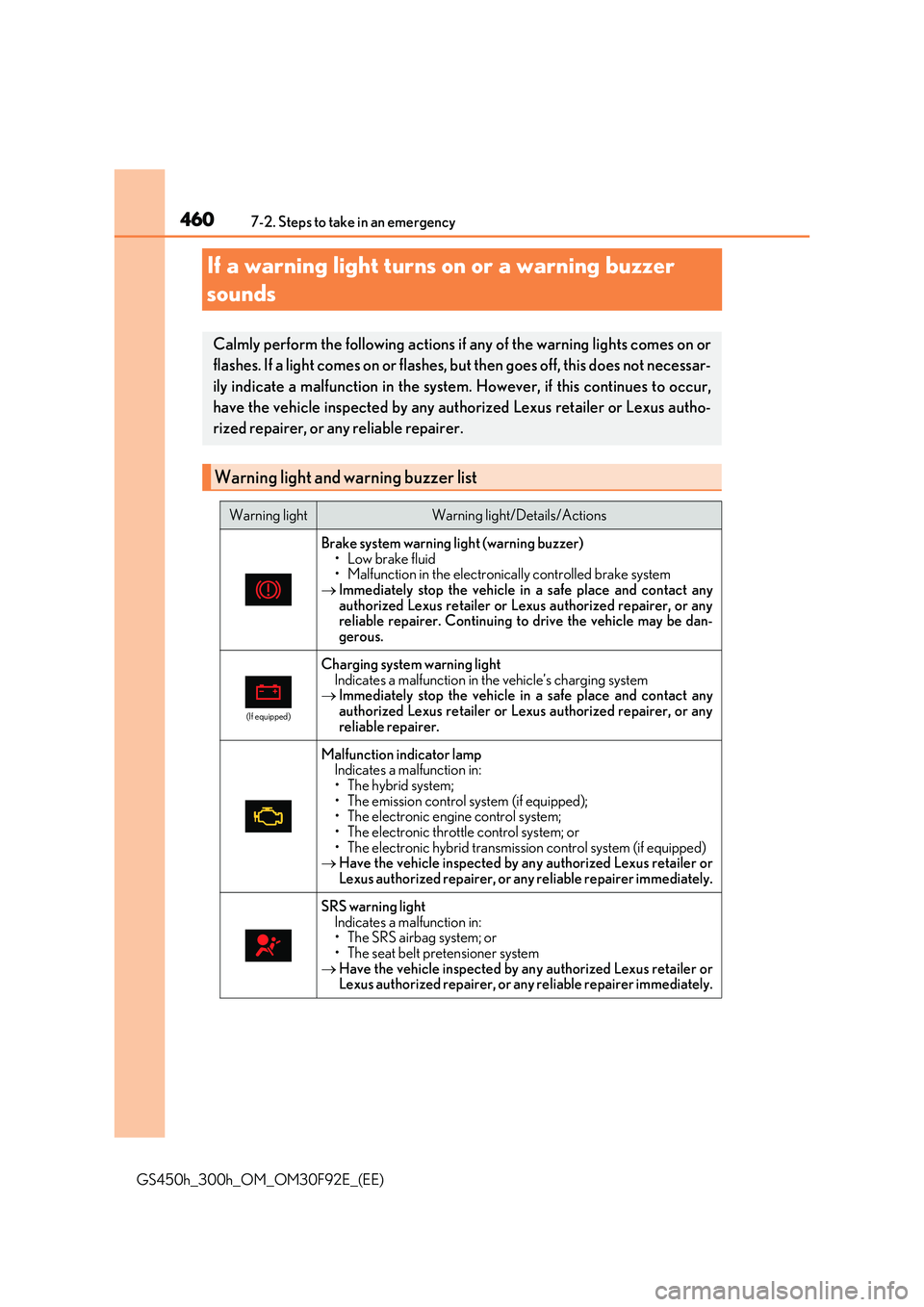

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)
•Low brake fluid • Malfunction in the electronically controlled brake system Immediately stop the vehicle in a safe place and contact any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. Continuing to drive the vehicle may be dan-gerous.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system  Immediately stop the vehicle in a safe place and contact any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.
Malfunction indicator lamp Indicates a malfunction in:• The hybrid system;
• The emission control system (if equipped); • The electronic engine control system; • The electronic throttle control system; or
• The electronic hybrid transmission control system (if equipped)  Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer immediately.
SRS warning light
Indicates a malfunction in: • The SRS airbag system; or• The seat belt pretensioner system
 Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer immediately.
