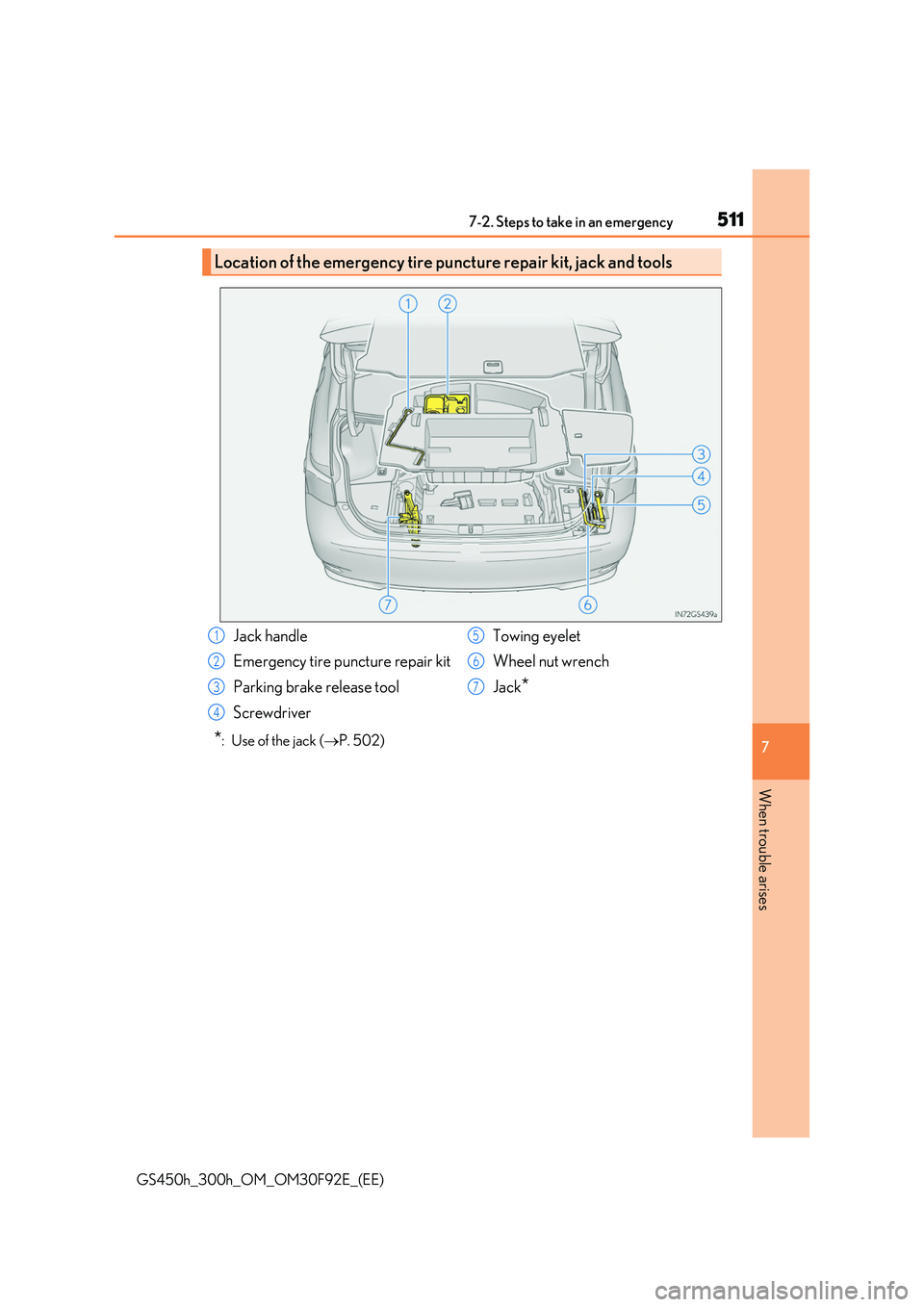

Location of the emergency tire puncture repair kit, jack and tools
Jack handle
Emergency tire puncture repair kit
Parking brake release tool
Screwdriver
Towing eyelet
Wheel nut wrench
Jack*
1
2
3
4
5
6
7

5127-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

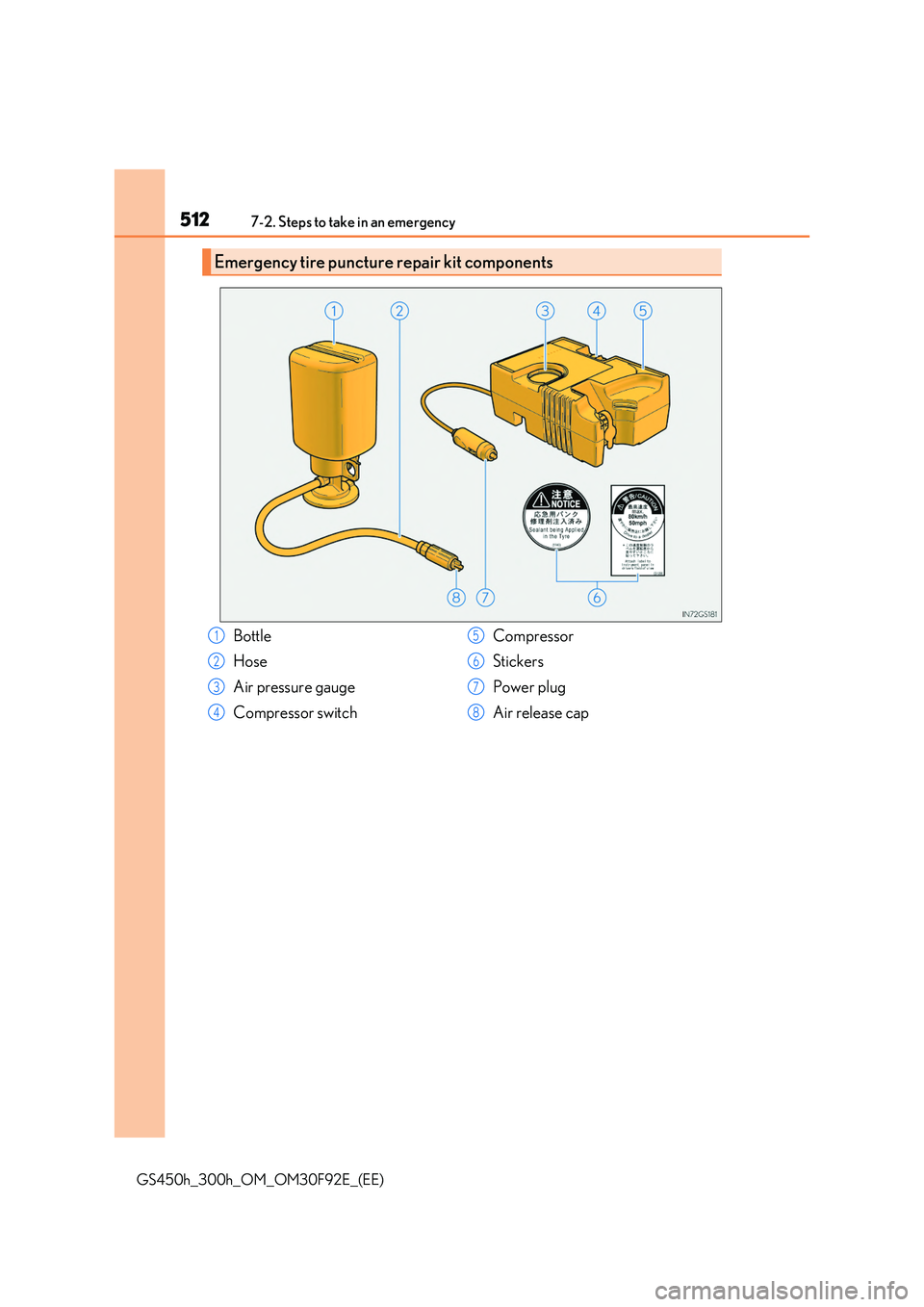

Emergency tire puncture repair kit components
Bottle
Hose
Air pressure gauge
Compressor switch
Compressor
Stickers
Power plug
Air release cap
1
2
3
4
5
6
7
8

5137-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
Remove the center luggage mat. (P. 375)
Take out the emergency tire punc-
ture repair kit.
Remove the center luggage mat. ( P. 375)
Remove the center auxiliary box.
Take out the jack.
For tightening
For loosening

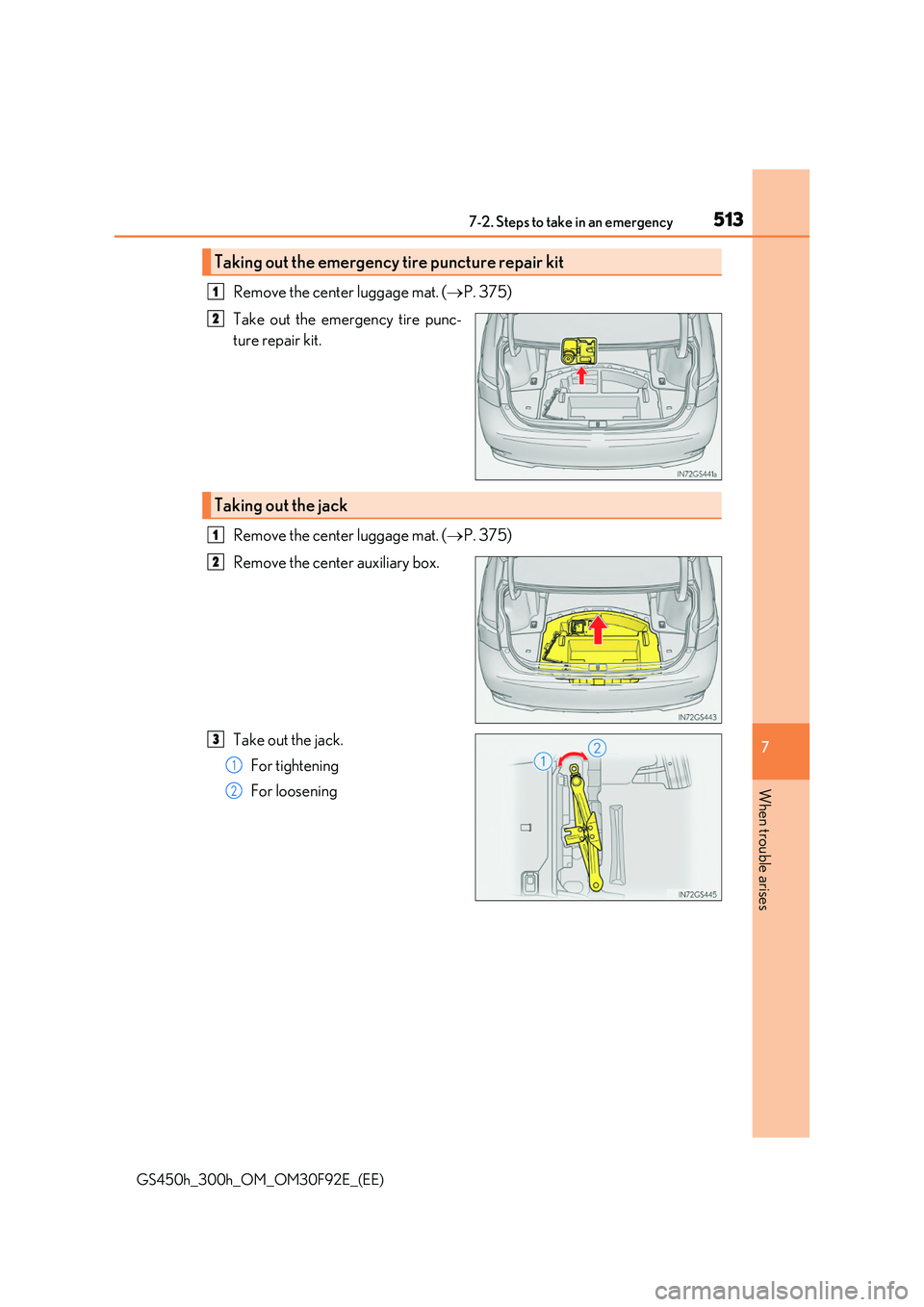

Taking out the emergency tire puncture repair kit
1
2
Taking out the jack
1
2
3
1
2

5147-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
Remove the valve cap from the valve
of the punctured tire.
Remove the air release cap from the
hose.
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise as far as possible.
Make sure that the compressor
switch is off.

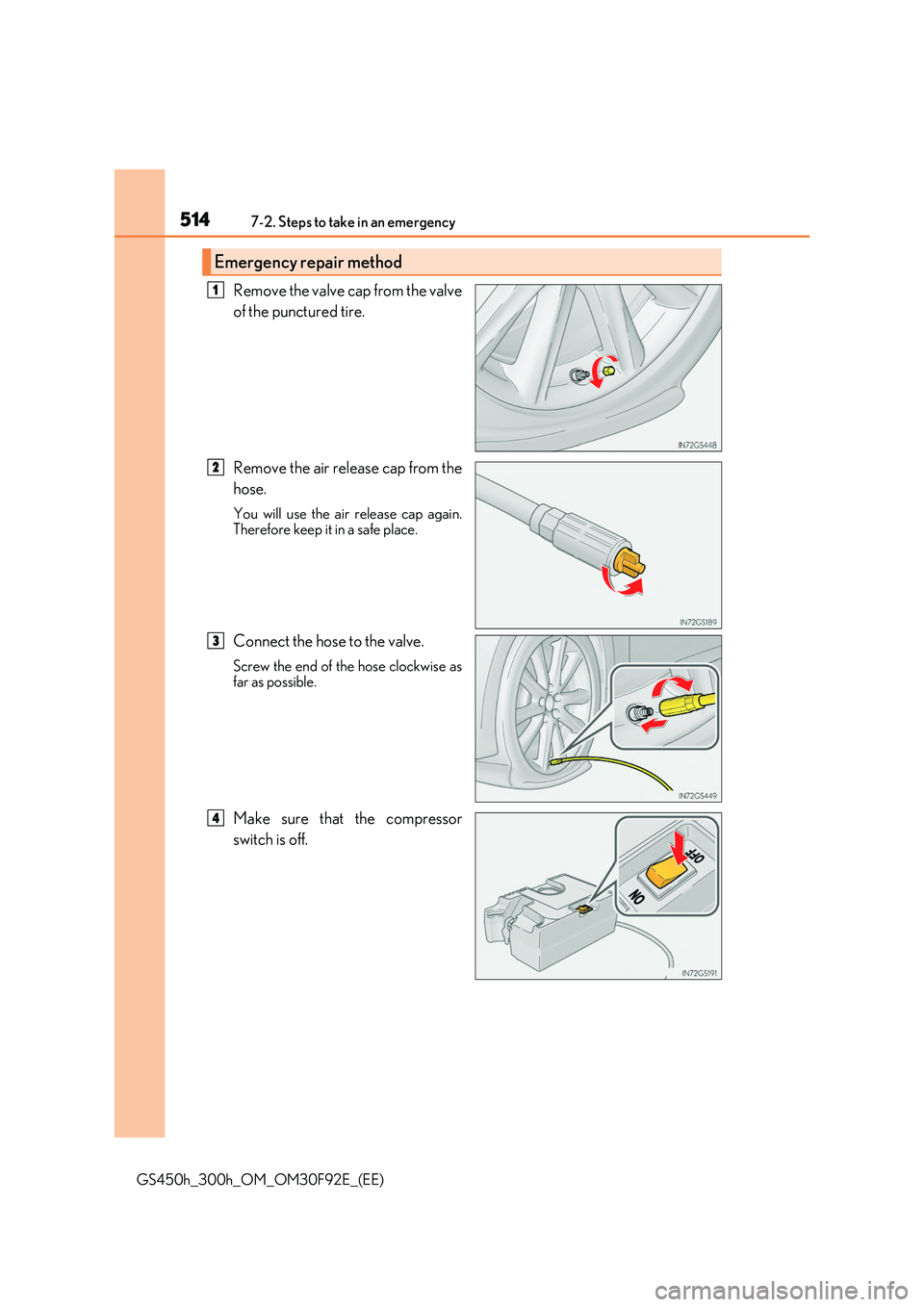

Emergency repair method
1
2
3
4

5157-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

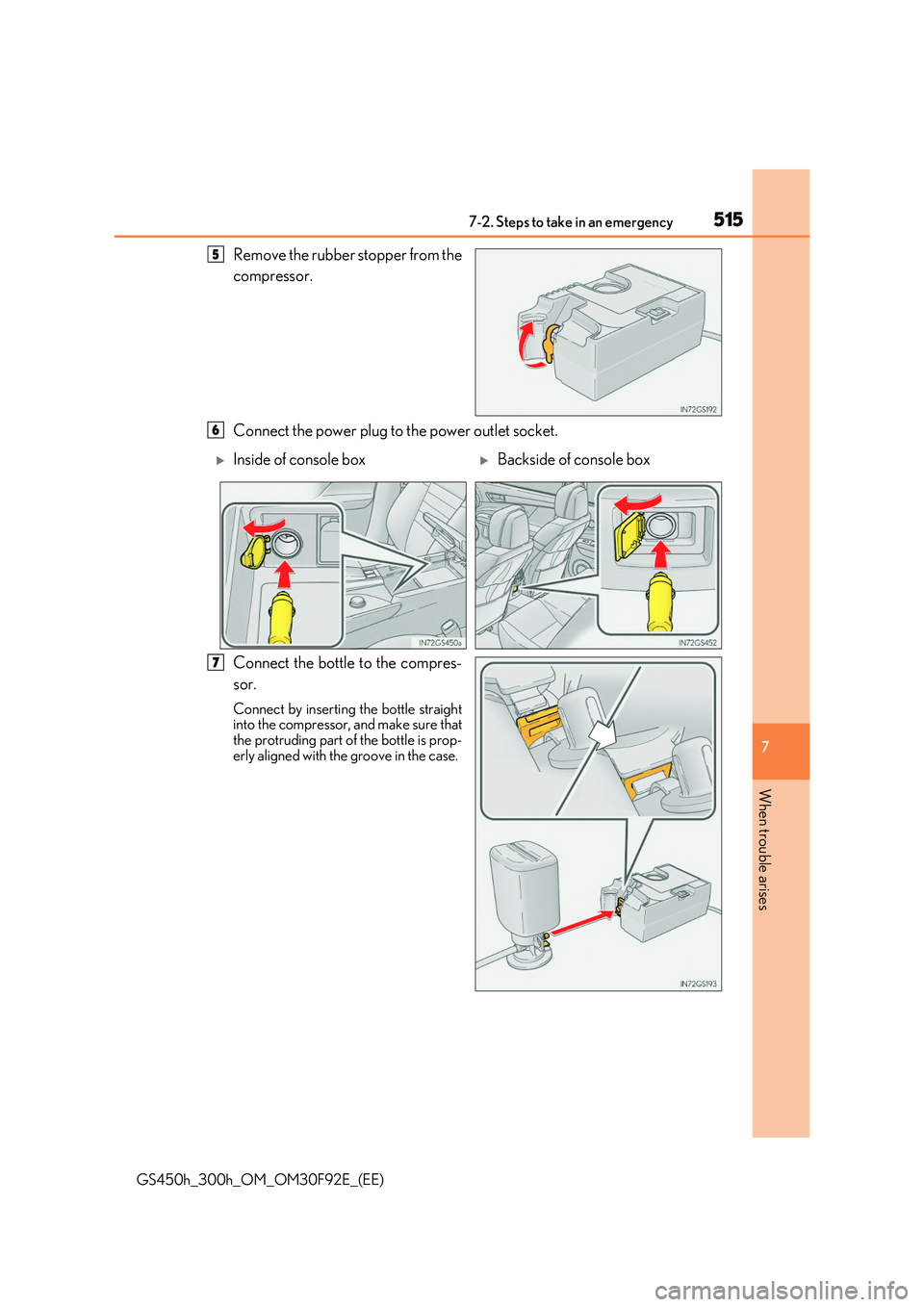

Remove the rubber stopper from the
compressor.
Connect the power plug to the power outlet socket.
Connect the bottle to the compres-
sor.
Connect by inserting the bottle straight into the compressor, and make sure that
the protruding part of the bottle is prop- erly aligned with the groove in the case.
5
6
Inside of console boxBackside of console box
7

5167-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

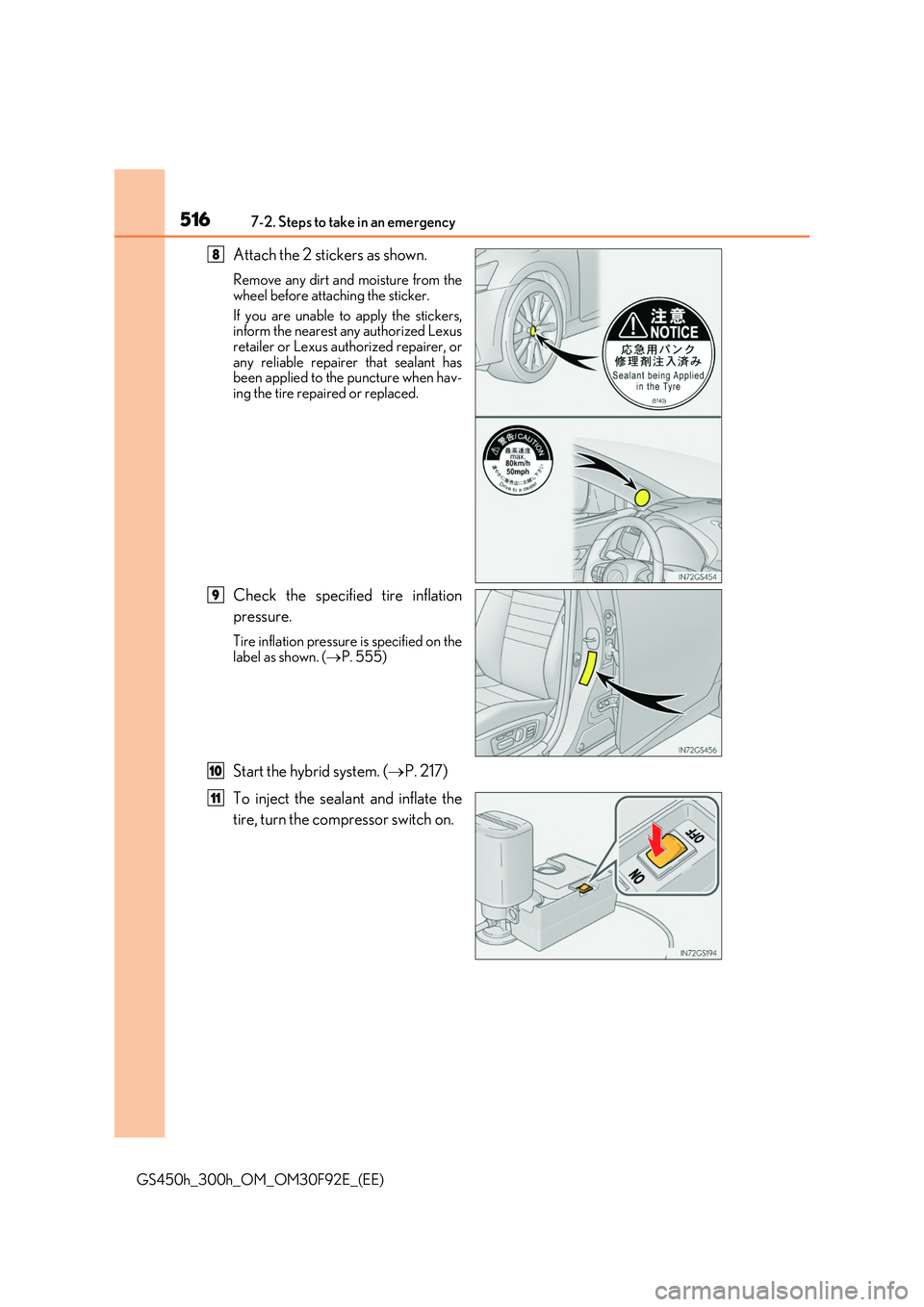

Attach the 2 stickers as shown.
Remove any dirt and moisture from the
wheel before attaching the sticker.
If you are unable to apply the stickers, inform the nearest any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer that sealant hasbeen applied to the puncture when hav-
ing the tire repaired or replaced.
Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the
label as shown. ( P. 555)
Start the hybrid system. (P. 217)
To inject the sealant and inflate the
tire, turn the compressor switch on.
8
9
10
11

5177-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

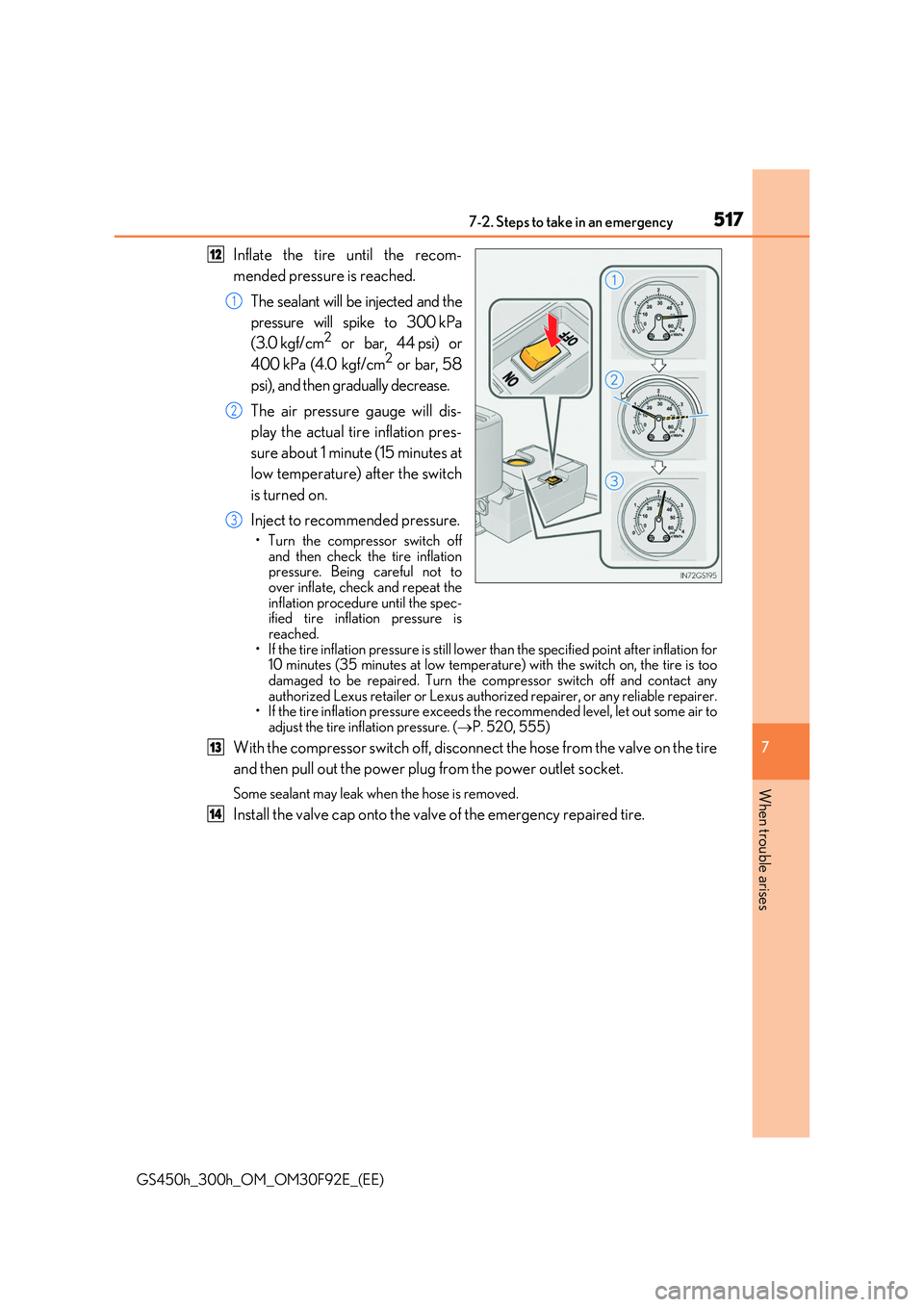

Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected and the
pressure will spike to 300 kPa
(3.0 kgf/cm2 or bar, 44 psi) or
400 kPa (4.0 kgf/cm2 or bar, 58
psi), and then gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 minute (15 minutes at
low temperature) after the switch
is turned on.
Inject to recommended pressure.
• Turn the compressor switch off
and then check the tire inflation pressure. Being careful not toover inflate, check and repeat the
inflation procedure until the spec- ified tire inflation pressure isreached.
• If the tire inflation pressure is still lowe r than the specified point after inflation for 10 minutes (35 minutes at low temperature) with the switch on, the tire is toodamaged to be repaired. Turn the compressor switch off and contact any
authorized Lexus retailer or Lexus author ized repairer, or any reliable repairer. • If the tire inflation pressure exceeds th e recommended level, let out some air to adjust the tire inflation pressure. ( P. 520, 555)
With the compressor switch off, disconnect the hose from the valve on the tire
and then pull out the power plug from the power outlet socket.
Some sealant may leak wh en the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
12
1
2
3
13
14

5187-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

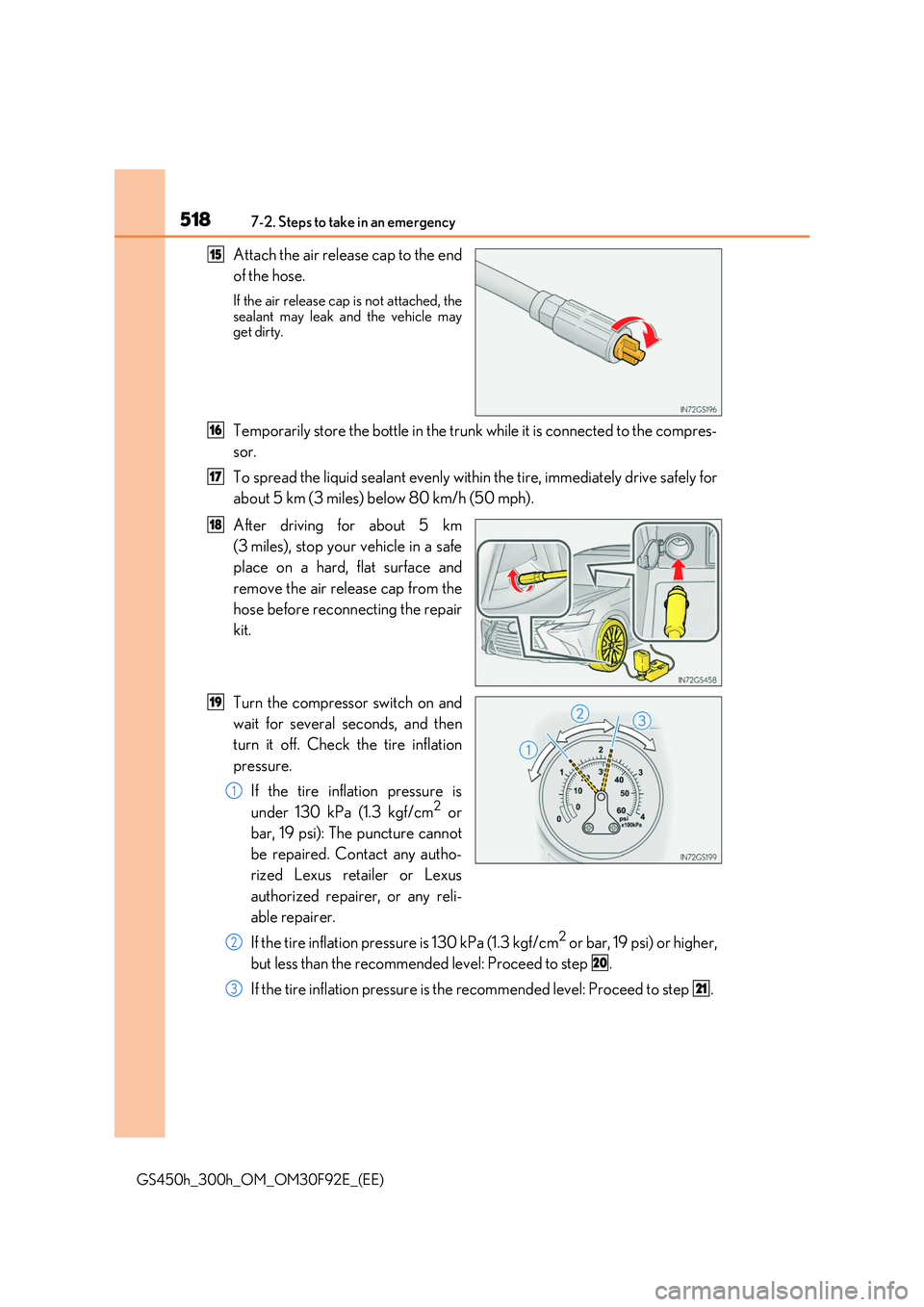

Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the sealant may leak and the vehicle mayget dirty.
Temporarily store the bottle in the trunk while it is connected to the compres-
sor.
To spread the liquid sealant evenly within the tire, immediately drive safely for
about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km
(3 miles), stop your vehicle in a safe
place on a hard, flat surface and
remove the air release cap from the
hose before reconnecting the repair
kit.
Turn the compressor switch on and
wait for several seconds, and then
turn it off. Check the tire inflation
pressure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm2 or
bar, 19 psi): The puncture cannot
be repaired. Contact any autho-
rized Lexus retailer or Lexus
authorized repairer, or any reli-
able repairer.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm2 or bar, 19 psi) or higher,
but less than the recommended level: Proceed to step .
If the tire inflation pressure is the recommended level: Proceed to step .
15
16
17
18
19
1
2
20
321

5197-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

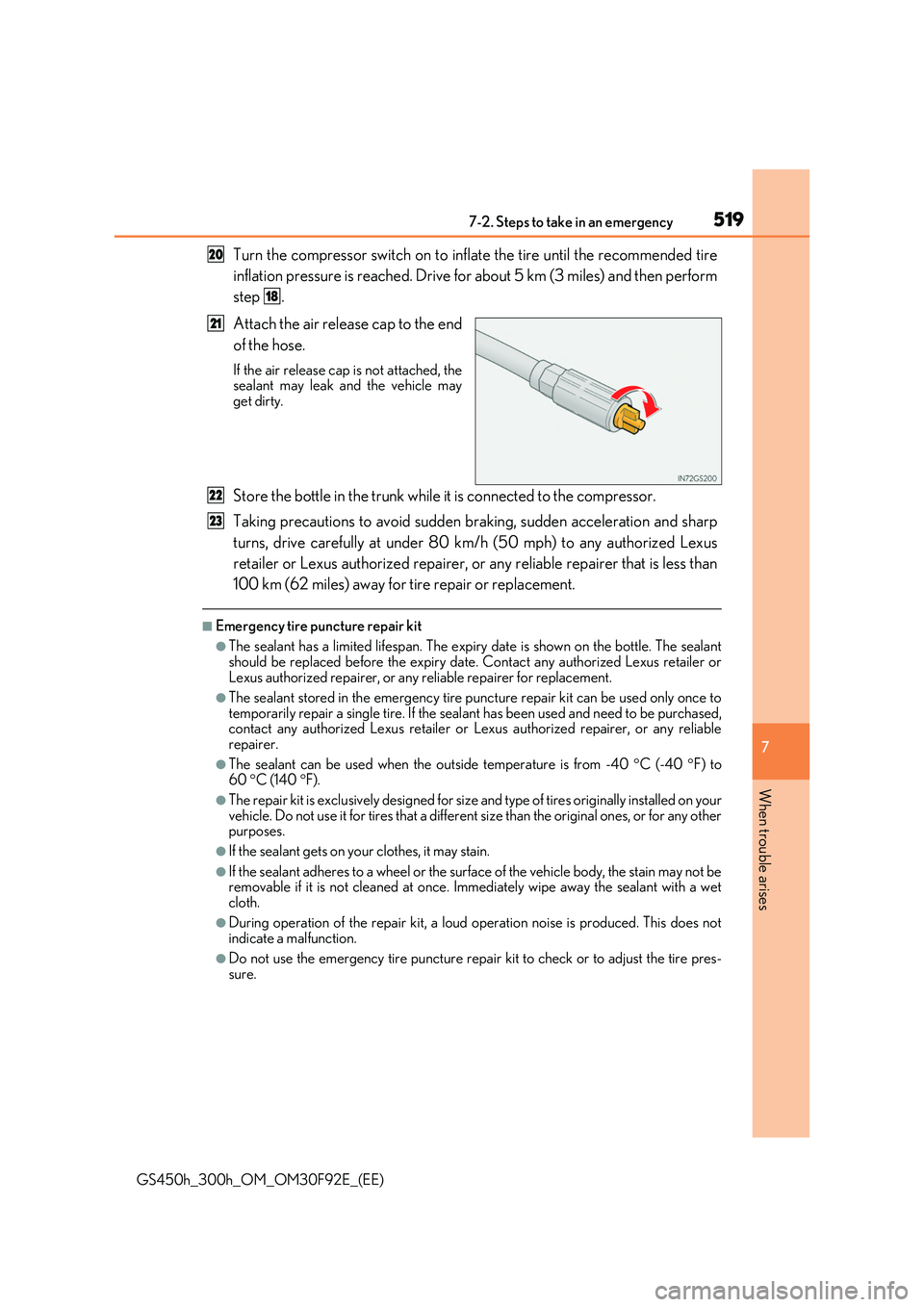

Turn the compressor switch on to inflate the tire until the recommended tire
inflation pressure is reached. Drive for about 5 km (3 miles) and then perform
step .
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the sealant may leak and the vehicle mayget dirty.
Store the bottle in the trunk while it is connected to the compressor.
Taking precautions to avoid sudden braking, sudden acceleration and sharp
turns, drive carefully at under 80 km /h (50 mph) to any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer that is less than
100 km (62 miles) away for tire repair or replacement.
■Emergency tire puncture repair kit
●The sealant has a limited lifespa n. The expiry date is shown on the bottle. The sealant
should be replaced before the expiry date. Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer for replacement.
●The sealant stored in the emergency tire puncture repair kit can be used only once to
temporarily repair a single tire. If the sealant has been used and need to be purchased, contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
●The sealant can be used when the outside temperature is from -40 C (-40 F) to 60 C (140 F).
●The repair kit is exclusively designed for size and type of tires originally installed on your
vehicle. Do not use it for tires that a different size than the original ones, or for any other purposes.
●If the sealant gets on your clothes, it may stain.
●If the sealant adheres to a wheel or the surface of the vehicle body, the stain may not beremovable if it is not cleaned at once. Immediately wipe away the sealant with a wetcloth.
●During operation of the repair kit, a loud operation noise is produced. This does not indicate a malfunction.
●Do not use the emergency tire puncture repair kit to check or to adjust the tire pres-
sure.
20
18
21
22
23

5207-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

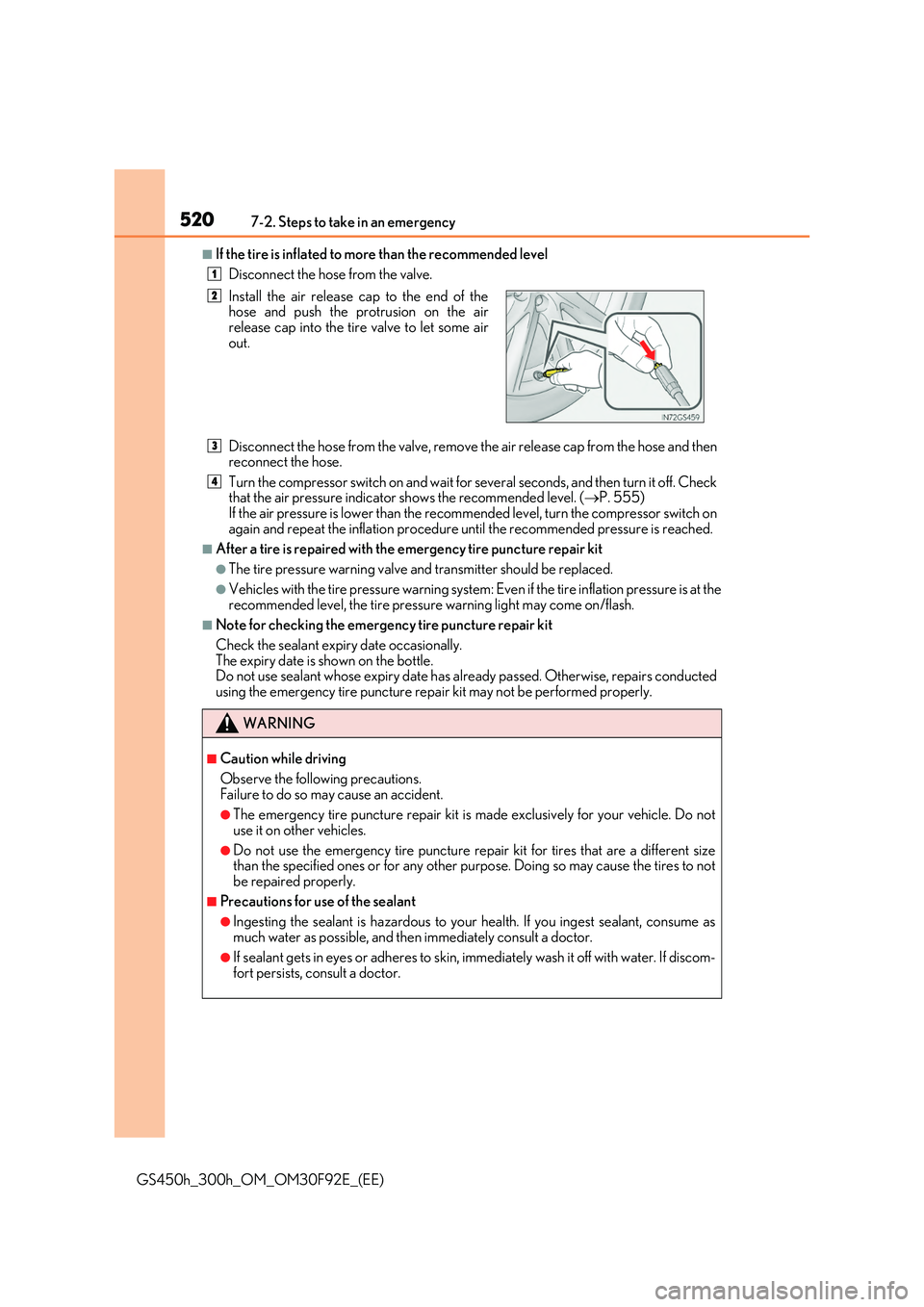

■If the tire is inflated to more than the recommended level
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the hose and then reconnect the hose.
Turn the compressor switch on and wait for se veral seconds, and then turn it off. Check that the air pressure indicator shows the recommended level. ( P. 555) If the air pressure is lower than the reco mmended level, turn the compressor switch on
again and repeat the inflation procedure un til the recommended pressure is reached.
■After a tire is repaired with the emergency tire puncture repair kit
●The tire pressure warning valve and transmitter should be replaced.
●Vehicles with the tire pressure warning system: Even if the tire inflation pressure is at the recommended level, the ti re pressure warning light may come on/flash.
■Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally. The expiry date is shown on the bottle.Do not use sealant whose expiry date has already passed. Otherwise, repairs conducted
using the emergency tire puncture repair kit may not be performed properly.
Install the air release cap to the end of the hose and push the protrusion on the airrelease cap into the tire valve to let some air
out.
WARNING
■Caution while driving
Observe the following precautions. Failure to do so may cause an accident.
●The emergency tire puncture repair kit is made exclusively for your vehicle. Do not
use it on other vehicles.
●Do not use the emergency tire puncture repair kit for tires that are a different size than the specified ones or fo r any other purpose. Doing so may cause the tires to not
be repaired properly.
■Precautions for use of the sealant
●Ingesting the sealant is hazardous to your health. If you ingest sealant, consume as
much water as possible, and then immediately consult a doctor.
●If sealant gets in eyes or adheres to skin, i mmediately wash it off with water. If discom- fort persists, consult a doctor.
1
2
3
4
