Lexus GS350 2007 Do-it-yourself maintenance / LEXUS 2007 GS430/350 OWNER'S MANUAL (OM30A04U)

201
3-3. Using the audio system
3
Interior features

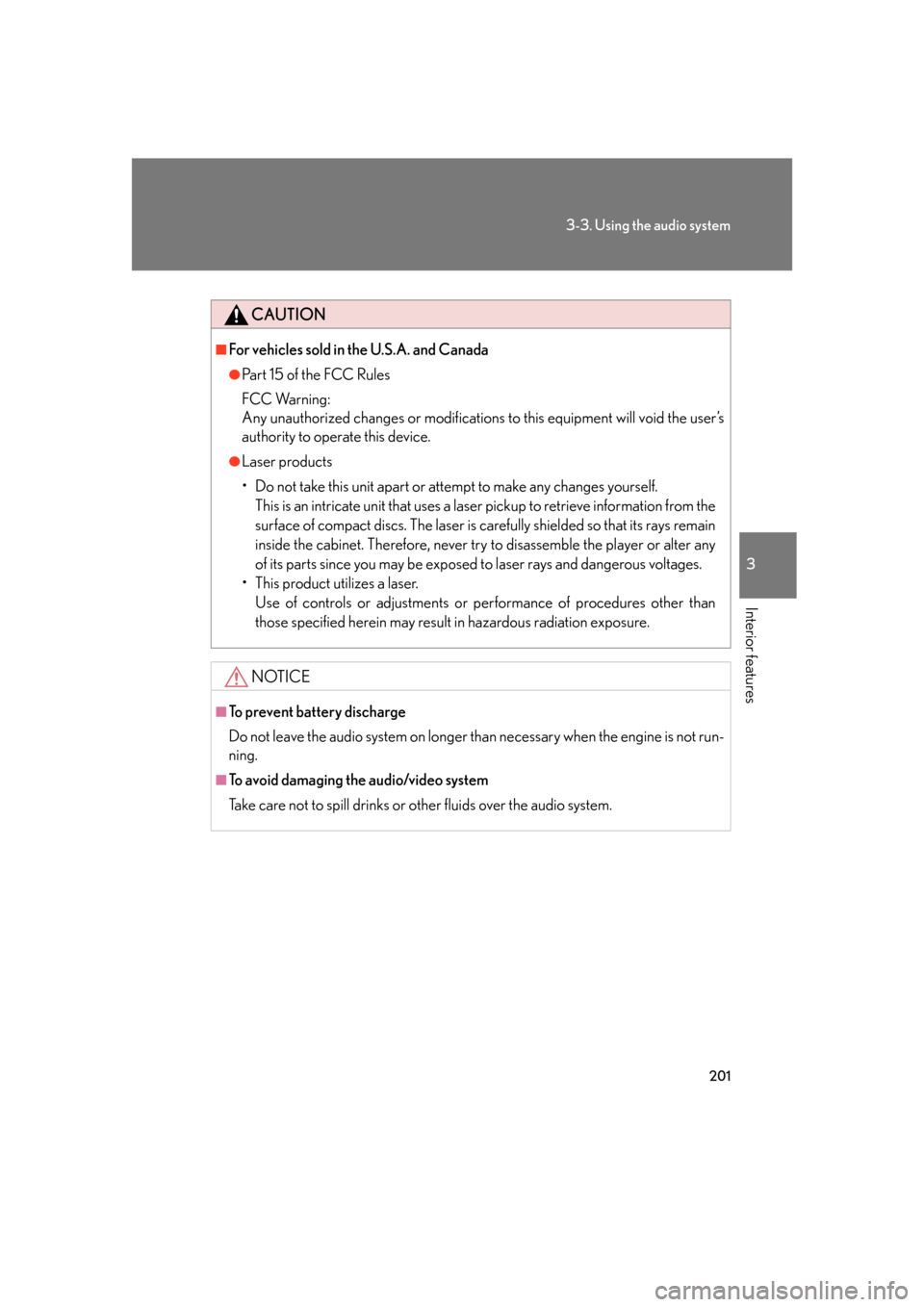

CAUTION
■For vehicles sold in the U.S.A. and Canada
●Pa r t 1 5 o f t h e F CC Ru l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes yourself. 
This is an intricate unit that uses a lase r pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or pe rformance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is not run-
ning.
■To avoid damaging the audio/video system
Take care not to spill drinks or other fluids over the audio system.

202
3-3. Using the audio system

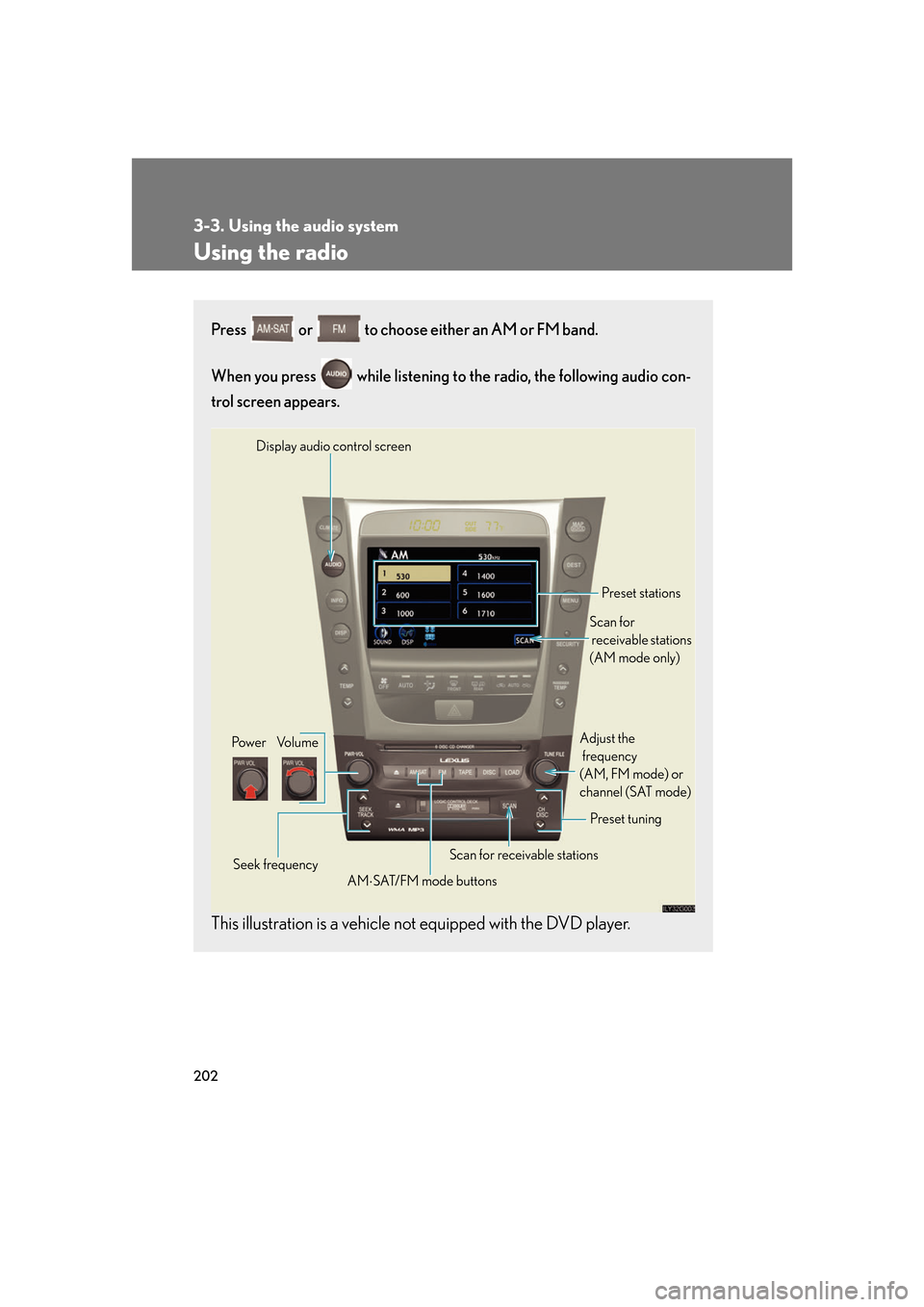

Using the radio
Press or to choose either an AM or FM band.
When you press while listening to the radio, the following audio con -
trol screen appears.
This illustration is a vehicle not equipped with the DVD player.
Display audio control screen
Pow e r Vo l u m e Scan for receivable stations
Seek frequency Preset tuning
Adjust the 
frequency

(AM, FM mode) or 
channel (SAT mode)
AM SAT/FM mode buttons Preset stations
Scan for 
receivable stations 
(AM mode only)

203
3-3. Using the audio system
3
Interior features

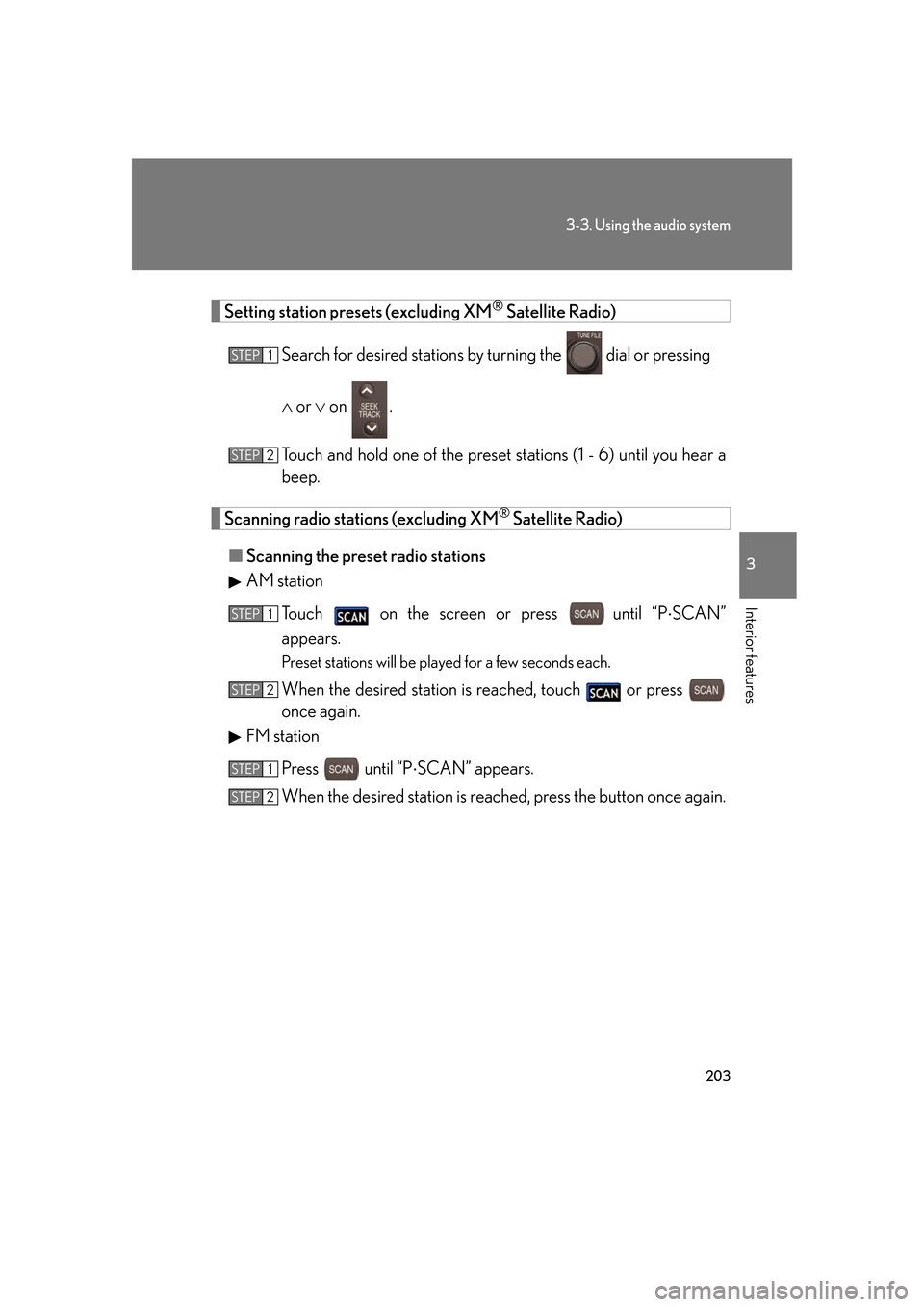

Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning the
dial or pressing 
 or  on .
Touch and hold one of the preset st ations (1 - 6) until y
ou hear a
beep.
Scanning radio stations (excluding XM® Satellite Radio)
■ Scanning the pr
eset radio stations
AM station
To u c h on the screen or press
until “PSCAN”
appears.
Preset stations will be played for a few seconds each.
When the desired stat ion is reached, touch or press
once again.
FM station
Press until “PSCAN” appears.
When the desired station is reach ed, pr
ess the button once again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

204
3-3. Using the audio system

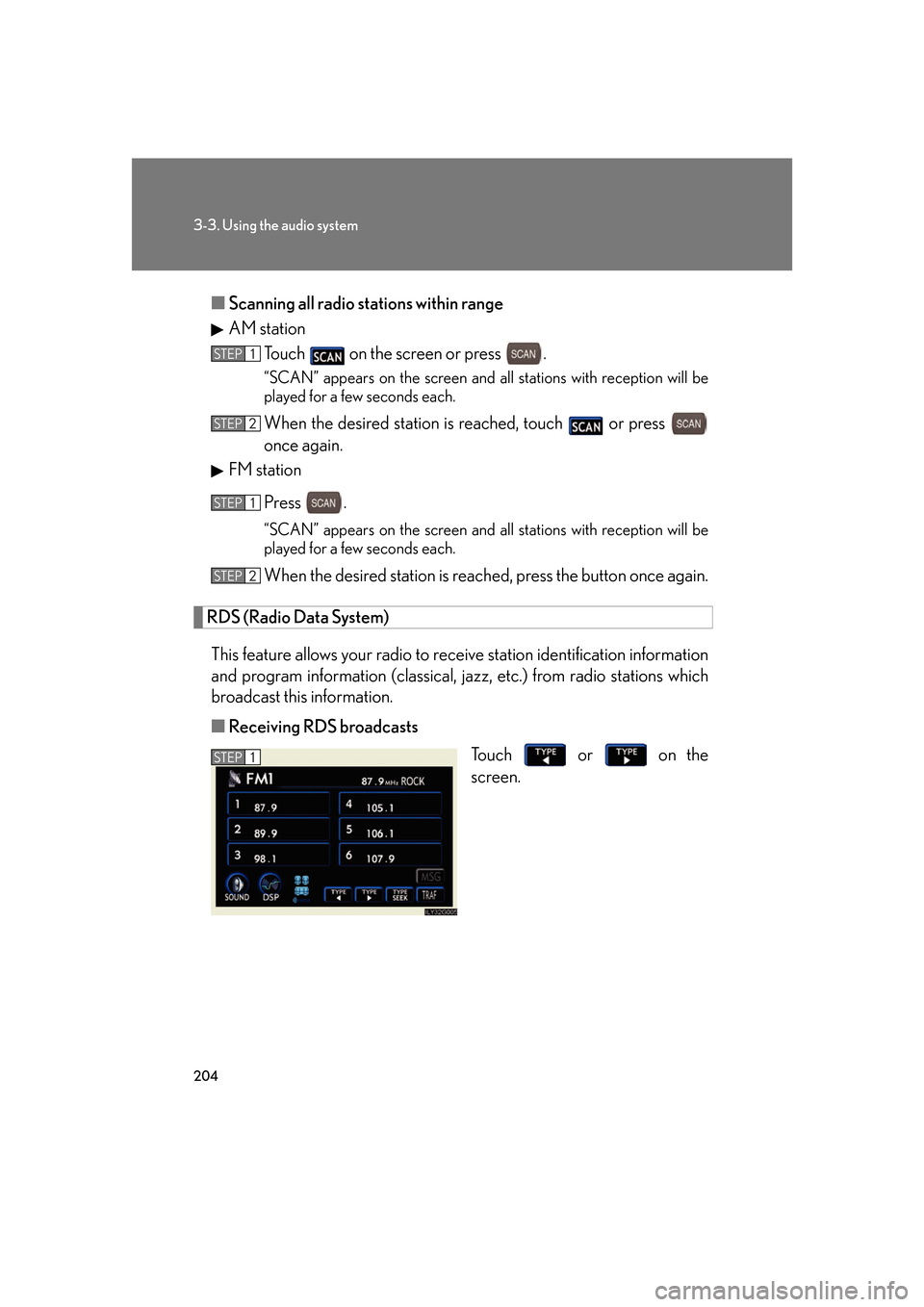

■Scanning all radio stations within range
AM station
To u c h on the screen or press .
“SCAN” appears on the screen and a ll stations with reception will be
played for a few seconds each.
When the desired stat ion is reached, touch or press
once again.
FM station
Press .
“SCAN” appears on the screen and a ll stations with reception will be
played for a few seconds each.
When the desired station is reach ed, press the button once again.
RDS (Radio Data System)
This feature allows your radio to re ceive station identification information
and program information (classical, ja zz, etc.) from radio stations which
broadcast this information.
■ R
eceiving RDS broadcasts
To u c h or on the
screen.
STEP1
STEP2
STEP1
STEP2
STEP1

205
3-3. Using the audio system
3
Interior features

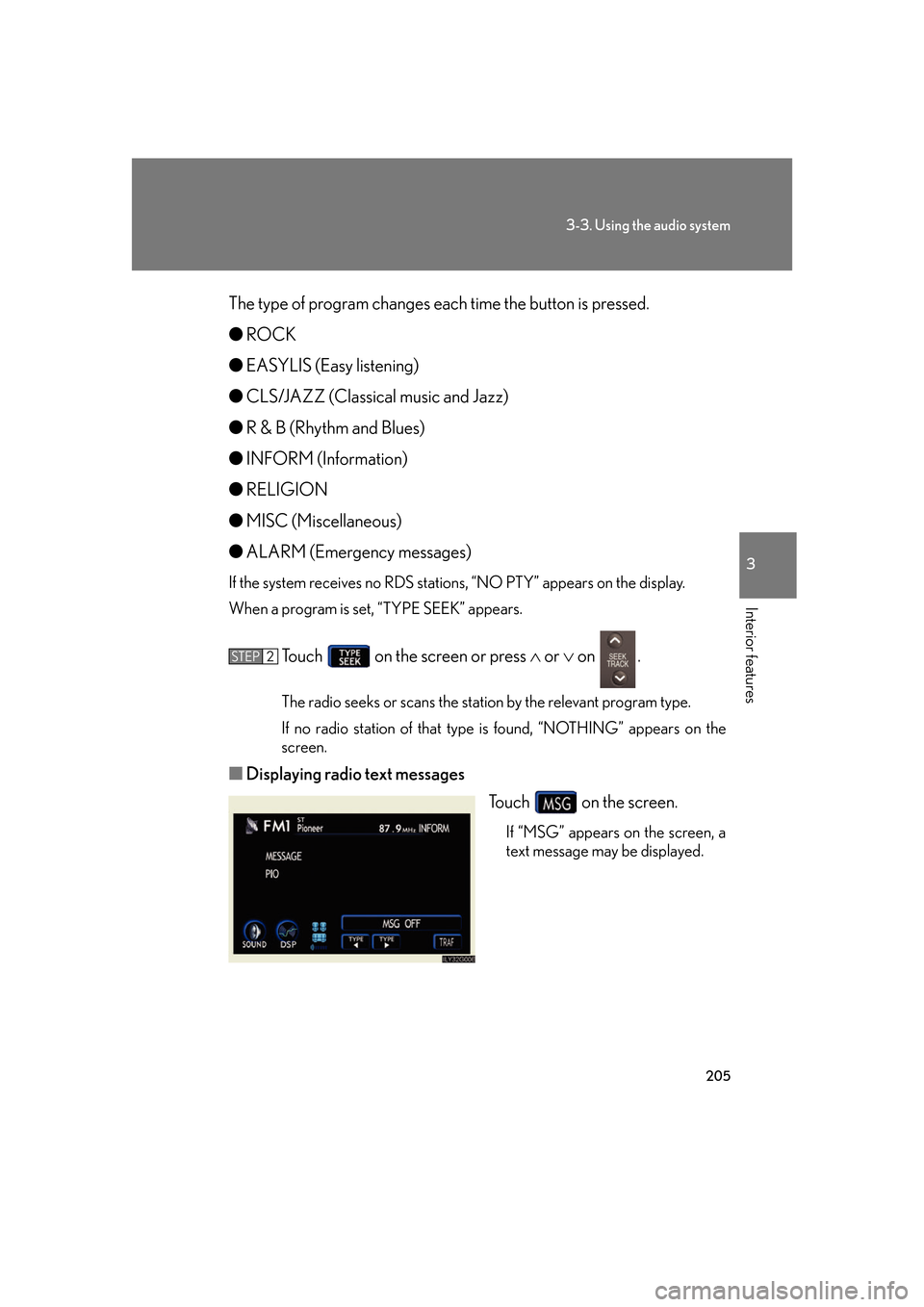

The type of program changes each time the button is pressed.
●RO
CK
●EA
SYLIS (Easy listening)
●CLS/
JAZZ (Classical music and Jazz)
●R & B (Rhy
thm and Blues)
● INF
ORM (Information)
●REL
IGION
●MIS
C (Miscellaneous)
●AL
ARM (Emergency messages)
If the system receives no RDS statio ns, “NO PTY” appears on the display.
When a program is set, “T
YPE SEEK” appears.
To u c h on the screen or press  or  on .
The radio seeks or scans the station by the relevant program type.
If no radio station of that type is found, “NO
THING” appears on the
screen.
■ Displaying radio text messages
To u c h on the screen.
If “MSG” appears on the screen, a
text message may be displayed.
STEP2

206
3-3. Using the audio system

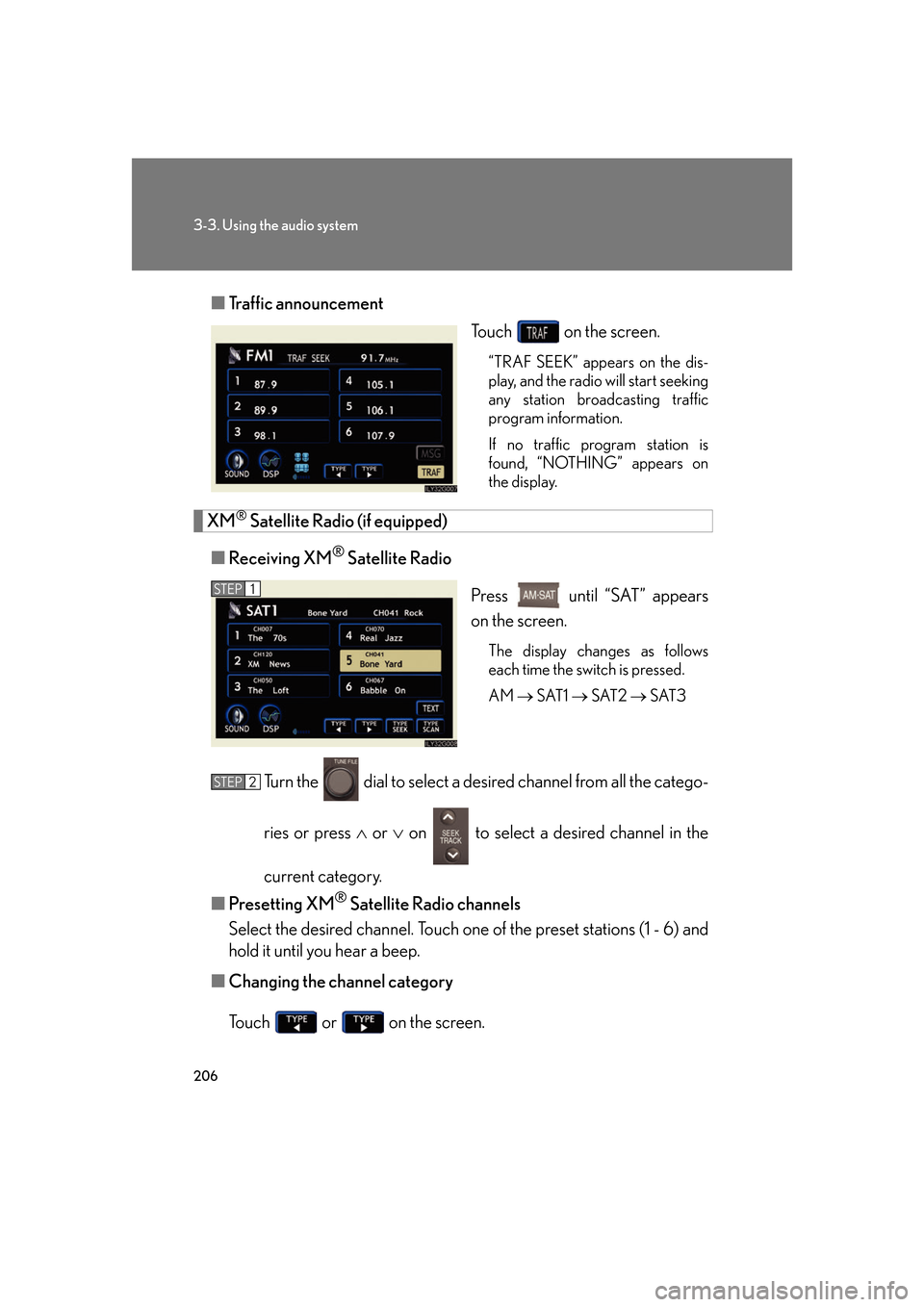

■Traffic announcement
To u c h on the screen.
“TRAF SEEK” appears on the dis -
play, and the radio will start seeking
any station
broadcasting traffic
program information.
If no traffic program station is
found, “NO
THING” appears on
the display.
XM® Satellite Radio (if equipped)
■ R
eceiving XM® Satellite Radio
Press until “SAT” appears
on the screen.
The display changes as follows
each time the switch is pressed.
AM  SA
T1  SAT2  SAT3
Turn the dial to select a desired channel from all the catego -
ries or press  or  on to select a desired channel in the
current category.
■ P
resetting XM® Satellite Radio channels
Select the desired channe l. T
ouch one of the preset stations (1 - 6) and
hold it until you hear a beep.
■ Changing the channel categor
y
To u c h or on the screen.
STEP1
STEP2

207
3-3. Using the audio system
3
Interior features

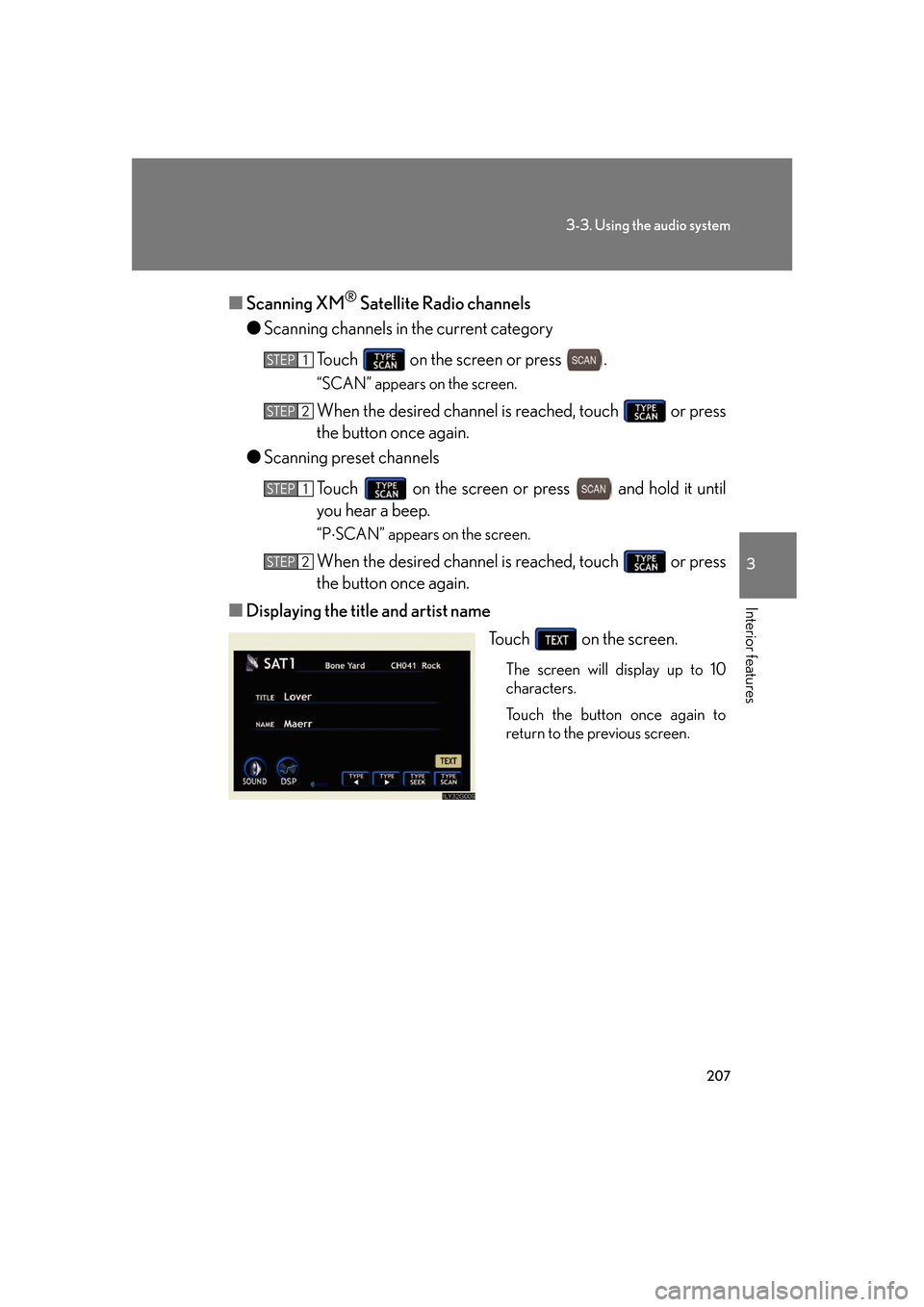

■Scanning XM® Satellite Radio channels
● Scanning channels in the curr
ent category
To u c h on the screen or press .
“SCAN” appears on the screen.
When the desired channel is reached, touch or press
the button once again.
● Scanning pr
eset channels
To u c h on the screen or press and hold it until
you hear a beep.
“P SCAN” appears on the screen.
When the desired cha nnel is reached, touch or press
the button once again.
■ Displaying the title and ar
tist name
To u c h on the screen.
The screen will display up to 10
characters.
Touch the button once again to
r

eturn to the previous screen.
STEP1
STEP2
STEP1
STEP2

208
3-3. Using the audio system

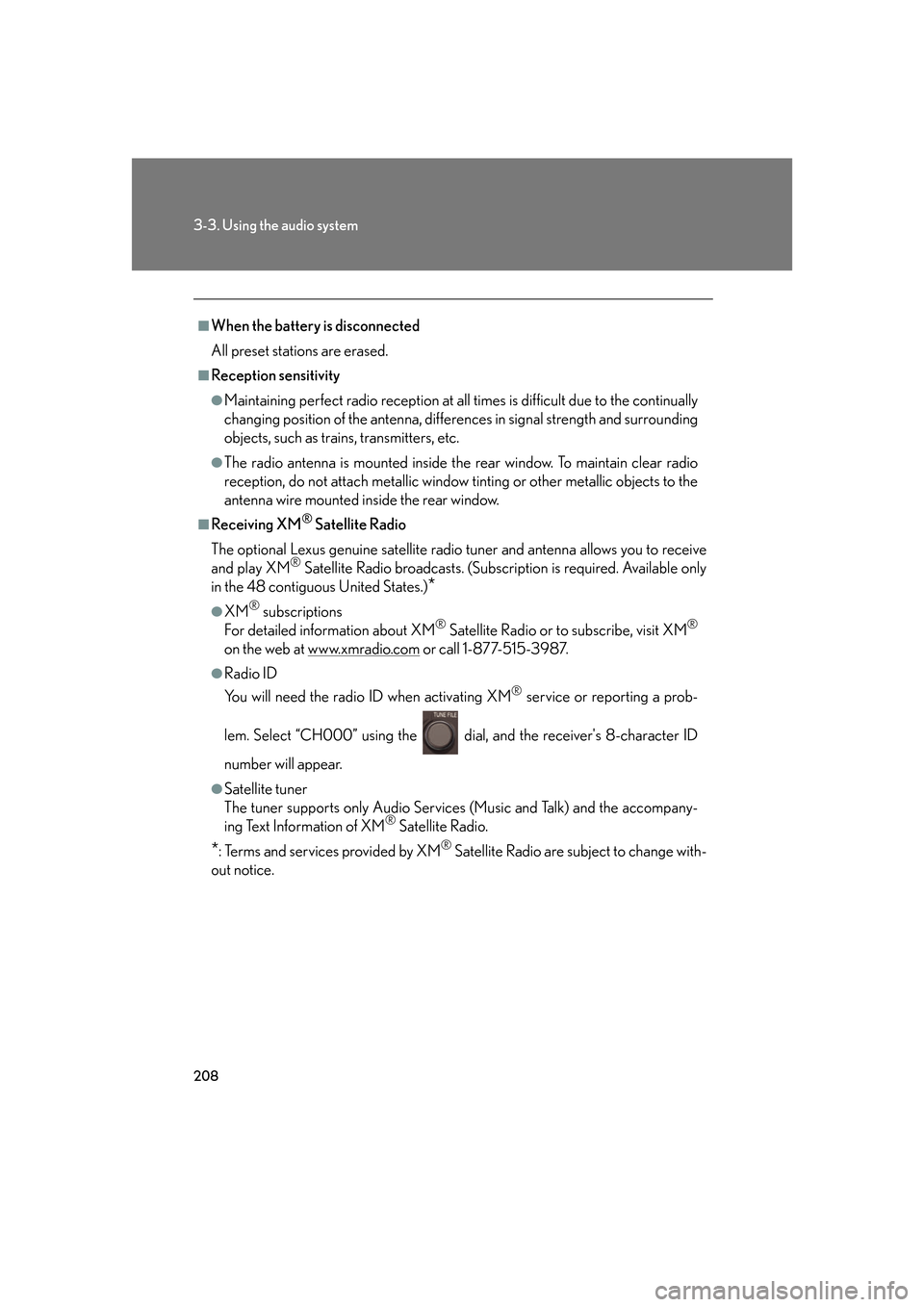

■When the battery is disconnected
All preset stations are erased.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
●The radio antenna is mounted inside the rear window. To maintain clear radio
reception, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted in side the rear window.
■Receiving XM® Satellite Radio
The optional Lexus genuine satellite radio tuner and antenna allows you to receive
and play XM
® Satellite Radio broadcasts. (Subscription is required. Available only
in the 48 contiguous United States.)
*
●XM® subscriptions 
For detailed information about XM® Satellite Radio or to subscribe, visit XM®
on the web at www.xmradio.com or call 1-877-515-3987.
●Radio ID 
You will need the radio ID when activating XM
® service or reporting a prob -
lem. Select “CH000” using the dial, and the receiver's 8-character ID
number will appear.
●Satellite tuner 
The tuner supports only Audio Services (Music and Talk) and the accompany -
ing Text Information of XM
® Satellite Radio.
*: Terms and services provided by XM® Satellite Radio are subject to change with -
out notice.

209
3-3. Using the audio system
3
Interior features

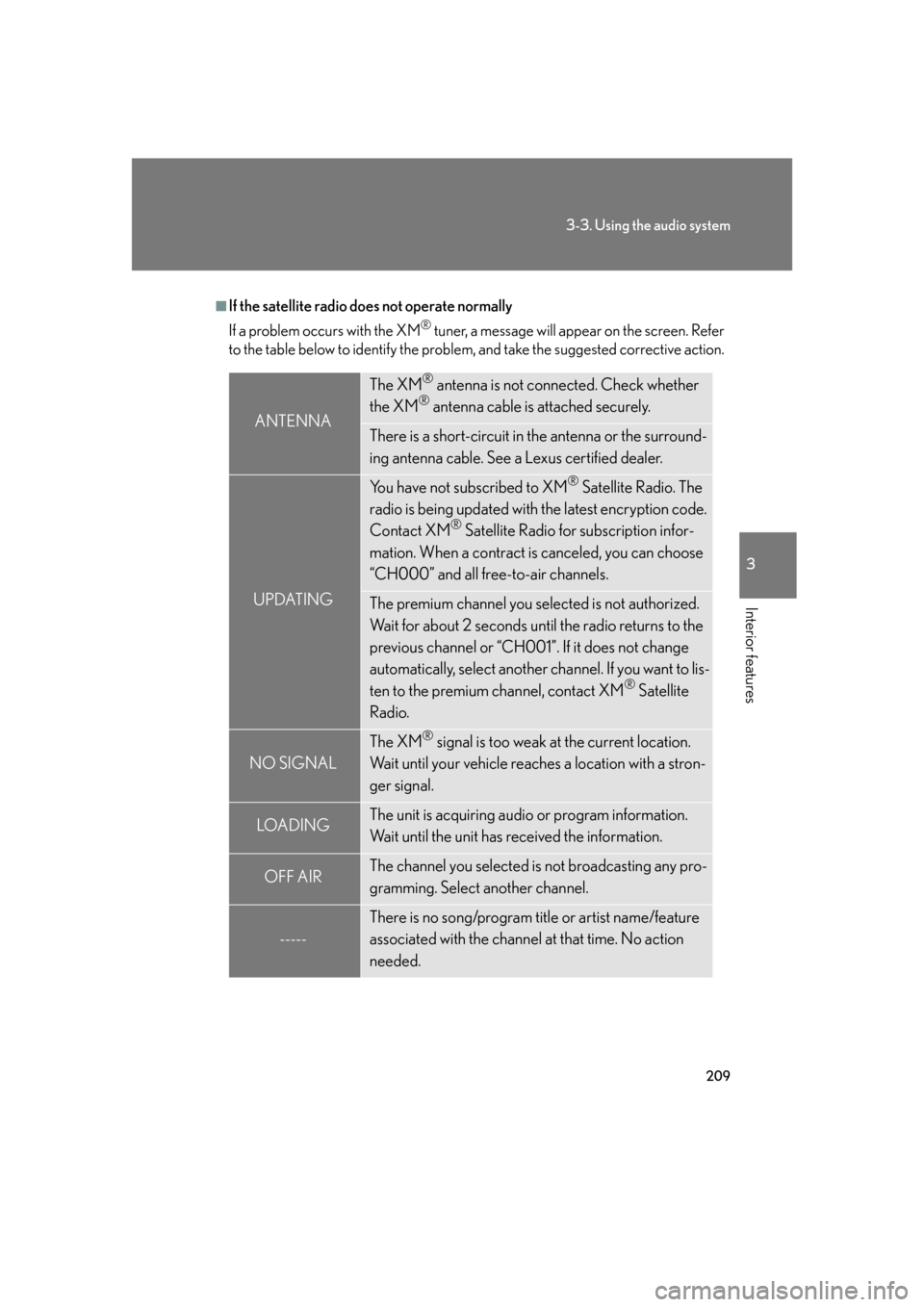

■If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the screen. Refer
to the table below to identify the problem, and take the suggested corrective action.
ANTENNA
The XM® antenna is not connected. Check whether
the XM® antenna cable is attached securely.
There is a short-circuit in the antenna or the surround-
ing antenna cable. See a Lexus certified dealer.
UPDATING
You have not subscribed to XM® Satellite Radio. The
radio is being updated with the latest encryption code.
Contact XM
® Satellite Radio for subscription infor-
mation. When a contract is canceled, you can choose
“CH000” and all free-to-air channels.
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change
automatically, select another channel. If you want to lis-
ten to the premium channel, contact XM
® Satellite
Radio.
NO SIGNAL
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a stron-
ger signal.
LOADIN GThe unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any pro-
gramming. Select another channel.
-----
There is no song/program title or artist name/feature
associated with the channel at that time. No action
needed.

210
3-3. Using the audio system

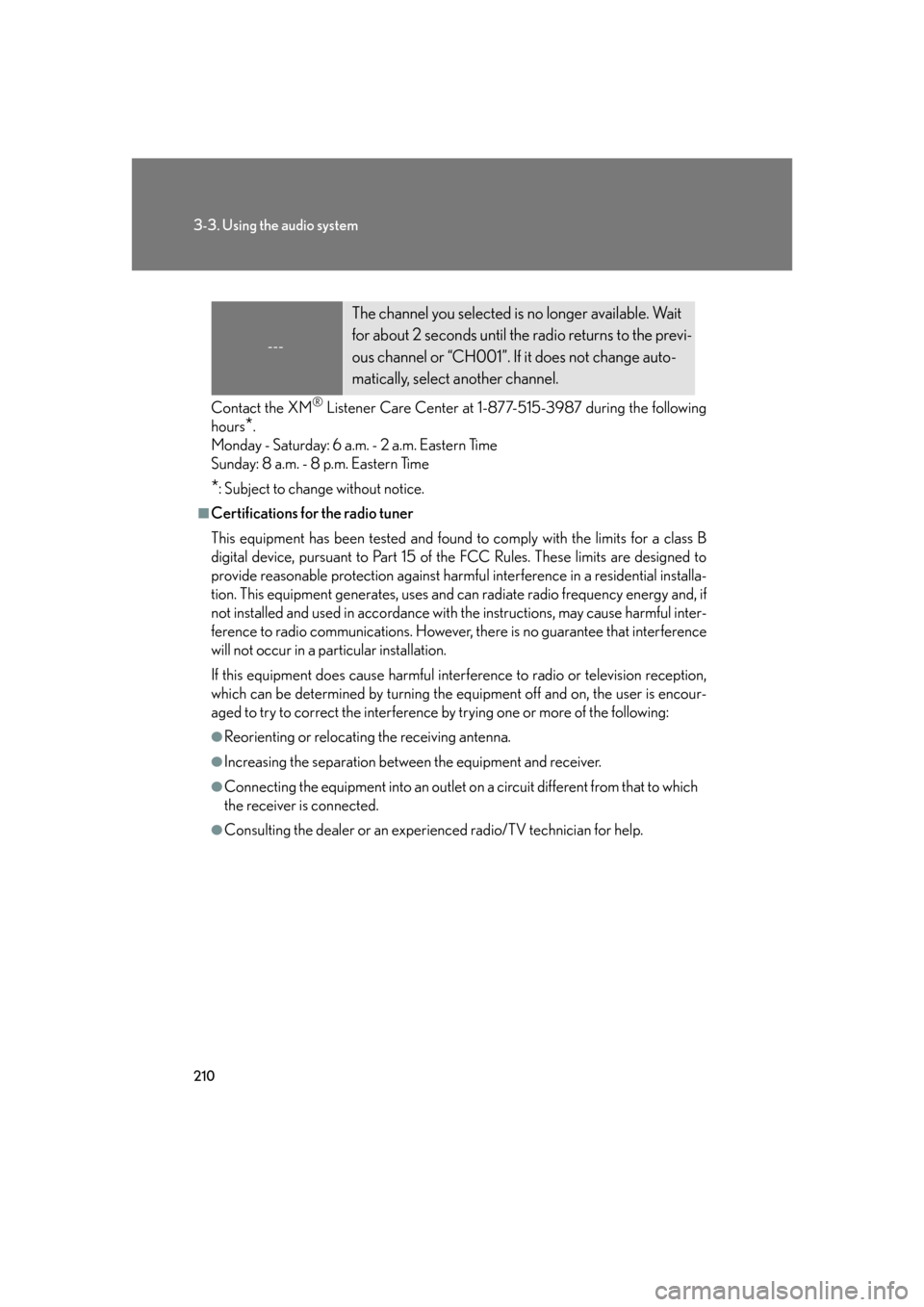

Contact the XM® Listener Care Center at 1-877-515-3987 during the following
hours
*. 
Monday - Saturday: 6 a.m. - 2 a.m. Eastern Time 
Sunday: 8 a.m. - 8 p.m. Eastern Time
*: Subject to change without notice.
■Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of th e FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generate s, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interf erence to radio or television reception,
which can be determined by turning the eq uipment off and on, the user is encour-
aged to try to correct the interference by trying one or more of the following:
●Reorienting or relocating the receiving antenna.
●Increasing the separation between the equipment and receiver.
●Connecting the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consulting the dealer or an experienced radio/TV technician for help.
---
The channel you selected is no longer available. Wait
for about 2 seconds until the radio returns to the previ-
ous channel or “CH001”. If it does not change auto-
matically, select another channel.
