492
5-2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: 
Stop the engine and car efully lif
t the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( P. 3 7 8 )
Check to see if the cooling fan is operating.
If the fan is operating: 
Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: 
Stop the engine immediately and call y
our local Lexus
dealer.
After the engine has cooled
do
wn sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
493
5-2. Steps to take in an emergency
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot. 
Serious injury, such as burns, may resu lt from hot coolant and steam released
under pressure.
Add coolant if required.
Water can be used in an emer -
gency measure if coolant is
una
vailable. ( P. 5 0 2 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

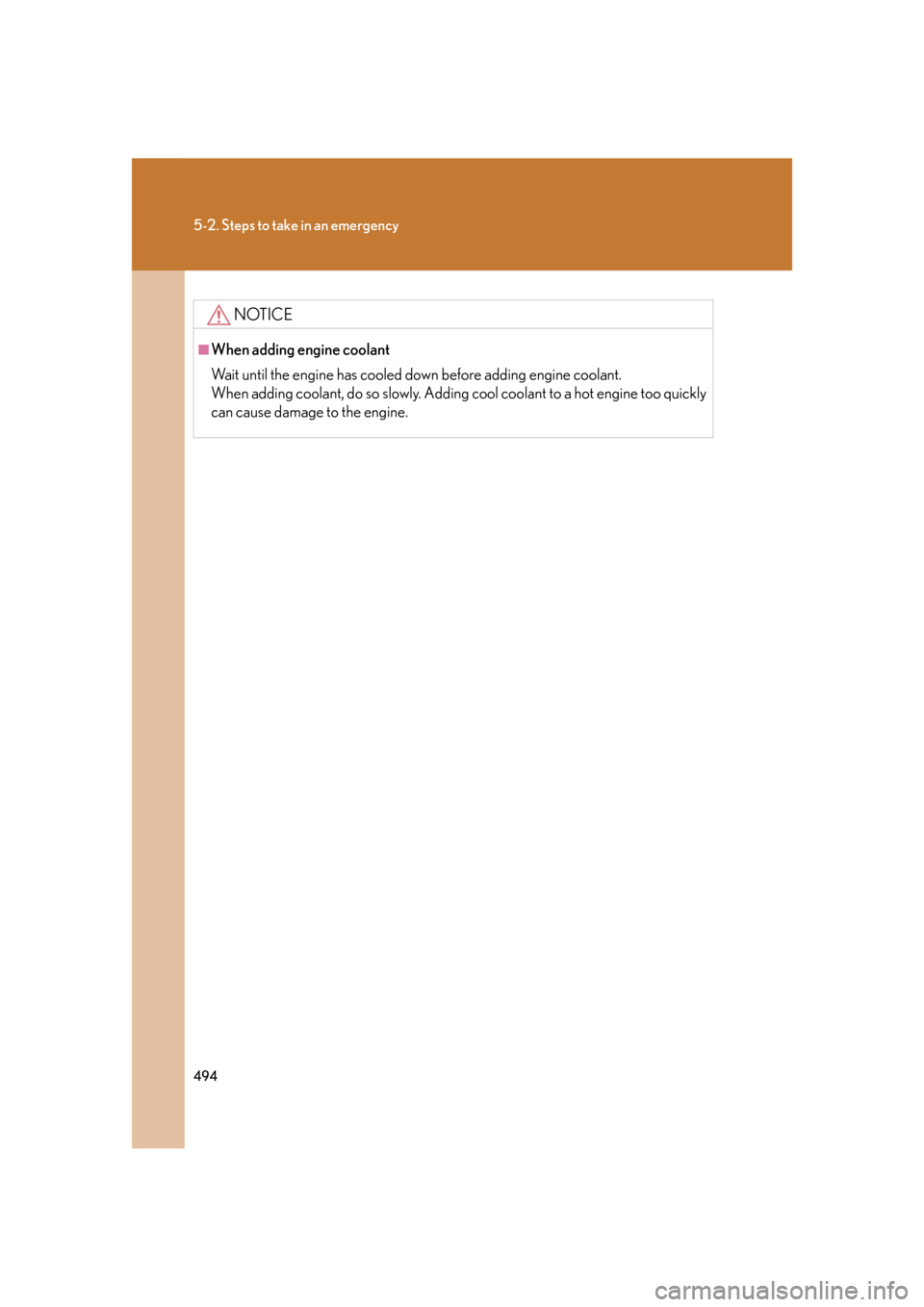

494
5-2. Steps to take in an emergency
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.

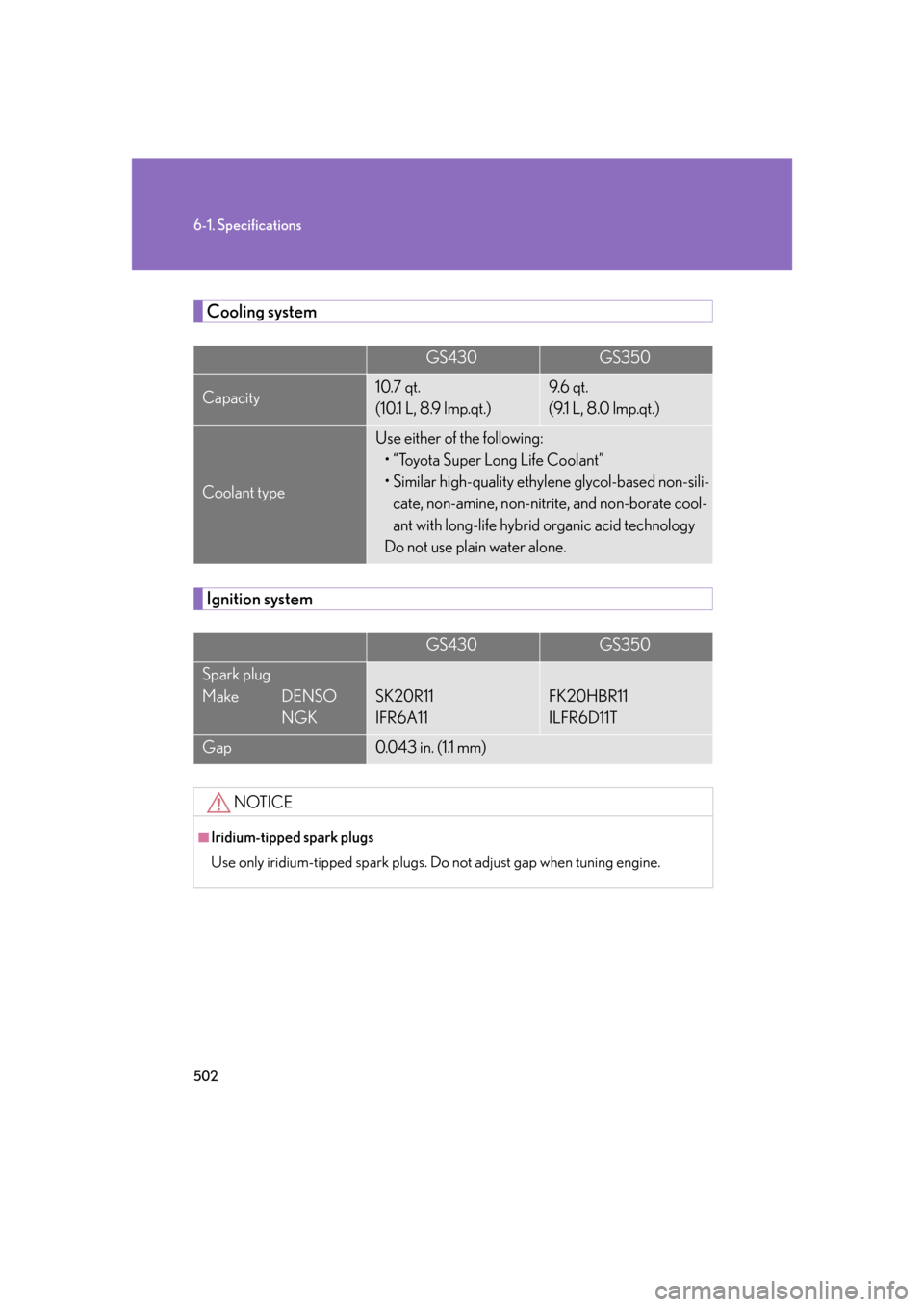

502
6-1. Specifications
Cooling system
Ignition system
GS430GS350
Capacity10.7 qt. 
(10.1 L, 8.9 lmp.qt.)9.6 q t . 
(9.1 L, 8.0 lmp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
GS430GS350
Spark plug
Make DENSO 
NGK
SK20R11
IFR6A11FK20HBR11 
ILFR6D11T
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

516
6-1. Specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excess iv
e loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of transmission, power
steering, power brakes, power windows, power seats,
radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipp ed, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of: 
(a) Curb weight 
(b) Accessory weight
(c) Vehicle capacity weight 
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows

534
Alphabetical index
Emergency, in case ofIf a warning light turns on .............. 449
If a warning message is 
displayed ............................................455
If the engine will not start ............... 486
If the shift lever cannot be 
shifted from P ................................... 487
If the battery is discharged ........... 492
If you have a flat tire ............. 474, 476
If you lose your keys........................ 488
If you think something is 
wrong ................................................... 445
If your vehicle becomes stuck..... 499
If your vehicle needs to be 
towed ...................................................438
If your vehicle overheats ................ 496
If the electronic key does not 
operate properly ............................489
Engine Compartment ..................................... 376
Hood........................................................ 373
How to start the engine..................... 97
If the engine will not start ............... 486
Overheating......................................... 496
Power switch .......................................... 97
Engine compartment cover ............. 378
Engine coolant temperature 
gauge....................................................... 106
Engine/inverter coolant Capacity ................................................. 502
Checking ............................................... 384
Preparing and checking  before winter ...................................... 172
Engine immobilizer system.................. 52
Engine oil Capacity .................................................. 501
Checking ............................................... 379Preparing and checking

before winter.......................................172
Engine oil maintenance data ........... 382
EPS (Electric Power Steering) ........ 159
Event data recorder ............................ 447
First-aid kit storage belt ....................... 331
Floor mats ................................................ 330
Fluid Brake ....................................................... 386
Washer................................................... 390
Fog lights Switch .......................................................... 119
Wattage ................................................. 508
Foot light .................................................. 307
Front passenger occupant 
classification system .............................72
Front passenger's seat belt 
reminder light ..................................... 452
Front seats Adjustment ............................................... 25
Driving position memory .................. 27
Front turn signal lights Wattage ................................................. 508
Fuel Capacity ................................................ 500
Fuel gauge .............................................. 106
Fuel pump shut off system ............ 446
Gas station information ................. 542
Information ........................................... 509
Refueling .................................................... 49
Fuel filler door ........................................... 49
Fuel pump shut off system................. 446
Fuses ............................................................ 413
F

540
What to do if...
What to do if...
A tire puncturesP. 4 74 /476If you have a flat tire
The engine does not start
P. 5 2Engine immobilizer system
P. 4 8 6If the engine will not start
P. 4 9 2If the battery is discharged
The shift lever cannot be 
moved outP. 4 8 7If the shift lever cannot be shifted 
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming 
from under the hood
P. 4 9 6If your vehicle overheats
The key is lostP. 4 8 8If you lose your keys
The battery runs outP. 4 9 2If the battery is discharged
The doors cannot be lockedP. 1 7Doors
The horn begins to soundP. 5 4Alarm
The vehicle is stuck in mud or
sandP. 4 9 9If the vehicle becomes stuck
