5
When trouble arises
441
5-1. Essential information
Towing with a sling-type truck
CAUTION
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet ma y come loose during towing. This may lead
to accidents that cause serious injury or even death.
NOTICE
■To prevent body damage
Do not tow with a sling type truck, either from the front or rear.

442
5-1. Essential information
Towing with a wheel lift-type truck
From frontUse a towing dolly under the rear
wheels.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.

5
When trouble arises
443
5-1. Essential information
From rear (2WD models)Switch to “ACC” mode so that the
steering wheel is unlock
ed.
From rear (4WD models)
Use a towing dolly under the front
wheel.
NOTICE
■To prevent damaging the vehicle
●Do not tow the vehicle with the engine switch “OFF”. 
The steering lock mechanism is not st rong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Wi thout adequate clearance, the vehicle
could be damaged while being towed.

444
5-1. Essential information

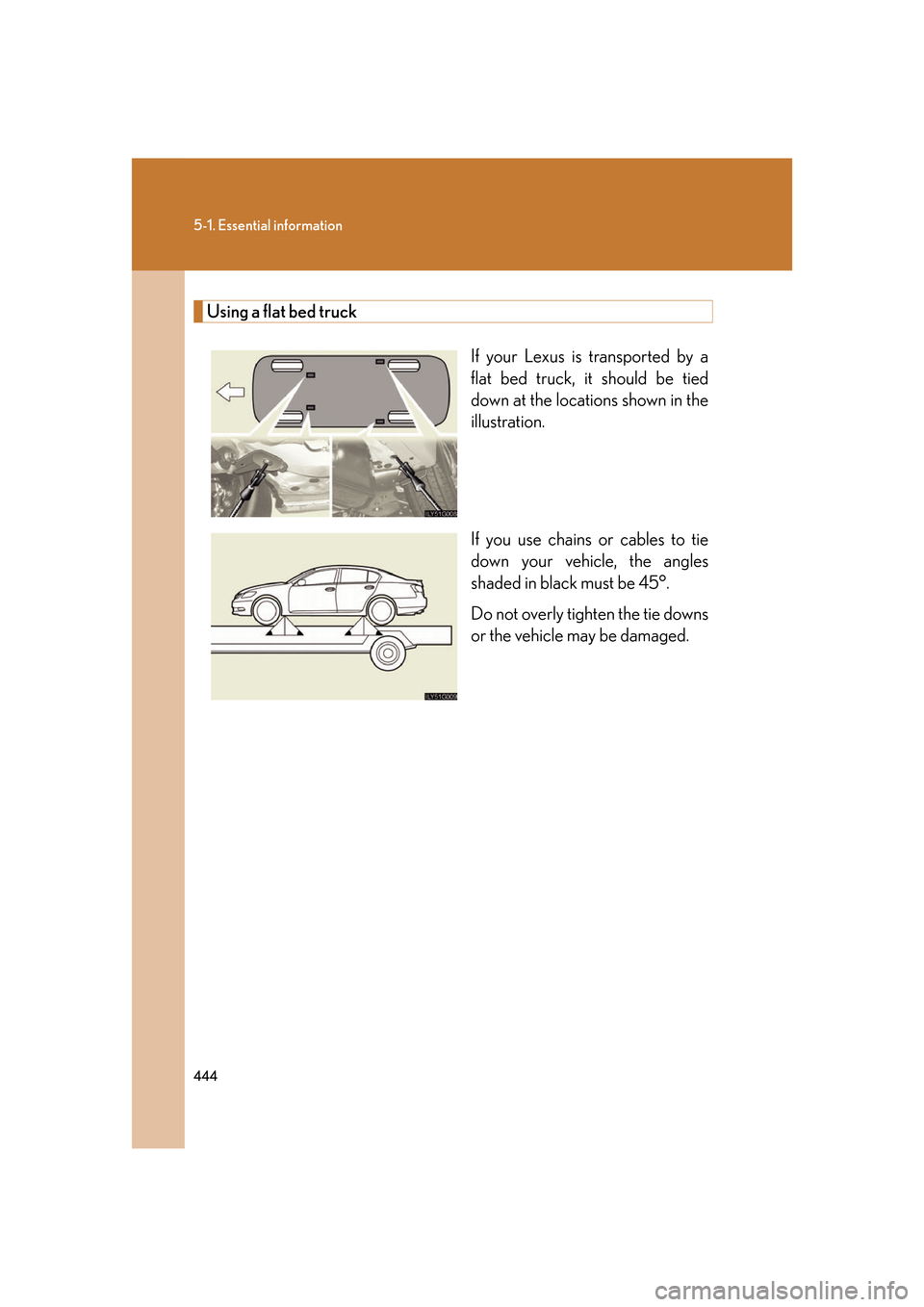

Using a flat bed truck
If your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
do
wn your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie downs
or the v
ehicle may be damaged.

5
When trouble arises
445
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
●Fluid leaks under the v
ehicle
(Water dripping from the air conditioning after use is normal.)
● Flat
-looking tires or uneven tire wear
●Engine coolant temper atur
e gauge needle continually points
higher than normal
■ A
udible symptoms
●Changes in e
xhaust sound
● Ex
cessive tire squeal when cornering
●Str
ange noises related to the suspension system
●P
inging or other noises related to the engine
■ Oper
ational symptoms
●Engine mis
sing, stumbling or running rough
●A
ppreciable loss of power
●V
ehicle pulls heavily to one side when braking
●V
ehicle pulls heavily to one side when driving on a level road
● L
oss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

446
5-1. Essential information
Fuel pump shut off system
■Follow the procedure below to restart the engine after the system is activated.Switch to “ACC” mode or “OFF”.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle. 
If you find that fuel has leaked on to th e ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2

5
When trouble arises
447
5-1. Essential information
Event data recorder
In a crash or a near car crash event
The EDR may record some or all of the following information.
●Engine speed
● Whether the br
ake pedal was applied or not
● V
ehicle speed
●T
o what extent the accelerator pedal was depressed
●P
osition of the transmission shift lever
●Whether the driv
er and front passenger wore seat belts or not
● D
river's seat position
●SRS airbag deplo
yment data
● SRS airbag s
ystem diagnostic data
Your Lexus’ Electronic Control U nit (ECU) may contain another EDR.
Ther
e are a variety of driving situation s which include activating the vehi -
cle stability control (VSC) under whic h the V
SC EDR will record certain
information. The VSC EDR may record so me or all of the following infor-
mation:
● Behavior of the v
ehicle
● Steering wheel angle
●Vehicle speed
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troublesh ooting, there is a system to record
data in a crash or a near car crash event. This is called an Event Data
Recorder (EDR).

448
5-1. Essential information
●To what extent the accelerator pedal was depressed
● T
o what extent the brake pedal was applied
●T
o what extent the ECU controlled the condition of the 4 wheels
● V
ehicle stability control system diagnostic data
The information abov e is intended to be used for the purpose of impr
ov-
ing vehicle safety performance. Unlik
e general data recorders, the EDR
does not record sound data such as conversation between passengers.
Disclosure of the data
Lexus will not disclose the data re corded in an EDR to a third party
except when:
● An agr
eement from the vehicle's ow ner (or the leasing company for a
leased vehicle) is obtained
● Of
ficially requested by the police or other authorities
●Used as a defense for L
exus in a law suit
● Or
dered by a court
However, if necessary Lexus will:
●Use the data for r
esearch on Lexus vehicle safety performance
● Disclose the data to a thir
d party for research purposes without dis -
closing details of the vehicle owner, and only when it is deemed neces -
sary
● Disclose summariz
ed data cleared of vehicle id entification information
to a non-Lexus organization for research purposes

5
When trouble arises
449
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicl e in a safe place and contact your Lexus
dealer.
*: Parking brake engaged warning buzzer:
 P. 4 6 3
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Brake system warning light (warning buzzer)*
•Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn on or
flash. If a light turns on or flashes, bu t then turns off, this does not necessar
-
ily indicate a malfunction in the system.

450
5-2. Steps to take in an emergency
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Have the vehicle inspected by y our Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lampMalfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The transmission control system.
SRS warning lightMalfunction in:
• The SRS airbag system;
• Front passenger occupant classification system; or
• The seat belt pretensioner system.
