TABLE OF CONTENTS
1
GS_G_U
May 13, 2008 5:14 pm
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column
2When drivingDriving, stopping and safe-driving information
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident
6Vehicle 
specificationsDetailed vehicle information
7For ownersReporting safety defects for US owners and seat belt in-
structions for Canadian owners
IndexAlphabetical listing of inform ation contained in this manual

TABLE OF CONTENTSIndex
4
GS_G_U
May 13, 2008 5:14 pm
3-4. Using the hands-free system 
(for cellular phone)................. 291
Hands-free system 
(for cellular phone) .................... 291
Using the Bluetooth
® 
phone ............................................. 296
Setting the hands-free 
system ............................................... 311
3-5. Using the interior lights .......... 337 Interior lights list............................ 337
3-6. Using the storage features .... 340 List of storage fe atures.............. 340
3-7. Other interior features........... 347 Sun visors......................................... 347
Vanity mirror ................................. 348
Clock ................................................. 349
Outside temperature 
display ........................................... 350
Ashtrays ............................................ 351
Cigarette lighter ........................... 352
Power outlet .................................. 353
Seat heaters/vent ilators ............ 354
Armrest ........................................... 356
Rear sunshade ............................... 357
Floor mats....................................... 359
Trunk features............................... 360
Garage door opener .................. 363
Compass.......................................... 369
Lexus Link System ....................... 373 4-1. Maintenance and care........... 388
Cleaning and protecting 
the vehicle exterior.................. 388
Cleaning and protecting 
the vehicle interior ..................... 391
4-2. Maintenance.............................. 394 Maintenance requirements ..... 394
General maintenance ................ 396
Emission inspection and 
maintenance (I/M) 
programs ...................................... 399
4-3. Do-it-yourself 
maintenance........................... 400
Do-it-yourself service 
precautions ................................. 400
Hood................................................. 403
Positioning a floor jack............... 404
Engine compartment................. 406
Tires .................................................... 421
Tire inflation pressure.................. 431
Wheels.............................................. 435
Air conditioning filter.................. 437
Electronic key battery ................ 440
Checking and replacing 
fuses ................................................ 442
Headlight aim................................. 467
Light bulbs ....................................... 470
4Maintenance and care

1
2
3
4
5
6
7
5
GS_G_U
May 13, 2008 5:14 pm
5-1. Essential information .............. 478If your vehicle needs 
to be towed .................................. 478
If you think something is 
wrong ............................................. 484
Fuel pump shut off system ....... 485
Event data recorder ................... 486
5-2. Steps to take in an 
emergency .............................. 488
If a warning light turns on or a 
warning buzzer sounds... ...... 488
If a warning message is 
displayed....................................... 497
If you have a flat tire (Vehicles 
with standard tires) .................... 512
If you have a flat tire (Vehicles 
with run-flat tires) ...................... 522
If the engine will not start .......... 523
If the shift lever cannot be 
shifted from “P” .......................... 524
If you lose your keys .................... 525
If the electronic key does not 
operate properly ....................... 526
If the 12 volt battery is 
discharged ................................... 529
If your vehicle overheats .......... 533
If the vehicle becomes 
stuck................................................ 536 6-1. Specifications............................ 540
Maintenance data 
(fuel, oil level, etc.).................... 540
Fuel information ........................... 553
Tire information ............................ 556
6-2. Customization .......................... 569 Customizable features .............. 569
6-3. Initialization ............................... 575 Items to initialize ........................... 575
Reporting safety defects for 
U.S. owners.................................. 578
Seat belt instructions for 
Canadian owners 
(in French) .................................... 579
Abbreviation list ....................... 582
Alphabetical index................... 584
What to do if............................... 594
5When trouble arises6Vehicle specifications
7For owners
Index

73
1
Before driving
GS_G_U
May 13, 2008 5:14 pm
1-6. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type of immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■Certifications for the immobilizer system For vehicles sold in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The vehicle’s keys have built-in tran sponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle’s
on-board computer. 
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.
FCC ID: NI4TMIMB-1

209
3-1. Using the touch screen
3
Interior features
GS_G_U
May 13, 2008 5:14 pm
SwitchesPa g e
“CLIMATE”P. 2 1 7
“A U D I O ”P. 2 2 6
“INFO” (Displaying the “Informa-
tion” screen)P. 2 0 8
“DISP” (Adjusting the display)P. 2 1 3
Trip Information (Displaying the “Trip
Information” screen)P. 2 1 0
MaintenanceNavigation System Owner’s Manual
Te l e p h o n eP. 2 9 6
CalendarNavigation System Owner’s Manual
“LEXUS Park Assist”P. 1 7 3
LanguageP. 2 1 2
Screen SettingP. 2 1 5
Beep OffP. 2 1 2
Adjust ClockP. 3 4 9 /
Navigation System Owner’s Manual

215
3-1. Using the touch screen
3
Interior features
GS_G_U
May 13, 2008 5:14 pm
Screen settingsPress .
Touch on the “Information” screen.
The following screen se ttings can be changed.
Automatic transition
20 seconds after air conditioning
or audio system use, the system will
return the display to the previous
screen.
Switch color
You can select the switch color.
Delete personal data
The following personal data is
deleted:
• User selection settings
•Phone book data
• Dialed numbers and received calls
•Speed dial
• Bluetooth
® phone data
•Security code
• Maintenance conditions*
• Maintenance information off setting*
•Memory points*
•Areas to avoid*
• Previous points*
• Route trace*
*: If the navigation system is equipped
STEP1
STEP2

Maintenance and care4
387
GS_G_U
May 13, 2008 5:14 pm

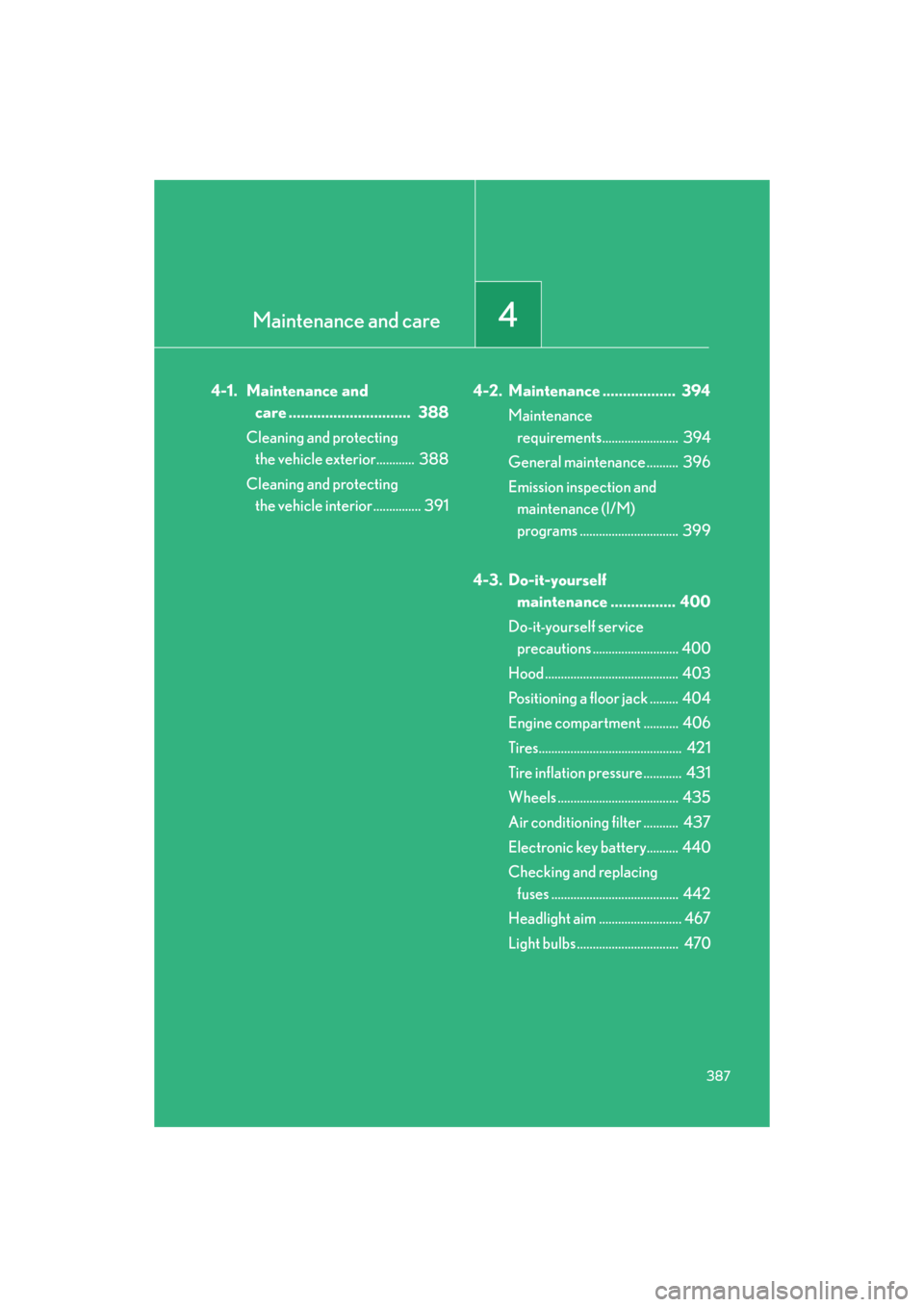

4-1. Maintenance and 
care .............................. 388
Cleaning and protecting 
the vehicle exterior............ 388
Cleaning and protecting 
the vehicle interior ............... 391 4-2. Maintenance .................. 394
Maintenance 
requirements........................ 394
General maintenance .......... 396
Emission inspection and 
maintenance (I/M) 
programs ............................... 399
4-3. Do-it-yourself 
maintenance ................ 400
Do-it-yourself service 
precautions ........................... 400
Hood .......................................... 403
Positioning a floor jack ......... 404
Engine compartment ........... 406
Tires............................................. 421
Tire inflation pressure............ 431
Wheels ...................................... 435
Air conditioning filter ........... 437
Electronic key battery.......... 440
Checking and replacing 
fuses ........................................ 442
Headlight aim .......................... 467
Light bulbs ................................ 470

388
GS_G_U
May 13, 2008 5:14 pm
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■Automatic car washes
●Fold the mirrors back before washing the vehicle.
●Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
●Before entering an automatic car wash, check that the fuel filler door is closed.
■High pressure washers
Do not allow the nozzles of the washers to come within close proximity of the win-
dows and fuel filler door.
Perform the following to protect the vehicle and maintain it in prime condi-
tion.
● Working from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
Wash the vehicle body using a sponge or soft cloth, such as a chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

389
4-1. Maintenance and care
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
■Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use hard brushes
or abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same
mild detergent and wax as used on the paint.
■Bumpers and side moldings
Do not scrub with abrasive cleaners.
■To prevent paint deterioration and corrosion on the body
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
CAUTION
■Caution about the exhaust pipe
Exhaust gasses cause the exhaus t pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns.

390
4-1. Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
NOTICE
■To protect your vehicle’s painted surfaces
Do not use organic cleaners such as benzene or gasoline.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush. 
This may damage the surfaces of the lights.
●Do not apply wax on the surfaces of the lights. 
Wax may cause damage to the lenses.
■When using an automatic car wash (with rain-sensing windshield wipers)
Set the wiper switch to “OFF”. 
If the wiper switch is in “AUTO”, the wipers
may operate and the wiper blades may be
damaged.OFF
AUTO
