Lexus GS350 2008 Opening, closing and locking the doors and trunk / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

451
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
GS350
FuseAmpereCircuit
1ECU-B10VGRS, EPS, driver’s seat switch
module, Lexus link system ECU
2ABS MAIN325Electronically controlled 
brake system
3TURN-HAZ15Turn signal lights, emergency flashers
4IG2 MAIN20IG2, GAUGE and IGN
5RAD NO.230Audio system
6D/C CUT20DOME and MPX-B
7RAD NO.130Audio system
8MPX-B10
Multiplex communication system,
front controller, door control system
(power door lock system, door cour-
tesy lights, power windows, power
rear view mirror control system, out-
side rear view mirror heaters), power
seat system, steering sensors, elec-
tronically controlled brake system, tilt
and telescopic steering wheel,
gauges and meters, combination
switch

452
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
9DOME10
Foot lights, vanity lights, gauges and
meters, steering spot light, steering
switch illumination, rear personal
lights, automatic transmission selec-
tor lever spot light, front personal
lights
10CDS10Noise filter
11ABS MAIN210Electronically controlled 
brake system
12ABS MOTOR30ABS
13ABS MAIN110Capacitor
14BATT-E/G60FR CTRL BATT, ETCS, ALT-S and 
A/F HTR
15ABS150VDIM system
16RH J/B-B30AM2, DOOR FR and DOOR RR
17VGRS40VGRS
18MAIN30H-LP R LWR and H-LP L LWR
19STARTER30Starting system
20LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
21P/ I - B60EFI NO.1, F/PMP and INJ
22EPS80EPS
23ALT150
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR, 
ABS MAIN1, and ABS MAIN2

453
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
24RR J/B80
STOP LP R, STOP LP L, RR-B, 
RR TAIL, RR FOG, RR-IG1, PSB, 
and RR S/SHADE
25GLW PLG150Starting system
26RH J/B-AM80
AM1, OBD, STOP SW, TI&TE, 
PWR OUTLET, FR P/SEAT RH, 
STR LOCK, ECU-IG RH, RH-IG, 
ACC, CIG, SECURITY, 
FR S/HTR RH and AIR SUS
27ABS230ABS
28DEFFOG50Rear window defogger, noise filter
29CDS40CDS
30FA N 140Electric cooling fans
31HEATER50Air conditioning system
32GLW PLG250Starting system
33E/G-AM60H-LP CLN, FR CTRL ALT, A/C
COMP and STB-AM
34LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
35FA N 260Electric cooling fans

454
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm

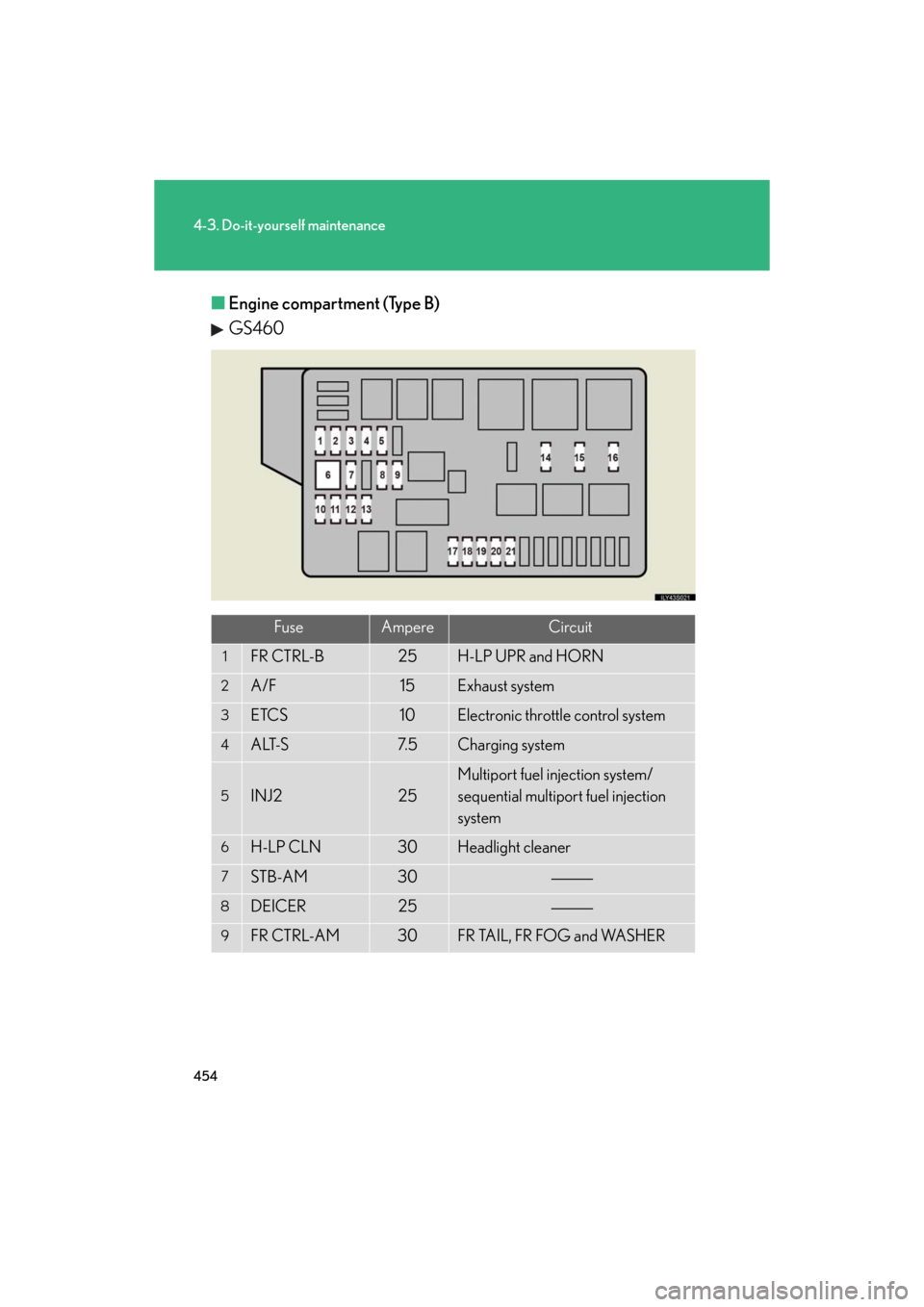

■Engine compartment (Type B)
GS460
FuseAmpereCircuit
1FR CTRL-B25H-LP UPR and HORN
2A/F15Exhaust system
3ETCS10Electronic throttle control system
4ALT-S7. 5 Charging system
5INJ225
Multiport fuel injection system/
sequential multiport fuel injection
system
6H-LP CLN30Headlight cleaner
7STB-AM30
8DEICER25
9FR CTRL-AM30FR TAIL, FR FOG and WASHER

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm

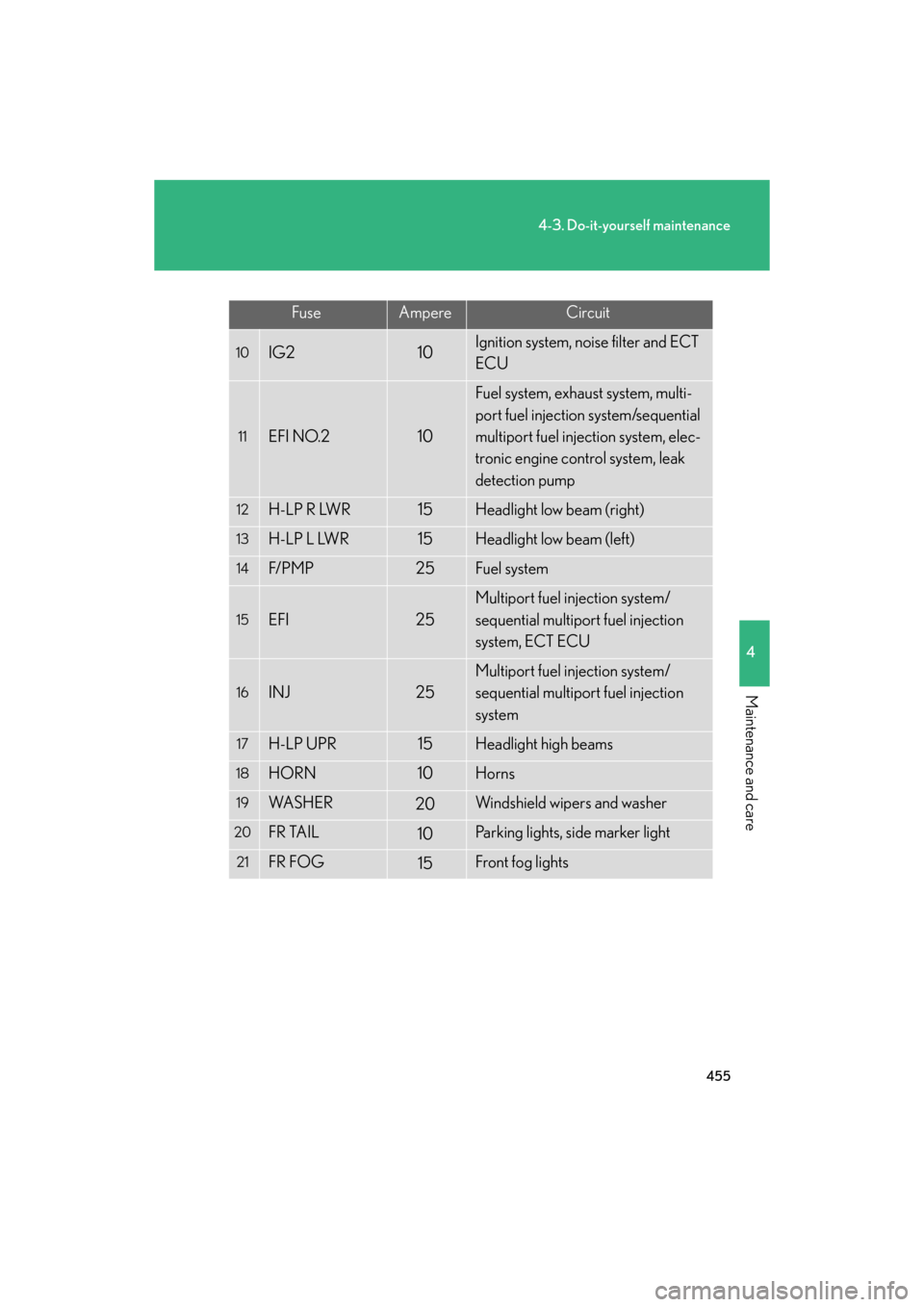

FuseAmpereCircuit
10IG210Ignition system, noise filter and ECT
ECU
11EFI NO.210
Fuel system, exhaust system, multi-
port fuel injection system/sequential
multiport fuel injection system, elec-
tronic engine control system, leak
detection pump
12H-LP R LWR15Headlight low beam (right)
13H-LP L LWR15Headlight low beam (left)
14F/ P M P25Fuel system
15EFI25
Multiport fuel injection system/
sequential multiport fuel injection
system, ECT ECU
16INJ25
Multiport fuel injection system/
sequential multiport fuel injection
system
17H-LP UPR15Headlight high beams
18HORN10Horns
19WA S H E R20Windshield wipers and washer
20FR TAIL10Parking lights, side marker light
21FR FOG15Front fog lights

456
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm

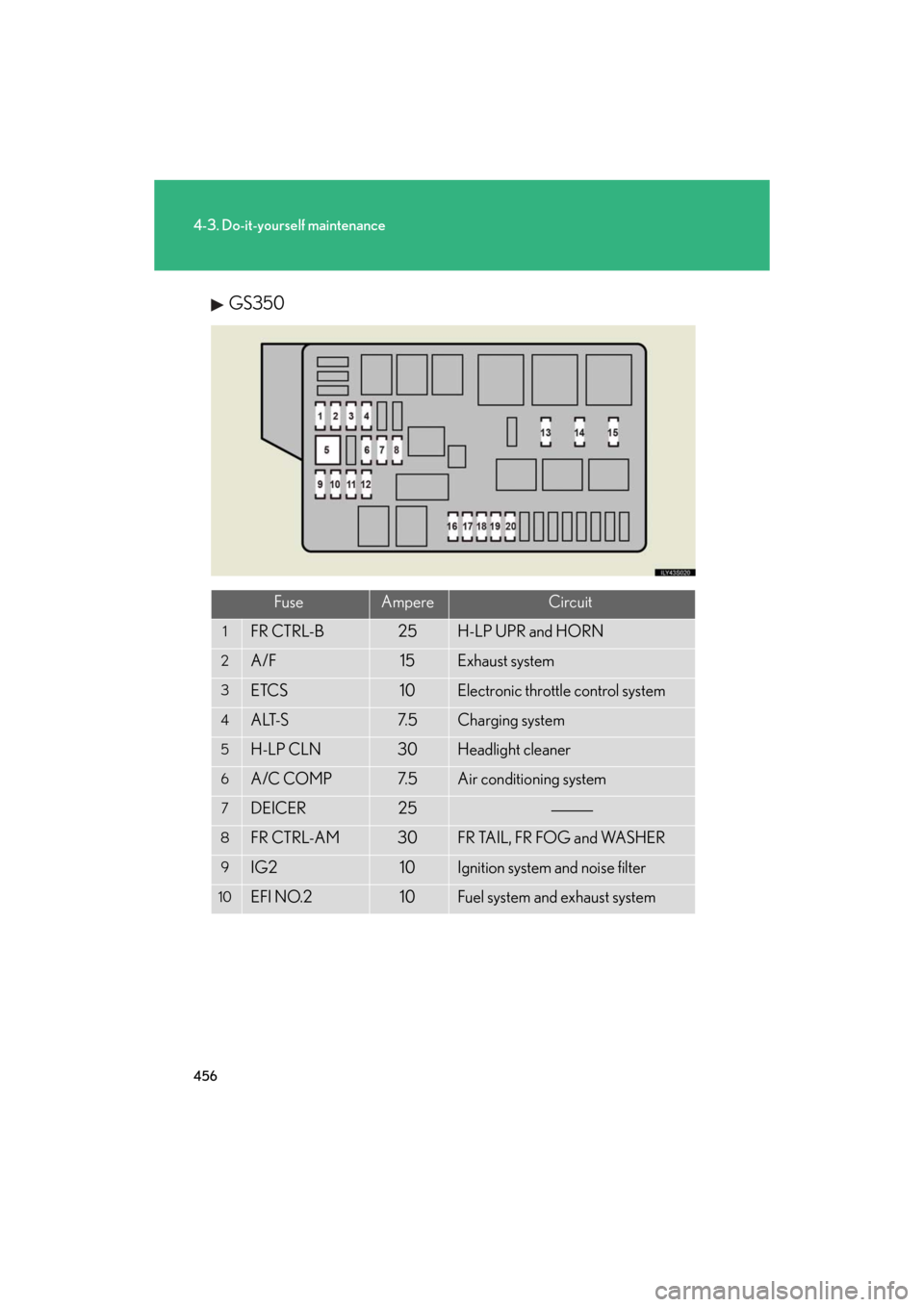

GS350
FuseAmpereCircuit
1FR CTRL-B25H-LP UPR and HORN
2A/F15Exhaust system
3ETCS10Electronic throttle control system
4ALT-S7. 5 Charging system
5H-LP CLN30Headlight cleaner
6A/C COMP7. 5 Air conditioning system
7DEICER25
8FR CTRL-AM30FR TAIL, FR FOG and WASHER
9IG210Ignition system and noise filter
10EFI NO.210Fuel system and exhaust system

457
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm

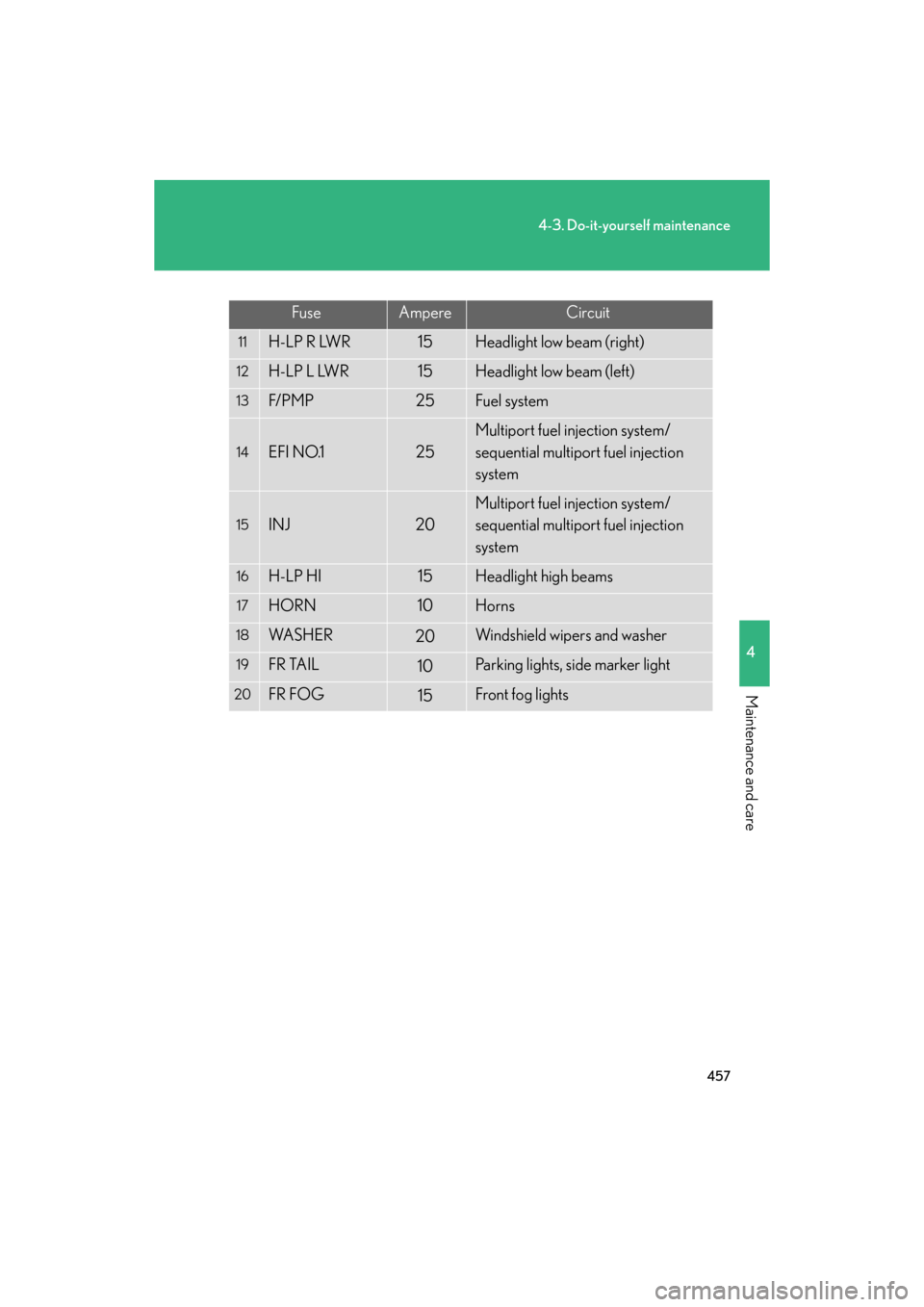

FuseAmpereCircuit
11H-LP R LWR15Headlight low beam (right)
12H-LP L LWR15Headlight low beam (left)
13F/ P M P25Fuel system
14EFI NO.125
Multiport fuel injection system/
sequential multiport fuel injection
system
15INJ20
Multiport fuel injection system/
sequential multiport fuel injection
system
16H-LP HI15Headlight high beams
17HORN10Horns
18WA S H E R20Windshield wipers and washer
19FR TAIL10Parking lights, side marker light
20FR FOG15Front fog lights

458
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
■Left side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30Power seat system
2A/C7. 5Air conditioning system
3TV7. 5Audio system, air conditioning sys-
tem, rear view monitor system
4TRK OPN10Trunk lid opener
5LH-B10Theft deterrent system
6S/ROOF25Moon roof
7PA N E L7. 5
Steering switch illumination, audio
system, glove box light, automatic
transmission selector lever illumina-
tion, console box light, adaptive vari-
able suspension switch illumination,
cigarette lighter illumination, air con-
ditioning system, VSC OFF switch
illumination, driving pattern selector
switch, seat heater or heated and
ventilated seat switches, register ILL
RH, register ILL LH, fuel filler door
and trunk lid opener switch illumina-
tion, D-SW module

459
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
8FUEL OPN10Fuel filler door opener, trunk lid
opener
9ECU-IG LH10
VDIM, electronically controlled
brake system, yaw rate and G sensor,
steering sensor, cruise control sys-
tem, dynamic radar cruise control
system, EPS, VGRS, rear view moni-
tor system, four-wheel drive system,
front controller, moon roof, rain sen-
sor
10FR S/HTR LH15Seat heaters and ventilators
11RR DOOR LH20
Rear left door control system (power
door lock system, door courtesy light,
power window)
12FR DOOR LH20
Front left door control system (power
door lock system, power rear view
mirror control system, door courtesy
light, outside rear view mirror heater,
power window)
13RAD NO.310Audio system
14H-LP LVL7. 5AFS, automatic headlight leveling
control system

460
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
15LH-IG10
Charging system, headlight cleaners,
exhaust gas sensor, rear window
defogger, electric cooling fans, rear
left door control system, front left
door control system, emergency
flashers, automatic transmission, seat
belt pretensioners, Intuitive parking
assist, power window
16FR WIP30Windshield wipers and washer
