display Lexus GS350 2008 Opening, closing and locking the doors and trunk / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

TABLE OF CONTENTSIndex
2
GS_G_U
May 13, 2008 5:14 pm
1-1. Key information ........................... 20Keys ...................................................... 20
1-2. Opening, closing and locking 
the doors and trunk .................. 22
Smart access system with  push-button start .......................... 22
Wireless remote control .............. 34
Doors.................................................... 37
Trunk..................................................... 42
1-3. Adjustable components 
(seats, mirrors, 
steering wheel) .......................... 45
Front seats .......................................... 45
Driving position memory 
system ............................................... 47
Head restraints.................................. 51
Seat belts ............................................ 53
Steering wheel.................................. 60
Inside rear view mirror ................... 61
Outside rear view mirrors ........... 62
1-4. Opening and closing the 
windows and moon roof .......... 64
Power windows................................ 64
Moon roof .......................................... 67 1-5. Refueling ........................................ 70
Opening the fuel tank cap........... 70
1-6. Theft deterrent system............... 73 Immobilizer system ........................ 73
Alarm.................................................... 75
Theft prevention labels 
(U.S.A.) ............................................. 77
1-7. Safety information ....................... 78 Correct driving posture ............... 78
SRS airbags ...................................... 80
Front passenger occupant 
classification system .................... 92
Child restraint sy stems ................. 98
Installing child restraints ............. 102

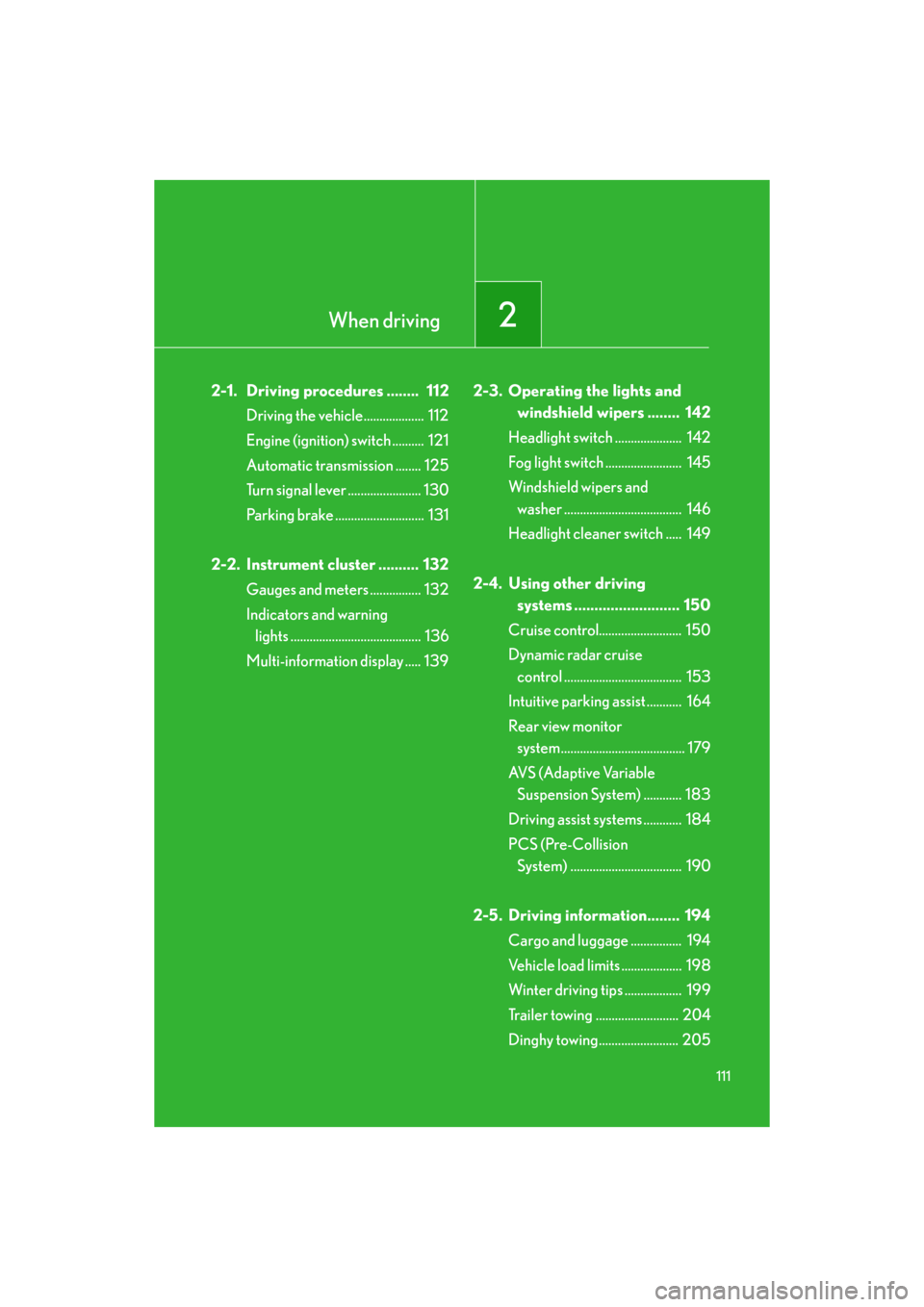

2-1. Driving procedures.................... 112 Driving the vehicle .......................... 112
Engine (ignit ion) switch ................ 121
Automatic transmission.............. 125
Turn signal lever............................. 130
Parking brake ................................... 131
2-2. Instrument cluster ..................... 132 Gauges and meters ..................... 132
Indicators and warning 
lights................................................. 136
Multi-information display........... 139
1Before driving
2When driving

TABLE OF CONTENTSIndex
4
GS_G_U
May 13, 2008 5:14 pm
3-4. Using the hands-free system 
(for cellular phone)................. 291
Hands-free system 
(for cellular phone) .................... 291
Using the Bluetooth
® 
phone ............................................. 296
Setting the hands-free 
system ............................................... 311
3-5. Using the interior lights .......... 337 Interior lights list............................ 337
3-6. Using the storage features .... 340 List of storage fe atures.............. 340
3-7. Other interior features........... 347 Sun visors......................................... 347
Vanity mirror ................................. 348
Clock ................................................. 349
Outside temperature 
display ........................................... 350
Ashtrays ............................................ 351
Cigarette lighter ........................... 352
Power outlet .................................. 353
Seat heaters/vent ilators ............ 354
Armrest ........................................... 356
Rear sunshade ............................... 357
Floor mats....................................... 359
Trunk features............................... 360
Garage door opener .................. 363
Compass.......................................... 369
Lexus Link System ....................... 373 4-1. Maintenance and care........... 388
Cleaning and protecting 
the vehicle exterior.................. 388
Cleaning and protecting 
the vehicle interior ..................... 391
4-2. Maintenance.............................. 394 Maintenance requirements ..... 394
General maintenance ................ 396
Emission inspection and 
maintenance (I/M) 
programs ...................................... 399
4-3. Do-it-yourself 
maintenance........................... 400
Do-it-yourself service 
precautions ................................. 400
Hood................................................. 403
Positioning a floor jack............... 404
Engine compartment................. 406
Tires .................................................... 421
Tire inflation pressure.................. 431
Wheels.............................................. 435
Air conditioning filter.................. 437
Electronic key battery ................ 440
Checking and replacing 
fuses ................................................ 442
Headlight aim................................. 467
Light bulbs ....................................... 470
4Maintenance and care

1
2
3
4
5
6
7
5
GS_G_U
May 13, 2008 5:14 pm
5-1. Essential information .............. 478If your vehicle needs 
to be towed .................................. 478
If you think something is 
wrong ............................................. 484
Fuel pump shut off system ....... 485
Event data recorder ................... 486
5-2. Steps to take in an 
emergency .............................. 488
If a warning light turns on or a 
warning buzzer sounds... ...... 488
If a warning message is 
displayed....................................... 497
If you have a flat tire (Vehicles 
with standard tires) .................... 512
If you have a flat tire (Vehicles 
with run-flat tires) ...................... 522
If the engine will not start .......... 523
If the shift lever cannot be 
shifted from “P” .......................... 524
If you lose your keys .................... 525
If the electronic key does not 
operate properly ....................... 526
If the 12 volt battery is 
discharged ................................... 529
If your vehicle overheats .......... 533
If the vehicle becomes 
stuck................................................ 536 6-1. Specifications............................ 540
Maintenance data 
(fuel, oil level, etc.).................... 540
Fuel information ........................... 553
Tire information ............................ 556
6-2. Customization .......................... 569 Customizable features .............. 569
6-3. Initialization ............................... 575 Items to initialize ........................... 575
Reporting safety defects for 
U.S. owners.................................. 578
Seat belt instructions for 
Canadian owners 
(in French) .................................... 579
Abbreviation list ....................... 582
Alphabetical index................... 584
What to do if............................... 594
5When trouble arises6Vehicle specifications
7For owners
Index

12
GS_G_U
May 13, 2008 5:14 pm
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 142
P. 130
P. 145
Gauges and meters P. 132
Multi-information display P. 139Windshield wipers and
washer switch
P. 146
Parking brake pedal P. 131
Trunk opener main switch
P. 42
Glove box
P. 341
Hood lock release lever P. 403
“ENGINE START STOP” switch P. 121
Trunk opener P. 42
Fuel filler door opener P. 70

14
GS_G_U
May 13, 2008 5:14 pm

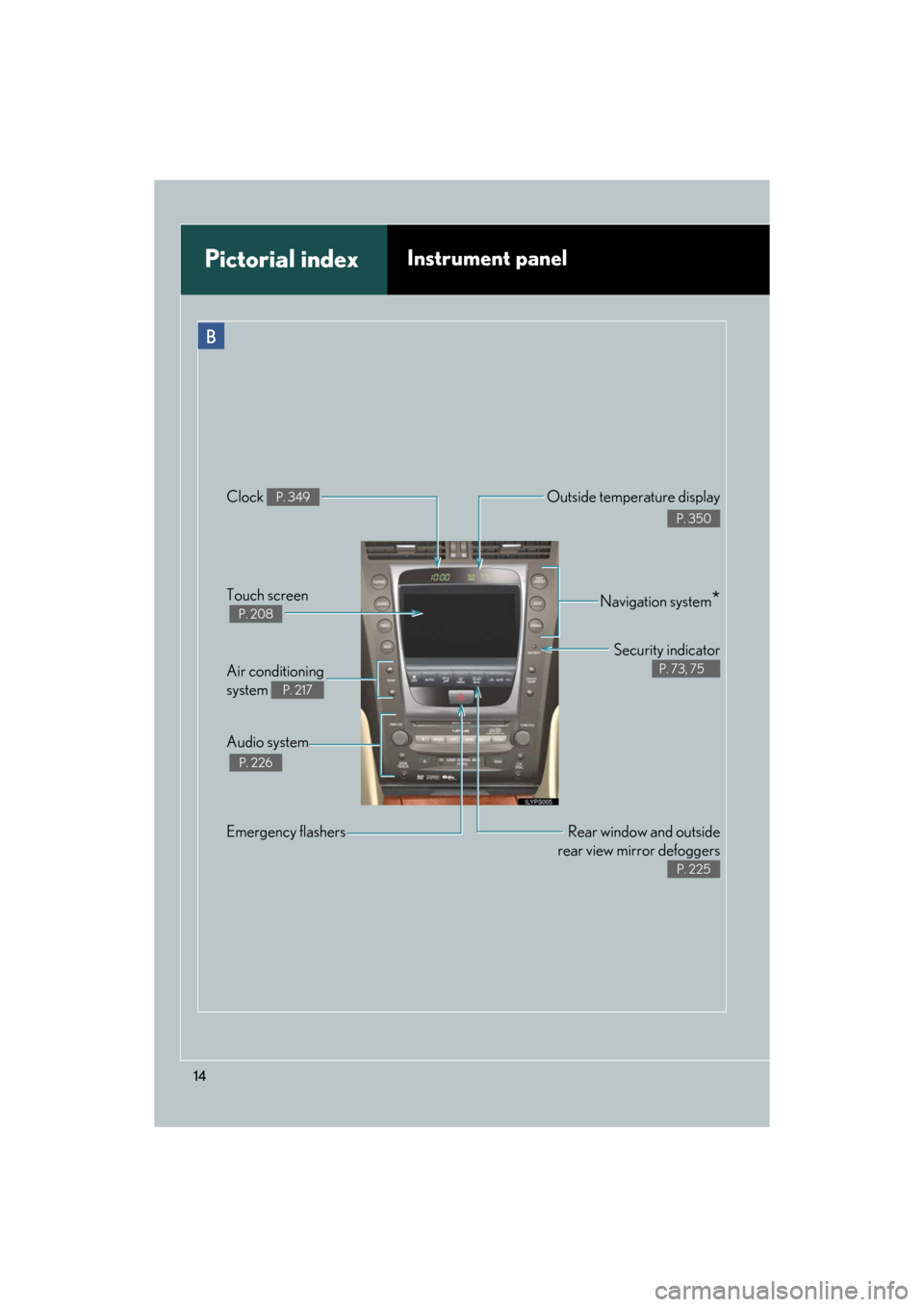

Pictorial indexInstrument panel
Rear window and outside
rear view mirror defoggers
P. 225
Emergency flashers Air conditioning 
system
P. 217
Audio system 

P. 226
Navigation system*Touch screen 

P. 208
Security indicator
P. 73, 75
Clock P. 349Outside temper ature display
P. 350
B

26
1-2. Opening, closing and locking the doors and trunk
GS_G_U
October 23, 2015 1:08 pm
■Operation signals
●Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
●Windows and moon roof: A buzzer sounds when the windows and moon roof
begin to close.
■Door lock buzzer
If a door is not fully closed, a buzzer soun ds continuously if an attempt to lock the
door is made. Fully close the door to st op the buzzer, and lock the vehicle once
more.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between key and vehicle may be affected,
preventing the smart access system with push-button start and wireless remote
control from operating properly. (Way of coping: P. 5 2 6 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, ga s station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key has come into contact with, or is covered by a metallic
object
●When multiple electronic keys are in the vicinity
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
●If window tint with a metallic content or metallic objects are attached to the rear
window

27
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
October 23, 2015 1:08 pm
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control. Turn the “ENGINE START STOP” switch OFF.
When the indicator ligh t on the key surface is not on, press and
hold , , or for approximately 5 seconds while pressing and
holding .
The setting changes each time an operatio n is performed, as shown below. (When
changing the setting continuously, release th e buttons, wait for at least 5 seconds,
and repeat step 2.)
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear
doors on your sideExterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the doorExterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doorsExterior: Beeps twice
Interior: Rings once

30
1-2. Opening, closing and locking the doors and trunk
GS_G_U
October 23, 2015 1:08 pm
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
smart access system with pu sh-button start. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In th is case, return the door handle to the
original position and check that the door s unlock before pulling the door handle
again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approx imately 60 seconds after the vehicle is
unlocked, the theft deterrent system automatically locks the vehicle again.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( P. 5 0 8 )
The following table describes circumstances and correction procedures when only
alarms are sounded.

102
1-7. Safety information
GS_G_U
May 13, 2008 5:14 pm
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outboard rear seats using a seat belt or a child
restraint lower anchors belt. Attach the top strap when installing a child
restraint.
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt)
Child restraint lower anchors
Lower anchors are provided for
the outboard rear seats. (But-
tons displaying the location of
the anchors are attached to the
seats.)
Anchor bracket 
(for top strap)
Anchor brackets are provided
for all rear seats.

When driving2
111
GS_G_U
May 13, 2008 5:14 pm
2-1. Driving procedures ........ 112Driving the vehicle................... 112
Engine (ignition) switch .......... 121
Automatic transmission ........ 125
Turn signal lever ....................... 130
Parking brake ............................ 131
2-2. Instrument cluster .......... 132 Gauges and meters ................ 132
Indicators and warning 
lights ......................................... 136
Multi-information display ..... 139 2-3. Operating the lights and

windshield wipers ........ 142
Headlight switch ..................... 142
Fog light switch ........................ 145
Windshield wipers and 
washer ..................................... 146
Headlight cleaner switch ..... 149
2-4. Using other driving 
systems .......................... 150
Cruise control.......................... 150
Dynamic radar cruise 
control ..................................... 153
Intuitive parking assist ........... 164
Rear view monitor 
system....................................... 179
AVS (Adaptive Variable 
Suspension System) ............ 183
Driving assist systems ............ 184
PCS (Pre-Collision 
System) ................................... 190
2-5. Driving information........ 194 Cargo and luggage ................ 194
Vehicle load limits ................... 198
Winter driving tips .................. 199
Trailer towing .......................... 204
Dinghy towing......................... 205
