windshield wipers Lexus GS350 2008 Opening, closing and locking the doors and trunk / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

1
2
3
4
5
6
7
3
GS_G_U
May 13, 2008 5:14 pm
2-3. Operating the lights and 
windshield wipers .................... 142
Headlight switch ............................ 142
Fog light switch .............................. 145
Windshield wipers and 
washer............................................. 146
Headlight cleaner switch ........... 149
2-4. Using other driving 
systems ...................................... 150
Cruise control ................................ 150
Dynamic radar cruise 
control............................................. 153
Intuitive parking assist ................. 164
Rear view monitor system ......... 179
AVS (Adaptive Variable 
Suspension System) .................. 183
Driving assist systems.................. 184
PCS (Pre-Collision System)..... 190
2-5. Driving information ................... 194 Cargo and luggage ...................... 194
Vehicle load limits ......................... 198
Winter driving tips ........................ 199
Trailer towing ................................. 204
Dinghy towing .............................. 205 3-1. Using the touch screen .......... 208
Touch screen ................................ 208
Setting the touch screen ............ 212
3-2. Using the air conditioning 
system and defogger .............. 217
Automatic air conditioning 
system .............................................. 217
Rear window and outside rear 
view mirror defoggers ............ 225
3-3. Using the audio system........... 226 Audio system type ....................... 226
Using the radio.............................. 229
Using the cassette player ......... 238
Using the CD player................... 242
Playing MP3 and WMA discs.................................. 247
Using the DVD player ................ 251
Playing DVD 
video/audio ................................. 254
Playing video CD ......................... 266
DVD player and DVD 
video disc information ............. 270
Optimal use of the 
audio/video system .................. 282
Using the AUX adapter ............ 287
Using the steering switches .... 288
3Interior features

6
GS_G_U
May 13, 2008 5:14 pm
Headlight (high beam) P. 142
Pictorial indexExterior
Turn signal light P. 130
Fog light P. 145
Side turn signal light P. 130
Headlight (low beam)
P. 142
Hood P. 403
Parking light P. 142
Windshield wipers P. 146
Moon roof  P. 67
Outside rear view mirror
P. 62
Side marker light P. 142

12
GS_G_U
May 13, 2008 5:14 pm
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 142
P. 130
P. 145
Gauges and meters P. 132
Multi-information display P. 139Windshield wipers and
washer switch
P. 146
Parking brake pedal P. 131
Trunk opener main switch
P. 42
Glove box
P. 341
Hood lock release lever P. 403
“ENGINE START STOP” switch P. 121
Trunk opener P. 42
Fuel filler door opener P. 70

When driving2
111
GS_G_U
May 13, 2008 5:14 pm
2-1. Driving procedures ........ 112Driving the vehicle................... 112
Engine (ignition) switch .......... 121
Automatic transmission ........ 125
Turn signal lever ....................... 130
Parking brake ............................ 131
2-2. Instrument cluster .......... 132 Gauges and meters ................ 132
Indicators and warning 
lights ......................................... 136
Multi-information display ..... 139 2-3. Operating the lights and

windshield wipers ........ 142
Headlight switch ..................... 142
Fog light switch ........................ 145
Windshield wipers and 
washer ..................................... 146
Headlight cleaner switch ..... 149
2-4. Using other driving 
systems .......................... 150
Cruise control.......................... 150
Dynamic radar cruise 
control ..................................... 153
Intuitive parking assist ........... 164
Rear view monitor 
system....................................... 179
AVS (Adaptive Variable 
Suspension System) ............ 183
Driving assist systems ............ 184
PCS (Pre-Collision 
System) ................................... 190
2-5. Driving information........ 194 Cargo and luggage ................ 194
Vehicle load limits ................... 198
Winter driving tips .................. 199
Trailer towing .......................... 204
Dinghy towing......................... 205

142
GS_G_U
June 5, 2008 10:37 am
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all lights listed above turn
on.
The headlights and all the lights listed above turn
on and off automatically.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
U.S.A.
Canada

143
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 5, 2008 10:37 am
AFS (Adaptive Front lighting System) (if equipped)
AFS improves visibility at intersectio ns and on curves by automatically
adjusting the level of the headlights according to vehicle speed and the
degree of the tire angle that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the switch to turn it off.
The indicator turns on when
the AFS is deactivated.
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield. 
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

144
2-3. Operating the lights and windshield wipers
GS_G_U
June 5, 2008 10:37 am
■Automatic light off system
The headlights and tail lights turn off 30 seconds after all doors are closed if the
“ENGINE START STOP” switch has been switched to ACCESSORY mode or
turned OFF while the headlights are turned on. (The lights turn off immediately if
the button on the key is pressed after all doors are locked.)
To turn the lights on again, switch to IG NITION ON mode, or turn the light switch
off once and then back to the or position.
■Automatic headlight leveling system
The level of the headlights is automatica lly adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes...
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed. 
(Customizable features P. 5 7 2 )
NOTICE
■To prevent 12 volt battery discharge
Do not leave the lights on longer than necessary when the engine is off.

145
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 5, 2008 10:37 am

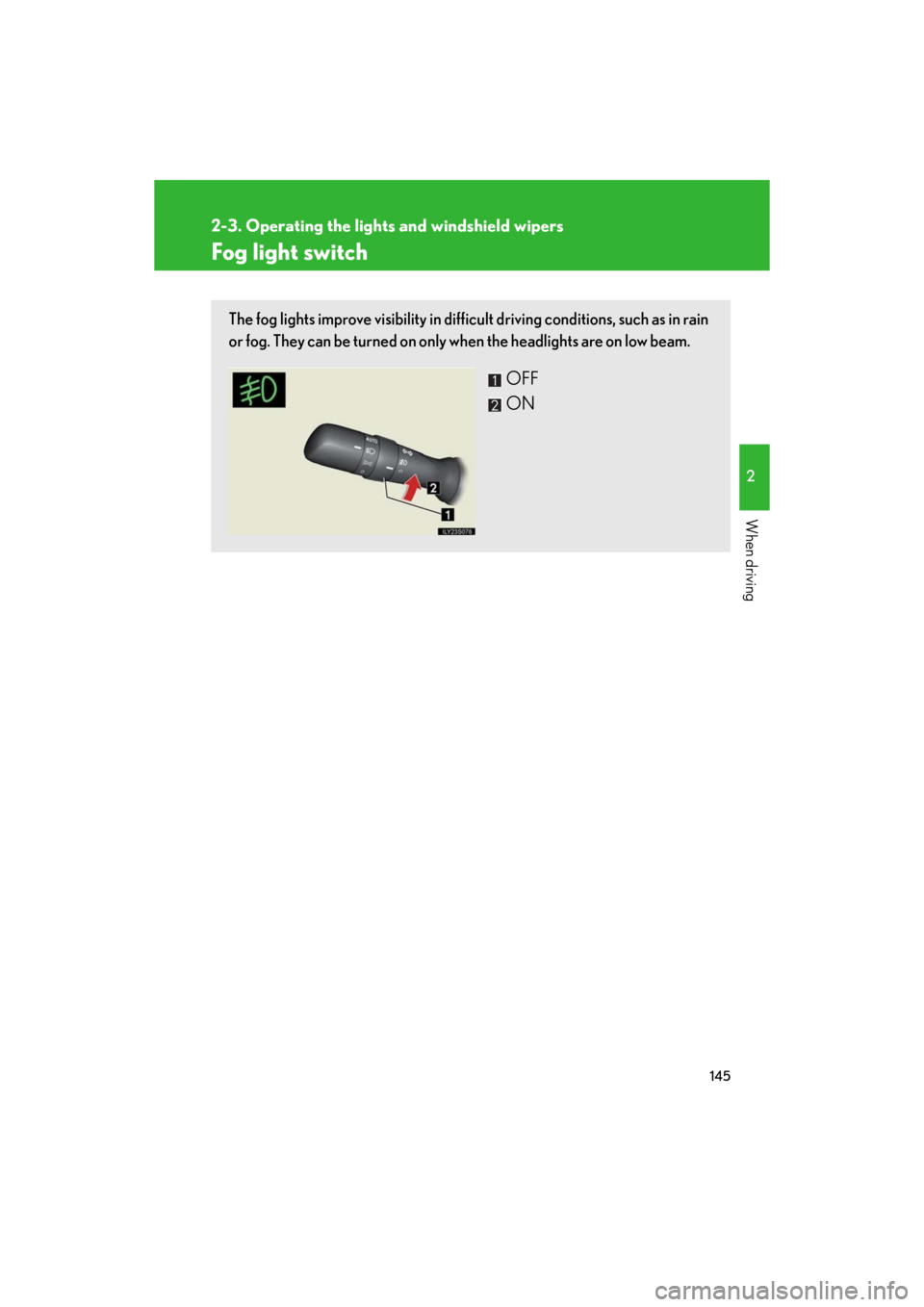

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
ON

146
2-3. Operating the lights and windshield wipers
GS_G_U
June 5, 2008 10:37 am

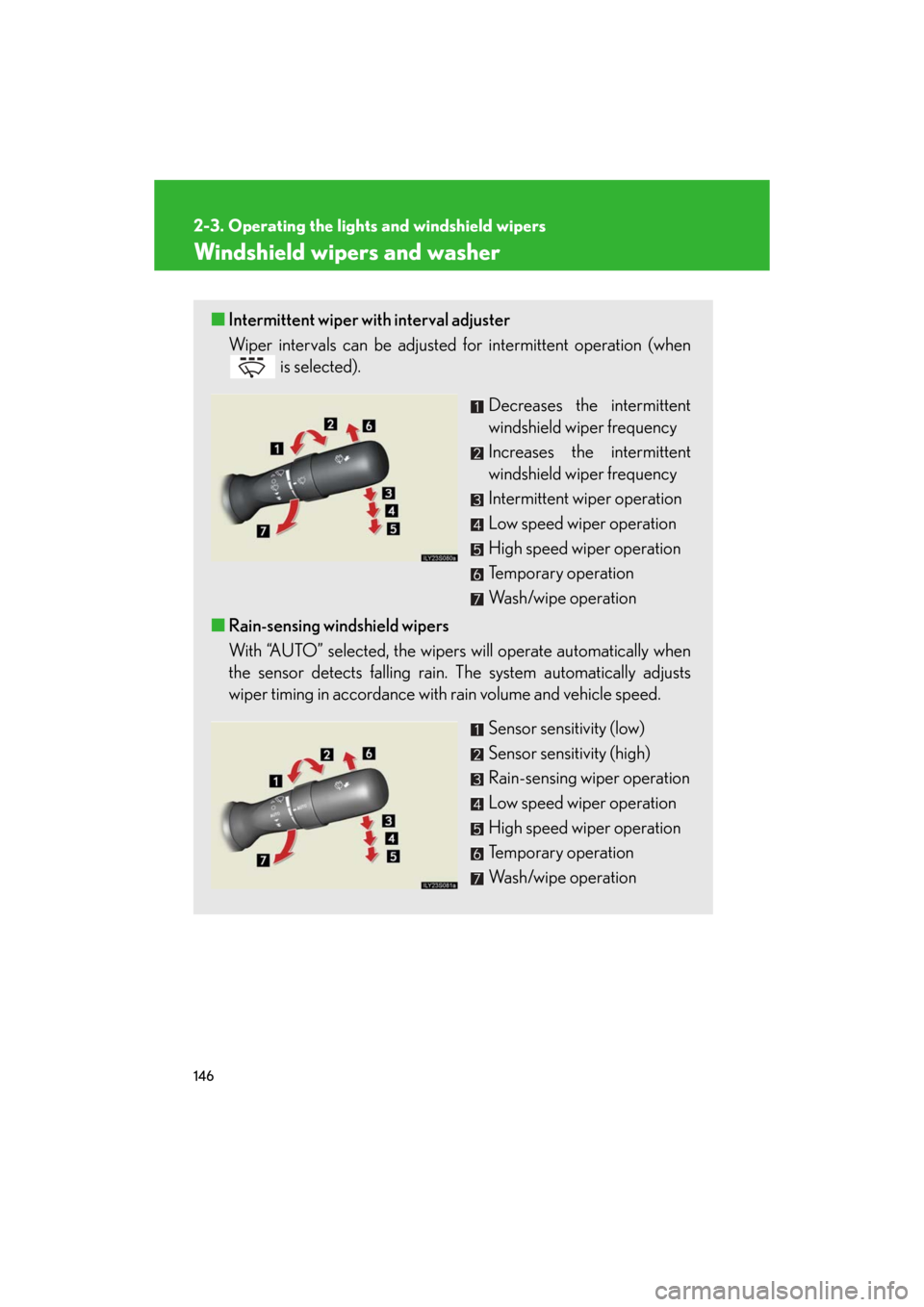

Windshield wipers and washer
■Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Decreases the intermittent
windshield wiper frequency
Increases the intermittent
windshield wiper frequency
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Wash/wipe operation
■ Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume and vehicle speed.
Sensor sensitivity (low)
Sensor sensitivity (high)
Rain-sensing wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Wash/wipe operation

147
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 5, 2008 10:37 am
■The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation severa l times, the wipers operate one more
time after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 106 mph
(170 km/h).
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not “AUTO” mode.
●Intermittent wiper interval ( mode)
●Wiper operation when the washer is bein g used (delay until drip prevention
wiper sweep occurs)
With selected, wiper operation will be switched from low speed to intermit-
tent wiper operation only when the vehicle is stationary.
■Rain drop sensor (vehicles equipped with rain-sensing windshield wipers)
The sensor judges the amount of raindrops.
