warning Lexus GS350 2008 Opening, closing and locking the doors and trunk / LEXUS 2008 GS460/350 QUICK GUIDE OWNER'S MANUAL (OM30B04U)

Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
2
Quick_GS_G_U
January 29, 2008 5:02 pm
Driving Comfort
Topic 5
Opening and Closing
Topic 6
What to do if ...
Customizing Your LexusResponding to warning/indicator lights
and other problems that may arise.
A list of features that can be customized.
Rain and Night Driving
Topic 4
●Headlights P. 3 1
●Fog LightsP. 3 2
●Windshield Wipers and 
Wa s h e r s P. 3 2
●Headlight Cleaner P. 3 3
●Rear Window and Outside Rear 
View Mirror Defoggers P. 3 3
●Instrument Panel Light ControlP. 3 3
●Rear SunshadeP. 4 5
●CompassP. 4 5
●Luggage Mat P. 4 6
●Garage Door Opener P. 4 6
●Lexus Link SystemP. 4 8
●Door LocksP. 5 1
●Po w e r Wi n d o w s P. 5 2
●Moon RoofP. 5 2
●Fuel Tank Cap P. 5 3
●HoodP. 5 3
●Tr u n kP. 5 4
●To u c h S c r e e n P. 3 5
●Air Conditioning System P. 3 6
●Audio SystemP. 3 8
●Hands-free System P. 4 0
●AshtraysP. 4 1
●Seat Heaters/Ventilators P. 4 2
●Console BoxP. 4 3
●Glove BoxP. 4 4
●Cup Holders P. 4 4
●Interior Lights P. 4 5
Depending on specifications, the vehi cle shown in the illustration may
differ from your vehicle in terms of color and equipment.

Topic 3
When Driving
23
Quick_GS_G_U
May 15, 2008 12:07 pm

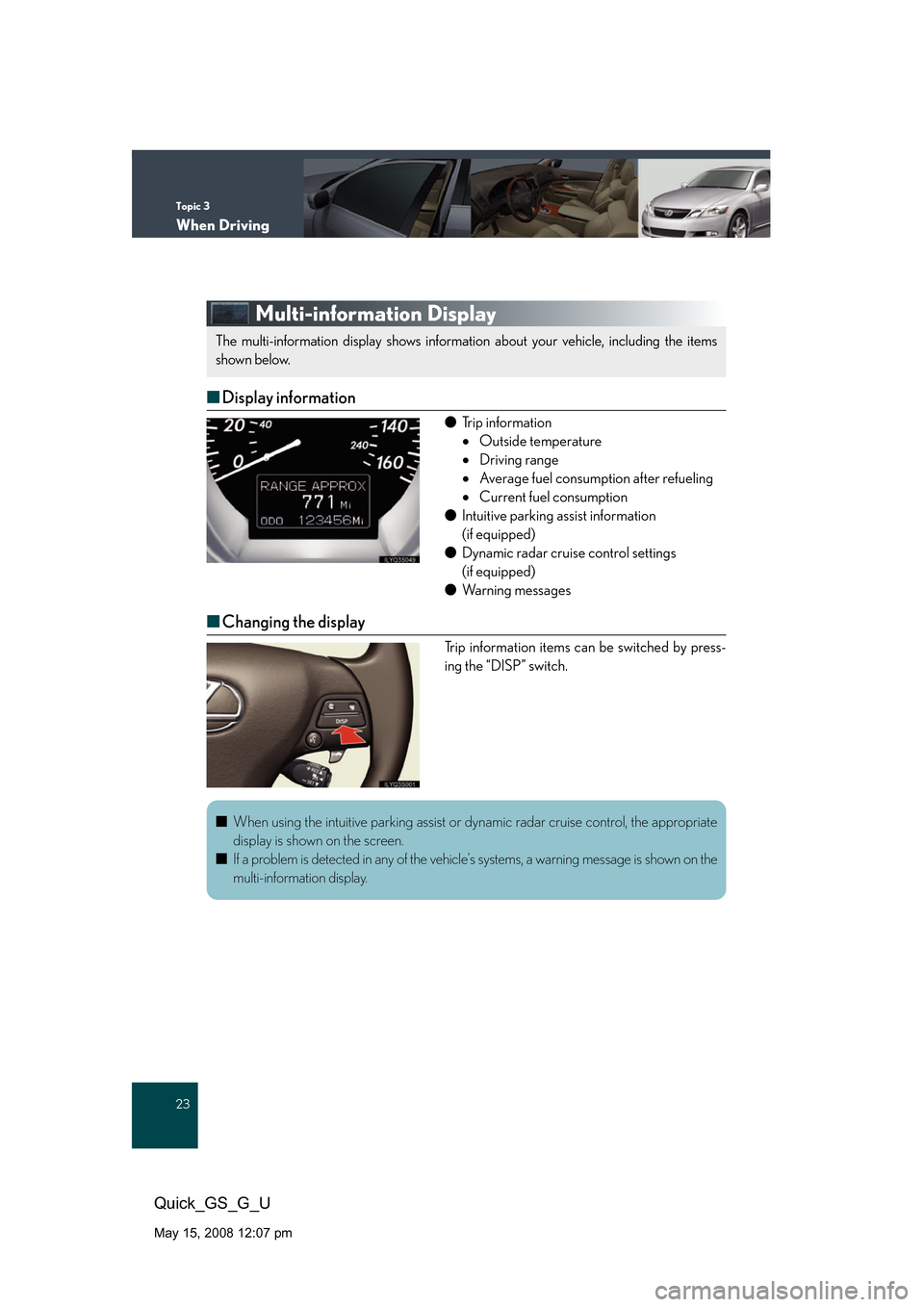

Multi-information Display
■Display information
● Trip information
 Outside temperature
 Driving range
 Average fuel consumption after refueling
 Current fuel consumption
● Intuitive parking assist information 
(if equipped)
● Dynamic radar cruise control settings 
(if equipped)
● Wa r n i n g m e s s a g e s
■Changing the display
Trip information items can be switched by press-
ing the “DISP” switch.
The multi-information display shows information about your vehicle, including the items
shown below.
■ When using the intuitive parking assist or dy namic radar cruise control, the appropriate
display is shown on the screen.
■ If a problem is detected in any of the vehicl e’s systems, a warning message is shown on the
multi-information display.

What to do if ...
55
Quick_GS_G_U
December 3, 2007 7:01 pm
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)Brake system warning light
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)
(Canada)Malfunction 
indicator lampSRS warning light
ECB*1/VSC warning light
(U.S.A.)
(Canada)ABS warning light
Electric power steering 
warning light
Pre-collision system 
warning light*2
For further information, re fer to the Owner’s Manual.

56
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Quick_GS_G_U
December 3, 2007 7:01 pm
Have the malfunction repaired immediately.
Open door warning light
(On the cen-
ter panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
Tire pressure warning lighta
(On the
instrument cluster)
Driver’s seat belt 
reminder light
Master warning light
See the Owner’s Manual
Tu r n s i g n a l i n d i c a t o r“ECT PWR” indicator
Headlight high beam indicatorCruise control indicator
Headlight indicator (U.S.A.)Damping mode indicator
Tail light indicator (Canada)“AFS OFF” indicator *2
Fog light indicatorIntuitive parking assist indica-
tor
*2
“ECT SNOW” indicatorSlip indicator
Shift position and shift range
indicators“VSC OFF” indicator
“A I R B A G O N ” a n d “A I R
BAG OFF” indicators
For further information, refer to the Owner’s Manual.
*1: Electronically Controlled Brake System*2: If equipped

60
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing Your Lexus
Quick_GS_G_U
December 3, 2007 7:01 pm
Electronic Key Alarm
The electronic key alarm uses an alarm and warn ing messages to indicate that the electronic
key has been used improperly. Take appropri ate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the co rrection procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartmentRetrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 60 seconds
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START STOP” switch OFF
Turn the “ENGINE START
STOP” switch OFF and
lock the doors again.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors and
lock the doors again.
Interior alarm sounds 
continuouslyTried to open the door and
exit the vehicle without
shifting the shift lever to “P”
Shift the shift lever to “P”.
Interior alarm rings 
continuously
Switched to ACCES-
SORY mode while the
driver’s door is open
(Opened the driver’s door
when the “ENGINE
START STOP” switch is in
ACCESSORY mode.)
Turn the “ENGINE START
STOP” switch OFF and
close the driver’s door.
Tu r n e d t h e “ E N G I N E
START STOP” switch OFF
while the driver’s door is
open
Close the driver’s door.
