Lexus GS350 2008 Owner's Manual

470
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 5 5 2 )
■ Remove the engine compartment cover if necessary
→ P. 4 0 8
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight high beam
Rear turn signal light Back-up light
GS_U_G.book Page 470 Thursday, June 19, 2008 12:54 PM

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

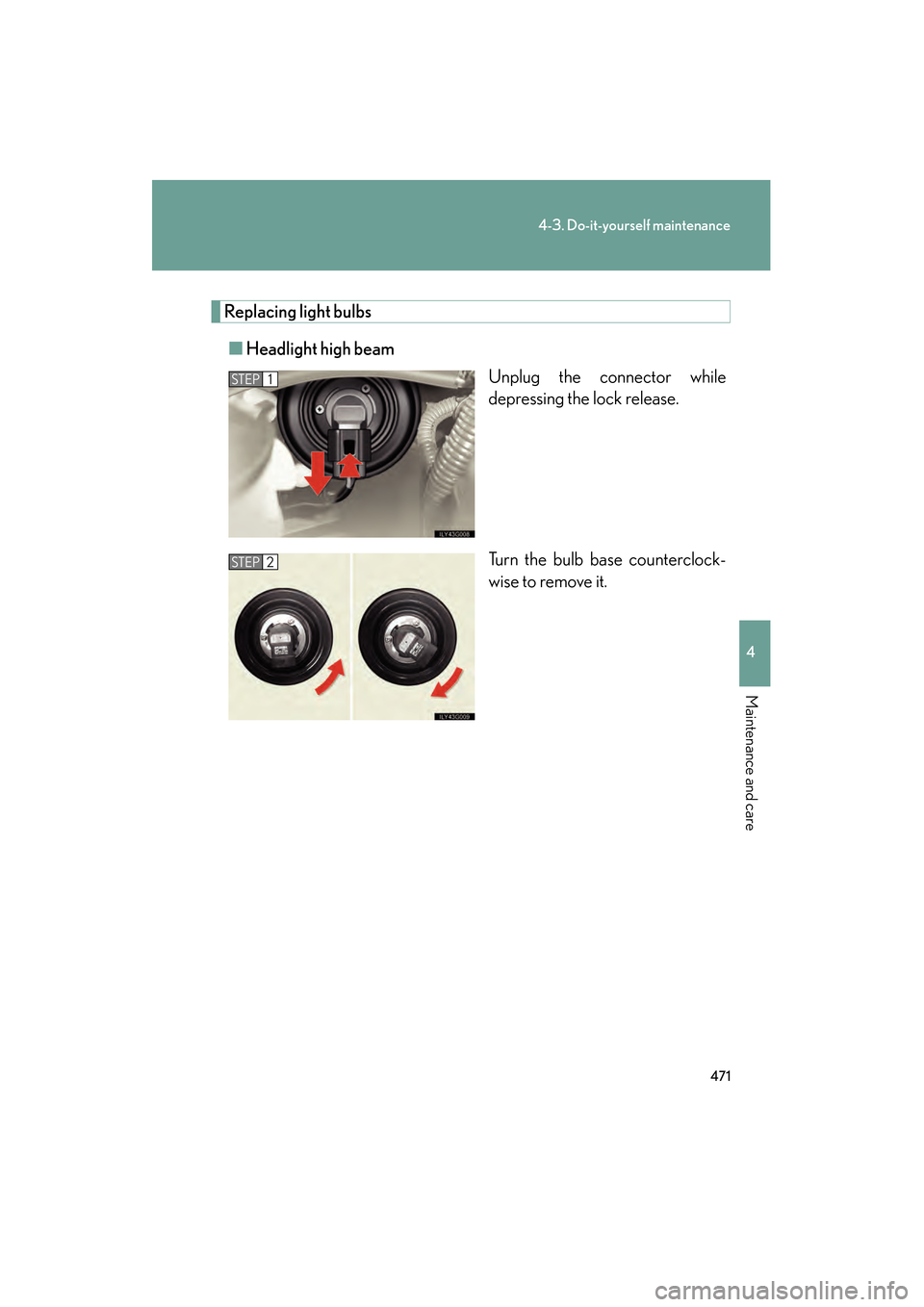

Replacing light bulbs■ Headlight high beam
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2
GS_U_G.book Page 471 Thursday, June 19, 2008 12:54 PM

472
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

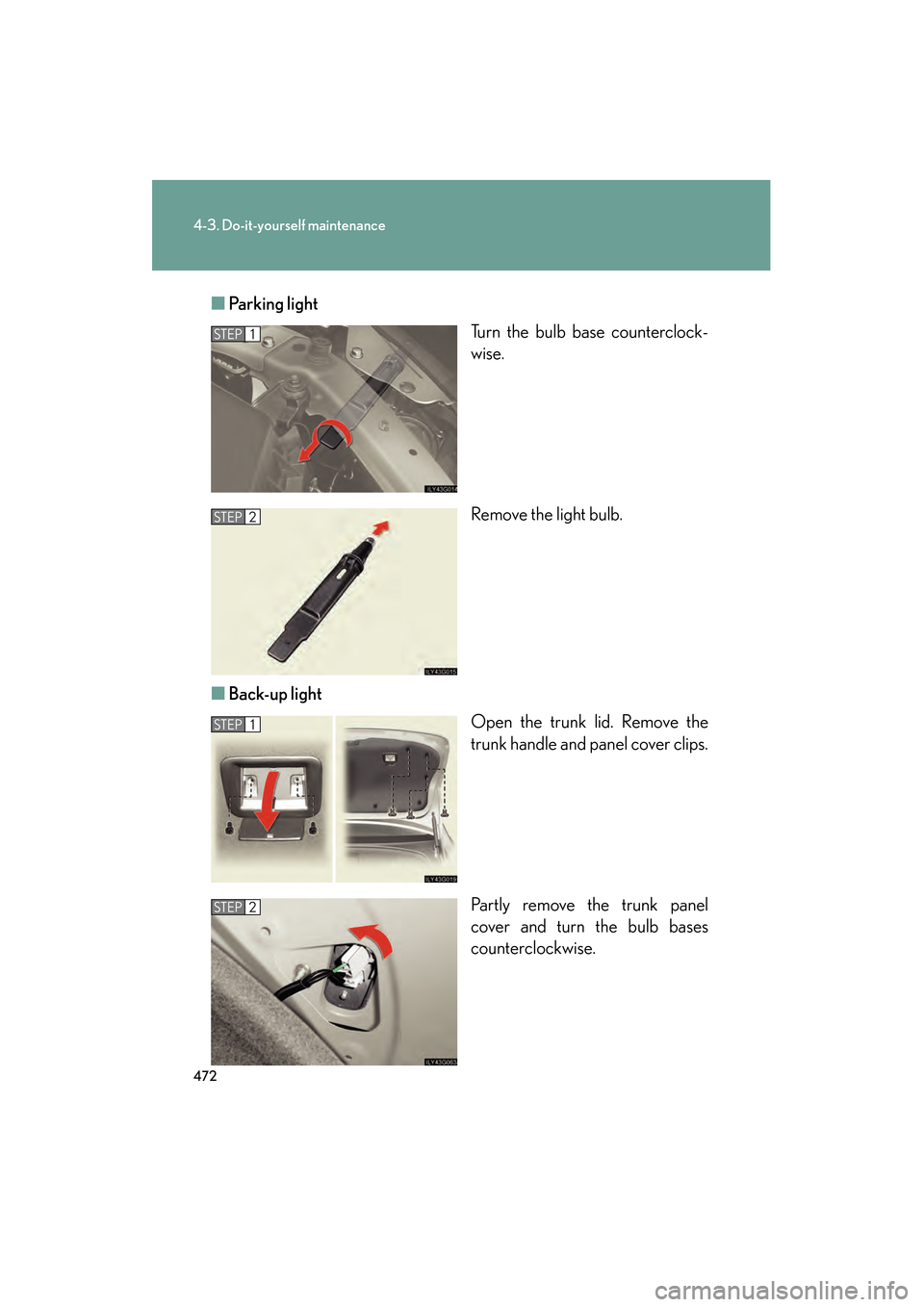

■Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up light
Open the trunk lid. Remove the
trunk handle and panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
STEP1
STEP2
STEP1
STEP2
GS_U_G.book Page 472 Thursday, June 19, 2008 12:54 PM

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
Remove the light bulb.
■ Rear turn si gnal light
Open the trunk lid and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3
GS_U_G.book Page 473 Thursday, June 19, 2008 12:54 PM

474
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

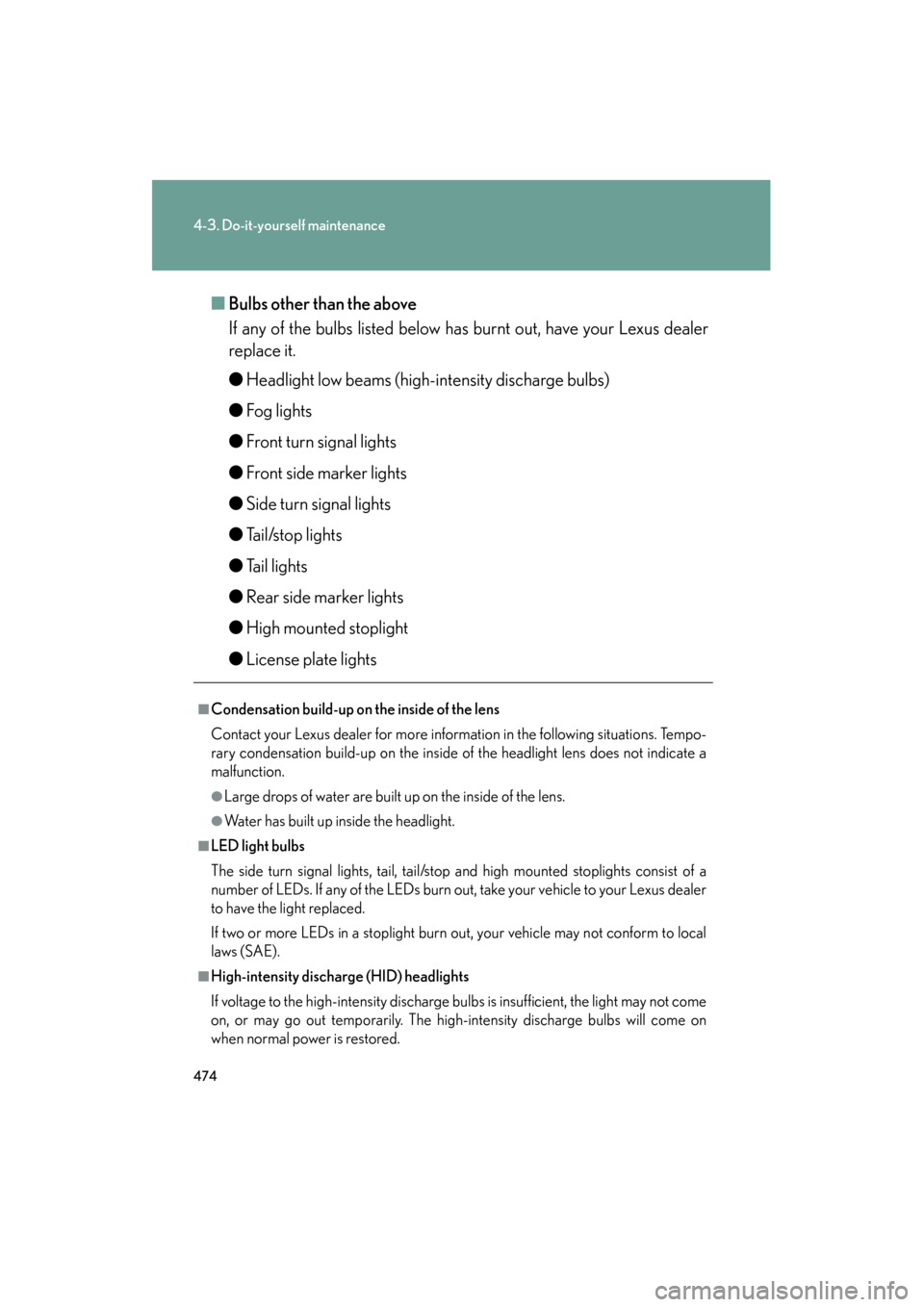

■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (high-intensity discharge bulbs)
● Fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Tail/stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights, tail, tail/stop and high mounted stoplights consist of a
number of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer
to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to local
laws (SAE).
■High-intensity discharge (HID) headlights
If voltage to the high-intensity discharge bulbs is insufficient, the light may not come
on, or may go out temporarily. The high-intensity discharge bulbs will come on
when normal power is restored.
GS_U_G.book Page 474 Thursday, June 19, 2008 12:54 PM

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

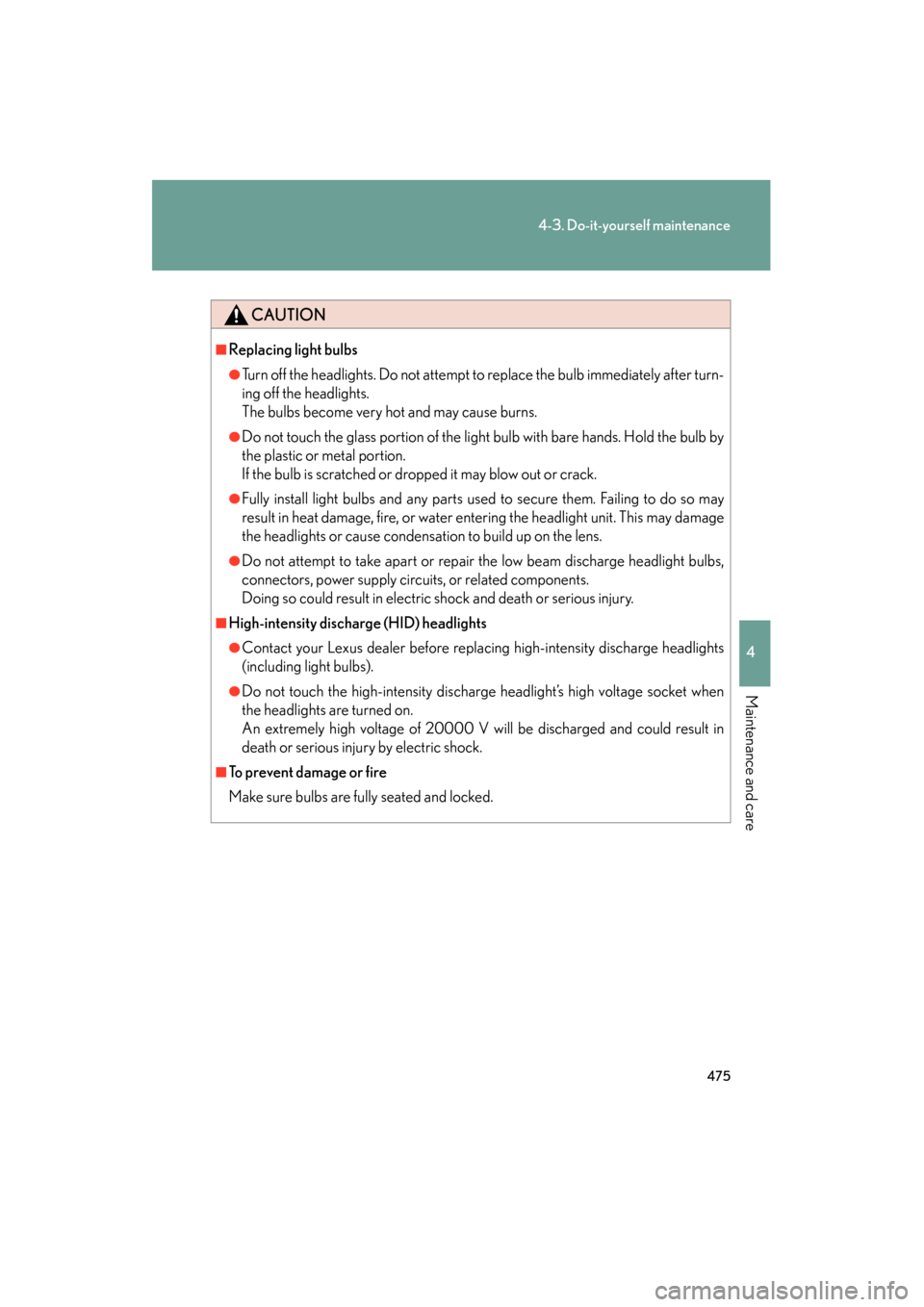

CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■High-intensity discharge (HID) headlights
●Contact your Lexus dealer before replacing high-intensity discharge headlights
(including light bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
death or serious injury by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
GS_U_G.book Page 475 Thursday, June 19, 2008 12:54 PM

476
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
GS_U_G.book Page 476 Thursday, June 19, 2008 12:54 PM

When trouble arises5
477
GS_G_U
June 19, 2008 12:54 pm
5-1. Essential information..... 478If your vehicle needs to be towed ............................ 478
If you think something is wrong ..................................... 484
Fuel pump shut off system .................................... 485
Event data recorder .............. 486 5-2. Steps to take in an
emergency ................... 488
If a warning light turns on or a warning buzzer sounds... .. 488
If a warning message is displayed................................. 497
If you have a flat tire (Vehicles with standard tires) .............. 512
If you have a flat tire (Vehicles with run-flat tires)................ 522
If the engine will not start .... 523
If the shift lever cannot be shifted from “P”.................... 524
If you lose your keys .............. 525
If the electronic key does not operate properly.......... 526
If the 12 volt battery is discharged ............................ 529
If your vehicle overheats ..... 533
If the vehicle becomes stuck........................................ 536
GS_U_G.book Page 477 Thursday, June 19, 2008 12:54 PM

478
GS_G_U
June 19, 2008 12:54 pm
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your automatic transmission.
Contact your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only attempted on hard, surfaced roads for short dis-
tances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the wheels and axle on the ground must be in good
condition.
If they are damaged, use a towing dolly or flat bed truck.
GS_U_G.book Page 478 Thursday, June 19, 2008 12:54 PM

5
When trouble arises
479
5-1. Essential information
GS_G_U
June 19, 2008 12:54 pm
Towing eyelet
■Emergency towing procedureRelease the parking brake.
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or the IGNITION ON mode (engine on).
CAUTION
■While towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain.
●If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels (2WD models) or four
wheels (4WD models) on the ground.
This may cause serious damage to the automatic transmission.
STEP1
STEP2
STEP3
