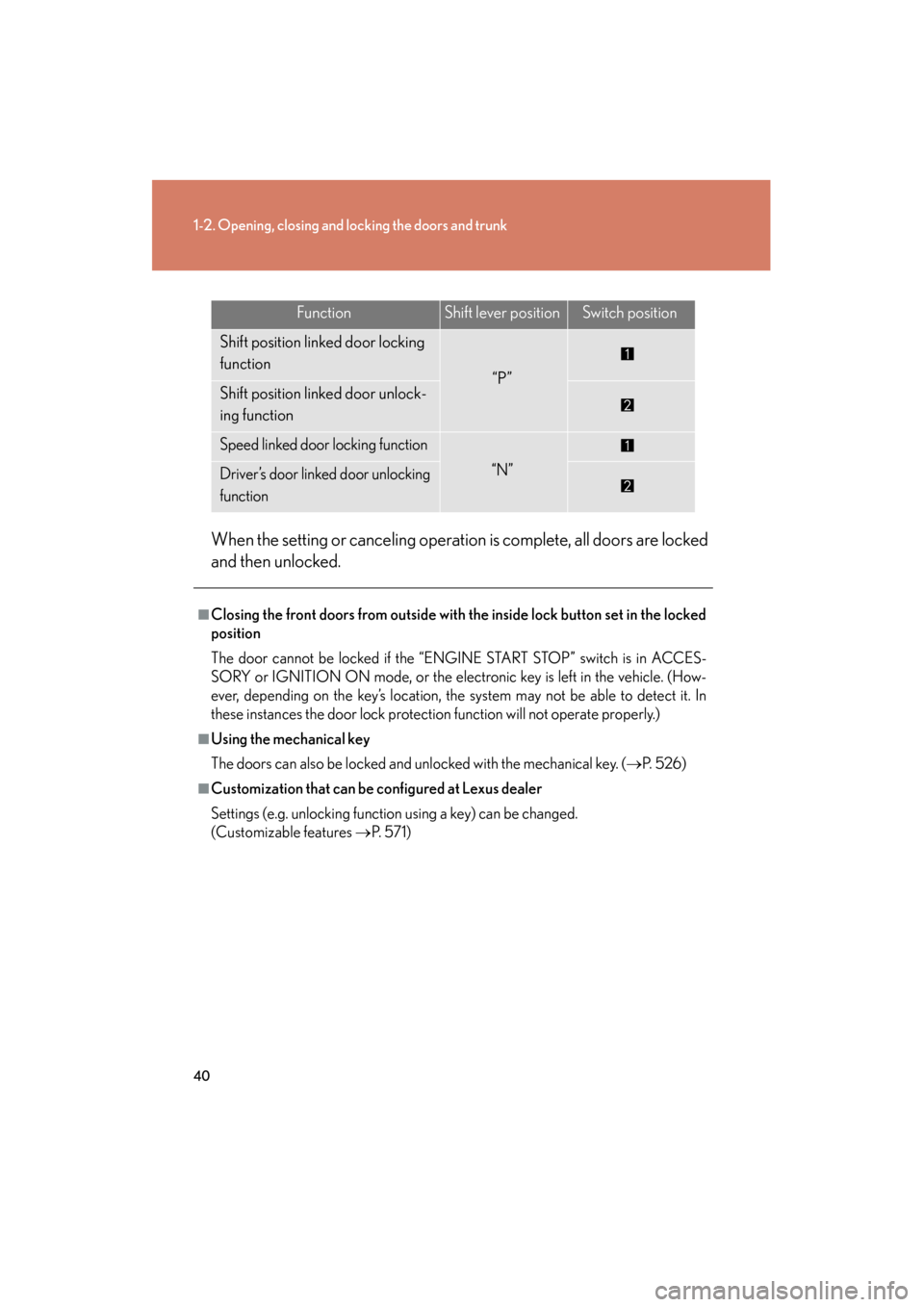

40
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
FunctionShift lever positionSwitch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver’s door linked door unlocking
function
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the “ENGINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode, or the electronic key is left in the vehicle. (How-
ever, depending on the key’s location, the system may not be able to detect it. In
these instances the door lock protection function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 5 2 6 )
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 5 7 1 )
GS_U_G.book Page 40 Thursday, June 19, 2008 12:54 PM

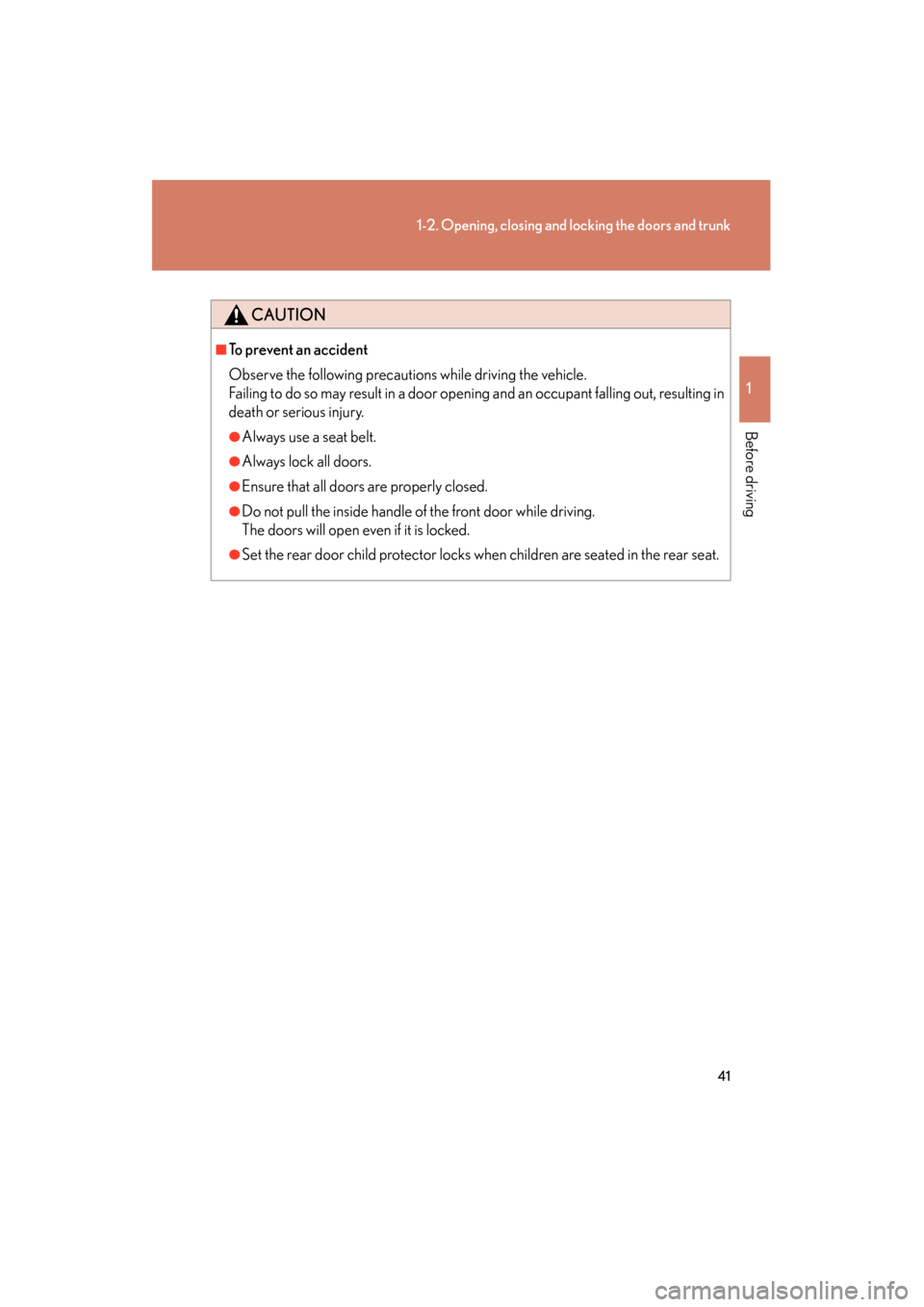

41
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the front door while driving.
The doors will open even if it is locked.
●Set the rear door child protector locks when children are seated in the rear seat.
GS_U_G.book Page 41 Thursday, June 19, 2008 12:54 PM

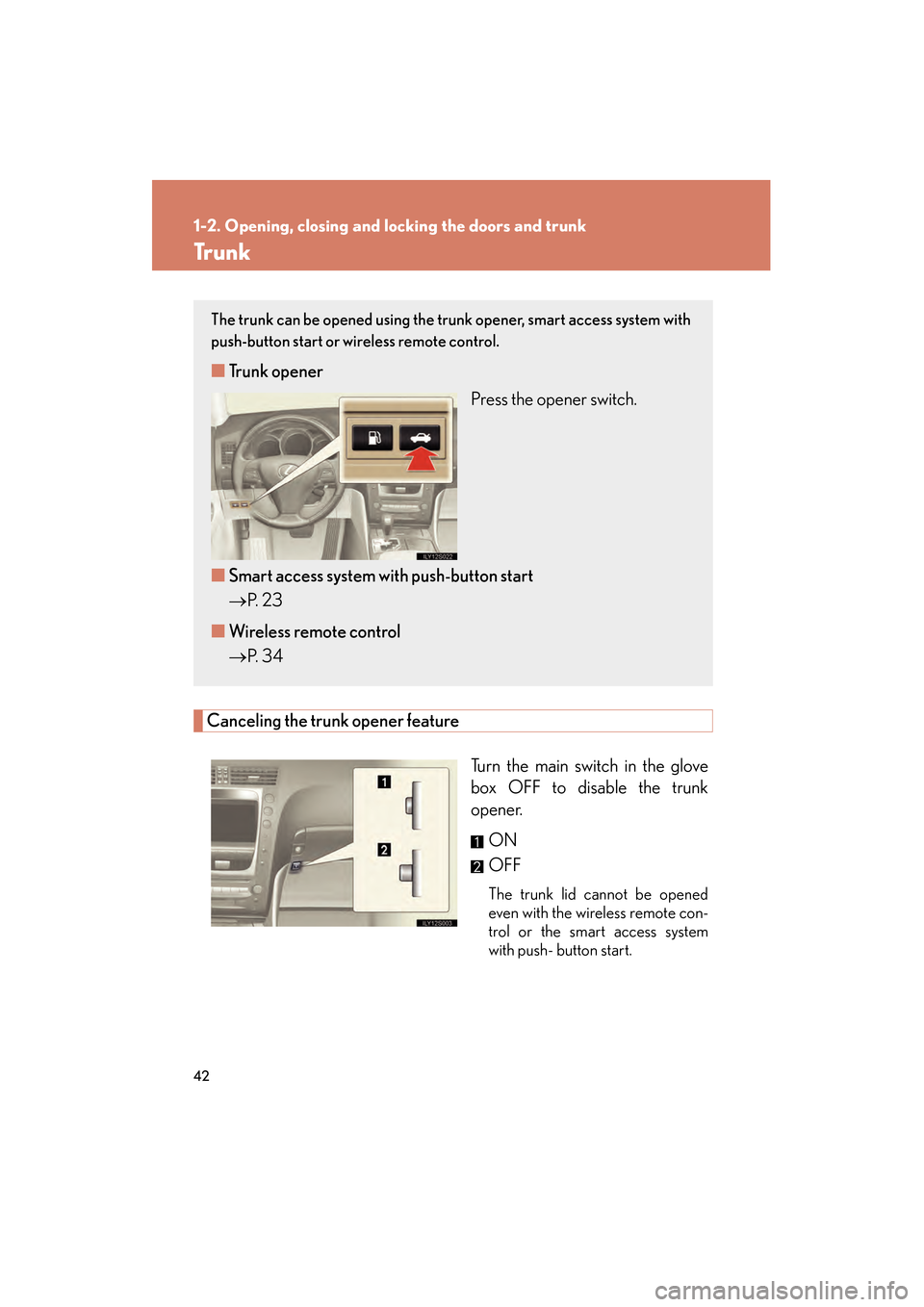

42
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
Tr u n k
Canceling the trunk opener featureTurn the main switch in the glove
box OFF to disable the trunk
opener.ON
OFF
The trunk lid cannot be opened
even with the wireless remote con-
trol or the smart access system
with push- button start.
The trunk can be opened using the trunk opener, smart access system with
push-button start or wireless remote control.
■Trunk opener
Press the opener switch.
■ Smart access system with push-button start
→ P. 2 3
■ Wireless remote control
→ P. 3 4
GS_U_G.book Page 42 Thursday, June 19, 2008 12:54 PM

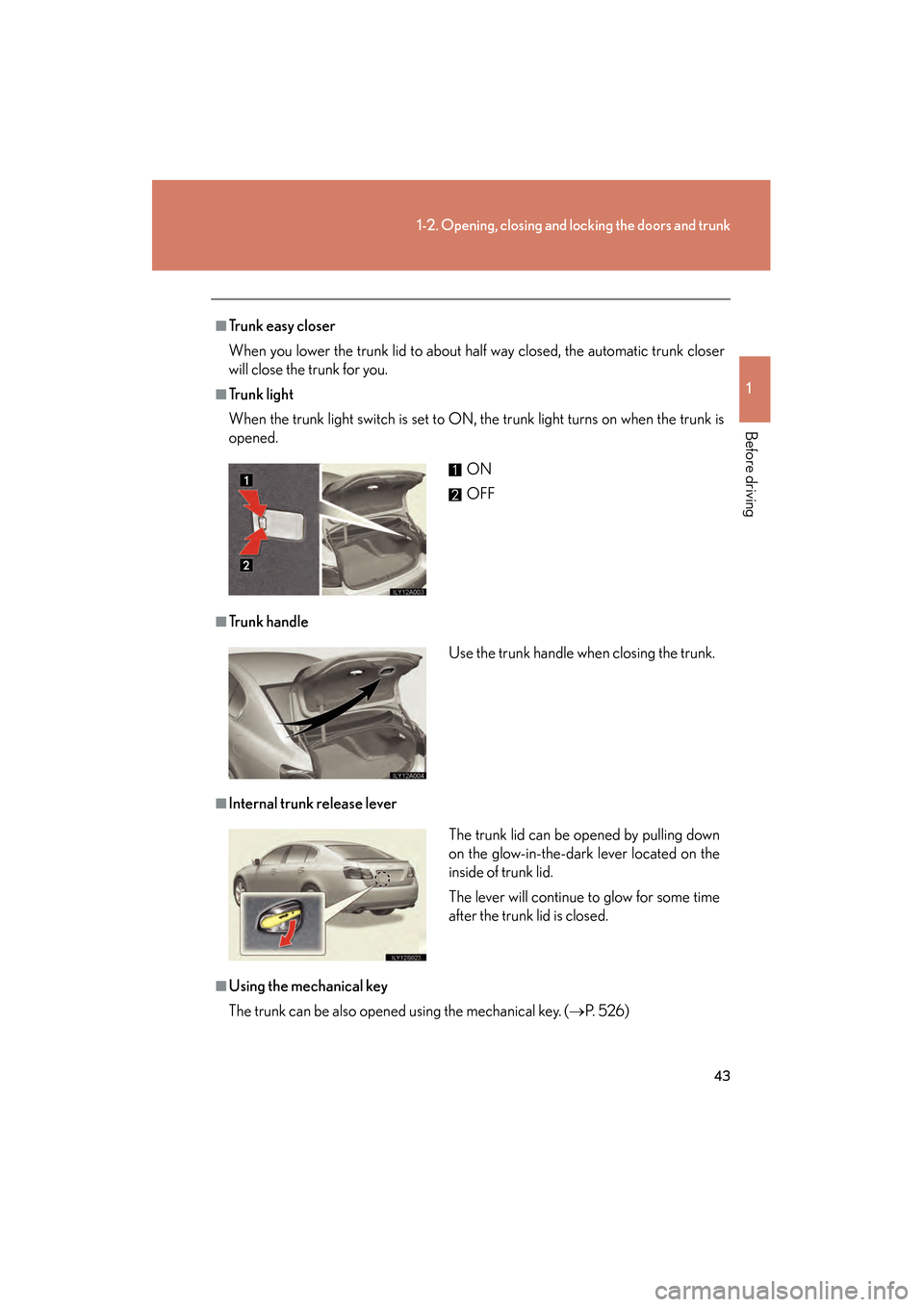

43
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
■Trunk easy closer
When you lower the trunk lid to about half way closed, the automatic trunk closer
will close the trunk for you.
■Tr u n k l i g h t
When the trunk light switch is set to ON, the trunk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 5 2 6 )
ON
OFF
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.
GS_U_G.book Page 43 Thursday, June 19, 2008 12:54 PM

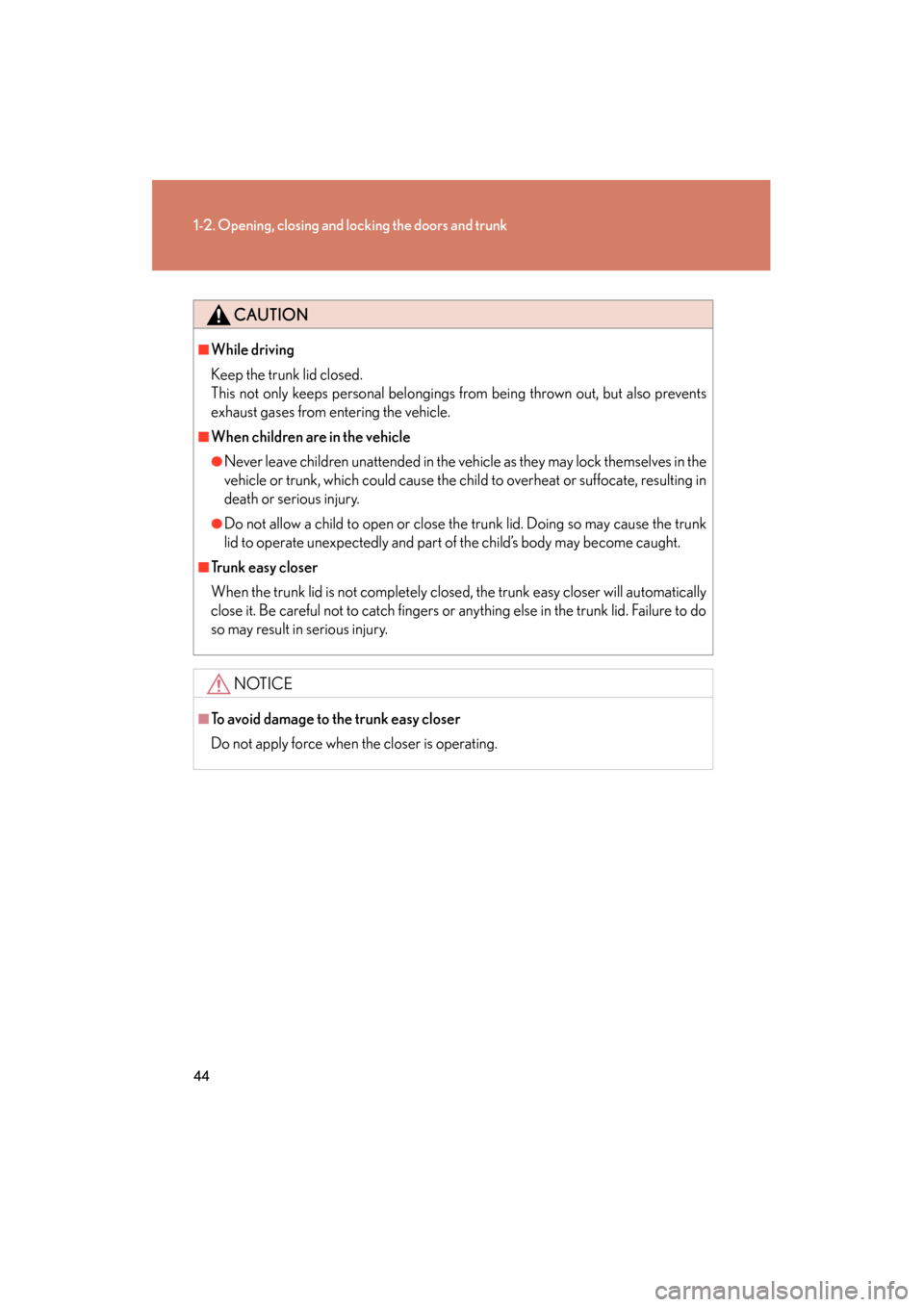

44
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■While driving
Keep the trunk lid closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.
■When children are in the vehicle
●Never leave children unattended in the vehicle as they may lock themselves in the
vehicle or trunk, which could cause the child to overheat or suffocate, resulting in
death or serious injury.
●Do not allow a child to open or close the trunk lid. Doing so may cause the trunk
lid to operate unexpectedly and part of the child’s body may become caught.
■Trunk easy closer
When the trunk lid is not completely closed, the trunk easy closer will automatically
close it. Be careful not to catch fingers or anything else in the trunk lid. Failure to do
so may result in serious injury.
NOTICE
■To avoid damage to the trunk easy closer
Do not apply force when the closer is operating.
GS_U_G.book Page 44 Thursday, June 19, 2008 12:54 PM

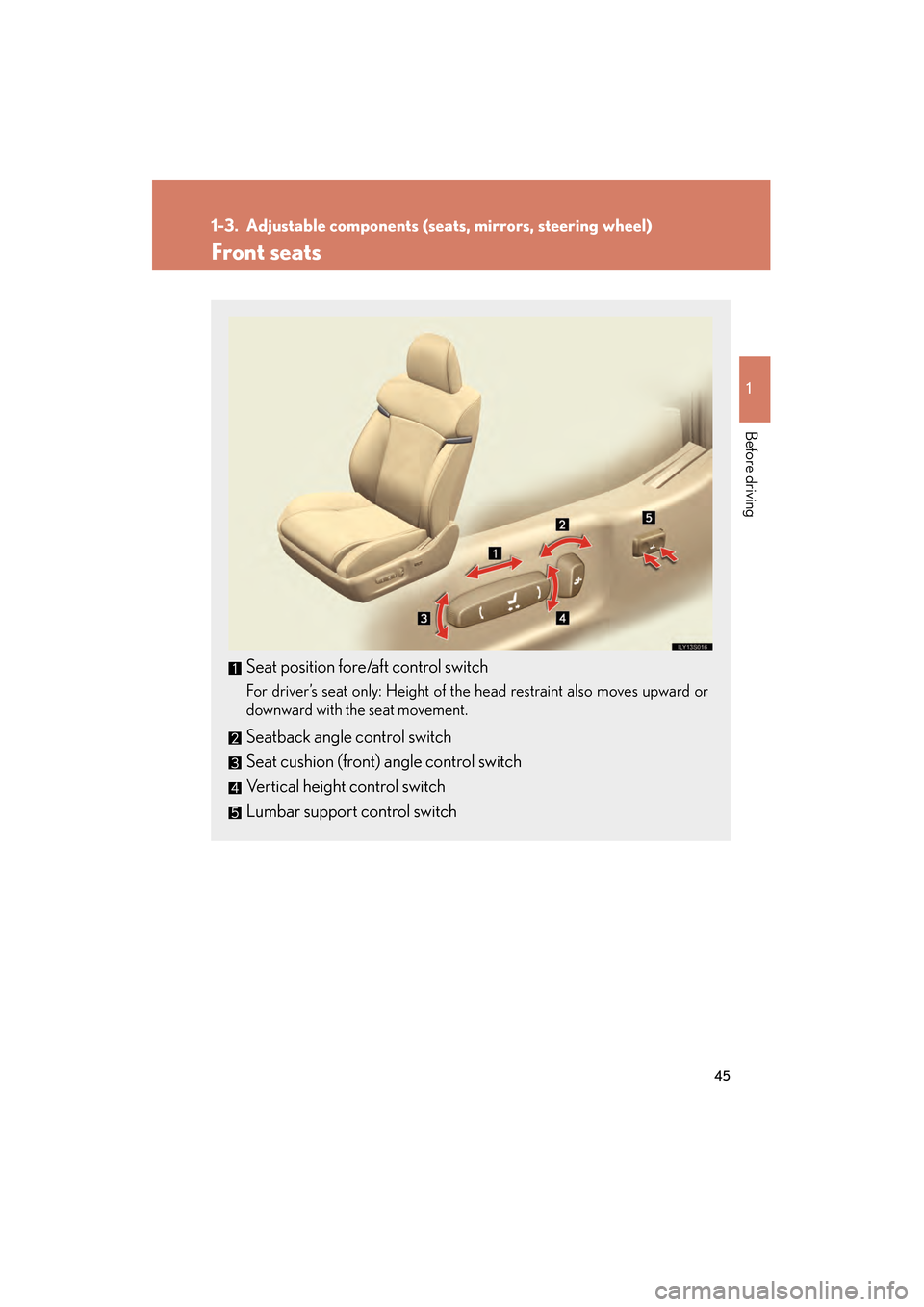

45
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seat position fore/aft control switch
For driver’s seat only: Height of the head restraint also moves upward or
downward with the seat movement.
Seatback angle control switch
Seat cushion (front) angle control switch
Vertical height control switch
Lumbar support control switch
GS_U_G.book Page 45 Thursday, June 19, 2008 12:54 PM

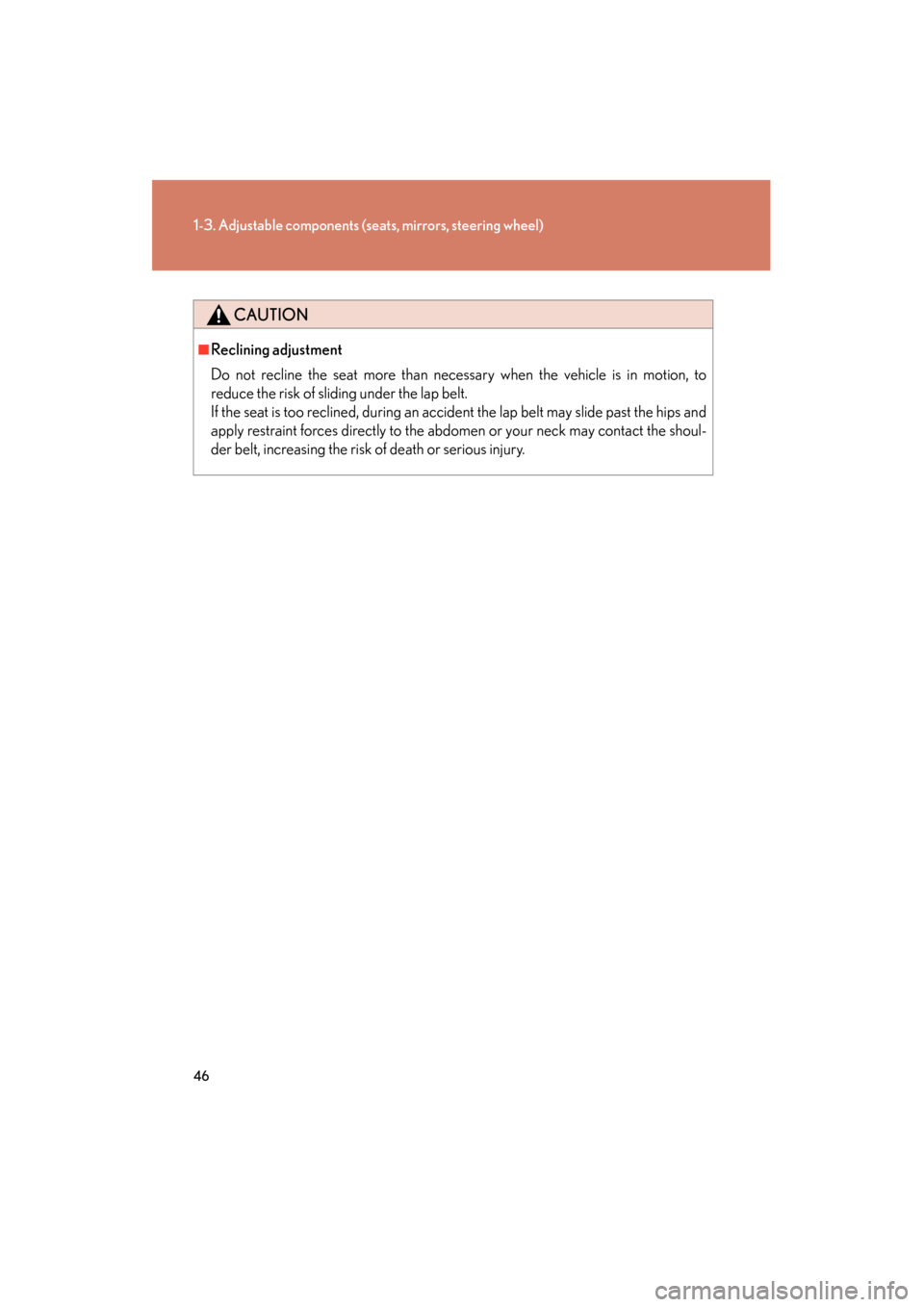

46
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the hips and
apply restraint forces directly to the abdomen or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury.
GS_U_G.book Page 46 Thursday, June 19, 2008 12:54 PM

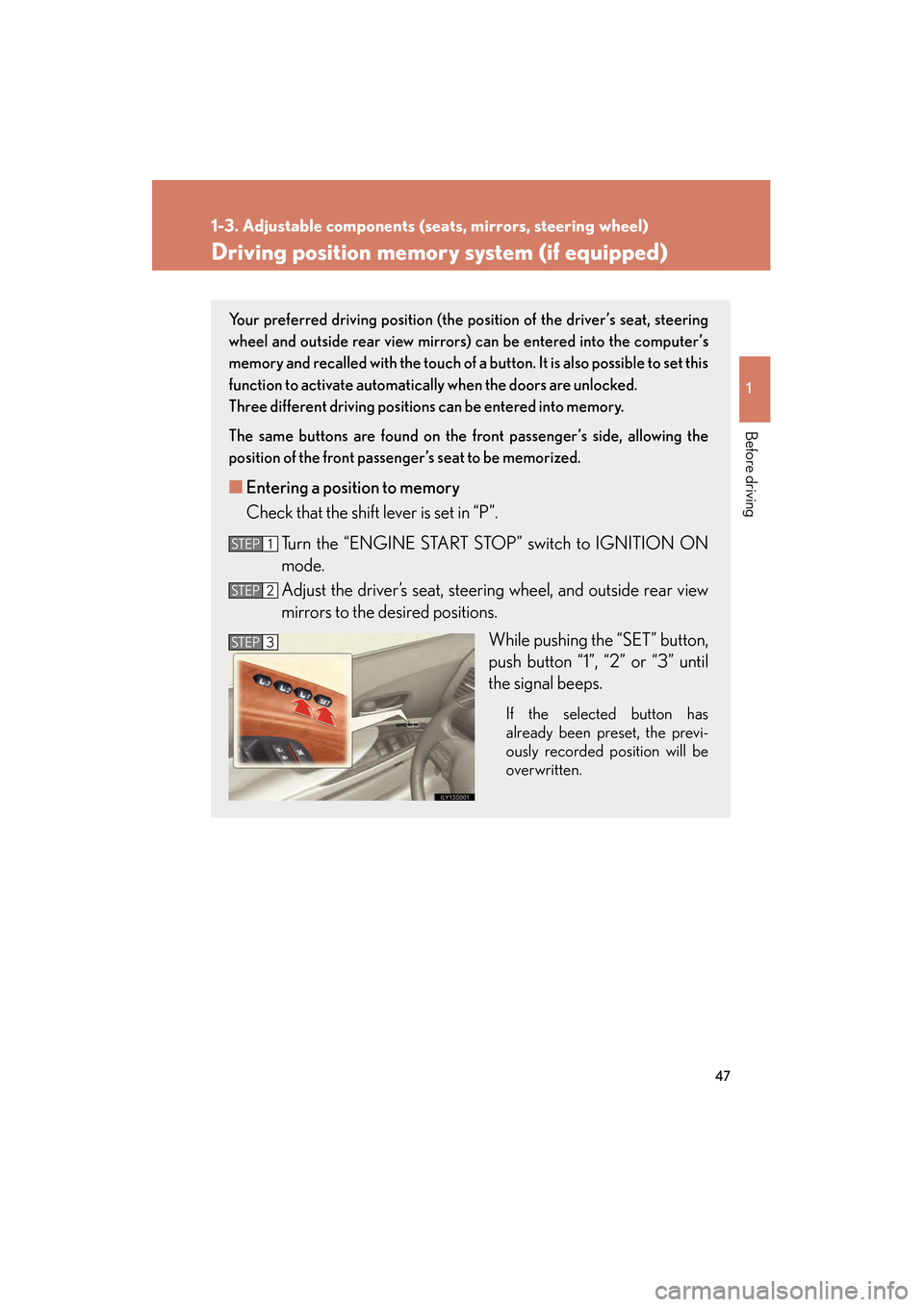

47
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_G_U
June 19, 2008 12:54 pm
Driving position memory system (if equipped)
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passen ger’s seat to be memorized.
■Entering a position to memory
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions. While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3
GS_U_G.book Page 47 Thursday, June 19, 2008 12:54 PM

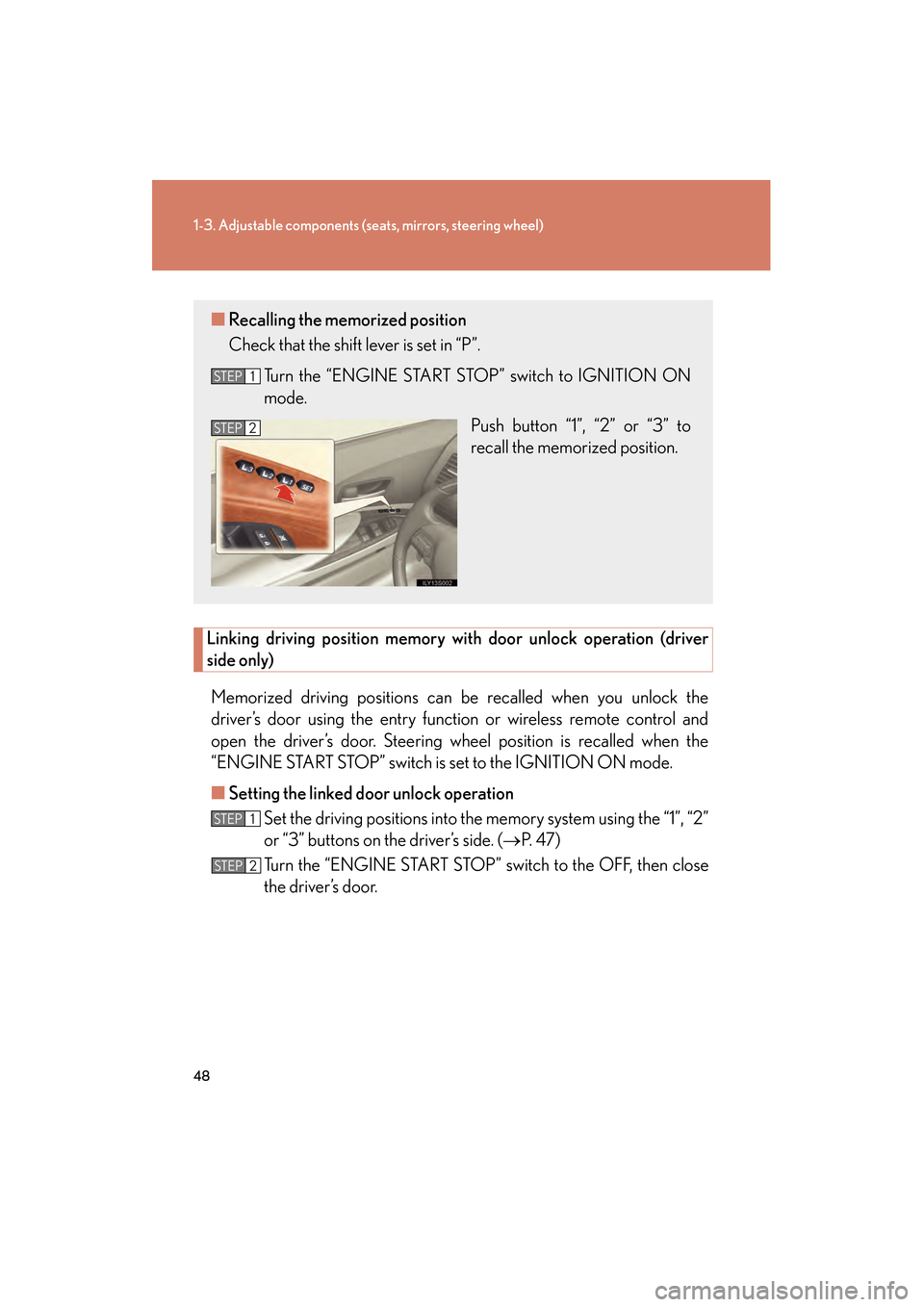

48
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 19, 2008 12:54 pm
Linking driving position memory with door unlock operation (driver
side only)
Memorized driving positions can be recalled when you unlock the
driver’s door using the entry function or wireless remote control and
open the driver’s door. Steering wheel position is recalled when the
“ENGINE START STOP” switch is set to the IGNITION ON mode.
■ Setting the linked do or unlock operation
Set the driving positions into the memory system using the “1”, “2”
or “3” buttons on the driver’s side. ( →P. 4 7 )
Turn the “ENGINE START STOP” switch to the OFF, then close
the driver’s door.
■ Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2
GS_U_G.book Page 48 Thursday, June 19, 2008 12:54 PM

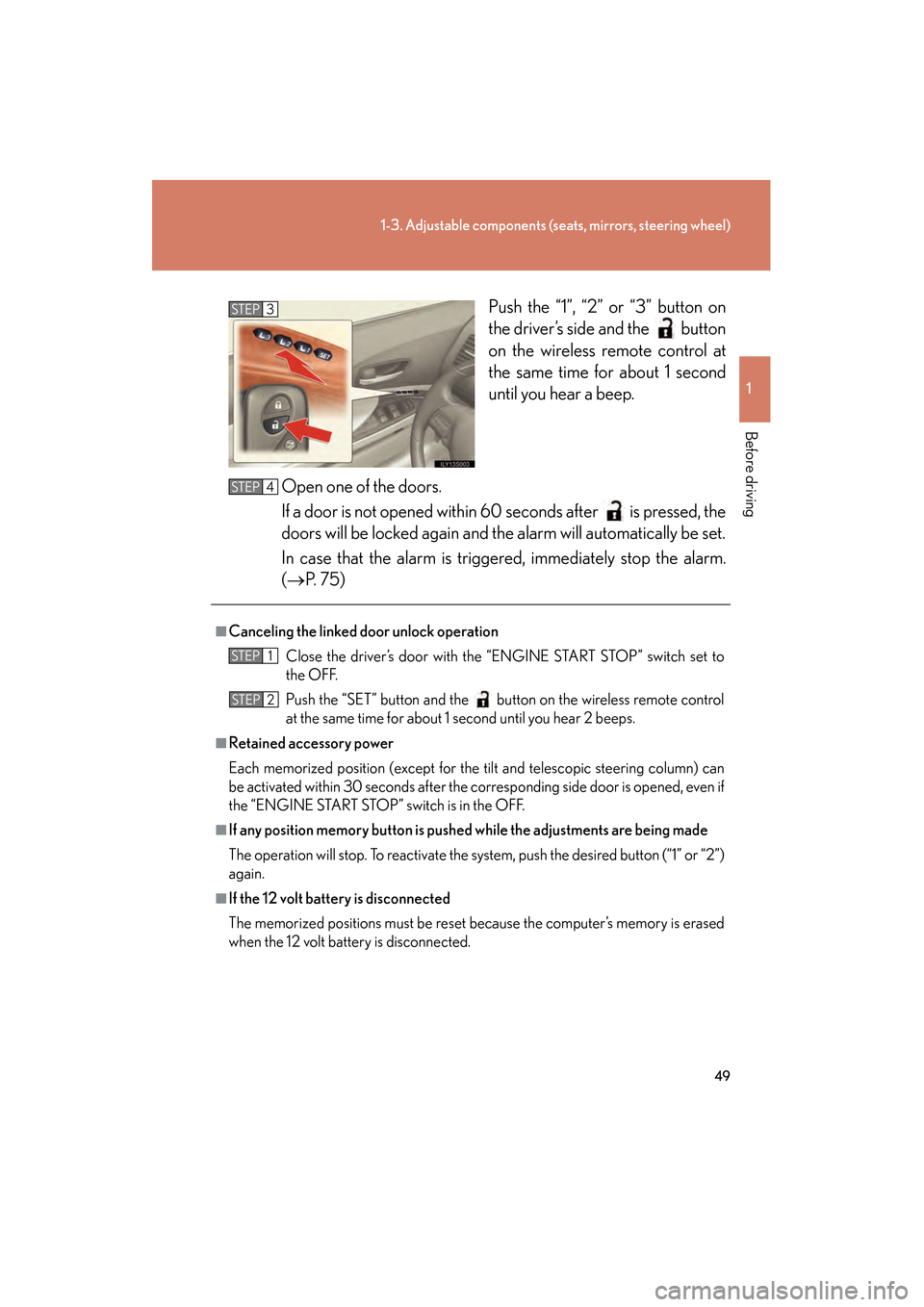

49
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
Push the “1”, “2” or “3” button on
the driver’s side and the button
on the wireless remote control at
the same time for about 1 second
until you hear a beep.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(→ P. 7 5 )STEP3
■Canceling the linked door unlock operation
Close the driver’s door with the “ENGINE START STOP” switch set to
the OFF.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the corresponding side door is opened, even if
the “ENGINE START STOP” switch is in the OFF.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the system, push the desired button (“1” or “2”)
again.
■If the 12 volt battery is disconnected
The memorized positions must be reset because the computer’s memory is erased
when the 12 volt battery is disconnected.
STEP4
STEP1
STEP2
