sensor Lexus GS350 2008 Service Manual

459
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
FuseAmpereCircuit
8FUEL OPN10Fuel filler door opener, trunk lid
opener
9ECU-IG LH10
VDIM, electronically controlled
brake system, yaw rate and G sensor,
steering sensor, cruise control sys-
tem, dynamic radar cruise control
system, EPS, VGRS, rear view moni-
tor system, four-wheel drive system,
front controller, moon roof, rain sen-
sor
10FR S/HTR LH15Seat heaters and ventilators
11RR DOOR LH20
Rear left door control system (power
door lock system, door courtesy light,
power window)
12FR DOOR LH20
Front left door control system (power
door lock system, power rear view
mirror control system, door courtesy
light, outside rear view mirror heater,
power window)
13RAD NO.310Audio system
14H-LP LVL7. 5AFS, automatic headlight leveling
control system
GS_U_G.book Page 459 Thursday, June 19, 2008 12:54 PM

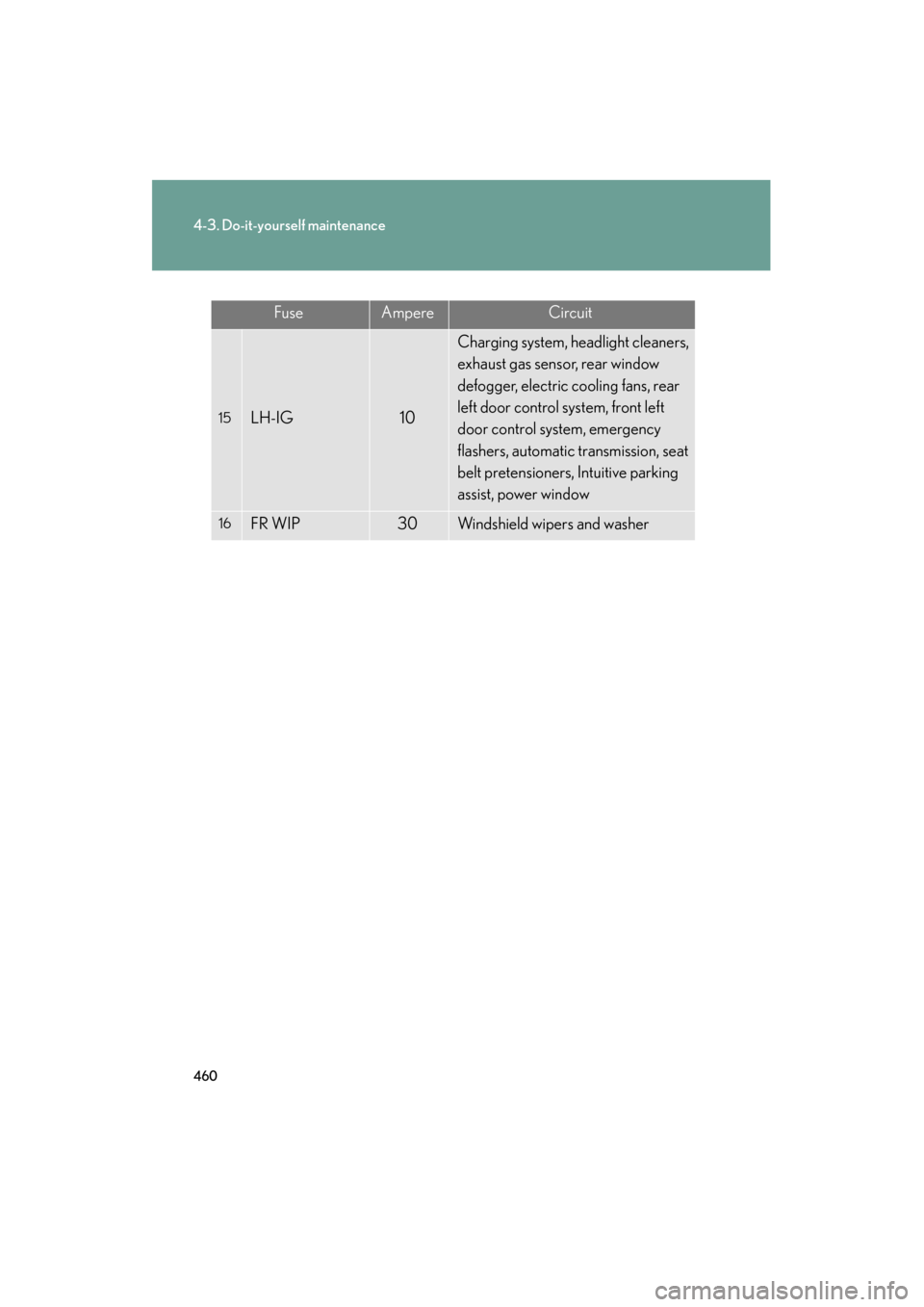

460
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
FuseAmpereCircuit
15LH-IG10
Charging system, headlight cleaners,
exhaust gas sensor, rear window
defogger, electric cooling fans, rear
left door control system, front left
door control system, emergency
flashers, automatic transmission, seat
belt pretensioners, Intuitive parking
assist, power window
16FR WIP30Windshield wipers and washer
GS_U_G.book Page 460 Thursday, June 19, 2008 12:54 PM

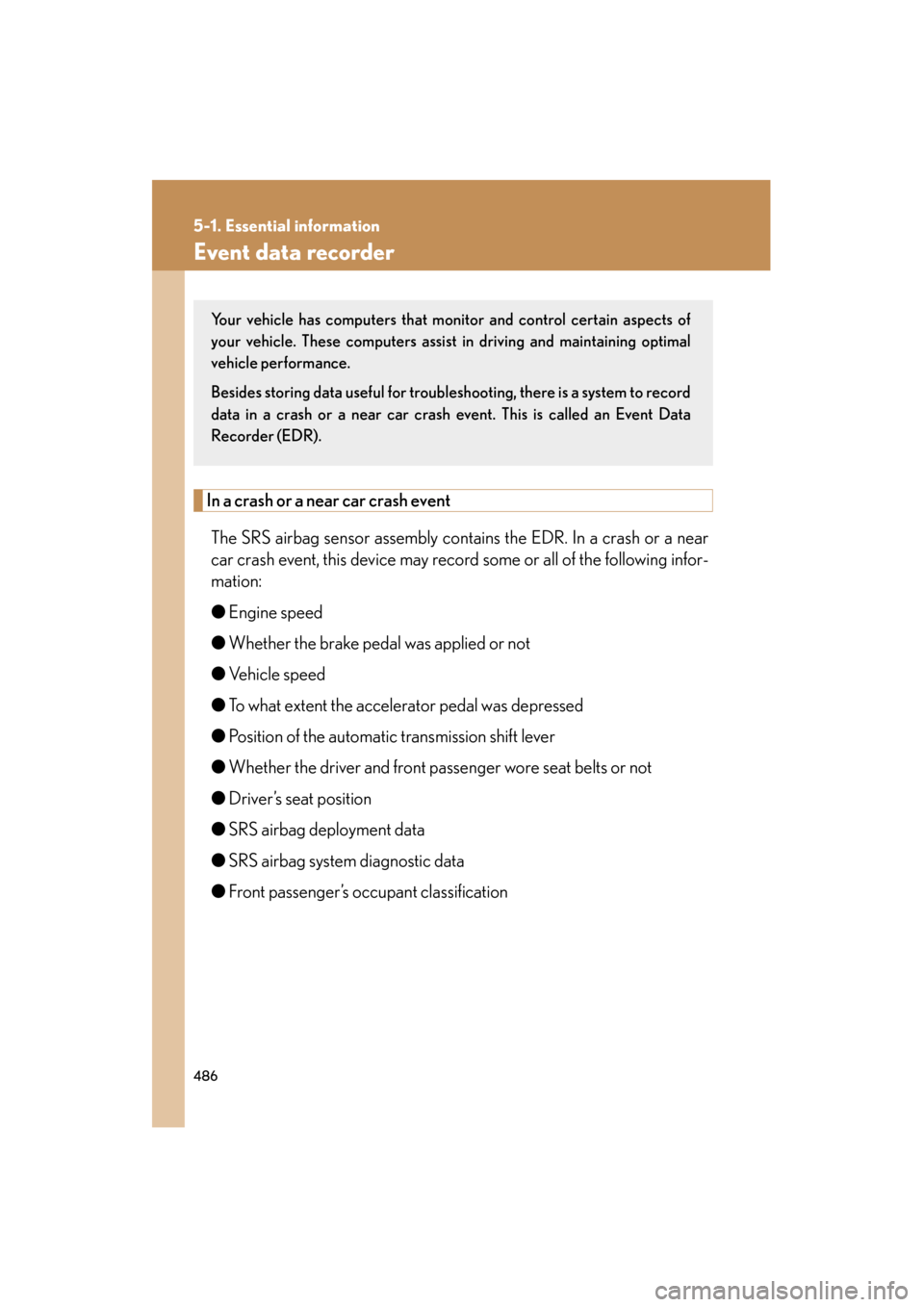

486
5-1. Essential information
GS_G_U
June 19, 2008 12:54 pm
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a near
car crash event, this device may record some or all of the following infor-
mation:
● Engine speed
● Whether the brake pedal was applied or not
● Ve h i c l e s p e e d
● To what extent the accelerator pedal was depressed
● Position of the automatic transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubleshooting, there is a system to record
data in a crash or a near car crash event. This is called an Event Data
Recorder (EDR).
GS_U_G.book Page 486 Thursday, June 19, 2008 12:54 PM

492
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■SRS warning light
This warning light system monitors the following:
●The airbag sensor assembly
●Front airbag sensors
●The curtain shield and rear side airbag sensors
●The side and curtain shield airbag sensors
●The front passenger occupant classification ECU
●“AIR BAG ON” and “AIR BAG OFF” indicator lights
●The pressure sensor
●The belt tension sensor
●The seat belt buckle switches
●The driver’s seat position sensor
●The inflators
●The warning light
●The interconnecting wiring and power sources
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by your Lexus dealer.
GS_U_G.book Page 492 Thursday, June 19, 2008 12:54 PM

5
When trouble arises

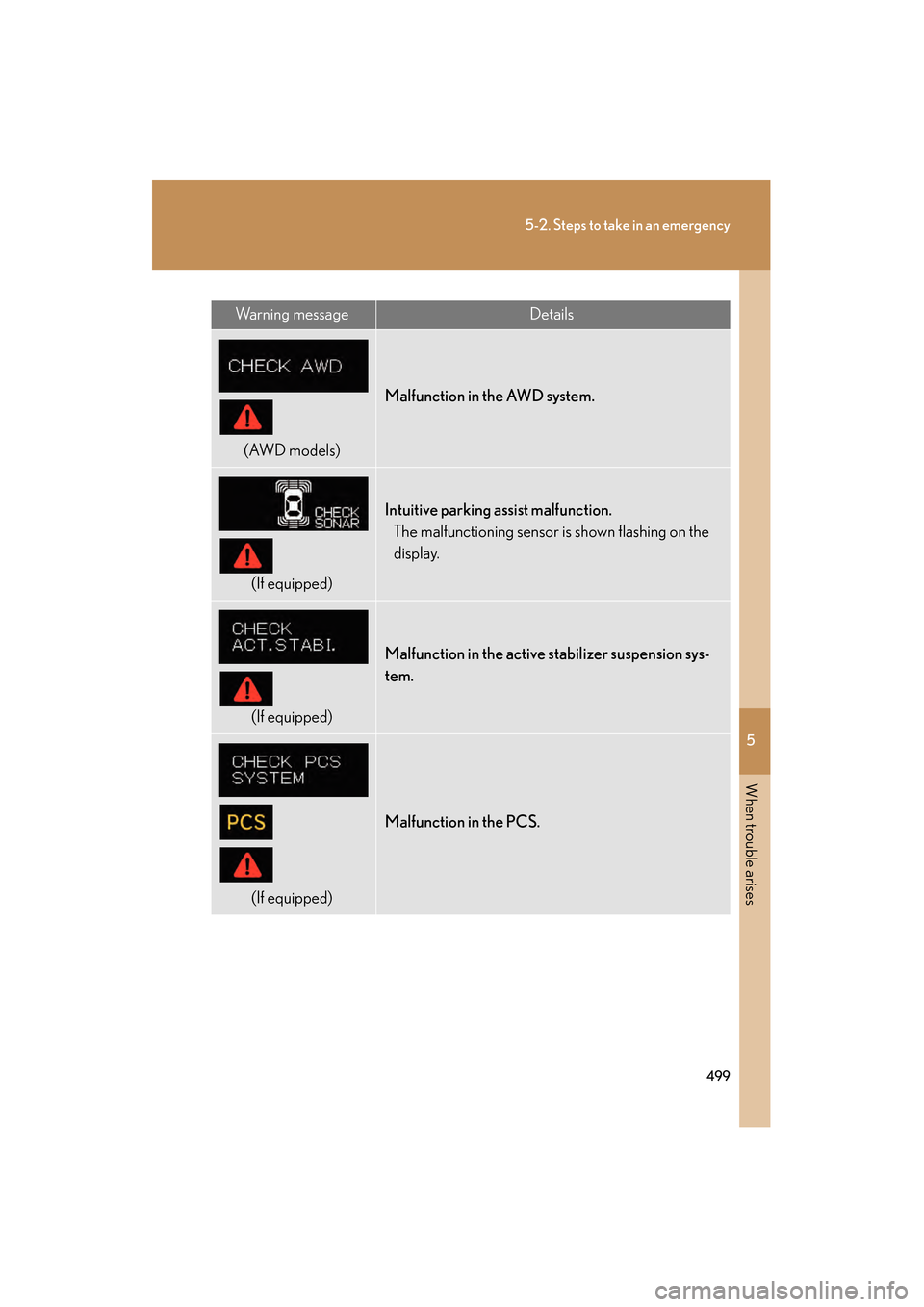

499
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Wa r n i n g m e s s a g eDetails
(AWD models)
Malfunction in the AWD system.
(If equipped)
Intuitive parking assist malfunction.The malfunctioning sensor is shown flashing on the
display.
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.
(If equipped)
Malfunction in the PCS.
GS_U_G.book Page 499 Thursday, June 19, 2008 12:54 PM

5
When trouble arises

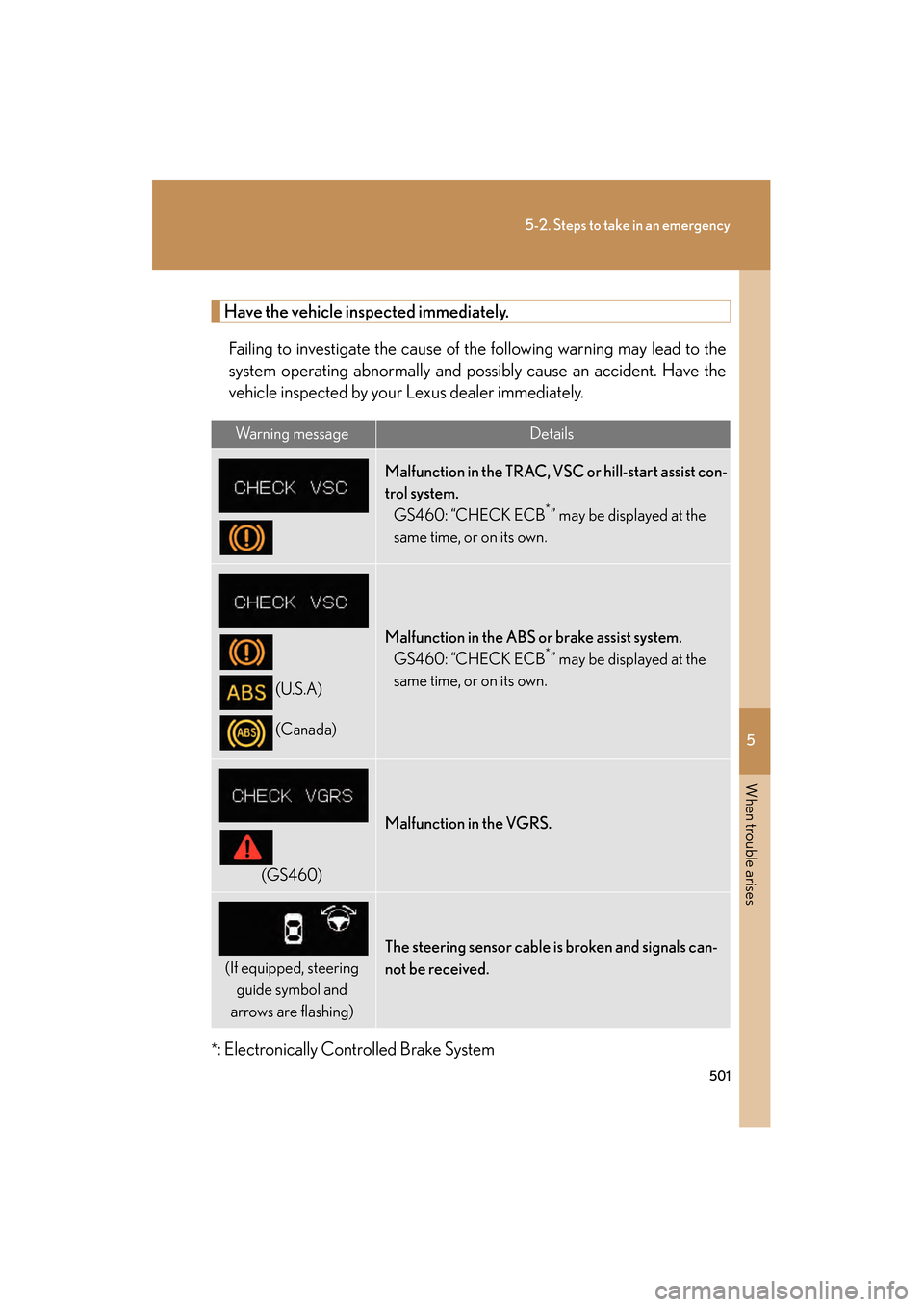

501
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
*: Electronically Controlled Brake System
Wa r n i n g m e s s a g eDetails
Malfunction in the TRAC, VSC or hill-start assist con-
trol system. GS460: “CHECK ECB
*” may be displayed at the
same time, or on its own.
(U.S.A)
(Canada)
Malfunction in the ABS or brake assist system.
GS460: “CHECK ECB*” may be displayed at the
same time, or on its own.
(GS460)
Malfunction in the VGRS.
(If equipped, steering guide symbol and
arrows are flashing)
The steering sensor cable is broken and signals can-
not be received.
GS_U_G.book Page 501 Thursday, June 19, 2008 12:54 PM

5
When trouble arises

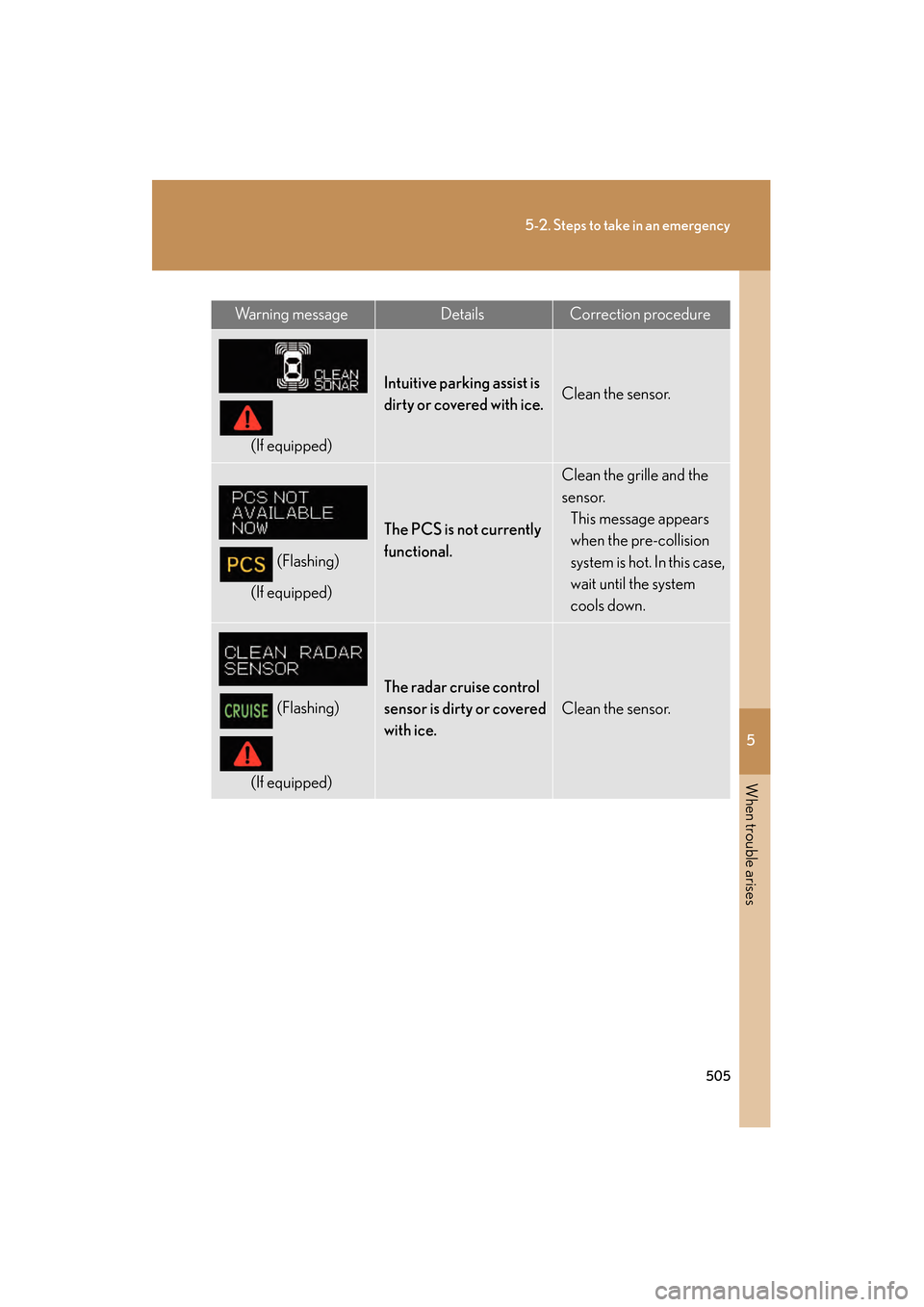

505
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
GS_U_G.book Page 505 Thursday, June 19, 2008 12:54 PM

5
When trouble arises

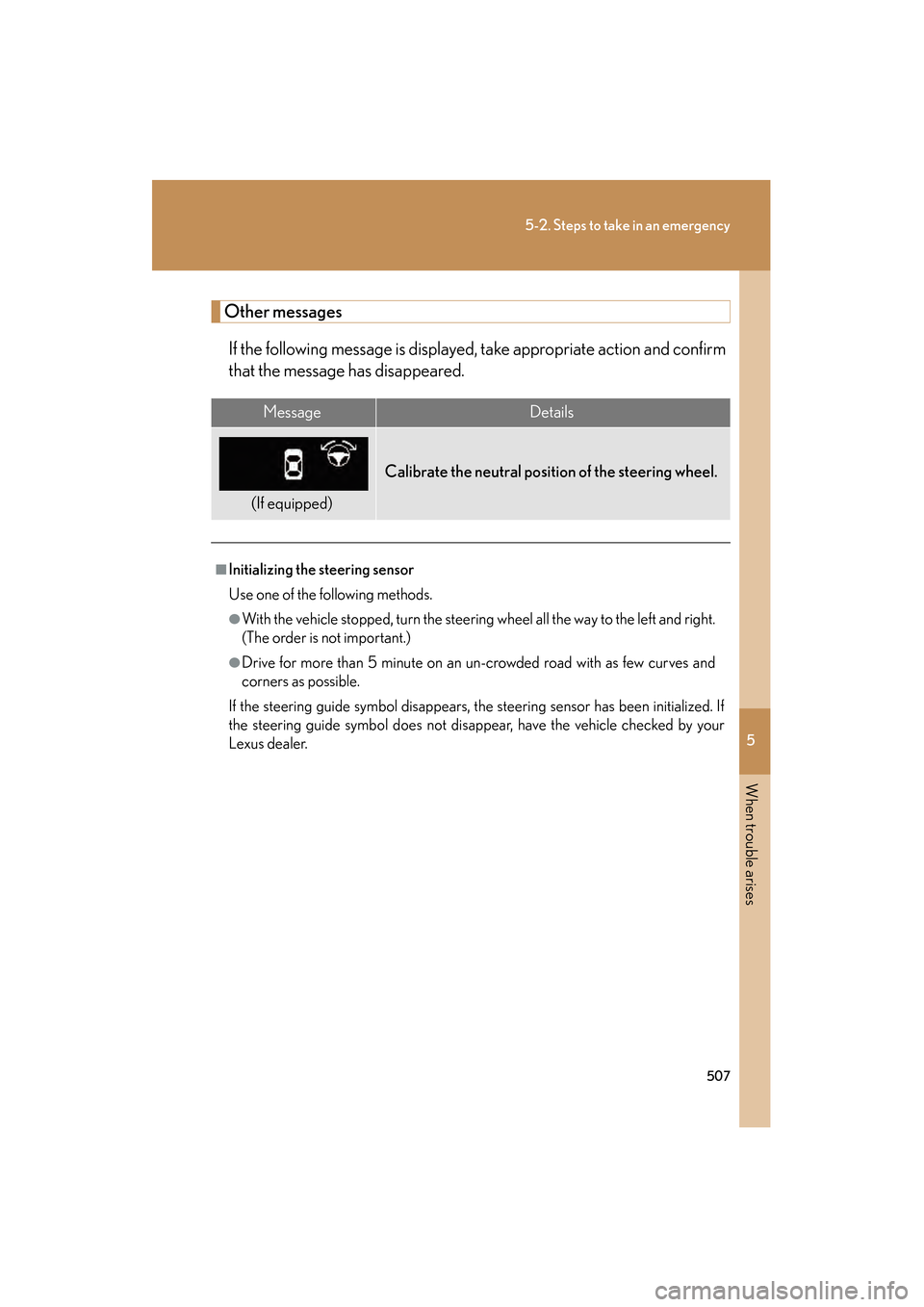

507
5-2. Steps to take in an emergency
GS_G_U
June 19, 2008 12:54 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minute on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, the steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
GS_U_G.book Page 507 Thursday, June 19, 2008 12:54 PM

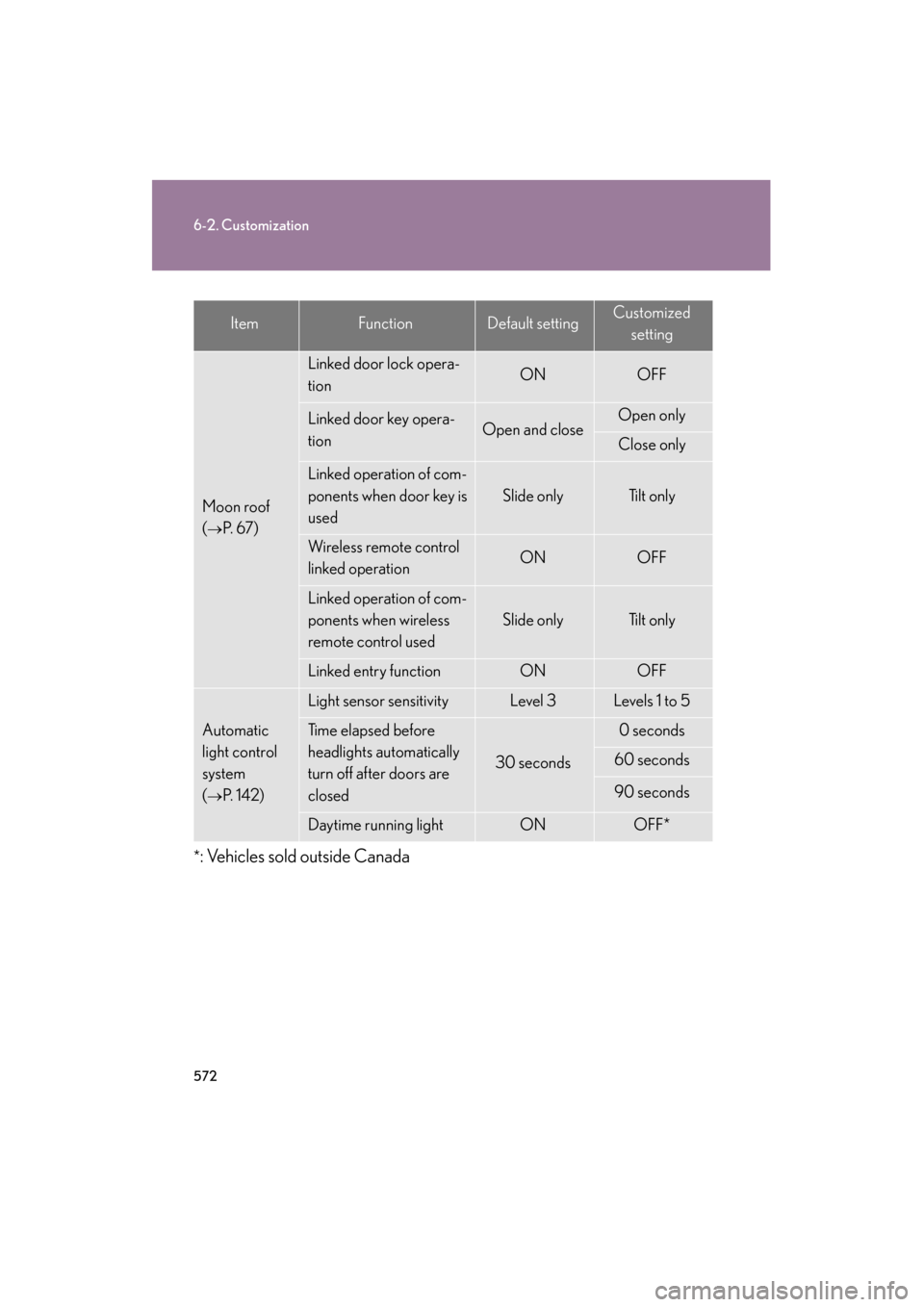

572
6-2. Customization
GS_G_U
June 19, 2008 12:54 pm
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomizedsetting
Moon roof
(
→P. 6 7 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Automatic
light control
system
(
→P. 1 4 2 )
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*
GS_U_G.book Page 572 Thursday, June 19, 2008 12:54 PM
