Smart key Lexus GS350 2008 Owner's Manual

TABLE OF CONTENTSIndex
2
GS_G_U
June 19, 2008 12:54 pm
1-1. Key information ........................... 20Keys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk .................. 22
Smart access system with push-button start .......................... 22
Wireless remote control .............. 34
Doors.................................................... 37
Trunk..................................................... 42
1-3. Adjustable components (seats, mirrors,
steering wheel) .......................... 45
Front seats .......................................... 45
Driving position memory system ............................................... 47
Head restraints.................................. 51
Seat belts ............................................ 53
Steering wheel.................................. 60
Inside rear view mirror................... 61
Outside rear view mirrors ........... 62
1-4. Opening and closing the windows and moon roof .......... 64
Power windows................................ 64
Moon roof .......................................... 67 1-5. Refueling ........................................ 70
Opening the fuel tank cap........... 70
1-6. Theft deterrent system............... 73 Immobilizer system ........................ 73
Alarm.................................................... 75
Theft prevention labels (U.S.A.) ............................................. 77
1-7. Safety information ....................... 78 Correct driving posture ............... 78
SRS airbags ...................................... 80
Front passenger occupant classification system .................... 92
Child restraint systems ................. 98
Installing child restraints ............. 102
2-1. Driving procedures.................... 112 Driving the vehicle .......................... 112
Engine (ignition) switch ................ 121
Automatic transmission.............. 125
Turn signal lever............................. 130
Parking brake ................................... 131
2-2. Instrument cluster ..................... 132 Gauges and meters ..................... 132
Indicators and warning lights................................................. 136
Multi-information display........... 139
1Before driving
2When driving
GS_U_G.book Page 2 Thursday, June 19, 2008 12:54 PM

Before driving1
19
GS_G_U
June 19, 2008 12:54 pm
1-1. Key information ............... 20Keys .............................................. 20
1-2. Opening, closing and locking the doors
and trunk........................ 22
Smart access system with push-button start .................... 22
Wireless remote control ......... 34
Doors ............................................ 37
Trunk ............................................. 42
1-3. Adjustable components (seats, mirrors,
steering wheel) .............. 45
Front seats ................................... 45
Driving position memory system ........................................ 47
Head restraints ........................... 51
Seat belts ..................................... 53
Steering wheel ........................... 60
Inside rear view mirror ............. 61
Outside rear view mirrors ...... 62 1-4. Opening and closing the
windows and
moon roof ....................... 64
Power windows .......................... 64
Moon roof .................................... 67
1-5. Refueling .......................... 70 Opening the fuel tank cap ..... 70
1-6. Theft deterrent system ... 73 Immobilizer system .................. 73
Alarm............................................ 75
Theft prevention labels (U.S.A.)...................................... 77
1-7. Safety information........... 78 Correct driving posture ......... 78
SRS airbags ................................ 80
Front passenger occupant classification system.............. 92
Child restraint systems ........... 98
Installing child restraints....... 102
GS_U_G.book Page 19 Thursday, June 19, 2008 12:54 PM

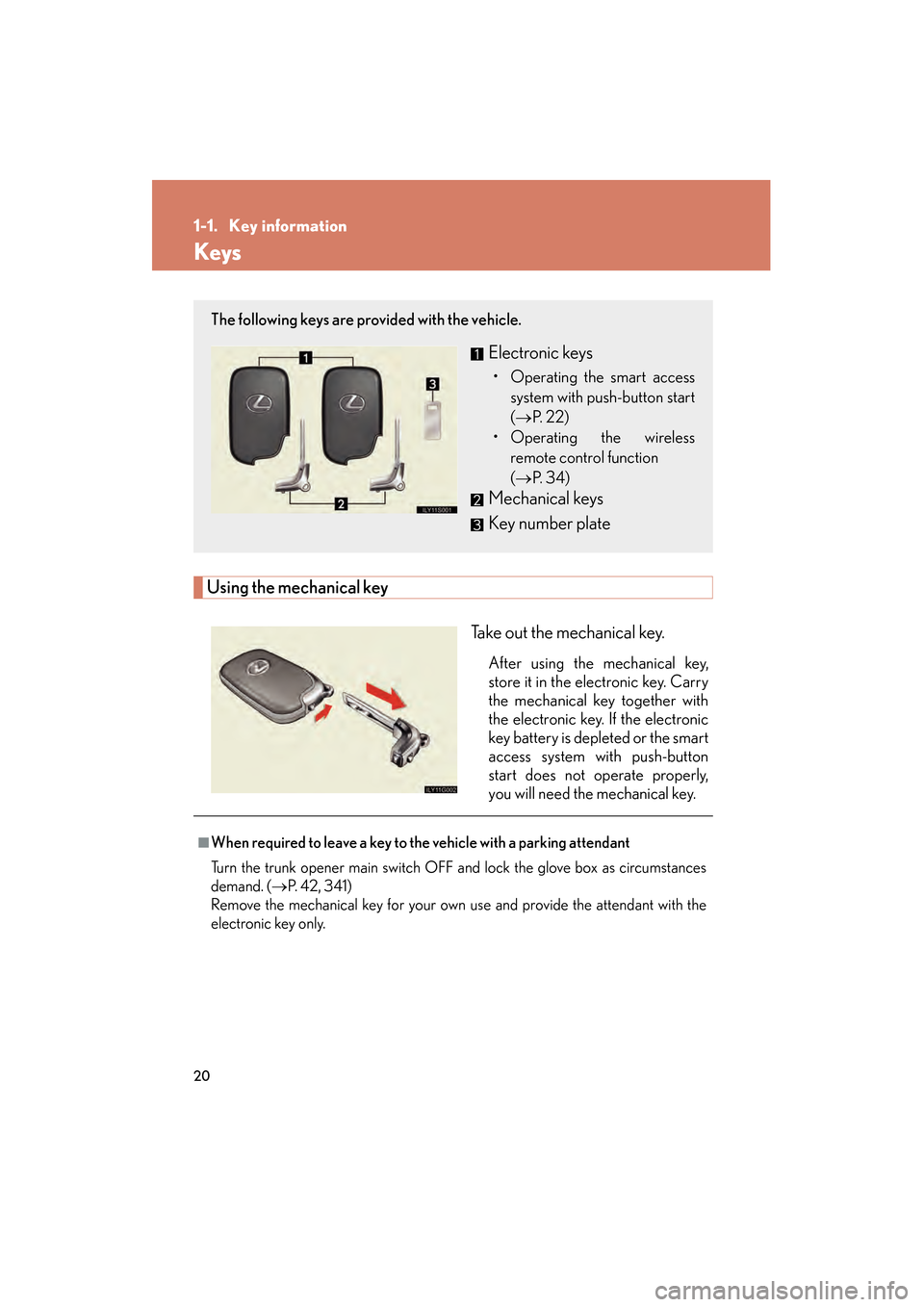

20
GS_G_U
June 19, 2008 12:54 pm
1-1. Key information
Keys
Using the mechanical keyTake out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the smart
access system with push-button
start does not operate properly,
you will need the mechanical key.
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 22)
• Operating the wireless remote control function
(→ P. 3 4 )
Mechanical keys
Key number plate
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch OFF and lock the glove box as circumstances
demand. ( →P. 4 2 , 3 4 1 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
GS_U_G.book Page 20 Thursday, June 19, 2008 12:54 PM

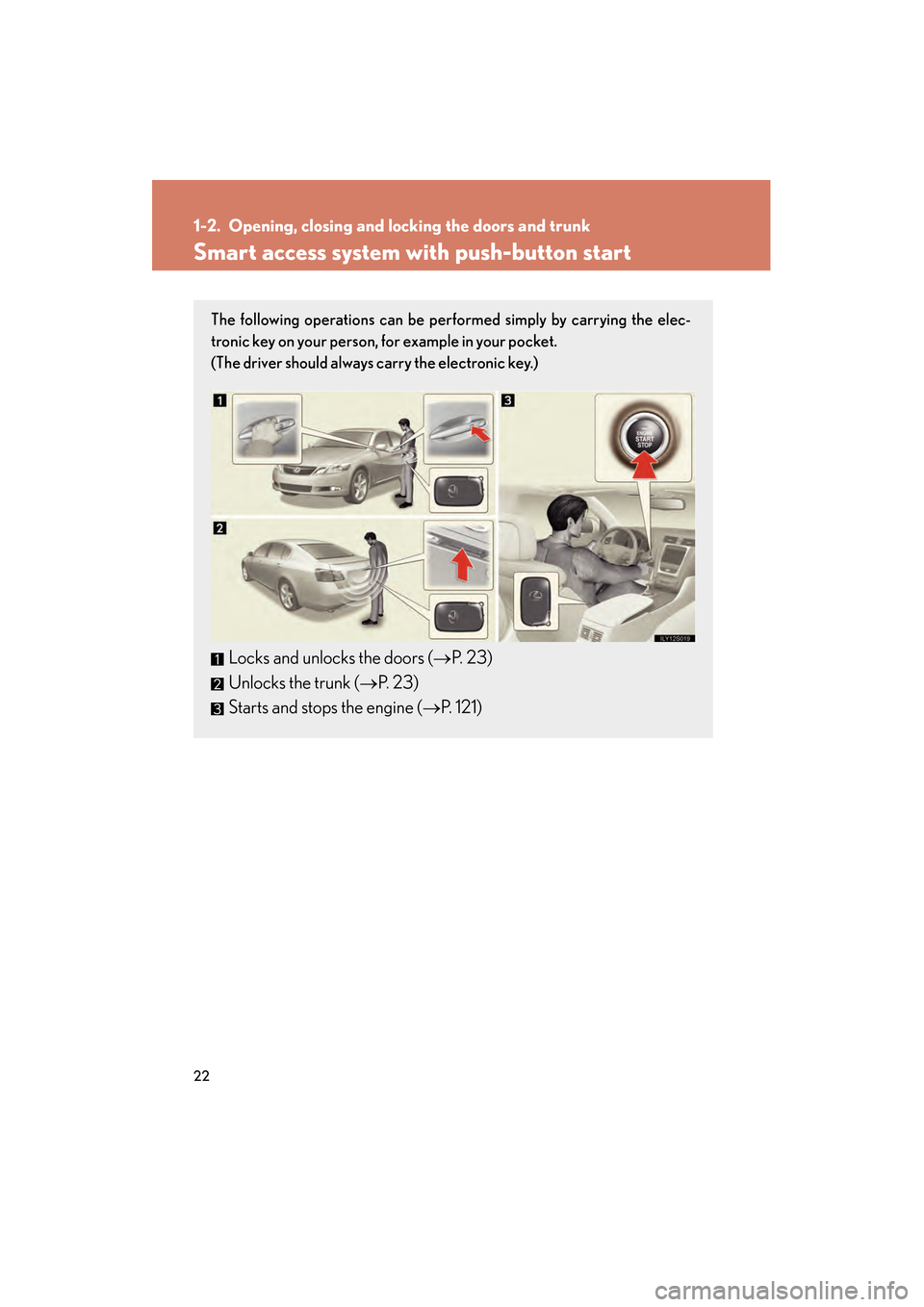

22
GS_G_U
June 19, 2008 12:54 pm
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (→P. 2 3 )
Unlocks the trunk ( →P. 2 3 )
Starts and stops the engine ( →P. 121)
GS_U_G.book Page 22 Thursday, June 19, 2008 12:54 PM

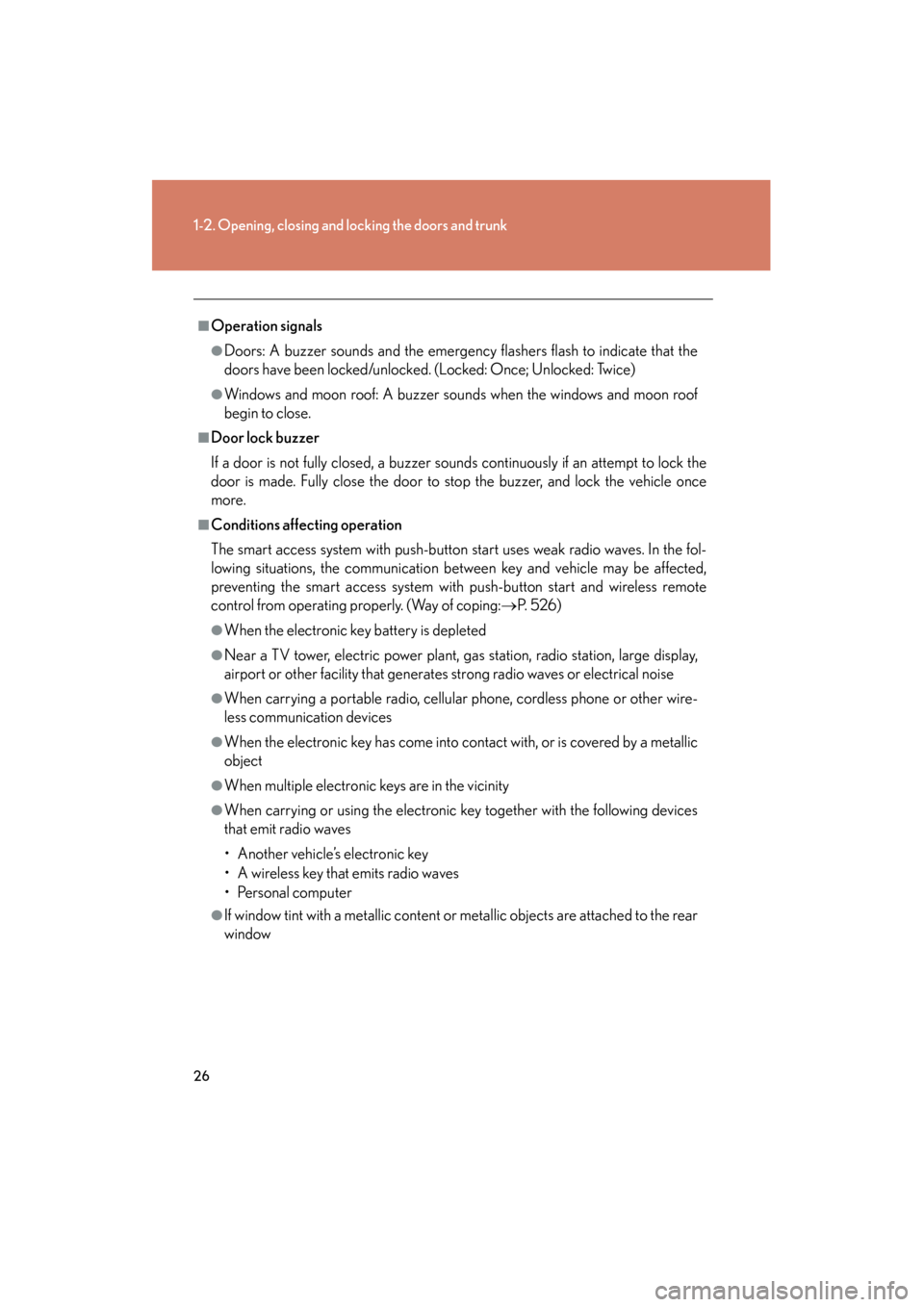

26
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
■Operation signals
●Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
●Windows and moon roof: A buzzer sounds when the windows and moon roof
begin to close.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to st op the buzzer, and lock the vehicle once
more.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between key and vehicle may be affected,
preventing the smart access system with push-button start and wireless remote
control from operating properly. (Way of coping: →P. 5 2 6 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key has come into contact with, or is covered by a metallic
object
●When multiple electronic keys are in the vicinity
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
●If window tint with a metallic content or metallic objects are attached to the rear
window
GS_U_G.book Page 26 Thursday, June 19, 2008 12:54 PM

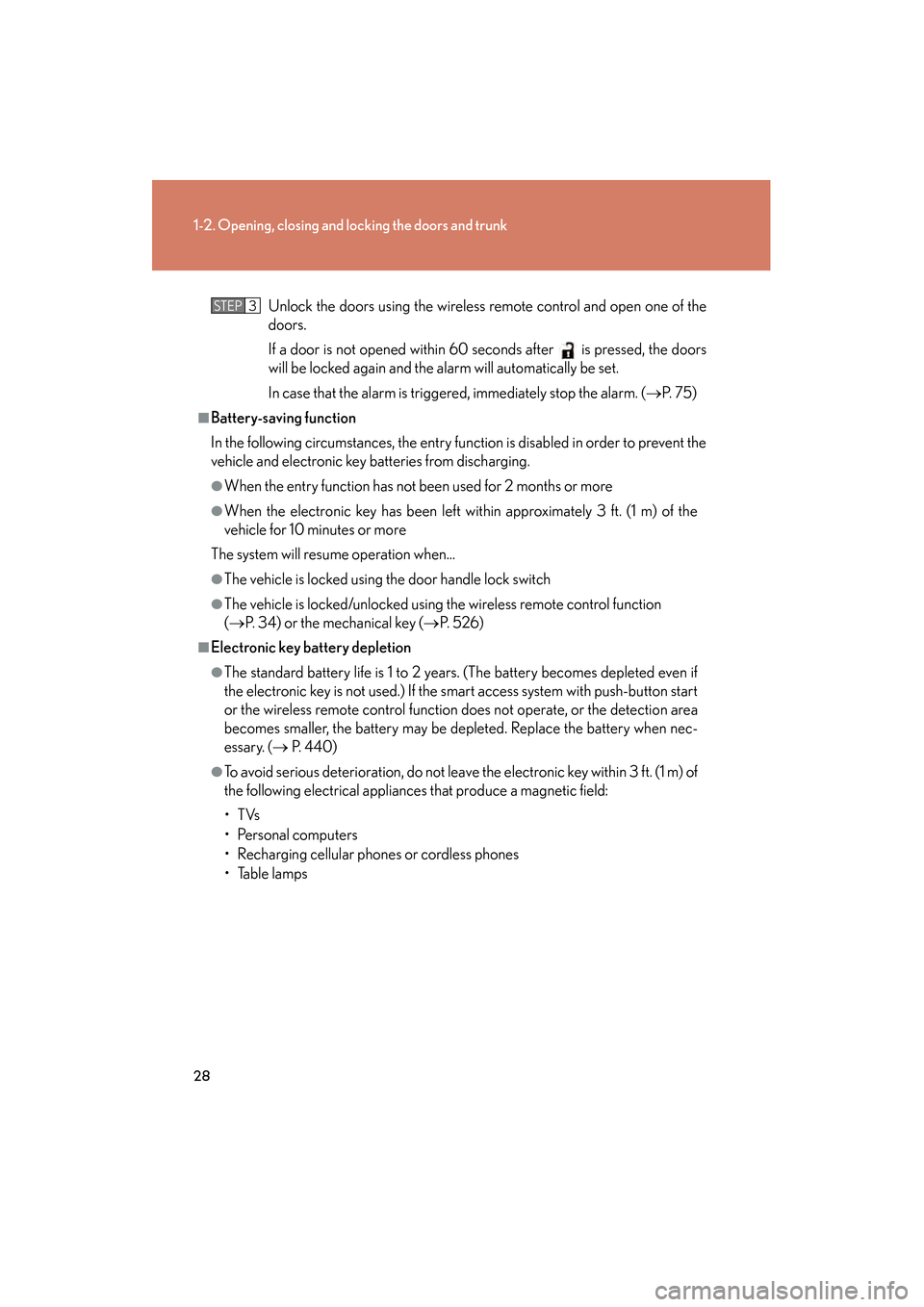

28
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. (→P. 7 5 )
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 months or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch
●The vehicle is locked/unlocked using the wireless remote control function
( → P. 34) or the mechanical key ( →P. 5 2 6 )
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The battery becomes depleted even if
the electronic key is not used.) If the smart access system with push-button start
or the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. ( → P. 4 4 0 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
•Table lamps
STEP3
GS_U_G.book Page 28 Thursday, June 19, 2008 12:54 PM

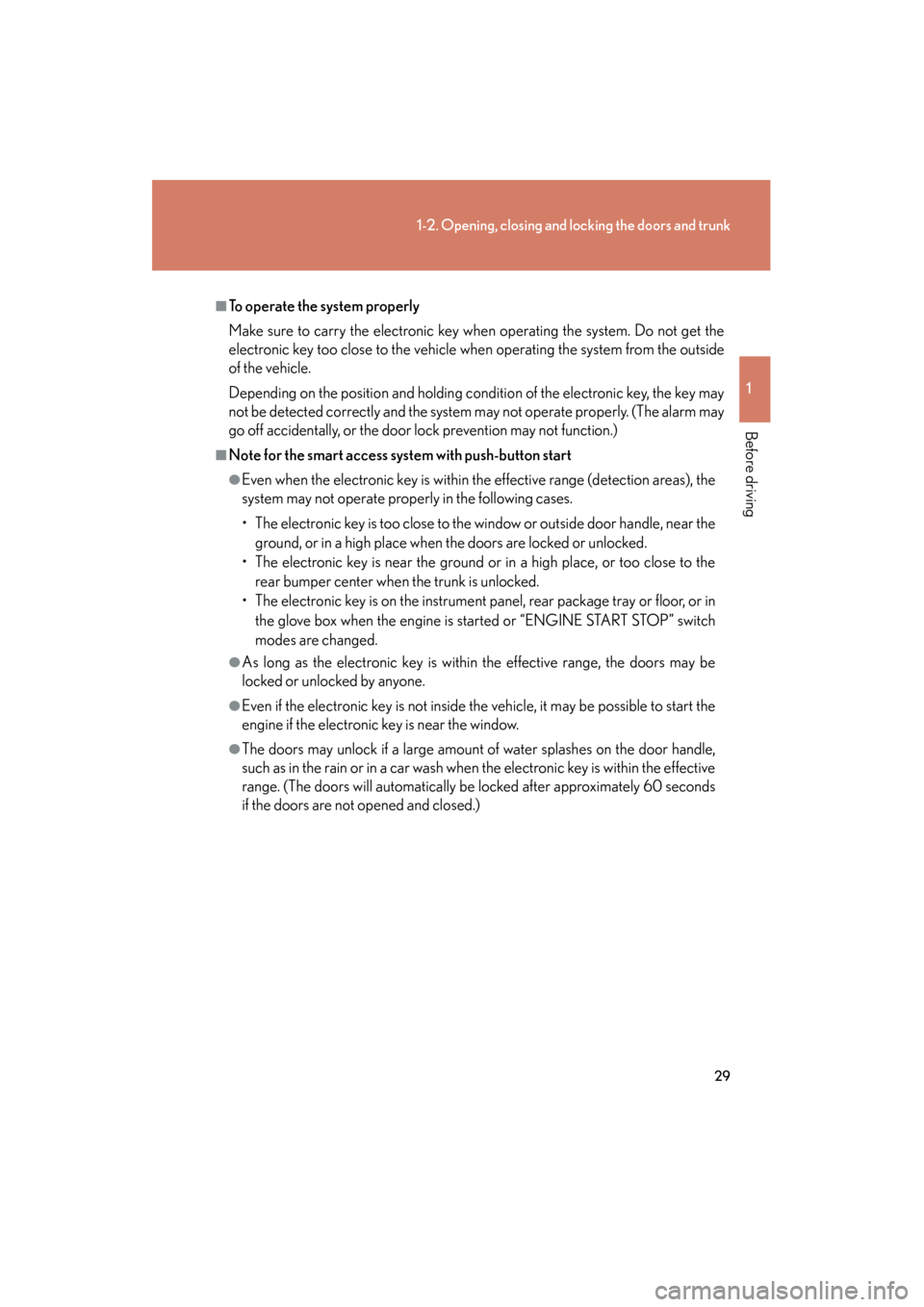

29
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■Note for the smart access system with push-button start
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the engine is started or “ENGINE START STOP” switch
modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
engine if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash when the electronic key is within the effective
range. (The doors will automatically be locked after approximately 60 seconds
if the doors are not opened and closed.)
GS_U_G.book Page 29 Thursday, June 19, 2008 12:54 PM

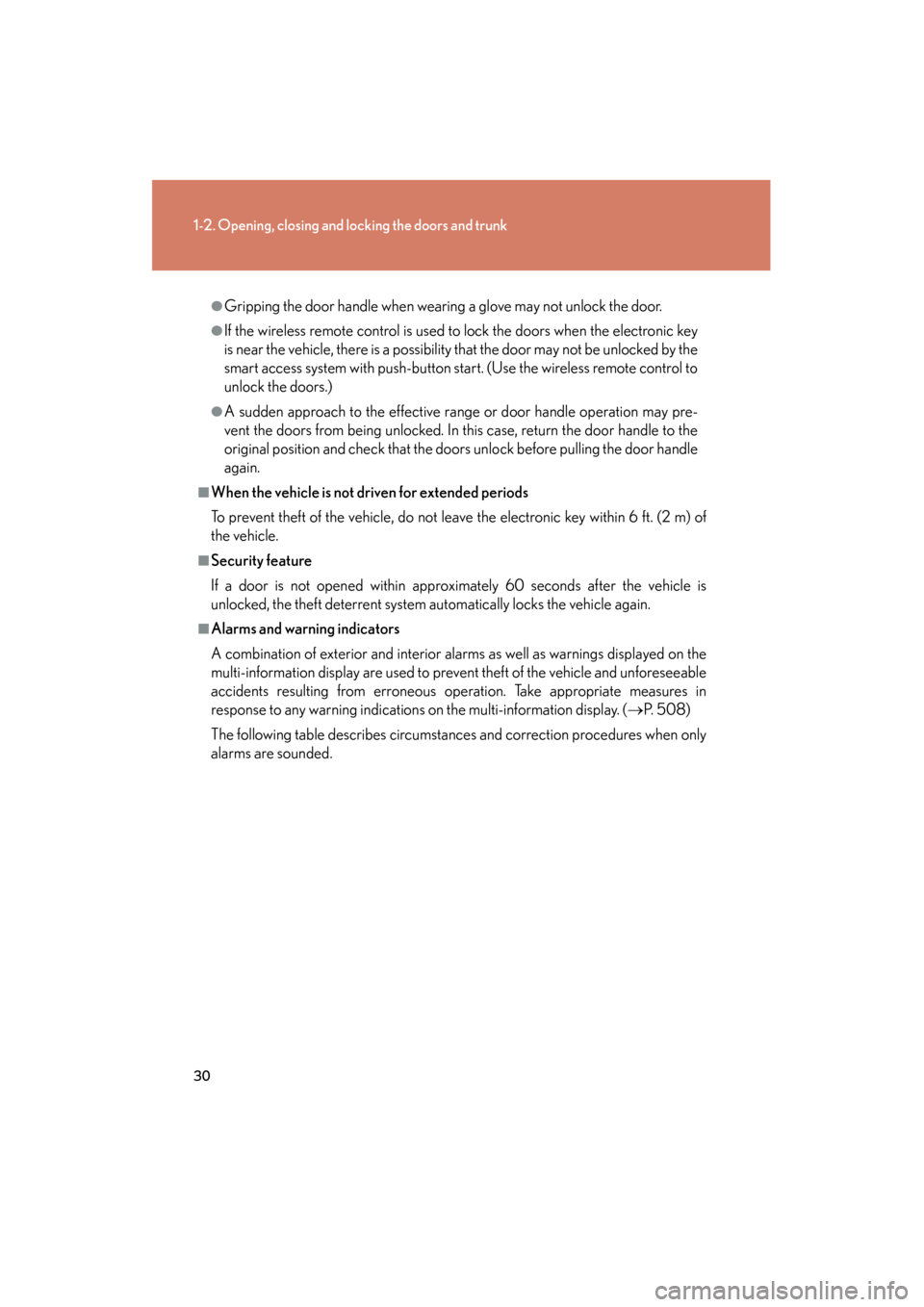

30
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
smart access system with push-button star t. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door handle
again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the theft deterrent system automatically locks the vehicle again.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( →P. 5 0 8 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
GS_U_G.book Page 30 Thursday, June 19, 2008 12:54 PM

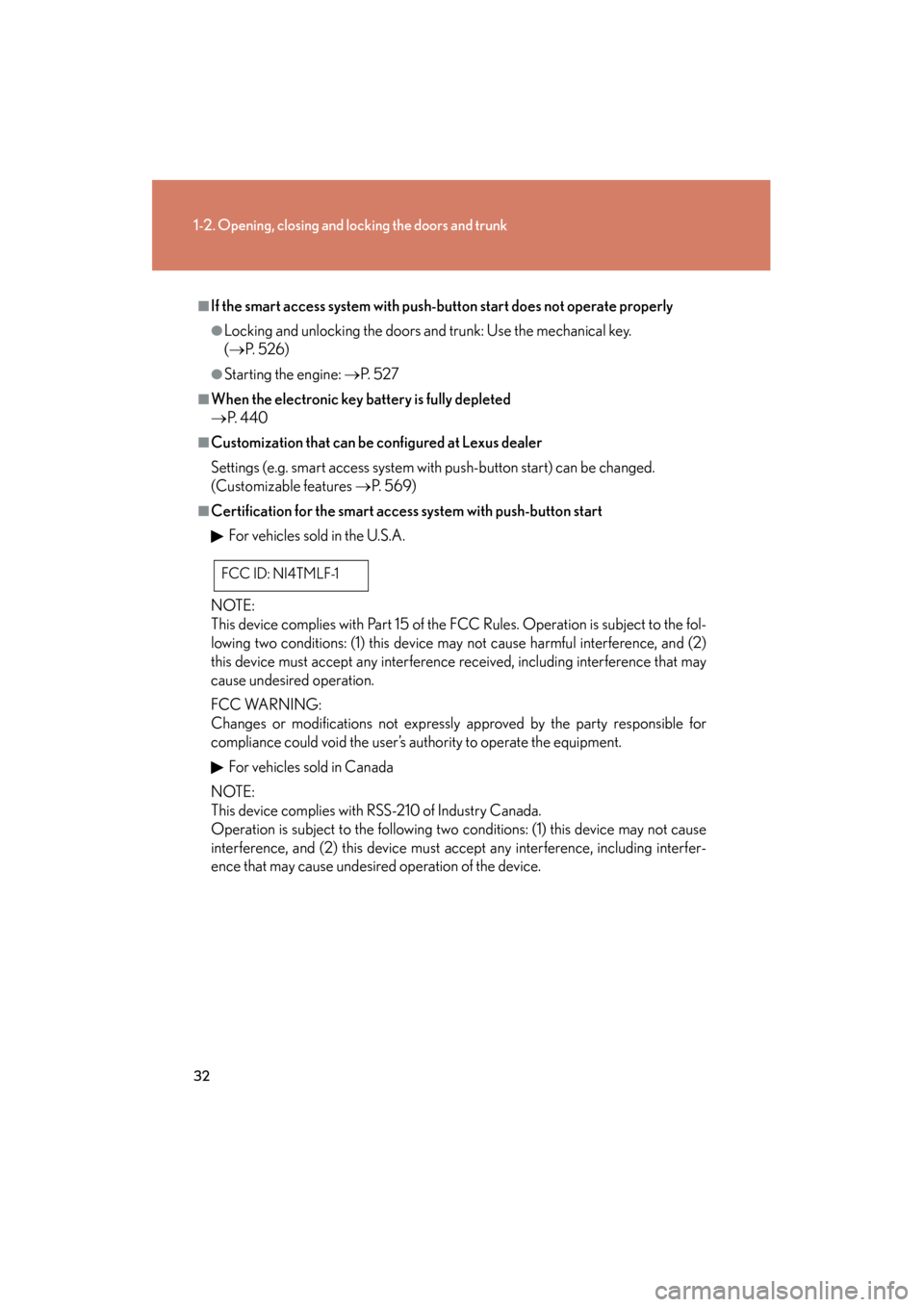

32
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 2 6 )
●Starting the engine: →P. 5 2 7
■When the electronic key battery is fully depleted
→P. 4 4 0
■Customization that can be configured at Lexus dealer
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 5 6 9 )
■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
NOTE:
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
FCC ID: NI4TMLF-1
GS_U_G.book Page 32 Thursday, June 19, 2008 12:54 PM

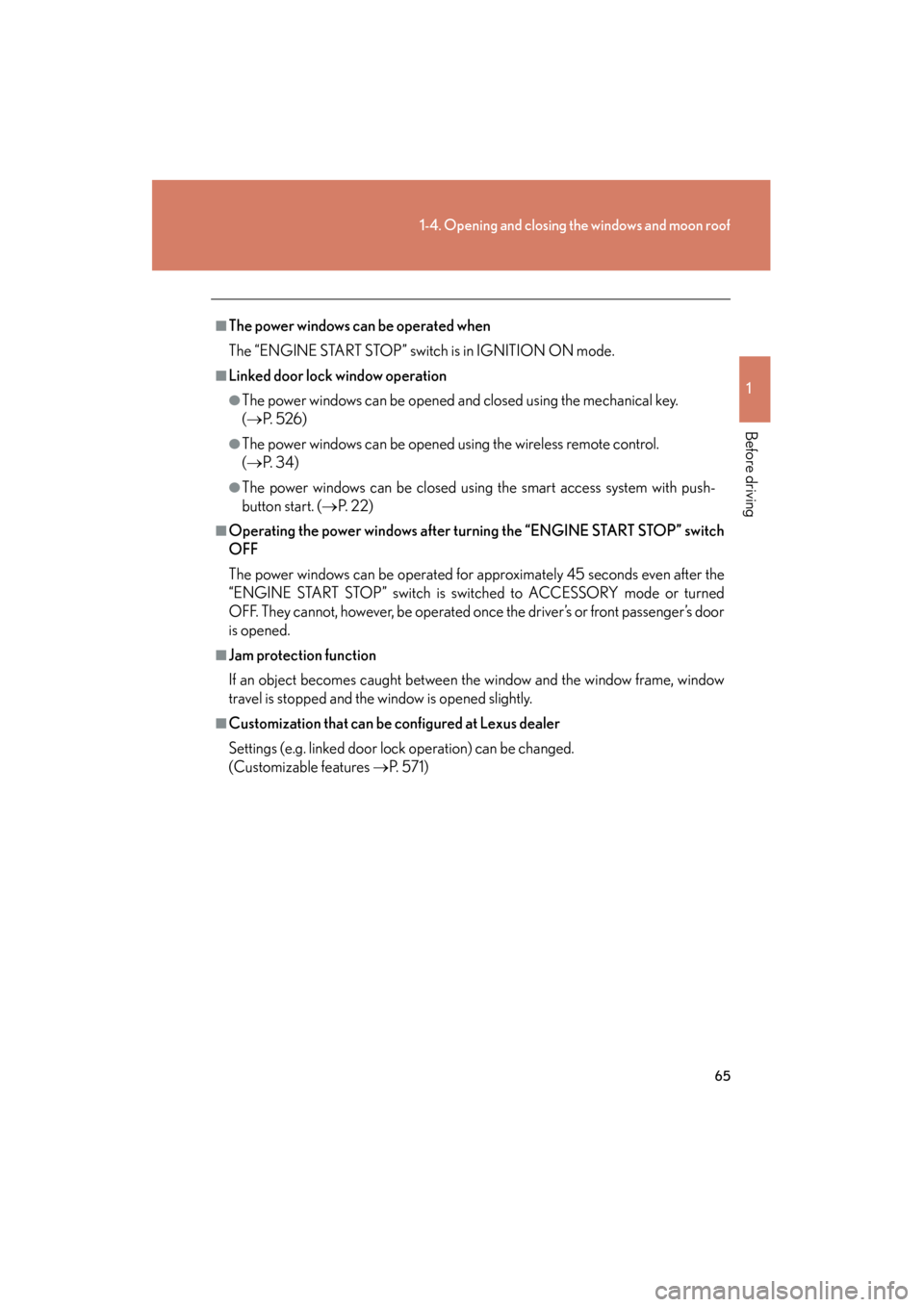

65
1-4. Opening and closing the windows and moon roof
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 5 2 6 )
●The power windows can be opened using the wireless remote control.
(→ P. 3 4 )
●The power windows can be closed using the smart access system with push-
button start. (→ P. 22)
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once the driver’s or front passenger’s door
is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 7 1 )
GS_U_G.book Page 65 Thursday, June 19, 2008 12:54 PM
