Page 23 of 598
22
GS_G_U
June 19, 2008 12:54 pm
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (→P. 2 3 )
Unlocks the trunk ( →P. 2 3 )
Starts and stops the engine ( →P. 121)
GS_U_G.book Page 22 Thursday, June 19, 2008 12:54 PM
Page 27 of 598
26
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
■Operation signals
●Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
●Windows and moon roof: A buzzer sounds when the windows and moon roof
begin to close.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to st op the buzzer, and lock the vehicle once
more.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between key and vehicle may be affected,
preventing the smart access system with push-button start and wireless remote
control from operating properly. (Way of coping: →P. 5 2 6 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key has come into contact with, or is covered by a metallic
object
●When multiple electronic keys are in the vicinity
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
●If window tint with a metallic content or metallic objects are attached to the rear
window
GS_U_G.book Page 26 Thursday, June 19, 2008 12:54 PM

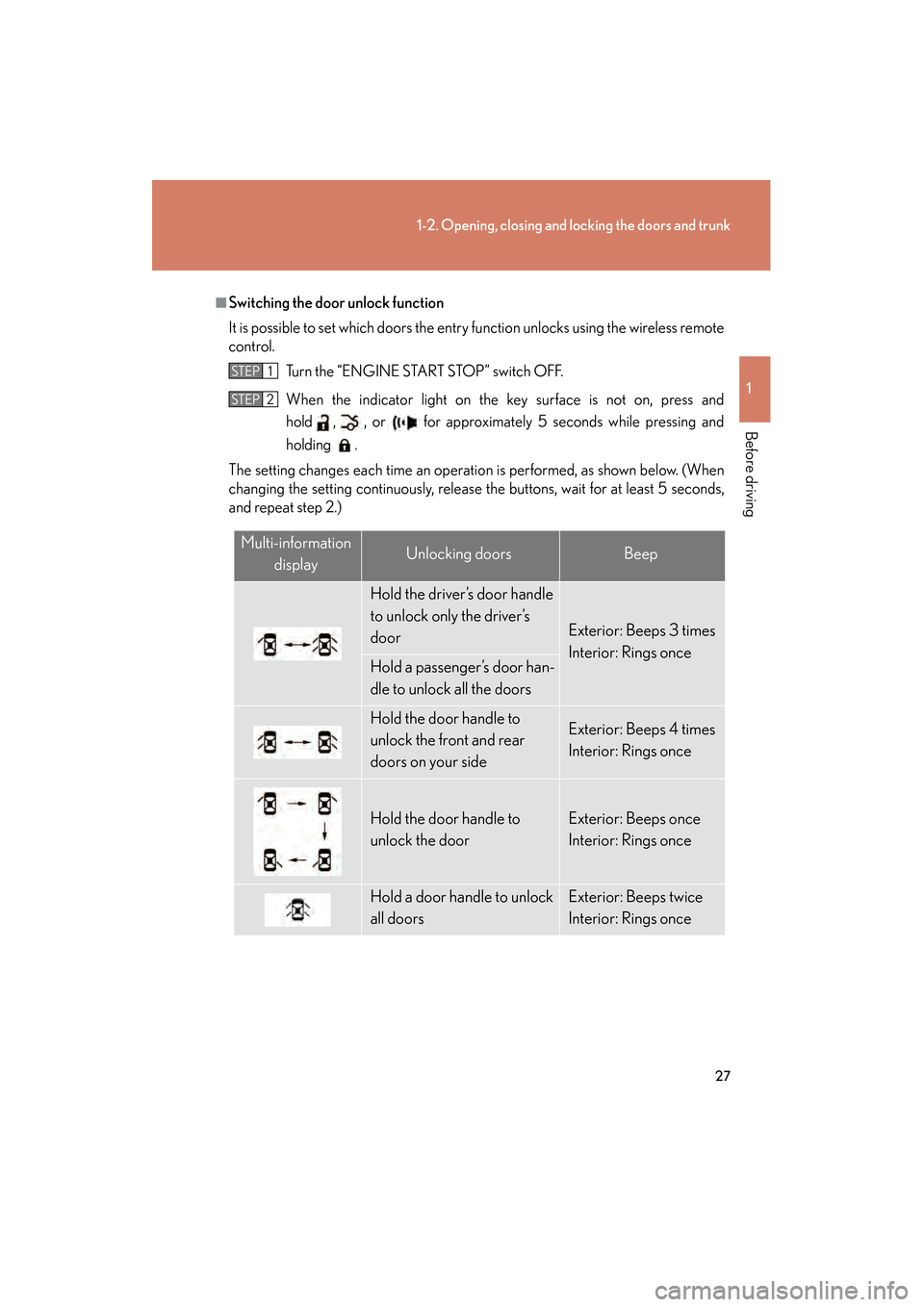

Page 28 of 598
27
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control. Turn the “ENGINE START STOP” switch OFF.
When the indicator light on the key surface is not on, press and
hold , , or for approximately 5 seconds while pressing and
holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
STEP1
STEP2
Multi-information displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear
doors on your sideExterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the doorExterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doorsExterior: Beeps twice
Interior: Rings once
GS_U_G.book Page 27 Thursday, June 19, 2008 12:54 PM
Page 29 of 598
28
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. (→P. 7 5 )
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 months or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch
●The vehicle is locked/unlocked using the wireless remote control function
( → P. 34) or the mechanical key ( →P. 5 2 6 )
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The battery becomes depleted even if
the electronic key is not used.) If the smart access system with push-button start
or the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. ( → P. 4 4 0 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
•Table lamps
STEP3
GS_U_G.book Page 28 Thursday, June 19, 2008 12:54 PM
Page 31 of 598
30
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
smart access system with push-button star t. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door handle
again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the theft deterrent system automatically locks the vehicle again.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( →P. 5 0 8 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
GS_U_G.book Page 30 Thursday, June 19, 2008 12:54 PM
Page 33 of 598
32
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 2 6 )
●Starting the engine: →P. 5 2 7
■When the electronic key battery is fully depleted
→P. 4 4 0
■Customization that can be configured at Lexus dealer
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 5 6 9 )
■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
NOTE:
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
FCC ID: NI4TMLF-1
GS_U_G.book Page 32 Thursday, June 19, 2008 12:54 PM

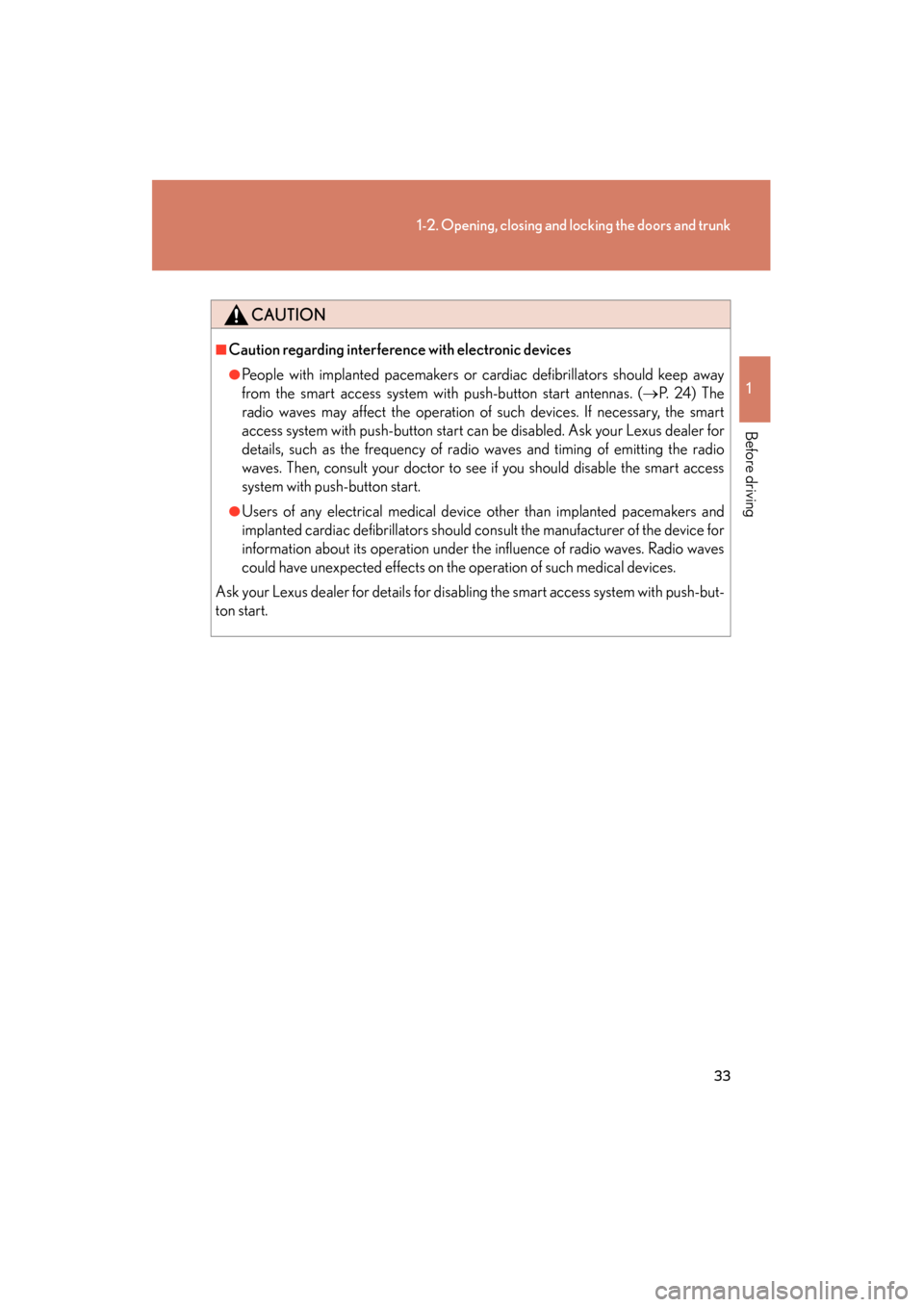

Page 34 of 598
33
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■Caution regarding interference with electronic devices
●People with implanted pacemakers or cardiac defibrillators should keep away
from the smart access system with push-button start antennas. (→P. 2 4 ) T h e
radio waves may affect the operation of such devices. If necessary, the smart
access system with push-button start can be disabled. Ask your Lexus dealer for
details, such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the smart access
system with push-button start.
●Users of any electrical medical device other than implanted pacemakers and
implanted cardiac defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves. Radio waves
could have unexpected effects on the operation of such medical devices.
Ask your Lexus dealer for details for disabling the smart access system with push-but-
ton start.
GS_U_G.book Page 33 Thursday, June 19, 2008 12:54 PM

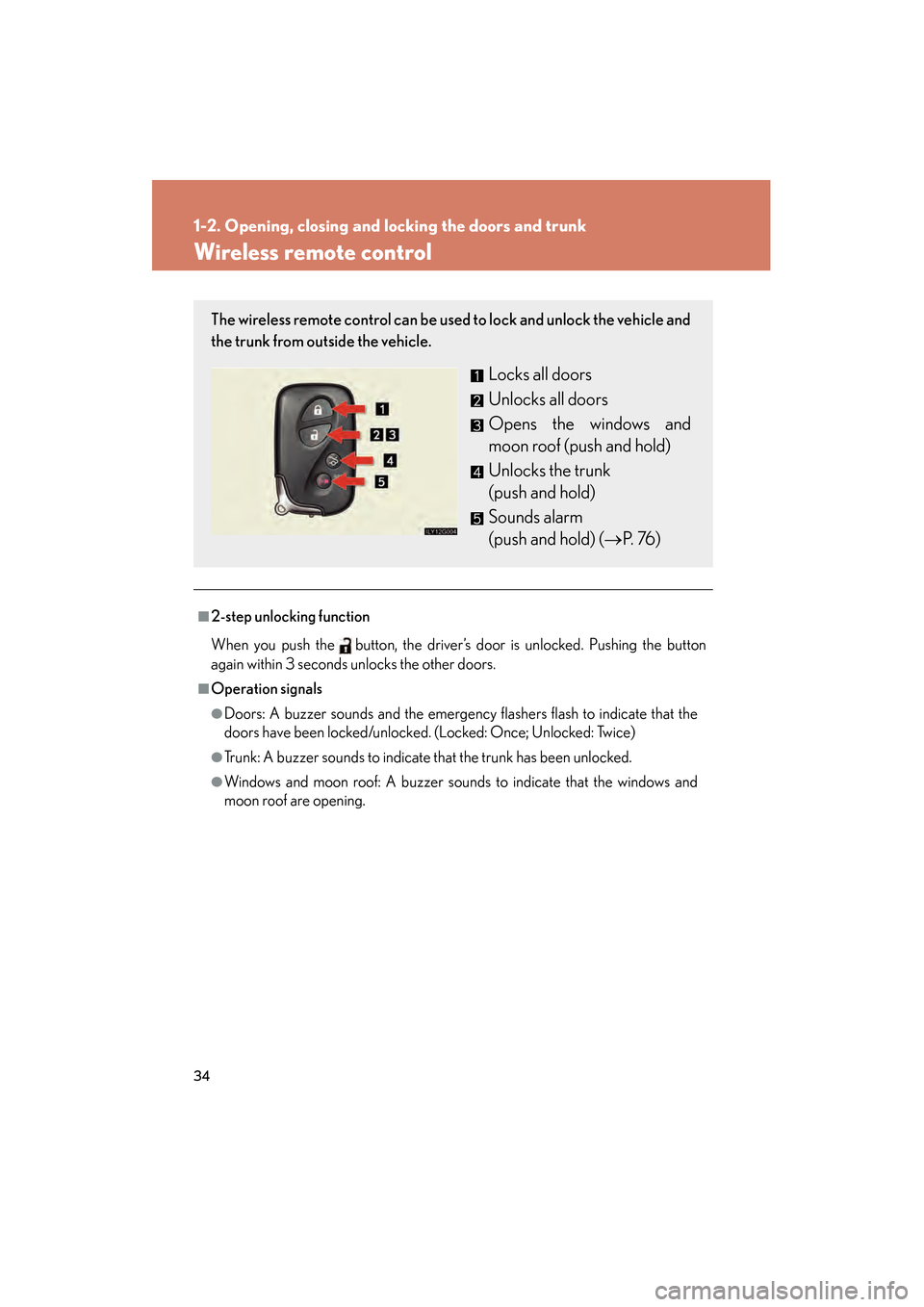

Page 35 of 598
34
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
Wireless remote control
■2-step unlocking function
When you push the button, the driver’s door is unlocked. Pushing the button
again within 3 seconds unlocks the other doors.
■Operation signals
●Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
●Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
●Windows and moon roof: A buzzer sounds to indicate that the windows and
moon roof are opening.
The wireless remote control can be used to lock and unlock the vehicle and
the trunk from outside the vehicle.
Locks all doors
Unlocks all doors
Opens the windows and
moon roof (push and hold)
Unlocks the trunk
(push and hold)
Sounds alarm
(push and hold) (→P. 76 )
GS_U_G.book Page 34 Thursday, June 19, 2008 12:54 PM

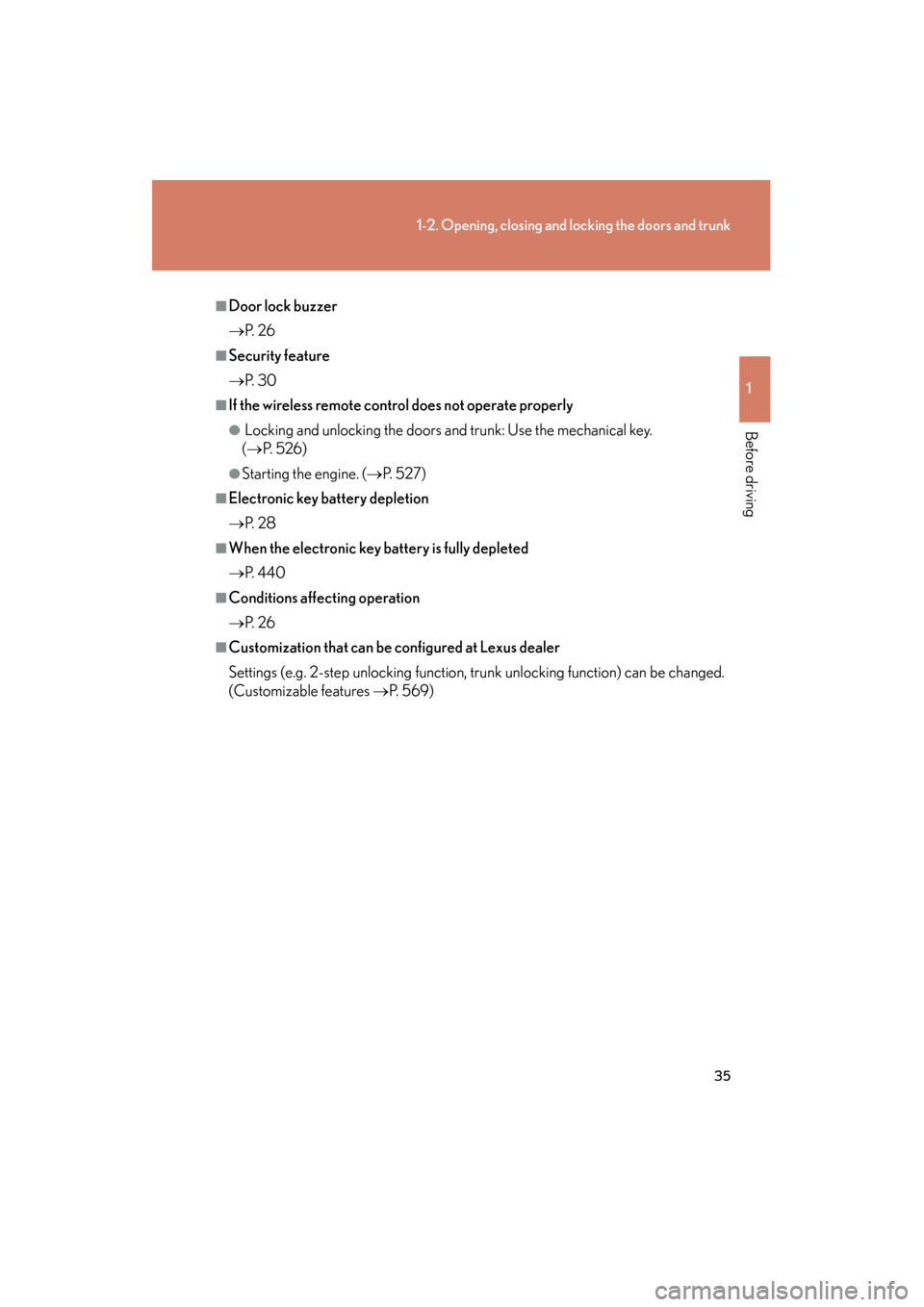

Page 36 of 598
35
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
■Door lock buzzer
→P. 2 6
■Security feature
→P. 3 0
■If the wireless remote control does not operate properly
● Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 2 6 )
●Starting the engine. ( →P. 5 2 7 )
■Electronic key battery depletion
→P. 2 8
■When the electronic key battery is fully depleted
→P. 4 4 0
■Conditions affecting operation
→P. 2 6
■Customization that can be configured at Lexus dealer
Settings (e.g. 2-step unlocking function, trunk unlocking function) can be changed.
(Customizable features →P. 5 6 9 )
GS_U_G.book Page 35 Thursday, June 19, 2008 12:54 PM

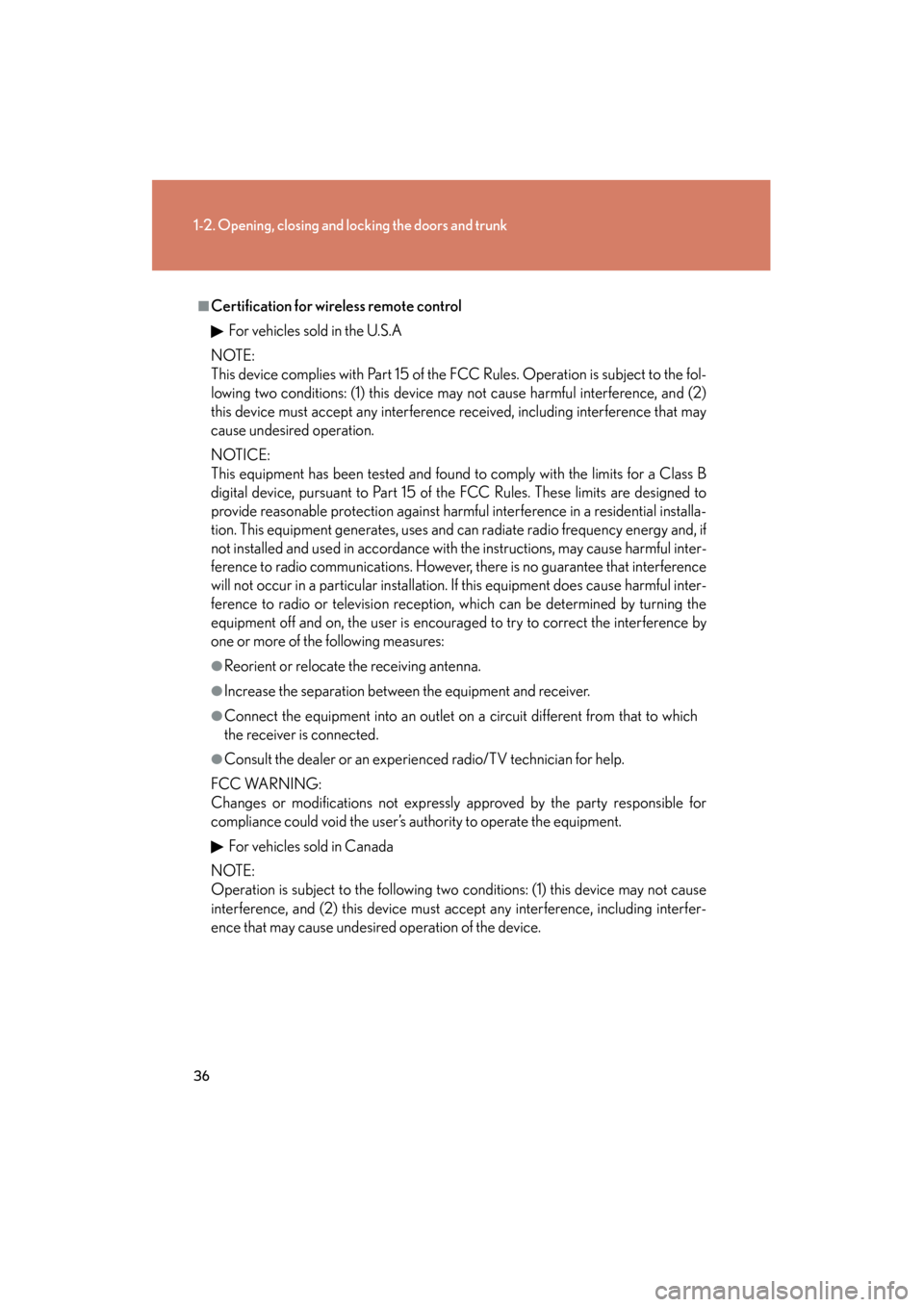

Page 37 of 598
36
1-2. Opening, closing and locking the doors and trunk
GS_G_U
June 19, 2008 12:54 pm
■Certification for wireless remote controlFor vehicles sold in the U.S.A
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
GS_U_G.book Page 36 Thursday, June 19, 2008 12:54 PM
