Page 5 of 598
TABLE OF CONTENTSIndex
4
GS_G_U
June 19, 2008 12:54 pm
3-4. Using the hands-free system (for cellular phone)................. 291
Hands-free system (for cellular phone) .................... 291
Using the Bluetooth
®
phone ............................................. 296
Setting the hands-free system ............................................... 311
3-5. Using the interior lights .......... 337 Interior lights list............................ 337
3-6. Using the storage features .... 340 List of storage features.............. 340
3-7. Other interior features........... 347 Sun visors......................................... 347
Vanity mirror ................................. 348
Clock ................................................. 349
Outside temperature display ........................................... 350
Ashtrays ............................................ 351
Cigarette lighter ........................... 352
Power outlet .................................. 353
Seat heaters/ventilators ............ 354
Armrest ........................................... 356
Rear sunshade ............................... 357
Floor mats....................................... 359
Trunk features............................... 360
Garage door opener.................. 363
Compass.......................................... 369
Lexus Link System ....................... 373 4-1. Maintenance and care........... 388
Cleaning and protecting the vehicle exterior.................. 388
Cleaning and protecting the vehicle interior ..................... 391
4-2. Maintenance.............................. 394 Maintenance requirements ..... 394
General maintenance ................ 396
Emission inspection and maintenance (I/M)
programs ...................................... 399
4-3. Do-it-yourself maintenance........................... 400
Do-it-yourself service precautions ................................. 400
Hood................................................. 403
Positioning a floor jack............... 404
Engine compartment................. 406
Tires .................................................... 421
Tire inflation pressure.................. 431
Wheels.............................................. 435
Air conditioning filter.................. 437
Electronic key battery ................ 440
Checking and replacing fuses ................................................ 442
Headlight aim................................. 467
Light bulbs ....................................... 470
4Maintenance and care
GS_U_G.book Page 4 Thursday, June 19, 2008 12:54 PM
Page 77 of 598
76
1-6. Theft deterrent system
GS_G_U
June 19, 2008 12:54 pm
■Items to check before locking the vehicle
To prevent unintended triggering of the alarm and vehicle theft, make sure of the
following.
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
●A person inside the vehicle opens a door, the trunk or hood.
●The 12 volt battery is recharged or replaced when the vehicle is locked.
■When the 12 volt battery is disconnected
Be sure to cancel the alarm system.
If the 12 volt battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■Pa n ic m o d eWhen is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.
GS_U_G.book Page 76 Thursday, June 19, 2008 12:54 PM
Page 105 of 598
104
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm

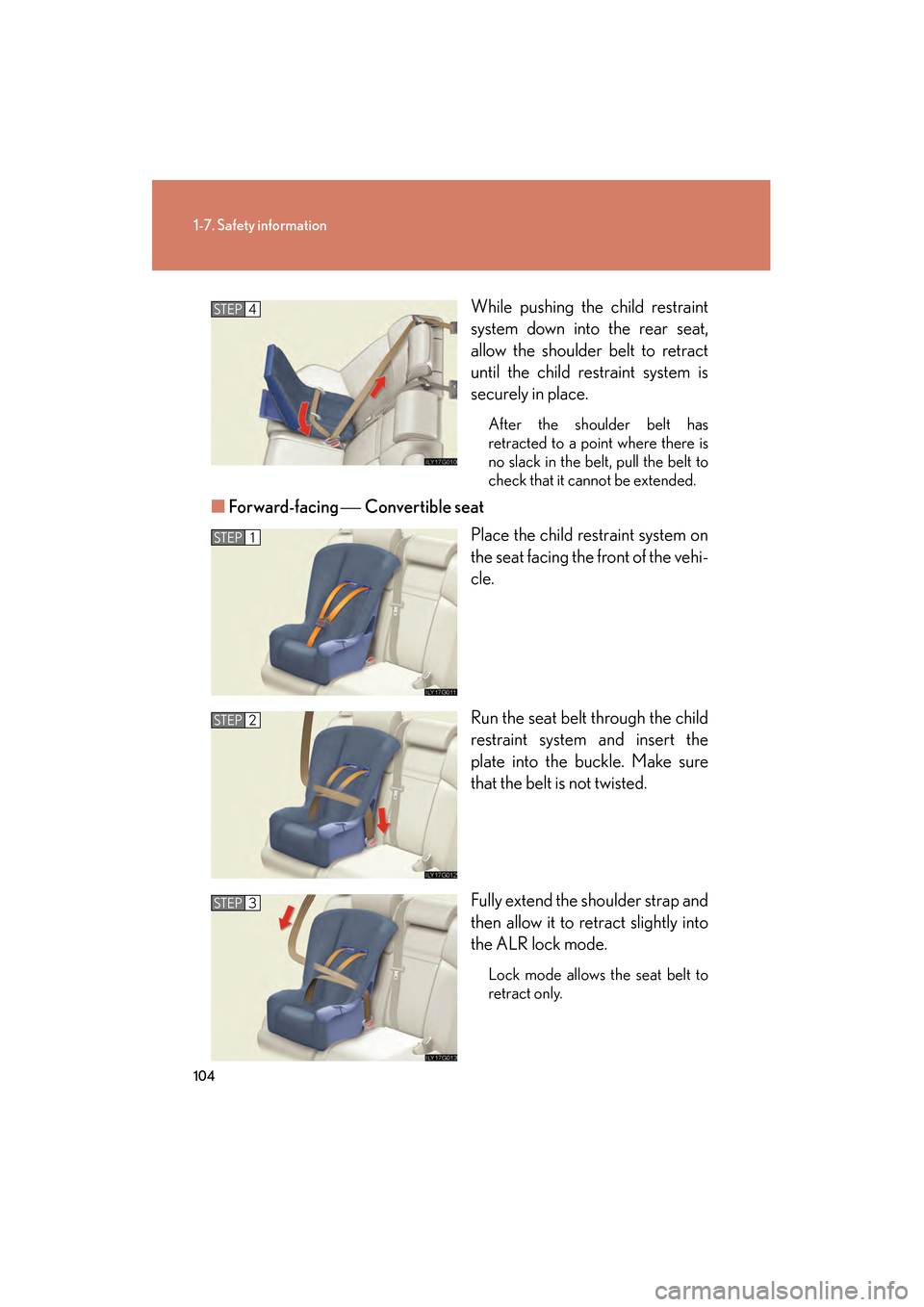

While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward-facing Convertible seat
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder strap and
then allow it to retract slightly into
the ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP4
STEP1
STEP2
STEP3
GS_U_G.book Page 104 Thursday, June 19, 2008 12:54 PM
Page 115 of 598
114
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm

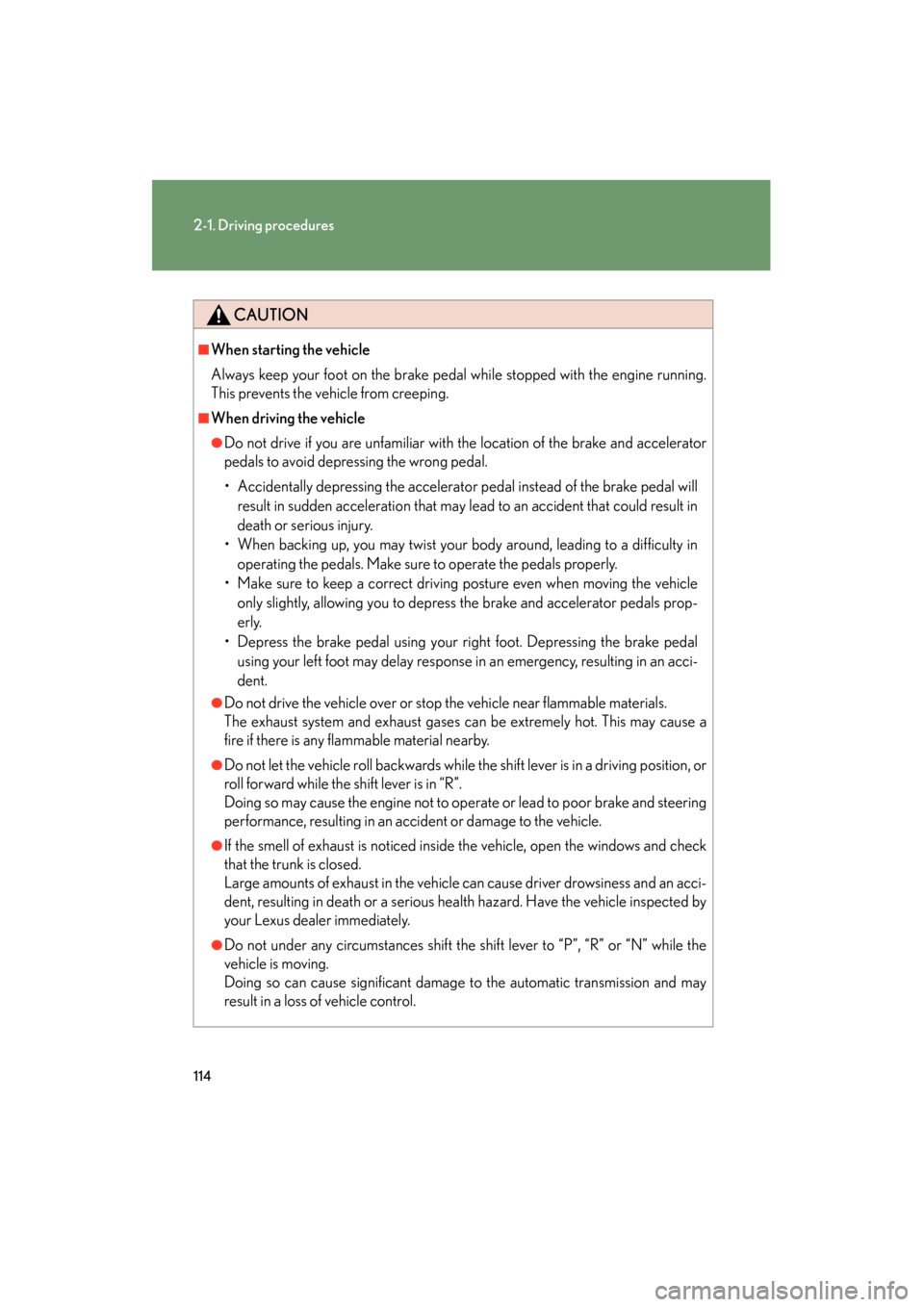

CAUTION
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running.
This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal willresult in sudden acceleration that may lead to an accident that could result in
death or serious injury.
• When backing up, you may twist your body around, leading to a difficulty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly, allowing you to depress the brake and accelerator pedals prop-
erly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using your left foot may delay response in an emergency, resulting in an acci-
dent.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may cause a
fire if there is any flammable material nearby.
●Do not let the vehicle roll backwards while the shift lever is in a driving position, or
roll forward while the shift lever is in “R”.
Doing so may cause the engine not to operate or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
●If the smell of exhaust is noticed inside the vehicle, open the windows and check
that the trunk is closed.
Large amounts of exhaust in the vehicle can cause driver drowsiness and an acci-
dent, resulting in death or a serious health hazard. Have the vehicle inspected by
your Lexus dealer immediately.
●Do not under any circumstances shift the sh ift lever to “P”, “R” or “N” while the
vehicle is moving.
Doing so can cause significant damage to the automatic transmission and may
result in a loss of vehicle control.
GS_U_G.book Page 114 Thursday, June 19, 2008 12:54 PM
Page 139 of 598
138
2-2. Instrument cluster
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you turn to IGNITION ON mode, this could mean that these sys-
tems are not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Lexus dealer immediately if
this occurs.

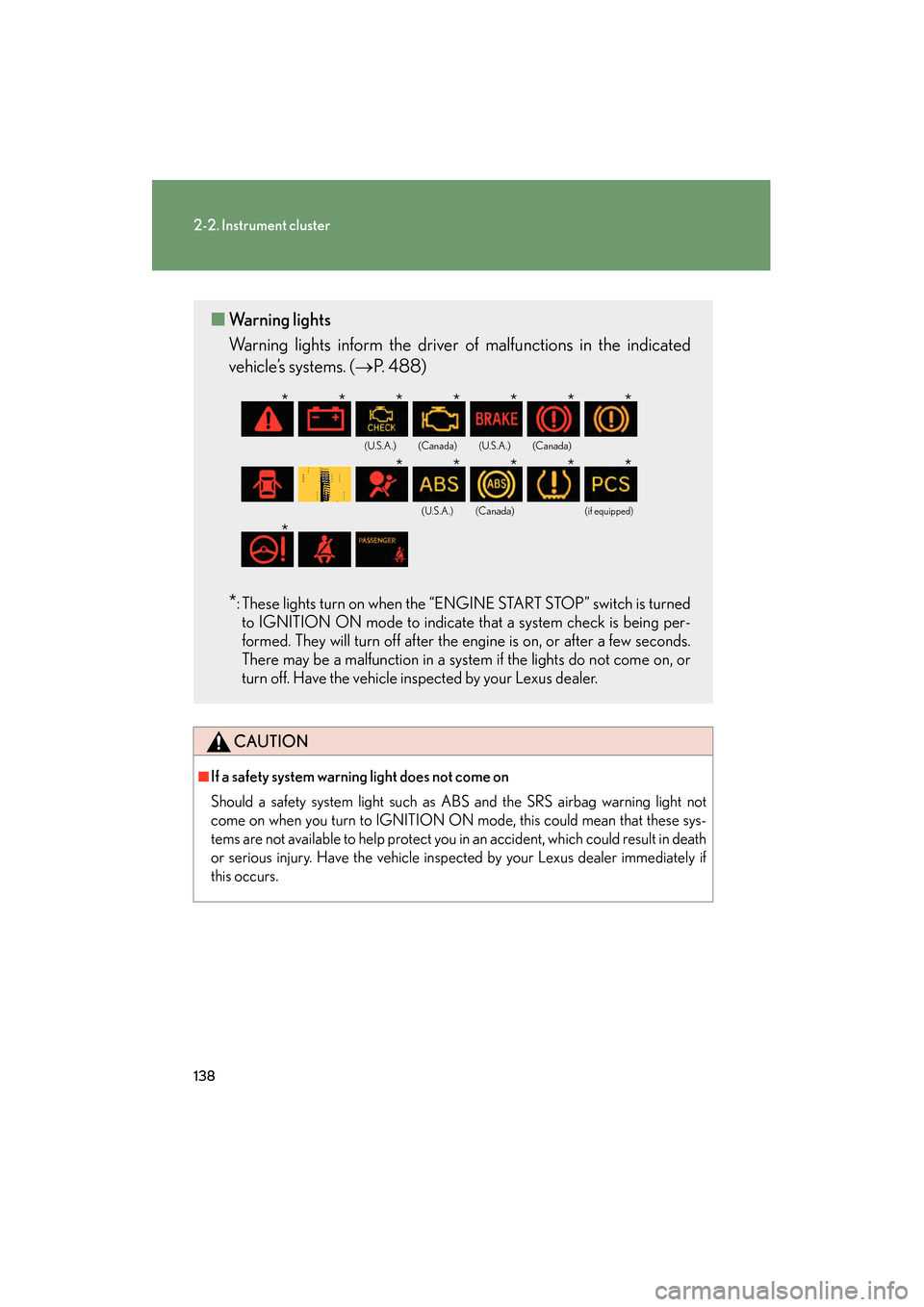

■Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( →P. 4 8 8 )
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or
turn off. Have the vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(if equipped)
*******
*****
*
GS_U_G.book Page 138 Thursday, June 19, 2008 12:54 PM
Page 149 of 598
148
2-3. Operating the lights and windshield wipers
GS_G_U
June 19, 2008 12:54 pm

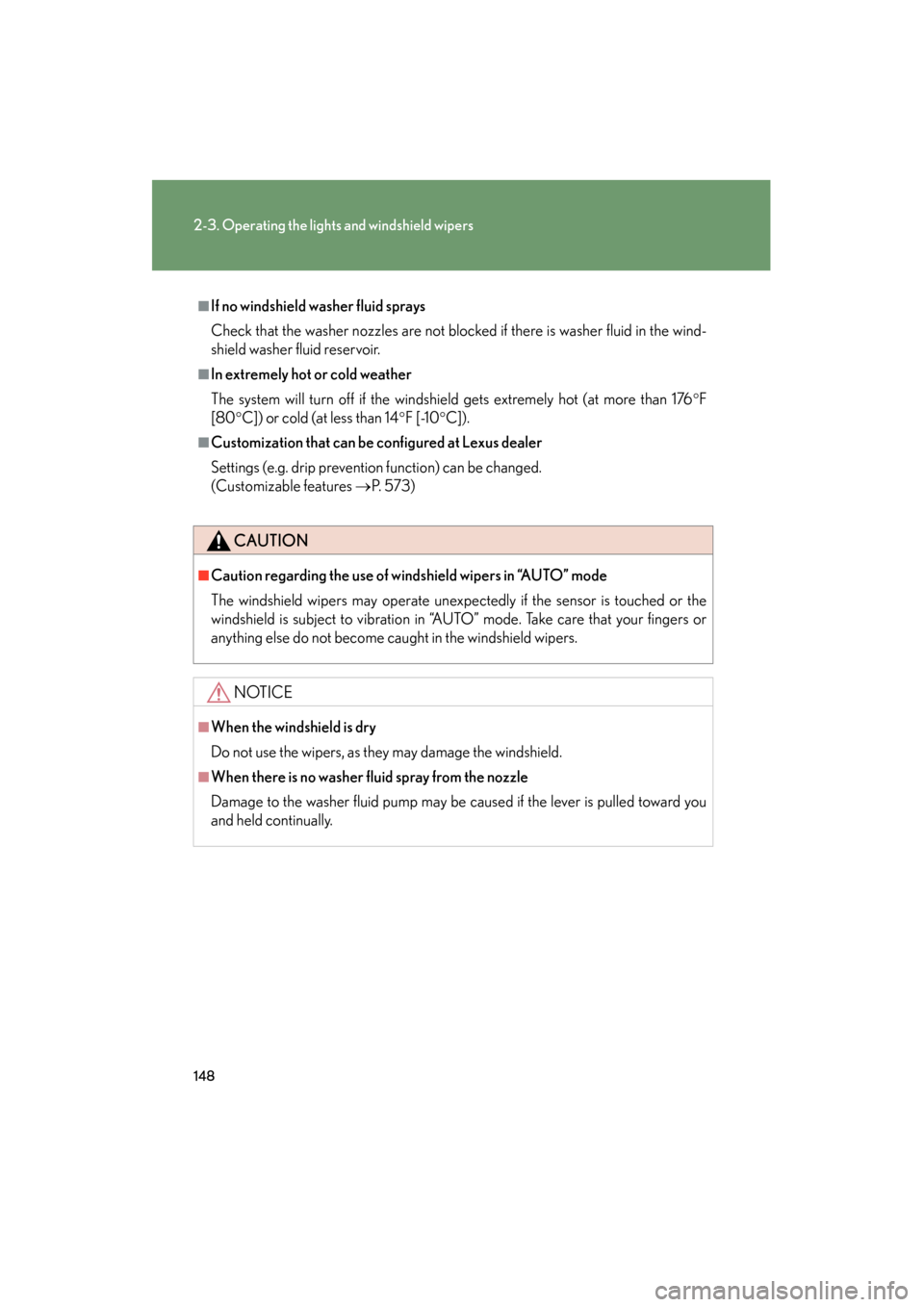

■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (at more than 176°F
[80 °C]) or cold (at less than 14 °F [-10 °C]).
■Customization that can be configured at Lexus dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features →P. 5 7 3 )
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
GS_U_G.book Page 148 Thursday, June 19, 2008 12:54 PM
Page 182 of 598
181
2-4. Using other driving systems
2
When driving
GS_G_U
June 19, 2008 12:54 pm
CAUTION

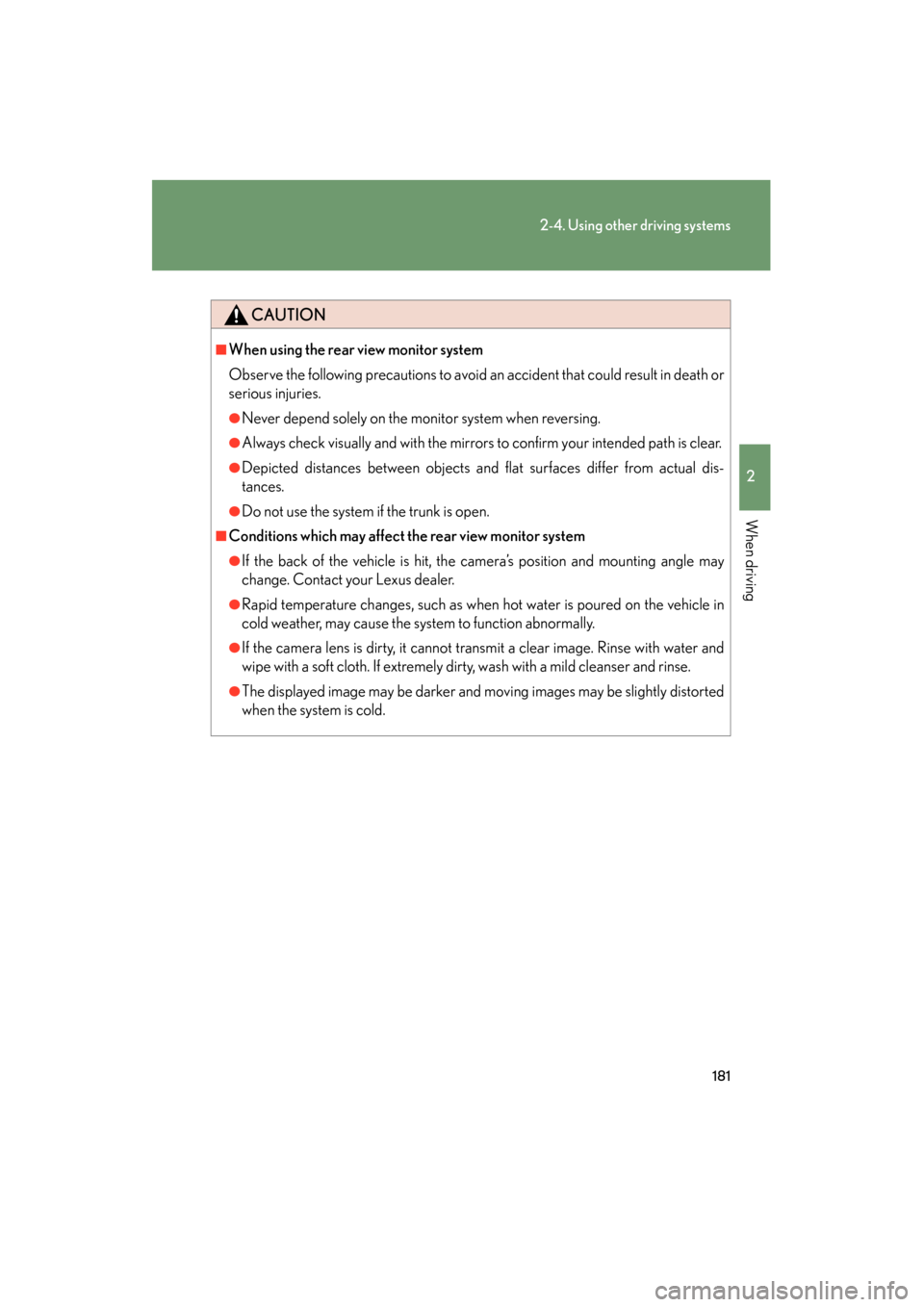

■When using the rear view monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend solely on the monitor system when reversing.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the trunk is open.
■Conditions which may affect the rear view monitor system
●If the back of the vehicle is hit, the camera’s position and mounting angle may
change. Contact your Lexus dealer.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse.
●The displayed image may be darker and moving images may be slightly distorted
when the system is cold.
GS_U_G.book Page 181 Thursday, June 19, 2008 12:54 PM
Page 194 of 598
193
2-4. Using other driving systems
2
When driving
GS_G_U
June 19, 2008 12:54 pm
CAUTION

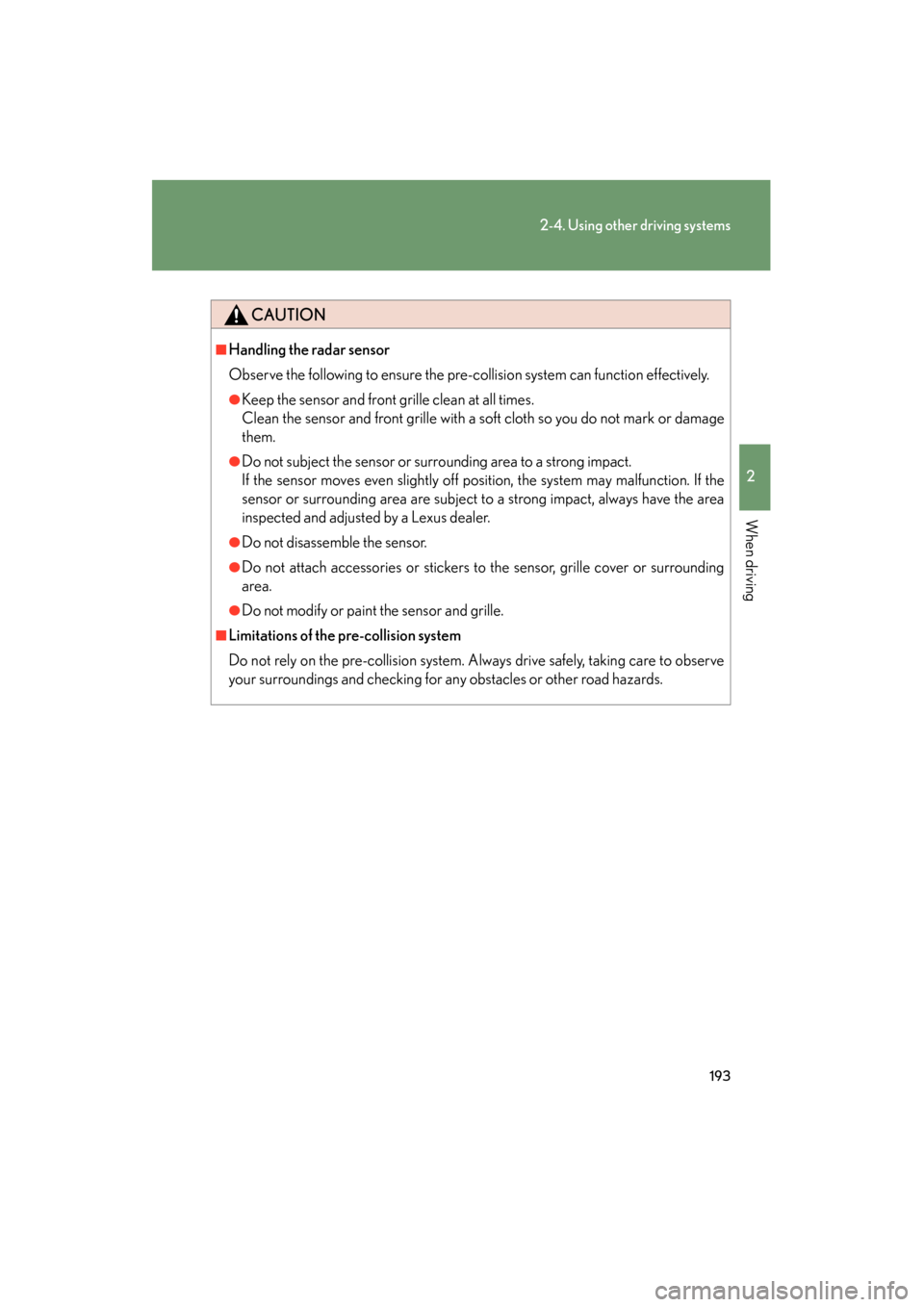

■Handling the radar sensor
Observe the following to ensure the pre-collision system can function effectively.
●Keep the sensor and front grille clean at all times.
Clean the sensor and front grille with a soft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area are subject to a strong impact, always have the area
inspected and adjusted by a Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille cover or surrounding
area.
●Do not modify or paint the sensor and grille.
■Limitations of the pre-collision system
Do not rely on the pre-collision system. Always drive safely, taking care to observe
your surroundings and checking for any obstacles or other road hazards.
GS_U_G.book Page 193 Thursday, June 19, 2008 12:54 PM
Page 365 of 598
364
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm

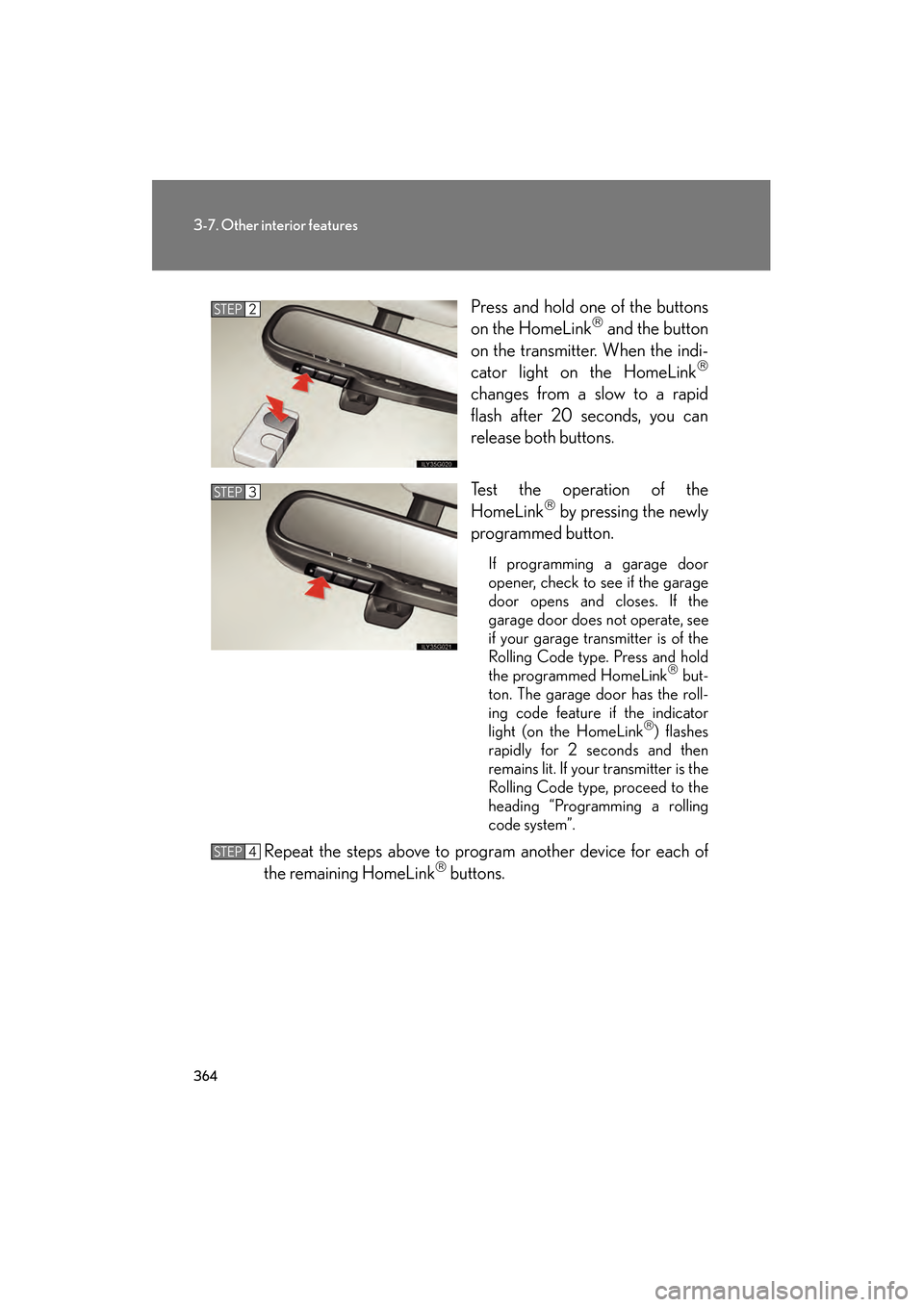

Press and hold one of the buttons
on the HomeLink and the button
on the transmitter. When the indi-
cator light on the HomeLink
changes from a slow to a rapid
flash after 20 seconds, you can
release both buttons.
Test the operation of the
HomeLink
by pressing the newly
programmed button.
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate, see
if your garage transmitter is of the
Rolling Code type. Press and hold
the programmed HomeLink
but-
ton. The garage door has the roll-
ing code feature if the indicator
light (on the HomeLink
) flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is the
Rolling Code type, proceed to the
heading “Programming a rolling
code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP2
STEP3
STEP4
GS_U_G.book Page 364 Thursday, June 19, 2008 12:54 PM
Page 367 of 598
366
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm
■Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink
compatible trans-
ceiver starts to flash rapidly, release the buttons.
Test the operation of the HomeLink
by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your authorized Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Basic program-
ming” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GS_U_G.book Page 366 Thursday, June 19, 2008 12:54 PM
